Allied Healthcare Timeter Aridyne 2000 Medical Air Compressor

Key Features

SKU: AHC-TE20
Condition:

Condition: Factory New
Weight: 157.0 lb
Learn more:

Contact The Manufacturer

MFR: Allied Healthcare

Ships from Manufacturer
MPN: TE20
Phone: (800) 444-3954

$4,550.00

Select a Model

Variant

Item Discontinued

<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Shop with Confidence

Description

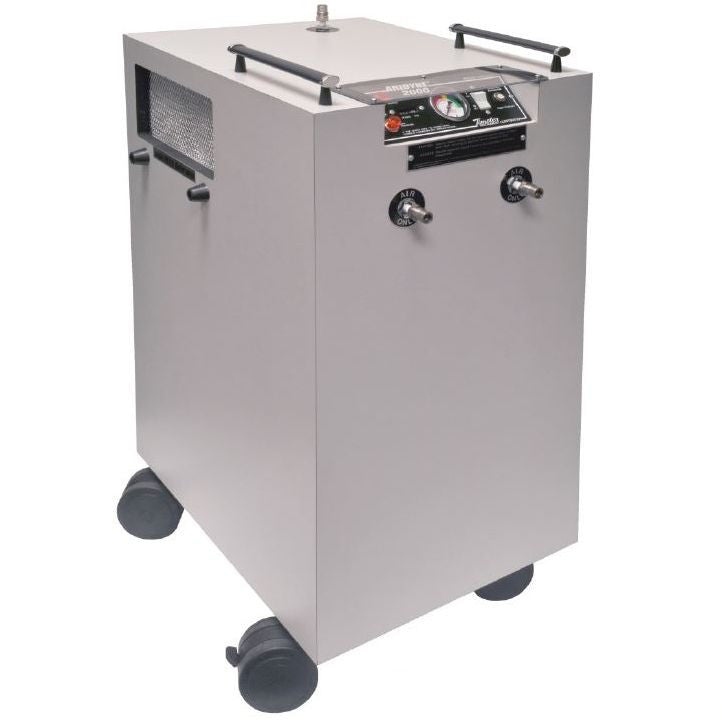

The Allied Healthcare Timeter Aridyne 2000 Medical Air Compressor is a convenient bedside air compressor system that is both mobile and can replace a piped medical air system. A circuit breaker, elapsed time indicator, and thermal overload protector are also included.

Warranty: 1 Year - Free from Material Defects in Material and Workmanship.

The Timeter Aridyne 2000 is one of the quietest air compressors available, thanks to a unique design that keeps the internal chambers and pumps suspended for less noise. It's a hospital-grade system that can be utilized in the home or hospital for drawing and filtering ambient air for patient needs. The air is transferred through DISS air check valves at a pressure of 50 psi, with flow rates available up to and over 42 lpm. When air is taken in, it's compressed to 80 psi and sent through cooling coils to condense the moisture. The condensation is trapped and drained away automatically, and the air that's left is raised to 50 psi to be delivered out to other attached medical devices.

The Aridyne 2000 has both visual and audible alarm systems that alert users to high temperatures or low pressure changes in the system. The air compressor can also be used continuously for 24 hours a day, 7 days a week.

Features

Allied Healthcare Timeter Aridyne 2000 Medical Air Compressor Features

Automatically removes moisture from compressed air via the internal condensation trap.
Air pump filter cleans air and maintains quiet operation.
Contains audio and visual alarms in case of high temperature changes or low pressure.
Three DISS medical air outlets.

Specifications

Allied Healthcare Timeter Aridyne 2000 Medical Air Compressor Specifications

Continuous Flow: 56 lpm.
Pressure: 50 psi.
Dimensions: 17" (W) x 21.5" (D) x 34.5" (H) (43.2 cm x 54.6 cm x 87.6 cm).

Configurations

Allied Healthcare Timeter Aridyne 2000 Medical Air Compressor Configurations

#TE20: 115 V / 60 Hz [157 lb (71.2 kg)].
#TE69: 220 V / 50 Hz [161 lb (72.6 kg)].
#T11604: 230 V / 60 Hz [161 lb (72.6 kg)].

Accessories

Allied Healthcare Timeter Aridyne 2000 Medical Air Compressor Accessories

The Timeter Aridyne 2000 Medical Air Compressor is typically purchased with the following items. Please note that these are NOT included with the Timeter Aridyne 2000. They are sold separately.

#T901-405: Replacement Intake Air Filter - Foam.
#12-80-3011: Oxygen Check Valve Outlet (DISS male and 1/8" NPT female).
#12-80-3111: Air Check Valve Outlet (DISS Male and 1/8" NPT female).

Replacement Parts

The following are replacement parts for worn or broken components of the Aridyne 2000 system. These parts are sold separately.

#TZ104: Allied Healthcare Timeter Aridyne 2000 Preventive Maintenance Kit.
#T648-301: Allied Healthcare Timeter Aridyne 2000 Replacement Air Deflector.
#T12149: Allied Healthcare Timeter Aridyne 2000 Replacement Blower Assembly.
#T11286: Allied Healthcare Timeter Aridyne 2000 Replacement Bulkhead Adapter Assembly.
#T12001: Allied Healthcare Timeter Aridyne 2000 Replacement Compressor Overhaul Kit.
#T990-411: Allied Healthcare Timeter Aridyne 2000 Replacement Cylinder.
#T990-427: Allied Healthcare Timeter Aridyne 2000 Replacement Fan Blade.
#T990-428: Allied Healthcare Timeter Aridyne 2000 Replacement Fan Shroud.
#T990-431: Allied Healthcare Timeter Aridyne 2000 Replacement Piston and Rod Assembly.
#T510-502: Allied Healthcare Timeter Aridyne 2000 Replacement Power Switch.
#T12156: Allied Healthcare Timeter Aridyne 2000 Replacement Pressure Gauge.
#T990-434: Allied Healthcare Timeter Aridyne 2000 Replacement Pressure Relief Valve.
#T580-501: Allied Healthcare Timeter Aridyne 2000 Replacement Pressure Switch.
#T12152: Allied Healthcare Timeter Aridyne 2000 Replacement Pump Inlet Filter Assembly.
#T613-005: Allied Healthcare Timeter Aridyne 2000 Replacement Shipping Carton.
#T026-116: Allied Healthcare Timeter Aridyne 2000 Replacement Splash Shield.
#T611-309: Allied Healthcare Timeter Aridyne 2000 Replacement Suspension Spring.
#T586-501: Allied Healthcare Timeter Aridyne 2000 Replacement Thermostat.
#T8134: Allied Healthcare Timeter Aridyne 2000 Replacement Time Elapsed Indicator.
#T028-118: Allied HealthcareTimeter Aridyne 2000 Replacement Compressor with Suspension.
#T326-201: Allied Healthcare Timeter Aridyne 2000 Replacement DC, 6-Volt Battery.
Allied Healthcare Timeter Aridyne 2000 Replacement Sealing Sleeve.

Literature

Allied Healthcare Timeter Aridyne 2000 Medical Air Compressor Literature

Allied Healthcare Timeter Aridyne Medical Air Compressor Brochure

Frequently asked questions

Is it designed for constant use?

Yes, the Timeter Aridyne 2000 is designed for 24/7 continuous operation, ensuring a consistent supply of medical-grade air whenever needed.

How many DISS medical air outlets are provided?

The Allied Healthcare Timeter Aridyne 2000 Medical Air Compressor is equipped with three DISS medical air outlets. This allows for the simultaneous connection of multiple medical devices requiring regulated 50 psi air supply.

Does this medical air compressor include critical safety alarms?

Yes, the Timeter Aridyne 2000 includes robust safety and monitoring features essential for continuous, hospital-grade performance:

Audible and Visual Alarms: The system provides immediate alerts for critical condition changes, specifically warning users about high temperature or low pressure fluctuations.
System Protection: The unit also safeguards its internal components with a built-in circuit breaker and a thermal overload protector.

Does it have a usage time indicator?

Yes, the Timeter Aridyne 2000 includes an elapsed time indicator to track its operational hours, ensuring you can monitor usage accurately.

Is robust circuit breaker protection included?

Yes, the Allied Healthcare Timeter Aridyne 2000 is engineered for continuous 24/7 operation and includes robust internal protection features to ensure safety and longevity.

Key safety and monitoring components include:

Circuit Breaker: Provides essential electrical fault protection for the unit.
Thermal Overload Protector: Safeguards the motor and internal systems against damage due to excessive heat.

Additionally, the unit features audio and visual alarms that instantly notify users of critical operational issues, such as high temperature or low system pressure. An elapsed time indicator is also included for maintenance tracking.

Is this a new product?

Yes, it’s a factory new product from Allied Healthcare, ensuring you receive a brand-new unit with full functionality.

Is it suitable for continuous use?

Yes, the compressor is designed for 24/7 continuous operation, making it highly reliable for ongoing medical needs.

Does it have a reliable alarm system?

The system features both audio and visual alarms that activate in case of high temperature or low pressure, alerting users to potential issues.

Is the operation truly quiet?

It is designed with a unique system that suspends internal chambers and pumps, significantly reducing operational noise for a quieter environment.

Is the compressor easily mobile?

Yes, the Allied Healthcare Timeter Aridyne 2000 Medical Air Compressor is designed for easy mobility, making it suitable for bedside use and flexible deployment. It is equipped with four black wheels for convenient transport within healthcare facilities or home settings.
