Allied Healthcare PCS-414 Medical Air Compressor

Allied Healthcare PCS-414 Medical Air Compressor  230 V
Allied Healthcare PCS-414 Medical Air Compressor
Allied Healthcare PCS-414 Medical Air Compressor  115 V - With J Bracket
Allied Healthcare PCS-414 Medical Air Compressor  230 V
Allied Healthcare PCS-414 Medical Air Compressor
Allied Healthcare PCS-414 Medical Air Compressor  115 V - With J Bracket
Key Features
  • SKU: AHC-T14614
  • Condition:
    Condition: Factory New
  • Warranty:
    Warranty: 1 Year
  • Weight: 26.5 lb

  • Learn more:

Contact The Manufacturer
  • MFR: Allied Healthcare
    Ships from Manufacturer
  • MPN: T14614
  • Phone: (800) 444-3954
$1,270.10 $1,170.86
Select a Configuration
Est. Delivery:

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

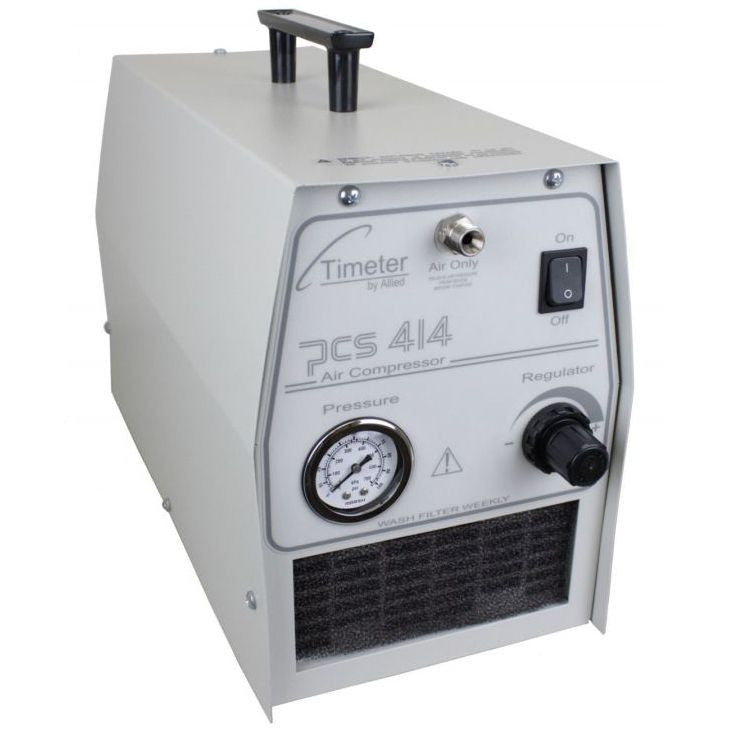

The Allied Healthcare PCS 414 Medical Air Compressor is a portable air compressor delivers hospital grade performance in a quiet and durable package. Ideal for continuous use in the professional environment, or as a sturdy home-care rental unit.

Warranty: 1 Year - Parts and Labor.

The PCS 414 features a sound-dampened steel case which is designed to be quiet and lightweight while minimizing potential for damage. The PCS 414 has been engineered for longevity, and is rated for continuous or intermittent use at an output rating of 14 lpm at 50 psig. In addition, the heavy-duty bearings are lubricated for 24 hour use, 365 days a year. It's vibration-free with an easy-to-read pressure gauge, and contains a dial-and-lock pressure regulator that ensures controlled pressure and air flow settings. It's hospital-grade performance in a compact, durable package.

Features

Allied Healthcare PCS 414 Medical Air Compressor Features

  • Designed to operate 24 hours a day, 365 days a year.
  • The PCS 414 features a hospital grade plug and meets UL 60601-1 for institutional use.
  • A vibration-free 0-100 psi gauge.
  • Cool-running and lightweight, the PCS 414 is ideal for use with high-pressure and low-pressure aerosol.
  • Can be used in a hospital or home setting.

Specifications

Allied Healthcare PCS 414 Medical Air Compressor Specifications

  Domestic Model - 115 V, 60 Hz International Model - 230 V, 50 - 60 Hz
Dimensions 8.5" (W) x 21" (D) x 13.5" (H)
(21.6 cm x 53.3 cm x 34.3 cm)		 8.5" (W) x 21" (D) x 13.5" (H)
(21.6 cm x 53.3 cm x 34.3 cm)
Weight 26.5 lb (12.02 kg) 25.6 lb (11.6 kg)
Output 14 lpm @ 50 psig/30 lpm @ 20 psig 14 lpm @ 50 psig/19 lpm @ 20 psig
Dew Point Depression Ambient Air Ambient Air
Outlet DISS male (keyed for oxygen) DISS male (keyed for oxygen)
Sound Level 53 dBA 50 dBA
Pressure Gauge 0 - 100 psi 0 - 100 psi
Pressure Regulator 0 - 50 psi 0 - 50 psi
Power 4.6 amps (nominal) 1.7 amps (nominal)
Power Cord #18-3 x 6' 7" #16-3 x 3 m
Plug Molded Hospital Grade None
Electrical Protection 8.0 amp fuses (2) 3.15 amp fuses (2)
Ground Impedance 0.1 ohms maximum 0.1 ohms maximum
Warranty 1 Year 1 Year
Approvals ETL; Meets HCPCS Code: E0565 ETL

Configurations

Allied Healthcare PCS 414 Medical Air Compressor Configurations

  • #T14614: 115 V.
  • #T14615: 115 V - With J Bracket.
  • #T14618: 230 V.

Accessories

Allied Healthcare PCS 414 Medical Air Compressor Accessories

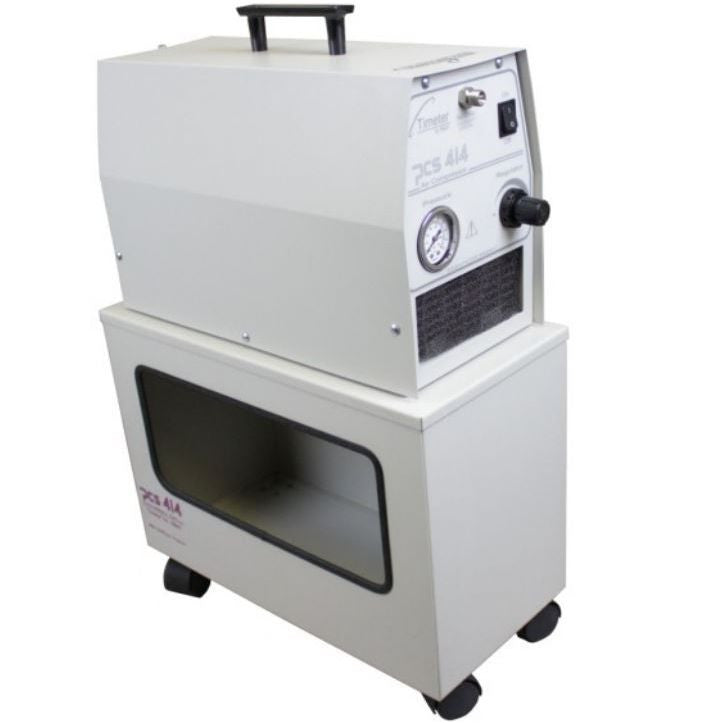

  • Portable Transfer Cart (#T16159).
  • Right angle adapter, oxygen female DISS inlet and oxygen male DISS outlet (#TZ85).
  • Short J Bracket, oxygen female DISS inlet and oxygen male DISS outlet.

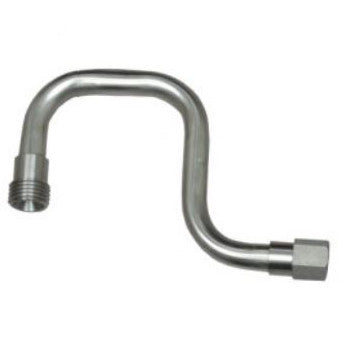

  • 8" J Bracket, oxygen female DISS inlet & oxygen male DISS outlet.
  • Cooling Coil and Condensation Trap, oxygen female DISS fitting (#TZ70).

Literature

Allied Healthcare PCS 414 Medical Air Compressor Literature

Allied Healthcare PCS414 50psi Medical Air Compressor Brochure
