Allied Healthcare PAT 10 Medical Drying Cabinet

Yes, rapid drying capability is a primary feature of the Allied Healthcare PAT 10 Medical Drying Cabinet, ensuring fast equipment turnaround.

• The cabinet is engineered to completely dry medical hoses, parts, and accessories in 35 minutes or less.
• It achieves this speed by circulating clean air heated within a controlled temperature range of 115 °F to 150 °F (46 °C to 66 °C), maximizing efficiency.

The Allied Healthcare PAT 10 Medical Drying Cabinet provides a substantial internal drying capacity, ideal for high-throughput operations:

• Total Drying Volume: 12 cubic feet (approximately 0.3 cubic meters).

This generous capacity is highly flexible, designed to accommodate various medical hoses, accessories, and parts. It comes equipped with:

• 10 half trays
• 5 full trays

This tray system allows users to customize the interior configuration to maximize usable space.

Yes, the Allied Healthcare PAT 10 Medical Drying Cabinet is equipped with dual operational modes to provide flexibility and efficiency when drying medical hoses, parts, and accessories. You can select from two distinct cycles:

• Thermostatic Timed Drying: This mode uses automatic heat control to maintain clean air temperatures between 115 °F and 150 °F (46 °C to 66 °C). This allows for rapid drying, with items, including hoses, ready in as little as 35 minutes.
• Non-Thermostatic Timed Drying: This is the dedicated energy-saving mode. It provides effective drying while reducing overall power consumption, making it suitable when continuous high-temperature control is not required.

The Allied Healthcare PAT 10 Medical Drying Cabinet uses controlled, heated air to ensure rapid and effective drying of medical components and accessories. The temperature range for the drying cycle is:

• 115 °F to 150 °F
• (Equivalent to 46 °C to 66 °C)

This controlled heating process enables the cabinet to thoroughly dry items, including hoses, in 35 minutes or less when utilizing the full temperature capacity.

The Allied Healthcare PAT 10 Medical Drying Cabinet operates using these standard electrical specifications:

• Voltage: 115 V
• Frequency: 60 Hz
• Power Dissipation: 1380 W

This ensures compatibility with typical wall outlets found in North American medical facilities.

The Allied Healthcare PAT 10 Drying Cabinet includes a total of 15 trays to maximize its generous 12 cubic feet (339,588.5 cubic centimeters) capacity. The inclusion of two different tray sizes provides excellent flexibility for organizing various medical accessories and parts:

• 10 half trays
• 5 full trays

This versatile configuration allows you to efficiently accommodate components of varying dimensions.

Yes, the Allied Healthcare PAT 10 Medical Drying Cabinet is specifically engineered for professional healthcare environments requiring validated, rapid drying procedures.

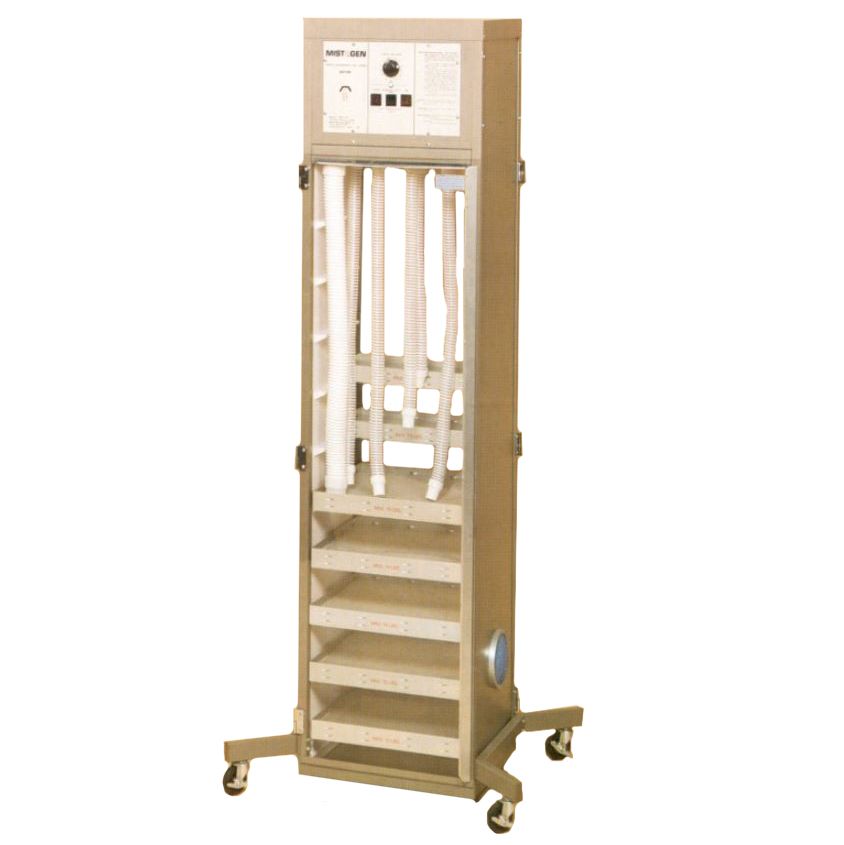

It is ideally utilized in facilities that handle respiratory therapy equipment, anesthesia components, hoses, and various accessories, particularly:

• Central Sterile Processing Departments (CSPD)
• Hospitals and surgical centers
• Clinics requiring efficient preparation for reuse

This unit ensures items are thoroughly dried using controlled air temperatures (ranging from 115°F to 150°F / 46°C to 66°C), often completing cycles in 35 minutes or less to support strict infection control protocols.

The Allied Healthcare PAT 10 Drying Cabinet offers key accessories primarily for routine maintenance and maximizing the 12 cubic feet of internal drying capacity. These items are commonly purchased separately:

Compatible Accessories

• Replacement Air Filters: Maintaining clean air filters ensures the system delivers optimal air quality and performance. They are available in two case sizes:
  • 6” Air Filter (12/Case): (#T1844.1)
  • 6” Air Filter (100/Case): (#T1844.2)
• Additional Full-Size Drying Trays: To customize the layout or further increase capacity for varied medical parts and accessories:
  • Drying Tray, full size: (#T2001)

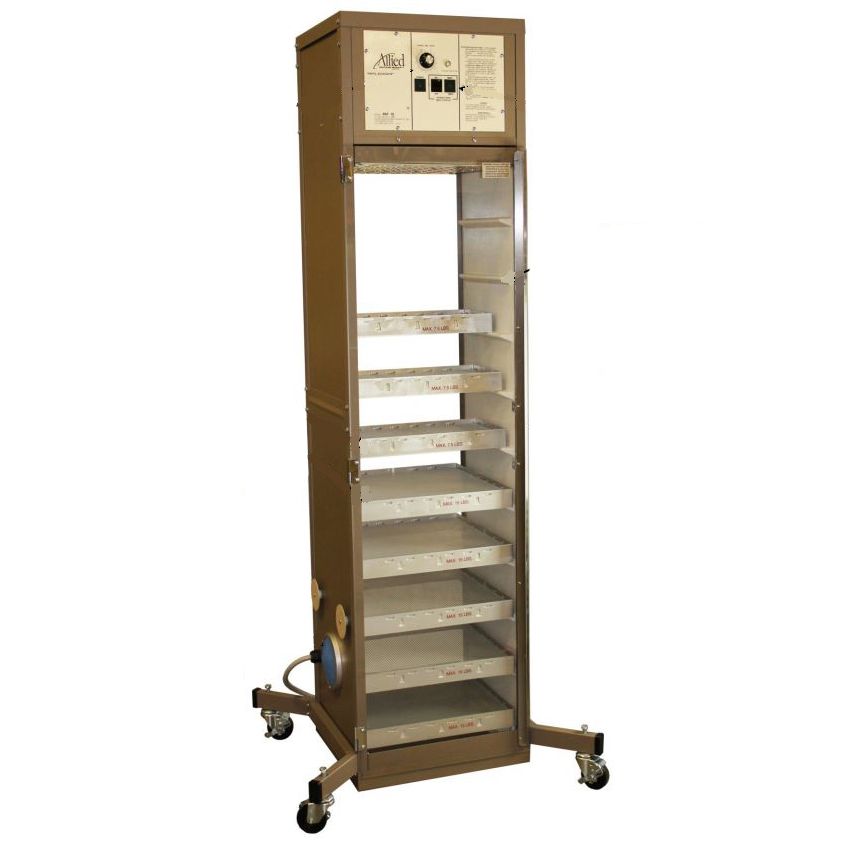

Yes, the Allied Healthcare PAT 10 Medical Drying Cabinet includes caster wheels as a standard feature. This design choice ensures the tall, durable unit is highly mobile, allowing for easy placement and efficient maneuvering within clinical or storage areas.

Yes, the Allied Healthcare PAT 10 Medical Drying Cabinet includes an electric timer as a standard component, enabling precise control over the drying cycle duration. The overall operation is straightforward: load the cabinet, select the dry cycle, and set the timer.

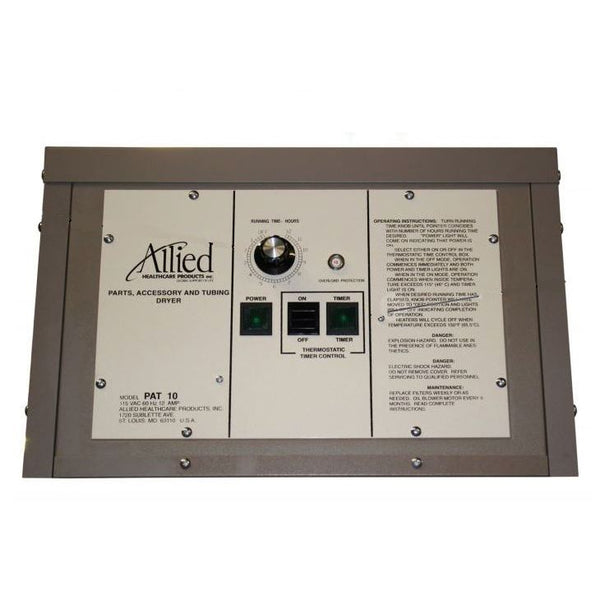

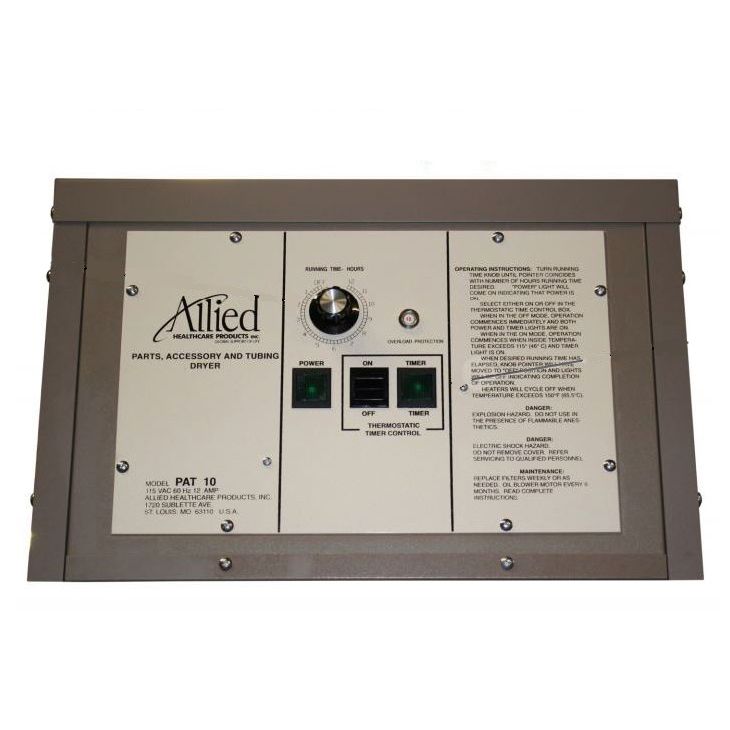

Key features of the integrated control system are:

• Electric Timer: Allows users to set the specific running time for efficient cycle management.
• Automatic Heat Control: Regulates the air temperature between 115 to 150 °F (46 to 66 °C), enabling rapid drying in 35 minutes or less.
• Dual Drying Modes: Offers both thermostatic timed drying and an energy-saving non-thermostatic timed drying option.
• Circuit Breaker: Includes a dedicated dryer/aerator switch circuit breaker for safety and reliability.
