Allied Healthcare Demand / Resuscitator Valve

Name: Allied Healthcare Demand / Resuscitator Valve
Brand: Allied Healthcare
SKU: AHC-L063-05R
Price: 229.16 USD
Availability: InStock

Allied Healthcare Demand / Resuscitat...

Liquid error (snippets/ced-product-media line 113): external_video_tag does not support String

Key Features

SKU: AHC-L063-05R
Condition:

Condition: Factory New

Condition: Factory New

Condition: Factory New

Condition: Factory New

Condition: Factory New

Condition: Factory New
Warranty:

Warranty: 1 Year

Warranty: 1 Year

Warranty: 1 Year

Warranty: 1 Year

Warranty: 1 Year

Warranty: 1 Year
Compliant with AHA guidelines for providing oxygen
Triggered through spontaneous patient breaths
Provides constant flow of 40 lpm
Learn more:

Contact The Manufacturer

MFR: Allied Healthcare

Ships from MFI Medical

Ships from MFI Medical

Ships from MFI Medical

Ships from MFI Medical

Ships from MFI Medical

Ships from MFI Medical

Items shipped from the manufacturer

This item will be shipped directly from the manufacturer to your doorstep, ensuring that you receive the newest product available. The estimated delivery range provided is based on the manufacturer's inventory levels and is subject to change depending on the quantity ordered. We ship items as soon as they become available, so if you order multiple quantities, you may receive them in separate shipments.

Special order item

A special order item will need to ship to our warehouse from the manufacturer before then shipping to you. The estimated delivery range that you see is based on the information that we receive from the manufacturer, which is also contingent upon your ordered quantity and the current inventory levels of the manufacturer. We will ship the items to you as soon as they become available, which may result in multiple shipments if you order more than one quantity.
MPN: L063-05R

MPN: L063R

MPN: L063-03R

MPN: L063-050

MPN: L063

MPN: L063-030
Phone: (800) 444-3954

$265.77 $229.16

Earn 229 points

Select a Configuration

Variant

Ships from Manufacturer

Est. Delivery:

Quantity

Shop with Confidence

Description

The Allied Healthcare Demand / Resuscitator Valve provides 100% oxygen in emergency cases, and can be paired with a mask, tracheotomy tube, or endotracheal tube. The valve itself can be triggered through spontaneous patient breaths.

Warranty: 1 Year - Parts and Labor.

The Demand / Resuscitation Valve is completely compliant with AHA guidelines for providing oxygen to heart attack and/or smoke inhalation patients. The valve itself can be compatible with pressure-regulated oxygen cylinders or other oxygen sources, as long as the regulated supply is at 40 to 60 psig (275 to 413 kPa).

The Allied Healthcare Demand / Resuscitator Valve is easy to clean and maintain. Even obstructions in the valve can be removed from the device during resuscitation, for patient safety. The body of the valve is made from anodized aluminum with the outlets and inlet fittings constructed from polysufone and plated brass, respectively. These materials are durable in harsh environments and can withstand hazardous materials.

Features

Allied Healthcare Demand / Resuscitator Valve Features

Compatible with mask, tracheotomy tube, or endotracheal tube.
Valve regulates oxygen supply and pressure to prevent over-inflation of the lungs.
Provides constant flow of 40 lpm, along with a minimum of 160 lpm.
Valve is triggered into flowing state through spontaneous patient breaths.
Compact and durable to resist corrosives and extreme weather conditions.

Specifications

Allied Healthcare Demand / Resuscitator Valve Specifications

40 lpm Flow Rate (restricted flow): As required in demand mode, 0 to 40 lpm at 50 psig (344 kPa); in resuscitation mode, a constant flow of 40 lpm at 50 psig (344 kPa).
160 lpm Flow Rate: As required in demand mode, 0 to 160 lpm at 40 psig (275 kPa); in resuscitation mode, a constant flow of 160 lpm at 40 psig (275 kPa).
Delivery Pressure: 60 ± 5 cm H₂O unless otherwise indicated on the demand valve.
Crack Pressure: 0 to -2 cm H₂O (0 to -8 in. H₂O).
Exhalation Resistance:

0 to 10 lpm: 1.5 cm H₂O (max.)
11 to 70 lpm: 3.8 cm H₂O (max.)
71 to 160 lpm: 6.4 cm H₂O (max.)

Dead Space: 8 ml (excluding mask).
Supply Pressure: 40 to 60 psig (275 to 413 kPa).
Operating Temperature: -30 to 125 °F (-34.4 to 51.7 °C).
Storage Temperature: -40 to 160 °F (-40 to 71.1 °C).
Inlet Fitting: Standard 1 male oxygen DISS.
Filter: 25 micron wire mesh.
Outlet: 22 mm outside diameter x 15 mm inside diameter.
Materials: Body - anodized aluminum; Cover - polycarbonate; Outlet - polysulfone; Inlet fitting - plated brass.

Configurations

Allied Healthcare Demand / Resuscitator Valve Configurations

Part Number	Configuration	Package Weight	Shipping Weight	Shipping Dimensions
#L063-05R	40 lpm Flow Rate	0.65 lb (0.29 kg)	0.85 lb (0.39 kg)	7" x 5" x 5" (17.8 cm x 12.7 x 12.7 cm)
#L063R	40 lpm Flow Rate - With 6' (1.8 m) oxygen hose	1.4 lb (0.64 kg)	1.9 lb (0.86 kg)	12" x 9" x 7" (30.5 cm x 23 cm x 17.8 cm)

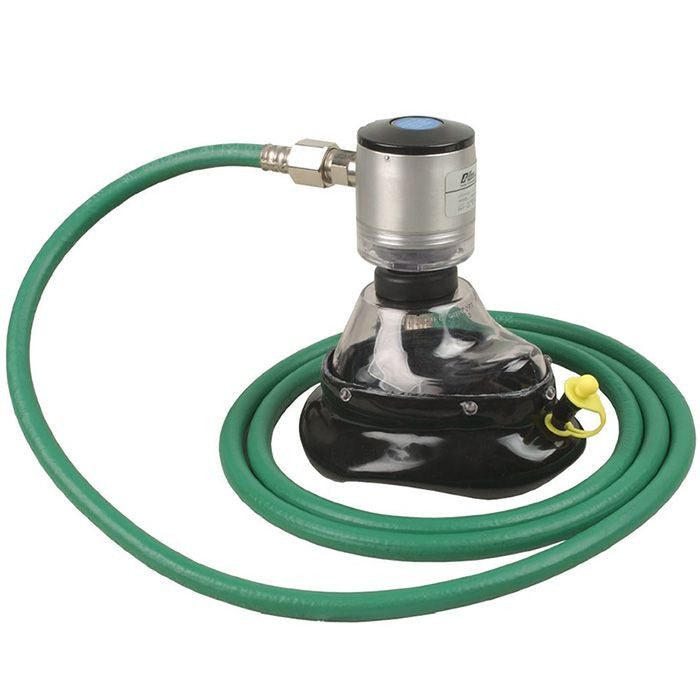

#L063-03R	40 lpm Flow Rate - With 6' (1.8 m) oxygen hose and adult cuffed mask	1.85 lb (0.84 kg)	3.3 lb (1.5 kg)	16" x 16" x 6" (40.6 cm x 40.6 cm x 15.2 cm)
#L063-050	160 lpm Flow Rate	0.6 lb (0.27 kg)	0.8 lb (0.36 kg)	7" x 5" x 5" (17.8 cm x 12.7 x 12.7 cm)
#L063	160 lpm Flow Rate - With 6' (1.8 m) oxygen hose	1.3 lb (0.59 kg)	1.8 lb (0.82 kg)	12" x 9" x 7" (30.5 cm x 23 cm x 17.8 cm)
#L063-030	160 lpm Flow Rate - With 6' (1.8 m) oxygen hose and adult cuffed mask	1.8 lb (0.82 kg)	3.25 lb (1.5 kg)	16" x 16" x 6" (40.6 cm x 40.6 cm x 15.2 cm)

Accessories

Allied Healthcare Demand / Resuscitator Valve Accessories

The Allied Healthcare Demand / Resuscitator Valve is commonly purchased with:

#L099-004: Adult Cuffed Mask, reusable, size 4 (Standard).
#L099-005: Adult Cuffed Mask, reusable, size 5 (Large).
#L535026: Oxygen Hose, 6' (1.9 m) with DISS fittings.

Literature

Allied Healthcare Demand / Resuscitator Valve Literature

Allied Healthcare Demand Resuscitator Valve Brochure
