- SKU: AHC-23002
-
Condition:
Condition: Factory NewCondition: Factory NewCondition: Factory NewCondition: Factory NewCondition: Factory NewCondition: Factory NewCondition: Factory NewCondition: Factory NewCondition: Factory NewCondition: Factory NewCondition: Factory NewCondition: Factory NewCondition: Factory NewCondition: Factory NewCondition: Factory NewCondition: Factory NewCondition: Factory NewCondition: Factory NewCondition: Factory NewCondition: Factory NewCondition: Factory NewCondition: Factory NewCondition: Factory NewCondition: Factory New
-
Warranty:
Warranty: 1 YearWarranty: 1 Year
- Weight: 0.2 lb
-
Learn more:
-
MFR:
Allied Healthcare
Ships from MFI MedicalShips from MFI MedicalShips from MFI MedicalShips from MFI MedicalShips from MFI MedicalShips from MFI MedicalShips from MFI MedicalShips from MFI MedicalShips from MFI MedicalShips from MFI MedicalShips from MFI MedicalShips from MFI MedicalShips from MFI MedicalShips from MFI MedicalShips from MFI MedicalShips from MFI MedicalShips from MFI MedicalShips from MFI MedicalShips from MFI MedicalShips from MFI MedicalShips from MFI MedicalShips from MFI MedicalShips from MFI MedicalShips from MFI Medical
-
MPN: 23002MPN: 23003MPN: 23003-CEMPN: 23003-CEDNMPN: 23004MPN: 23006MPN: 23006-CEBNMPN: 23025-GMPN: 21020MPN: 22020MPN: 21014MPN: 23014MPN: 21007MPN: 21012MPN: 21017MPN: 21017-CEMPN: 21017-CEBARMPN: 23017MPN: 24017MPN: 21025MPN: 21025-CEMPN: 21030MPN: 21031MPN: 21032
- Phone: (800) 444-3954
Description

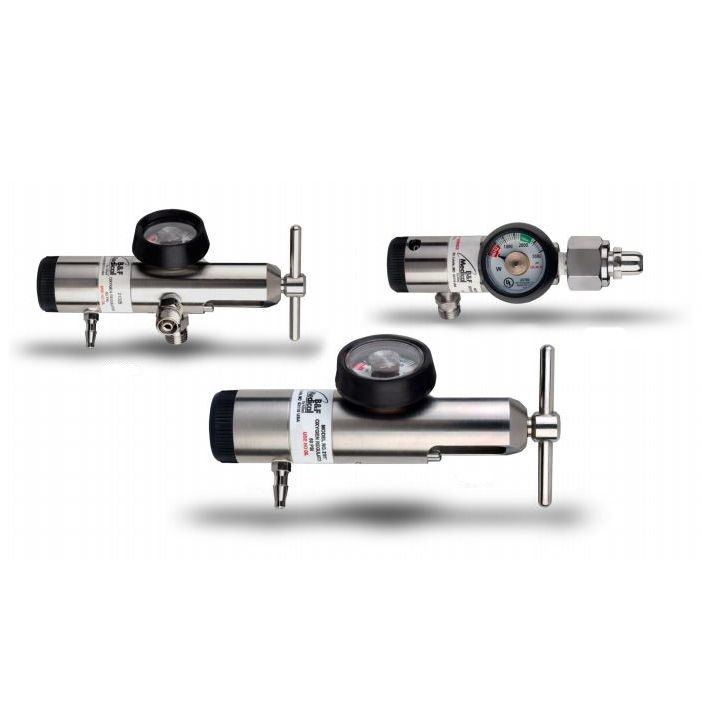

The Allied Healthcare B & F Oxygen Pressure Regulator is a convenient oxygen regulator suitable for homecare, hospital and emergency situation.
Warranty: 1 Year.
The B & F Oxygen Pressure Regulator is versatile with an array of options and configurations to choose from (see Configurations chart below), to fit the needs of your hospital or homecare oxygen supply. With their large, easy-to-read gauges, the regulators can accurately display flow rate numbers during operation.
Features
Allied Healthcare B & F Oxygen Pressure Regulator Features
- Nickel-plated brass body for oxygen use.
- Choice between two body designs: yoke inlet for small cylinders, nut and nipple inlet for large cylinders.
- Large, easy-to-read gauge.
- Strengthened, uni-body construction prevents breakage.
Specifications
Allied Healthcare B & F Oxygen Pressure Regulator Specifications
- Supply Pressure: 500 to 2200 psi.
-
Outlet Pressure:
- High flow outlets: 40 to 60 psi at 500 to 2200 psi inlet pressure.
-
Flow Capacity:
- High flow outlets: 100 lpm minimum single or combined flow with 500 psi inlet pressure.
-
Constant flow outlet selections:
- 0 - 6 lpm: 0, .125, .25, .5, .75, 1, 1.5, 2, 3, 4, 5, 6.
- 0 - 8 lpm: 0, .5, 1, 1.5, 2, 2.5, 3, 4, 5, 6, 7, 8.
- 0 - 15 lpm: 0, .5, 1, 1.5, 2, 3, 4, 5, 6, 8, 10, 15.
- 0 - 25 lpm: 0, 1, 2, 4, 6, 8, 10, 12, 15, 18, 20, 25.
- Filter: 50 micron sintered bronze.
- Safety Pressure Relief: 75 to 140 psi.
- Operating Temperature: 32° F to 100° F.
- Storage Temperature: -20° F to 120° F.
-
Materials:
- Body: Nickel-plated brass.
- Knob: ABS polymer.
- Outlets: Nickel-plated brass.
- Internal Parts: Brass, stainless steel, Viton, silicon, and Teflon.
Configurations
Allied Healthcare B & F Oxygen Pressure Regulator Configurations
| MPN | Inlet | Outlet | Flow Rate | Check Valve | Gauge |
|---|---|---|---|---|---|

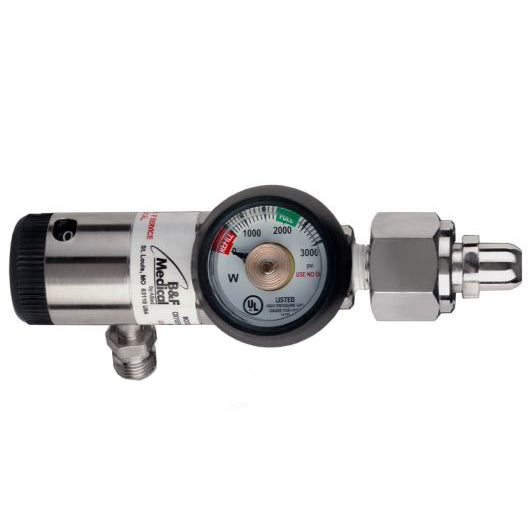

| #23002 | CGA 540 | DISS | 0 - 8 lpm | No | Yes |
| #23003 | CGA 540 | DISS | 0 - 15 lpm | No | Yes |
| #23003-CE | CGA 540 | DISS | 0 - 15 lpm | No | kPa |
| #23003-CEDN | DIN 477 | Hose Barb | 0 - 15 lpm | No | kPa |
| #23004 | CGA 540 | >Hose Barb | 0 - 15 lpm | 1 | Yes |
| #23006 | CGA 540 | Hose Barb | 0 - 15 lpm | 2 | Yes |
| #23006-CEBN | British Bullnose | Hose Barb | 0 - 15 lpm | 2 | kPa |
| #23025-G | CGA 540 | Hose Barb | 0 - 25 lpm | 2 | Yes |
| #21020 | CGA 870 | Hose Barb | 0 - 6 lpm | No | Yes |
| #22020 | CGA 870 | DISS | 0 - 6 lpm | No | Yes |
| #21014 | CGA 870 | Hose Barb | 0 - 8 lpm | No | Yes |
| #23014 | CGA 870 | DISS | 0 - 8 lpm | No | Yes |
| #21007 | CGA 870 | Hose Barb | 0 - 15 lpm | No | No |
| #21012 | CGA 870 | Hose Barb | 0 - 15 lpm | 2 | Yes |

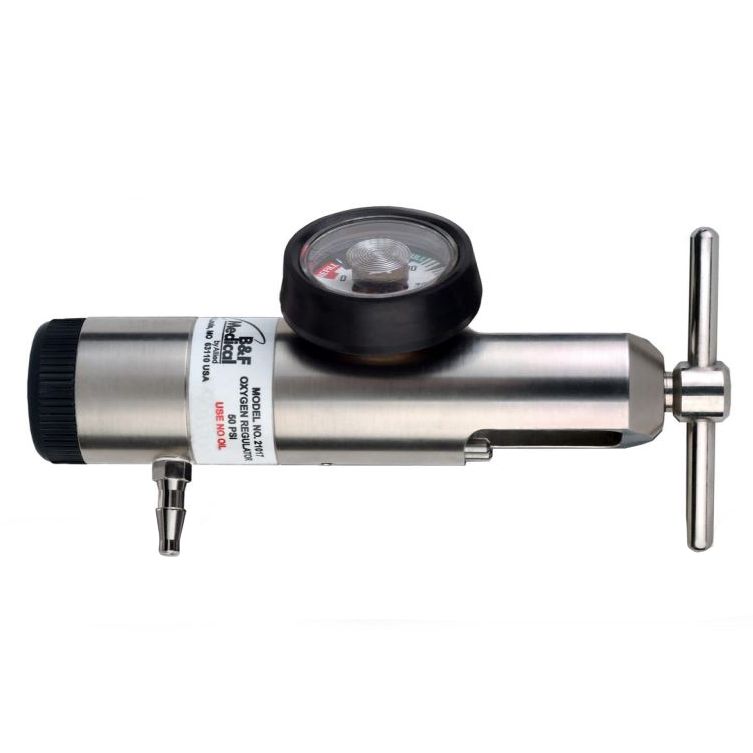

| #21017 | CGA 870 | Hose Barb | 0 - 15 lpm | No | Yes |
| #21017-CE | CGA 870 | Hose Barb | 0 - 15 lpm | No | kPa |
| #21017-CEBAR | CGA 870 | Hose Barb | 0 - 15 lpm | No | BAR |
| #23017 | CGA 870 | DISS | 0 - 15 lpm | No | Yes |
| #24017 | CGA 870 | Hose Barb | 0 - 15 lpm | 1 | Yes |

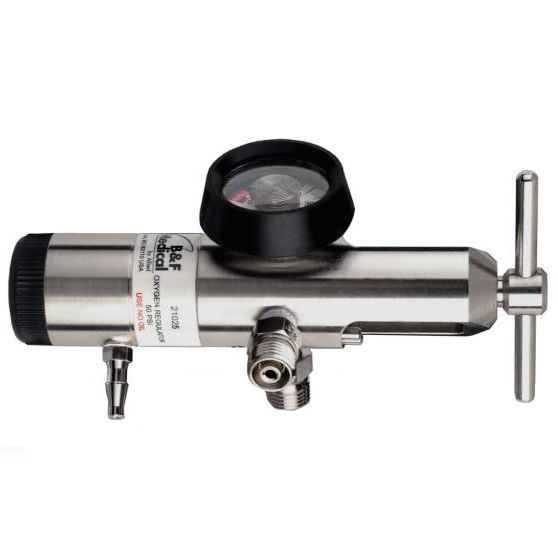

| #21025 | CGA 870 | Hose Barb | 0 - 25 lpm | 2 | Yes |
| #21025-CE | CGA 870 | Hose Barb | 0 - 25 lpm | 2 | kPa |
| #21030 | CGA 870 | Hose Barb | 0 - 25 lpm | No | Yes |
| #21031 | CGA 870 | DISS | 0 - 25 lpm | No | Yes |
| #21032 | CGA 870 | Hose Barb | 0 - 25 lpm | 1 | Yes |
Literature
Allied Healthcare B & F Oxygen Pressure Regulator Literature
Frequently asked questions
What is the range of supply pressure that this regulator can handle?
The Allied Healthcare B & F Oxygen Pressure Regulator is designed to handle a supply pressure ranging from 500 to 2200 psi.
What high-quality materials ensure durability?
The Allied Healthcare B & F Oxygen Pressure Regulator is built with high-quality, durable materials designed for medical environments and long-lasting performance:
- Body and Outlets: Features a nickel-plated brass construction, utilizing a strengthened uni-body design specifically engineered to prevent breakage.
- Control Knob: Made from ABS polymer.
- Internal Reliability: Critical internal components are made from robust materials including brass, stainless steel, Viton, silicon, and Teflon to ensure reliable and precise pressure regulation.
What are the available flow capacity selections?
The Allied Healthcare B & F Oxygen Pressure Regulator is highly configurable and offers four distinct constant flow capacity selections, depending on the specific model chosen:
- 0 – 6 lpm
- 0 – 8 lpm
- 0 – 15 lpm
- 0 – 25 lpm
Additionally, the unit is designed to provide a High Flow Outlet Pressure ranging from 40 to 60 psi when the inlet pressure is between 500 and 2200 psi.
Which inlet connection types are available?
The Allied Healthcare B & F Oxygen Pressure Regulator offers versatile configurations to ensure compatibility with diverse oxygen supply systems. Standard inlet connection types include:
- CGA 540
- CGA 870
- DIN 477
- British Bullnose
Additionally, configurations may include Yoke inlets (for small cylinders) or nut and nipple inlets (for large cylinders), based on your specific requirements.
What outlet types are offered?
The Allied Healthcare B & F Oxygen Pressure Regulator is designed to be highly versatile and configurable for compatibility with various oxygen delivery systems. The available outlet types, depending on the specific model chosen, include:
- DISS (Diameter Index Safety System): A standard, non-interchangeable connection often used for high-pressure medical gases.
- Hose Barb: Used for direct and simple connection of oxygen tubing.
What is the purpose of the strengthened uni-body construction?
The strengthened uni-body construction is designed to prevent breakage and ensure the longevity of the regulator, even under demanding conditions.
What is the operating temperature range for this regulator?
The operating temperature range for the Allied Healthcare B & F Oxygen Pressure Regulator is 32° F to 100° F.
Does this regulator feature safety pressure relief?
Yes, the Allied Healthcare B & F Oxygen Pressure Regulator is equipped with a safety feature.
This regulator includes a safety pressure relief mechanism designed to activate between 75 to 140 psi.
What are some typical applications for this oxygen pressure regulator?
This oxygen pressure regulator is suitable for use in:
- Hospitals
- Homecare settings
- Emergency situations
It is ideal for patients requiring oxygen therapy.
Does this regulator feature large, readable gauges?
Yes, the Allied Healthcare B & F Oxygen Pressure Regulator is designed to ensure operators can monitor flow rates accurately.
- Large, Readable Gauges: The unit is equipped with large gauges that allow for quick and accurate reading of flow rate numbers during operation.
- Readout Options: Gauge availability and readout type vary based on configuration. Most include a gauge, with options for standard readings, kPa, or BAR readouts.
