Condition:
-
Warranty:
- Weight: 7.18 lb
-
Learn more:
-
MFR:
Allied Healthcare
Ships from MFI Medical
-
MPN: L599-600
- Phone: (800) 444-3954
Frequently asked questions
Does this circuit offer universal compatibility?

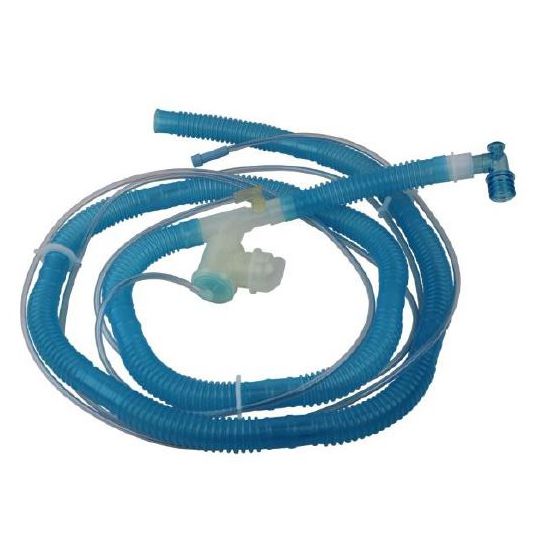

Yes, the Allied Healthcare AHP300 Single Limb Patient Ventilator Circuit is designed for universal compatibility with a wide range of ventilators. This includes, but is not limited to, models such as:
- AHP300 Transport Ventilator
- Life Products LP4 and LP5
- Aequitron LP6, LP6 Plus, LP10, PLV-100, PLV-102
- Nellcor Puritan-Bennett Achieva
- Covidien/Newport HT50 and HT70
Is this ventilator circuit latex-free?
Yes, the Allied Healthcare AHP300 Single Limb Patient Ventilator Circuit is latex-free. This reduces the risk of allergic reactions in patients with latex sensitivities.
Is the AHP300 circuit reusable?
The Allied Healthcare AHP300 Single Limb Patient Ventilator Circuit is not reusable; it is strictly designated for single-patient use only.
This single-use design is crucial for supporting infection control protocols and minimizing the risk of cross-contamination between patients.
What are the universal J-type circuit specifications?
The Allied Healthcare AHP300 is a universal J-type, single-limb circuit designed for non-heated, single-patient use. Its latex-free construction minimizes allergy risks.
The specific connection and tubing specifications are:
- Ventilator Connection ID: 22 mm
- Exhalation Supply Line ID: 0.137 inches
- Pressure Sensing Line ID: 0.200 inches (includes a Tip Adapter)
Additionally, the circuit is available in two configurations:
- Adult: 6 feet long with 22 mm tubing diameter and 64 ml dead space (10 per case).
- Pediatric: 4 feet long with 15 mm tubing diameter and 9.2 ml dead space (20 per case).
What is the exhalation supply line's diameter?
The internal diameter (I.D.) of the exhalation supply line is 0.137 inches.
Is the ventilator circuit assembly complete?
Yes, the Allied Healthcare AHP300 is a factory new, complete, single-limb assembly designed for immediate use.
The circuit components included are:
- Corrugated Tubing: The main non-heated, universal J-type tube.
- Ventilator Connection Components: Standard fittings for connecting to the ventilator (main connection ID is 22 mm).
- Exhalation Supply Line: (ID 0.137 inches).
- Pressure Sensing Line: Includes the 0.200-inch ID line equipped with a Tip Adapter.
What patient sizes are available for this circuit?
The Allied Healthcare AHP300 Single Limb Patient Ventilator Circuit is available in configurations specifically designed for Adult and Pediatric patient populations.
These specialized circuits ensure appropriate dimensions and minimal dead space for effective respiratory support. Key differences include:
| Specification | Adult Configuration | Pediatric Configuration |
|---|---|---|
| Circuit Length | 6 feet | 4 feet |
| Corrugated Tubing Diameter | 22 mm | 15 mm |
| Dead Space Volume | 64 ml | 9.2 ml |
| Case Quantity | 10 circuits | 20 circuits |
Both versions utilize a universal J-type design, are constructed using latex-free materials, and are designated for single use only.
What is the diameter of the pressure sensing line?
The pressure sensing line in the Allied Healthcare AHP300 circuit has an internal diameter (I.D.) of 0.200 inches.
This line is designed for accurate monitoring and comes equipped with a tip adapter component for seamless connection.
What is the circuit quantity per case?
The quantity of Allied Healthcare AHP300 Single Limb Ventilator Circuits per case depends on the configuration you select:
- Adult Configuration: Cases contain 10 units.
- These circuits are 6-feet long and feature 64 ml of dead space.
- Pediatric Configuration: Cases contain 20 units.
- These circuits are 4-feet long and feature 9.2 ml of dead space.
Is this a new or reconditioned product?
This ventilator circuit is a Factory New product from the brand Allied Healthcare. It is designed for single-use to ensure patient safety and minimize the risk of cross-contamination.
