Condition:
-
Warranty:
- Weight: 1.25 lb
-
Learn more:
-
MFR:
American Diagnostic Corporation
Ships from MFI Medical
-
MPN: 9005TO
- Phone: (800) 232-2670
Frequently asked questions
Does this module provide rapid temperature acquisition?
Yes, this temperature module, which integrates the Covidien Filac 3000 digital thermometer, is designed for rapid clinical use. Response times vary based on the measurement mode:
- Quick Mode (Oral): Readings in as little as 4 seconds.
- Standard Mode (Axillary/Rectal): Measurements take 10 to 15 seconds with high accuracy (± 0.1°C).
- Direct Mode: Provides a stable measurement in 60 seconds with high accuracy (± 0.1°C).

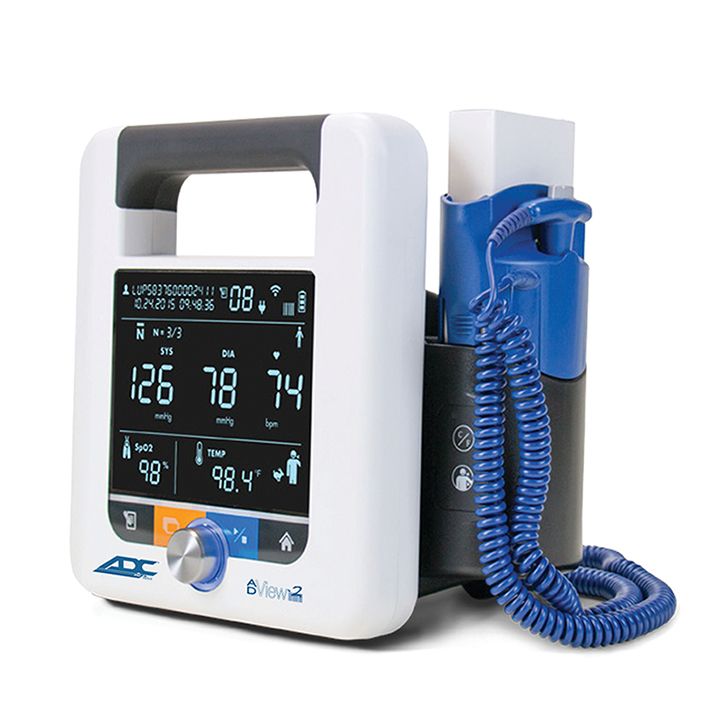

Is this temperature module compatible with the ADView 2 Diagnostic Station?
Yes, the ADC Temperature Module is designed to seamlessly integrate with the ADView 2 Modular Diagnostic Station, allowing for easy upgrades and expansions to your existing diagnostic setup.
What is the fastest temperature reading?
The ADC Temperature Module is designed for rapid thermometry using the integrated Covidien Filac 3000 digital thermometer. The fastest measurements are achieved using Quick Mode.
Response times vary based on the measurement mode:
- Quick Mode (Oral): As fast as 4 seconds.
- Standard Mode (Axillary/Rectal): 10–15 seconds.
- Direct Mode: 60 seconds.
Does the temperature module include probe covers?
Yes, the temperature module comes ready to integrate with your ADView 2 Modular Diagnostic Station and includes necessary components to begin use.The package contains: * The ADC Temperature Module itself, featuring the high-performance Covidien Filac 3000 digital thermometer core (available in color-coded configurations: Blue for Oral/Axillary or Red for Rectal). * One complimentary box containing 20 disposable probe covers.Please note that the ADView 2 Modular Diagnostic Station unit is required for operation and is sold separately.
Is a high-quality thermometer used?
Yes, this temperature module utilizes the core components of the Covidien Filac 3000 digital thermometer, renowned for clinical accuracy and speed, to provide reliable readings for the ADView 2 Diagnostic Station. This integration supports rapid, professional temperature assessment.
The module offers several high-performance features:
- Exceptional Speed: Using the Quick Mode, the module can deliver an oral or axillary temperature reading in as fast as four seconds.
- Precision Measurement: The module achieves high accuracy in standard measurement modes:
- Standard (Axillary/Rectal) and Direct Modes offer accuracy of ± 0.1°C.
- Versatile Scales and Modes: You can easily switch between Fahrenheit and Celsius scales. It also includes a specialized Cold Mode for measuring lower temperature ranges.
- Dual Configuration: The module is available in two color-coded versions to ensure proper site-specific use: Blue for Oral/Axillary and Red for Rectal.
What are the specialized configuration options?
The ADC Temperature Module is offered in two specialized, color-coded configurations, designed to ensure proper clinical separation and prevent cross-contamination:

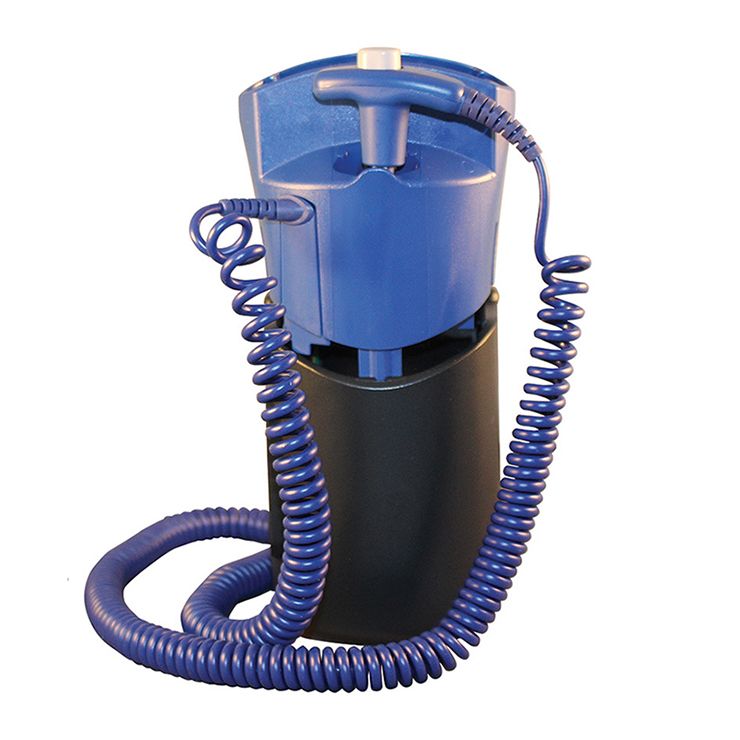

- Oral/Axillary (Blue): Intended for standard oral and axillary temperature measurements.

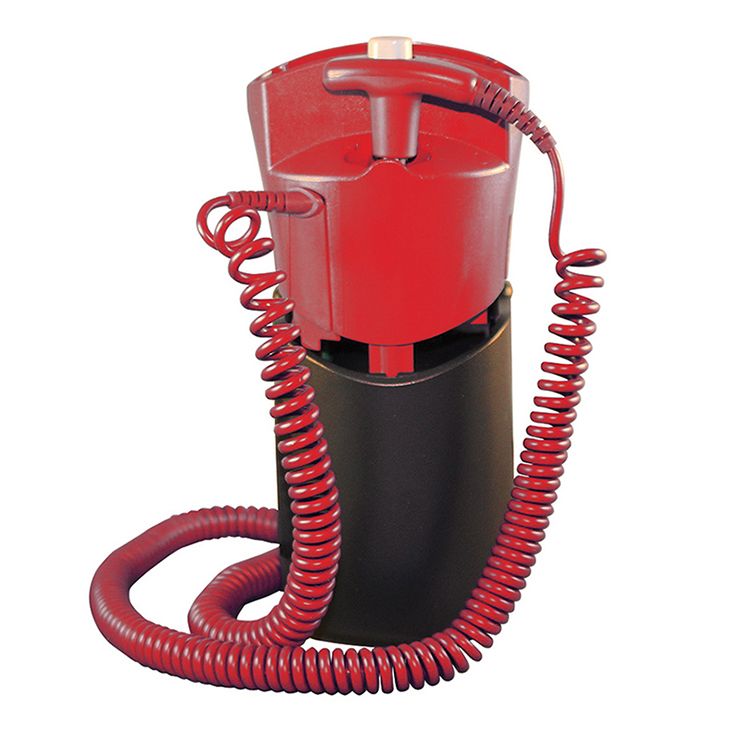

- Rectal (Red): Dedicated exclusively for rectal temperature measurements.
Both configurations integrate the high-precision Covidien Filac 3000 digital thermometer core, capable of acquiring oral temperature readings in as little as four seconds using Quick Mode. Each module also includes a box of 20 probe covers.
Does the module support both Fahrenheit and Celsius scales?
Yes, the ADC Temperature Module is designed for dual scale functionality. Clinicians can easily switch between Fahrenheit (°F) and Celsius (°C) measurements with the simple press of a dedicated button, offering flexibility for various clinical protocols.
Does the temperature module offer high accuracy?
Yes, the ADC Temperature Module is designed for high accuracy in clinical settings, integrating the reliable Covidien Filac 3000 digital thermometer. It achieves a measurement resolution of 0.1°C. The specific accuracy and speed depend on the mode selected:
| Mode | Application | Accuracy | Response Time |
|---|---|---|---|
| Quick Mode | Oral | ± 0.3°C | As fast as 4 seconds |
| Standard Mode | Axillary/Rectal | ± 0.1°C | 10–15 seconds |
| Direct Mode | General/Monitoring | ± 0.1°C | 60 seconds |
Standard and Direct Modes provide the highest accuracy (± 0.1°C), while the Quick Mode prioritizes speed for rapid oral temperature assessments.
Is there a special mode for lower temperature ranges?
Yes, the ADC Temperature Module includes a specialized feature called Cold Mode.
This function is specifically designed to expand the thermometer’s range to accurately measure lower temperature ranges, which is essential for certain clinical monitoring needs.
Is there a storage compartment for the probe?
Yes, the ADC Temperature Module includes a built-in, color-coded storage well for the probe, helping to maintain hygiene and organization.
