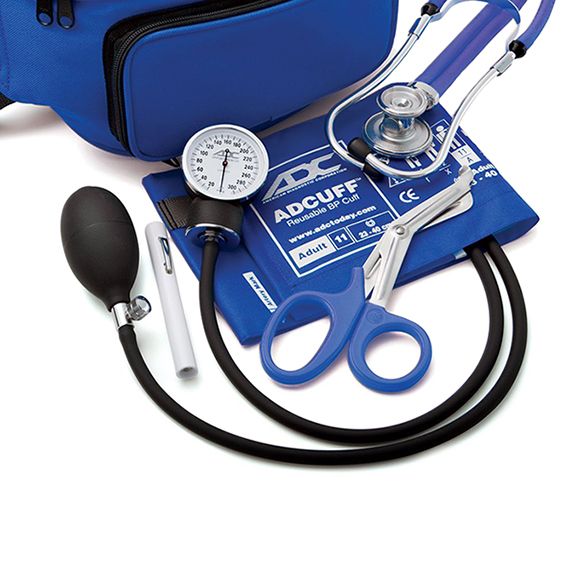

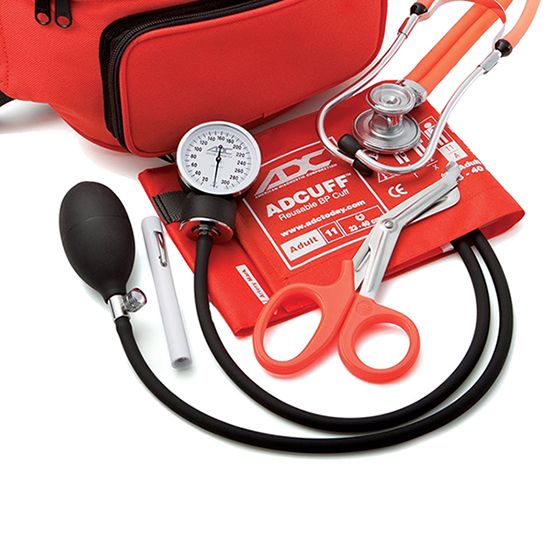

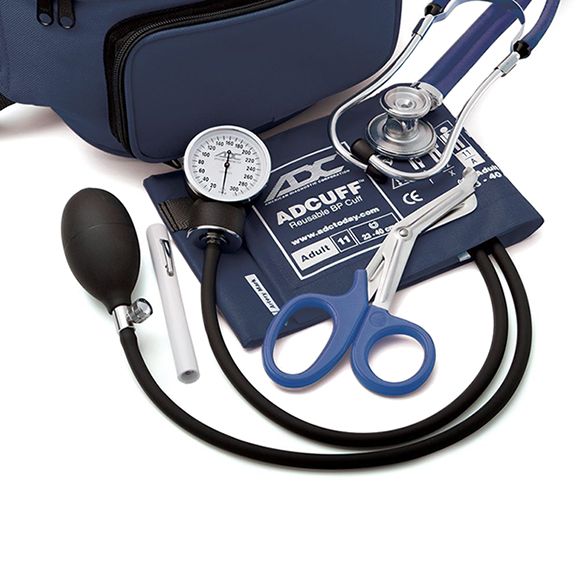

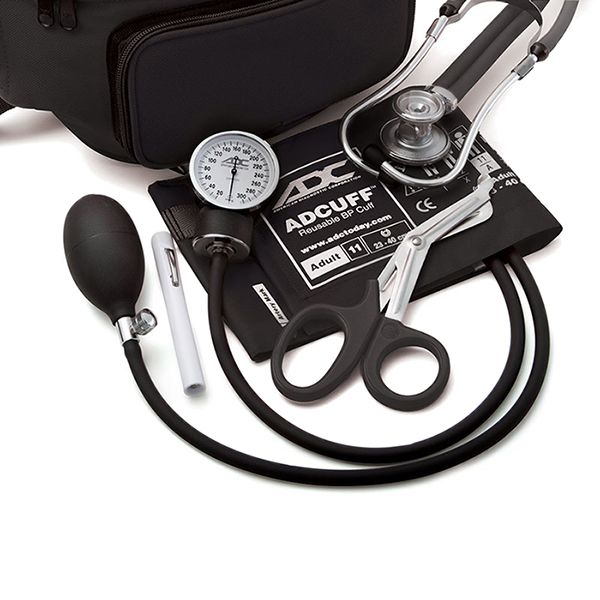

ADC Pro's Combo IV Fanny Pack Kit

ADC Pro's Combo IV Fanny Pack Kit Features

• Available in four different colors:
  • Black (#769-641-11ABK).
  • Navy (#769-641-11AN).
  • Orange (#769-641-11AOR).
  • Royal Blue (#769-641-11ARB).
• ADC Prosphyg 760 Pocket Aneroid Sphygmomanometer Features:
  • Extended scaleplate graduation marks reduce parallax for easier viewing from virtually any angle.
  • Adcuff Nylon Cuff with ADC's proprietary Size Guide marking system prevents mis-cuffing.
  • Adflow filter screen check and deflation valve reduces dust build-up.
  • Adflow chrome-plated brass air release valve for precise deflation control.
  • Meets or exceeds ANSI/AAMI/ISO 81060-1.

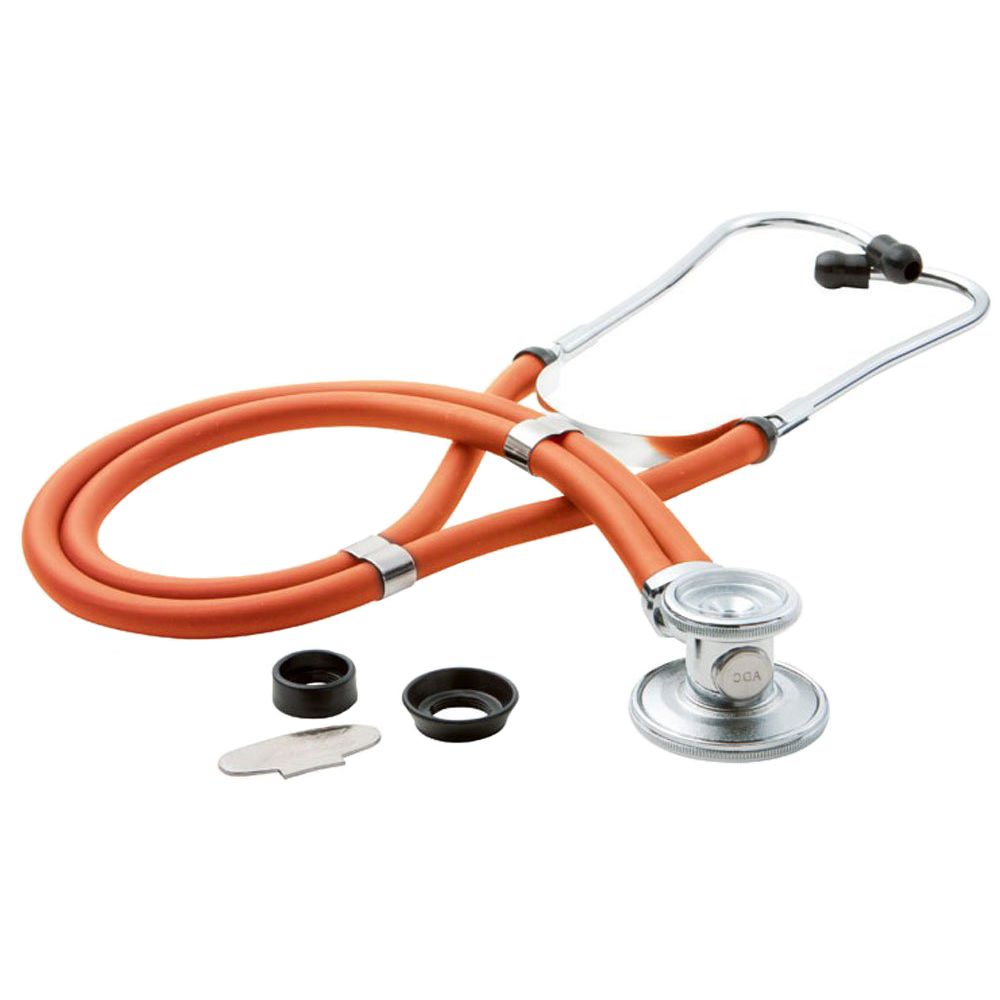

• ADC Adscope 641 Sprague Stethoscope Features:
  • Combines superior acoustic response with an ultra-lightweight design.
  • Combination diaphragm/bell adult chestpiece is precisely machined to exacting tolerances from lightweight aluminum.
  • Non-chill bell and diaphragm retaining rim for patient comfort.
  • Extra-large 1 3/8" diameter bell.
  • Highly sensitive 1 3/4" diaphragm.
  • Clinician headset boasts reinforcing yoke molded into the flexible 22" PVC tubing.
  • Tubing is soft and flexible and has been made without phthalates since 2014.
  • Lightweight aluminum binaurals in matching satin finish.
  • Adsoft Plus silicone eartips have new snap-on connection for the ultimate in wearing comfort and acoustic seal.

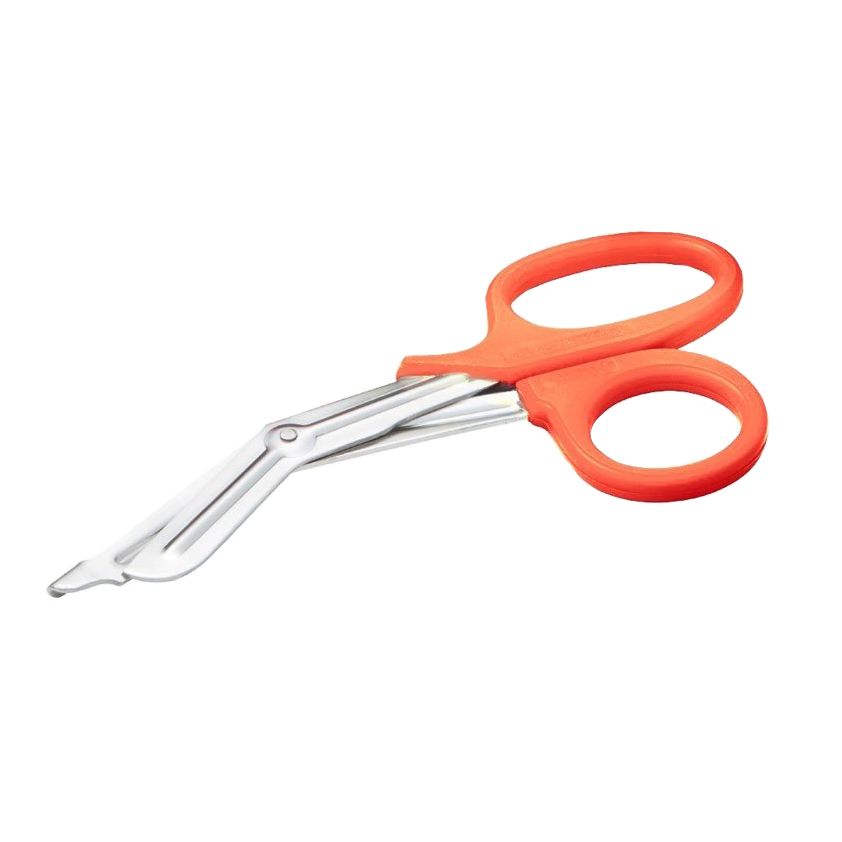

• ADC Medicut EMT Shears Features:
  • Razor sharp, super-hardened, surgical stainless steel blades with one serrated edge to cut through the toughest materials.
  • Measures a traditional 7 1/4" in length for maximum leverage and strength.
  • Stainless steel safety bandage tip.
  • Blades tempered to a Rockwell hardness of C56 for unsurpassed durability.
  • Contoured polypropylene handles with large ring provide maximum control and comfort.
  • Extra large rivet with a rated strength of 88kg assures rugged durability.
  • Fully auto-clavable to 143 degreesC (290 degreesF).
  • CE marking.
• Not made with natural rubber latex.
• Assembled, inspected, and packaged in the U.S.A. from foreign components.

ADC Pro's Combo IV Fanny Pack Kit Specifications

• ADC Prosphyg 760 Pocket Aneroid Sphygmomanometer Specifications:
  • Sphyg Type: Pocket.
  • Gauge Product Number: #808N.
  • Gauge Warranty: 20 Years.
  • Sphyg Accuracy: +/-3 mm Hg at 50 degrees F (10 degrees C) - 104 degrees F (40 degrees C).
  • Sphyg Accuracy at Extended Temperature Range: +/- 3 mm Hg or 2%. Whichever is greater at < 50 degrees F (10 degrees C) and > 104 degrees F (40 degrees C).
  • Storage Temp: -4 degrees F (-20 degrees C) - 131 degrees F (55 degrees C).
  • Valve Type: Standard.
  • Number of Tubes: 2.
  • Cuff Type: ADCUFF.
  • Cuff Size: Adult.

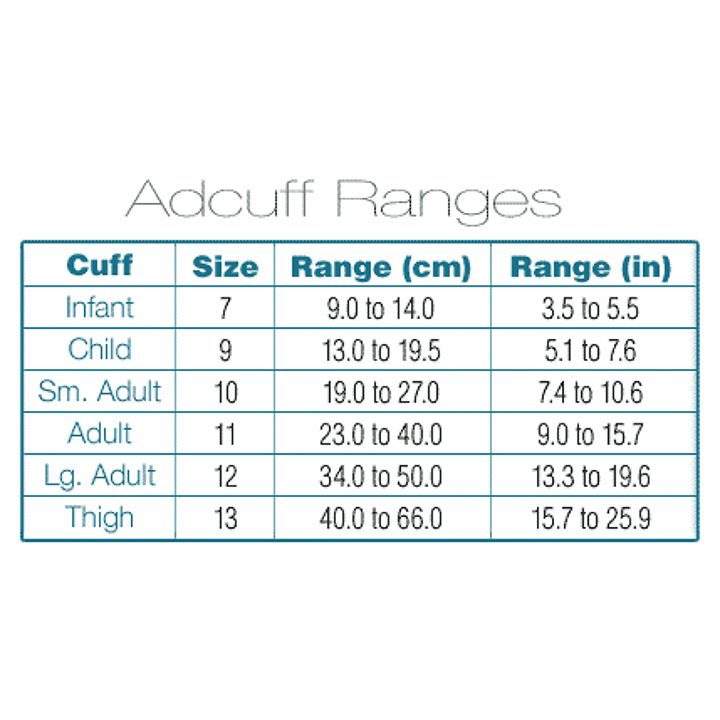

  • Cuff Range: 9" - 15.7" (23 cm - 40 cm).
• ADC Adscope 641 Sprague Stethoscope Specifications:
  • Chestpiece Type: Convertible.
  • Chestpiece Material: Zinc.
  • Chestpiece Finish: Mirror/Satin.
  • Chestpiece Weight: 3.5 oz (99.2 g).
  • Diaphragm Diameter: 1.5" (3.8 cm) / 1" (2.54 cm).
  • Diaphragm Material: PVC.
  • Diaphragm Type: Standard.
  • Bell Diameter: 1.25" (3.2 cm) / 1" (2.54 cm) / 0.75" (1.9 cm).
  • Headset Type: External Spring.
  • Headset Material: Aluminum.
  • Headset Finish: Anodized.
  • Tubing Length: 21" (53 cm).
  • Total Length: 30" (76.25 cm).
  • Total Weight: 7.04 oz (200 g).
• ADC Adlite Plus Disposable Penlight Specifications:
  • Penlight Length: 5" (12.7 cm).
  • Penlight Diameter: 0.5" (1.27 cm).

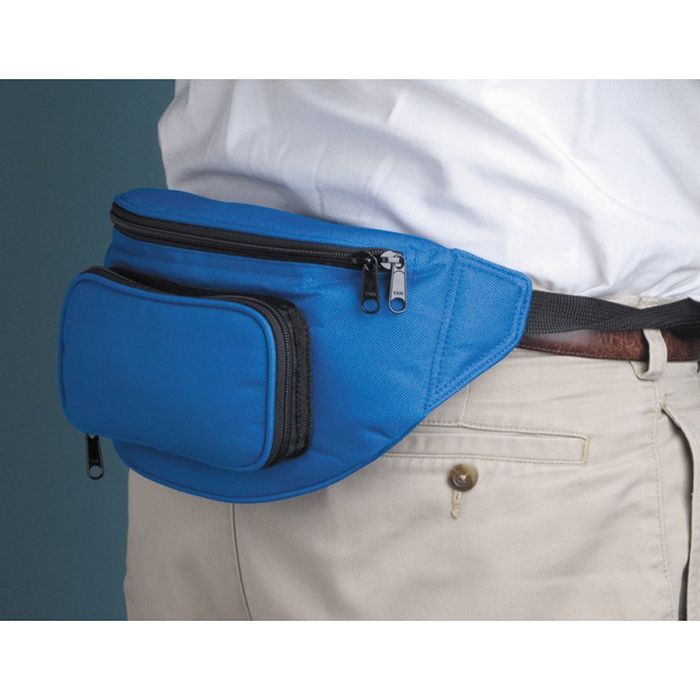

• ADC Nylon Fanny Pack Specifications:
  • Fanny Pack Dimensions: 10.25" x 6" x 3" (26.04 cm 15.24 cm 7.62 cm).
  • Fits waists from approximately 20" to 56" (50.8 cm - 142.24 cm).
• Storage Case Dimensions: 9" x 5" x 2" (22.86 cm 12.7 cm 5.08 cm).

ADC Pro's Combo IV Fanny Pack Kit Media and Literature

ADC 2017 Product Catalog

ADC Adscope 641 Sprague Stethoscope Instructions for Use

ADC Prosphyg Aneroid Sphygmomanometers Instructions for Use

ADC Aneroid Sphygmomanometer Accessories Instructions for Use

ADC Adcuff Literature
