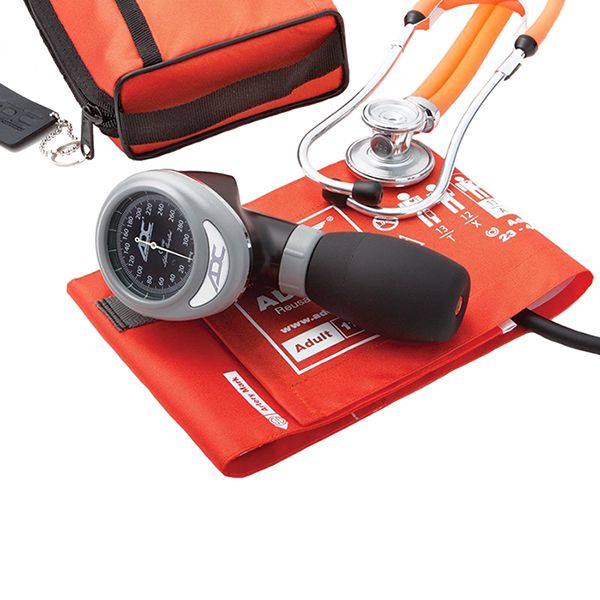

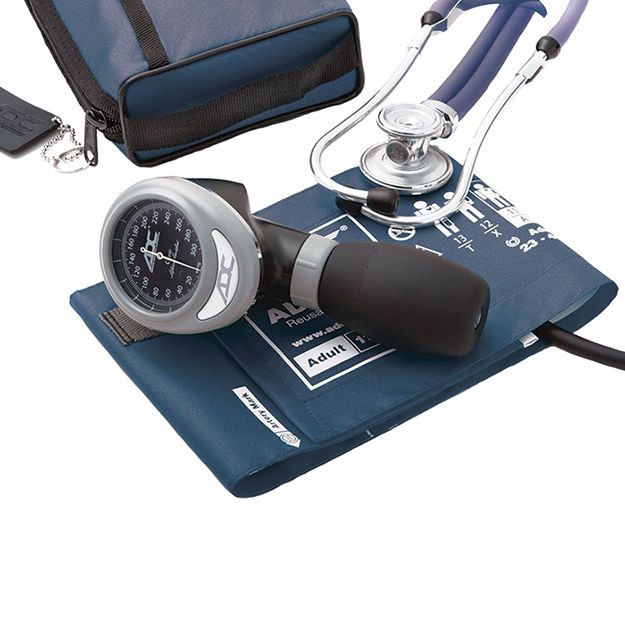

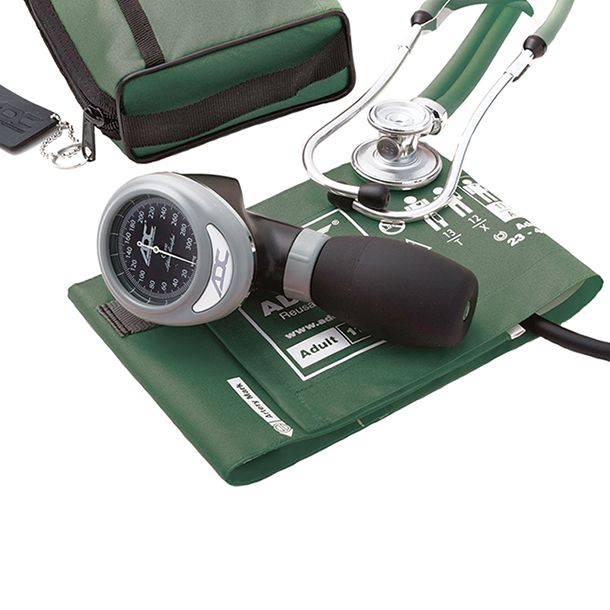

ADC Pro's Combo I 788-641 Palm Aneroid/Sprague Scope Kit

ADC Pro's Combo I 788-641 Palm Aneroid/Sprague Scope KitFeatures

• ADC Diagnostix 788 Palm Aneroid Sphygmomanometer Features:
  • Revolutionary palm style manometer (#804N) with integral bulb features a trigger style air release valve for one-hand convenience.
  • Precision crafted 300 mm Hg Japanese engineered movement tested to 50,000 cycles.
  • Movement housed in a zinc cage that suspends within the polymer housing for enhanced shock resistance.
  • Ambidextrous infinite control trigger release air valve.
  • Quick release luer slip connector.
  • Luminescent dial features bold numerals and extended graduation marks for easy reading in all light conditions and from virtually any angle.
  • Adcuff Nylon Cuff with ADC's proprietary Size Guide marking system, prevents mis-cuffing.
  • Meets or exceeds ANSI/AAMI/ISO 81060-1.
• ADC Adscope 641 Sprague Stethoscope Features:
  • Threaded chestpiece drum of chrome plated zinc permits the use of five interchangeable chestpiece fittings - an adult and pediatric diaphragm, and three bells (1 1/4", 1", 3/4") - for complete diagnostic capability on most patients.
  • Double tube configuration for improved stereo separation.
  • Proprietary valve mechanism eliminates acoustic leakage.
  • Adjustable aluminum binaurals.
• Not made with natural rubber latex.
• Assembled, inspected, and packaged in the U.S.A. from foreign components.
• Available in 10 different colors:
  • Burgundy (#788-641-11ABD).
  • Black (#788-641-11ABK).
  • Dark Green (#788-641-11ADG).
  • Magenta (#788-641-11AM).
  • Navy (#788-641-11AN).
  • Orange (#788-641-11AOR).
  • Red (#788-641-11AR).
  • Royal Blue (#788-641-11ARB).
  • Teal (#788-641-11ATL).
  • Purple (#788-641-11AV).

ADC Pro's Combo I 788-641 Palm Aneroid/Sprague Scope KitSpecifications

• ADC Diagnostix 788 Palm Aneroid Sphygmomanometer Specifications:
  • Sphyg Type: Pro's Combo.
  • Gauge Product Number: #804N.
  • Gauge Warranty: Lifetime.
  • Sphyg Accuracy: +/-3 mm Hg at 50 degrees F (10 degrees C) - 104 degrees F (40 degrees C).
  • Sphyg Accuracy at Extended Temperature Range: +/- 3 mm Hg or 2%. Whichever is greater at < 50 degrees F (10 degrees C) and > 104 degrees F (40 degrees C).
  • Storage Temp: -4 degrees F (-20 degrees C) - 131 degrees F (55 degrees C).
  • Valve Type: Integral.
  • Number of Tubes: 1.
  • Cuff Type: ADCUFF.
  • Cuff Size: Adult.
  • Cuff Range: 9" - 15.7" (23 cm - 40 cm).
  • Inflation Warranty: 3 Years.
• ADC Adscope 641 Sprague Stethoscope Specifications:
  • Chestpiece Type: Convertible.
  • Chestpiece Material: Zinc.
  • Chestpiece Finish: Mirror/Satin.
  • Chestpiece Weight: 3.5 oz (99.2 g).
  • Diaphragm Diameter: 1.5" (3.8 cm) / 1" (2.54 cm).
  • Diaphragm Material: PVC.
  • Diaphragm Type: Standard.
  • Bell Diameter: 1.25" (3.2 cm) / 1" (2.54 cm) / 0.75" (1.9 cm).
  • Headset Type: External Spring.
  • Headset Material: Aluminum.
  • Headset Finish: Anodized.
  • Tubing Length: 21" (53 cm).
  • Total Length: 30" (76.25 cm).
  • Total Weight: 7.04 oz (200 g).
• Storage Case Dimensions: 9" x 5" x 2" (22.86 cm 12.7 cm 5.08 cm).
