ADC Pro's Combo 768-618 Pocket Aneroid/Pediatric Scope Kit

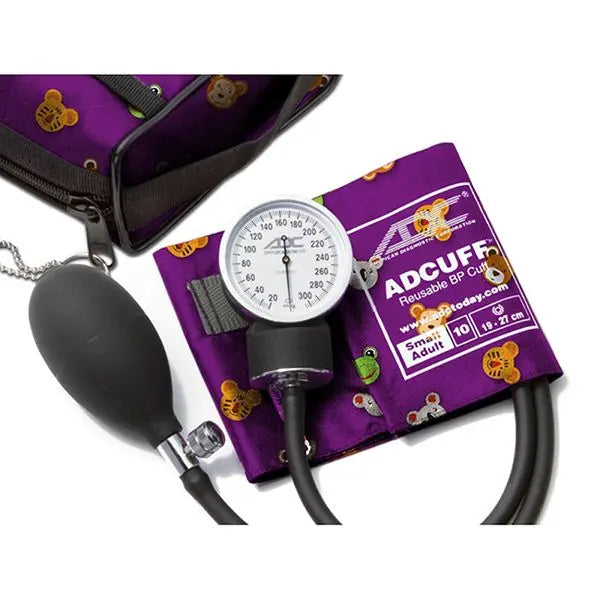

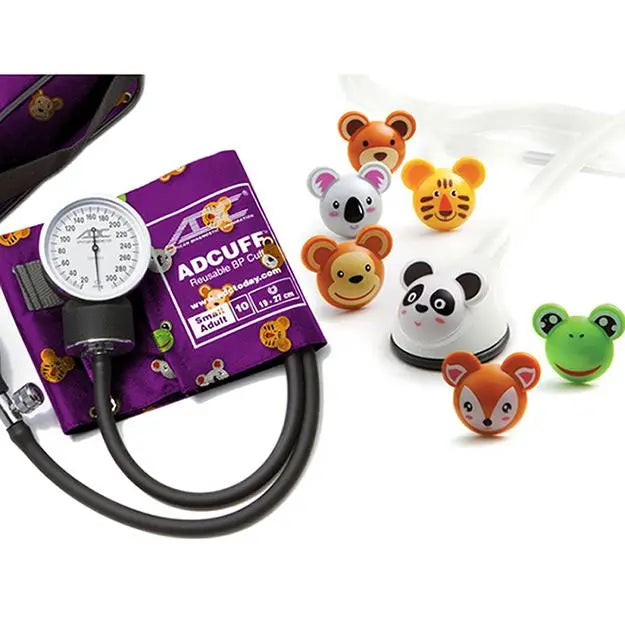

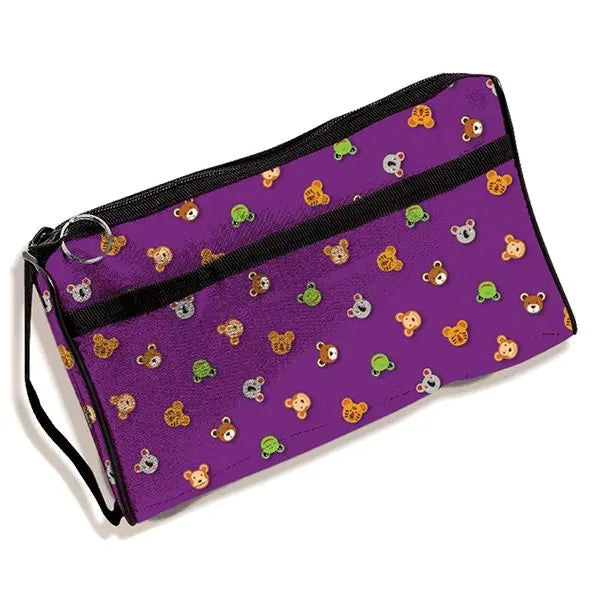

The ADC Pro's Combo 768-618 Pocket Aneroid/Pediatric Scope Kit (#768-618-10SAAD) includes an ADC Prosphyg 768 Pocket Aneroid Sphygmomanometer, an ADC Adscope Adimals 618 Platinum Pediatric Stethoscope, and an optional ADC Adtemp 426 Adimals Digital Thermometer (#768-618-10SAADKIT) can also be included. The ADC Prosphyg 768 Pocket Aneroid Sphygmomanometer includes a black enamel 300 mm Hg manometer, a small adult sized Adcuff Nylon Cuff, and an extra-large, color-matched, dual pocket carry case. The ADC Adscope Adimals 618 Platinum Pediatric Stethoscope includes seven interchangeable animal face snap-ons. The ADC Adtemp 426 Adimals Digital Thermometer (Panda) includes five probe sheaths.

Warranty:

• ADC Prosphyg 768 Pocket Aneroid Sphygmomanometer: 3 Years (Manometer carries a 20 year calibration warranty).
• ADC Adscope Adimals 618 Platinum Pediatric Stethoscope: 5 Years.
• ADC Adtemp 426 Adimals Digital Thermometer: 2 Years.

The ADC Pro's Combo 768-618 Pocket Aneroid/Pediatric Scope Kit is perfect for pediatricians or nurses working with young patients.

ADC Pro's Combo 768-618 Pocket Aneroid/Pediatric Scope Kit Features

• ADC Prosphyg 768 Pocket Aneroid Sphygmomanometer Features:

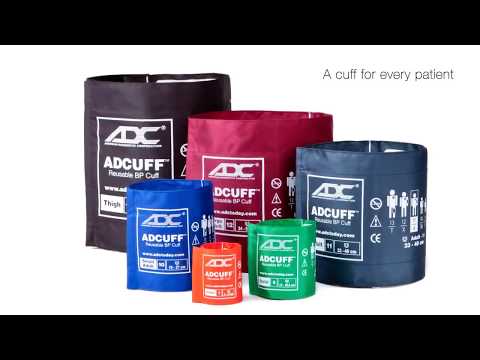

  • Adcuff Nylon Cuff with ADC's proprietary Size Guide marking system prevents mis-cuffing.

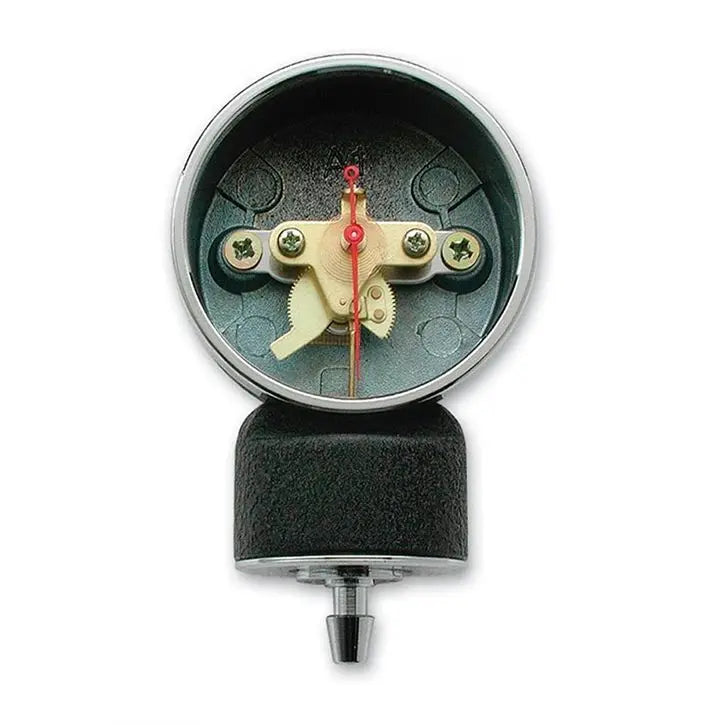

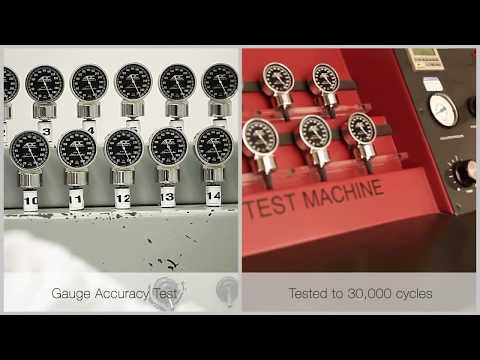

  • Contemporary black enamel 300 mm Hg manometer provides day-in, day-out dependability and exceeds industry standards.
  • Chrome-plated brass air release valve.
  • Meets or exceeds ANSI/AAMI/ISO 81060-1.

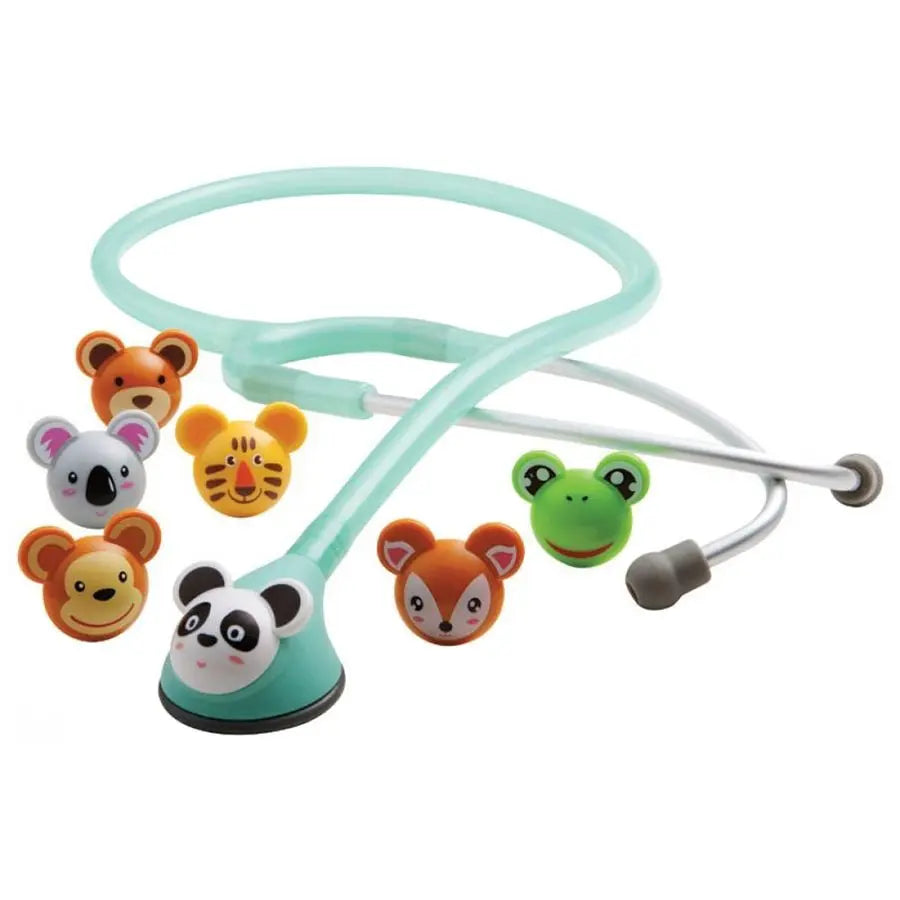

• ADC Adscope Adimals 618 Platinum Pediatric Stethoscope Features:

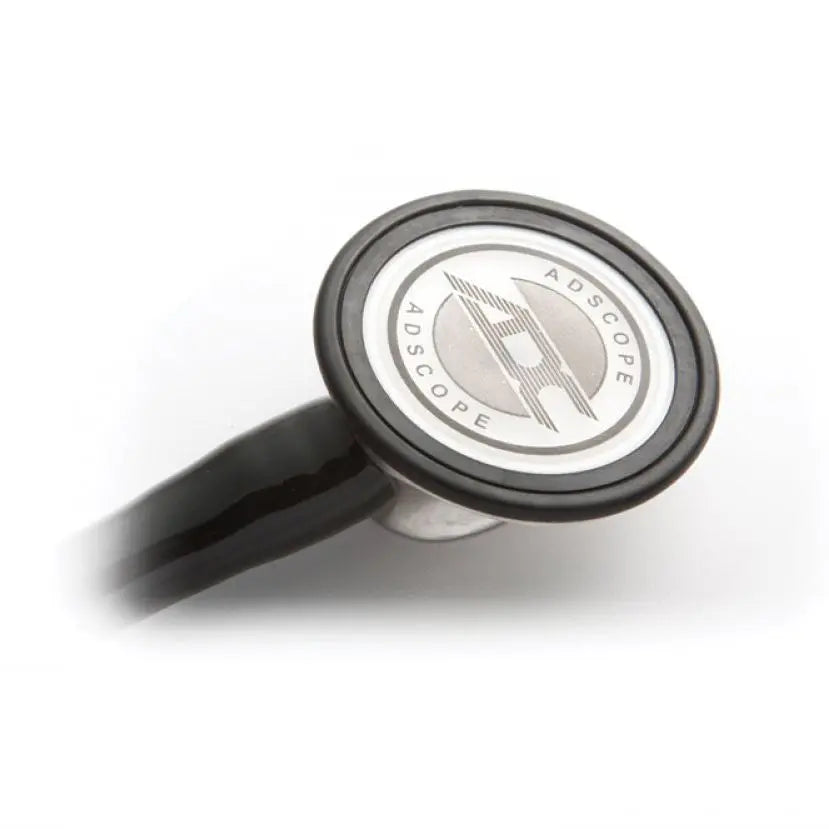

  • ADC's AFD technology design switches between low, bell-like frequency and high, diaphragm-like frequency simply by altering pressure.
  • Non-chill bell and diaphragm retaining rim for patient comfort.
  • Clinical headset boasts reinforcing yoke molded into the flexible 22" PVC tubing.
  • Tubing is soft and flexible and has been made without phthalates since 2014.

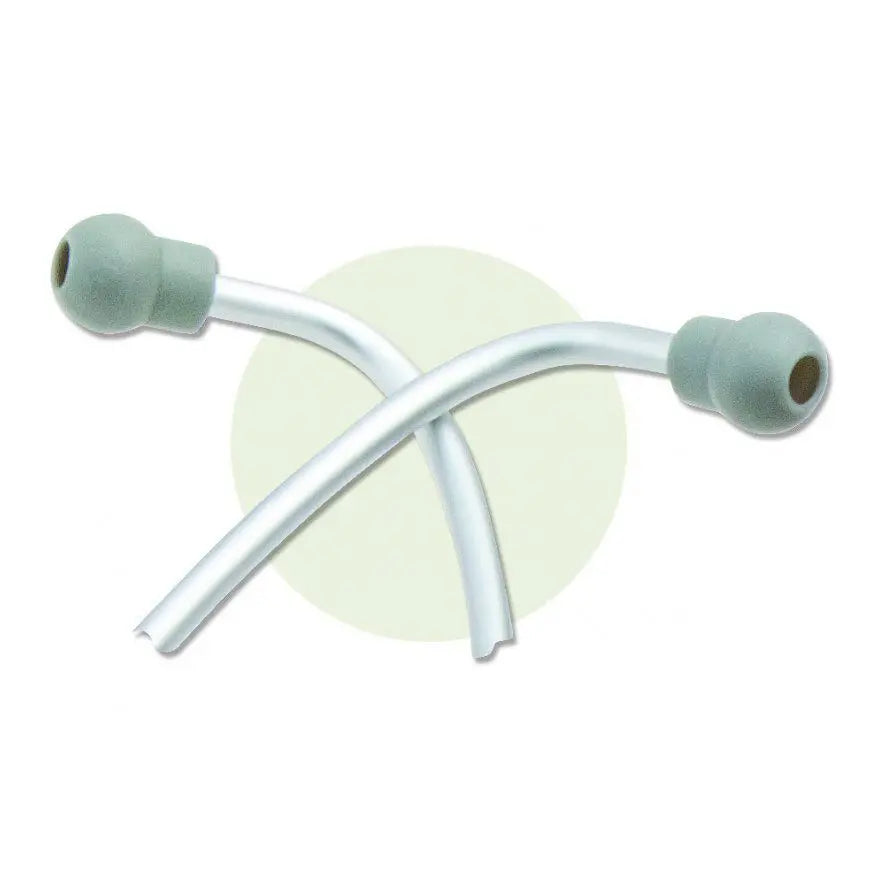

  • Lightweight aluminum binaurals in matching satin finish.
  • Adsoft Plus silicone eartips with new snap-on connection for the ultimate in wearing comfort and acoustic seal.
  • Seven interchangeable animal face snap-ons included:
    • Panda.
    • Frog.
    • Koala.
    • Deer.
    • Monkey.
    • Tiger.
    • Bear.
• ADC Adtemp 426 Adimals Digital Thermometer Features:
  • Digital stick thermometer with a fun and friendly animal face that's great for pediatric care.
  • Jumbo LCD screen for easy reading that shows the temperature in either Fahrenheit or Celsius.
  • Last reading memory.
  • Audible tone lets you know when measurement is complete.
  • Range 89.6 degrees F - 109.4 degrees F +/-.3 degrees F or 32 degrees C - 43 degrees C +/-.2 degrees C depending upon scale selection.
  • Replaceable 1.55v (LR41) type battery provides up to 1,500 measurements.
  • Meets the accuracy requirements for intermittent thermometers under ASTM E1112.
• Not made with natural rubber latex.
• Assembled, inspected, and packaged in the U.S.A. from foreign components.

ADC Pro's Combo 768-618 Pocket Aneroid/Pediatric Scope Kit Specifications

• ADC Prosphyg 768 Pocket Aneroid Sphygmomanometer Specifications:
  • Sphyg Type: Pro's Combo.
  • Gauge Product Number: #808N.
  • Gauge Warranty: 20 Years.
  • Sphyg Accuracy: +/-3 mm Hg at 50 degrees F (10 degrees C) - 104 degrees F (40 degrees C).
  • Sphyg Accuracy at Extended Temperature Range: +/- 3 mm Hg or 2%. Whichever is greater at < 50 degrees F (10 degrees C) and > 104 degrees F (40 degrees C).
  • Storage Temp: -4 degrees F (-20 degrees C) - 131 degrees F (55 degrees C).
  • Valve Type: Standard.
  • Number of Tubes: 2.
  • Cuff Type: ADCUFF.
  • Cuff Size: Small Adult.
  • Cuff Range: 7.4" - 10.6" (19 cm - 27 cm).
  • Inflation Warranty: 3 Years.
• ADC Adscope Adimals 618 Platinum Pediatric Stethoscope Specifications:
  • Chestpiece Type: AFD Technology.
  • Chestpiece Material: Composite.
  • Chestpiece Weight: 0.88 oz (24.9 g).
  • Diaphragm Diameter: 1.5" (3.8 cm).
  • Diaphragm Material: Epoxy/Fiber Glass.
  • Diaphragm Type: AFD Technology.
  • Headset Type: Clinician.
  • Headset Material: Aluminum.
  • Headset Finish: Satin.
  • Tubing Length: 21" (53 cm).
  • Total Length: 30" (76 cm).
  • Total Weight: 3 oz (85 g).
• ADC Adtemp 426 Adimals Digital Thermometer Specifications:
  • Type: Oral/Rectal/Axillary.
  • Technology: Peak-hold.
  • Scale: Dual ( degrees F/ degrees C).
  • Range degrees F: 89.6 - 109.4.
  • Range degrees C: 32.0 - 43.0.
  • Accuracy degrees F: 0.3.
  • Accuracy degrees C: 0.2.
  • Response Time: 10 sec.
  • Beeper: Yes.
  • Auto-off: Yes.
  • Memory: Last-reading.
  • Flex Probe: Yes.
  • Needs Sheaths: Yes.
  • Battery Type: 1.55v (LR41).
  • Battery Life: 1,500 uses.
  • Latex Content: Latex-free.
  • Dimensions: 6.1" x 1.2" x .66" (155.5 mm x 32.5 mm x 17 mm).
  • Weight: 0.7 oz (20 g).
  • Display: LCD.
  • Operating Environment: 20 degrees F - 95 degrees F (10 degrees C - 35 degrees C).
  • Storage Environment: -13 degrees F - 131 degrees F (-25 degrees C - 55 degrees C).
• Storage Case Dimensions: 9" x 5" x 2" (22.86 cm 12.7 cm 5.08 cm).
