Condition:
-
Country of Origin: Germany
-
Warranty:
- Weight: 2.79 lb
-
Learn more:
-
MFR:
American Diagnostic Corporation
Ships from MFI Medical
-
MPN: 55802L
- Phone: (800) 232-2670
Frequently asked questions
What diagnostic components are included?

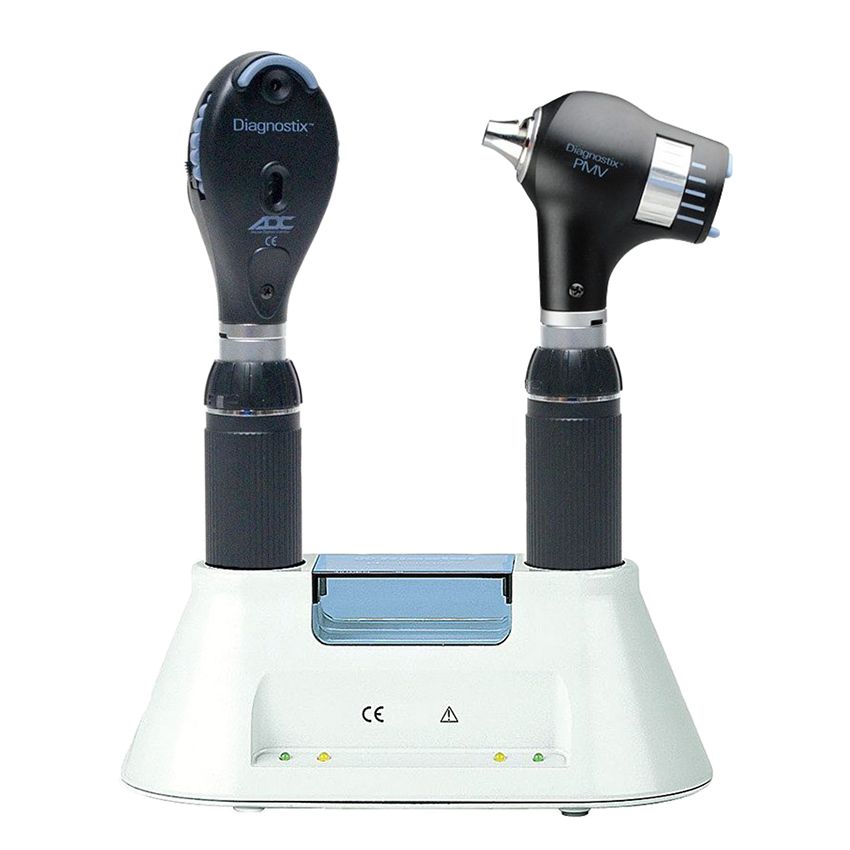

The ADC Diagnostix 55802 is a comprehensive 3.5V diagnostic desk set featuring premium instruments and an efficient power system. The set includes the following main components:

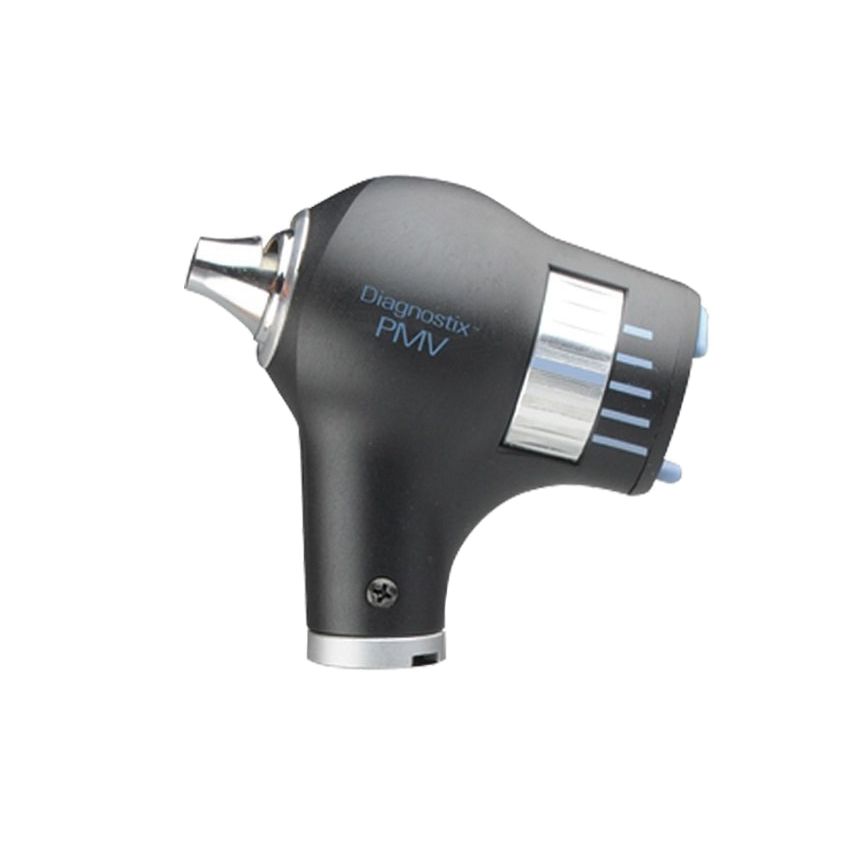

- ADC Diagnostix 5422 3.5V PMV Otoscope Head: Features fiber-optic light transmission for an unobstructed view and adjustable focal depth. It is also compatible with standard Welch Allyn specula.

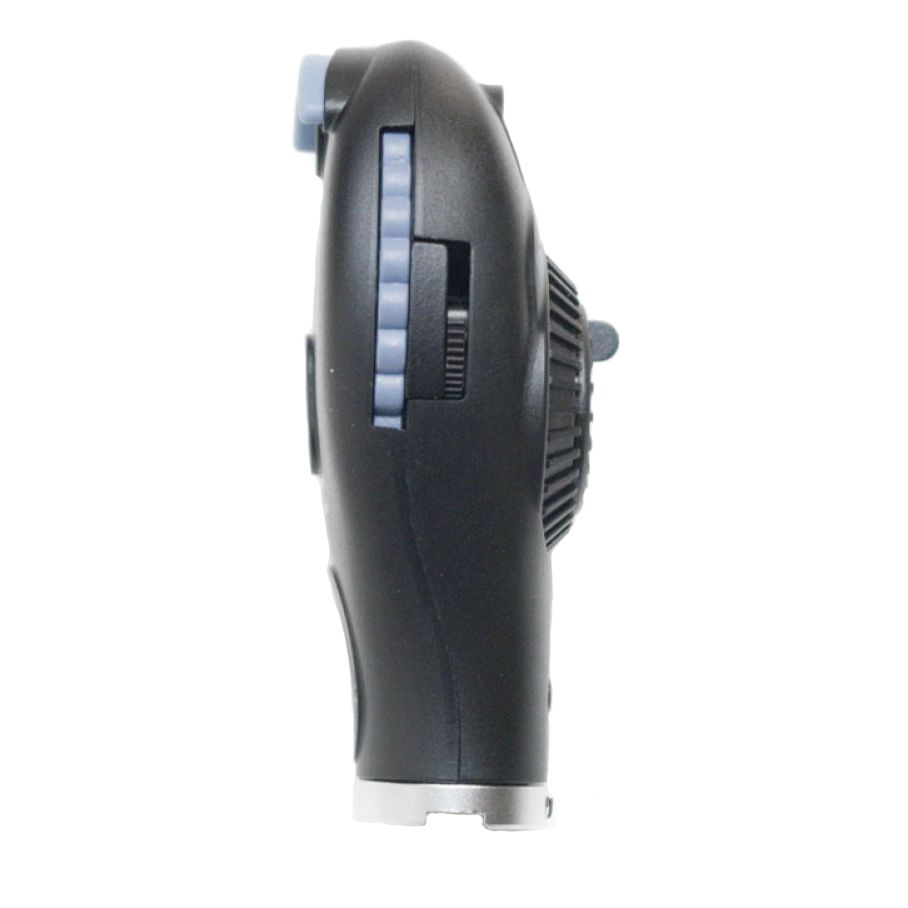

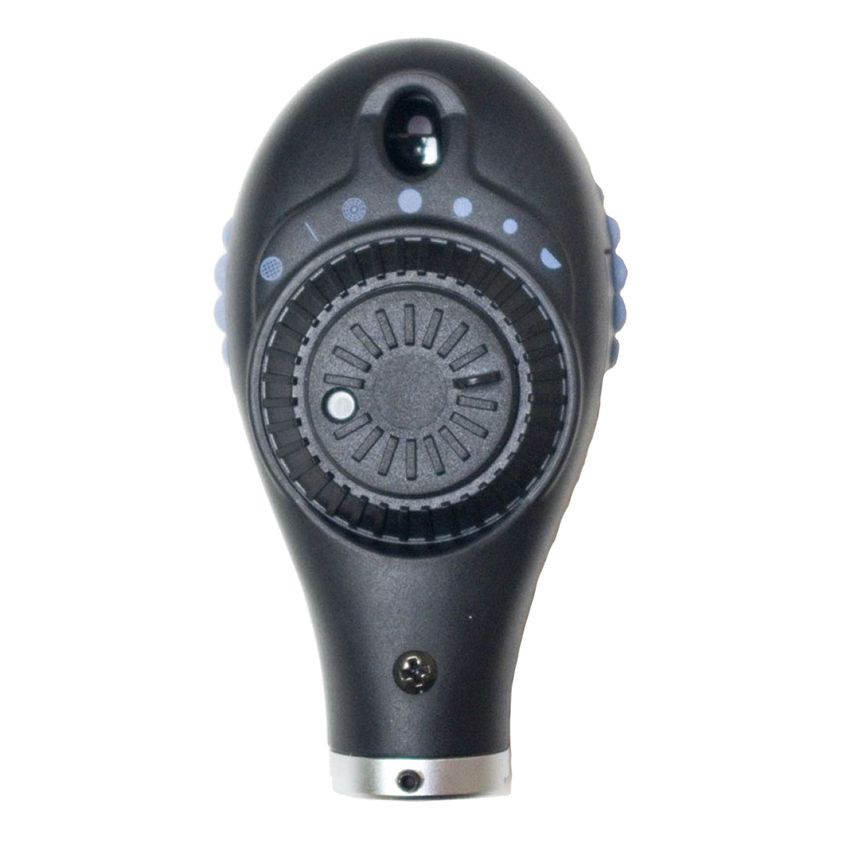

- ADC Diagnostix 5442 3.5V Coax Plus Ophthalmoscope Head: Engineered with advanced aspherical optics to minimize corneal reflection. It offers extensive viewing capabilities with 89 viewing lenses (+1 to +45, -1 to -44) and 28 aperture/filter combinations.

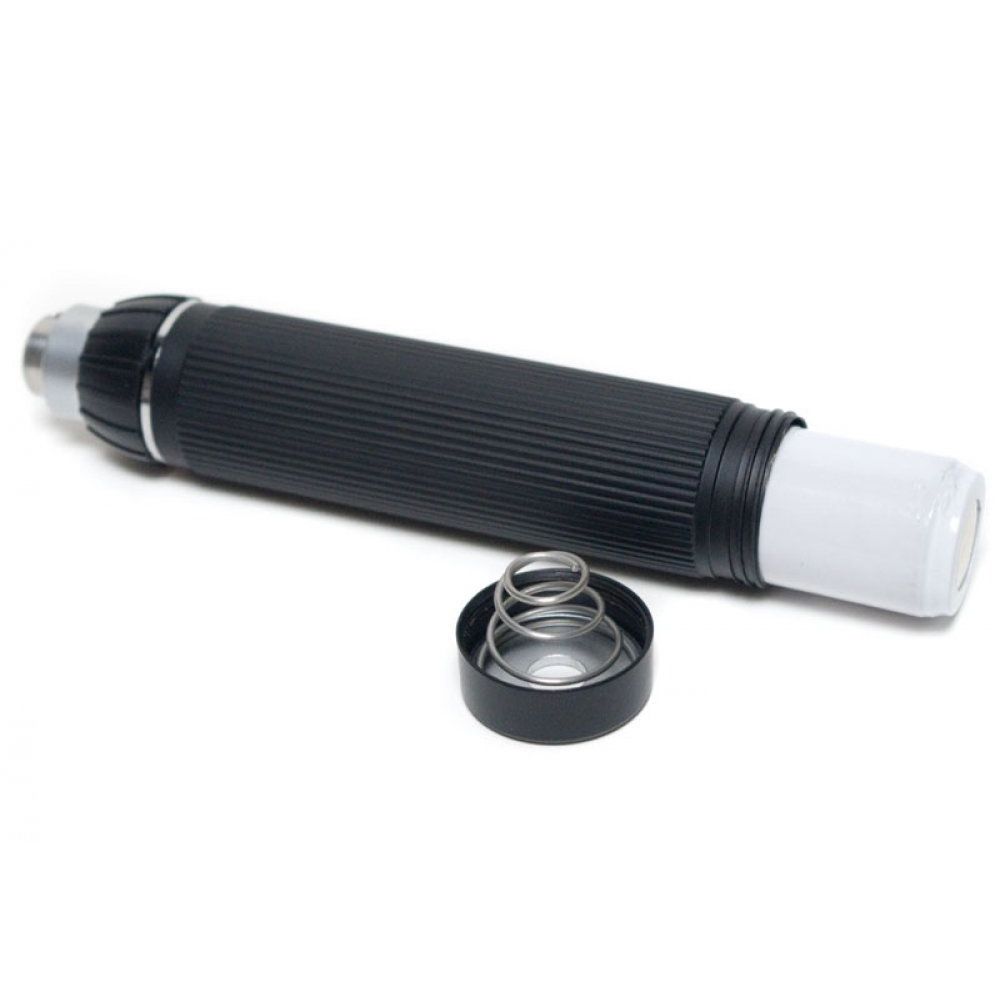

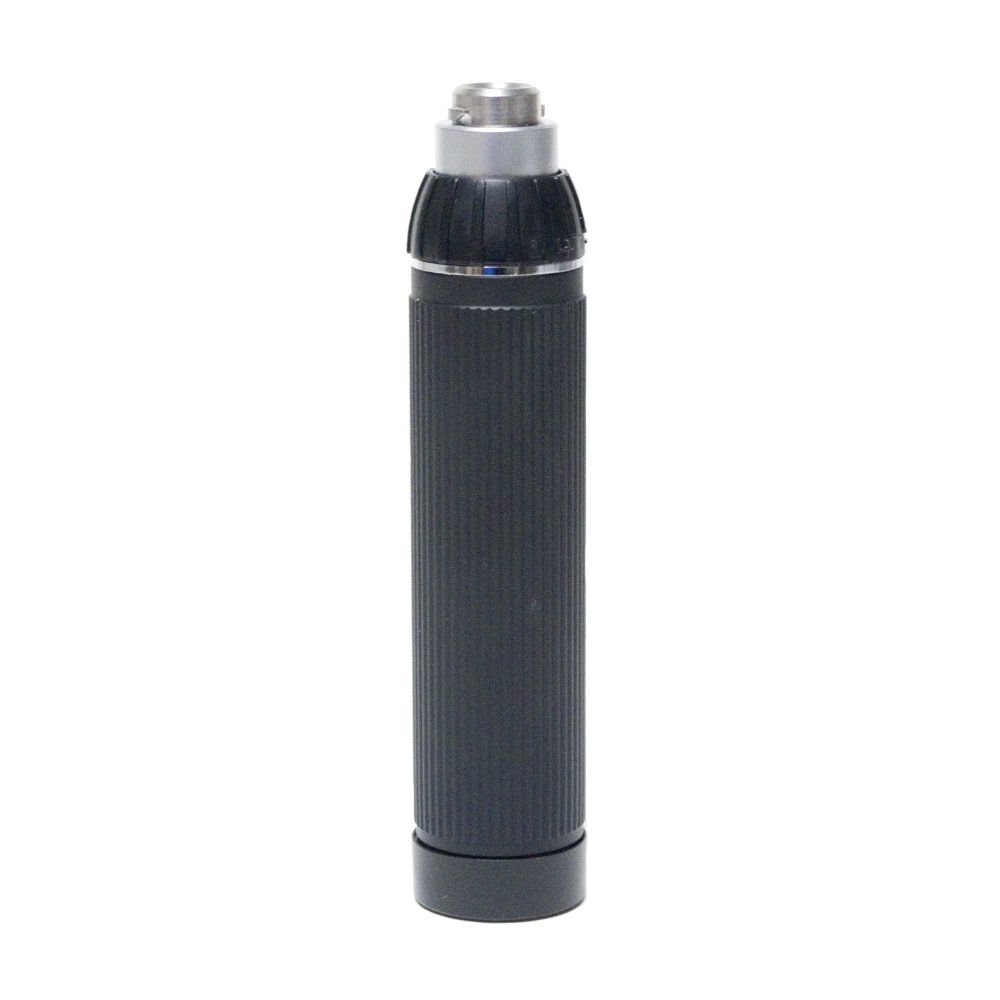

- Two ADC Diagnostix 5560 3.5V Rechargeable Handles: These durable handles are CNC machined from solid brass and feature Adtronic electronic rheostatic control. They contain powerful 2600 mAh Li-ion batteries.

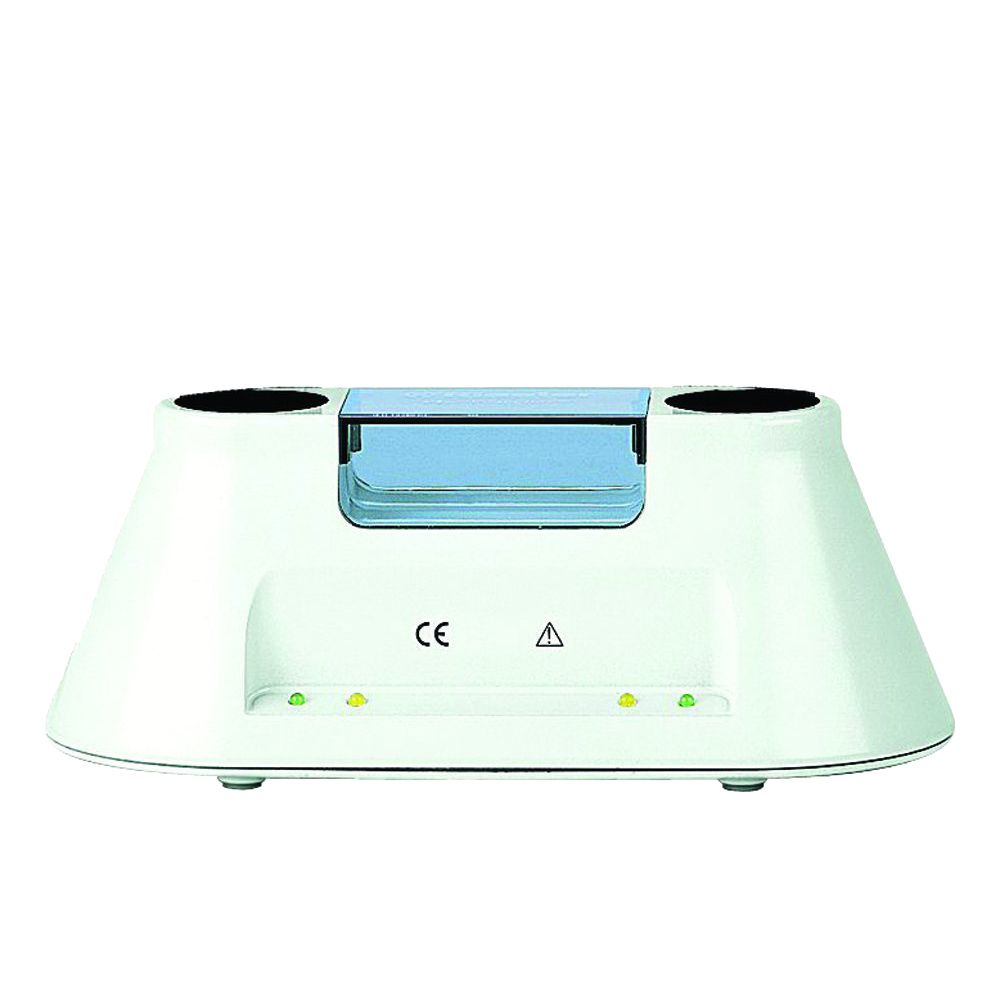

- ADC Diagnostix 5500 3.5V Desk Charger: This dual-bay unit charges both handles simultaneously in approximately 3 hours. It includes colored LED status indicators and a storage compartment for added convenience.
Does this set include AdLED or Xenon illumination options?
Yes, this professional diagnostic set is highly configurable, allowing you to choose the light source for both the Otoscope and Ophthalmoscope heads. You can select combinations utilizing either high-performance AdLED or traditional Xenon illumination.
Illumination Options
- High-Performance AdLED (AdLED Lamp Option)
- Clarity: Provides brilliant, cool white light (4,200 Kelvin) with exceptional color rendering (CRI = 92).
- Efficiency: Delivers vastly extended battery life, offering up to 50 hours of continuous use per charge cycle.
- Warranty: The AdLED lamp carries a Lifetime Warranty.
- Halogen/Xenon (Traditional Lamp Option)
- Quality: Offers strong, reliable, warm light preferred by some clinicians.
- Run Time: Provides up to 3 hours of continuous use per charge cycle.
When ordering, you specify the exact combination (e.g., LED/LED, Xenon/Xenon, or mixed) that suits your clinical needs.
How fast do the rechargeable handles charge?
The ADC Diagnostix 5500 Desk Charger is highly efficient, designed to fully charge the 3.5V rechargeable Li-ion battery handles in approximately 3 hours.
These handles feature durable 2600 mAh Li-ion batteries that are rated for up to 1200 charge cycles.
What is the battery life with Xenon illumination?
The rechargeable ADC Diagnostix 5560 3.5V handles offer approximately 3 hours of continuous use when operating with Xenon illumination.
For reference, the same handles provide a significantly longer use time of up to 50 hours when equipped with the High-Performance AdLED illumination option. The Li-ion batteries are durable, rated for up to 1,200 charge cycles.
Does the otoscope head feature a secure anti-theft lock?
Yes, both the PMV Otoscope Head and the Coax Plus Ophthalmoscope Head are designed with an anti-theft locking feature. This ensures that the instrument heads are securely attached to the handles and helps prevent unauthorized removal or loss.
Does the ophthalmoscope have extensive lens and filter options?
Yes, the Coax Plus Ophthalmoscope Head is designed for comprehensive diagnostics, featuring a wide array of viewing options and excellent optics.
It provides:
- 89 Viewing Lenses: Ranging from +1 to +45 and -1 to -44 for precise ametropia correction.

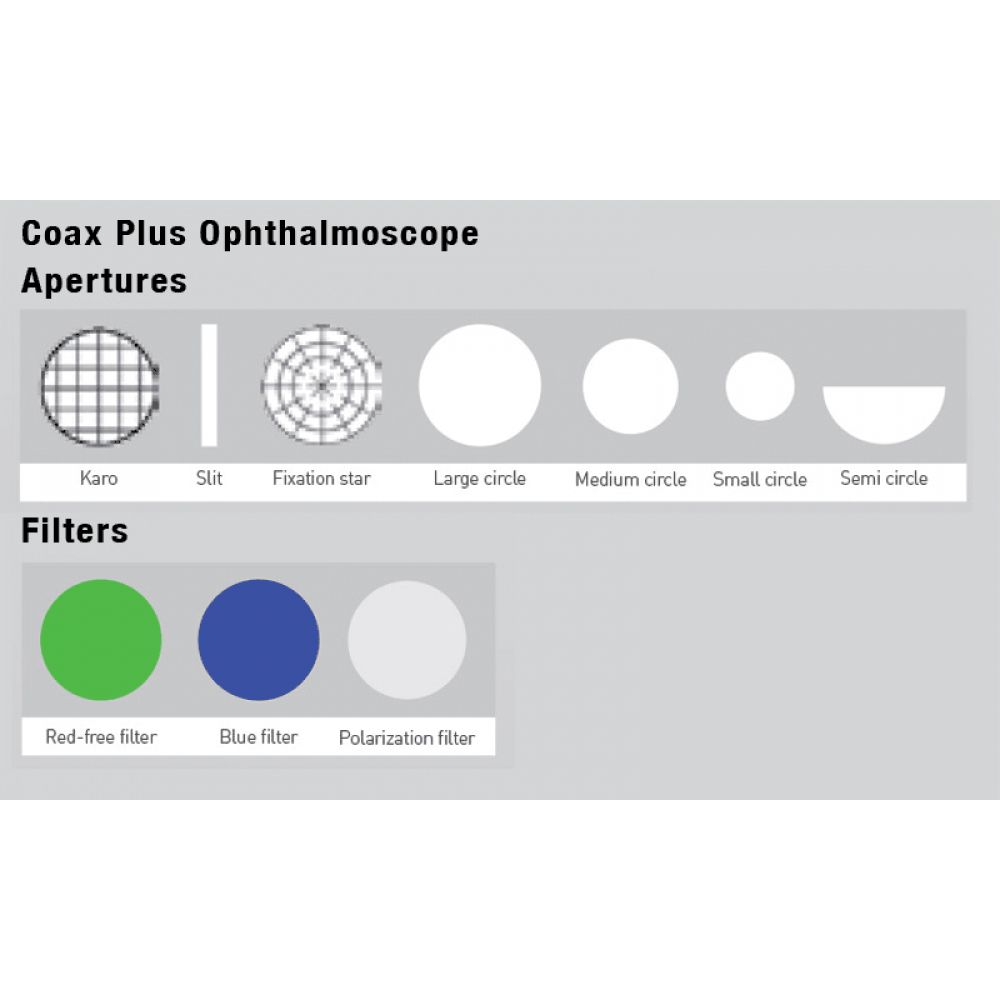

- 28 Aperture Combinations: Including standard and specialized apertures like Large, Small, Micro spot, Slit, Karo, Fixation, and Half moon.
- 3 Specialized Filters (plus neutral): Featuring Red free (for vascular assessment), Cobalt (useful with fluorescent dye), and Polarizing (to minimize corneal reflection).
Additionally, the ophthalmoscope uses a high-performance aspherical condenser lens and a parallel light beam system (Gullstrand’s principal) to significantly reduce corneal reflection and ensure optimal viewing clarity.
Are the diagnostic components brand compatible?
Yes, the components in the ADC Diagnostix 55802 set offer compatibility with standard professional equipment.
Specifically, the ADC Diagnostix 5442 3.5V Coax Plus Ophthalmoscope Head is designed with a standard bayonet instrument mount, making it compatible with other major brands’ 3.5V power supply handles.
What specialized filters does the ophthalmoscope use?
The ADC Diagnostix 5442 Coax Plus Ophthalmoscope Head is equipped with a versatile filter system that, combined with its apertures, creates 28 viewing combinations.
It includes three specialized diagnostic filters plus a standard neutral filter:
- Red Free: Used to enhance the visibility of the retina’s vasculature, including arteries, veins, and nerve fibers.
- Cobalt: Primarily utilized for detailed corneal examinations in conjunction with fluorescein dye.
- Polarizing: Works to significantly reduce glare and minimize corneal reflection for a clearer view of the fundus.
For precise focusing, the ophthalmoscope also offers an extensive range of 89 viewing lenses (from +1 to +45 and -1 to -44).
Does the otoscope offer clear optics?
Yes, the otoscope head is designed with reflection-optimized, high-performance glass optics. This ensures a clear and detailed view during examinations.
Does the set feature durable construction?
Yes, the ADC Diagnostix 55802 set is designed for robustness and longevity.
Key durability features include:
- Premium Handle Material: The two 3.5V rechargeable battery handles are CNC machined from solid brass, then chrome plated in black, ensuring exceptional durability and a secure, ribbed grip.
- Warranties: The general instruments carry a 2-year warranty, while the optional high-performance AdLED lamp is backed by a lifetime warranty.
