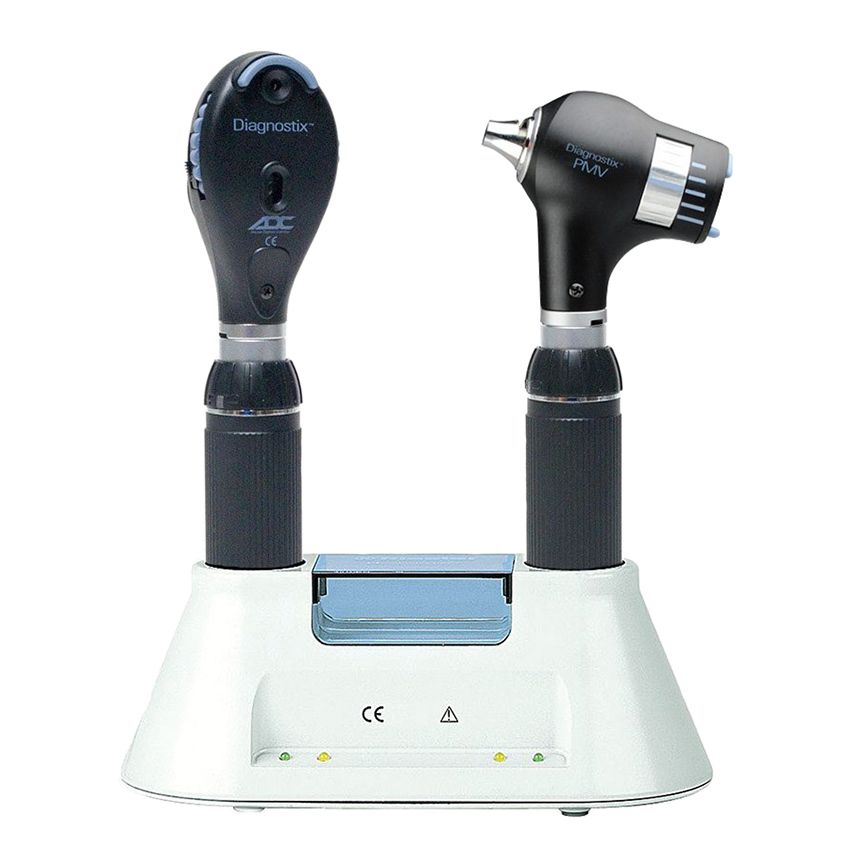

ADC Diagnostix 5580 3.5V PMV Otoscope/Ophthalmoscope Diagnostic Desk Set

The ADC Diagnostix 5580 is a comprehensive, professional diagnostic desk set. It includes all necessary components for otoscopic and ophthalmoscopic examinations:

• Diagnostic Heads (Anti-Theft Locking Standard):

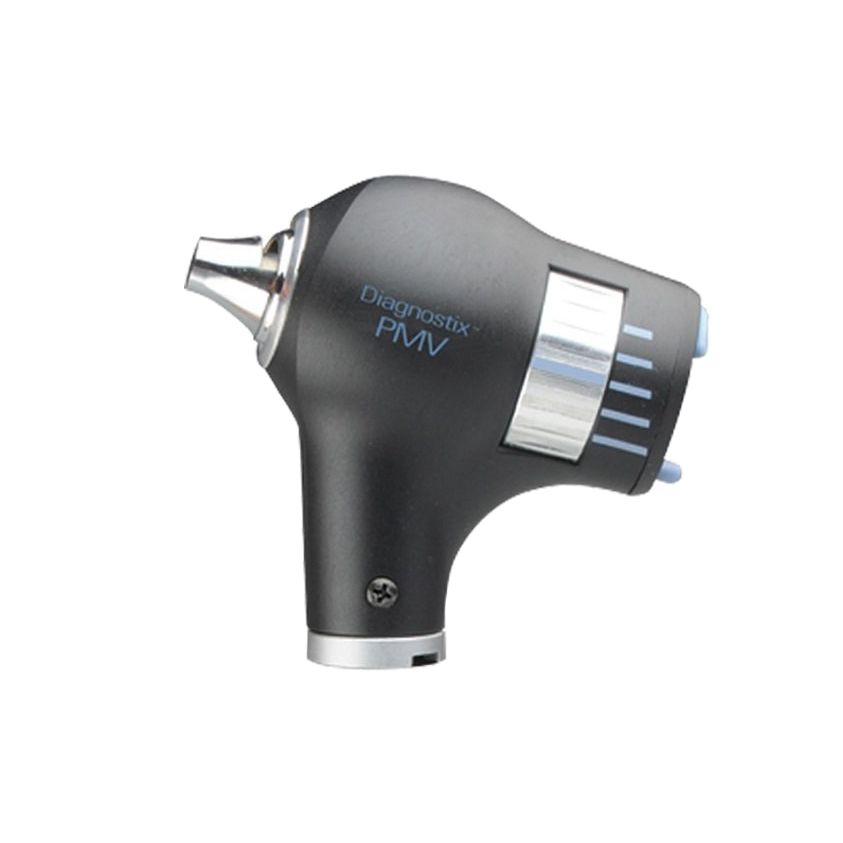

  • ADC Diagnostix 5422 3.5V PMV Otoscope Head: Features fiber-optic light transmission and reflection-optimized glass optics.

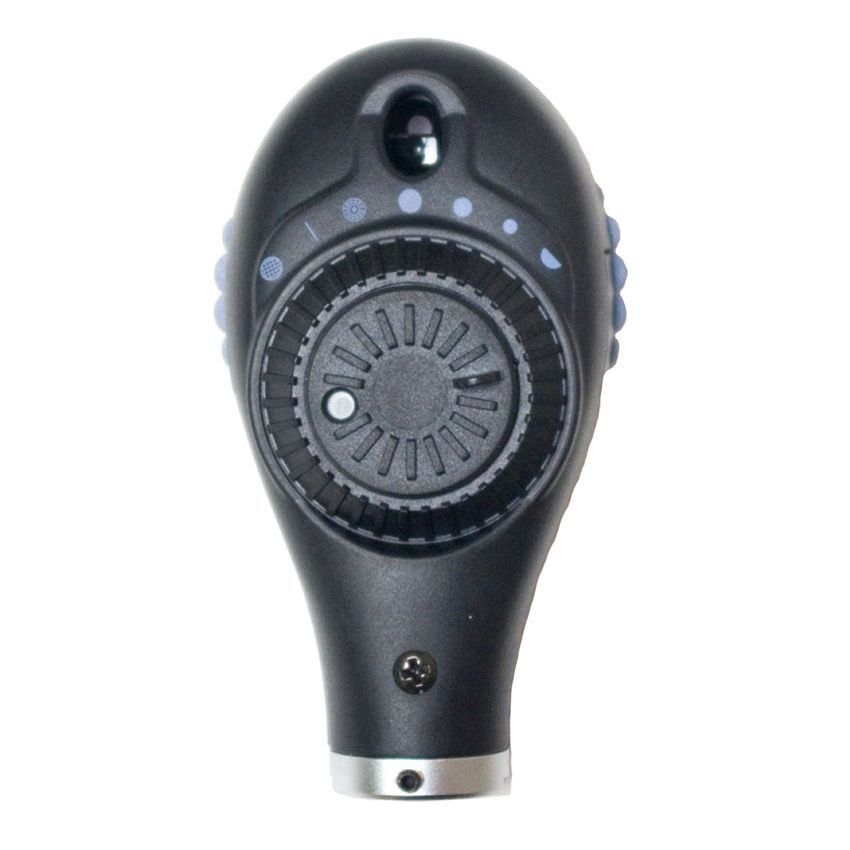

  • ADC Diagnostix 5440 3.5V Coax Ophthalmoscope Head: Engineered with high-performance aspherical optics, offering 29 viewing lenses and extensive aperture/filter options.
• Power and Control:

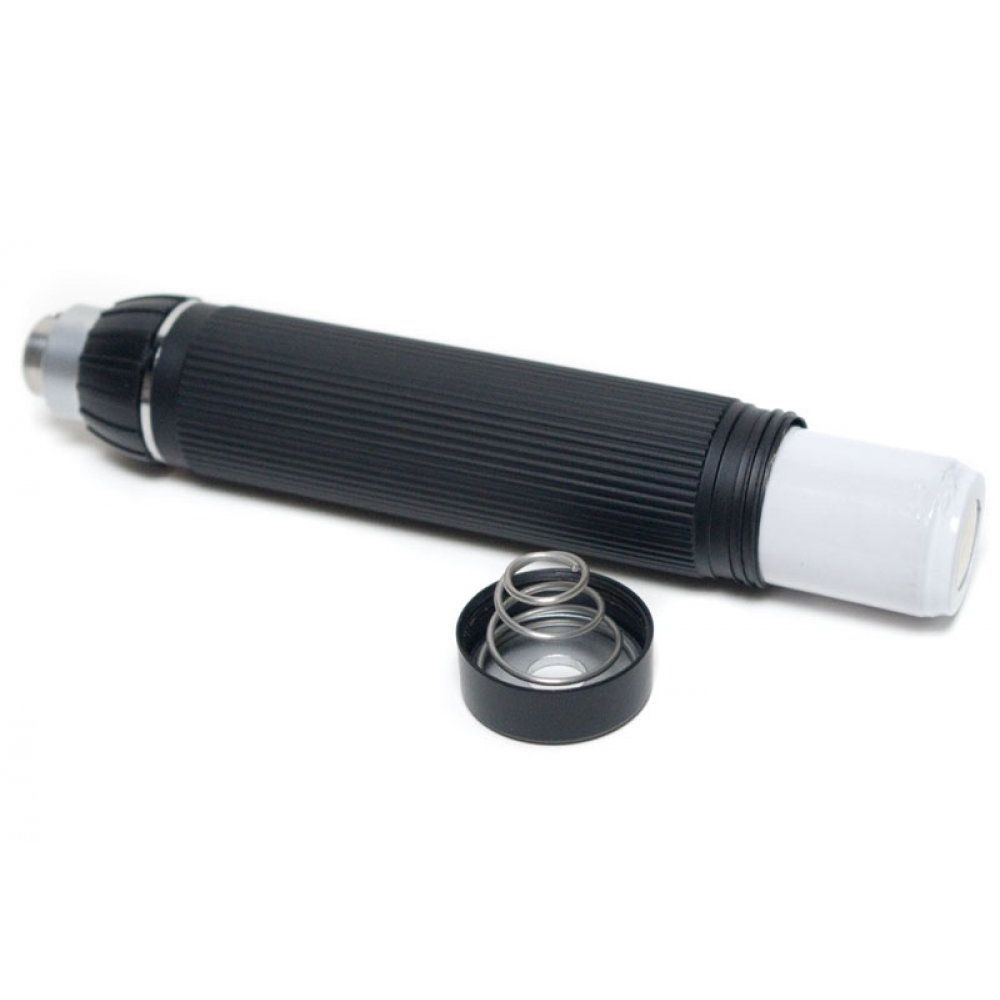

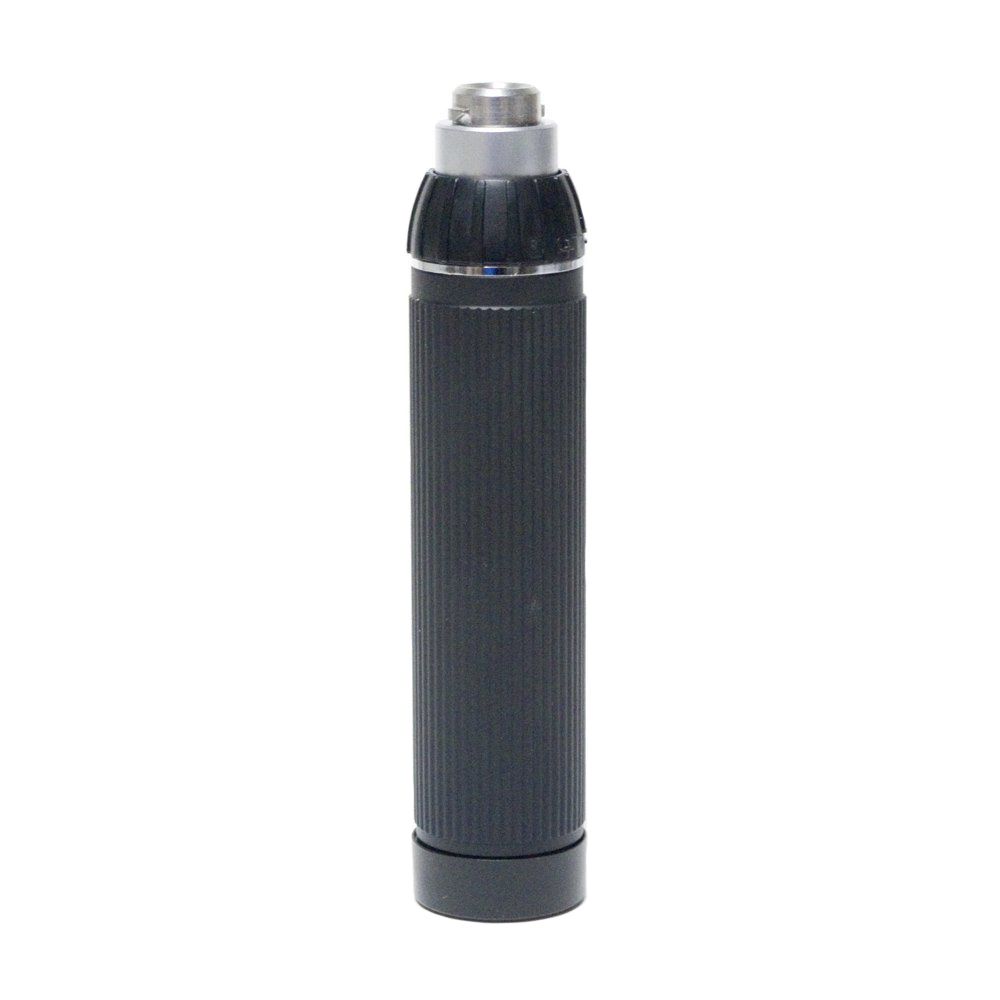

  • Two ADC Diagnostix 5560 3.5V Rechargeable Battery Handles: Constructed from CNC machined, chrome-plated solid brass with 2600 mAh Li-ion batteries. They feature Adtronic electronic reostatic light intensity control and auto-off functionality.
• Charging System:

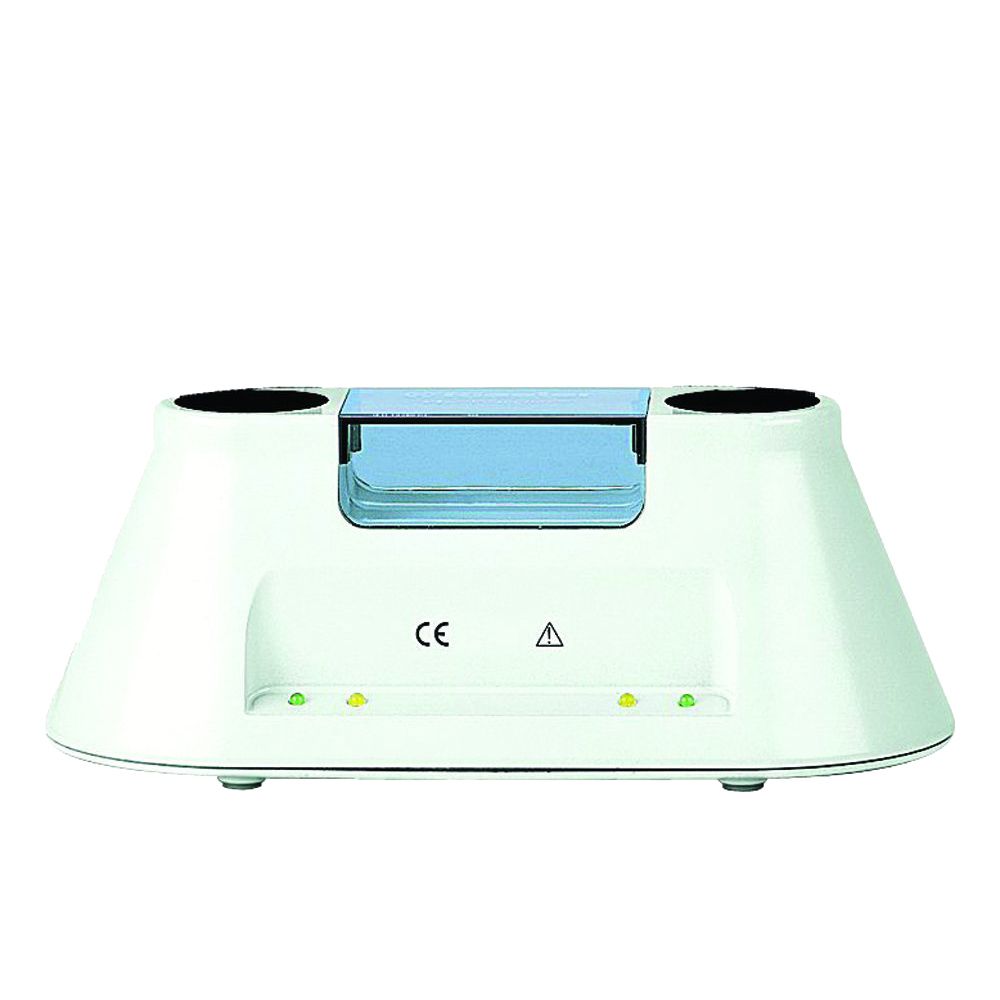

  • ADC Diagnostix 5500 3.5V Desk Charger: This dual-bay unit charges both handles concurrently in approximately 3 hours.
  • The charger also includes a reducing sleeve for smaller ‘AA’ sized handles and a wall mount bracket.

Yes, this diagnostic set allows you to select between high-performance AdLED and traditional Halogen/Xenon illumination for both the Otoscope and Ophthalmoscope heads, offering four different configuration options.

When choosing AdLED, you benefit from significant performance advantages:

• Superior Clarity: AdLED features 4,200 Kelvin illumination with an excellent Color Rendering Index (CRI) of 92, which is crucial for accurate tissue color assessment.
• Exceptional Battery Life: AdLED allows for up to 50 hours of continuous use on a single full charge (compared to 3 hours with Xenon).
• Durability: The AdLED lamp comes with a Lifetime Warranty.

The desk charger takes approximately 3 hours to fully charge the battery handles.

The ADC Diagnostix 5560 handles utilize high-capacity 2600 mAh rechargeable Li-ion batteries. The continuous operating time depends heavily on the illumination source you select:

• High-Performance AdLED Illumination: Provides an exceptional runtime of up to 50 hours of continuous use on a single charge.
• Halogen/Xenon Illumination: Provides up to 3 hours of continuous use.

These durable batteries are designed to support up to 1200 charge cycles, and the dual-slot ADC Diagnostix 5500 Desk Charger can fully recharge the handles in approximately 3 hours.

Yes, the ADC Diagnostix 5422 3.5V PMV Otoscope Head is compatible with Welch Allyn specula.

Yes, the instruments are powered by durable 3.5V rechargeable Li-ion batteries (ADC Diagnostix 5560 handles) which offer exceptional performance, especially when paired with modern illumination technology.

The operational life depends on the illumination type chosen:

• High-Performance AdLED Illumination: Provides an exceptional runtime of up to 50 hours of continuous use.
• Halogen/Xenon Illumination: Offers up to 3 hours of continuous use.

Durability and Charging

• Cycle Life: These high-performance batteries are highly durable, rated for up to 1,200 charge cycles.
• Fast Charge: The included ADC Diagnostix 5500 Desk Charger can fully recharge the handles in approximately 3 hours.

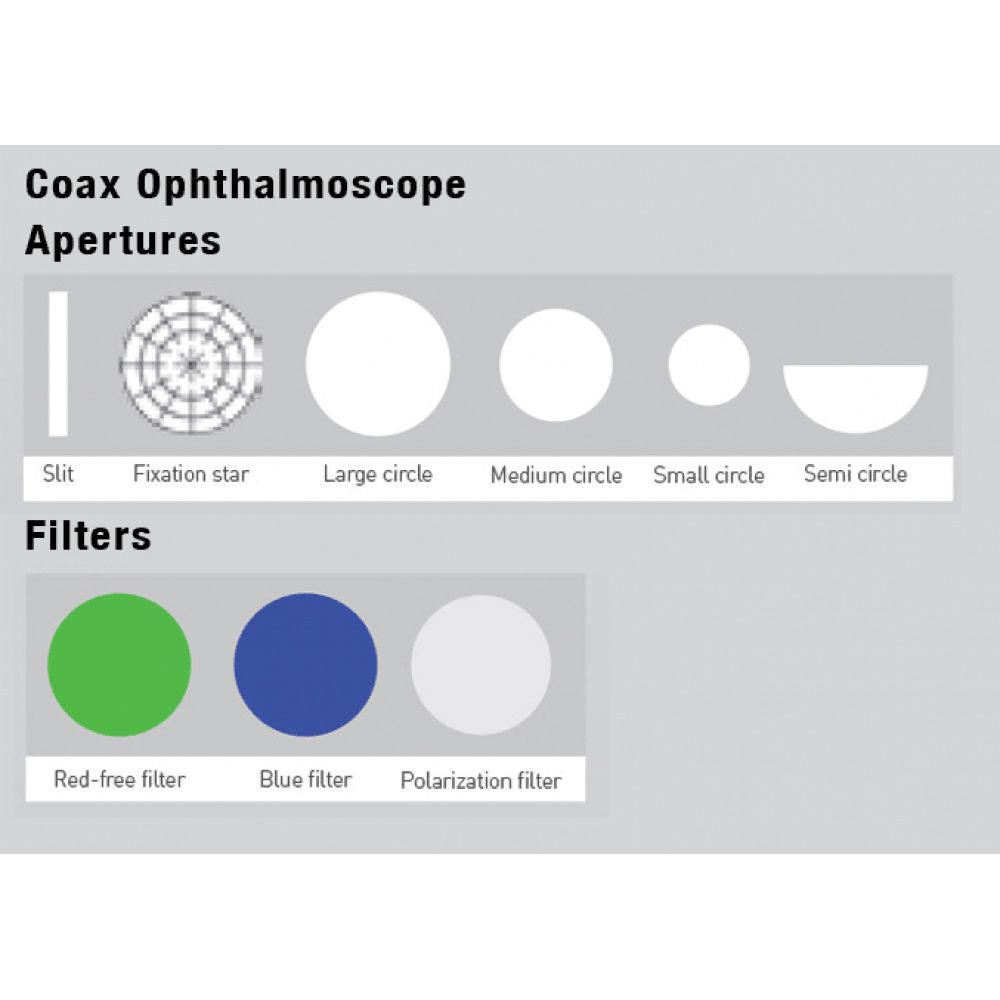

The ophthalmoscope head offers an impressive 24 aperture and filter combinations, ensuring maximum versatility for detailed fundus examinations. This wide range helps clinicians minimize corneal reflection and select the best view for specific diagnostic needs.

Key apertures and filters include:

• Apertures: Slit, Fixation star, Large circle, Small circle, Micro spot, and Half moon.
• Filters:
  • Red free: Excludes red rays.
  • Cobalt: For use with fluorescent dye.
  • Polarizing: Designed to virtually eliminate corneal reflection.

Yes, the ADC Diagnostix 5500 Desk Charger includes a wall mount bracket for secure and convenient installation in your practice, offering both desk use and wall-mounted organization.

Key features of this dual-slot charger include:

• Fast Charging: Capable of charging both 3.5V rechargeable handles simultaneously in approximately 3 hours.
• Status Indicators: Colored LEDs clearly indicate the power and charging state.
• Versatile Design: The charger is compact, portable, and includes a reducing sleeve to accommodate smaller “AA” sized handles if needed.

The ADC Diagnostix 5580 set provides robust warranty coverage, highlighted by the specific protection offered for the AdLED illumination options:

• AdLED Lamp Warranty: If you select a configuration utilizing the high-performance AdLED illumination, the AdLED lamp itself is covered by an exceptional lifetime warranty.
• General Product Warranty: The primary instruments (otoscope and ophthalmoscope heads), rechargeable handles, and the desk charger are covered by a standard 2-year warranty.

Yes, the included ADC Diagnostix 5422 PMV Otoscope Head is suitable for performing pneumatic otoscopy. This capability is supported by features like fiber-optic light transmission and adjustable focal depth for clear, unobstructed viewing of the auditory canal.

Note: The insufflator bulb required to perform pneumatic otoscopy is sold separately.
