Key Features
-
Condition:
Factory New
-
Warranty:
- Weight: 1.1 lb
-
Learn more:
-
MFR:
American Diagnostic Corporation
Ships from MFI Medical
-
MPN: 5481L
- Phone: (800) 232-2670
Regular price$819.62
Sale price$509.41
+Free Shipping*
Shop with Confidence
Free Shipping
Free Returns
Sales Tax Exemption
+Dedicated Account Managers
Frequently asked questions
Does it feature superior PMV magnification?
<p>The ADC Diagnostix 5481 PMV Otoscope is specifically designed to provide a <strong>Panoramic, Magnified View (PMV)</strong>, utilizing advanced optical technology for highly detailed examinations. This significantly surpasses standard otoscope performance.IKey Optical Advantages:</p>
<ul>
<li><strong>Magnification:</strong> Offers <strong>5X magnification</strong>, which is 66% greater than standard otoscopes.</li>
<li><strong>Field of View:</strong> Provides an <strong>11 mm field of view</strong>, which is twice the view provided by standard models.</li>
<li><strong>Optics:</strong> Features reflection-optimized, high-performance glass optics and fiber-optic light transmission to ensure superior clarity and an unobstructed view.</li>
</ul>
<ul>
<li><strong>Magnification:</strong> Offers <strong>5X magnification</strong>, which is 66% greater than standard otoscopes.</li>
<li><strong>Field of View:</strong> Provides an <strong>11 mm field of view</strong>, which is twice the view provided by standard models.</li>
<li><strong>Optics:</strong> Features reflection-optimized, high-performance glass optics and fiber-optic light transmission to ensure superior clarity and an unobstructed view.</li>
</ul>

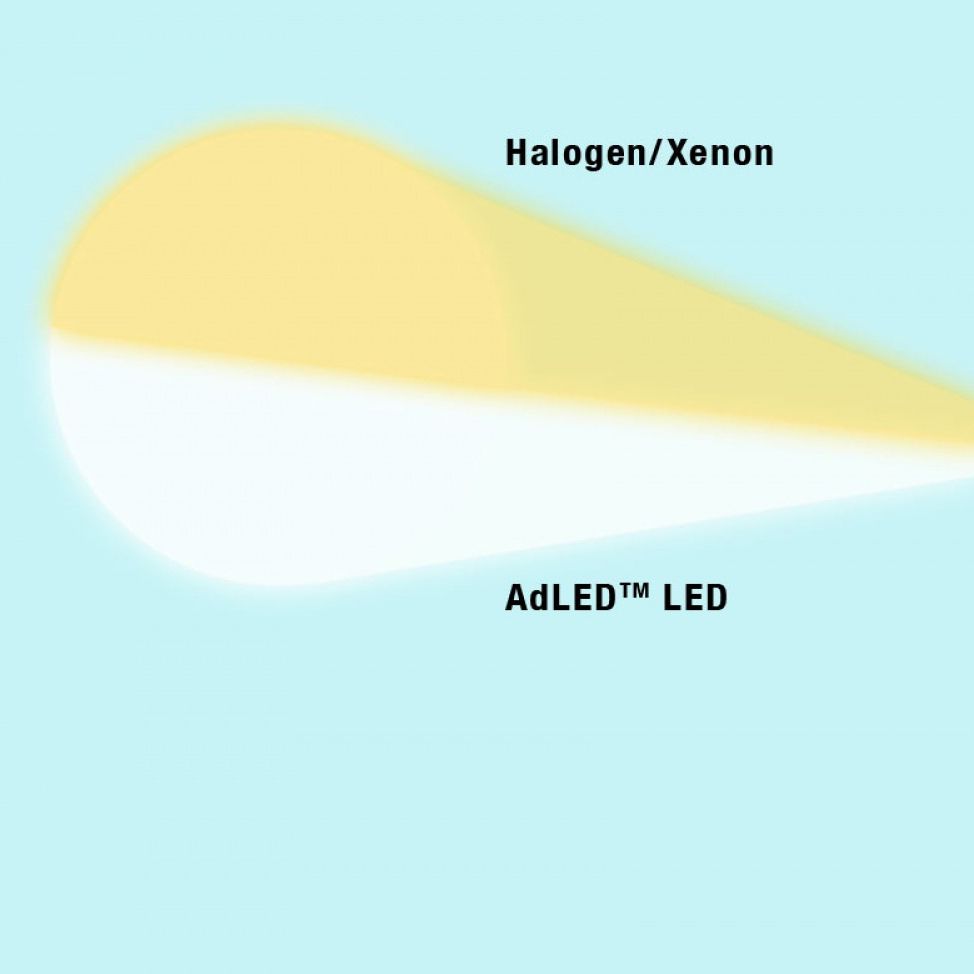

Are both AdLED and Halogen illumination options available?
<p>Yes, the ADC Diagnostix 5481 PMV Otoscope offers users a choice between two high-quality illumination systems, allowing you to select based on your preference for color temperature and efficiency:</p>

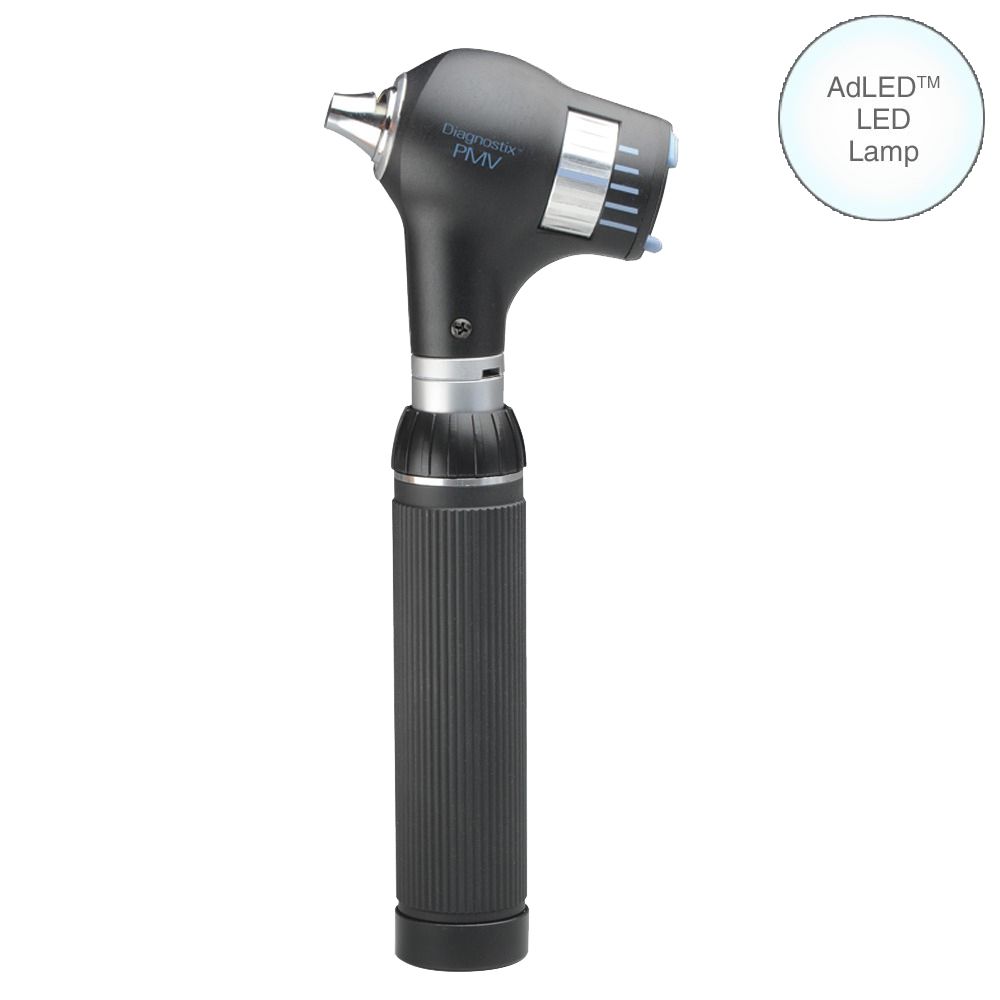

<p><strong>1. Advanced AdLED Lamp</strong></p>
<ul>
<li><strong>Efficiency:</strong> Delivers superior efficiency, offering up to <strong>30 hours</strong> of continuous use per charge.</li>
<li><strong>Color Fidelity:</strong> Features exceptional color rendering with a Color Rendering Index (CRI) of <strong>92</strong> and a neutral color temperature of <strong>4,200 Kelvin</strong>.</li>
<li><strong>Warranty:</strong> The AdLED lamp is backed by a <strong>lifetime warranty</strong>.</li>
</ul>

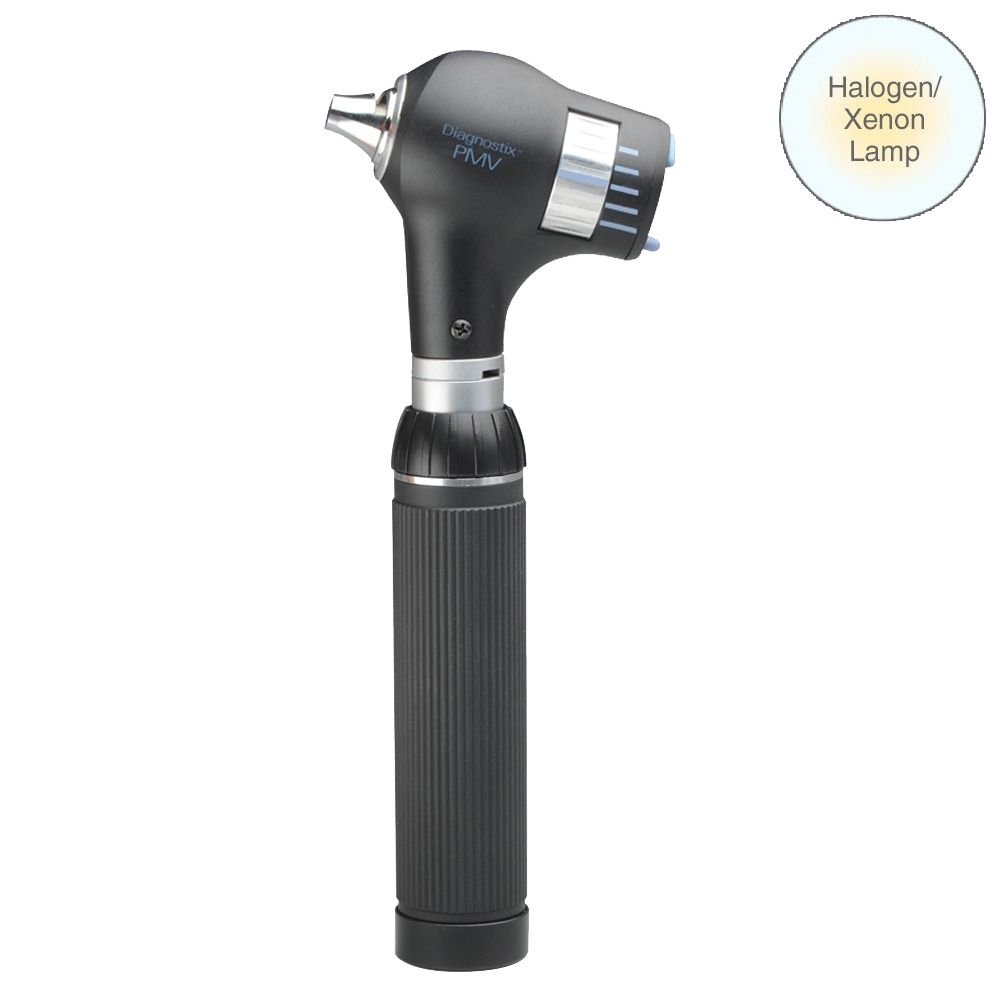

<p><strong>2. Halogen/Xenon Lamp</strong></p>
<ul>
<li><strong>Traditional Brightness:</strong> A standard, reliable option providing intense, bright light.</li>
<li><strong>Battery Life:</strong> Offers approximately <strong>2 to 3 hours</strong> of continuous use per charge.</li>
</ul>
<p>Both illumination sources utilize the <strong>Adtronic electronic rheostat</strong>, which allows for infinite, continuous adjustment of light intensity. The instrument also includes an automatic shut-off feature after two minutes of inactivity to conserve the rechargeable Li-ion battery.</p>
<p><strong>1. Advanced AdLED Lamp</strong></p>
<ul>
<li><strong>Efficiency:</strong> Delivers superior efficiency, offering up to <strong>30 hours</strong> of continuous use per charge.</li>
<li><strong>Color Fidelity:</strong> Features exceptional color rendering with a Color Rendering Index (CRI) of <strong>92</strong> and a neutral color temperature of <strong>4,200 Kelvin</strong>.</li>
<li><strong>Warranty:</strong> The AdLED lamp is backed by a <strong>lifetime warranty</strong>.</li>
</ul>
<p><strong>2. Halogen/Xenon Lamp</strong></p>
<ul>
<li><strong>Traditional Brightness:</strong> A standard, reliable option providing intense, bright light.</li>
<li><strong>Battery Life:</strong> Offers approximately <strong>2 to 3 hours</strong> of continuous use per charge.</li>
</ul>
<p>Both illumination sources utilize the <strong>Adtronic electronic rheostat</strong>, which allows for infinite, continuous adjustment of light intensity. The instrument also includes an automatic shut-off feature after two minutes of inactivity to conserve the rechargeable Li-ion battery.</p>
What is the runtime for each illumination option?
<p>The ADC Diagnostix 5481 uses a high-capacity, rechargeable <strong>1400mAh Li-ion battery</strong> handle, which is rated for up to 1,200 charge cycles. The continuous operational runtime is dependent on the illumination source selected:</p>
<ul>
<li><strong>AdLED Lamp:</strong> Provides an extended runtime of up to <strong>30 hours</strong> of continuous use per charge.</li>
<li><strong>Halogen/Xenon Lamp:</strong> Offers <strong>two to three hours</strong> of continuous use per charge.</li>
</ul>
<p>To help preserve power, the unit is equipped with Adtronic electronic rheostatic light intensity control and an automatic shut-off feature that activates after two minutes of inactivity.</p>
<ul>
<li><strong>AdLED Lamp:</strong> Provides an extended runtime of up to <strong>30 hours</strong> of continuous use per charge.</li>
<li><strong>Halogen/Xenon Lamp:</strong> Offers <strong>two to three hours</strong> of continuous use per charge.</li>
</ul>
<p>To help preserve power, the unit is equipped with Adtronic electronic rheostatic light intensity control and an automatic shut-off feature that activates after two minutes of inactivity.</p>
Does the handle have a convenient integrated plug?

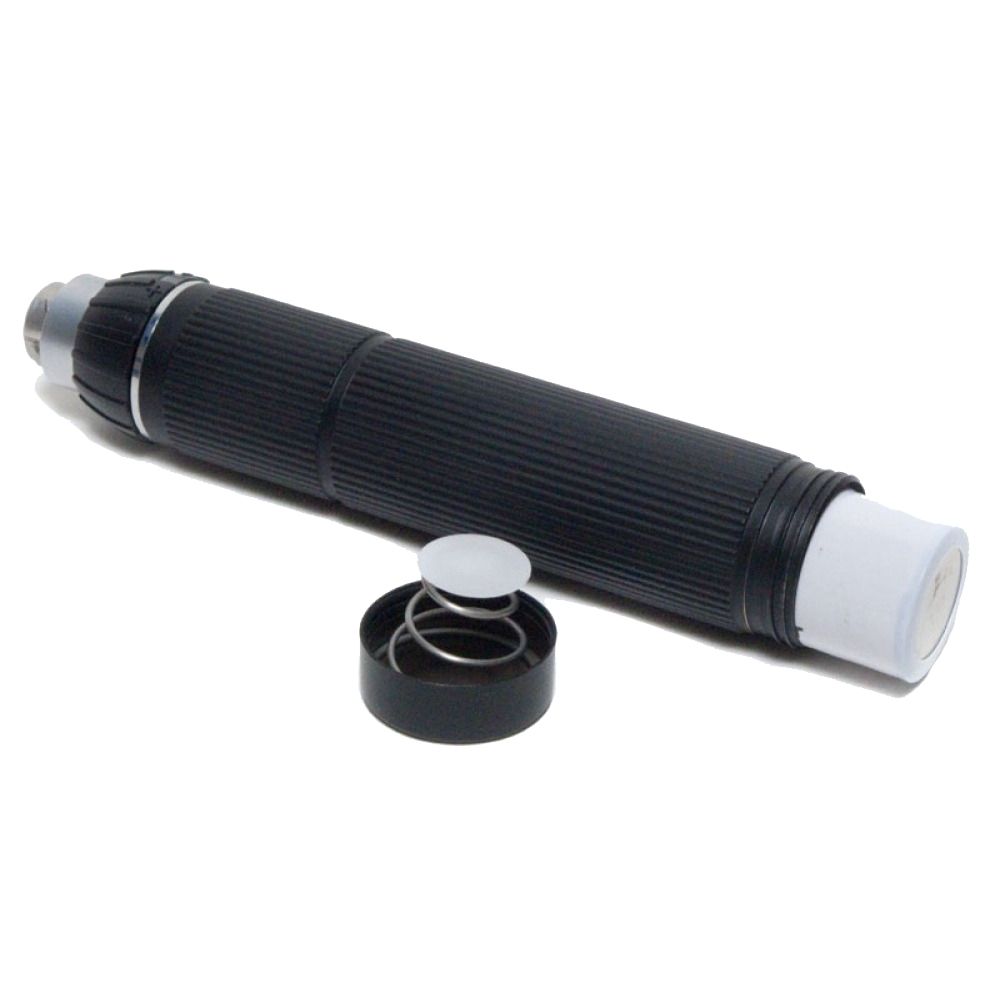

<p>Yes, the handle is designed for maximum portability and features an <strong>integrated charging plug</strong>.</p>
<ul>

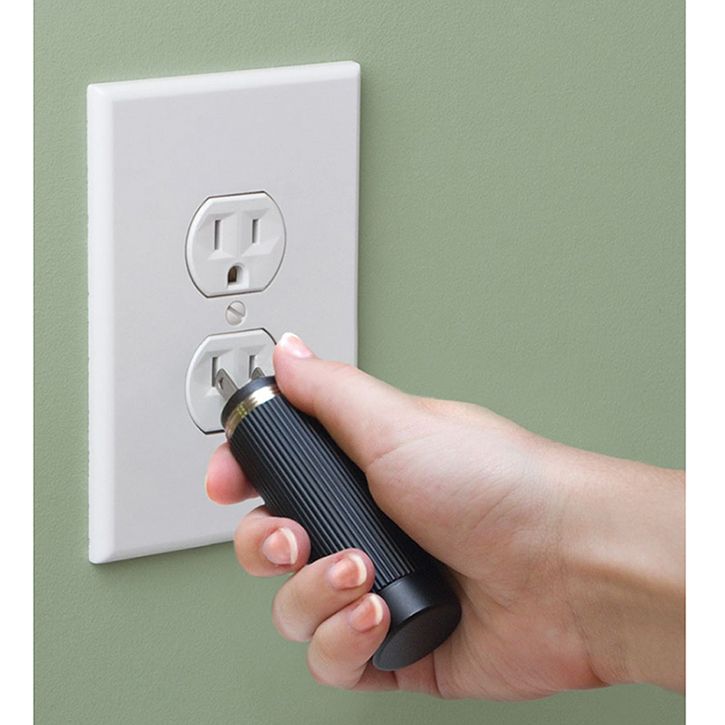

<li><strong>Convenient Charging:</strong> The top half of the C-sized handle unscrews to reveal a concealed wall plug, allowing you to charge the instrument directly from any standard outlet without needing a separate base or cable.</li>
<li><strong>Plug Options:</strong> It is available with either <strong>US or Euro fittings</strong>.</li>
<li><strong>Battery Performance:</strong> The handle utilizes a powerful <strong>1400mAh Li-ion rechargeable battery</strong>, supporting up to <strong>1,200 charge cycles</strong>.</li>
<li><strong>Efficiency:</strong> When using the AdLED lamp, the battery provides an impressive runtime of up to <strong>30 hours of continuous use</strong>. Additionally, the unit features an Adtronic electronic control with an auto-off function after two minutes to conserve power.</li>
</ul>
<ul>
<li><strong>Convenient Charging:</strong> The top half of the C-sized handle unscrews to reveal a concealed wall plug, allowing you to charge the instrument directly from any standard outlet without needing a separate base or cable.</li>
<li><strong>Plug Options:</strong> It is available with either <strong>US or Euro fittings</strong>.</li>
<li><strong>Battery Performance:</strong> The handle utilizes a powerful <strong>1400mAh Li-ion rechargeable battery</strong>, supporting up to <strong>1,200 charge cycles</strong>.</li>
<li><strong>Efficiency:</strong> When using the AdLED lamp, the battery provides an impressive runtime of up to <strong>30 hours of continuous use</strong>. Additionally, the unit features an Adtronic electronic control with an auto-off function after two minutes to conserve power.</li>
</ul>
Does it use Welch Allyn specula?
<p>Yes, the ADC Diagnostix 5481 PMV Otoscope is <strong>compatible with Welch Allyn specula</strong>. It also includes:</p>
<ul>
<li>Five <strong>Welch Allyn 2.75 mm disposable specula</strong></li>
<li>Five <strong>Welch Allyn 4.25 mm disposable specula</strong></li>
</ul>
<ul>
<li>Five <strong>Welch Allyn 2.75 mm disposable specula</strong></li>
<li>Five <strong>Welch Allyn 4.25 mm disposable specula</strong></li>
</ul>
Is this otoscope versatile for multiple diagnostic exams?
<p>Yes, the ADC Diagnostix 5481 PMV Otoscope is designed as a versatile diagnostic instrument, extending its utility beyond standard ear examinations. It is suitable for the following additional functionalities:</p>
<ul>
<li><strong>Throat Illumination:</strong> The powerful illumination system (Halogen/Xenon or AdLED) allows for effective visualization during oral/pharyngeal exams.</li>
<li><strong>Pneumatic Otoscopy:</strong> The otoscope supports this function for assessing tympanic membrane mobility. Please note that the necessary insufflator bulb must be purchased separately.</li>
</ul>
<ul>
<li><strong>Throat Illumination:</strong> The powerful illumination system (Halogen/Xenon or AdLED) allows for effective visualization during oral/pharyngeal exams.</li>
<li><strong>Pneumatic Otoscopy:</strong> The otoscope supports this function for assessing tympanic membrane mobility. Please note that the necessary insufflator bulb must be purchased separately.</li>
</ul>
Is the durable handle made from solid brass?
<p>Yes, the handle of the ADC Diagnostix 5481 PMV Otoscope is designed for maximum durability and secure handling.</p>
<ul>
<li>It is <strong>CNC machined from solid brass</strong>, providing a robust and premium feel.</li>
<li>The solid brass is finished with a sleek <strong>black chrome plating</strong>.</li>
<li>It features a ribbed surface specifically engineered to ensure a secure, non-slip grip during use.</li>
</ul>
<ul>
<li>It is <strong>CNC machined from solid brass</strong>, providing a robust and premium feel.</li>
<li>The solid brass is finished with a sleek <strong>black chrome plating</strong>.</li>
<li>It features a ribbed surface specifically engineered to ensure a secure, non-slip grip during use.</li>
</ul>
Does the AdLED lamp offer high color accuracy?
<p>Yes, the optional high-performance AdLED lamp is designed for superior color accuracy and clear visualization. It provides:</p>
<ul>
<li>A color temperature of <strong>4,200 Kelvin</strong>.</li>
<li>A high Color Rendering Index (CRI) of <strong>92</strong>.</li>
</ul>
<ul>
<li>A color temperature of <strong>4,200 Kelvin</strong>.</li>
<li>A high Color Rendering Index (CRI) of <strong>92</strong>.</li>
</ul>
