ADC Diagnostix 54802 3.5V Portable PMV Otoscope/Coax Plus Ophthalmoscope Diagnostic Set

ADC Diagnostix 54802 3.5V Portable PMV Otoscope/Coax Plus Ophthalmoscope Diagnostic Set
Key Features
  • SKU: ADC-54802L
  • Condition:
    Condition: Factory New
  • Warranty:
    Warranty: 2 Years

  • Learn more:

Contact The Manufacturer
  • MFR: American Diagnostic Corporation
    Ships from Manufacturer
  • MPN: 54802L
  • Phone: (800) 232-2670
$1,081.17 $747.00
Est. Delivery:

Earn [points_amount] when you buy this item.

Shop with Confidence

Free Shipping

Free Returns

Payment Options

Price Match Guarantee

Sales Tax Exemption

Dedicated Account Managers

Description

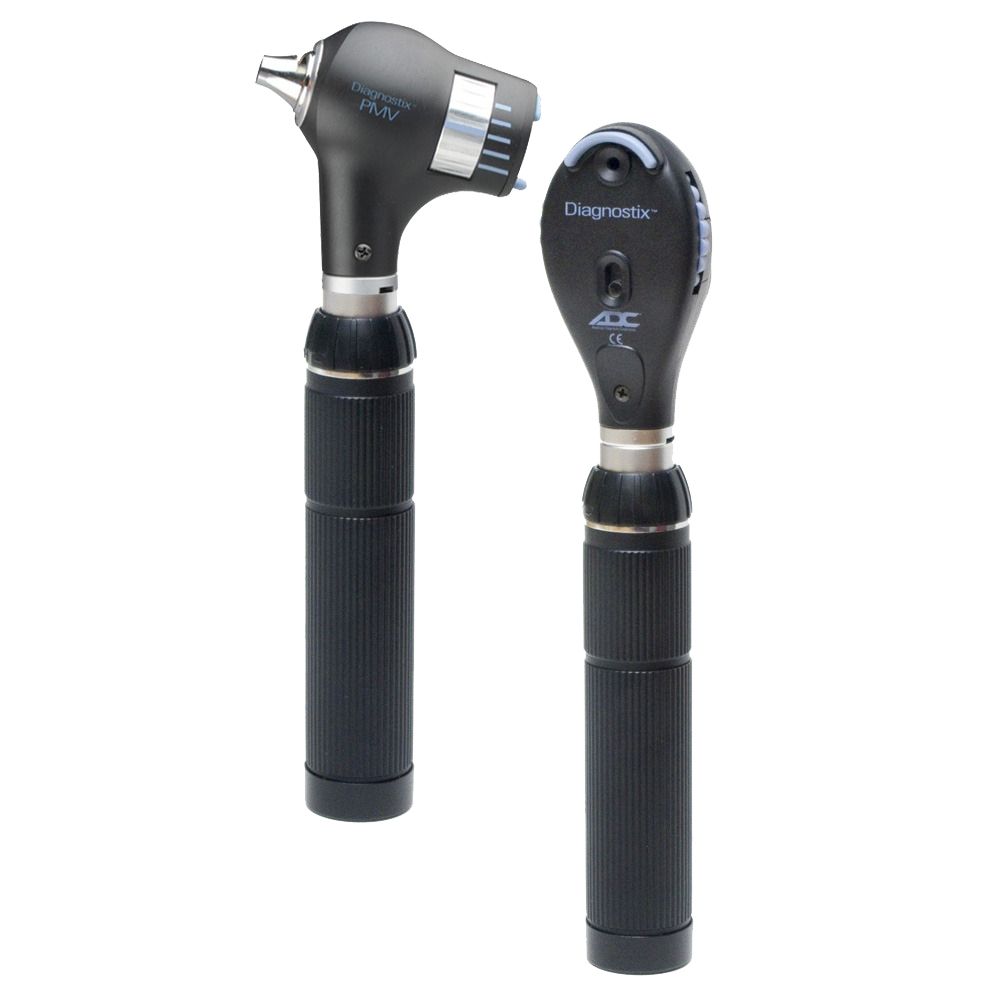

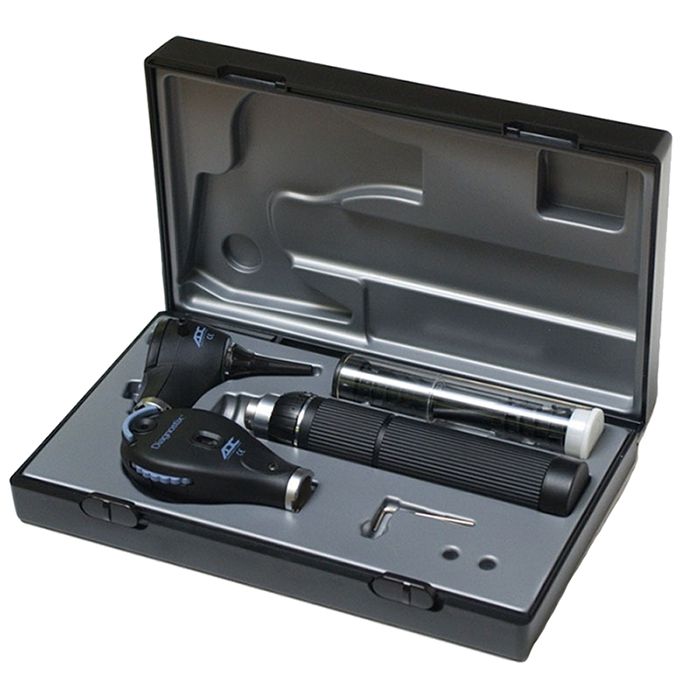

The ADC Diagnostix 54802 3.5V Portable PMV Otoscope/Coax Plus Ophthalmoscope Diagnostic Set includes an ADC Diagnostix 5481 3.5V Portable PMV Otoscope Head and an ADC Diagnostix 54122 3.5V Portable Coax Plus Ophthalmoscope Head that can be attached to the plug-in rechargeable Li-ion battery handle. A tube containing five Welch Allyn 2.75 mm and five 4.25 mm disposable specula is also included. The top half of the handle unscrews to access the wall plug which is available in US or Euro fittings. Choose from halogen/xenon or high-performance AdLED illumination, and a choice of a fitted hard case or a soft case that can be used to store all instruments.

Warranty: 2 Years (AdLED lamp carries a lifetime warranty).

The ADC Diagnostix 5481 3.5V Portable PMV Otoscope uses advanced optical technology to create a panoramic, magnified view that features twice the field of view and 66% greater magnification (11 mm field of view, 5X magnification) compared to ADC's standard otoscope. The ophthalmoscope is a handheld, battery-powered device containing illumination and viewing optics intended to examine the media (cornea, aqueous, lens, and vitreous) and the retina of the eye. It is intended to be used by a trained healthcare professional.

Features

ADC Diagnostix 54802 3.5V Portable PMV Otoscope/Coax Plus Ophthalmoscope Diagnostic Set Features

  • ADC Diagnostix 54802 3.5V Portable PMV Otoscope/Coax Plus Ophthalmoscope Diagnostic Set Configurations:
    • LED Otoscope/LED Ophthalmoscope - Hard Case (#54802L) / European Plug (#54802L-EU).
    • LED Otoscope/LED Ophthalmoscope - Soft Case (#54802LS) / European Plug (#54802LS-EU).
    • Xenon Otoscope/Xenon Ophthalmoscope - Hard Case (#54802X) / European Plug (#54802X-EU).
    • Xenon Otoscope/Xenon Ophthalmoscope - Soft Case (#54802XS) / European Plug (#54802XS-EU).
    • LED Otoscope/Xenon Ophthalmoscope - Hard Case (#54802A) / European Plug (#54802A-EU).
    • LED Otoscope/Xenon Ophthalmoscope - Soft Case (#54802AS) / European Plug (#54802AS-EU).
    • Xenon Otoscope/LED Ophthalmoscope - Hard Case (#54802B) / European Plug (#54802B-EU).
    • Xenon Otoscope/LED Ophthalmoscope - Soft Case (#54802BS) / European Plug (#54802BS-EU).
  • ADC Diagnostix 5481 3.5V Portable PMV Otoscope Head Features:
    • Significantly improved view of the auditory canal and tympanic membrane.
    • Fiber-optic light transmission for an unobstructed view.

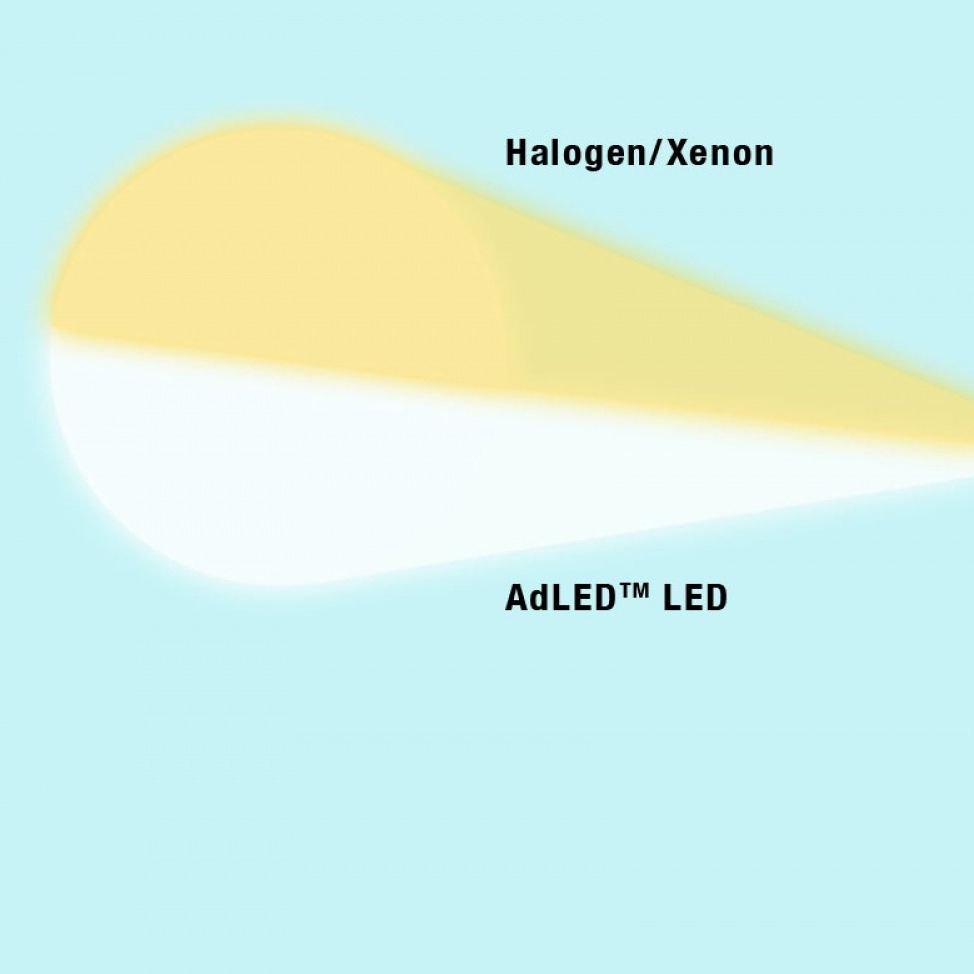

    • Choose from halogen/xenon or high-performance LED illumination (4,200 Kelvin, CRI = 92).
    • Reflection-optimized, high-performance glass optics.
    • Adjustable focal depth.
    • Suitable for throat illumination and pneumatic otoscopy (insufflator sold separately).
    • Compatible with Welch Allyn specula.
    • Anti-theft locking feature is standard.

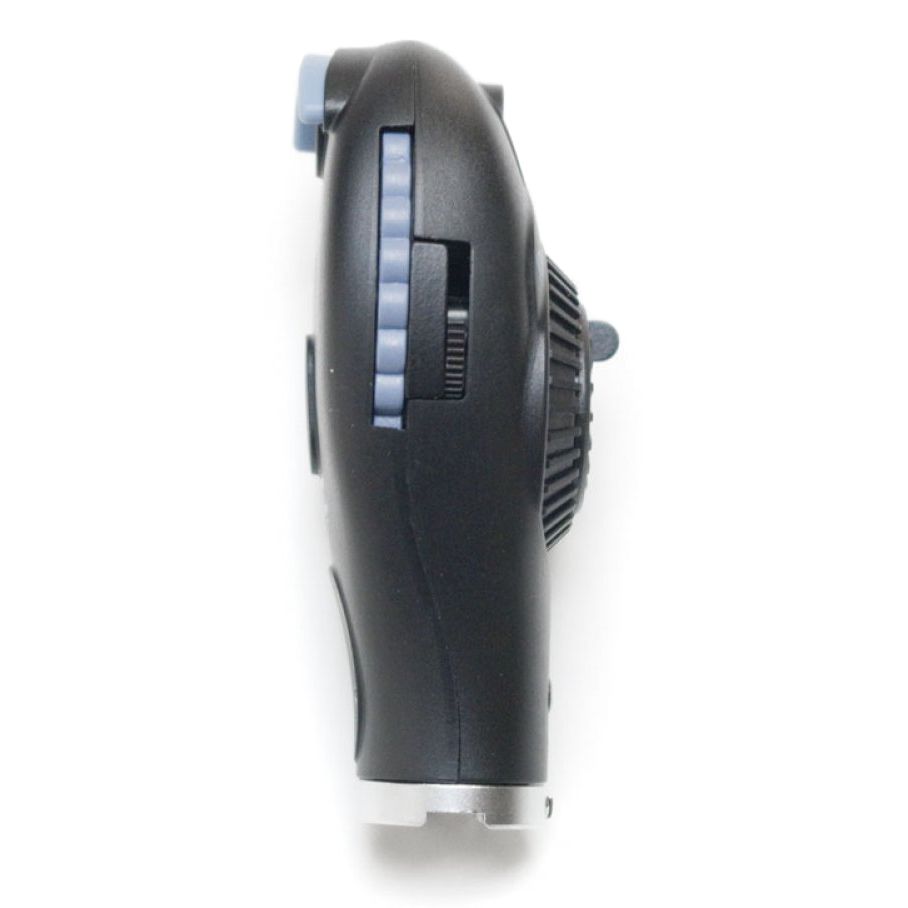

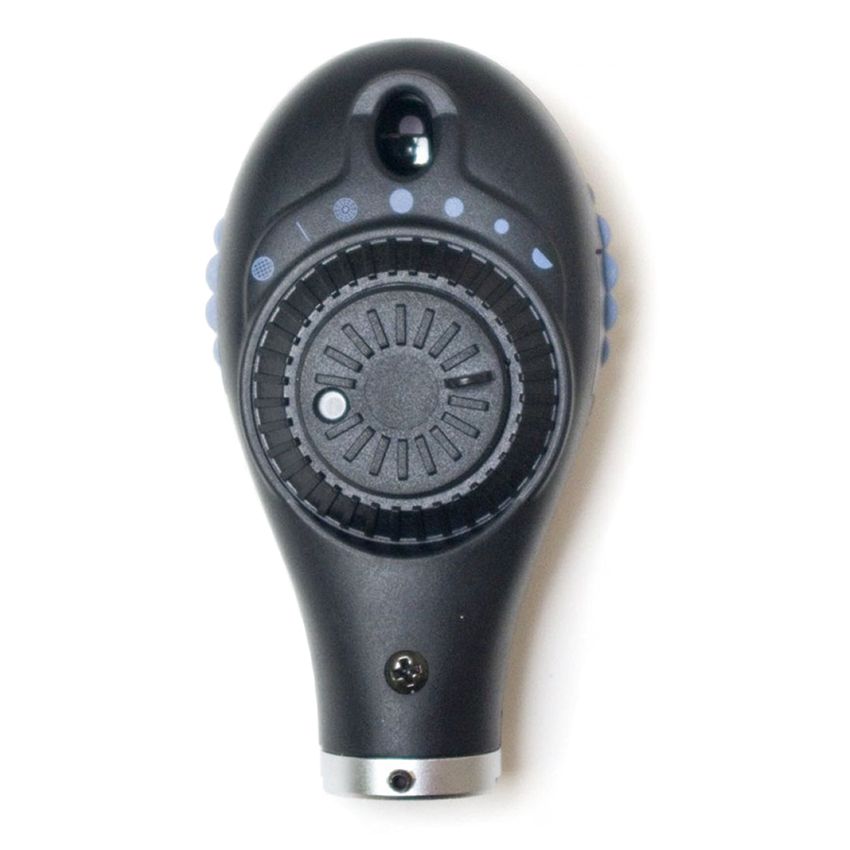

  • ADC Diagnostix 54122 3.5V Portable Coax Plus Ophthalmoscope Head Features:
    • High-performance aspherical condenser lens reduces corneal reflection.
    • Further reduction provided by utilizing distinct parallel observational and illuminating light beams (Gullstrand's Equation).
    • Ergonomic design and integral thumb rest improves stability and allows one-finger control of all functions.
    • Synthetic rubber brow rest facilitates use with practitioner eyeglasses.
    • Dust proof.
    • Magnified, illuminated aperture viewing window.
    • Universal bayonet mount for compatibility with other brands of 3.5V power supply handles.
    • Anti-theft locking feature is standard.
    • 89 viewing lenses from -44 to +45 in single step.
    • 28 aperture/filter combinations for improved diagnostic capability.
    • Secondary focusing wheel with zero retention for quick correction of ametropias, provides virtually unlimited fine focus or fast focus in lieu of the 89 viewing lenses.
    • The addition of a Karo (grid) aperture that allows for easier transfer of observations to standard Karo (graph) paper.

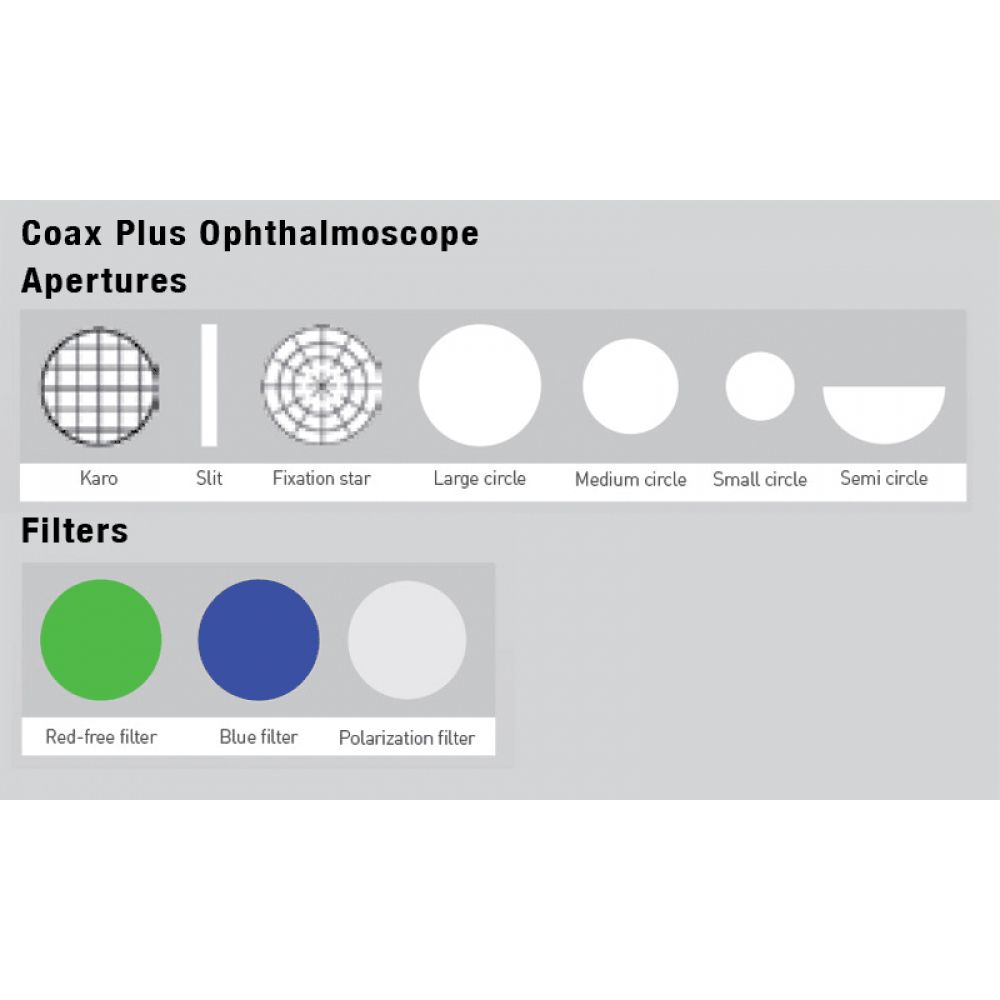

    • Six apertures include:
      • Slit - used to help determine levels of tumors and lesions.
      • Fixation - has graduated crosshairs for measuring eccentric fixation or locating lesions.
      • Large - standard aperture for a dilated pupil and general examination of the eye.
      • Small - provides excellent view of fundus through an undilated pupil.
      • Micro spot - allows quick entry into small, undilated pupils.
      • Half moon - provides a combination of depth perception and field of view.
    • Three filters (plus neutral) include:
      • Red free - excludes red rays from examination field for easy identification of veins, arteries, and nerve fibers.
      • Cobalt - used with fluorescent dye to view small lesions, abrasions, and foreign objects on the cornea.
      • Polarizing - virtually eliminates corneal reflection.

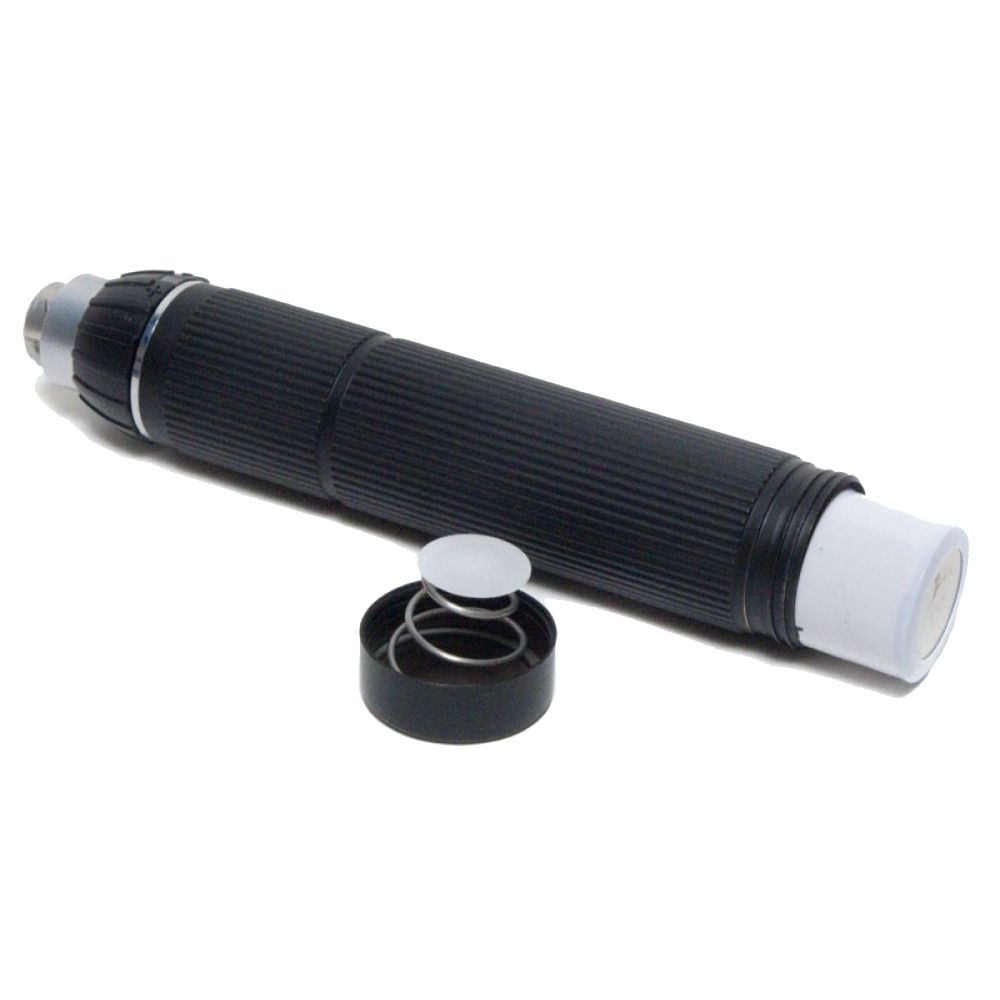

  • ADC Diagnostix 3.5V Portable Battery Handle Features:
    • C-sized handle with 1400mAh Li-ion battery.
    • CNC machined from solid brass, the handle is chrome plated in black with a ribbed surface for a sure grip.
    • Adtronic electronic rheostatic light intensity control provides infinite continuous control and auto-off feature after two minutes.
    • Li-ion battery provides two to three hours continuous use with halogen/xenon lamp, 30 hours use with LED lamp when charged for 24 hours.
    • Up to 1,200 charge cycles.
    • Universal bayonet mount for compatibility with other brands of 3.5V instrument heads.
