ADC Diagnostix 5442 3.5V Coax Plus Ophthalmoscope Head

The ADC Diagnostix 5442 Ophthalmoscope Head provides two powerful illumination choices:

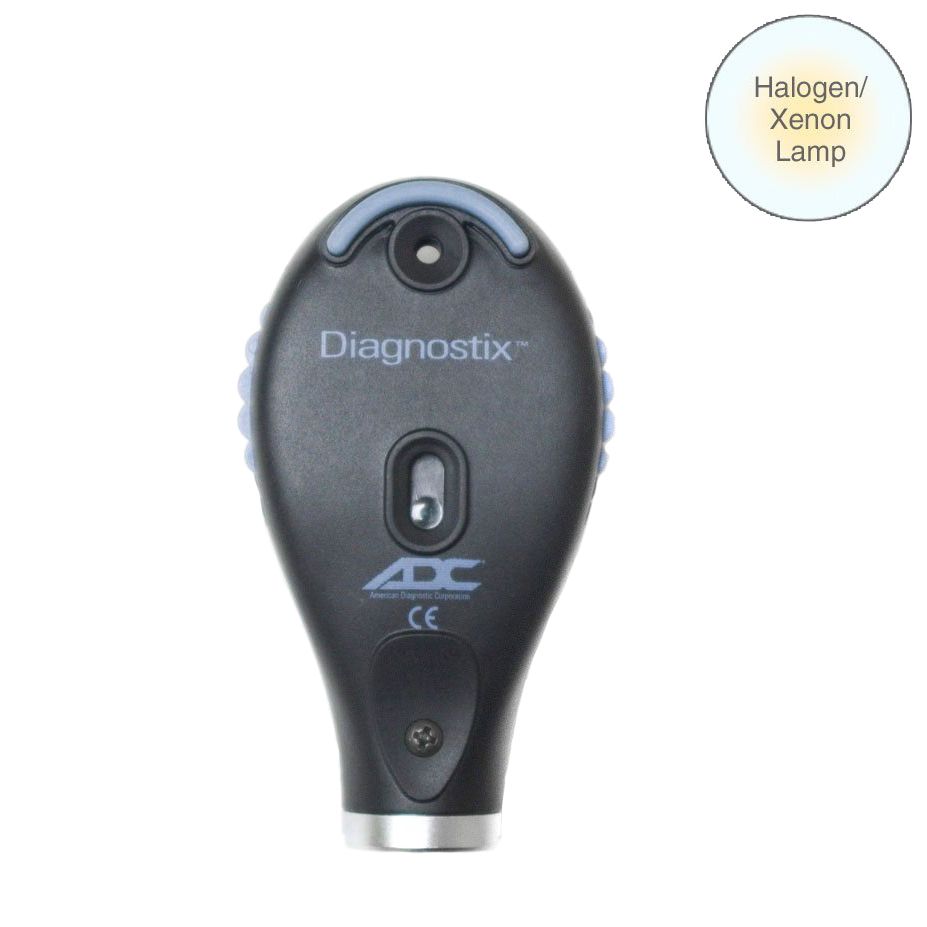

• Halogen/Xenon Lamp (#5442X): This is the traditional standard, offering bright, white light necessary for clear diagnostic visualization.

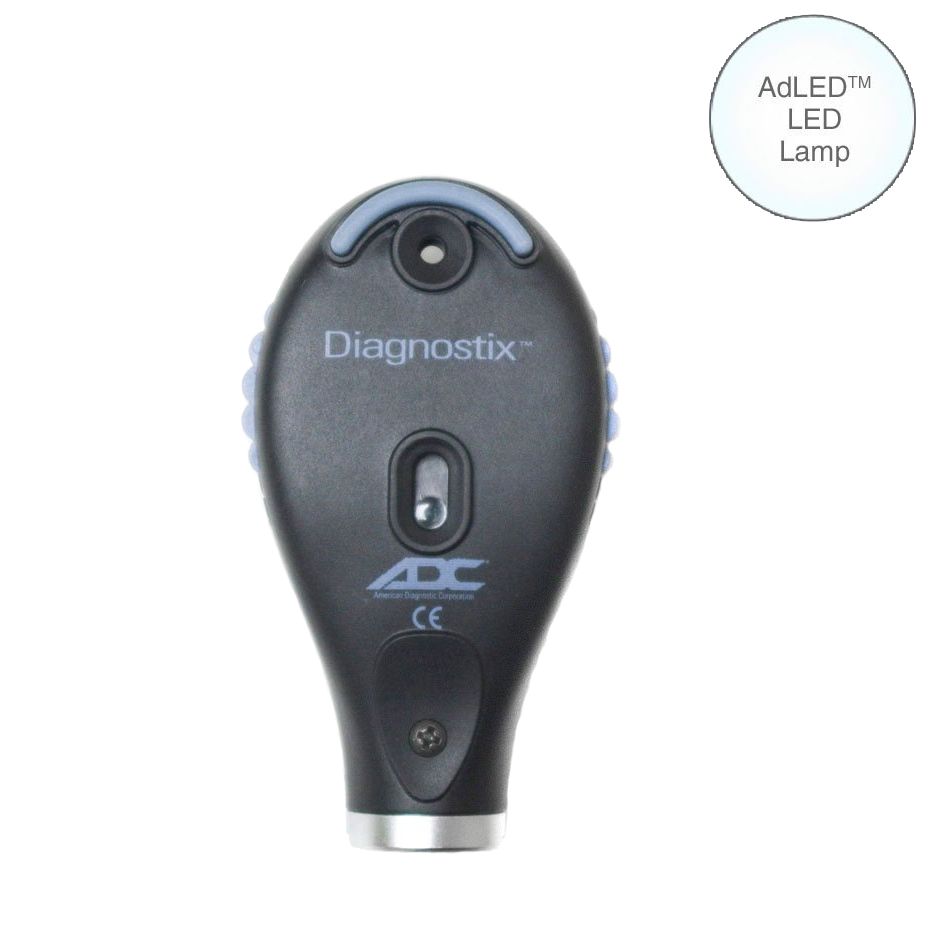

• AdLED Lamp (#5442L): This is the advanced, high-efficiency LED option. A key advantage is its long-term reliability and cost-effectiveness, reinforced by the lifetime warranty provided specifically for the AdLED lamp.

No, this purchase is strictly for the ophthalmoscope head only and does not include a battery handle or power supply.

To use the ADC Diagnostix 5442, you must purchase a separate 3.5V power supply handle. The head is designed for broad compatibility:

• Required Voltage: 3.5V.
• Mounting: It features a universal bayonet mount, allowing compatibility with 3.5V power supply handles from ADC Diagnostix (such as models 5460 and 5560) and other compatible brands.

Yes, the AdLED lamp option features an exceptional warranty, distinguishing it from the standard coverage on the head unit itself. This is a significant advantage when choosing the LED configuration.

• AdLED Lamp Warranty: If you select the AdLED lamp configuration, it comes with a Lifetime warranty.
• Ophthalmoscope Head Warranty: The ADC Diagnostix 5442 Coax Plus Ophthalmoscope Head unit is covered by a standard 2-year warranty.

Yes, the ADC Diagnostix 5442 Coax Plus Ophthalmoscope Head is specifically engineered to achieve superior visualization by significantly minimizing corneal reflection.

This is accomplished through two integrated optical design principles:

• High-Performance Aspherical Condenser Lens: This specialized lens works to reduce internal reflections within the instrument head.
• Gullstrand’s Principle: The system uses distinct, parallel observational and illuminating light beams. This method of light separation is key to reducing corneal reflection, providing an exceptionally clear view of the eye’s internal structures.

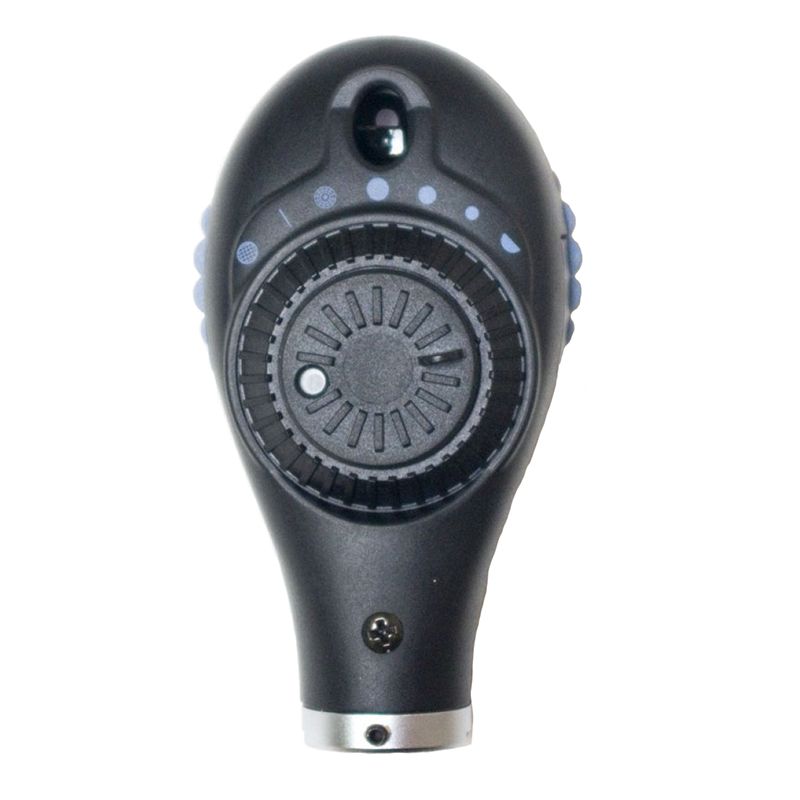

The secondary focusing wheel is a specialized mechanism designed for quick and efficient focus adjustments during an examination. It complements the main viewing lens wheel by allowing for fast focus correction.

Key functions include:

• Fast Focus: Provides a rapid way to adjust focus, ideal for quick examinations.
• Ametropia Correction: Used for the quick correction of refractive errors (ametropias).
• Zero Retention: This feature ensures that the focus settings you apply are reliable and consistent across uses.

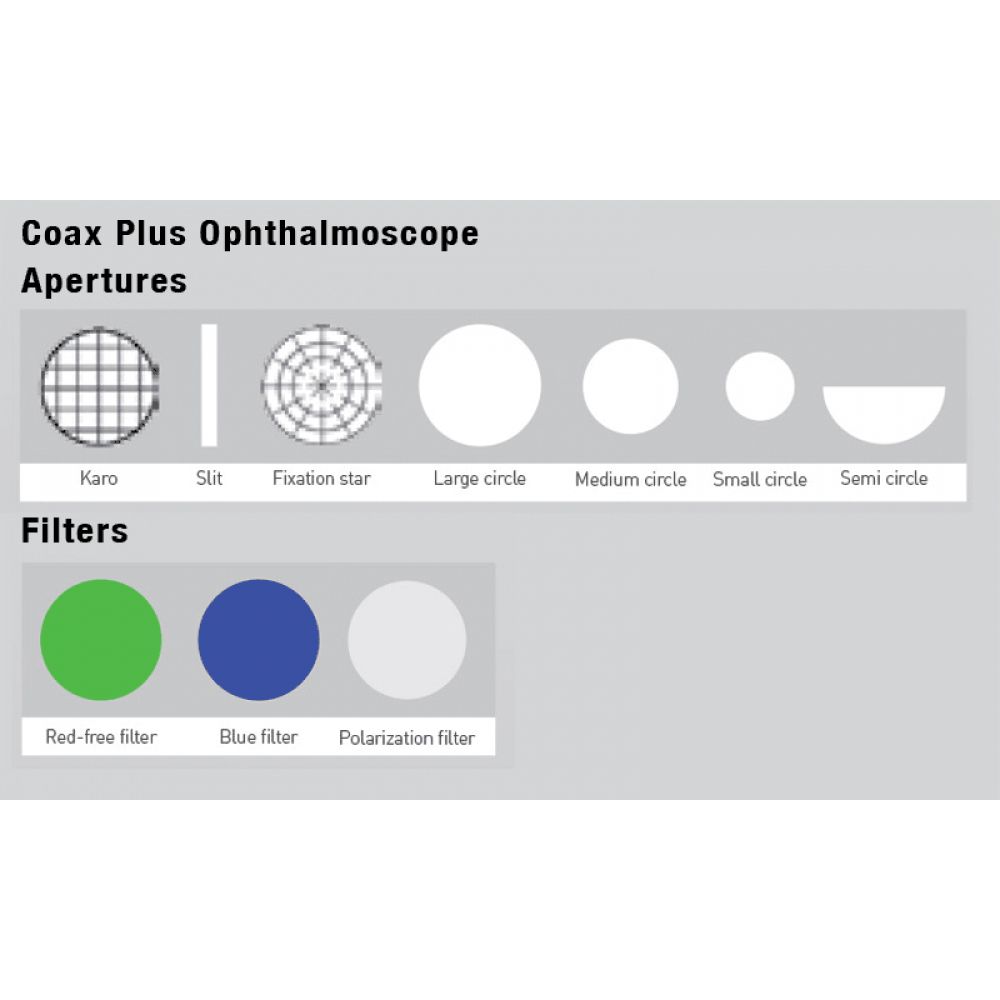

The ADC Diagnostix 5442 Coax Plus Ophthalmoscope Head provides exceptional versatility with a total of 28 aperture and filter combinations. This comprehensive selection allows practitioners to precisely tailor the visualization for detailed ophthalmic examinations, utilizing 7 specialized apertures and 4 filter options (3 specialized plus Neutral).

Included Apertures (7 Total):

• Large: Standard for general examination and dilated pupils.
• Small / Micro Spot: Ideal for precise viewing through small or undilated pupils.
• Slit: Used primarily to assess the depth of tumors or lesions.
• Karo (Grid Overlay): Aids in documentation by providing a grid for graphing observations.
• Fixation: Features graduated cross-hairs for accurately locating and measuring eccentric fixation.
• Half Moon: Offers an optimized combination of field of view and depth perception.

Included Filters (3 Specialized plus Neutral):

• Red Free: Used to identify arteries, veins, and nerve fibers by excluding red light.
• Cobalt: Applied with fluorescent dye for detailed examination of the cornea.
• Polarizing: Virtually eliminates corneal reflection, enhancing clarity for the viewer.

Yes, the ADC Diagnostix 5442 3.5V Coax Plus Ophthalmoscope Head is designed for broad compatibility.

It features a universal bayonet mount, allowing it to attach seamlessly to 3.5V power supply handles from various sources:

• ADC Diagnostix 3.5V handles (including models like the 5460 and 5560).
• Other brands of 3.5V power supply handles that use a universal bayonet mount.

The ADC Diagnostix 5442 includes three essential specialized diagnostic filters, which, combined with the seven available apertures, create 28 aperture/filter combinations for comprehensive versatility.

The included filters are:

• Red-Free Filter: Excludes red light rays, significantly improving the visibility of retinal vessels and the nerve fiber layer, aiding in the identification of arteries and veins.
• Polarizing Filter: Designed to virtually eliminate corneal reflection, providing superior optical clarity when examining the fundus.
• Cobalt Filter: Used specifically in conjunction with fluorescent dye (such as during fluorescein angiography) for detailed corneal and ocular surface evaluations.
• Neutral Filter: Available for general purpose use.

Yes, the ADC Diagnostix 5442 features a synthetic rubber brow rest. This design element is specifically included to facilitate use for practitioners wearing eyeglasses, enhancing comfort and promoting clear visualization during ophthalmic examinations.

Yes, the ADC Diagnostix 5442 Coax Plus Ophthalmoscope Head includes an anti-theft locking feature as a standard function. This provides an added layer of security for the precision instrument in shared or clinical environments.
