ADC Diagnostix 5416 3.5V Portable Throat Illuminator

Yes, the ADC Diagnostix 5416 is engineered with high-performance illumination and viewing technology. The illuminator head uses PMMA light transmission (comparable to fiberoptics) to provide a clear, unobstructed view of the oral cavity and pharynx.

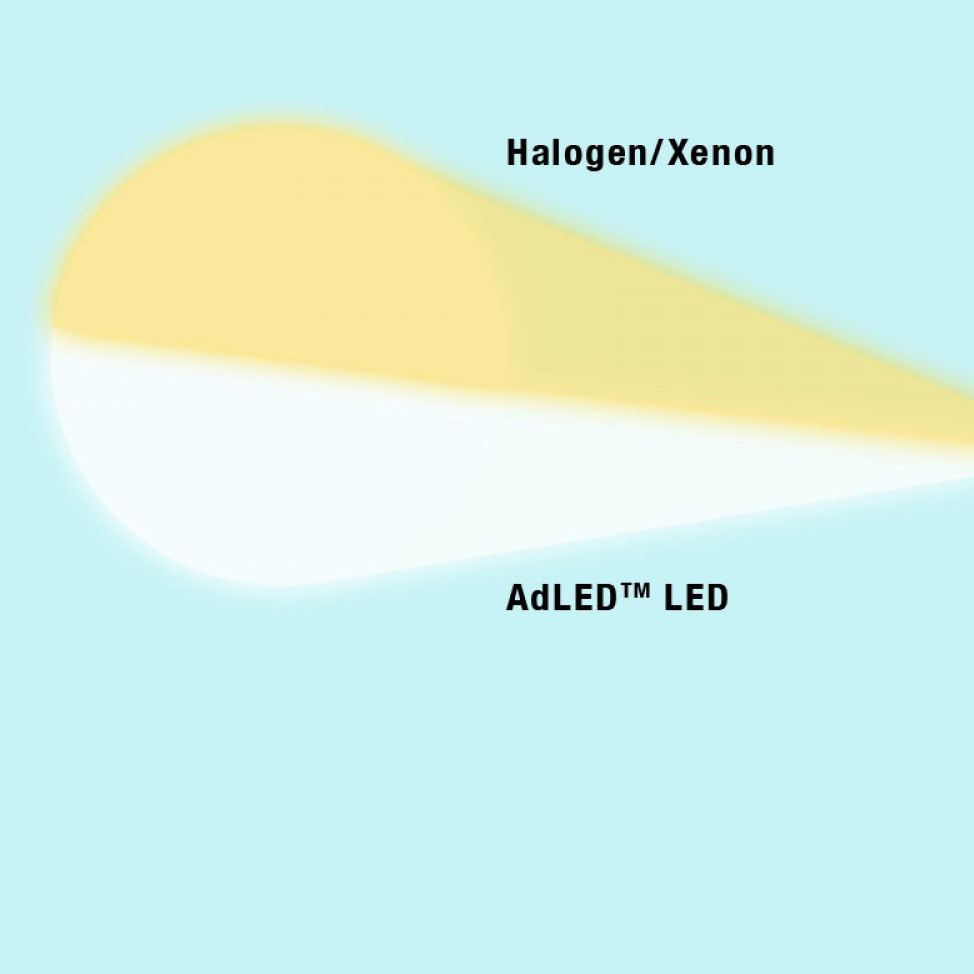

You have a choice between two versatile illumination sources:

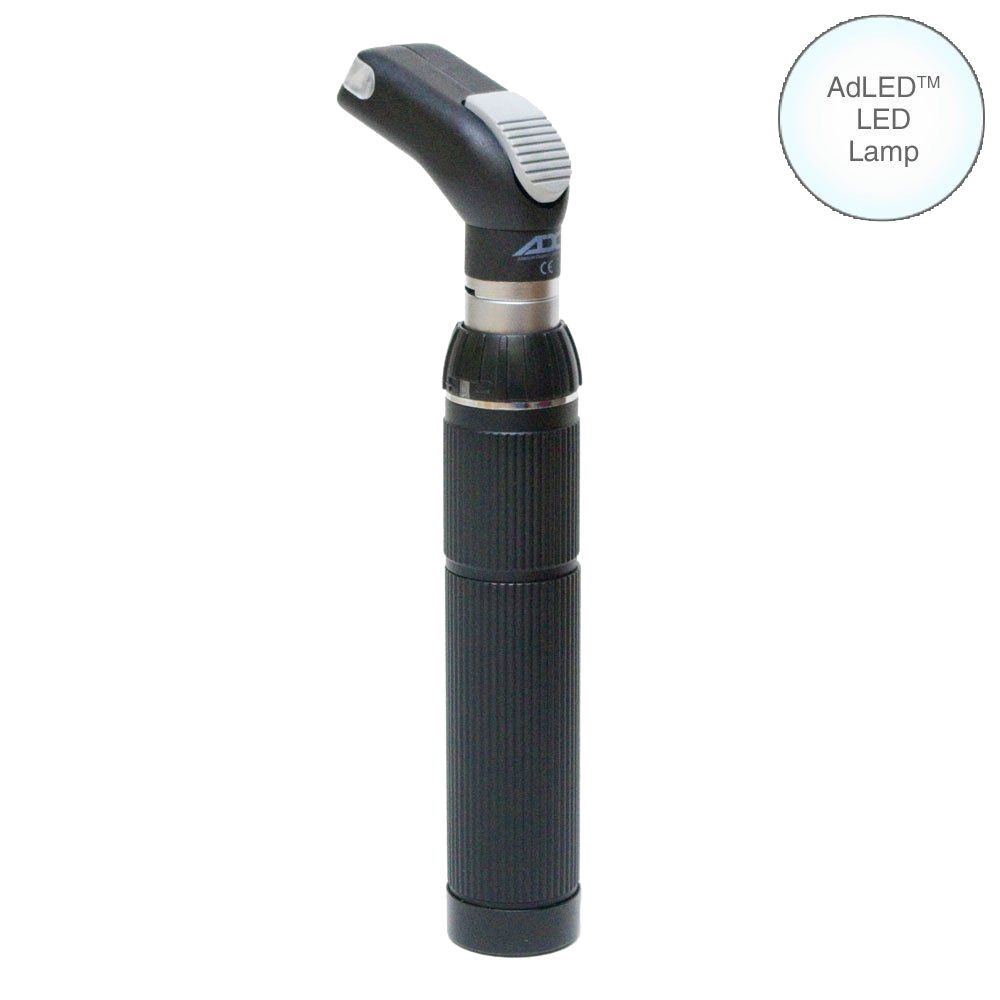

• AdLED Illumination: This option provides superior energy efficiency, offering up to 30 hours of continuous use per 24-hour charge cycle. The AdLED lamp also comes with a lifetime lamp warranty, ensuring long-term reliability.

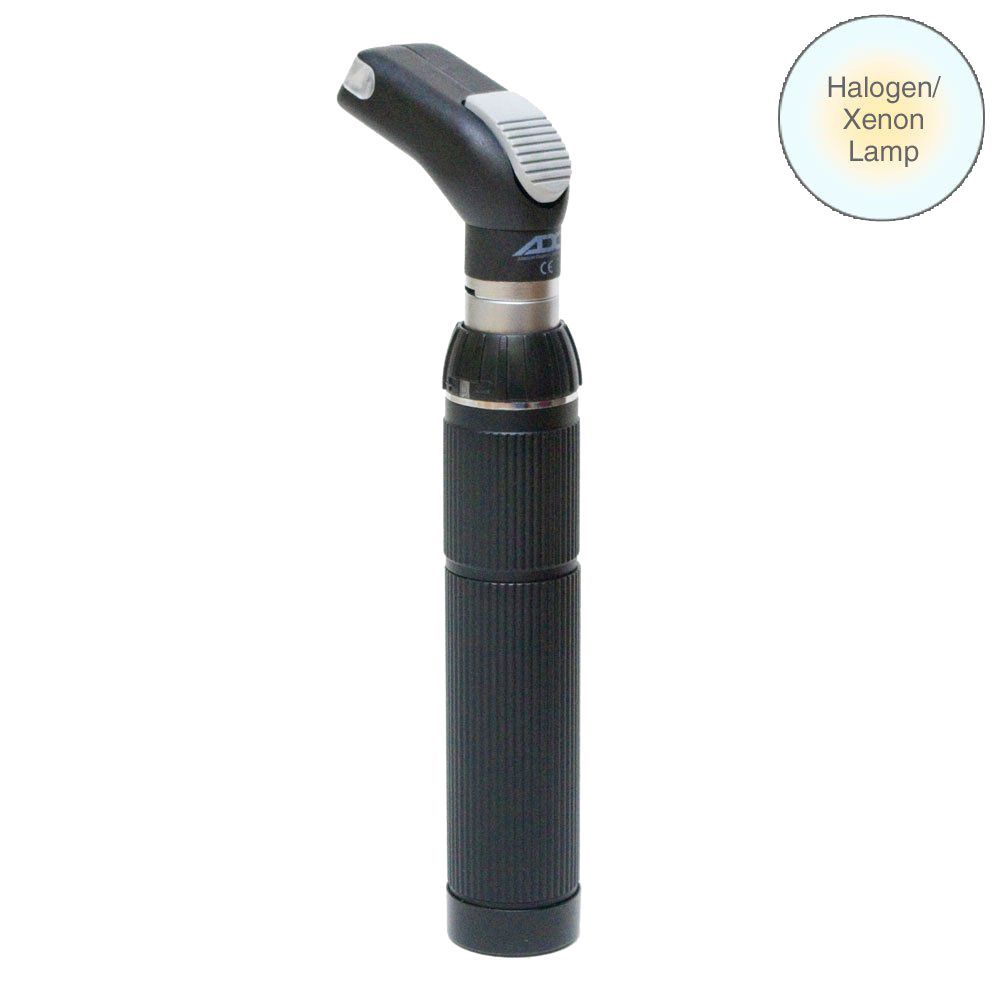

• Halogen/Xenon Illumination: This traditional light source provides 2–3 hours of continuous use per charge cycle.

Regardless of your choice, the device features Adtronic electronic rheostatic control for infinite, continuous light intensity adjustment. It also includes an automatic shutoff feature after two minutes of inactivity to conserve battery life.

Yes, the ADC Diagnostix 5416 with the AdLED lamp provides an impressive 30 hours of continuous use on a full charge. The rechargeable Li-ion battery is designed for durability, offering up to 1200 charge cycles.

Yes, the ADC Diagnostix 5416 is designed with a tongue blade holder to facilitate examinations of the mouth and throat. It also features an eject button for convenient disposal of used tongue blades.

The ADC Diagnostix 5416 is supplied as a comprehensive kit designed for professional, portable use. The complete package includes the following key components:

• Throat Illuminator Head: Equipped with PMMA light transmission (similar to fiber optics) for a clear, unobstructed view. It features a practical tongue blade holder and a dedicated eject button for sanitary disposal. You can select between the long-lasting AdLED illumination (backed by a lifetime lamp warranty) or traditional Halogen/Xenon.

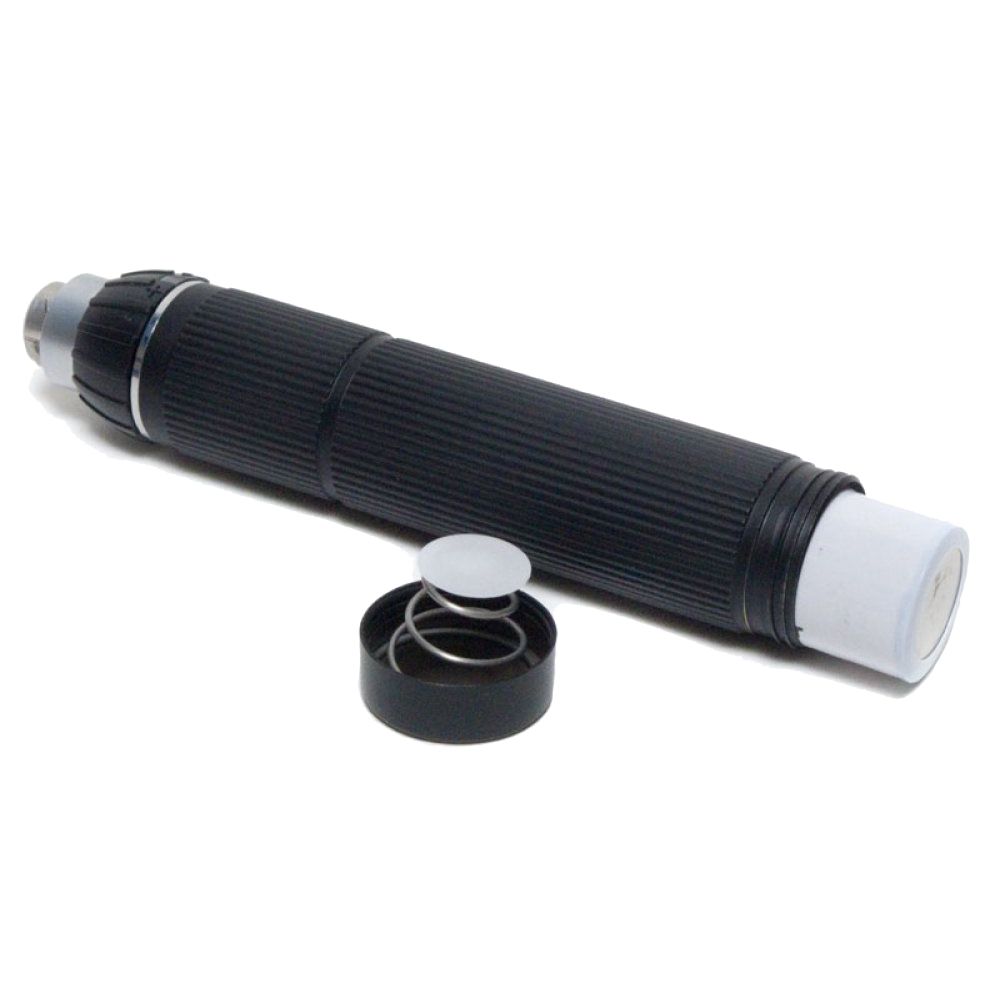

• Plug-in Rechargeable Li-ion Battery Handle: This robust, C-sized handle is CNC-machined from solid brass, chrome-plated in black, and features a ribbed surface for a secure, non-slip grip. It houses a powerful 1400mAh Li-ion battery and utilizes Adtronic electronic reostatic control for infinite light intensity adjustment, plus a 2-minute auto-off feature to conserve power.

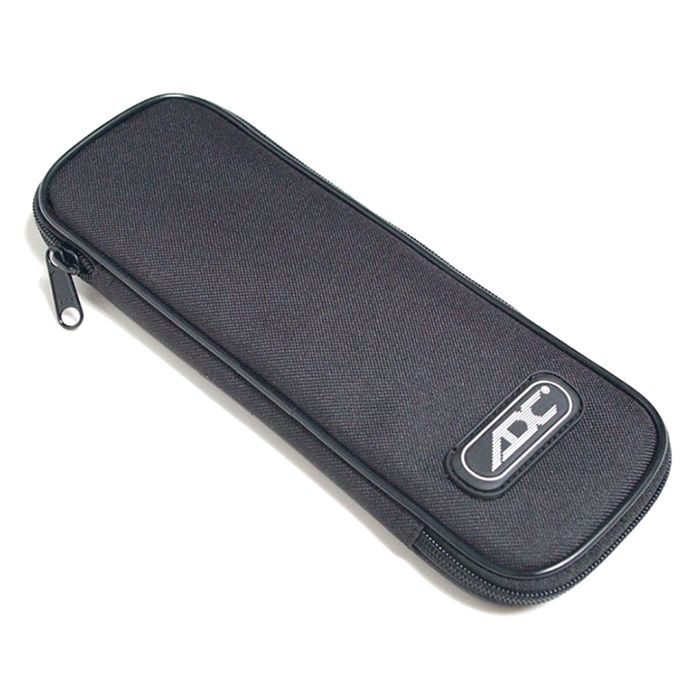

• Zippered Padded Nylon Case: Included for safe storage and convenient transport.

Yes, the ADC Diagnostix 5416 utilizes a robust, rechargeable power system housed within its ergonomic C-sized handle, ensuring long operational times. Its high-quality construction and intelligent features maximize performance:

• Battery Specification: It is powered by a high-capacity 1400mAh Li-ion battery.
• Durability: The battery is designed for longevity, offering a cycle life of up to 1200 charge cycles.
• Runtime: The continuous use time (based on a 24-hour charge) varies significantly by the illumination technology selected:
  • AdLED Lamp: Provides extensive runtime of up to 30 hours.
  • Halogen/Xenon Lamp: Provides 2 to 3 hours of continuous use.
• Intelligent Power Management: The handle features Adtronic electronic reostatic control for infinite adjustment of light intensity, complemented by an automatic 2-minute shut-off feature to conserve power when the device is idle.

Yes, the ADC Diagnostix 5416 is equipped with a standard anti-theft locking feature on the head. This security mechanism is included to help prevent unauthorized removal and enhance the instrument’s overall security.

Yes, the high-performance AdLED lamp is covered by an excellent warranty, which speaks to its quality and durability.

• AdLED Lamp: Covered by a lifetime warranty.
• Complete Unit: The entire ADC Diagnostix 5416 instrument (head and rechargeable handle) carries a standard 2-year warranty.

Yes, the ADC Diagnostix 5416 is specifically designed as a highly portable diagnostic instrument, ideal for mobile use and clinical settings.

Key features that enhance its portability include:

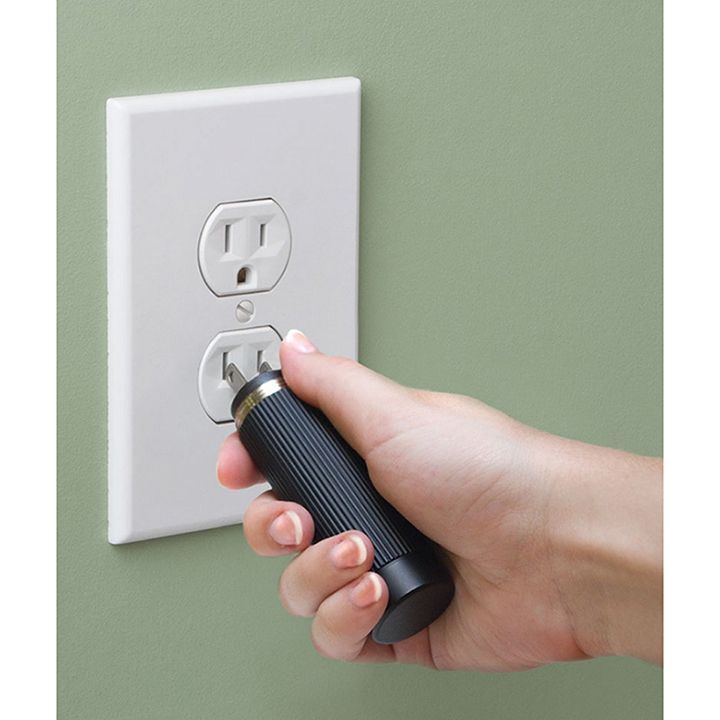

• Integrated Power and Charging: The handle contains a rechargeable 1400mAh Li-ion battery. The top of the handle unscrews to reveal an integrated US or European wall plug, eliminating the need for bulky external charging cradles.
• Exceptional Battery Life: When using the high-performance AdLED lamp, the device provides up to 30 hours of continuous use. With the Halogen/Xenon lamp, it offers 2–3 hours.
• Secure Transport: The illuminator comes complete with a zippered padded nylon case for safe storage and easy transport.
• Durable Construction: The C-sized handle is CNC machined from solid brass and chrome-plated, ensuring durability while remaining easy to handle.

Yes, the rechargeable Li-ion battery is designed for up to 1200 charge cycles, providing long-lasting power for the throat illuminator. This ensures reliable performance over an extended period.

Yes, the ADC Diagnostix 5416 includes an electronic system designed to preserve battery life and enhance convenience. The features include:

• An Auto Shutoff feature that automatically engages after 2 minutes of inactivity.
• This function is part of the Adtronic electronic reostatic control, which also provides infinite, continuous adjustment of light intensity.

This helps maximize the charge of the powerful 3.5V 1400mAh Li-ion rechargeable battery.
