Condition:
-
Warranty:
- Weight: 0.92 lb
-
Learn more:
-
MFR:
American Diagnostic Corporation
Ships from MFI Medical
-
MPN: 54122L
- Phone: (800) 232-2670
Frequently asked questions
Does the ophthalmoscope include 89 viewing lenses?
Yes, the ADC Diagnostix 54122 Ophthalmoscope features an extensive range of 89 viewing lenses.
These lenses cover a wide diagnostic range, from -44 to +45 diopters in single steps, providing precise adjustments for detailed eye examinations. The device also offers 28 aperture and filter combinations for comprehensive diagnostic capabilities.
Is the handle of the ADC Diagnostix 54122 compatible with other instrument heads?
Yes, the handle features a universal bayonet mount, making it compatible with other brands of 3.5V instrument heads.
What items are included with the ophthalmoscope?
The ADC Diagnostix 54122 is shipped as a complete, ready-to-use diagnostic kit. The purchase includes the following essential components for professional use and secure transport:

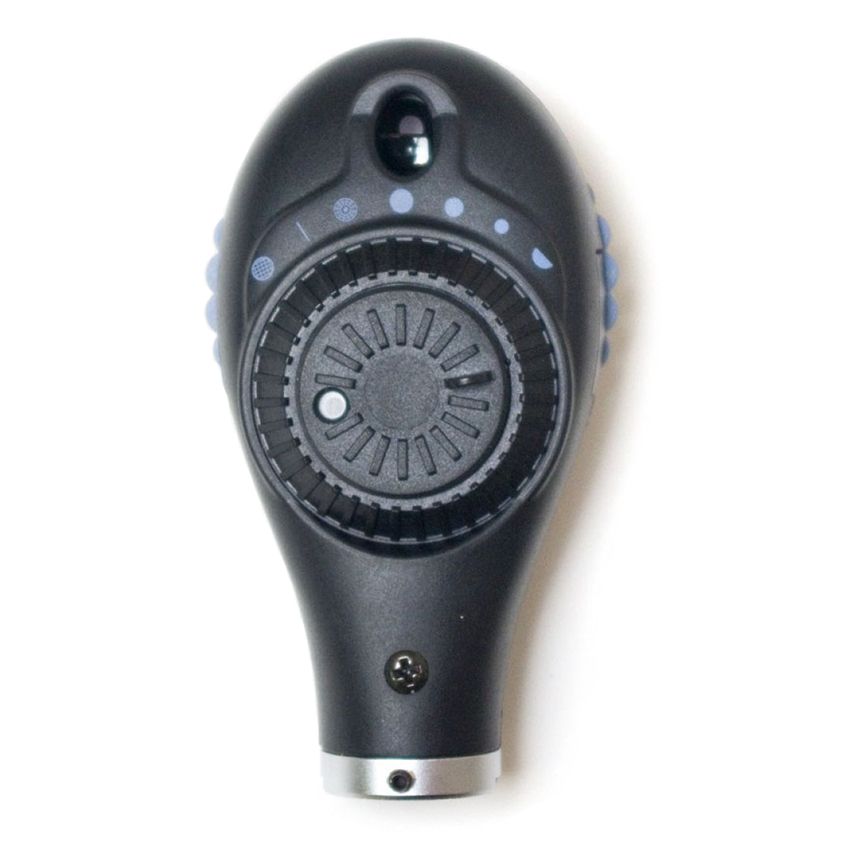

- Ophthalmoscope Head: Features advanced optical performance, 89 viewing lenses (ranging from -44 to +45), and multiple aperture/filter combinations for comprehensive diagnostics.

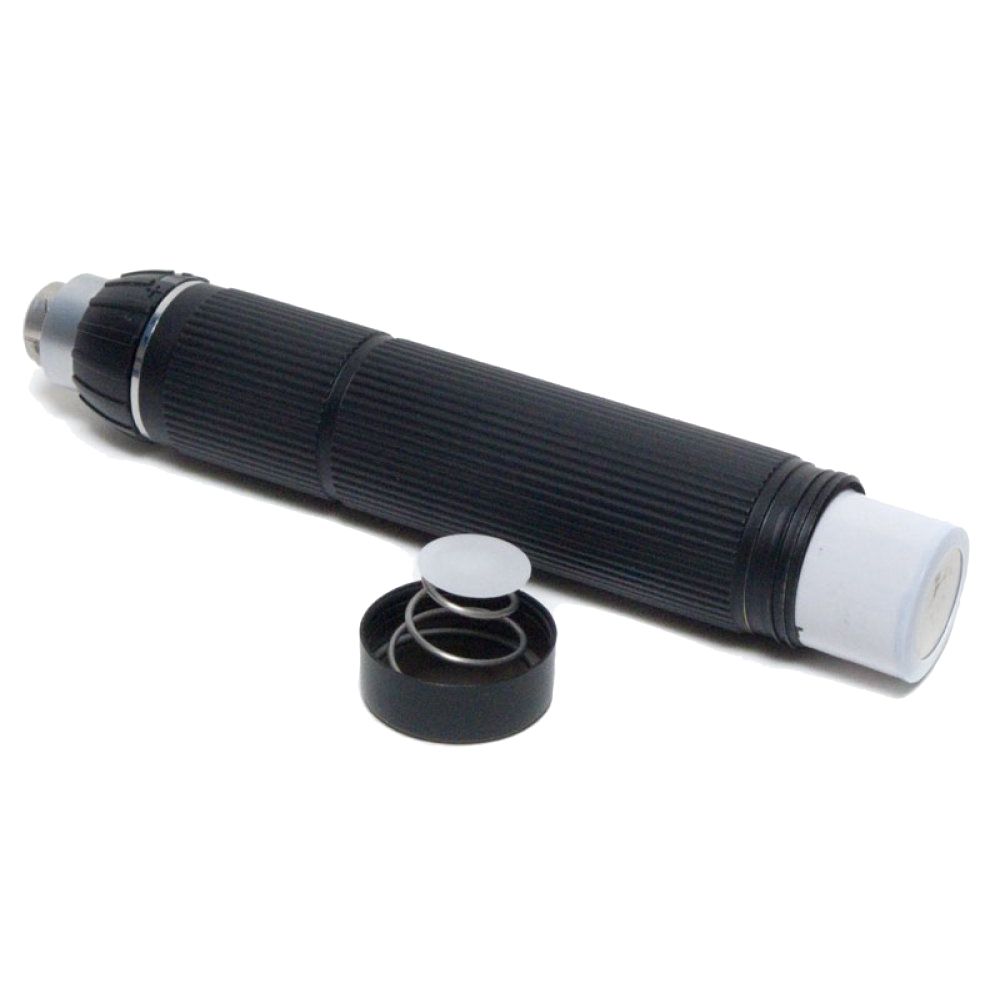

- Plug-in Rechargeable Li-ion Battery Handle: This 3.5V C-sized handle is CNC machined from solid brass, features Adtronic electronic light control, and has an integrated US or Euro wall plug for convenient, direct recharging.

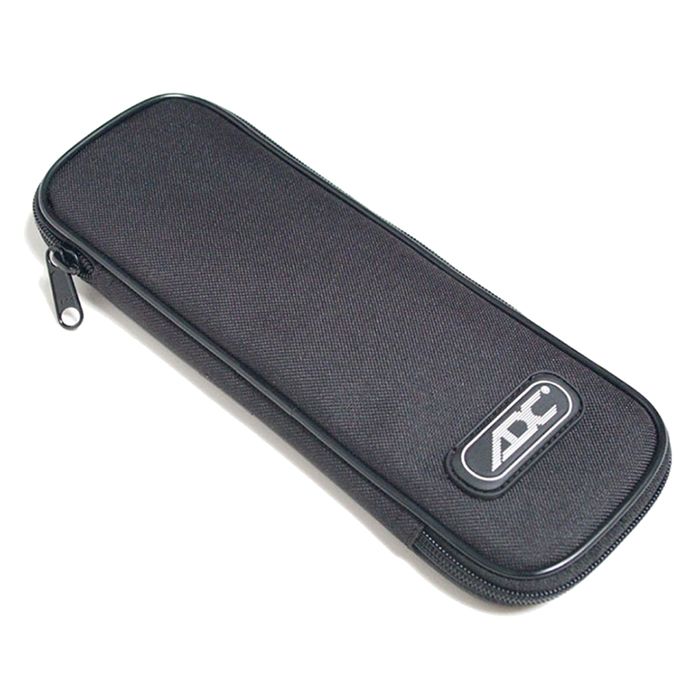

- Zippered Padded Nylon Case: A durable case included to ensure the instrument remains protected during storage and transit.
Does the ophthalmoscope offer versatile illumination options?

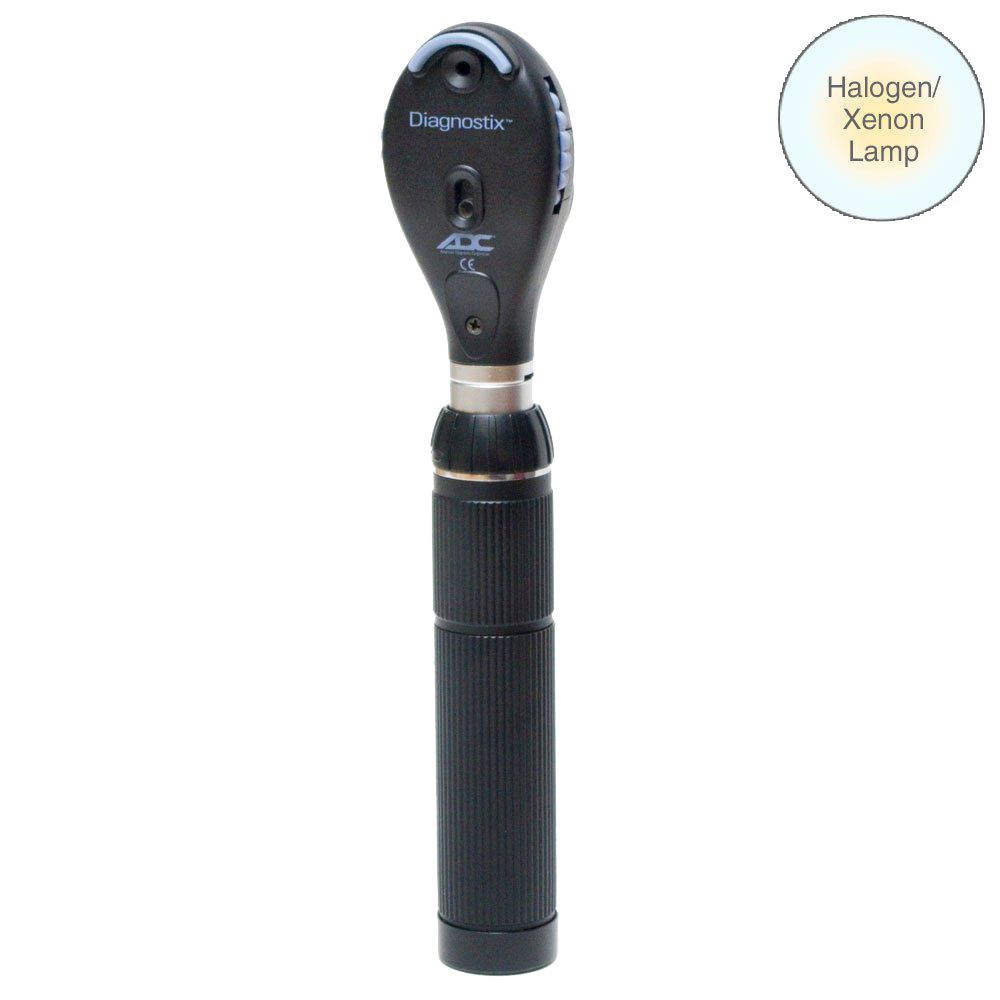

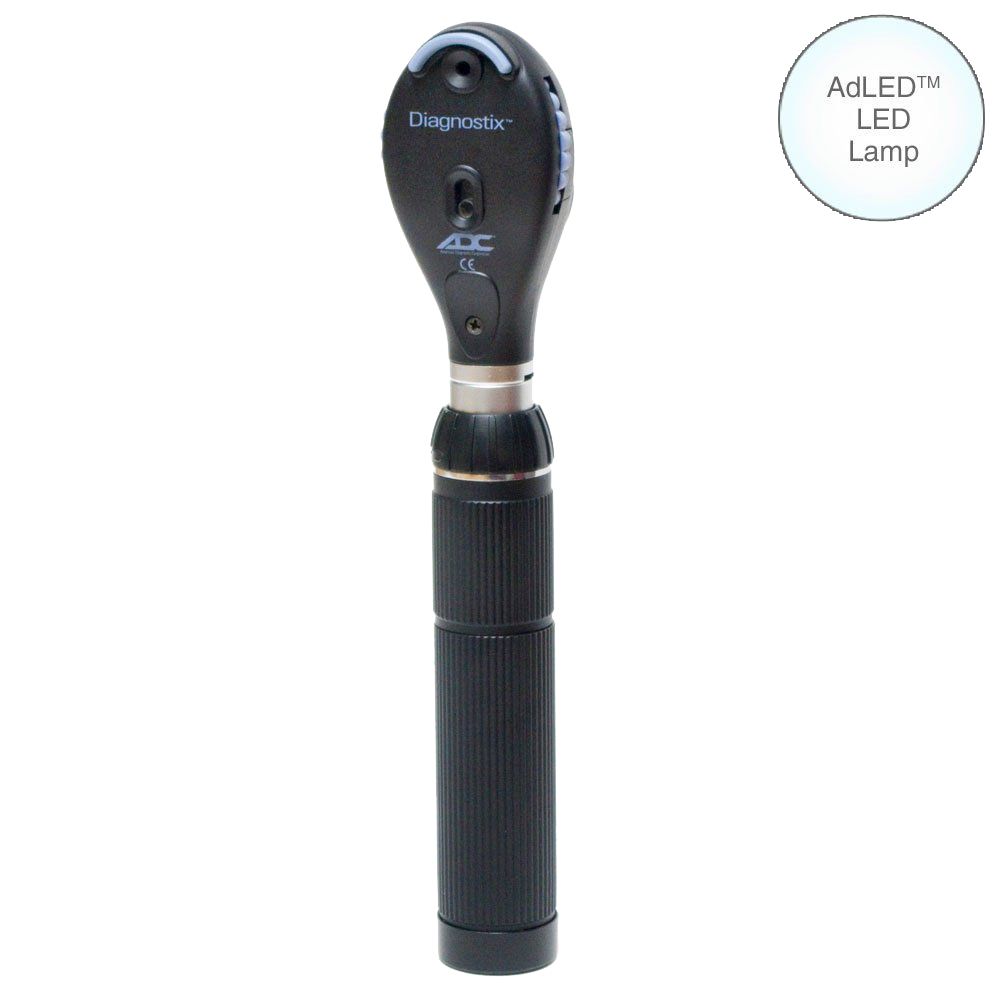

Yes, the ADC Diagnostix 54122 Ophthalmoscope provides versatile illumination options to suit your preferences. You can choose between a halogen/xenon lamp or a high-performance AdLED lamp.
What is the battery life for continuous use?
The battery life of the rechargeable 1400mAh Li-ion battery handle varies depending on the illumination option selected:
- Halogen/Xenon Lamp: Provides 2–3 hours of continuous operation.
- AdLED Lamp: Delivers an extended battery life of up to 30 hours of continuous use on a full charge.
This high-performance battery is rated for up to 1,200 charge cycles.
Does this ophthalmoscope have extensive filter options?
Yes, the ADC Diagnostix 54122 offers comprehensive diagnostic capability with a total of 28 aperture and filter combinations.
This extensive range supports detailed examination of the eye’s media and retina by a trained healthcare professional.

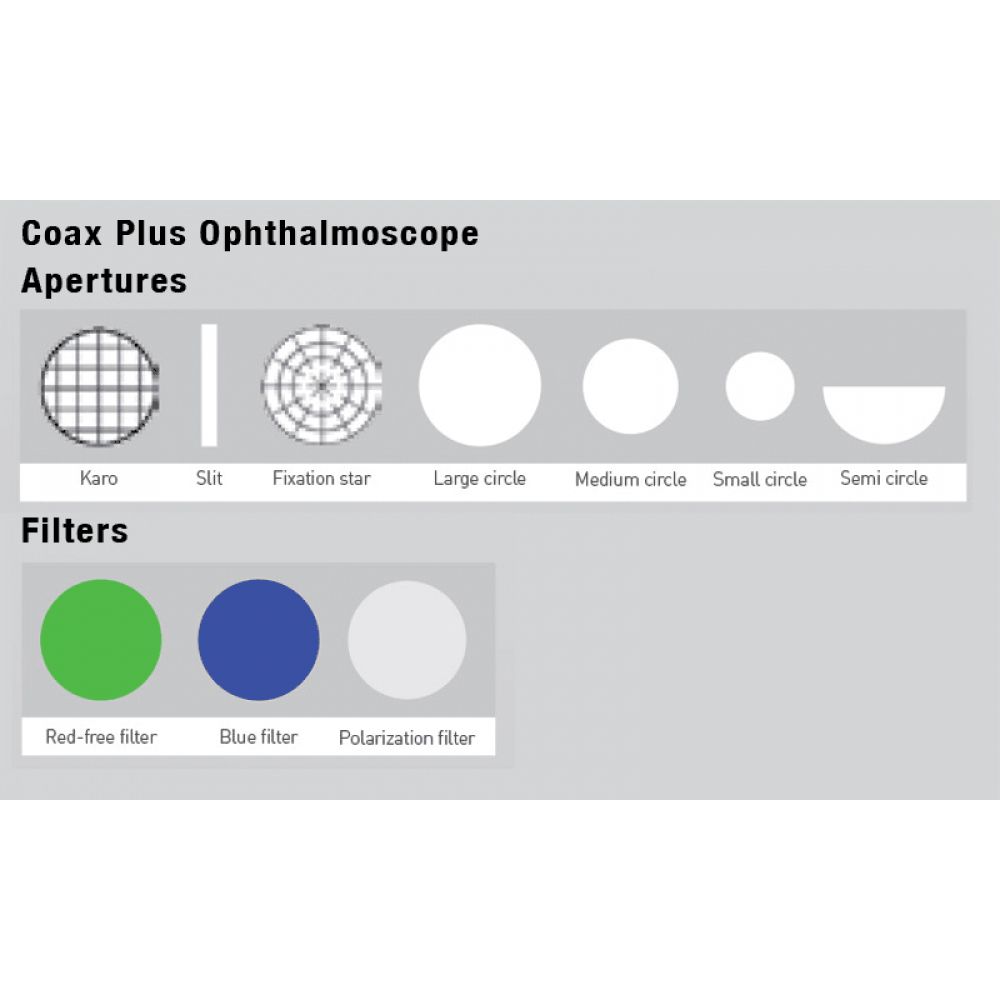

Apertures Included:
- Slit
- Fixation (with graduated crosshairs)
- Large, Small, and Micro spot
- Half moon
Specialized Filters (plus Neutral):
- Red Free: Used for evaluating vascular structures.
- Cobalt: Used with fluorescent dye for corneal examination.
- Polarizing: Designed to virtually eliminate irritating corneal reflections.
For precision focusing, the instrument also features an exceptional range of 89 viewing lenses (from -44 to +45 in single steps).
What is the warranty period for the ADC Diagnostix 54122 and the AdLED lamp?
The ADC Diagnostix 54122 comes with a 2-year warranty. The AdLED lamp has a lifetime warranty.
What ergonomic features ensure comfortable stability?
The ADC Diagnostix 54122 is designed with several professional ergonomic features to maximize stability and comfort during eye examinations:
- Ribbed Grip Handle: The handle is CNC machined from solid brass and chrome-plated black, featuring a deeply ribbed surface to ensure a secure, non-slip grip.
- Integral Thumb Rest: The ergonomic design includes an integral thumb rest built into the head, enhancing stability and precise one-finger control over the instrument.
- Synthetic Rubber Brow Rest: A comfortable brow rest is included, made of synthetic rubber, which facilitates use and maintains stability even when the practitioner is wearing eyeglasses.
- Lightweight Construction: The entire instrument weighs only 0.92 pounds, ensuring portability and reduced hand fatigue during extended use.
Does it use Adtronic electronic light control?
Yes, the ophthalmoscope is equipped with the Adtronic electronic rheostatic control. This allows for superior, infinite continuous adjustment of the light intensity. The control is integrated into the ergonomic, solid brass handle. Additionally, a standard auto-off feature engages after two minutes of inactivity to conserve the Li-ion battery.
Does it feature a high-performance rechargeable battery?
The ADC Diagnostix 54122 is powered by a 3.5V plug-in rechargeable Li-ion battery handle (C-sized, 1400mAh) that is designed for professional reliability and convenience.
Key features of the power system include:
- Exceptional Endurance: When paired with the efficient AdLED lamp, the battery provides up to 30 hours of continuous use. (Halogen/Xenon offers 2 to 3 hours.)
- Long Lifespan: The battery supports up to 1,200 charge cycles.

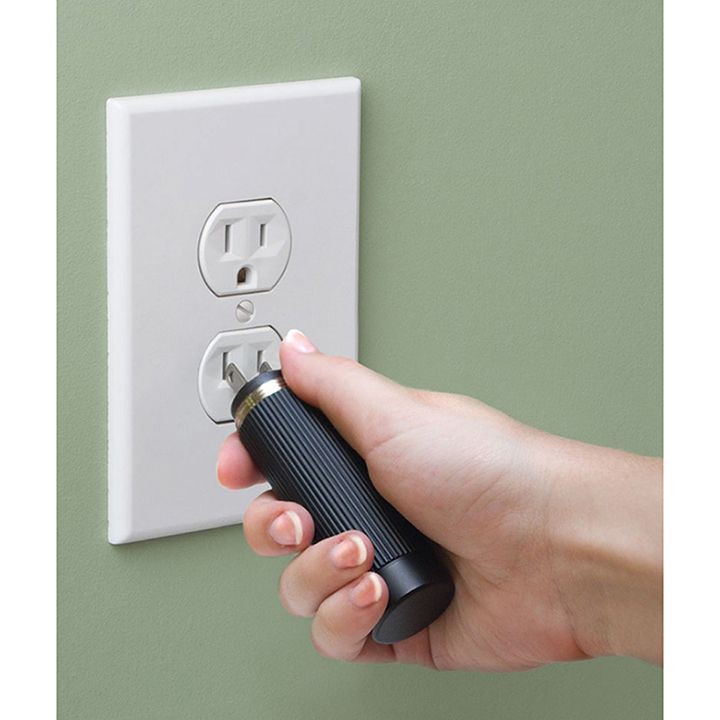

- Integrated Charging: The top half of the handle unscrews to reveal a built-in wall plug (available in US or Euro fittings) for direct recharging without a separate base.
- Light Control: It features Adtronic electronic rheostatic control for precise, infinite adjustment of light intensity, and a standard two-minute auto-off feature to conserve power.
