Condition:
-
Warranty:
- Weight: 0.92 lb
-
Learn more:
-
MFR:
American Diagnostic Corporation
Ships from MFI Medical
-
MPN: 5412L
- Phone: (800) 232-2670
Frequently asked questions
Does the ophthalmoscope offer versatile illumination?
Yes, the ADC Diagnostix 5412 provides a choice between two high-performance illumination options to match your clinical needs:

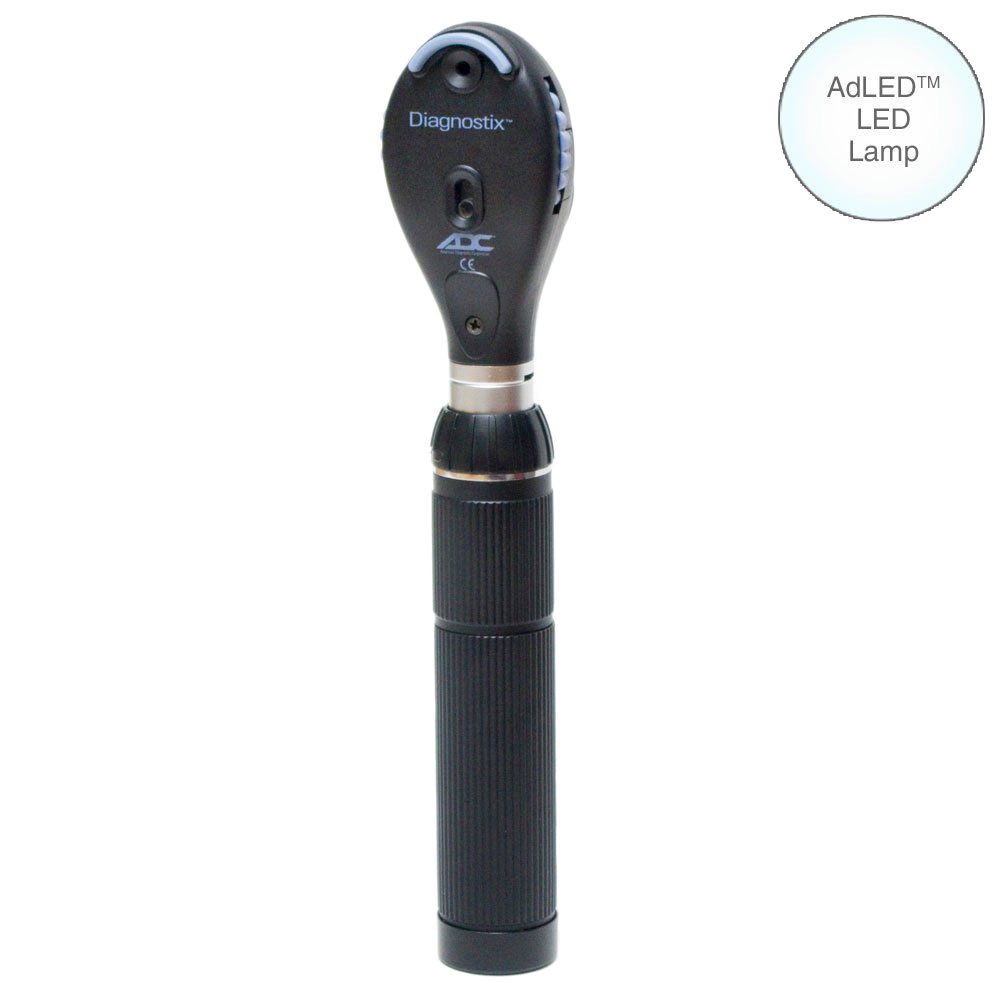

- High-Performance AdLED Illumination: This advanced, energy-efficient option is designed for longevity, providing up to 30 hours of continuous use on a full charge. The AdLED lamp is highly durable and backed by a lifetime warranty.

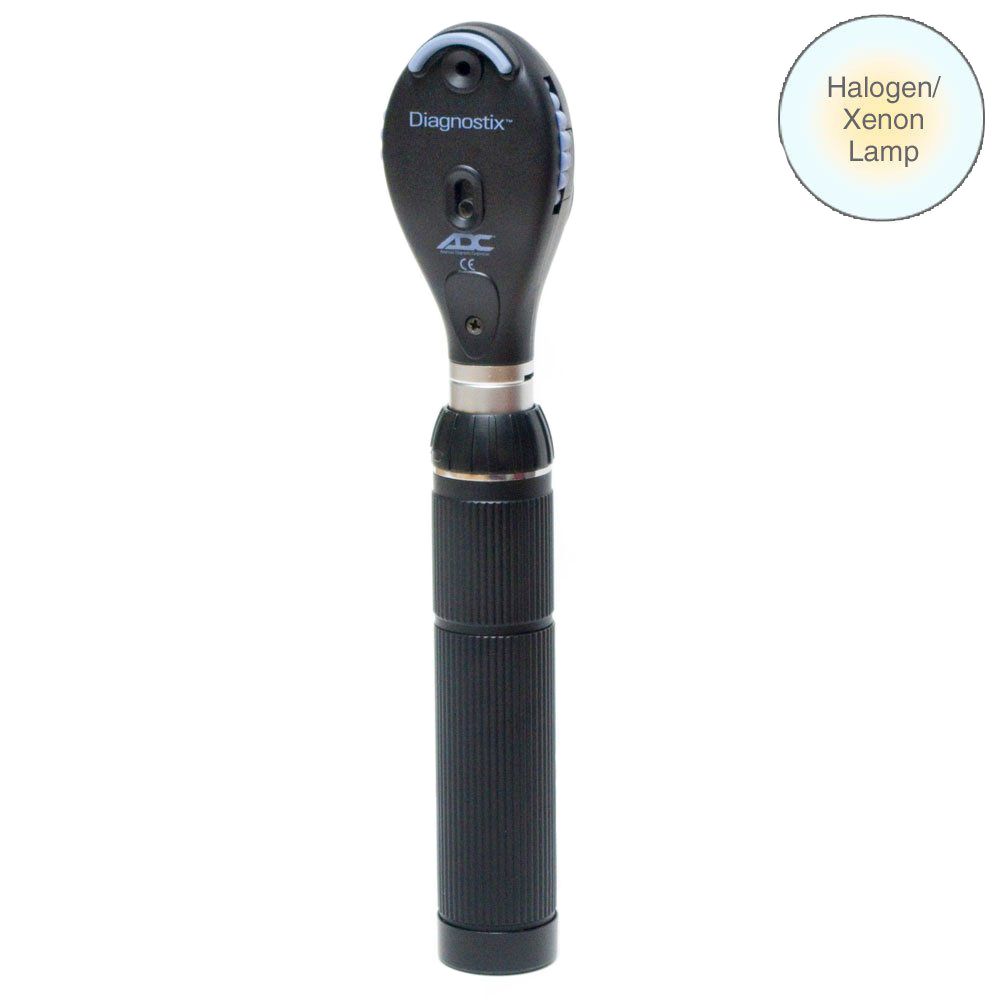

- Traditional Halogen/Xenon Illumination: This provides a classic, high-intensity light source, offering 2 to 3 hours of continuous use per charge.
How extensive is the viewing lens range?
The ADC Diagnostix 5412 offers a truly comprehensive selection of viewing lenses for versatile examinations. It features a total of 29 viewing lenses.
This extensive range spans from -35 to +40 diopters, ensuring precise focus across diverse patient scenarios. The specific lenses included are:
- Plus Lenses: 1-10, 12, 15, 20, 40
- Minus Lenses: 1-10, 15, 20, 25, 30, 35
Does the handle provide exceptional battery life?
Yes, the 3.5V rechargeable handle offers impressive battery life, especially when configured with the AdLED illumination.
The handle utilizes a powerful 1400mAh Li-ion battery designed for durability, rated for up to 1,200 charge cycles.
Continuous operating time varies significantly based on the illumination source selected:
- AdLED Illumination: Provides up to 30 hours of continuous use.
- Halogen/Xenon Illumination: Provides 2 to 3 hours of continuous use.

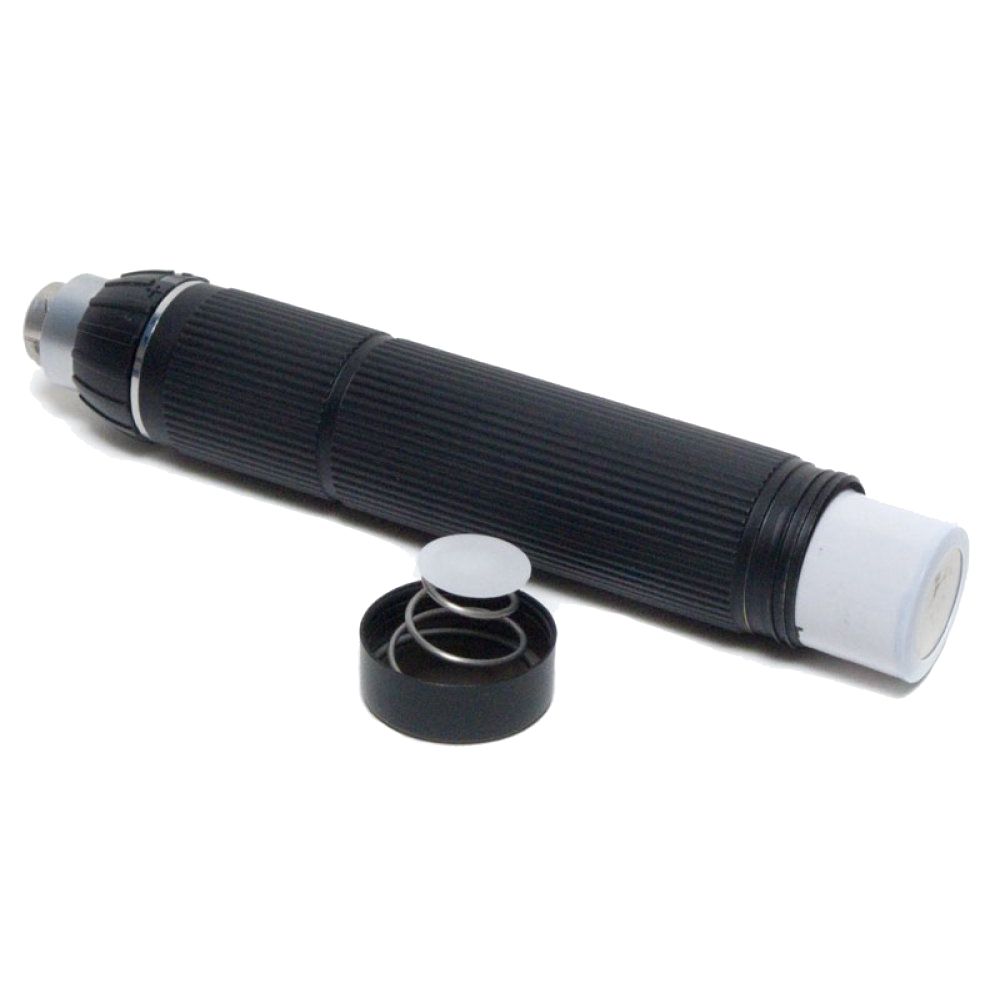

To conserve power, the instrument features an auto-off mechanism that engages after two minutes of inactivity. For convenient recharging, the top section of the handle unscrews to reveal an integrated wall plug (available in US or Euro fittings).
Does the ophthalmoscope use a rechargeable Li-ion battery?
Yes, the ADC Diagnostix 5412 is powered by a 3.5V C-sized handle housing a high-capacity, plug-in rechargeable Li-ion battery (1400mAh). This robust power system is designed for professional use and convenience.
Key features of the power supply include:
- Battery Life: The Li-ion battery is rated for up to 1,200 charge cycles.
- Run Time: Continuous operating time varies based on the illumination type:
- With high-performance AdLED illumination: Up to 30 hours.
- With Halogen/Xenon illumination: 2 to 3 hours.
- Charging: A full charge requires 24 hours.
- Light Control: Features Adtronic electronic rheostatic control for infinite continuous light intensity adjustment.
- Power Conservation: A standard auto-off feature activates after two minutes of inactivity.
- Handle Design: The handle is CNC machined from solid brass, chrome-plated, and ribbed for a secure, ergonomic grip. It also features an integrated wall plug (US or Euro fittings) accessible by unscrewing the top.
Does it offer versatile aperture and filter combinations?
Yes, the ADC Diagnostix 5412 is highly versatile, providing a total of 24 aperture and filter combinations to enable comprehensive diagnostic examinations.
Available Apertures
The ophthalmoscope includes six standard apertures:
- Slit
- Fixation (includes graduated crosshairs)
- Large
- Small
- Micro spot
- Half moon
Available Filters
The device includes three specialty filters, plus a neutral setting:
- Red free: Excludes red rays, highly beneficial for identifying and examining vascular structures like veins and arteries.
- Cobalt: Used with fluorescent dye, typically for detailed corneal studies.
- Polarizing: Effectively minimizes corneal reflection, ensuring a clearer view.
Is the ADC Diagnostix 5412 suitable for use with eyeglasses?
Yes, the ADC Diagnostix 5412 is designed for use with practitioner eyeglasses, featuring a synthetic rubber brow rest for added comfort and stability.
Does the ophthalmoscope include a durable case?

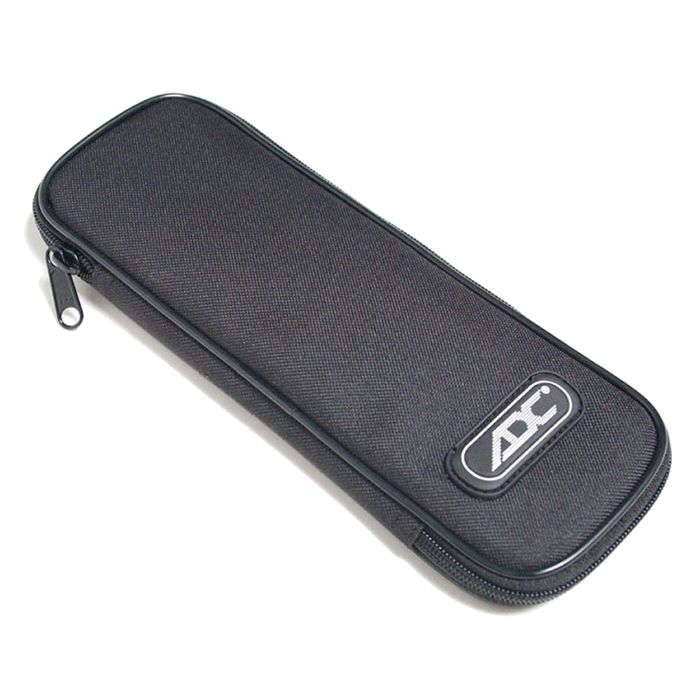

Yes, the ADC Diagnostix 5412 is supplied with a zippered padded nylon case for secure storage and transport, ensuring the instrument is protected when not in use.
This portable kit includes:

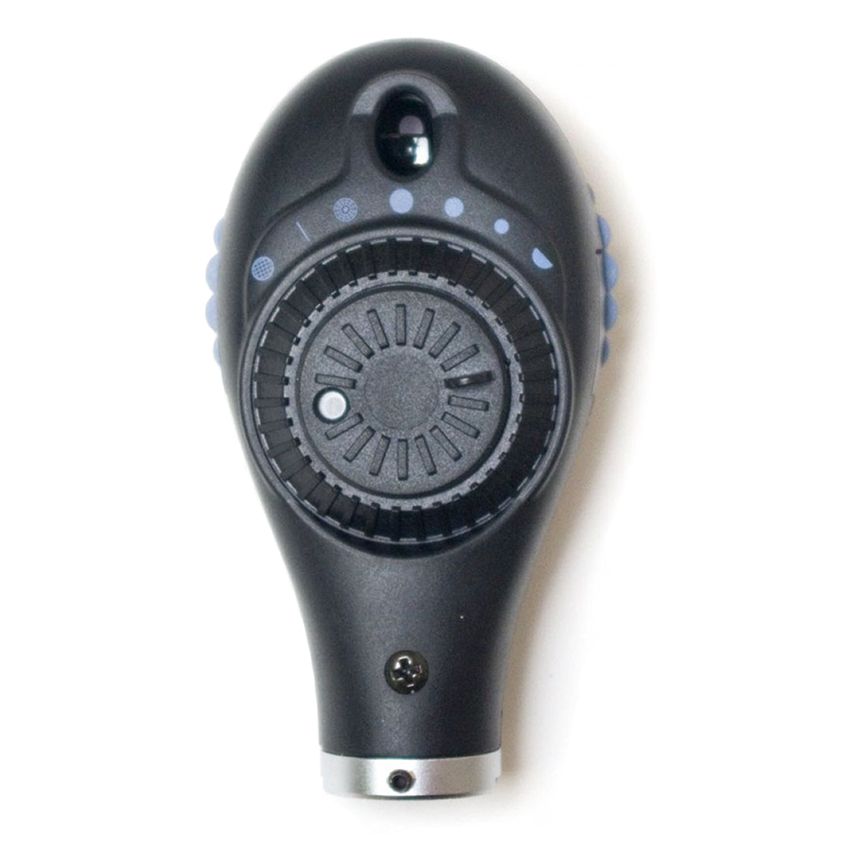

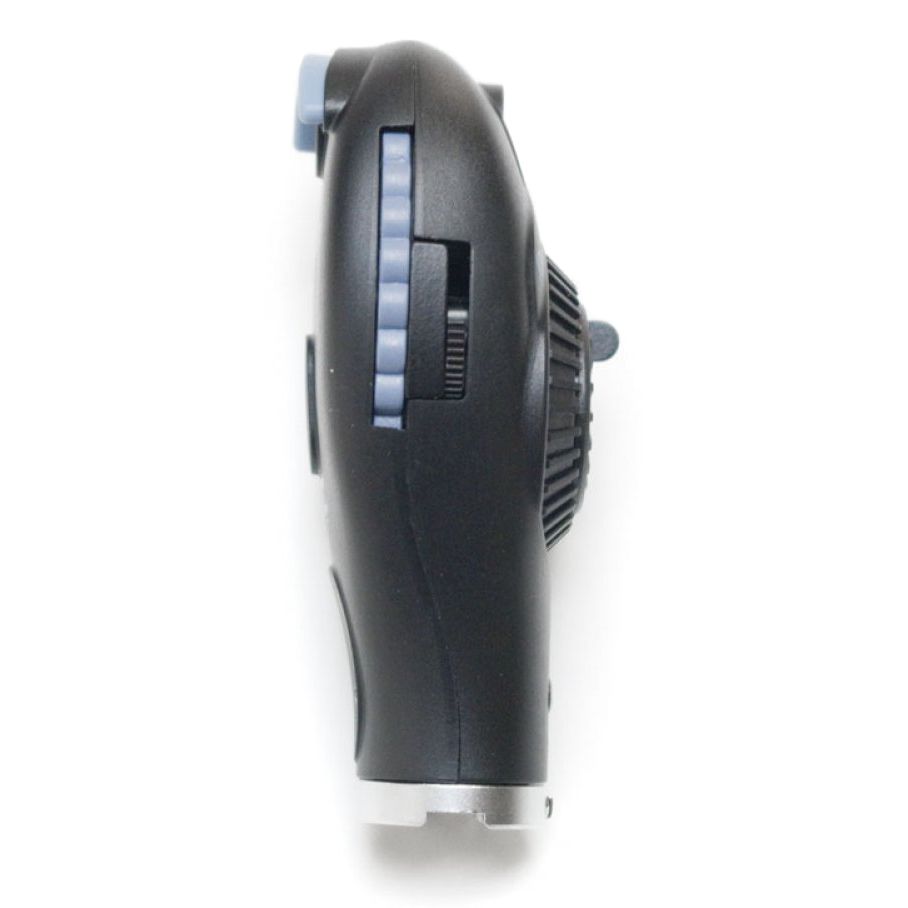

- Ophthalmoscope Head: Features advanced optics, including 29 viewing lenses (-35 to +40) and 24 aperture/filter combinations for comprehensive diagnostic capability.
- 3.5V Rechargeable Handle: This handle is CNC machined from solid brass, chrome plated in black, and contains a powerful 1400mAh Li-ion battery. It offers convenient charging via a top section that unscrews to reveal an integrated wall plug (US or Euro fittings).
- Padded Nylon Case: Protects the device and makes it easy to carry.
Does the coaxial system reduce corneal reflection?
Yes, the ADC Diagnostix 5412 utilizes an advanced coaxial illumination system designed specifically to minimize obstruction and maximize clarity for the practitioner.
Key features that enable reduced reflection include:
- Advanced Optics: The system leverages Gullstrand’s Equation, using distinct parallel light beams alongside a high-performance aspherical condenser lens. This combination significantly reduces glare and corneal reflection.
- Comprehensive Versatility: Beyond glare reduction, the instrument offers exceptional diagnostic range, featuring:
- 29 Viewing Lenses: Spanning a wide range from -35 to +40 diopters.
- 24 Aperture/Filter Combinations: Including specialized options like the Polarizing filter (specifically designed to eliminate reflections), the Red free filter (for identifying vascular structures), and the Cobalt filter (for use with fluorescent dye).
What features ensure clear retinal views?
The ADC Diagnostix 5412 is equipped with several advanced optical features designed to maximize visual clarity and minimize frustrating corneal reflection during examination:
- Advanced Optical System: The device features a high-performance aspherical condenser lens. This specialized lens system works in conjunction with distinct parallel observational and illuminating light beams.
- Corneal Reflection Reduction: This design utilizes Gullstrand’s Equation to significantly reduce corneal reflection, ensuring a cleaner, magnified view of the eye’s media and retina.
- Polarizing Filter: The 24 aperture/filter combinations include a Polarizing filter, which virtually eliminates glare and corneal reflection when needed for even sharper imaging.
- Wide Viewing Range: Clarity is maintained across a broad diagnostic spectrum thanks to 29 viewing lenses, ranging from -35 to +40 diopters.
Is the ophthalmoscope easily portable?
Yes, the ADC Diagnostix 5412 is specifically designed as a portable, handheld diagnostic instrument for clinical mobility. Several features enhance its convenience and readiness:

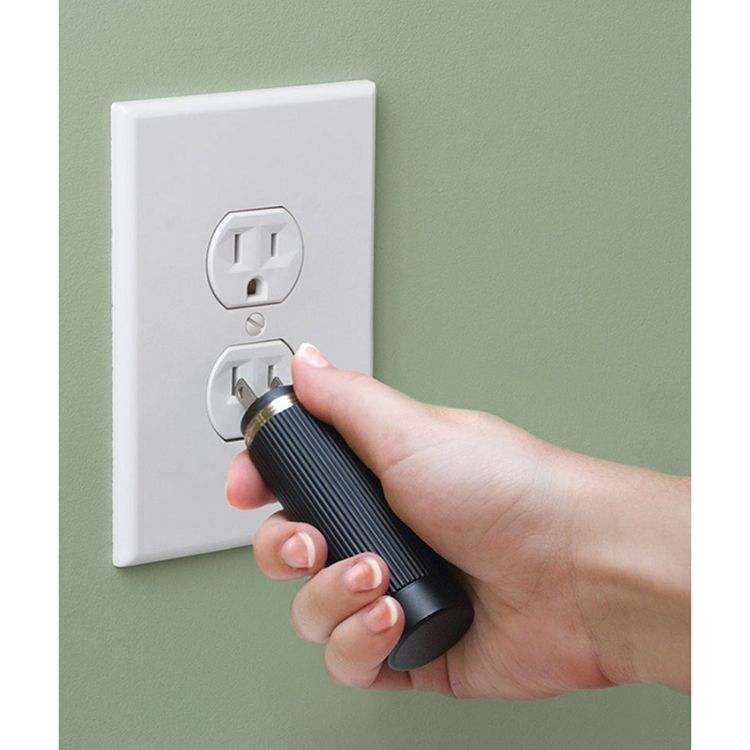

- Integrated Charging: The 3.5V rechargeable handle incorporates a built-in US or European wall plug. You simply unscrew the base of the handle to access the plug, allowing direct charging without needing separate cords or charging bases.
- Extended Battery Life: The high-capacity 1400mAh Li-ion battery provides exceptional operation time, offering up to 30 hours of continuous use when paired with the energy-efficient AdLED lamp.
- Secure Transport: The unit comes standard with a zippered padded nylon case for safe and easy storage and transport.
- Durable Build: The handle is CNC machined from solid brass, ensuring a durable instrument suitable for daily professional use.
