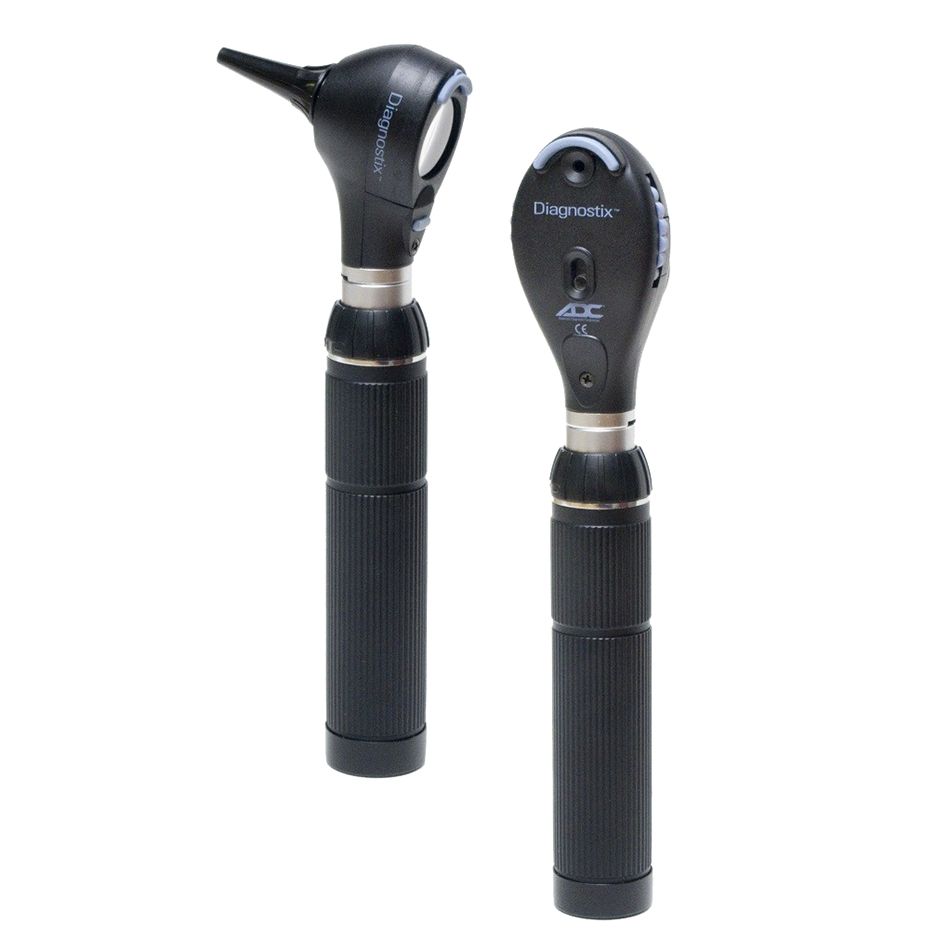

ADC Diagnostix 5410 3.5V Portable Otoscope/Ophthalmoscope Diagnostic Set

The ADC Diagnostix 5410 is a comprehensive, portable diagnostic kit designed for professional ear and eye examinations. It includes:

Core Instruments

• ADC Diagnostix 5411 Otoscope Head: Features 3X optical glass magnification, fiber-optic light transmission, and an insufflator port for pneumatic otoscopy.
• ADC Diagnostix 5412 Ophthalmoscope Head: Offers high-performance optics with 29 viewing lenses (-35 to +40), 6 apertures, and 3 filters, engineered to minimize corneal reflection.
• 3.5V Portable Battery Handle: This durable handle is CNC machined from chrome-plated solid brass. It contains a 1400mAh Li-ion rechargeable battery and features an integrated wall plug (available in US or Euro fittings) for charging.

Accessories

• Ten disposable specula (five 2.75 mm and five 4.25 mm, Welch Allyn compatible).

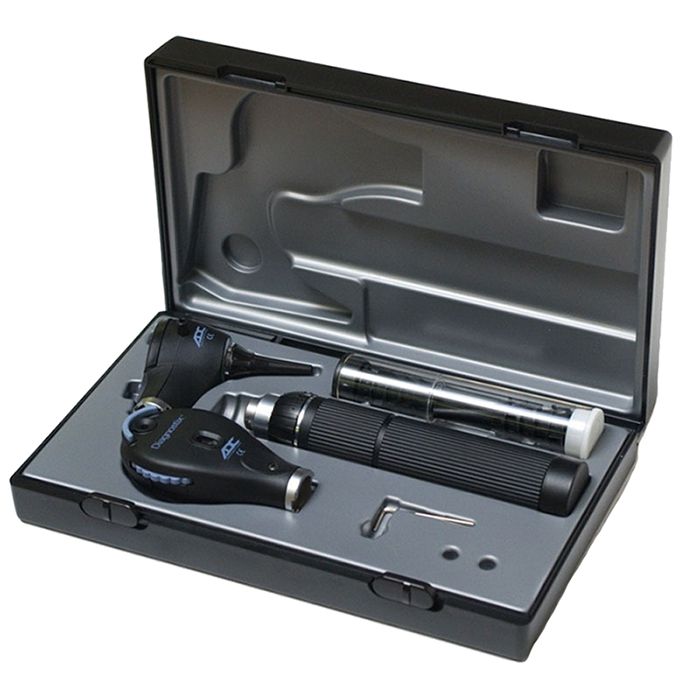

• Your choice of either a fitted hard case or a soft case for secure storage and transport.

Yes, the ADC Diagnostix 5410 diagnostic set offers versatile illumination options. You can choose between halogen/xenon for traditional lighting or high-performance AdLED illumination. The AdLED lamp is particularly notable as it comes with a lifetime warranty.

The 3.5V handle utilizes a high-capacity 1400mAh Li-ion battery, engineered for professional reliability. Battery life depends significantly on the chosen illumination type:

• AdLED Illumination: Provides up to 30 hours of continuous use on a full charge (24 hours).
• Halogen/Xenon Illumination: Offers 2 to 3 hours of continuous use.
• Durability: The battery supports an impressive lifespan of up to 1,200 charge cycles.

For optimized power management, the handle includes Adtronic electronic rheostatic control for light intensity adjustment and a 2-minute auto-off feature.

Yes, the ADC Diagnostix 5410 set is powered by a high-performance, long-lasting system designed for rigorous professional use.

The 3.5V handle is constructed from CNC machined, chrome-plated solid brass and houses a robust 1400mAh Li-ion battery.

Key details regarding the battery life and durability:

• LED Illumination: Provides up to 30 hours of continuous use.
• Halogen/Xenon Illumination: Offers 2 to 3 hours of continuous use.
• Durability: The battery is rated for up to 1,200 charge cycles.

The handle also includes the Adtronic electronic rheostat for precise light intensity control and a 2-minute auto-off feature to help conserve power.

The 3.5V rechargeable handle is engineered for professional durability and precise control, built to support extensive clinical use.

Key features and specifications of the ADC Diagnostix handle include:

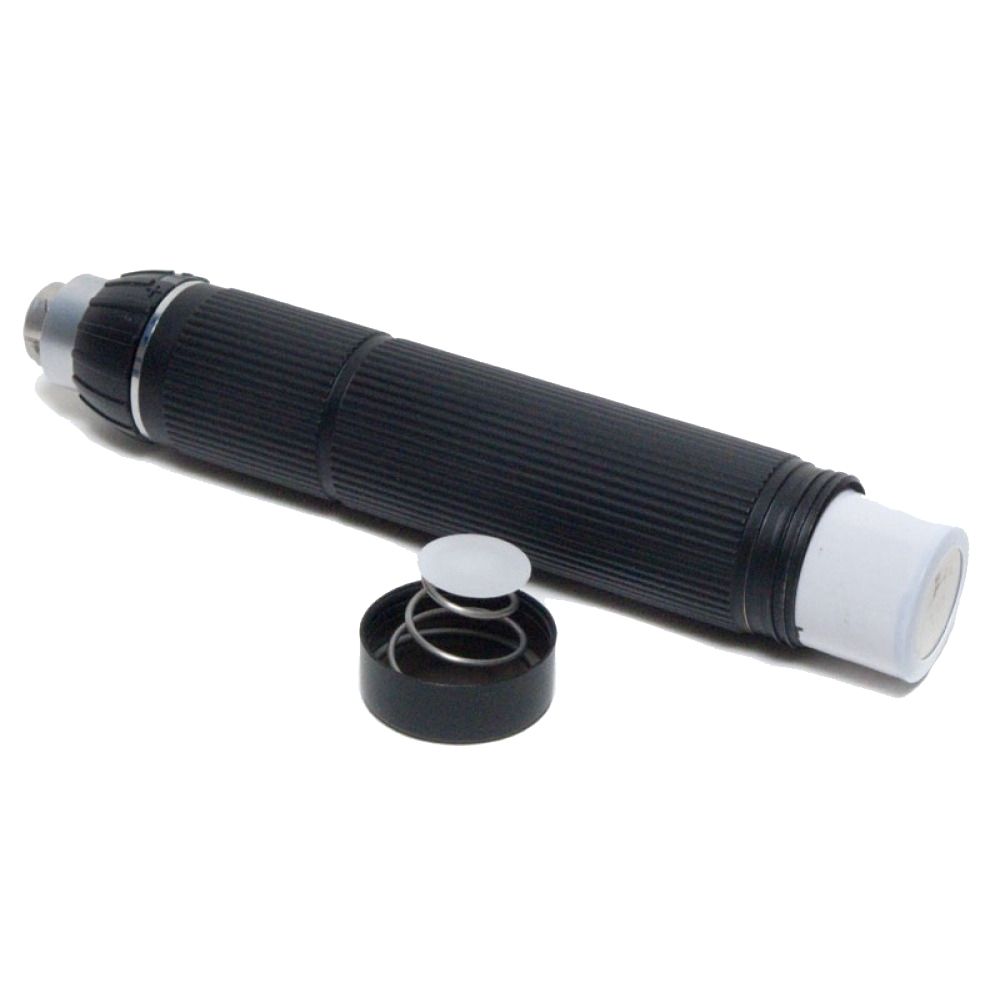

• Premium & Durable Construction: It is CNC machined from solid brass, chrome-plated in black, and features a ribbed surface for a secure, comfortable grip.
• High-Capacity Power: Houses a rechargeable 1400mAh Li-ion battery designed for exceptional longevity, supporting up to 1,200 charge cycles.

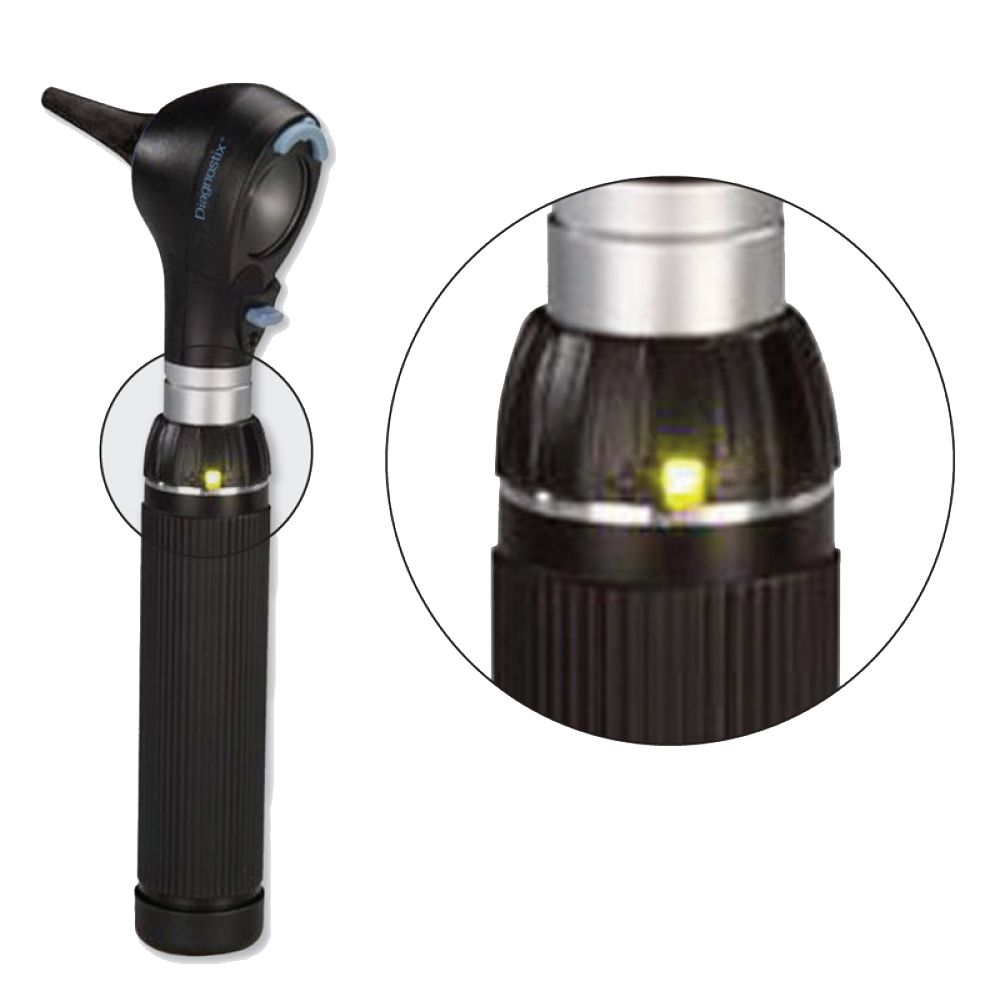

• Intelligent Lighting Control: Features Adtronic electronic rheostatic control allowing for infinite, continuous adjustment of light intensity.
• Extended Runtime: Provides long continuous use, offering up to 30 hours of runtime with AdLED lamps (or 2 to 3 hours with Halogen/Xenon lamps).
• Energy Saving Features: Includes a built-in 2-minute auto-off function to help conserve battery life.

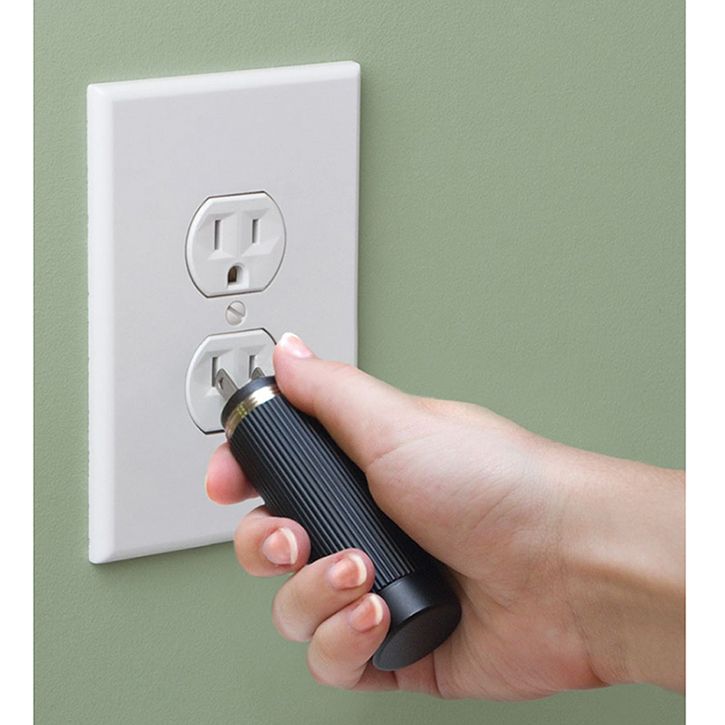

• Convenient Charging: The top half of the handle unscrews to reveal an integrated wall plug, available with either US or European fittings for direct wall charging.

Yes, the ophthalmoscope includes three specialized filters: Red-free, Cobalt, and Polarizing. These are part of the 24 aperture/filter combinations available, enhancing examination capabilities.

Yes, the AdLED lamp included with the ADC Diagnostix 5410 diagnostic set comes with a lifetime warranty. The overall product is covered by a 2-year warranty.

The ADC Diagnostix 5411 Otoscope Head is engineered for detailed examinations, offering exceptional clarity and versatility:

• 3X Magnification: Provides a sharp, detailed view through high-quality optical glass.
• Fiber-Optic Illumination: Delivers cool, bright light via fiber optics, ensuring an unobstructed viewing path. Illumination options include high-performance AdLED or traditional Halogen/Xenon.
• Instrumentation Access: Features a bidirectional swivel lens that allows the insertion of instruments for minor procedures without removing the head.
• Pneumatic Otoscopy Ready: Includes an integrated insufflator port for performing pneumatic otoscopy.
• Specula Compatibility: The head is designed to use standard Welch Allyn disposable specula, offering flexibility and ease of replenishment. The set includes five 2.75 mm and five 4.25 mm disposable specula.

The rechargeable Li-ion battery handle is rated for up to 1,200 charge cycles, providing long-term reliability.

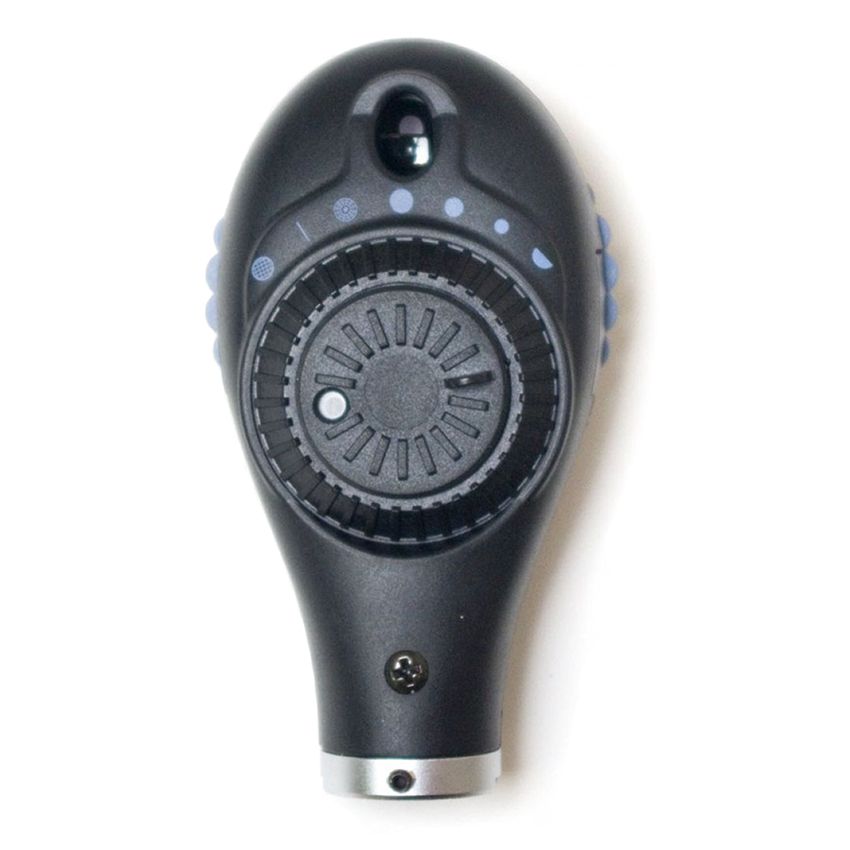

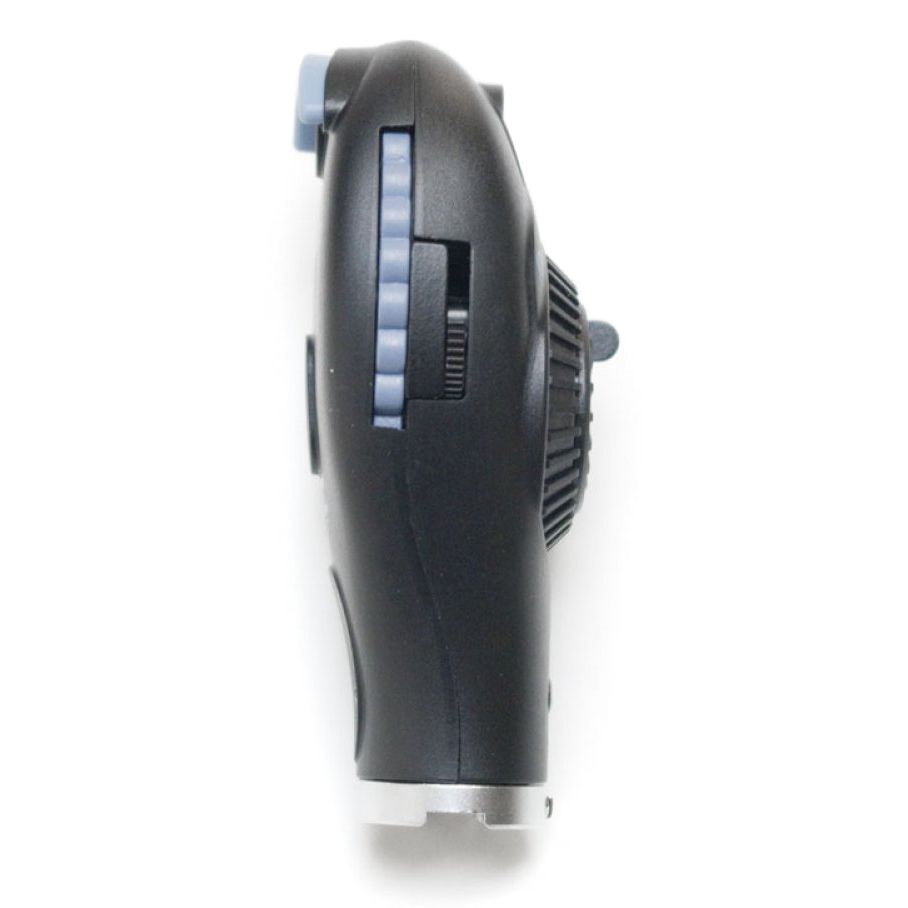

Yes, the ADC Diagnostix 5412 Coax Ophthalmoscope Head features advanced optical technology and extensive controls for precise examinations.

Key Optical Features

• Reflection Reduction: Engineered with a high-performance aspherical condenser lens and utilizing distinct parallel observational/illuminating light beams (Gullstrand’s Equation) to significantly minimize corneal reflection.
• Viewing Lenses: Provides 29 viewing lenses, covering a wide diagnostic range from -35 to +40 diopters.
• Apertures and Filters: Offers 24 aperture/filter combinations, including specialized apertures (Micro spot, Slit) and therapeutic filters such as:
  • Red free: For examining veins and arteries.
  • Cobalt: For corneal examination with dye.
  • Polarizing: To eliminate residual corneal reflection.

For added comfort, the ophthalmoscope includes a synthetic rubber brow rest, which is particularly useful for practitioners who wear eyeglasses.
