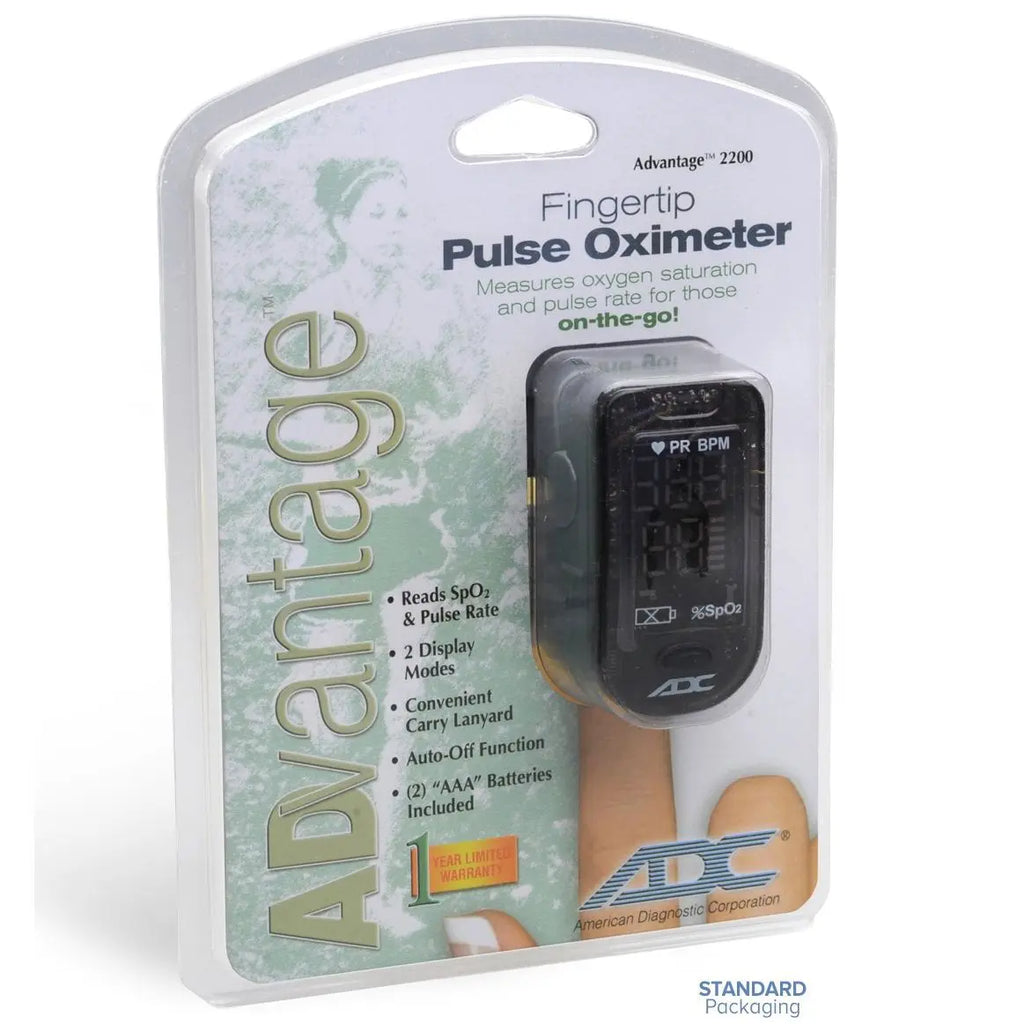

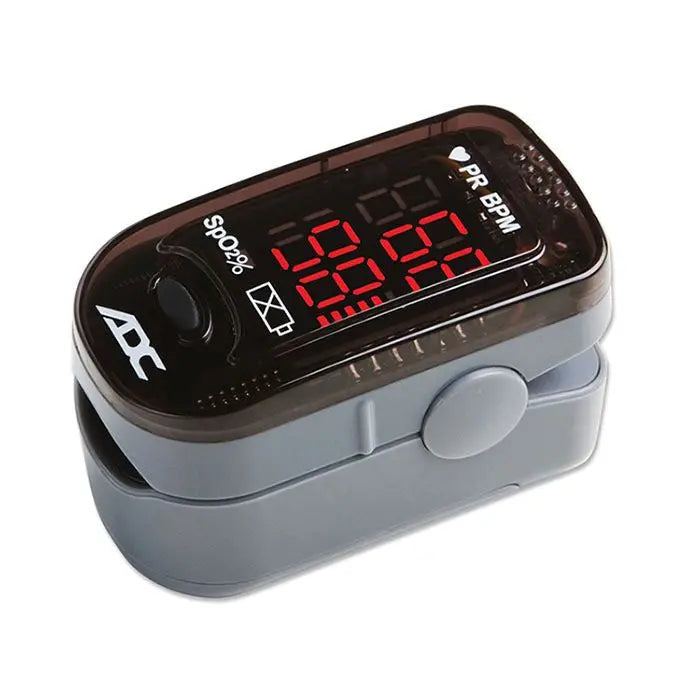

ADC Advantage 2200 Fingertip Pulse Oximeter

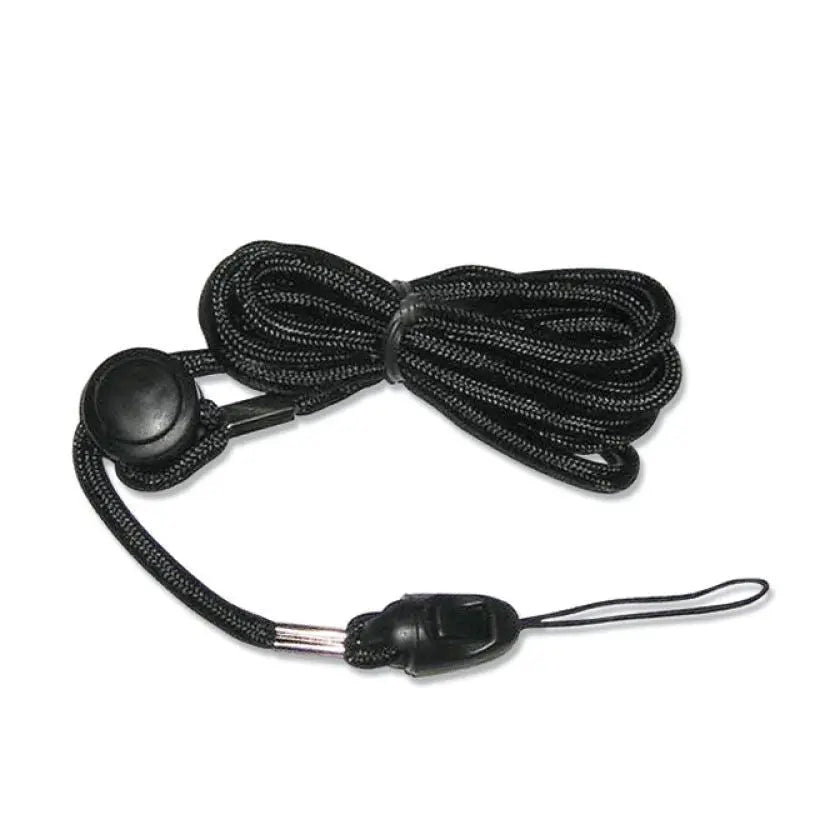

The ADC Advantage 2200 Fingertip Pulse Oximeter (#2200) includes a Carry Lanyard (#2100-1), two "AAA" batteries, and an instruction booklet.

Warranty: 1 Year Limited - Defects in Materials and Workmanship under normal use and service.

The Advantage 2200 is ideally suited for home, sport, or aviation use and reads SpO₂ and pulse rate in just a few seconds.

The ultra-portable Advantage 2200 Pulse Oximeter gives you information about oxygen saturation (%SpO₂ - the amount of oxygen in the blood) and pulse rate at your fingertip (not the thumb). It is easy to use and needs no routine maintenance except battery replacement.

Note: Not available for purchase in Canada.

ADC Advantage 2200 Fingertip Pulse Oximeter Features

• Reads SpO₂ and Pulse Rate.

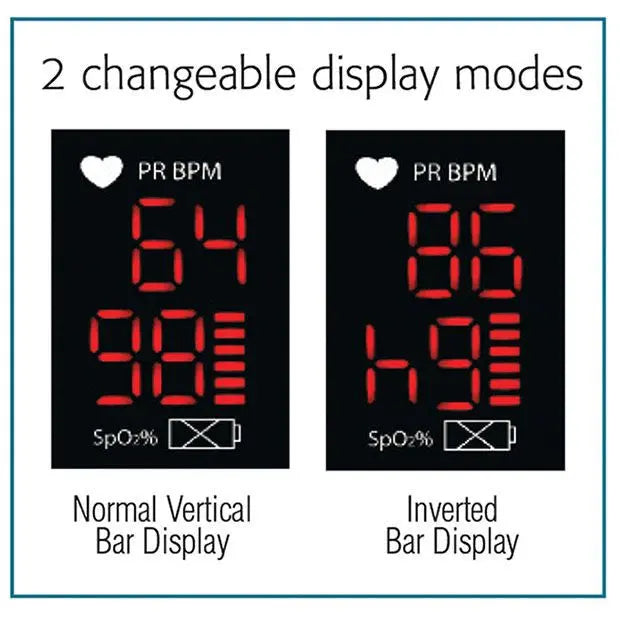

• Two changeable display modes.
• Bright red LED display.
• Latex free.

ADC Advantage 2200 Fingertip Pulse Oximeter Specifications

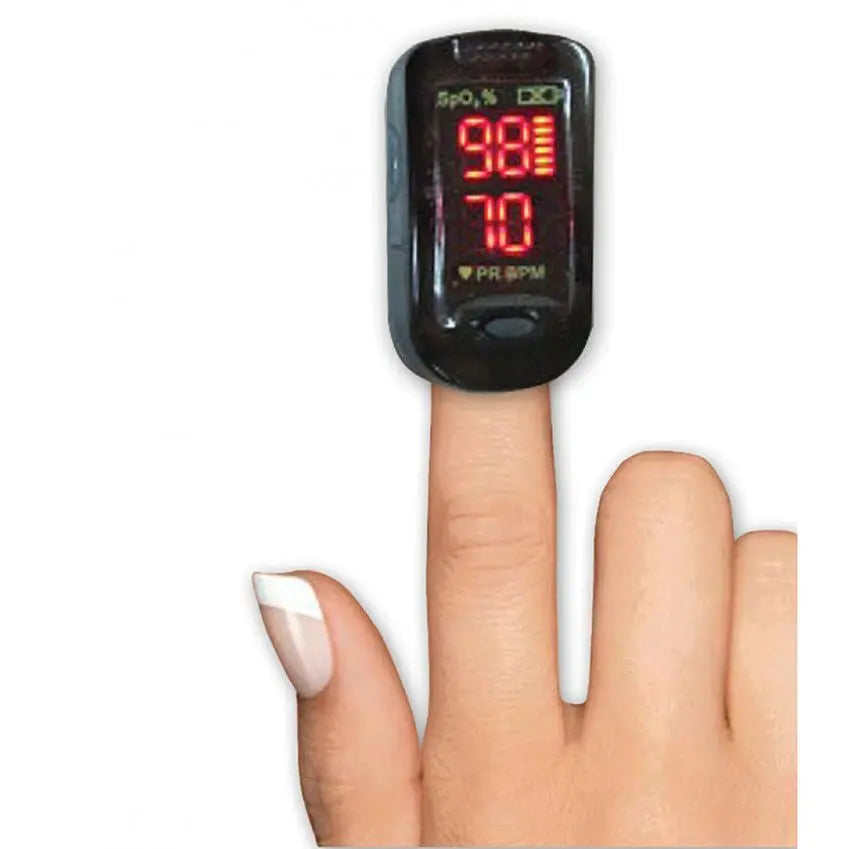

• Type: Fingertip (index finger is most recommended).
• Finger Range: 8 - 20 mm (0.31 - 0.79") [distance between fingernail (top) and finger pad (bottom)].
• SpO₂ Range: 70 - 99%.
• Pulse Rate Range: 30 - 235 bpm.
• Pulse Rate Display Mode: Bargraph.
• SpO₂ Accuracy: +/- 2% at 80 - 99%, +/- 3% @ 70 - 80%.
• Pulse Rate Accuracy: +/- 2 bpm.
• Power Requirements: Two AAA Alkaline batteries.
• Power Consumption: 40 mA.
• Battery Life: 30 hours (continuous).
• Dimensions: 2.19" x 1.13" x 1" (55 mm x 29 mm x 25 mm).
• Weight: 1.76 oz (50 g).
• Operating Temperature: 41 to 104 °F (5 to 40 °C).
• Storage Temperature: -4 to 131 °F (-20 to 55 °C).
• Relative Humidity in Operation: +/- 80%.
• Relative Humidity in Storage: +/- 93%.

ADC Advantage 2200 Fingertip Pulse Oximeter Literature

ADC 2017 Product Catalog

ADC 2200 Advantage Fingertip Pulse Oximeter Directions for Use
