The ADC Adstation Wallboard is available in two sizes, small (#5600S) and large, (#5602) and comes complete with all hardware for easy installation.
Note: This includes the wallboard only and does not include the adstation diagnostic sets or any other accessories.
Warranty: 2 Years.
The ADC Adstation Wallboard allows you to easily mount your ADC wall diagnostic set, and is a durable, easy-to-clean mounting solution that is made from long-lasting ABS with acrylic for added UV stability.
ADC Adstation Wallboard Features
- Your Adstation configuration will determine the size wall board you will need.

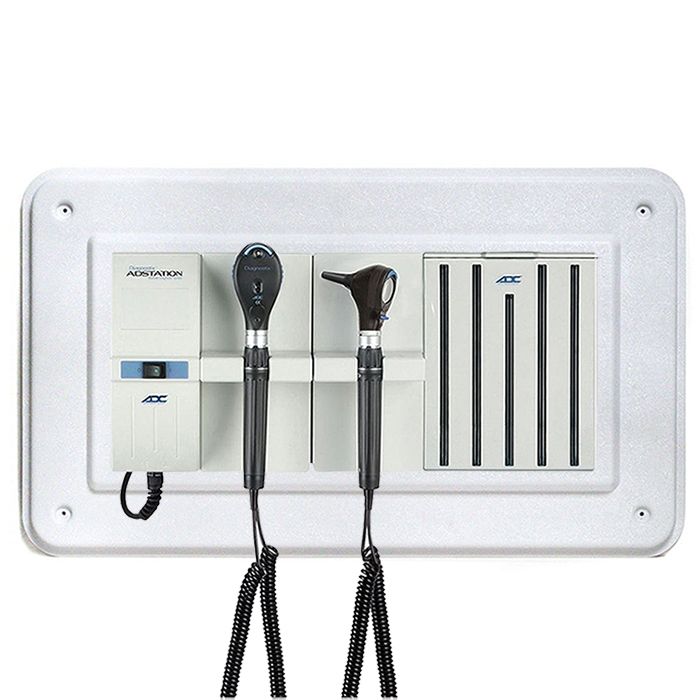

- An ADC Adstation 5660T 3.5V Wall Transformer can be mounted to the wallboard and contains the power switch and one handle.
- An additional extension module can be added to the main base unit and can also be mounted on either the small or the large wallboard.

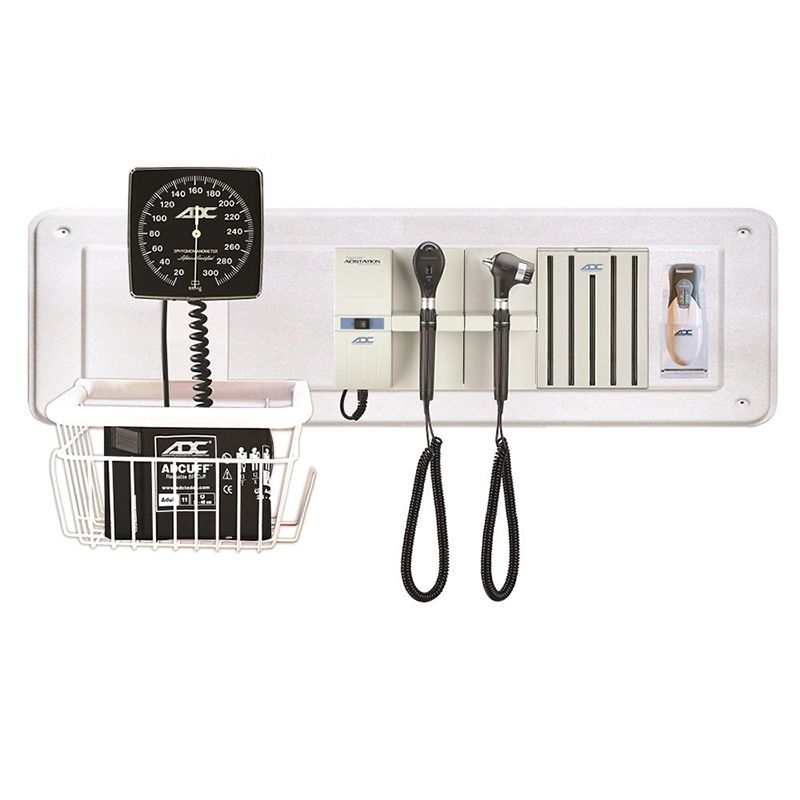

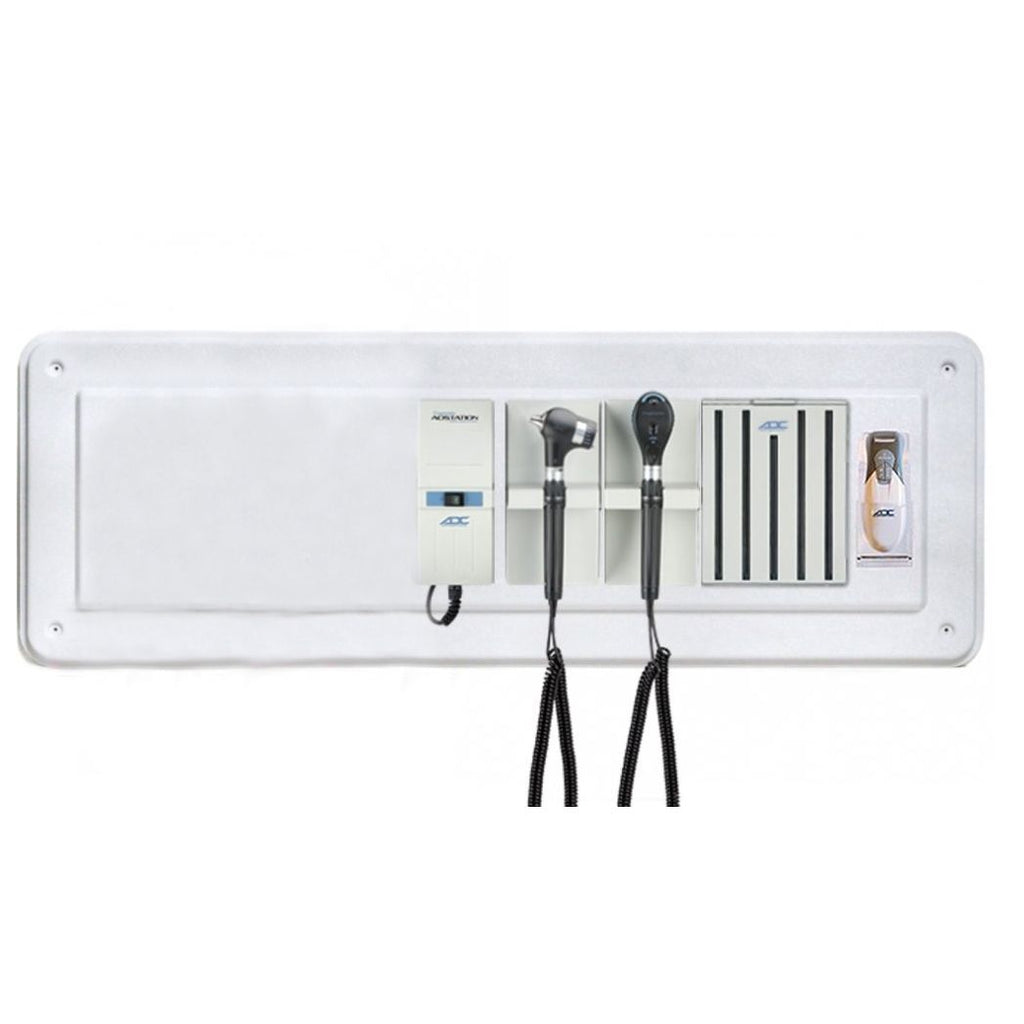

- The large wallboard allows room to add an ADC 5630 Wall Specula Dispenser, an ADC Adtemp 429 Non-Contact Infrared Thermometer, and an ADC Diagnostix 750W Wall Aneroid Sphygmomanometer or ADC ADView 2 Modular Diagnostic Station.
- Made in the U.S.A.
ADC Adstation Wallboard Specifications

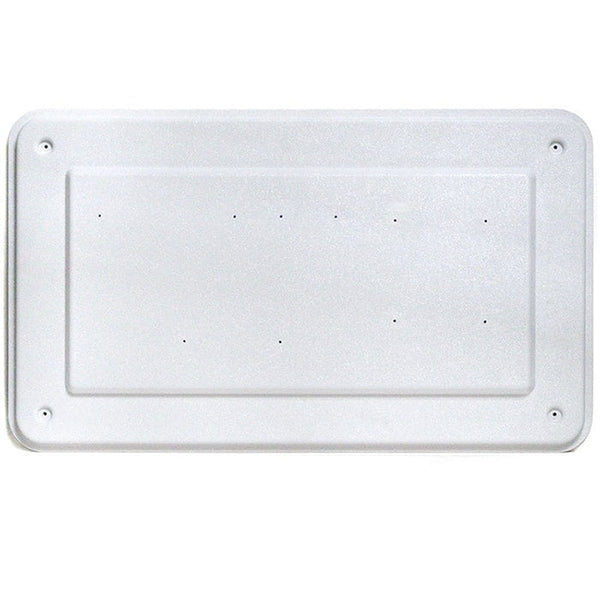

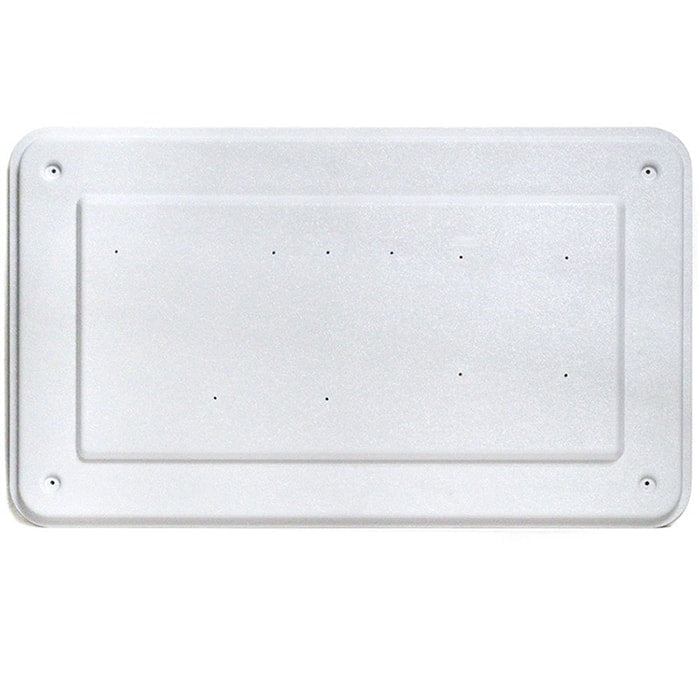

- Small Wallboard Dimensions: 23.25" x 13.63" x 1" (59.06 cm x 34.62 cm x 2.54 cm).

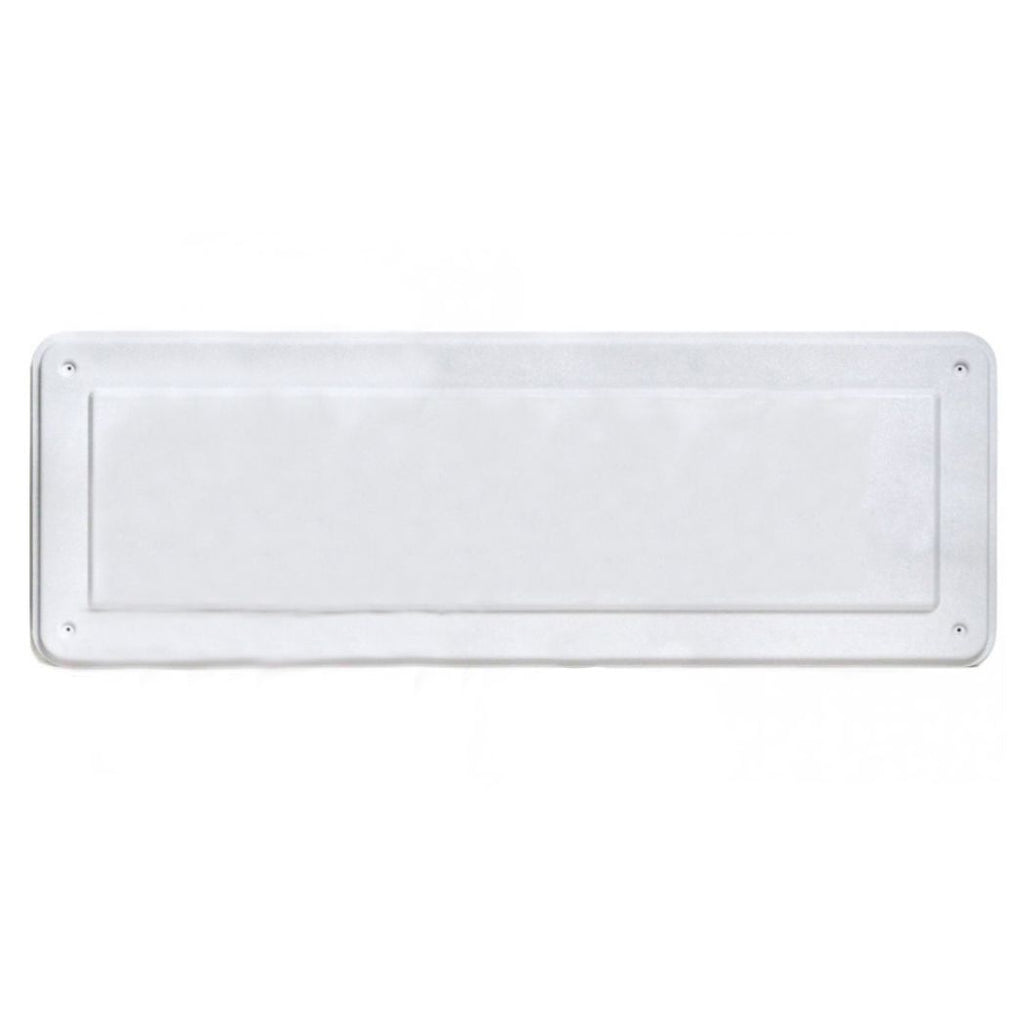

- Large Wallboard Dimensions: 32.75" x 13.63" x 1" (83.19 cm x 34.62 cm x 2.54 cm).
