ADC Adstation 5681-56 3.5V Wall PMV Otoscope/Throat Illuminator/Dermascope Diagnostic Set

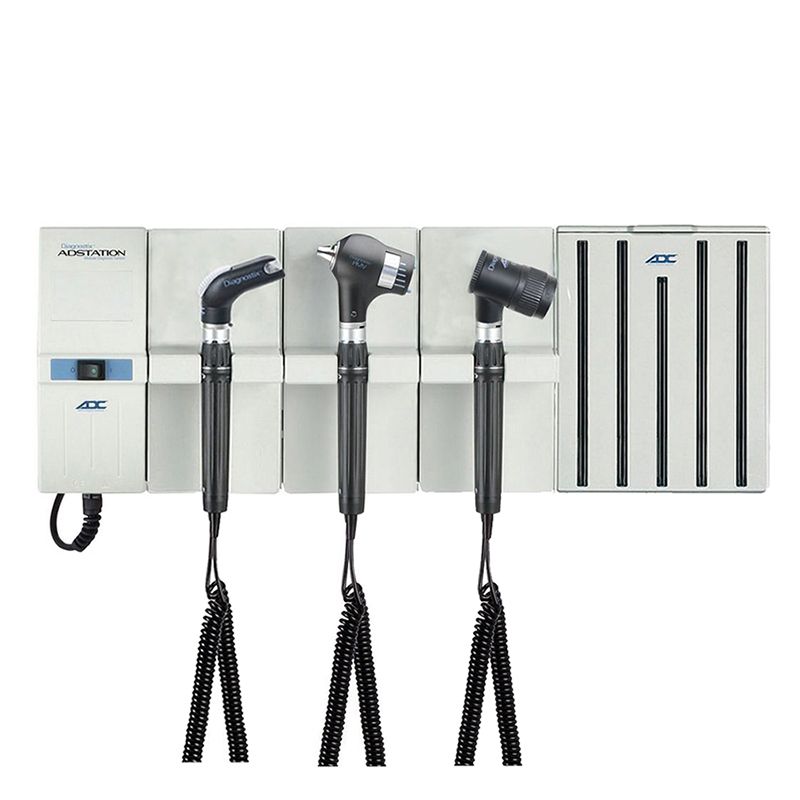

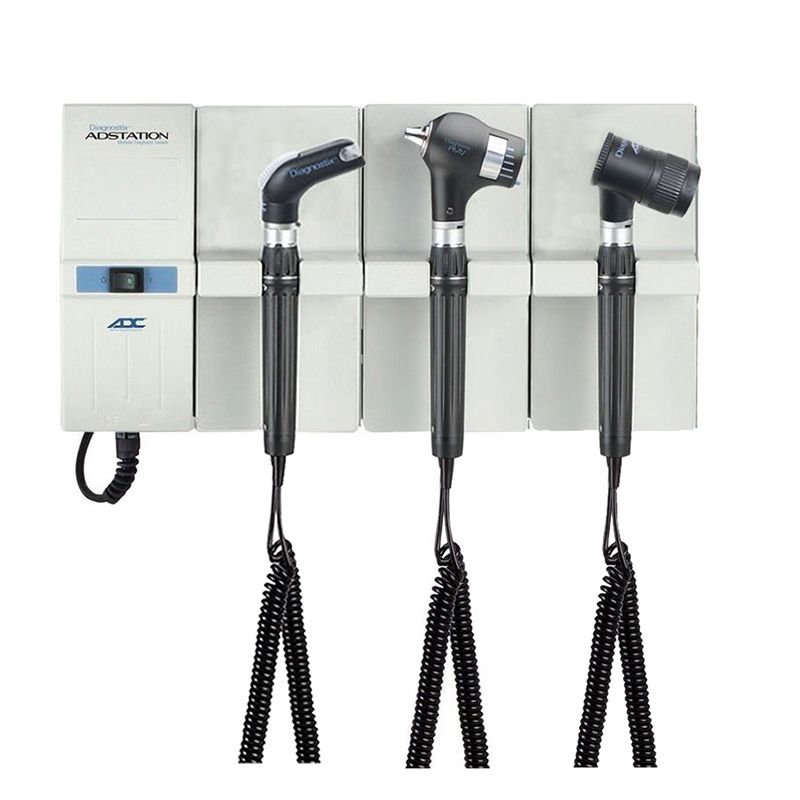

The ADC Adstation 5681-56 is a comprehensive 3-in-1 wall-mounted system that includes three high-performance 3.5V diagnostic heads:

• Diagnostix 5422 PMV Otoscope: This head utilizes advanced optics and fiber-optic light transmission, providing a panoramic view with 5X magnification and an 11 mm field of view. It is compatible with Welch Allyn specula.
• Diagnostix 5450 Dermascope: Designed for detailed skin examinations, it features a professional, optical grade 10X focusable magnifying lens and exclusive, long-lifetime AdLED illumination. It comes with two interchangeable, disinfectable contact plates.
• Diagnostix 5426 Throat Illuminator: Optimized for oral and pharyngeal examinations, this head includes a practical tongue blade holder with an eject button for hygienic operation.

Yes, the ADC Diagnostix 5426 Throat Illuminator Head is designed to promote hygiene and efficiency during oral examinations. Its key features include:

• Hygienic Blade Ejector: It incorporates a tongue blade holder with an eject button, enabling quick, sanitary, and contact-free disposal of used blades.
• Clear Illumination: The device uses PMMA (Polymethyl methacrylate) light transmission, similar to fiber-optic technology, to ensure uniform and unobstructed visualization of the pharynx and oral cavity.
• Selectable Light Source: The illuminator supports flexible lighting options, allowing the user to select between reliable Halogen/Xenon lamps or the advanced AdLED illumination.

Yes, the Adstation diagnostic set offers flexible illumination choices, allowing you to select the best light source for different diagnostic needs. The system’s light source options vary by instrument head:

• For the Otoscope and Throat Illuminator Heads: You can choose between reliable Halogen/Xenon illumination or advanced AdLED technology.
• For the Dermascope Head: This instrument exclusively utilizes high-efficiency AdLED illumination.

When configured with AdLED, the system provides superior light quality crucial for accurate diagnosis, featuring a high Color Rendering Index (CRI) of 92 and an optimal light temperature of 4,200 Kelvin.

The ADC Adstation is designed as a secure, wall-mounted diagnostic system. Installation is straightforward and flexible:

• It includes a mounting bracket for easy wall installation.
• The system can also be seamlessly mounted to existing ADC wallboard systems.

This ensures the unit is stable, secure, and keeps the three diagnostic instrument heads always organized and accessible.

The ADC Diagnostix 5450 Dermascope Head is designed for detailed dermatological examinations, featuring these key specifications:

• Focusable Magnification: It utilizes an optical grade 10X focusable magnifying lens for highly detailed viewing and identification of skin changes.
• Exclusive AdLED Illumination: This head is powered exclusively by AdLED illumination, which provides optimal light quality (4,200 Kelvin, CRI = 92) crucial for accurate color rendering.
• Interchangeable Contact Plates: It includes two disinfected, interchangeable contact plates: one featuring a measurement scale and one without.
• Security: The Dermascope includes a standard anti-theft locking feature.

The ADC Adstation components feature distinct warranty periods, showcasing the manufacturer’s commitment to durability:

• Wall Transformer: 5 Years
• LED Lamp (AdLED illumination): Lifetime
• Instrument Heads and Xenon Lamps: 2 Years

The ADC Adstation features advanced integrated power management designed for efficiency and safety in a clinical setting. The wall transformer base unit offers several intelligent controls:

• Magnetic Switching: Power is automatically activated the moment a handle is removed from its cradle, streamlining the examination workflow.
• Adtronic Rheostatic Control: This electronic system provides infinite, continuous adjustment over light intensity, allowing for precise customization of illumination.
• Auto-Off Safety Feature: If a handle is mis-cradled or unused, the system automatically powers down after two minutes to conserve energy and ensure lamp longevity.

Yes, the Diagnostix 5422 PMV Otoscope head features reflection-optimized, high-performance glass optics engineered for superior clinical visualization. It provides a panoramic and magnified view that significantly enhances examination capabilities:

• Magnification: Achieves 5X magnification, which is 66% greater than standard ADC models.
• Field of View: Provides an 11 mm field of view, which is double the field of view compared to standard ADC models.

This otoscope utilizes fiber-optic light transmission. While the instrument is configurable for Xenon/Halogen or AdLED illumination (AdLED provides 4,200 Kelvin and CRI 92), it also maintains compatibility with Welch Allyn specula.

To plan your installation, here are the dimensions for the wall-mounted components:

• Diagnostic Station Dimensions (Main power supply base unit): 7.88” x 7.12” x 2.95” (20.02 cm x 18.08 cm x 7.5 cm)
• Extension Module Dimensions (Used to expand capacity for additional handles): 7.88” x 3.94” x 2.95” (20.02 cm x 10.01 cm x 7.5 cm)

The ADC Adstation 5681-56 diagnostic set offers a wall transformer with two power supply options:

• 120V
• 230V (includes a European plug)
