ADC Adstation 5681-5 3.5V Wall PMV Otoscope/Dermascope Diagnostic Set

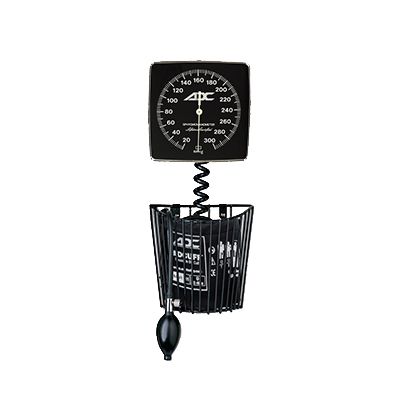

The optional ADC Diagnostix 750W Wall Aneroid Sphygmomanometer, when included, comes with two Adcuff sizes:

• Adult: 9” - 15.7” (23 cm - 40 cm)
• Large Adult: 13.3” - 19.6” (34 cm - 50 cm)

Yes, the ADC Diagnostix 5422 PMV Otoscope Head included in the Adstation 5681-5 set is fully compatible with Welch Allyn specula.

Yes, the ADC Adstation is built as a highly modular and scalable wall system.

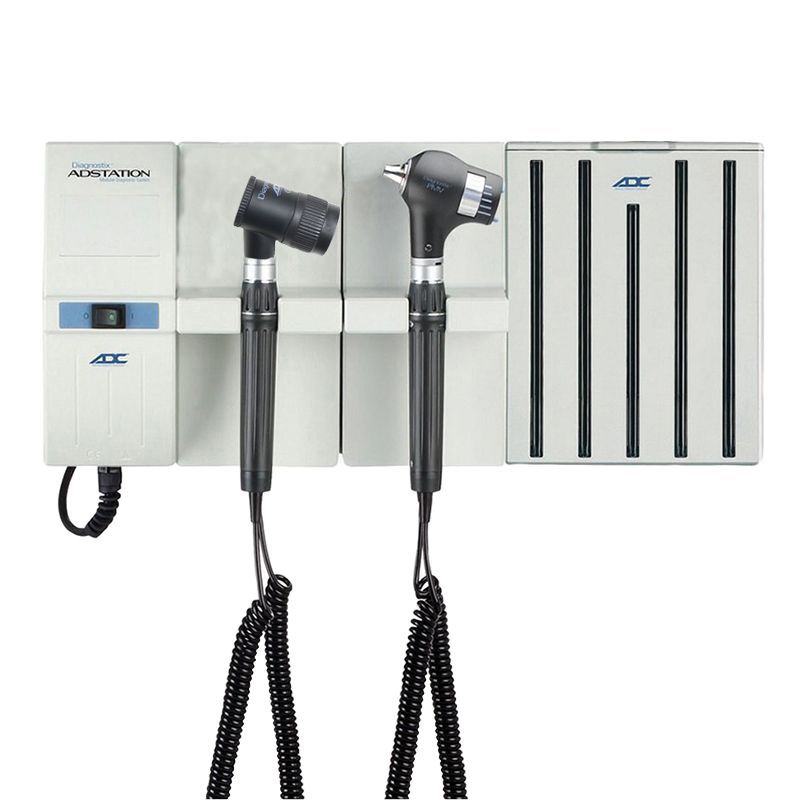

The base unit, which supports the two instrument handles, is designed to accommodate up to two additional extension modules. This flexibility allows you to customize and expand your diagnostic station with optional components, such as:

• ADC 5630 Wall Specula Dispenser: For hygienic and convenient storage of specula.

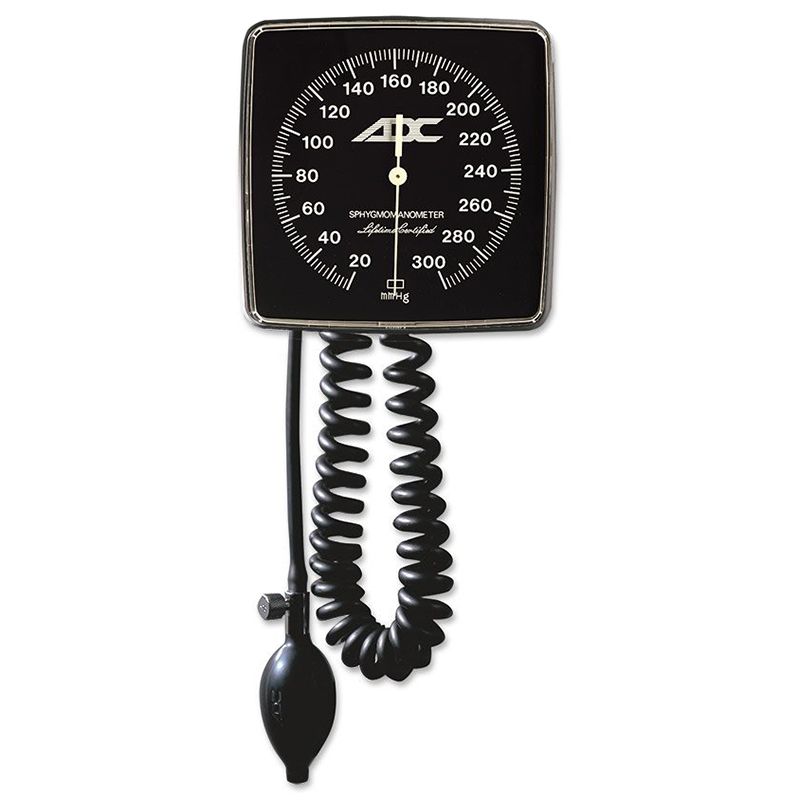

• ADC Diagnostix 750W Wall Aneroid Sphygmomanometer: For integrated blood pressure measurement.

This ensures the system can be tailored precisely to the needs of your clinical setting.

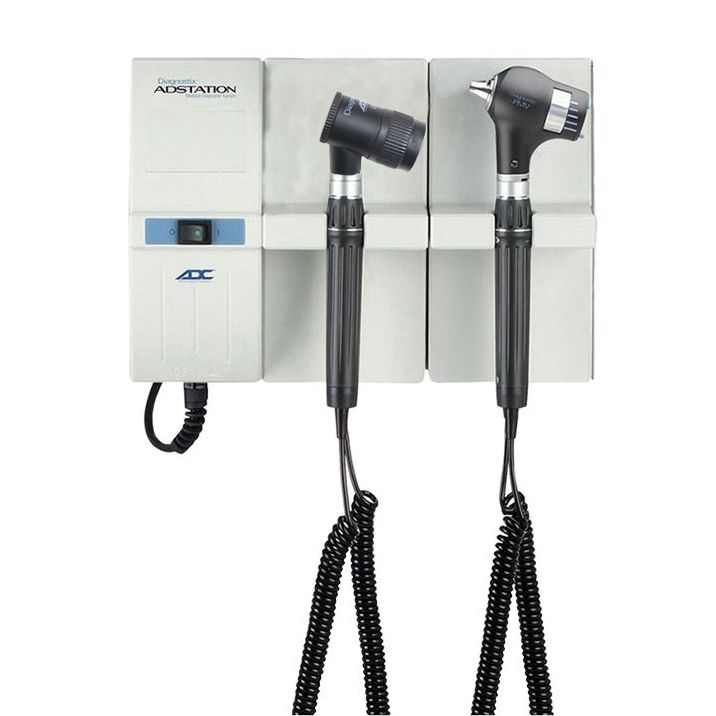

Yes, the ADC Adstation 5681-5 includes two advanced, high-quality diagnostic heads—the PMV Otoscope and the Dermascope—both designed for comprehensive visualization in a clinical setting.

1. ADC Diagnostix 5422 3.5V PMV Otoscope Head

This otoscope is engineered for enhanced visualization of the auditory canal and tympanic membrane:

• Advanced Optics: Features reflection-optimized glass optics and fiber-optic light transmission. It delivers 5X magnification over an 11 mm field of view.
• Illumination Choice: Users can select between traditional Halogen/Xenon or high-performance AdLED illumination (4,200 Kelvin, CRI = 92).

2. ADC Diagnostix 5450 3.5V Dermascope Head

This instrument is ideal for detailed skin examination and aiding in the early identification of pigmentation changes:

• Magnification: Utilizes an optical grade 10X focusable magnifying lens.
• Illumination: Features bright, direct AdLED illumination.
• Features: Includes two interchangeable contact plates that can be disinfected.

Both instrument heads are secured with a standard anti-theft locking feature.

Yes, the Diagnostix 5422 PMV Otoscope Head is engineered for superior visualization, providing significantly higher magnification and a wider field of view than standard instruments.

Key features of the Otoscope Head:

• Magnification: Provides 5X magnification, which is 66% greater than standard ADC otoscopes.
• Field of View: Features an 11 mm field of view, offering twice the viewing area of standard ADC otoscopes for comprehensive examination.
• Optics: It utilizes reflection-optimized, high-performance glass optics with fiber-optic light transmission for an unobstructed view.
• Illumination: Shoppers can choose between Halogen/Xenon or the high-performance AdLED illumination (CRI = 92).
• Functionality: Includes adjustable focal depth and is compatible with standard Welch Allyn specula.

The ADC Adstation wall transformer base unit is covered by a substantial 5-year warranty.

This system is built for durability, reflected in the extensive warranties for other key components:

• LED Lamp: Lifetime warranty
• Instrument Heads and Xenon Lamps: 2-year warranty
• Optional Wall Aneroid Sphygmomanometer (750W): 3-year warranty (includes a lifetime calibration warranty on the manometer).

Yes, the ADC Adstation features advanced, intelligent power management via the Adtronic electronic control system.

This system includes key features designed for efficiency and safety:

• Automatic Activation: Power is instantly turned on using a magnetic switch when the handle is removed from its cradle.
• Adtronic Auto-Off: The instrument automatically powers off after two minutes of inactivity or if the handle is mis-cradled. This conserves energy and prolongs the lifespan of the illumination sources.
• Light Intensity Control: Users have precise, infinite control over light intensity thanks to the Adtronic electronic rheostatic dimmer.

The ADC Adstation 5681-5 provides comprehensive, high-performance diagnostic capabilities with a focus on superior visibility and safety features:

• Advanced PMV Otoscope: The Diagnostix 5422 PMV Otoscope Head utilizes reflection-optimized optics to provide a panoramic view, featuring an 11 mm field of view and 5X magnification. This offers twice the field of view and 66% greater magnification compared to standard otoscopes.
• Integrated Dermascope: The Diagnostix 5450 Dermascope Head features an optical grade, 10X focusable magnifying lens and direct AdLED illumination, ideal for precise skin examinations and early identification of pigmentation changes.
• Versatile Illumination: Users can choose between traditional Halogen/Xenon or advanced AdLED illumination (4,200 Kelvin, CRI = 92) for the otoscope, ensuring optimal viewing conditions.
• Smart Power Management: The system is powered via a magnetic switch when the handle is removed from the cradle. It also includes the Adtronic auto-off safety feature, which turns the instrument off after two minutes of inactivity.

Yes, the otoscope is designed for superior visualization using fiber-optic light transmission combined with reflection-optimized, high-performance glass optics. To meet varying clinical needs, you can select from two illumination options:

• Halogen/Xenon Lamp: Provides bright, traditional illumination.
• AdLED Lamp: This advanced option delivers high-fidelity light optimized for accurate diagnosis. Key features of the AdLED illumination include:
  • Color Temperature: 4,200 Kelvin
  • Color Rendering Index (CRI): 92 (ensures high-fidelity tissue color representation)
  • Warranty: The AdLED lamp comes with a Lifetime Warranty.

The dermascope head included in this set is the ADC Diagnostix 5450 3.5V Dermascope Head, optimized for detailed skin and pigmentation assessment. It is equipped with several features designed to enhance visibility and utility:

• High Magnification: Utilizes an optical grade, 10X focusable magnifying lens for precise visualization of subtle skin changes.
• AdLED Illumination: Features high-performance AdLED direct illumination for clear, optimized views.
• Focus Control: Includes a large, knurled focusing ring, allowing for easy and accurate adjustment of the focal depth.
• Interchangeable Contact Plates: Comes with two dismountable and interchangeable contact plates: one with a scale for measurement and one without, providing versatility during examination.

For security, the instrument head also features a standard anti-theft locking mechanism.
