Key Features
  • SKU: ADC-5681X-36X9W
  • Condition:
    Condition: Factory New
  • Warranty:
    Warranty: 5 Years
  • Weight: 11.46 lb

  • Learn more:

Contact The Manufacturer
  • MFR: American Diagnostic Corporation
    Ships from MFI Medical
  • MPN: 5681X-36X9W
  • Phone: (800) 232-2670
$1,677.46 $1,037.75

+ Free Shipping

Est. Delivery:
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match

Description

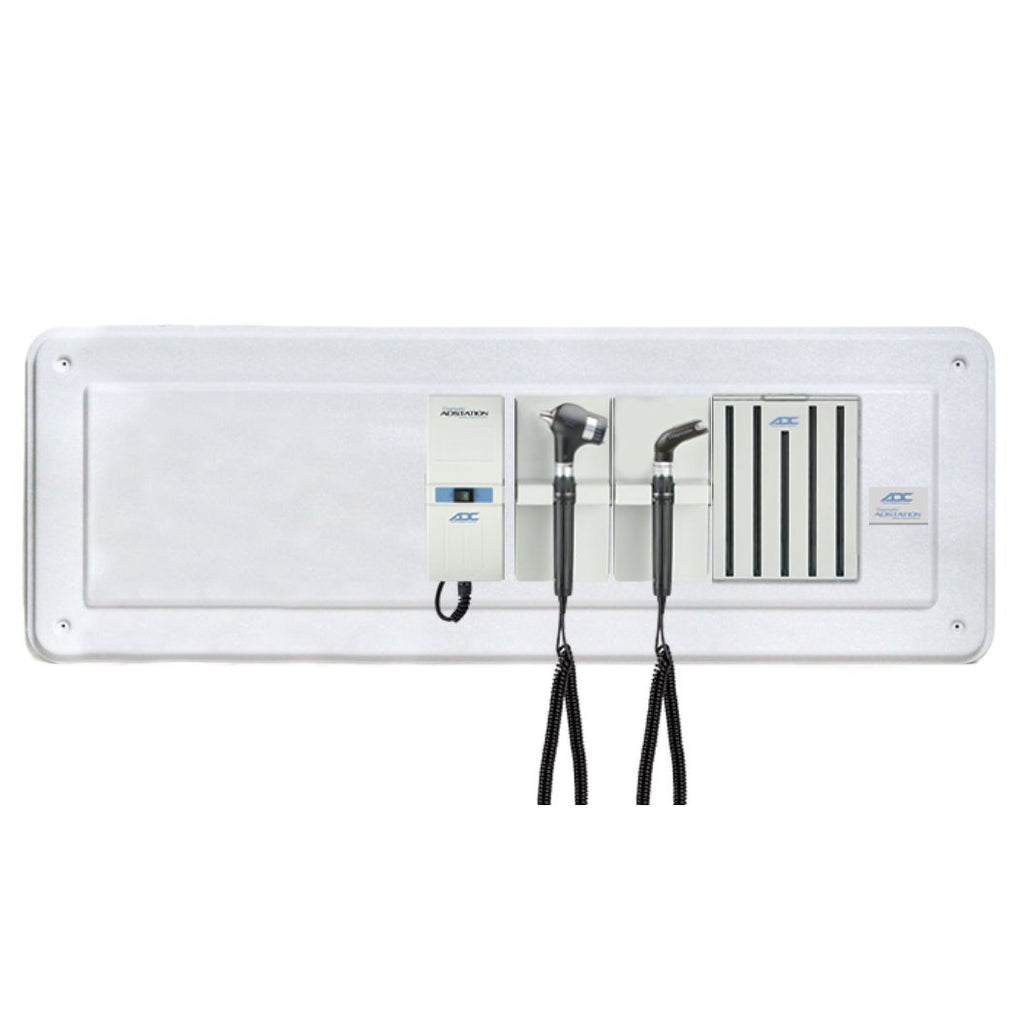

The ADC Adstation 5681-36 3.5V Wall PMV Otoscope/Throat Illuminator Diagnostic Set with Wallboard for ADView 2 includes an ADC Diagnostix 5422 3.5V PMV Otoscope Head, an ADC Diagnostix 5426 3.5V Throat Illuminator Head, a power supply base unit that includes a power switch, two 3.5V handles, an extension module, an ADC 5630 Wall Specula Dispenser, and an ADC Adstation Wallboard that allows you to easily mount your diagnostic set while leaving enough space to add and install an ADC ADView 2 Modular Diagnostic Station.

The wall transformer is available with a standard 120V or a 230V power supply with European plug in, and is easy to mount on to the included ADC Wallboard. The ADC Diagnostix 5422 3.5V PMV Otoscope Head and the ADC Diagnostix 5426 3.5V Throat Illuminator Head is available with a halogen/xenon lamp or an advanced AdLED lamp.

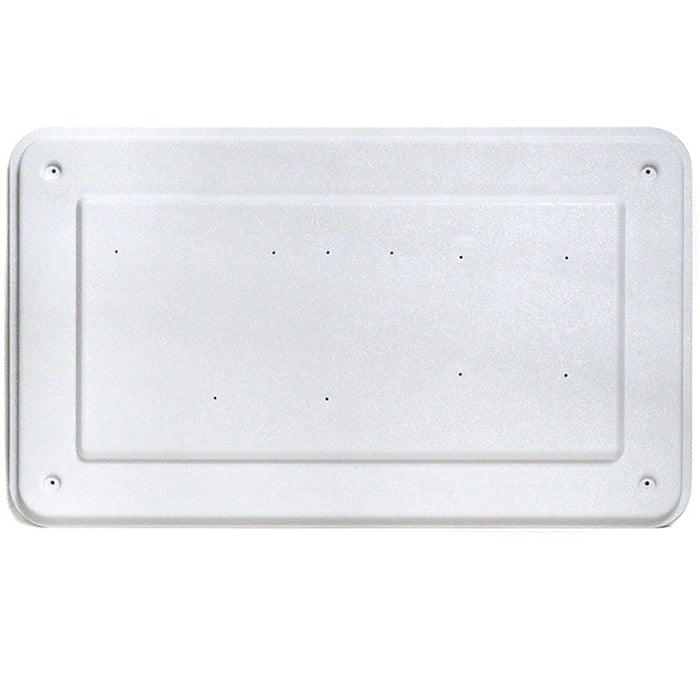

The large wallboard comes complete with all hardware for easy installation.

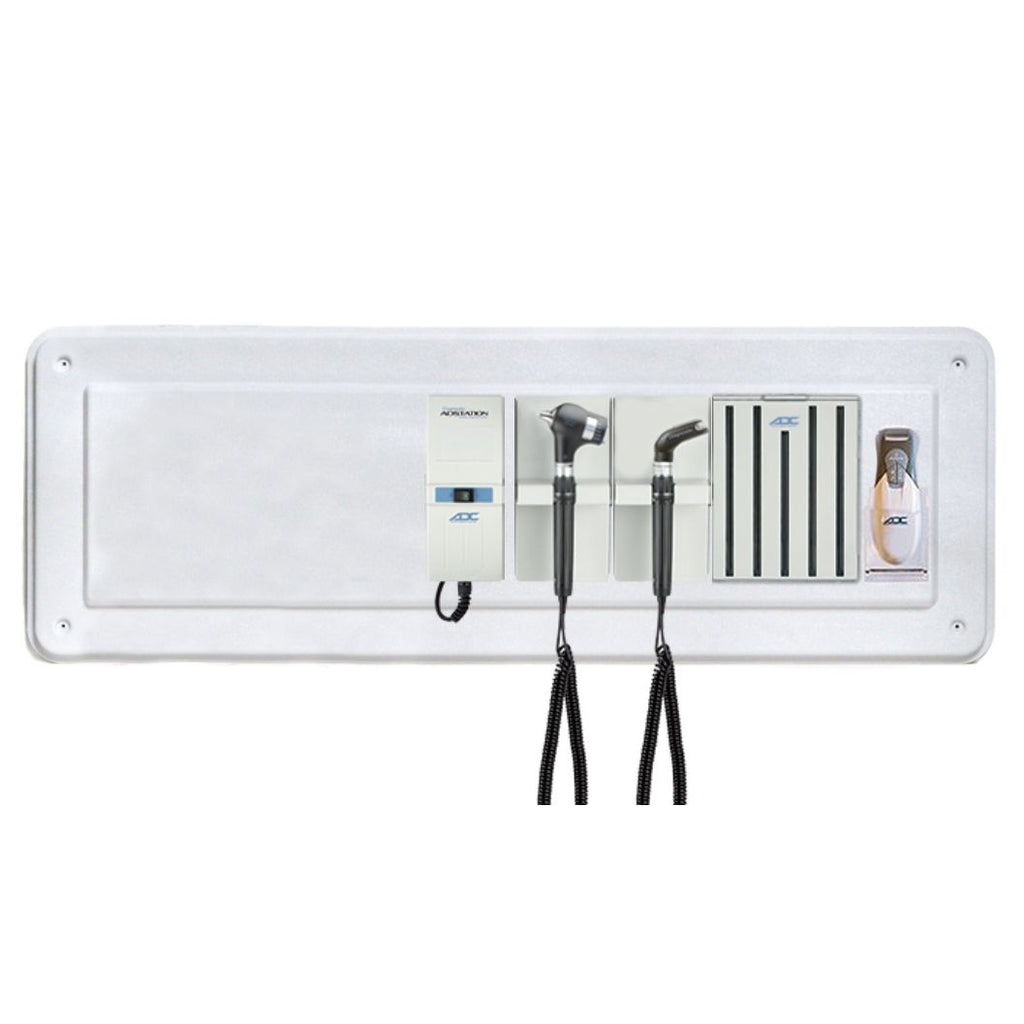

The ADC Adtemp 429 Non-Contact Infrared Thermometer can also be added, and can be stored on the wallboard using the included wall cradle.

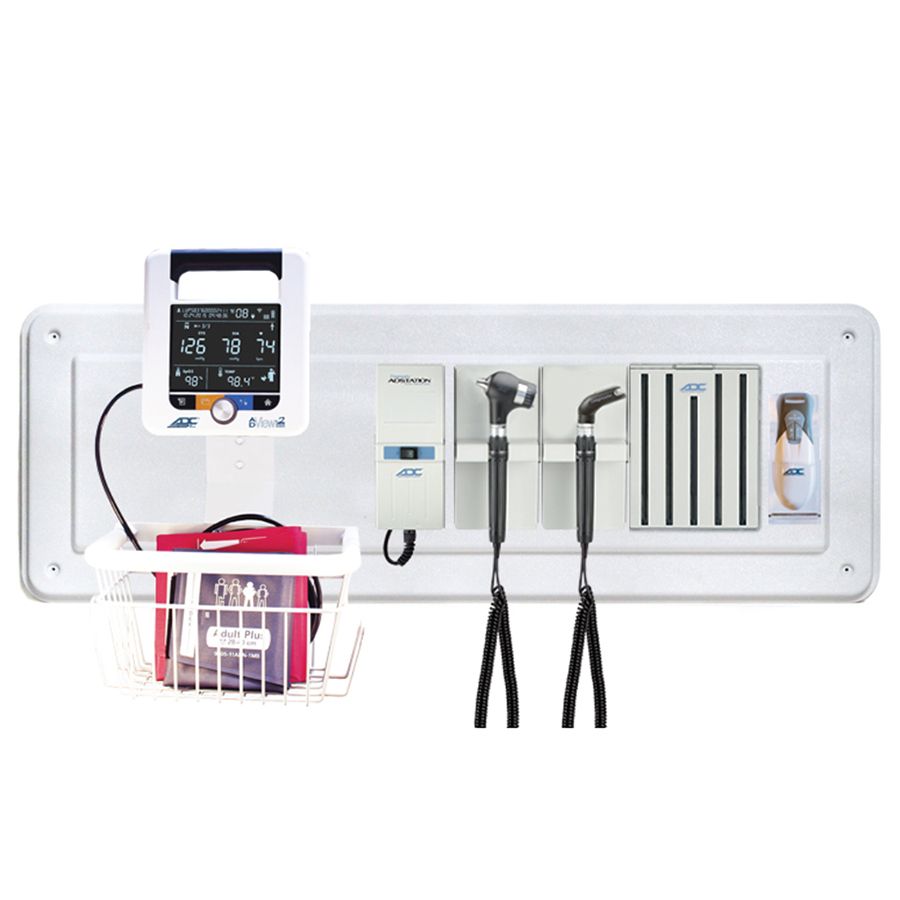

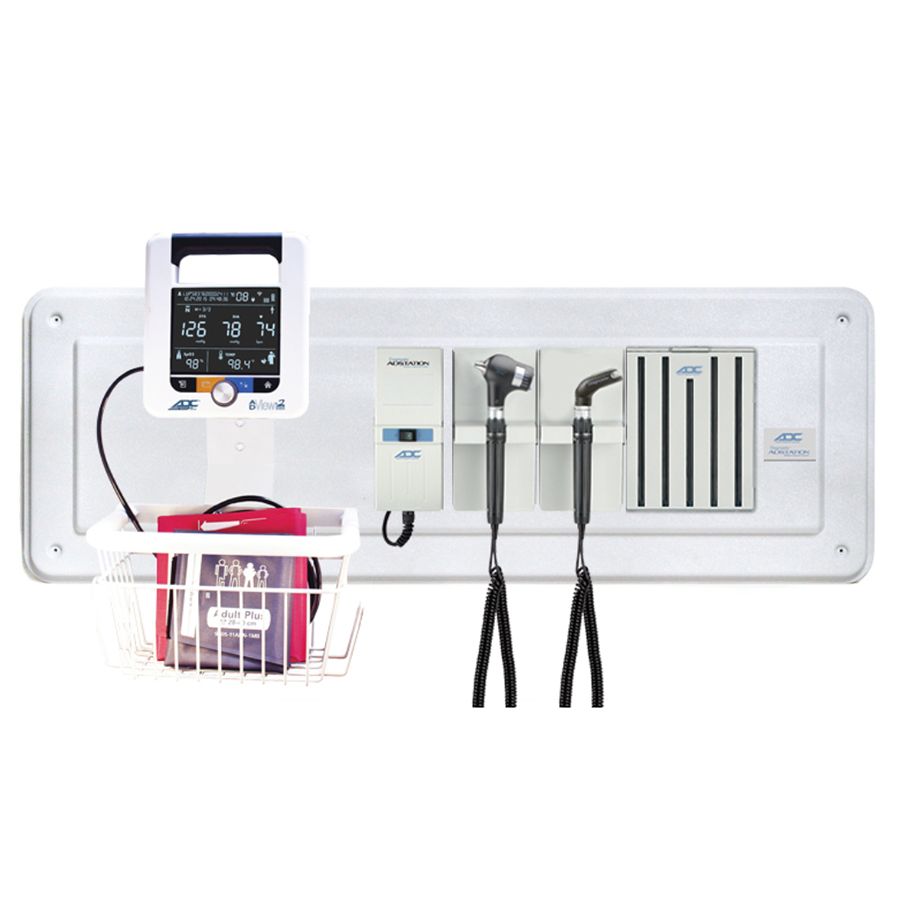

Note: This does not include the ADC ADView 2 Modular Diagnostic Station, but it is designed to fit on the included wallboard, and is available for purchase on our website.

Warranty: 5 Years (Wall Transformer), 2 Years (Instrument Head, Xenon Lamps, and Wallboard), Lifetime (LED Lamp), 2 Years - Defects in Materials and Workmanship (Thermometer).

The ADC Diagnostix 5422 3.5V PMV Otoscope Head is designed for examination of the inner ear and uses advanced optical technology to create a panoramic, magnified view that features twice the field of view and 66% greater magnification (11 mm field of view, 5X magnification) compared to ADC's standard otoscope. The ADC Diagnostix 5426 3.5V Throat Illuminator Head is designed for examination of the oral cavity and pharynx in combination with commercial wooden and plastic blades.

The ADC 5630 Wall Specula Dispenser is a hygienic and practical solution to storing specula and includes five tubes that can store specula. The ADC Adstation Wallboard is a durable, easy-to-clean mounting solution and is made from long-lasting ABS with acrylic, for added UV stability. The Adtemp 429 Non-Contact Infrared Thermometer features an infrared sensor that reads temperature from the middle of the forehead with no skin contact required for a safe and comfortable experience that minimizes the risk of cross-contamination. The infrared sensor simplifies temperature measurement which makes it ideal for screening, and measures the temperature in about one second.

Features

ADC Adstation 5681-36 3.5V Wall PMV Otoscope/Throat Illuminator Diagnostic Set with Wallboard for ADView 2 Features

  • ADC Diagnostix 5422 3.5V PMV Otoscope Head Features:
    • Significantly improved view of the auditory canal and tympanic membrane.
    • Fiber-optic light transmission for an unobstructed view.
    • Choose from halogen/xenon or high-performance LED illumination (4,200 Kelvin, CRI = 92).
    • Reflection-optimized, high-performance glass optics.
    • Adjustable focal depth.
    • Suitable for throat illumination and pneumatic otoscopy (insufflator sold separately).
    • Compatible with Welch Allyn specula.
    • Anti-theft locking feature is standard.
  • ADC Diagnostix 5426 3.5V Throat Illuminator Head Features:
    • PMMA light transmission (similar to Fiberoptic) for unobstructed view of oral cavity.
    • Tongue blade holder facilitates examination of the mouth and throat.
    • Eject button discards used tongue blade.
    • Universal bayonet mount for compatibility with other brands of 3.5v power supply handles.
    • Anti-theft locking feature is standard.
  • ADC Wall Transformer Power Supply Features:
    • Magnetic switch activates power when handle is removed from cradle, automatically powers off when handle is replaced.
    • Handle is CNC machined from solid brass and chrome plated in black with a ribbed surface for a sure grip.
    • Adtronic electronic rheostatic light intensity control provides infinite continuous control.
    • Adtronic auto-off feature after two minutes provides additional safety if instrument is mis-cradled.
    • Bayonet instrument mount is compatible with all major brands of 3.5V instrument heads.
    • Base unit contains the power switch and one handle and the extension holds the other handle.
    • UL approved.
  • ADC Adtemp 429 Non-Contact Infrared Thermometer Features:
    • Measures in about one second without patient contact eliminating the concern of cross contamination or costly probe covers.
    • Measurement feedback system signals proper operating distance for accuracy.
    • Measures at a distance of 1.5 - 2.5" (4 - 6 cm) from patient's forehead.
    • Dual mode - body and object.
    • Large backlit LCD display is easy to read.
    • Wide temp range.
    • Fahrenheit-Celsius switchable.
    • Auto-off function after 30 seconds conserves battery life.
    • Audible beep when measurement is complete, Night mode mutes volume.
    • Compact ergonomic design.
    • Measurement Accuracy (Laboratory):
      • Body Mode: 50 to 122 degrees F (10 to 50 degrees C).
      • Object Mode: 32 to 212 degrees F (0 to 100 degrees C).
      • Body Mode: +/- 0.5 degrees F, 71.6 to 104 degrees F (+/- 0.3 degrees C, 22 to 40 degrees C).
      • Object Mode: < 68 degrees F +/- 1 degrees F, > 68 degrees F +/- 5% (< 20 degrees C +/- 1 degrees C, > 20 degrees C +/- 5%).

Specifications

ADC Adstation 5681-36 3.5V Wall PMV Otoscope/Throat Illuminator Diagnostic Set with Wallboard for ADView 2 Specifications

  • Large Wallboard Dimensions: 32.75" x 13.63" x 1" (83.19 cm x 34.62 cm x 2.54 cm).
  • Diagnostic Station Dimensions: 7.88" x 7.12" x 2.95" (20.02 cm x 18.08 cm x 7.5 cm).
  • Extension Module Dimensions: 7.88" x 3.94" x 2.95" (20.02 cm x 10.01 cm x 7.5 cm).
  • Thermometer Specifications:
    • Range:
      • Fahrenheit: 50 to 122 degrees F.
      • Celcius: 10 to 50 degrees C.
    • Accuracy:
      • Fahrenheit: 0.5 degrees F.
      • Celcius: 0.3 degrees C.
    • Response Time: 1 sec.
    • Memory: 30x.
    • Battery Type: 1.5 V (AAA).
    • Battery Life: 2,000 uses.
    • Dimensions: 2.06" x 1.75" x 5" (52.4 mm x 44.5 mm x 129.9 mm).
    • Weight: 3 oz (87 g).
    • Operating Environment: 60.8 to 95 degrees F (16 to 35 degrees C).
    • Storage Environment: -13 to 131 degrees F (-25 to 55 degrees C).

Configurations

ADC Adstation 5681-36 3.5V Wall PMV Otoscope/Throat Illuminator Diagnostic Set with Wallboard for ADView 2 Configurations

  • Xenon Otoscope/Xenon Throat Illuminator with Specula Dispenser (#5681X-36X9W) / European Plug (#5681X-36X9EUW).
  • LED Otoscope/LED Throat Illuminator with Specula Dispenser (#5681L-36L9W) / European Plug (#5681L-36L9EUW).
  • LED Otoscope/Xenon Throat Illuminator with Specula Dispenser (#5681L-36X9W) / European Plug (#5681L-36X9EUW).
  • Xenon Otoscope/LED Throat Illuminator with Specula Dispenser (#5681X-36L9W) / European Plug (#5681X-36L9EUW).
  • Xenon Otoscope/Xenon Throat Illuminator with Specula Dispenser and Thermometer (#5681X-346X9W) / European Plug (#5681X-346X9EUW).
  • LED Otoscope/LED Throat Illuminator with Specula Dispenser and Thermometer (#5681L-346L9W) / European Plug (#5681L-346L9EUW).
  • LED Otoscope/Xenon Throat Illuminator with Specula Dispenser and Thermometer (#5681L-346X9W) / European Plug (#5681L-346X9EUW).
  • Xenon Otoscope/LED Throat Illuminator with Specula Dispenser and Thermometer (#5681X-346L9W) / European Plug (#5681X-346L9EUW).

Frequently asked questions

Which high-performance instruments are in this set?

The ADC Adstation 5681-36 diagnostic set includes two professional-grade, 3.5V instrument heads:

  • ADC Diagnostix 5422 PMV Otoscope Head: This instrument offers enhanced optical performance featuring a panoramic 11 mm field of view and 5X magnification (66% greater than standard otoscopes). It utilizes reflection-optimized glass optics and fiber-optic light transmission.
  • ADC Diagnostix 5426 Throat Illuminator Head: This head uses PMMA light transmission for a clear, unobstructed view and includes an essential hygienic feature: an integrated tongue blade holder with an eject button for discarding used blades.
Is the ADC ADView 2 Modular Diagnostic Station included with the ADC Adstation 5681-36?

No, the ADC ADView 2 Modular Diagnostic Station is not included but it is designed to fit on the included wallboard, and is available for purchase separately.

What illumination types are available?

The diagnostic set offers two high-quality 3.5V illumination options for both the Otoscope and Throat Illuminator heads:

  • Halogen/Xenon Lamps: Provides bright, reliable light for standard diagnostic use.
  • Advanced AdLED Lamps: Delivers highly efficient, high-intensity white light, specified at 4,200 Kelvin with a CRI of 92. A significant advantage of the AdLED option is its exceptional durability; the LED lamp is backed by a Lifetime Warranty.
What is the warranty period for the wall transformer included in this set?

The wall transformer has a 5-year warranty.

What configurations are available for this diagnostic set?

The ADC Adstation 5681-36 offers flexibility based on two primary choices, allowing you to tailor the set to your clinical requirements. All configurations include the PMV Otoscope, Throat Illuminator, and Specula Dispenser. The choices are:

  1. Illumination Technology: You can specify the lamp type for both the Otoscope and the Throat Illuminator heads independently:
    • AdLED Illumination: Offers advanced light quality (4,200 Kelvin, CRI = 92) and comes with a significant advantage: a Lifetime Warranty on the LED lamp.
    • Halogen/Xenon Illumination: The reliable, traditional lighting option.
  2. Non-Contact Thermometer Inclusion: You can choose variants that include the ADC Adtemp 429 Non-Contact Infrared Thermometer and its dedicated wall cradle.
    • Including the thermometer allows for rapid (approximately 1-second), hygienic temperature measurement (1.5”–2.5” distance) to help minimize cross-contamination.
What are the dimensions of the ADC Adstation Wallboard?

The dimensions of the ADC Adstation Wallboard are 32.75” x 13.63” x 1” (83.19 cm x 34.62 cm x 2.54 cm).

Does the otoscope head offer advanced optics?

The PMV Otoscope Head features reflection-optimized, high-performance glass optics for an improved view of the auditory canal and tympanic membrane, along with fiber-optic light transmission.

Are the handles made of high-quality brass?

Yes, the instrument handles are designed for professional durability and precise control.

  • Material: The handles are CNC machined from solid brass and finished with durable chrome plating.
  • Operation: The system uses a magnetic switch in the power base that automatically activates the power the moment a handle is removed and turns it off when replaced.
  • Control: They include Adtronic electronic rheostatic control for infinite, precise adjustment of the light intensity.
Is all necessary wall mounting hardware included?

Yes, this diagnostic set is delivered as a complete system and includes the specialized ADC Adstation Wallboard along with the required mounting hardware for installation.

The wallboard serves as the central mounting platform for all components and offers several key advantages:

  • Durable Construction: It is made from durable ABS with acrylic for UV stability, ensuring long-term performance in clinical environments.
  • Integrated Platform: The wallboard provides organized space for the power supply base, the two 3.5V handles, the instrument heads, and the specula dispenser.
  • Modular Design: The wallboard is specifically designed to accommodate the future integration of the optional ADC ADView 2 Modular Diagnostic Station, ensuring a scalable setup.
Is a hygienic specula dispenser included?

Yes, the ADC Adstation 5681-36 includes the ADC 5630 Wall Specula Dispenser. This hygienic component is integrated into the wallboard design, featuring five separate tubes for organized storage. It ensures your examination tips are kept clean and readily accessible for use with the PMV Otoscope Head.
