ADC Adstation 5681-35 3.5V Wall PMV Otoscope/Dermascope Diagnostic Set with Wallboard for ADView 2

The ADC Adstation 5681-35 includes both an otoscope and a dermascope, providing comprehensive diagnostic capabilities for two primary areas of examination:

• Otoscopy: The PMV Otoscope Head (ADC Diagnostix 5422) is designed for superior examination of the auditory canal, inner ear, and tympanic membrane. It delivers a magnified, panoramic view (5X magnification) and is compatible with pneumatic otoscopy.
• Dermatology: The Dermascope Head (ADC Diagnostix 5450) is used for the early identification of changes in skin pigmentation, such as malignant melanomas. It features a powerful 10X focusable magnifying lens and optimized AdLED direct illumination.

Yes, the ADC Adstation Wallboard is specifically designed to maximize space and streamline clinical workflow. It achieves this by:

• Consolidating Instruments: The system integrates all diagnostic tools (3.5V handles, Otoscope/Dermascope heads, and the ADC 5630 Specula Dispenser) into one organized, fixed unit.
• Durable and Clean Design: The wallboard is constructed from long-lasting ABS with acrylic for UV stability and is easy to clean, keeping the examination area professional.

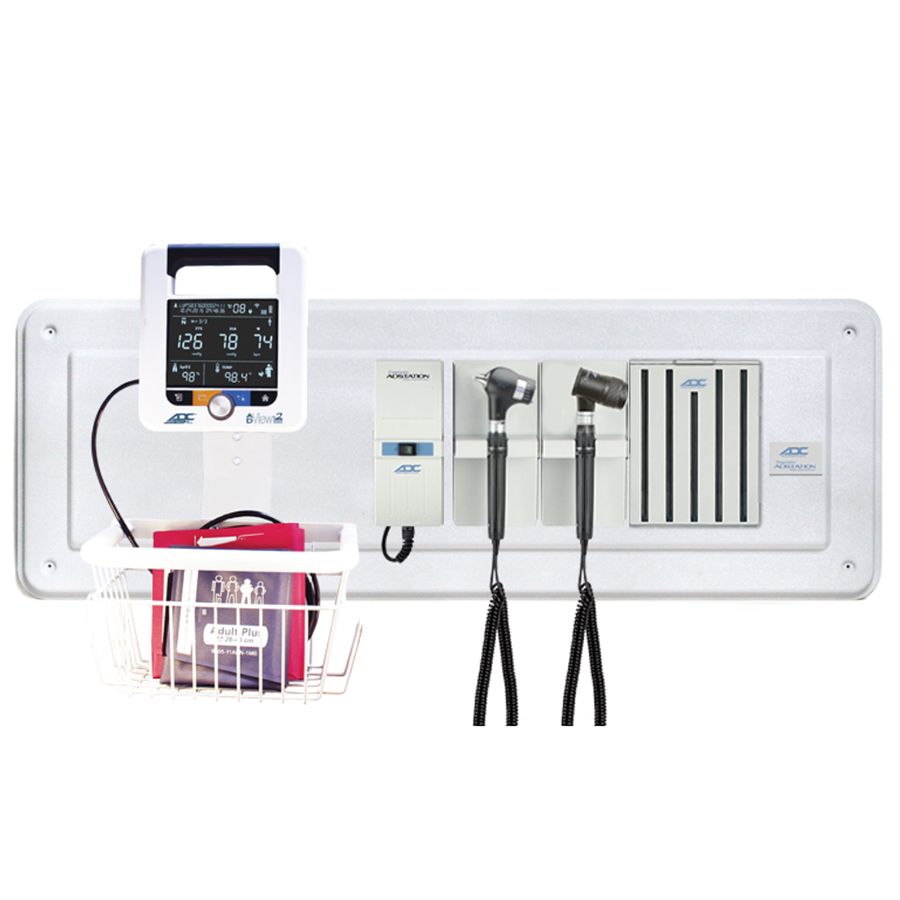

• Future-Proof Integration: The large wallboard is engineered to leave dedicated space for mounting the optional ADC ADView 2 Modular Diagnostic Station, ensuring all primary diagnostic functions are housed efficiently on the wall, keeping countertops clutter-free.

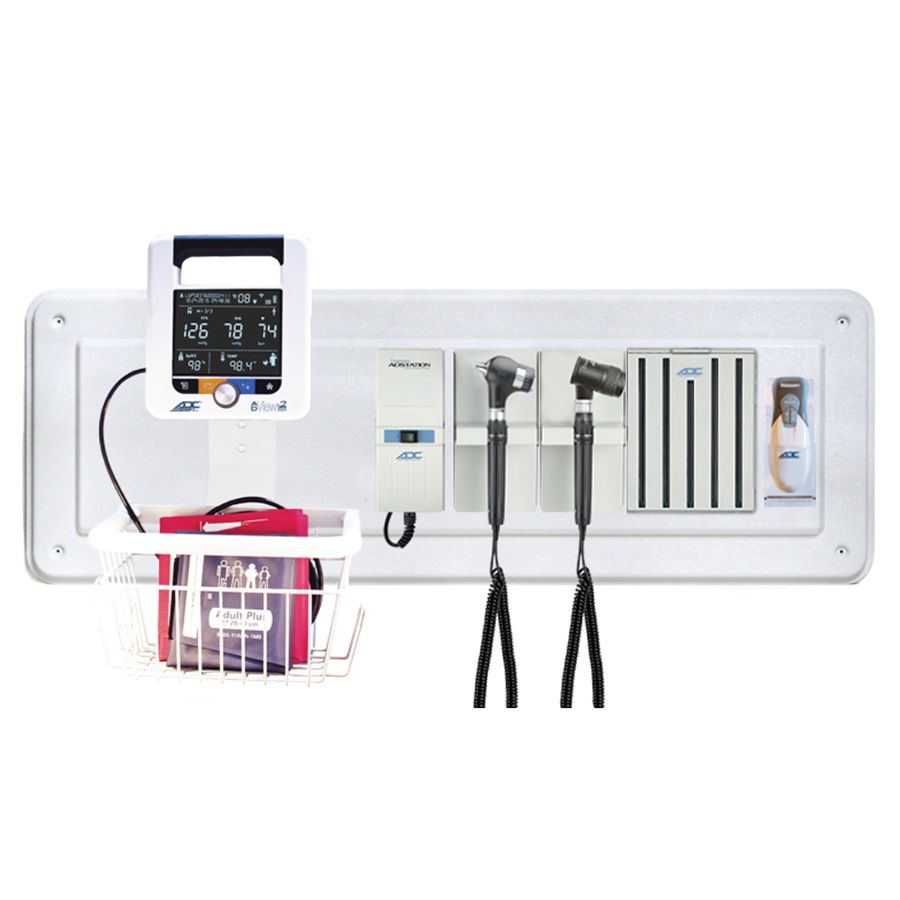

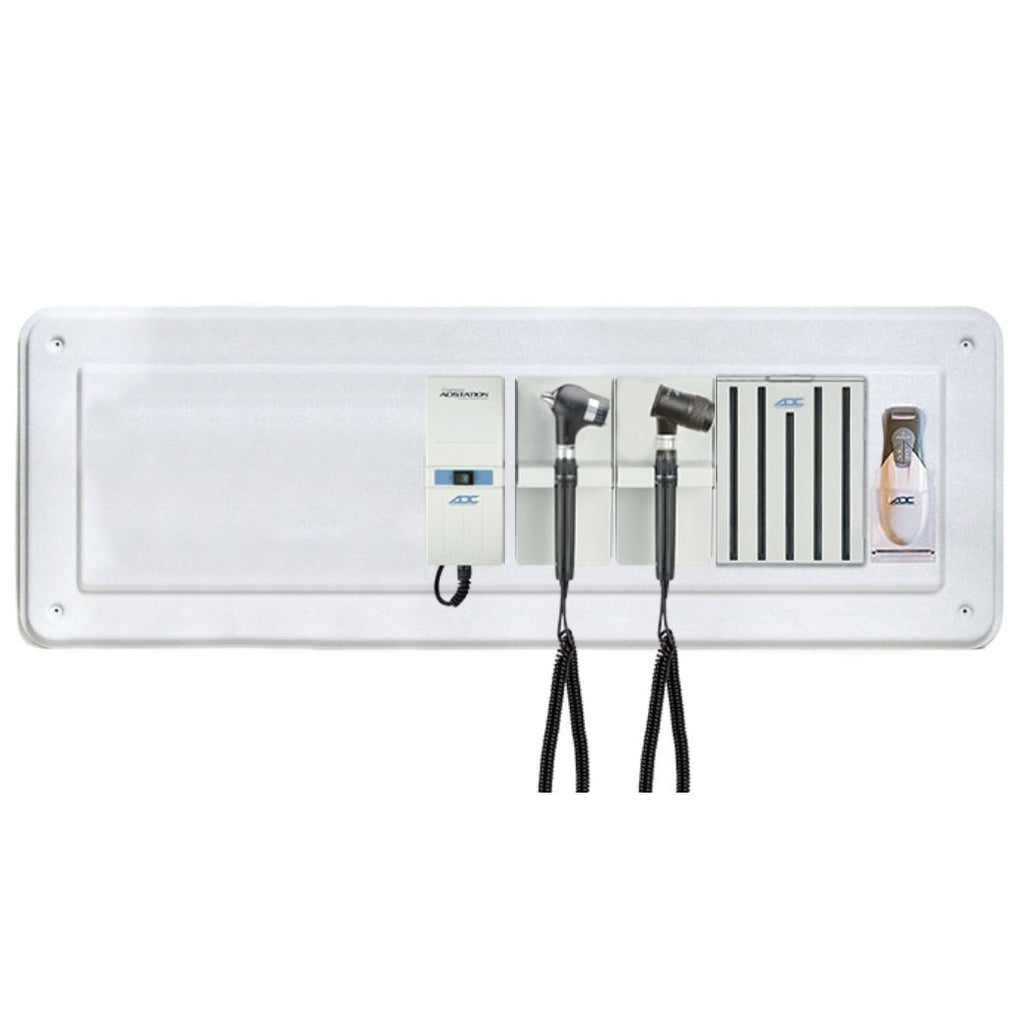

The Adtemp 429 Non-Contact Infrared Thermometer is an optional component that must be explicitly selected when configuring the ADC Adstation 5681-35 set. It is not included in the standard configuration.

If included, the thermometer mounts to the wallboard via a dedicated cradle and offers several benefits:

• Hygienic Operation: Takes non-contact readings 1.5 to 2.5 inches (4–6 cm) from the patient’s forehead.
• Speed: Provides temperature results in approximately one second.
• Versatility: Features a dual mode for measuring both body and object temperatures.
• Battery Life: Uses 1.5V (AAA) batteries rated for approximately 2,000 uses.

Yes, the ADC Diagnostix 5422 3.5V PMV Otoscope Head is equipped with reflection-optimized, high-performance glass optics designed for superior visualization and detailed diagnosis.It offers significantly enhanced viewing capabilities compared to standard otoscopes, featuring:* 5X Magnification: Provides detailed and precise imaging of the inner ear and auditory canal.* Wide 11 mm Field of View: This field of view is approximately twice the size of standard otoscopes, allowing for a broader, more comprehensive assessment.* Fiber-Optic Light: Ensures consistent, bright light transmission.* Choice of Illumination: The head is available with either advanced AdLED or traditional Halogen/Xenon illumination, catering to clinical preference.

The Dermascope Head (ADC Diagnostix 5450 3.5V) is specialized for examining skin pigmentation changes, offering both powerful optical clarity and secure integration into the wall station.

Key features include:

• High Magnification: It utilizes an optical grade 10X focusable magnifying lens for highly detailed inspection of the skin surface.
• Clinical Function: Specifically designed to aid in the early identification of changes in skin pigmentation.
• Security: The head features a standard anti-theft locking feature when secured in the Adstation wall unit.

The ADC Adstation 3.5V power supply base unit is engineered for safety and clinical efficiency, providing several key features:

• Magnetic Switch Activation: Instruments power on automatically the moment a handle is removed from its cradle, thanks to the magnetic switch. Power instantly shuts off when the handle is replaced.
• Precise Light Control: The Adtronic electronic rheostat allows for infinite, continuous control over light intensity, enabling the practitioner to select the exact level of illumination required.
• Automatic Safety Shut-off: The system includes an Adtronic auto-off function that powers down the instrument after two minutes of inactivity, enhancing safety and conserving energy.
• High-Quality Handles: Two durable 3.5V handles are included, which are CNC machined from solid brass, chrome plated in black, and feature a ribbed surface for a comfortable, secure grip.
• Broad Compatibility: The bayonet instrument mount ensures the handles are compatible with all major brands of 3.5V instrument heads.

The optional ADC Adtemp 429 Non-Contact Infrared Thermometer provides fast, precise, and highly hygienic temperature assessment:

• Speed: It measures temperature rapidly in approximately one second.
• Accuracy: When used in Body Mode (71.6°F to 104°F), it offers high accuracy of +/- 0.5° F (+/- 0.3° C).
• Non-Contact Operation: Readings are taken from a short distance (1.5 - 2.5 inches / 4 - 6 cm) from the forehead, which is ideal for minimizing cross-contamination.
• Dual Modes: It supports both Body Mode and Object Mode.
• Memory and Efficiency: The unit stores up to 30 readings and the battery is rated for approximately 2,000 uses.

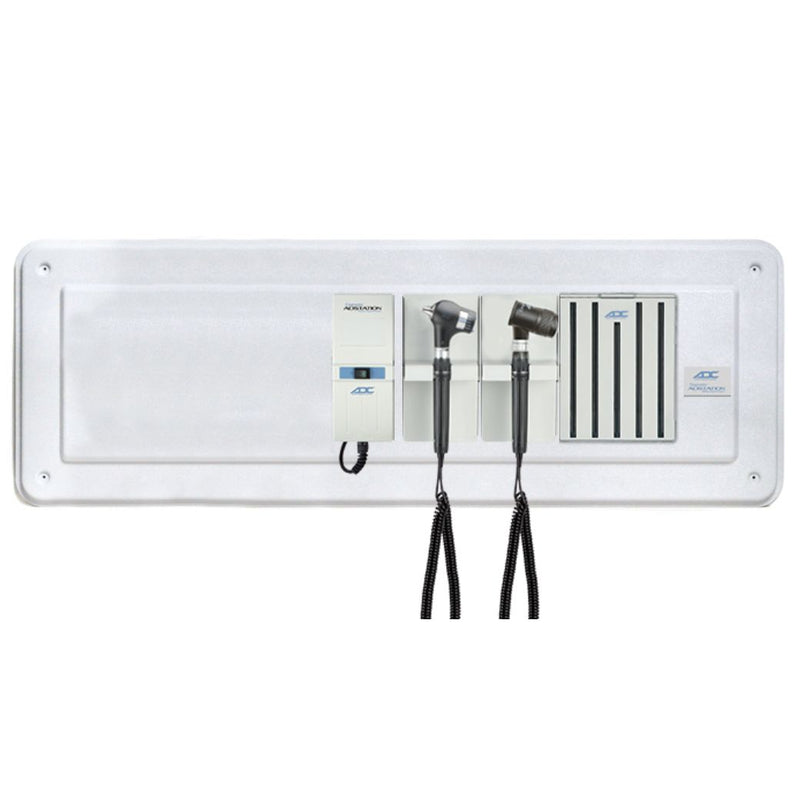

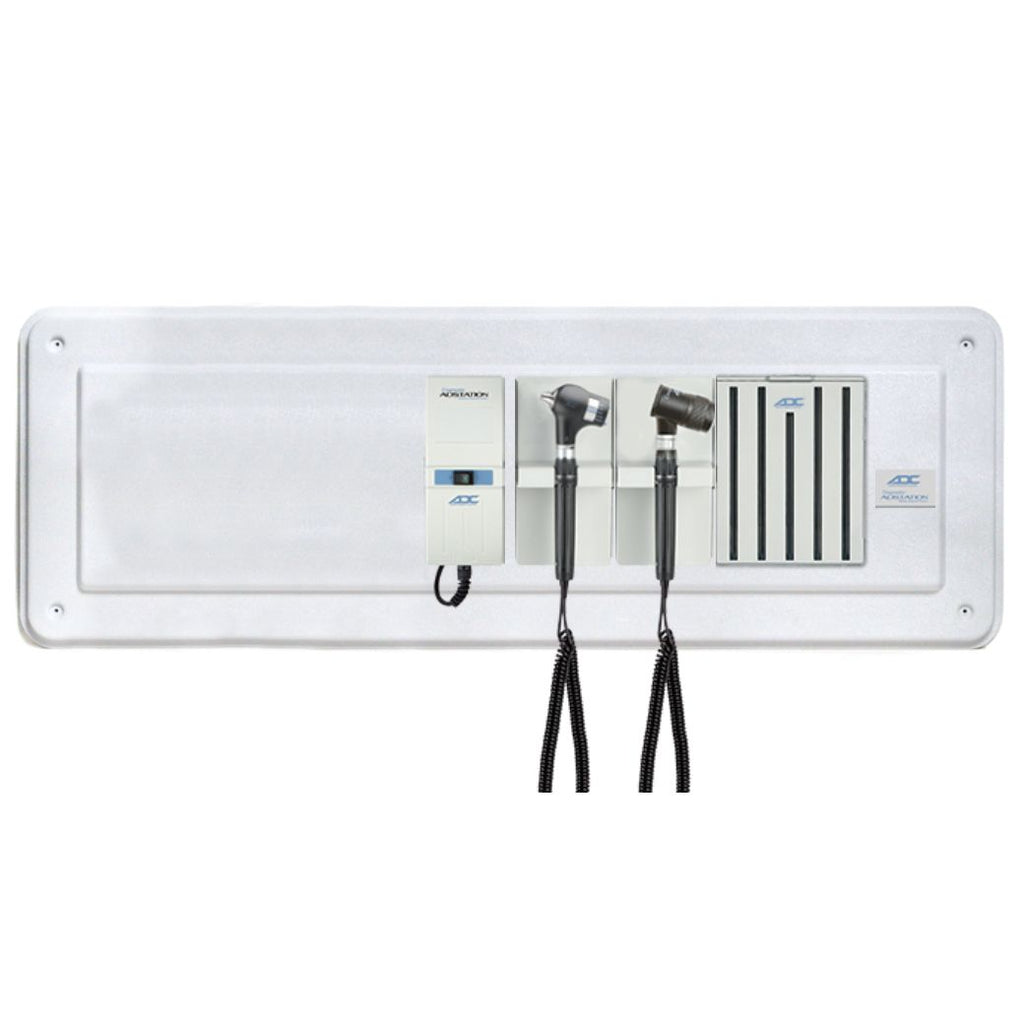

The ADC Adstation 5681-35 is a comprehensive, wall-mounted diagnostic system designed for essential clinical examinations. It includes instruments, power management, and organizational tools.

Key Components Included

The set provides the following items:

• Diagnostic Heads
  • ADC Diagnostix 5422 3.5V PMV Otoscope Head: Engineered for superior performance, offering a panoramic, 5X magnified view (11 mm field of view) with high-performance, reflection-optimized glass optics. Illumination is configurable (Halogen/Xenon or advanced AdLED).
  • ADC Diagnostix 5450 3.5V Dermascope Head: Features AdLED illumination, an optical grade 10X focusable magnifying lens, and includes two interchangeable, disinfectable contact plates.
• Power and Handling System
  • Two 3.5V Handles, CNC machined from solid brass.
  • 3.5V Wall Transformer Base Unit: Features Adtronic electronic rheostatic control for infinite light intensity adjustment. A magnetic switch automatically powers instruments on/off when removed/replaced, and an auto-off safety feature activates after two minutes.
  • Extension Module.
• Mounting and Organization
  • ADC Adstation Wallboard: Durable mounting solution made from ABS and acrylic, specifically designed to accommodate the set and leave space for the optional ADC ADView 2 Modular Diagnostic Station.
  • ADC 5630 Wall Specula Dispenser: Provides hygienic storage for five tubes of specula.
  • All necessary hardware for wall installation.

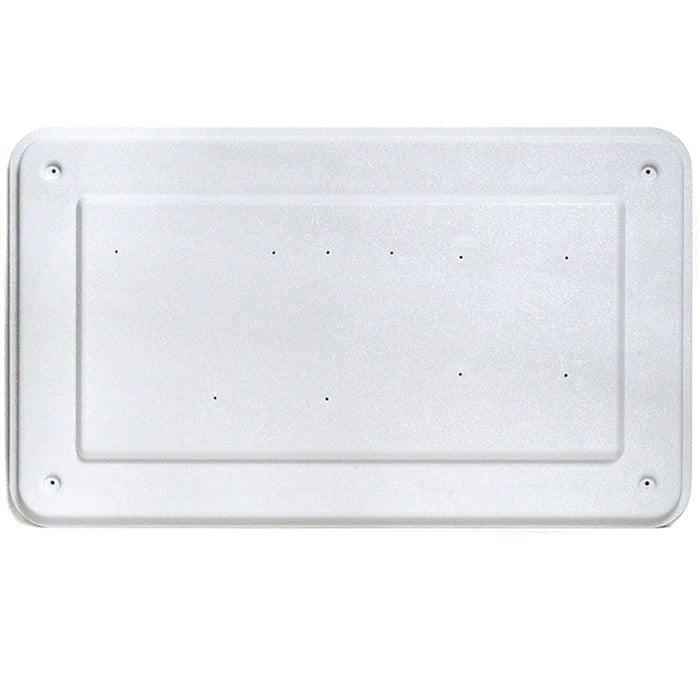

The ADC Adstation Wallboard is designed for long-lasting durability and stability in a clinical environment. It is constructed from a robust combination of ABS and acrylic.

Key features that ensure its longevity and ease of use include:

• Material Quality: The acrylic additive ensures enhanced UV stability, helping the board resist discoloration and maintain its professional look over time.
• Maintenance: The material is durable and designed to be an easy-to-clean mounting solution.
• Installation: It comes with complete hardware for straightforward wall installation.

The ADC Adstation 5681-35 comes with the following warranties:

• Wall Transformer: 5 Years
• Instrument Head, Xenon Lamp, and Wallboard: 2 Years
• LED Lamp: Lifetime
• Thermometer: 2 Years - Defects in Materials and Workmanship
