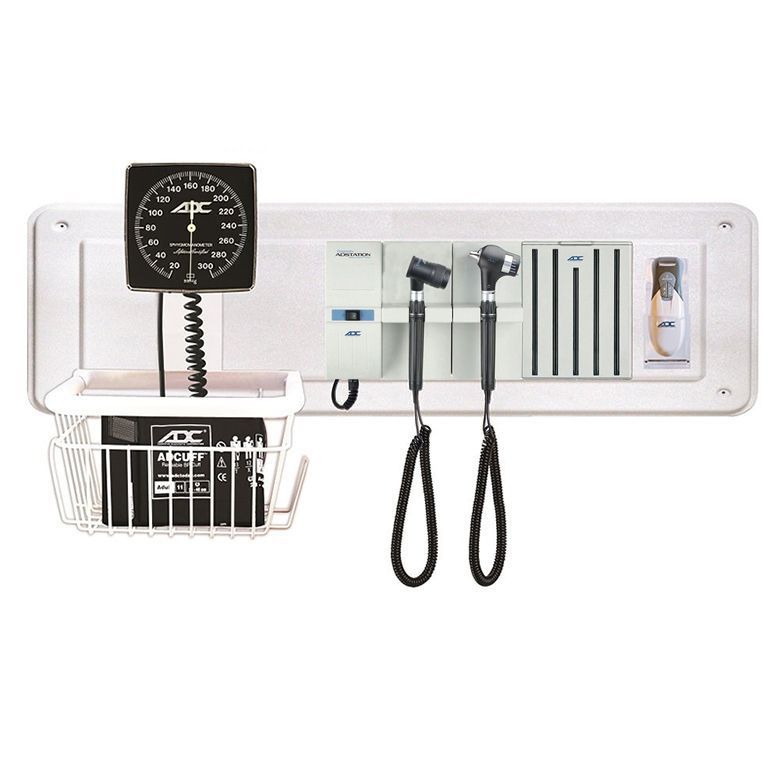

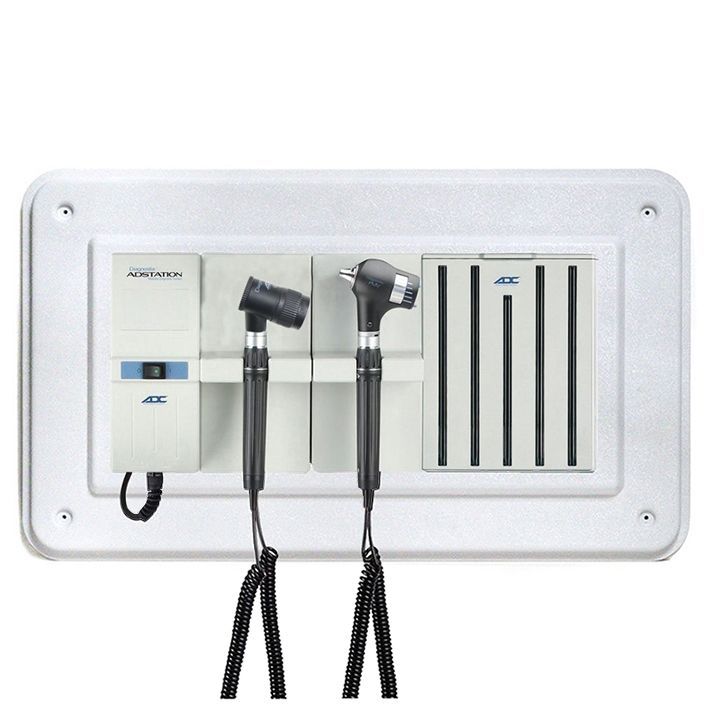

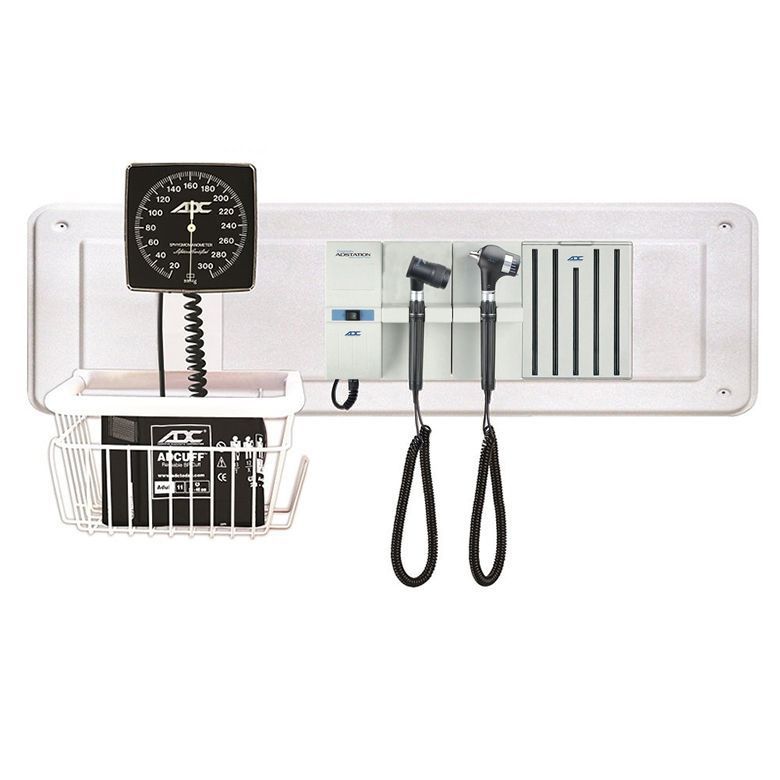

ADC Adstation 5681-35 3.5V Wall PMV Otoscope/Dermascope Diagnostic Set with Wallboard

The ADC Adstation 5681-35 is a comprehensive wall-mounted system that includes the following core diagnostic components:

• Diagnostix 5422 PMV Otoscope Head: Features advanced optics, providing a panoramic, magnified view. You benefit from 5X magnification and an 11 mm field of view, significantly enhancing visualization compared to standard models.
• Diagnostix 5450 Dermascope Head: Optimized for skin assessment, this head features an optical grade 10X focusable magnifying lens and uses bright AdLED illumination. It includes two interchangeable contact plates.
• Wall Transformer and Handles: The system includes the 3.5V Wall Transformer Base Unit, an Extension Module, and two 3.5V handles. It features Adtronic electronic light intensity control and magnetic auto-on/off switching.
• Mounting and Storage: A durable ABS/Acrylic Wallboard is provided for organized mounting, along with the ADC 5630 Wall Specula Dispenser (holds five tubes) for hygienic storage.

Note: Optional accessories, such as the Wall Aneroid Sphygmomanometer or the Non-Contact Infrared Thermometer, are not included in this standard core set and must be configured separately.

The ADC Diagnostix 5422 PMV Otoscope Head is designed to accommodate widely used, standard specula, allowing for seamless integration into most professional medical environments. The entire system prioritizes organization and hygiene.

The set includes the ADC 5630 Wall Specula Dispenser, which provides hygienic storage for specula in five separate tubes, ensuring they are readily accessible and organized on the Wallboard.

Yes, the ADC Diagnostix 5450 dermascope head is designed with a soft eyepiece, ensuring comfortable use for clinicians who wear eyeglasses. This feature enhances usability during examinations.

The ADC Adstation includes an ADC 5630 Wall Specula Dispenser that holds specula, keeping them organized and easily accessible. This helps maintain a clean and efficient examination environment.

Yes, the ADC Adstation is specifically engineered as a centralized, wall-mounted system to maximize clinical efficiency and organization.

Here are the key features that contribute to a streamlined workflow:

• Integrated Wallboard: The instruments and power supply are secured to a durable Wallboard made from long-lasting ABS and UV-stable acrylic, keeping all diagnostic tools consolidated and accessible.
• Smart Power Management: The 3.5V handles feature a magnetic switch that instantly activates the power when a handle is removed from its cradle, ensuring readiness. The Adtronic electronic rheostat controls light intensity, and the auto-off function shuts down power after two minutes to conserve energy.
• Hygienic Storage: The system includes the ADC 5630 Wall Specula Dispenser, providing hygienic, organized storage and easy access to five tubes of specula.
• Modular Design: The Adstation is highly configurable and expandable. The wall transformer base supports up to three handles via extension modules, allowing integration of optional components like an aneroid sphygmomanometer or infrared thermometer.

Yes, the ADC Adstation 5681-35 is designed with professional-grade optics and flexible, high-performance illumination to ensure superior diagnostic clarity.

Diagnostix 5422 PMV Otoscope (Ear Examination)

This head features advanced fiber-optic light transmission and reflection-optimized glass optics, offering performance significantly above standard models:

• Superior Magnification: Provides 5X magnification and 66% greater magnification than typical otoscopes.
• Wider Field of View: Features an 11 mm panoramic field of view, which is twice the field of view of standard models.
• Illumination Options: Available with traditional Halogen/Xenon lighting or advanced AdLED illumination (4,200 Kelvin, CRI = 92).

Diagnostix 5450 Dermascope (Skin Assessment)

The Dermascope is equipped for detailed skin examination and pigmentation identification:

• Focusable Magnification: Uses an optical grade 10X focusable magnifying lens.
• Integrated LED: Features standard AdLED illumination.
• Interchangeable Plates: Includes two contact plates (one with a scale for measurement, one without).

The 3.5V wall transformer utilizes several advanced features designed for clinical efficiency and safety:

• Magnetic Switch Activation: Power is automatically activated the moment a handle is removed from the cradle and switches off when the handle is replaced.
• Adtronic Rheostatic Control: This system provides infinite, continuous electronic light intensity control, allowing clinicians to precisely adjust illumination for optimal viewing.
• Automatic Shutoff: The Adtronic auto-off feature conserves energy and prolongs lamp life by powering down the instrument after two minutes of inactivity.
• Safety Approval: The wall transformer is UL approved.

Additionally, the instrument handles are built for durability using CNC machined and chrome-plated brass.

Yes, the ADC Adstation is designed as a highly modular diagnostic center, allowing for seamless expansion and customization based on your clinical needs.

Key expansion features include:

• Instrument Handles: The base wall transformer unit can support up to three 3.5V instrument handles by utilizing the included extension module.
• Optional Diagnostic Instruments: The Wallboard is designed to integrate essential vital sign instruments, such as:

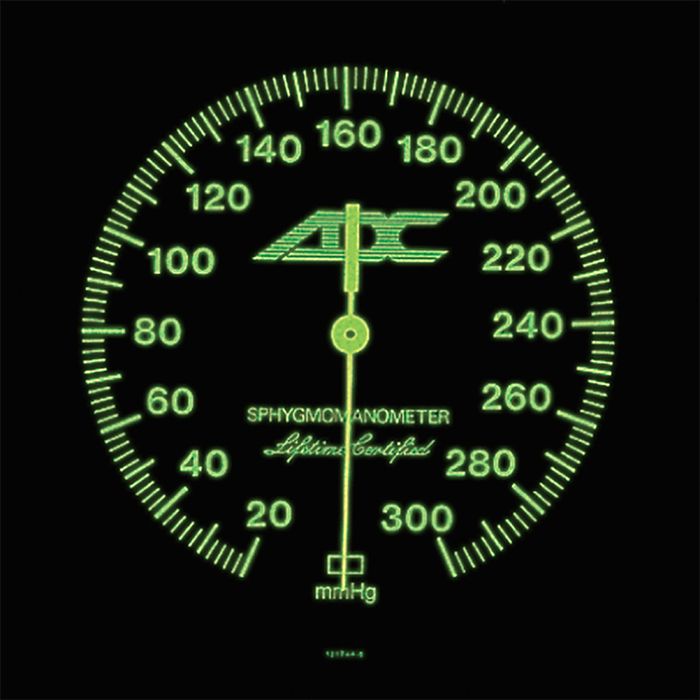

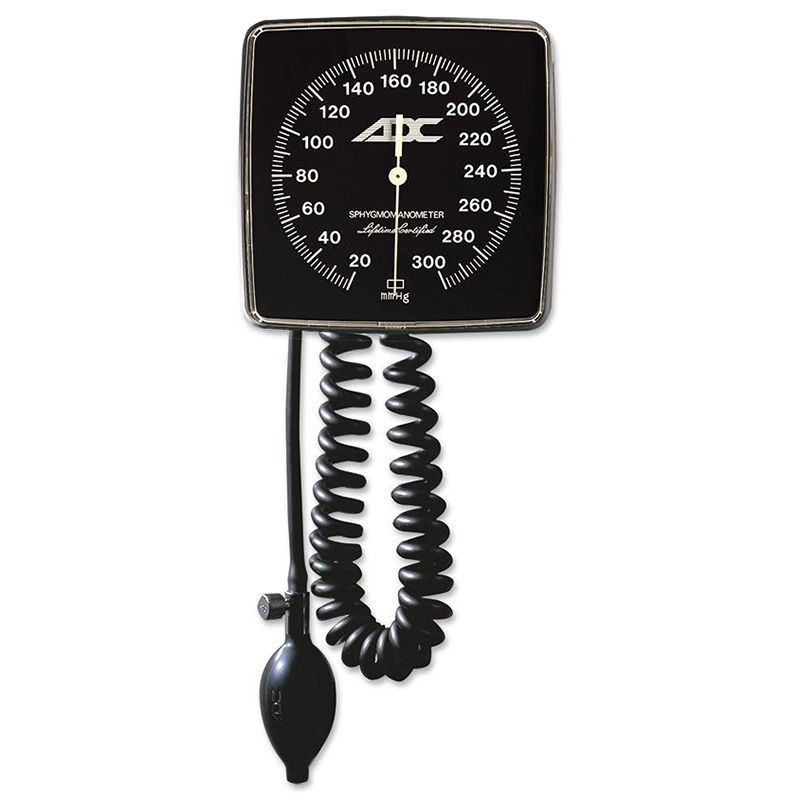

  • ADC Diagnostix 750W Wall Aneroid Sphygmomanometer: This unit features a large, easy-to-read 6-inch luminescent dial and includes both Adult and Large Adult Adcuff nylon cuffs.
  • ADC Adtemp 429 Non-Contact Infrared Thermometer: This allows for rapid (approximately 1 second) and hygienic temperature screening from a distance, offering both body and object measurement modes.

The ADC Adstation is ideal for medical clinics, hospitals, and examination rooms. It provides a centralized and organized diagnostic station for routine check-ups, ear examinations, and skin screenings.

Yes, the 3.5V Wall Transformer is UL approved, ensuring compliance with safety and electrical standards. It also features advanced power management capabilities, including:

• Adtronic electronic rheostatic control for infinite light intensity adjustment.
• A magnetic switch that automatically activates power when the handle is removed.
• An Adtronic auto-off feature that powers the unit down after two minutes.
