Key Features
  • SKU: ADC-56802X-6X
  • Condition:
    Condition: Factory New
  • Warranty:
    Warranty: 5 Years
  • Weight: 6.85 lb

  • Learn more:

Contact The Manufacturer
  • MFR: American Diagnostic Corporation
    Ships from MFI Medical
  • MPN: 56802X-6X
  • Phone: (800) 232-2670
$1,998.30 $1,222.84

+ Free Shipping

Est. Delivery:

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match

Description

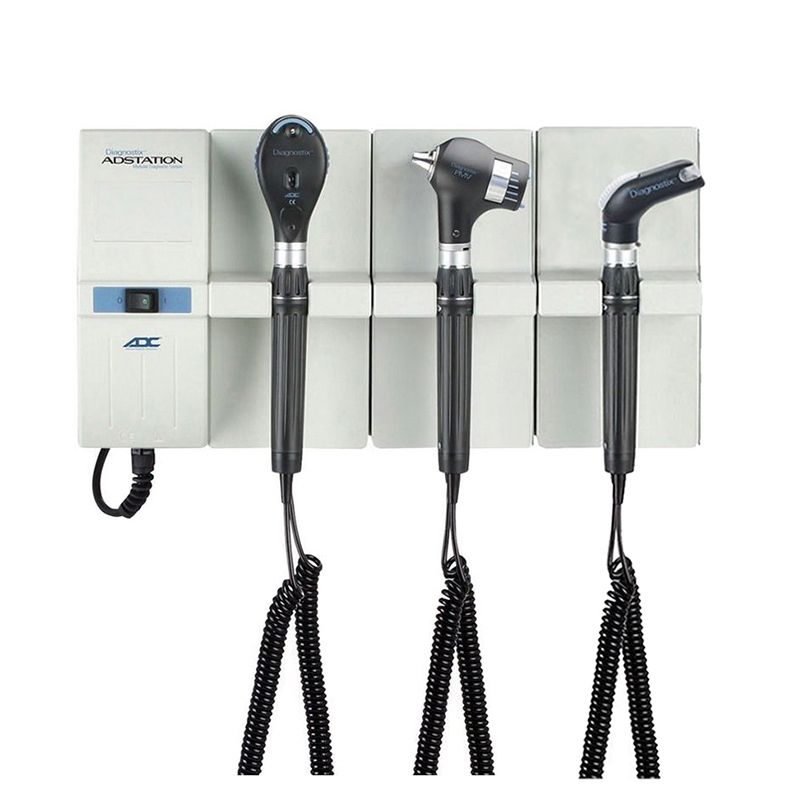

The ADC Adstation 56802-6 3.5V Wall PMV Otoscope/Coax Plus Ophthalmoscope/Throat Illuminator Diagnostic Set includes an ADC Diagnostix 5422 3.5V PMV Otoscope Head, an ADC Diagnostix 5442 3.5V Coax Plus Ophthalmoscope Head, an ADC Diagnostix 5426 3.5V Throat Illuminator Head, a power supply base unit that includes a power switch, three 3.5V handles, and two extension modules. The wall transformer is available with a standard 120V or a 230V power supply with European plug in, and is easy to install with the included bracket or it may be mounted to ADC wallboard systems. All three ADC Diagnostix Heads are available with a halogen/xenon lamp or an advanced AdLED lamp.

The ADC 5630 Wall Specula Dispenser can also be added and is a hygienic and practical solution to storing specula and includes five tubes that can store specula.

An optional ADC Diagnostix 750W Wall Aneroid Sphygmomanometer can also be added and includes a wall bracket that swivels through 110 degrees rotation for easy viewing, and an Adcuff Inflation System which includes an Adult and Large Adult Nylon Cuff, an Adflow Bulb and Valve, coiled tubing, and a Cuff Storage Basket.

Warranty: 5 Years (Wall Transformer), 2 Years (Instrument Head and Xenon Lamps), Lifetime (LED Lamp), 3 Years (750W Wall Aneroid Sphygmomanometer. Manometer carries a lifetime calibration warranty).

The ADC Diagnostix 5422 3.5V PMV Otoscope Head uses advanced optical technology to create a panoramic, magnified view that features twice the field of view and 66% greater magnification (11 mm field of view, 5X magnification) compared to ADC's standard otoscope. The ADC Diagnostix 5442 3.5V Coax Plus Ophthalmoscope Head is intended to examine the media (cornea, aqueous, lens, and vitreous) and the retina of the eye, and the ADC Diagnostix 5426 3.5V Throat Illuminator Head is designed for examination of the oral cavity and pharynx in combination with commercial wooden and plastic blades.

Configurations

ADC Adstation 56802-6 3.5V Wall PMV Otoscope/Coax Plus Ophthalmoscope/Throat Illuminator Diagnostic Set Configurations

  • ADC Adstation 56802-6 3.5V Wall PMV Otoscope/Coax Plus Ophthalmoscope/Throat Illuminator Diagnostic Set Configurations:
    • Xenon Otoscope/Xenon Ophthalmoscope/Xenon Throat Illuminator (#56802X-6X) / European Plug (#56802X-6XEU).
    • LED Otoscope/LED Ophthalmoscope/LED Throat Illuminator (#56802L-6L) / European Plug (#56802L-6LEU).
    • Xenon Otoscope/Xenon Ophthalmoscope/LED Throat Illuminator (#56802X-6L) / European Plug (#56802X-6LEU).
    • Xenon Otoscope/LED Ophthalmoscope/LED Throat Illuminator (#56802B-6L) / European Plug (#56802B-6LEU).
    • LED Otoscope/Xenon Ophthalmoscope/LED Throat Illuminator (#56802A-6L) / European Plug (#56802A-6LEU).
    • LED Otoscope/Xenon Ophthalmoscope/Xenon Throat Illuminator (#56802A-6X) / European Plug (#56802A-6XEU).
    • LED Otoscope/LED Ophthalmoscope/Xenon Throat Illuminator (#56802L-6X) / European Plug (#56802L-6XEU).
    • Xenon Otoscope/LED Ophthalmoscope/Xenon Throat Illuminator (#56802B-6X) / European Plug (#56802B-6XEU).
    • Xenon Otoscope/Xenon Ophthalmoscope/Xenon Throat Illuminator with Specula Dispenser (#56802X-36X) / European Plug (#56802X-36XEU).
    • LED Otoscope/LED Ophthalmoscope/LED Throat Illuminator with Specula Dispenser (#56802L-36L) / European Plug (#56802L-36LEU).
    • Xenon Otoscope/Xenon Ophthalmoscope/LED Throat Illuminator with Specula Dispenser (#56802X-36L) / European Plug (#56802X-36LEU).
    • Xenon Otoscope/LED Ophthalmoscope/LED Throat Illuminator with Specula Dispenser (#56802B-36L) / European Plug (#56802B-36LEU).
    • LED Otoscope/Xenon Ophthalmoscope/LED Throat Illuminator with Specula Dispenser (#56802A-36L) / European Plug (#56802A-36LEU).
    • LED Otoscope/Xenon Ophthalmoscope/Xenon Throat Illuminator with Specula Dispenser (#56802A-36X) / European Plug (#56802A-36XEU).
    • LED Otoscope/LED Ophthalmoscope/Xenon Throat Illuminator with Specula Dispenser (#56802L-36X) / European Plug (#56802L-36XEU).
    • Xenon Otoscope/LED Ophthalmoscope/Xenon Throat Illuminator with Specula Dispenser (#56802B-36X) / European Plug (#56802B-36XEU).
    • Xenon Otoscope/Xenon Ophthalmoscope/Xenon Throat Illuminator with Clock Aneroid (#56802X-6X7) / European Plug (#56802X-6X7EU).
    • LED Otoscope/LED Ophthalmoscope/LED Throat Illuminator with Clock Aneroid (#56802L-6L7) / European Plug (#56802L-6L7EU).
    • Xenon Otoscope/Xenon Ophthalmoscope/LED Throat Illuminator with Clock Aneroid (#56802X-6L7) / European Plug (#56802X-6L7EU).
    • Xenon Otoscope/LED Ophthalmoscope/LED Throat Illuminator with Clock Aneroid (#56802B-6L7) / European Plug (#56802B-6L7EU).
    • LED Otoscope/Xenon Ophthalmoscope/LED Throat Illuminator with Clock Aneroid (#56802A-6L7) / European Plug (#56802A-6L7EU).
    • LED Otoscope/Xenon Ophthalmoscope/Xenon Throat Illuminator with Clock Aneroid (#56802A-6X7) / European Plug (#56802A-6X7EU).
    • LED Otoscope/LED Ophthalmoscope/Xenon Throat Illuminator with Clock Aneroid (#56802L-6X7) / European Plug (#56802L-6X7EU).
    • Xenon Otoscope/LED Ophthalmoscope/Xenon Throat Illuminator with Clock Aneroid (#56802B-6X7) / European Plug (#56802B-6X7EU).
    • Xenon Otoscope/Xenon Ophthalmoscope/Xenon Throat Illuminator with Specula Dispenser and Clock Aneroid (#56802X-36X7) / European Plug (#56802X-36X7EU).
    • LED Otoscope/LED Ophthalmoscope/LED Throat Illuminator with Specula Dispenser and Clock Aneroid (#56802L-36L7) / European Plug (#56802L-36L7EU).
    • Xenon Otoscope/Xenon Ophthalmoscope/LED Throat Illuminator with Specula Dispenser and Clock Aneroid (#56802X-36L7) / European Plug (#56802X-36L7EU).
    • Xenon Otoscope/LED Ophthalmoscope/LED Throat Illuminator with Specula Dispenser and Clock Aneroid (#56802B-36L7) / European Plug (#56802B-36L7EU).
    • LED Otoscope/Xenon Ophthalmoscope/LED Throat Illuminator with Specula Dispenser and Clock Aneroid (#56802A-36L7) / European Plug (#56802A-36L7EU).
    • LED Otoscope/Xenon Ophthalmoscope/Xenon Throat Illuminator with Specula Dispenser and Clock Aneroid (#56802A-36X7) / European Plug (#56802A-36X7EU).
    • LED Otoscope/LED Ophthalmoscope/Xenon Throat Illuminator with Specula Dispenser and Clock Aneroid (#56802L-36X7) / European Plug (#56802L-36X7EU).
    • Xenon Otoscope/LED Ophthalmoscope/Xenon Throat Illuminator with Specula Dispenser and Clock Aneroid (#56802B-36X7) / European Plug (#56802B-36X7EU).

Features

ADC Adstation 56802-6 3.5V Wall PMV Otoscope/Coax Plus Ophthalmoscope/Throat Illuminator Diagnostic Set Features

  • ADC Diagnostix 5422 3.5V PMV Otoscope Head Features:
    • Significantly improved view of the auditory canal and tympanic membrane.
    • Fiber-optic light transmission for an unobstructed view.
    • Choose from halogen/xenon or high-performance LED illumination (4,200 Kelvin, CRI = 92).
    • Reflection-optimized, high-performance glass optics.
    • Adjustable focal depth.
    • Suitable for throat illumination and pneumatic otoscopy (insufflator sold separately).
    • Compatible with Welch Allyn specula.
    • Anti-theft locking feature is standard.
  • ADC Diagnostix 5442 3.5V Coax Plus Ophthalmoscope Head Features:
    • High performance aspherical condenser lens reduces corneal reflection.
    • Further reduction provided by utilizing distinct parallel observational and illuminating light beam. (Gullstrand's principal).
    • Ergonomic design and integral thumb rest improves stability and allows one finger control of all functions.
    • Synthetic rubber brow rest facilitates use with practitioner eyeglasses.
    • Dust proof.
    • Magnified/illuminated aperture viewing window.
    • Universal bayonet mount for compatibility with other brands of 3.5V power supply handles.
    • Anti-theft locking feature is standard.
    • Secondary Focusing wheel with zero retention for quick correction of ametropias. Use this to provide virtually unlimited fine focus OR as a fast focus in lieu of the 89 viewing lenses.
    • 89 viewing lenses - Plus single step from 1-45. Minus single step from 1-44.
    • 28 aperture/filter combinations for improved versatility.

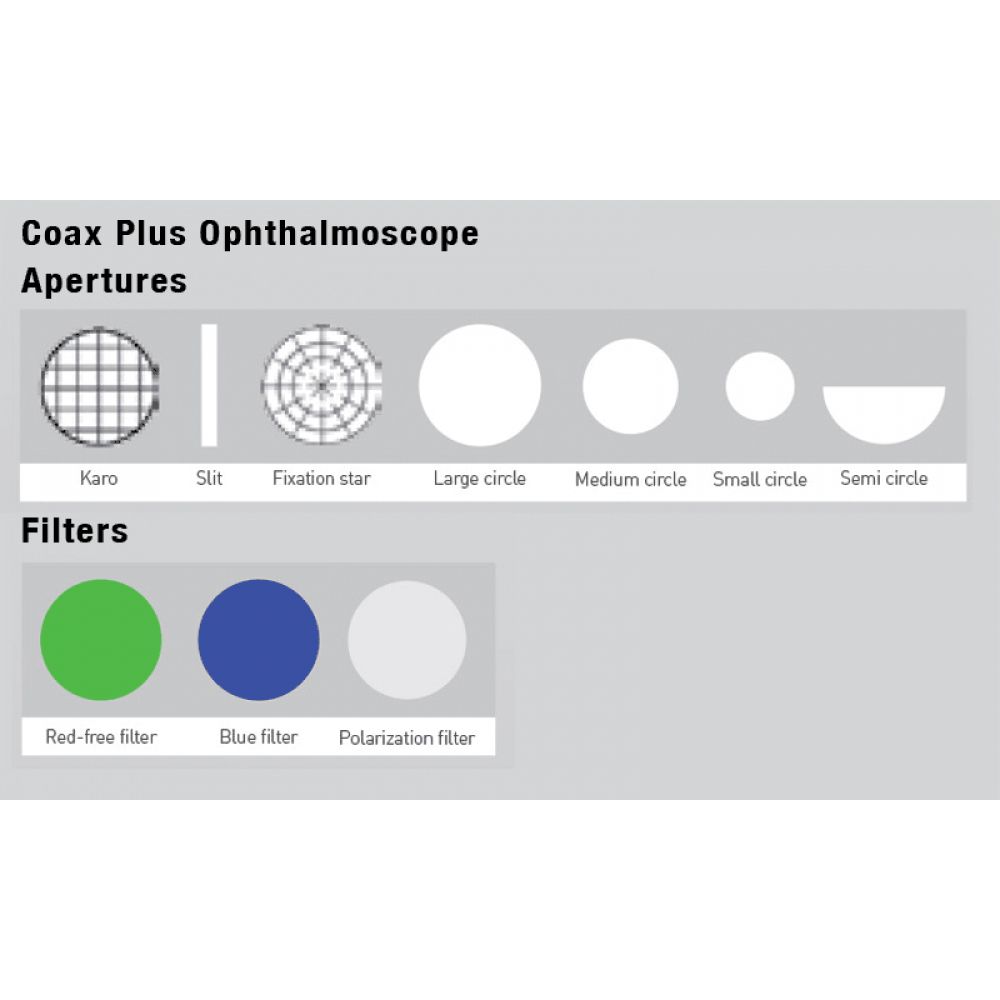

    • 7 apertures include:
      • Karo - grid like overlay that allows for easier transfer of observations to standard Karo (graph) paper.
      • Slit - used to help determine levels of tumors and lesions.
      • Fixation - has graduated cross-hairs for measuring eccentric fixation or locating lesions.
      • Large - standard aperture for a dilated pupil and general examination of the eye.
      • Small - provides excellent view of fundus through an undilated pupil.
      • Micro spot - allows quick entry into small, undilated pupils.
      • Half moon - provides a combination of depth perception and field of view.
    • 3 filters (plus neutral) include:
      • Red free - excludes red rays from examination field for easy identification of veins, arteries and nerve fibers.
      • Cobalt - used with fluorescent dye to view small lesions, abrasions and foreign objects on the cornea.
      • Polarizing - virtually eliminated corneal reflection.
  • ADC Diagnostix 5426 3.5V Throat Illuminator Head Features:
    • PMMA light transmission (similar to Fiberoptic) for unobstructed view of oral cavity.
    • Tongue blade holder facilitates examination of the mouth and throat.
    • Eject button discards used tongue blade.
    • Universal bayonet mount for compatibility with other brands of 3.5v power supply handles.
    • Anti-theft locking feature is standard.
  • ADC Wall Transformer Power Supply Features:
    • Magnetic switch activates power when handle is removed from cradle, automatically powers off when handle is replaced.
    • Handle is CNC machined from solid brass and chrome plated in black with a ribbed surface for a sure grip.
    • Adtronic electronic rheostatic light intensity control provides infinite continuous control.
    • Adtronic auto-off feature after two minutes provides additional safety if instrument is mis-cradled.
    • Bayonet instrument mount is compatible with all major brands of 3.5V instrument heads.
    • Base unit contains the power switch and one handle and the extension holds the other handle.
    • One additional extension module can be added.
    • UL approved.

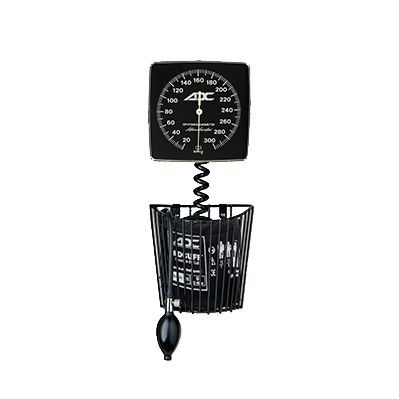

  • ADC Diagnostix 750W Wall Aneroid Sphygmomanometer Features:
    • Large, easy-to-read 6" luminescent dial for high visibility in virtually any light condition.
    • 300 mm Hg no-pin stop movement withstands the heaviest use.
    • Eight foot length (when extended) of coiled tubing not made with natural rubber latex.

Specifications

ADC Adstation 56802-6 3.5V Wall PMV Otoscope/Coax Plus Ophthalmoscope/Throat Illuminator Diagnostic Set Specifications

  • Diagnostic Station Dimensions: 7.88" x 7.12" x 2.95" (20.02 cm x 18.08 cm x 7.5 cm).
  • Extension Module Dimensions: 7.88" x 3.94" x 2.95" (20.02 cm x 10.01 cm x 7.5 cm).
  • Adcuff Size - Adult: 9" - 15.7" (23 cm - 40 cm).
  • Adcuff Size - Large Adult: 13.3" - 19.6" (34 cm - 50 cm).

Frequently asked questions

Which high-quality diagnostic instrument heads are included?

The ADC Adstation 56802-6 is a comprehensive, wall-mounted diagnostic suite that integrates three high-performance 3.5V Diagnostix instrument heads:

  • Diagnostix 5422 3.5V PMV Otoscope Head: Designed for superior viewing, this otoscope provides a Panoramic, Magnified View (PMV), featuring powerful 5X magnification and an expansive 11 mm field of view. It uses fiber-optic light transmission for cool, consistent illumination and includes reflection-optimized glass optics.
  • Diagnostix 5442 3.5V Coax Plus Ophthalmoscope Head: This head is built with high-performance aspherical condenser lenses to significantly reduce corneal reflection. It offers extreme versatility with 89 viewing lenses (+1 to +45, -1 to -44) and 28 aperture/filter combinations, including specialty filters like Red free, Cobalt, and Polarizing.
  • Diagnostix 5426 3.5V Throat Illuminator Head: This component ensures excellent visibility for oral examinations. It features PMV light transmission and includes a convenient tongue blade holder with an eject button for hygienic, single-handed operation.

All three instrument heads are equipped with an anti-theft locking feature for enhanced security in clinical settings.

Does the ophthalmoscope reduce corneal reflection?

Yes, the ADC Diagnostix 5442 3.5V Coax Plus Ophthalmoscope Head is designed with a high-performance aspherical condenser lens specifically to reduce corneal reflection, ensuring a clearer view during examinations.

Is the ADC Adstation a modular system?

Yes, the ADC Adstation 56802-6 is designed as a comprehensive modular wall diagnostic system built for versatility and customization in clinical settings.

It is centered around a 3.5V wall transformer base unit that powers the three core instruments included in the set: the PMV Otoscope, the Coax Plus Ophthalmoscope, and the Throat Illuminator.

Its modularity allows for the integration of key optional components directly into the station:

  • Wall Specula Dispenser (ADC 5630): Provides a hygienic storage solution with five storage tubes.
  • Wall Aneroid Sphygmomanometer (ADC Diagnostix 750W): This optional unit centralizes blood pressure measurement. It includes the Adcuff Inflation System (Adult and Large Adult sizes) and the manometer carries a lifetime calibration warranty.
Are there flexible illumination options?

Yes, this diagnostic set offers flexible and high-quality illumination options, allowing you to configure the system with either traditional Halogen/Xenon lamps or advanced AdLED technology for all three instrument heads.

Illumination Technology Choices

  • Advanced AdLED Illumination: This option provides superior visual clarity with a high Color Rendering Index (CRI = 92) and a neutral color temperature of 4,200 Kelvin. AdLED lamps are also energy efficient and backed by a lifetime warranty.
  • Halogen/Xenon Illumination: Traditional bright Halogen/Xenon lamps are available for configurations preferring this light source.

Furthermore, the 3.5V wall transformer base unit features Adtronic electronic rheostatic control, which allows for infinite and continuous adjustment of light intensity regardless of the chosen lamp type.

Does this diagnostic set include anti-theft features?

Yes, the ADC Adstation 56802-6 diagnostic set includes an anti-theft locking feature standard on all instrument heads. This mechanism helps secure the diagnostic tools to the wall unit, preventing unauthorized removal of the:

  • PMV Otoscope Head
  • Coax Plus Ophthalmoscope Head
  • Throat Illuminator Head
Does the wall station feature advanced power management?

Yes, the ADC Adstation utilizes sophisticated electronic controls for highly efficient and precise power management via its 3.5V Wall Transformer.

Key features of the system include:

  • Automatic On/Off: A magnetic switch instantly activates the instrument’s power when the handle is removed from the cradle and automatically deactivates it when the handle is returned, improving workflow.
  • Infinite Light Control: The Adtronic electronic rheostat provides infinite continuous control over light intensity, allowing clinicians to precisely tune the illumination for optimal viewing.
  • Safety Auto-Off: The UL-approved system incorporates an Adtronic auto-off safety feature, powering down the instrument after two minutes of inactivity to conserve energy and maximize lamp longevity.
Does the ophthalmoscope offer many viewing lenses?

Yes, the ophthalmoscope offers an impressive 89 viewing lenses for comprehensive and versatile eye examinations. It also features 28 aperture/filter combinations for enhanced diagnostic capabilities.

Which advanced diagnostic instruments are included?

The ADC Adstation 56802-6 diagnostic set includes three essential, high-performance instrument heads mounted on three 3.5V handles:

  • PMV Otoscope Head (Diagnostix 5422): Features advanced fiber-optic light transmission and superior glass optics. It provides a panoramic view with 5X magnification and an 11 mm field of view, offering 66% greater magnification than standard models.
  • Coax Plus Ophthalmoscope Head (Diagnostix 5442): Designed with an aspherical condenser lens to minimize corneal reflection. It offers extensive diagnostic flexibility with 89 viewing lenses (+1 to +45, -1 to -44) and 28 aperture/filter combinations (including Red free, Cobalt, and Polarizing filters).
  • Throat Illuminator Head (Diagnostix 5426): Utilizes PMMA light transmission for an unobstructed view and includes an integrated tongue blade holder with a hygienic eject button for used blades.

All handles are CNC machined from solid brass and feature Adtronic electronic rheostatic control for infinite light intensity adjustment.

Is the Adstation diagnostic set covered by comprehensive warranties?

Yes, the ADC Adstation diagnostic set is supported by extensive warranty coverage, ensuring the longevity of your investment. Coverage varies by component:

  • Wall Transformer Base Unit: Covered for 5 years.
  • LED Lamp Illumination: Backed by a Lifetime Warranty.
  • Instrument Heads and Xenon/Halogen Lamps: Covered for 2 years.
  • Optional Wall Aneroid Sphygmomanometer (750W): Covered for 3 years, with the manometer movement carrying a separate Lifetime Calibration Warranty.
What are the dimensions of the modular components?

The ADC Adstation is a modular system designed for efficient wall mounting. The specific dimensions for the core components included in this set (the main power unit and the two included extension modules) are:

  • Diagnostic Station Base Unit (Power Supply): 7.88” x 7.12” x 2.95” (20.02 cm x 18.08 cm x 7.5 cm)
  • Extension Module: 7.88” x 3.94” x 2.95” (20.02 cm x 10.01 cm x 7.5 cm)

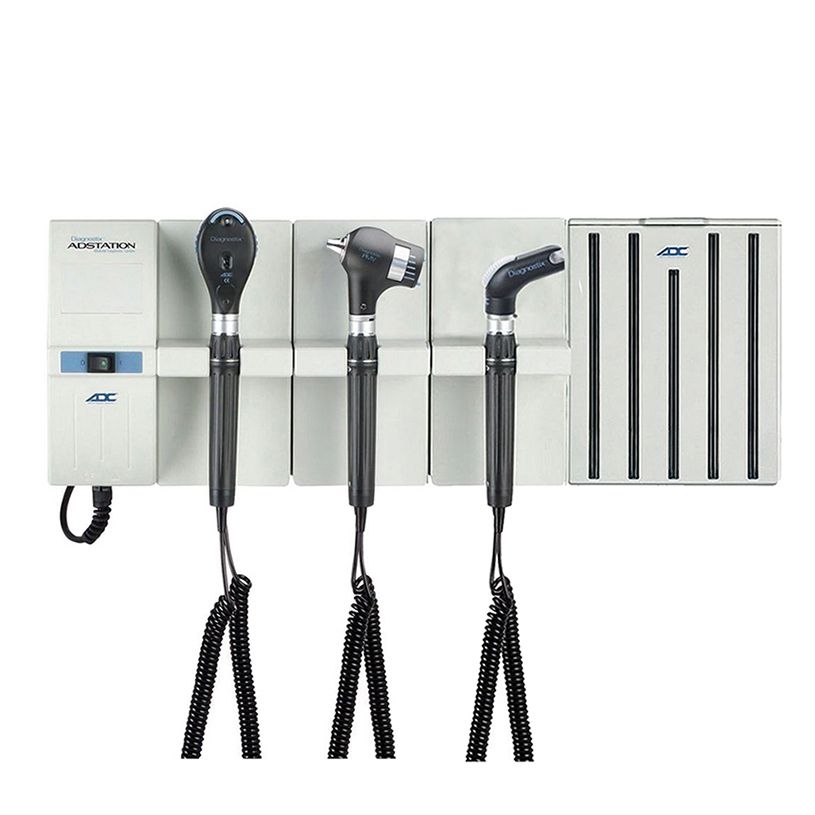

This setup includes the Base Unit and two extension modules to accommodate the three 3.5V instrument handles.
