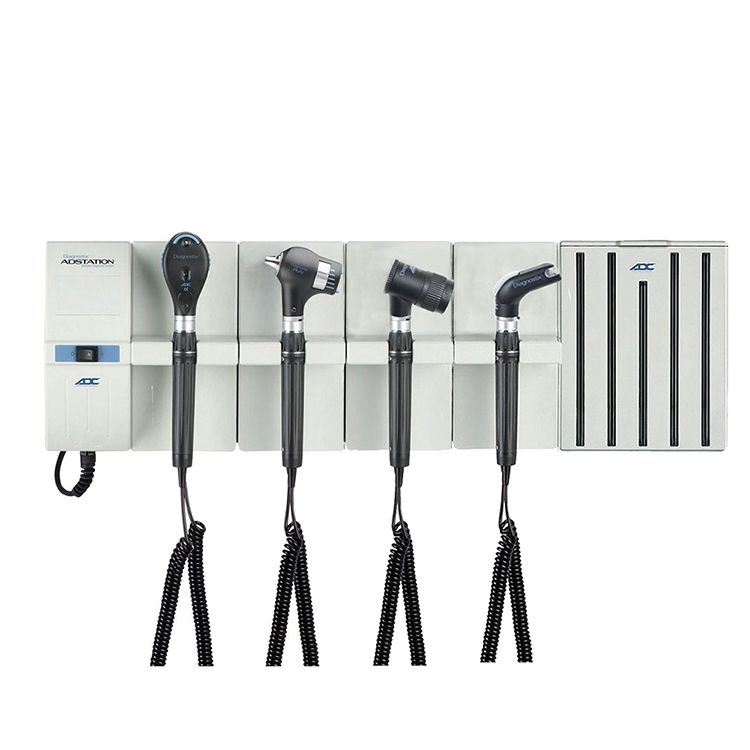

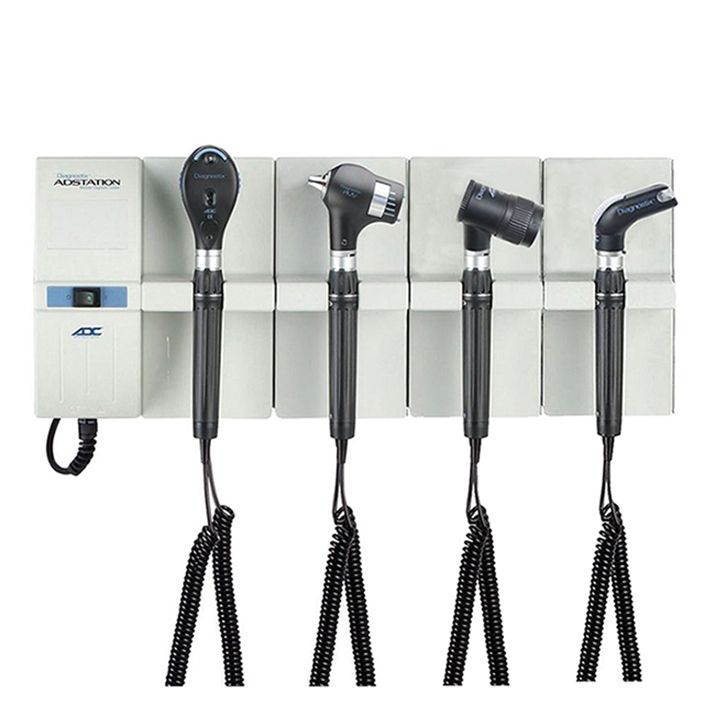

ADC Adstation 56802-56 3.5V Wall PMV Otoscope/Coax Plus Ophthalmoscope/Throat Illuminator/Dermascope Diagnostic Set

The ADC Adstation 56802-56 3.5V Wall PMV Otoscope/Coax Plus Ophthalmoscope/Throat Illuminator/Dermascope Diagnostic Set includes an ADC Diagnostix 5422 3.5V PMV Otoscope Head, an ADC Diagnostix 5442 3.5V Coax Plus Ophthalmoscope Head, an ADC Diagnostix 5426 3.5V Throat Illuminator Head, an ADC Diagnostix 5450 3.5V Dermascope Head, a power supply base unit that includes a power switch, four 3.5V handles, and three extension modules. The wall transformer is available with a standard 120V or a 230V power supply with European plug in, and is easy to install with the included bracket. The otoscope, ophthalmoscope, and throat illuminator heads are available with a halogen/xenon lamp or an advanced AdLED lamp. The ADC Diagnostix 5450 3.5V Dermascope Head uses AdLED illumination.

The ADC 5630 Wall Specula Dispenser can also be added and is a hygienic and practical solution to storing specula and includes five tubes that can store specula.

Warranty: 5 Years (Wall Transformer), 2 Years (Instrument Head and Xenon Lamps), Lifetime (LED Lamp).

The ADC Diagnostix 5422 3.5V PMV Otoscope Head is designed for examination of the inner ear and uses advanced optical technology to create a panoramic, magnified view that features twice the field of view and 66% greater magnification (11 mm field of view, 5X magnification) compared to ADC's standard otoscope. The ADC Diagnostix 5442 3.5V Coax Plus Ophthalmoscope Head is intended to examine the media (cornea, aqueous, lens, and vitreous) and the retina of the eye. The ADC Diagnostix 5426 3.5V Throat Illuminator Head is designed for examination of the oral cavity and pharynx in combination with commercial wooden and plastic blades. The ADC Diagnostix 5450 3.5V Dermascope Head is produced for early identification of changes of skin pigmentation (malignant melanomas).

ADC Adstation 56802-56 3.5V Wall PMV Otoscope/Coax Plus Ophthalmoscope/Throat Illuminator/Dermascope Diagnostic Set Configurations

• ADC Adstation 56802-56 3.5V Wall PMV Otoscope/Coax Plus Ophthalmoscope/Throat Illuminator/Dermascope Diagnostic Set Configurations:
• Xenon Otoscope/Xenon Ophthalmoscope/Xenon Throat Illuminator/LED Dermascope (#56802X-56X) / European Plug (#56802X-56XEU).
• LED Otoscope/LED Ophthalmoscope/LED Throat Illuminator/LED Dermascope (#56802L-56L) / European Plug (#56802L-56LEU).
• Xenon Otoscope/Xenon Ophthalmoscope/LED Throat Illuminator/LED Dermascope (#56802X-56L) / European Plug (#56802X-56LEU).
• Xenon Otoscope/LED Ophthalmoscope/LED Throat Illuminator/LED Dermascope (#56802B-56L) / European Plug (#56802B-56LEU).
• LED Otoscope/Xenon Ophthalmoscope/LED Throat Illuminator/LED Dermascope (#56802A-56L) / European Plug (#56802A-56LEU).
• LED Otoscope/Xenon Ophthalmoscope/Xenon Throat Illuminator/LED Dermascope (#56802A-56X) / European Plug (#56802A-56XEU).
• LED Otoscope/LED Ophthalmoscope/Xenon Throat Illuminator/LED Dermascope (#56802L-56X) / European Plug (#56802L-56XEU).
• Xenon Otoscope/LED Ophthalmoscope/Xenon Throat Illuminator/LED Dermascope (#56802B-56X) / European Plug (#56802B-56XEU).
• Xenon Otoscope/Xenon Ophthalmoscope/Xenon Throat Illuminator/LED Dermascope with Specula Dispenser (#56802X-356X) / European Plug (#56802X-356XEU).
• LED Otoscope/LED Ophthalmoscope/LED Throat Illuminator/LED Dermascope with Specula Dispenser (#56802L-356L) / European Plug (#56802L-356LEU).
• Xenon Otoscope/Xenon Ophthalmoscope/LED Throat Illuminator/LED Dermascope with Specula Dispenser (#56802X-356L) / European Plug (#56802X-356LEU).
• Xenon Otoscope/LED Ophthalmoscope/LED Throat Illuminator/LED Dermascope with Specula Dispenser (#56802B-356L) / European Plug (#56802B-356LEU).
• LED Otoscope/Xenon Ophthalmoscope/LED Throat Illuminator/LED Dermascope with Specula Dispenser (#56802A-356L) / European Plug (#56802A-356LEU).
• LED Otoscope/Xenon Ophthalmoscope/Xenon Throat Illuminator/LED Dermascope with Specula Dispenser (#56802A-356X) / European Plug (#56802A-356XEU).
• LED Otoscope/LED Ophthalmoscope/Xenon Throat Illuminator/LED Dermascope with Specula Dispenser (#56802L-356X) / European Plug (#56802L-356XEU).
• Xenon Otoscope/LED Ophthalmoscope/Xenon Throat Illuminator/LED Dermascope with Specula Dispenser (#56802B-356X) / European Plug (#56802B-356XEU).

ADC Adstation 56802-56 3.5V Wall PMV Otoscope/Coax Plus Ophthalmoscope/Throat Illuminator/Dermascope Diagnostic Set Features

• ADC Diagnostix 5422 3.5V PMV Otoscope Head Features:
  • Significantly improved view of the auditory canal and tympanic membrane.
  • Fiber-optic light transmission for an unobstructed view.
  • Choose from halogen/xenon or high-performance LED illumination (4,200 Kelvin, CRI = 92).
  • Reflection-optimized, high-performance glass optics.
  • Adjustable focal depth.
  • Suitable for throat illumination and pneumatic otoscopy (insufflator sold separately).
  • Compatible with Welch Allyn specula.
  • Anti-theft locking feature is standard.
• ADC Diagnostix 5442 3.5V Coax Plus Ophthalmoscope Head Features:
  • High performance aspherical condenser lens reduces corneal reflection.
  • Further reduction provided by utilizing distinct parallel observational and illuminating light beam. (Gullstrand's principal).
  • Ergonomic design and integral thumb rest improves stability and allows one finger control of all functions.
  • Synthetic rubber brow rest facilitates use with practitioner eyeglasses.
  • Dust proof.
  • Magnified/illuminated aperture viewing window.
  • Universal bayonet mount for compatibility with other brands of 3.5V power supply handles.
  • Anti-theft locking feature is standard.
  • Secondary Focusing wheel with zero retention for quick correction of ametropias. Use this to provide virtually unlimited fine focus OR as a fast focus in lieu of the 89 viewing lenses.
  • 89 viewing lenses - Plus single step from 1-45. Minus single step from 1-44.

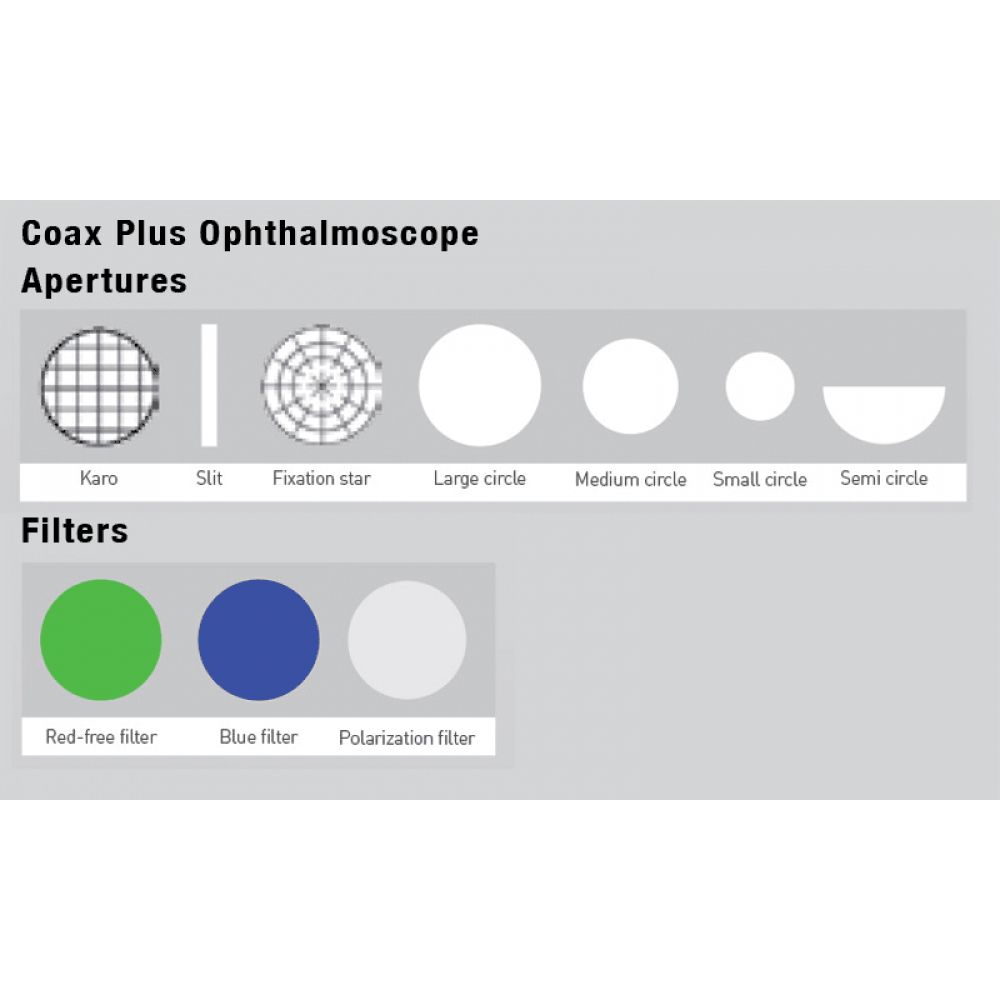

  • 28 aperture/filter combinations for improved versatility.
  • 7 apertures include:
    • Karo - grid like overlay that allows for easier transfer of observations to standard Karo (graph) paper.
    • Slit - used to help determine levels of tumors and lesions.
    • Fixation - has graduated cross-hairs for measuring eccentric fixation or locating lesions.
    • Large - standard aperture for a dilated pupil and general examination of the eye.
    • Small - provides excellent view of fundus through an undilated pupil.
    • Micro spot - allows quick entry into small, undilated pupils.
    • Half moon - provides a combination of depth perception and field of view.
  • 3 filters (plus neutral) include:
    • Red free - excludes red rays from examination field for easy identification of veins, arteries and nerve fibers.
    • Cobalt - used with fluorescent dye to view small lesions, abrasions and foreign objects on the cornea.
    • Polarizing - virtually eliminated corneal reflection.
• ADC Diagnostix 5426 3.5V Throat Illuminator Head Features:
  • PMMA light transmission (similar to Fiberoptic) for unobstructed view of oral cavity.
  • Tongue blade holder facilitates examination of the mouth and throat.
  • Eject button discards used tongue blade.
  • Universal bayonet mount for compatibility with other brands of 3.5v power supply handles.
  • Anti-theft locking feature is standard.
• ADC Diagnostix 5450 3.5V Dermascope Head Features:
  • Direct Illumination.
  • Optical grade 10X focusable magnifying lens.
  • Large knurled focusing ring.
  • Two interchangeable contact plates - one with scale, one without may be disinfected.
  • Comfortable soft eyepiece may be used with eyeglasses.
  • Anti-theft locking feature is standard.
  • AdLED illumination.
• ADC Wall Transformer Power Supply Features:
  • Magnetic switch activates power when handle is removed from cradle, automatically powers off when handle is replaced.
  • Handle is CNC machined from solid brass and chrome plated in black with a ribbed surface for a sure grip.
  • Adtronic electronic rheostatic light intensity control provides infinite continuous control.
  • Adtronic auto-off feature after two minutes provides additional safety if instrument is mis-cradled.
  • Bayonet instrument mount is compatible with all major brands of 3.5V instrument heads.
  • Base unit contains the power switch and one handle and the extension holds the other handle.
  • UL approved.

ADC Adstation 56802-56 3.5V Wall PMV Otoscope/Coax Plus Ophthalmoscope/Throat Illuminator/Dermascope Diagnostic Set Specifications

• Diagnostic Station Dimensions: 7.88" x 7.12" x 2.95" (20.02 cm x 18.08 cm x 7.5 cm).
• Extension Module Dimensions: 7.88" x 3.94" x 2.95" (20.02 cm x 10.01 cm x 7.5 cm).
