Condition:
-
Warranty:
- Weight: 6.85 lb
-
Learn more:
-
MFR:
American Diagnostic Corporation
Ships from MFI Medical
-
MPN: 56802X-5
- Phone: (800) 232-2670
Frequently asked questions
What diagnostic heads are included in this set?
The ADC Adstation 56802-5 includes three high-performance 3.5V instrument heads, enabling comprehensive examinations of the ear, eye, and skin:
- ADC Diagnostix 5422 PMV Otoscope Head: Features advanced optics providing 5X magnification and a panoramic 11mm field of view.
- ADC Diagnostix 5442 Coax Plus Ophthalmoscope Head: Includes 89 viewing lenses and 28 aperture/filter combinations, engineered with an aspherical condenser lens to minimize corneal reflection.
- ADC Diagnostix 5450 Dermascope Head: Utilizes high-performance AdLED illumination and an optical grade 10X focusable magnifying lens for precise skin assessment.
Is the wall aneroid sphygmomanometer included?
The wall aneroid sphygmomanometer is not included in the standard ADC Adstation 56802-5 diagnostic set; it is available as an optional upgrade.

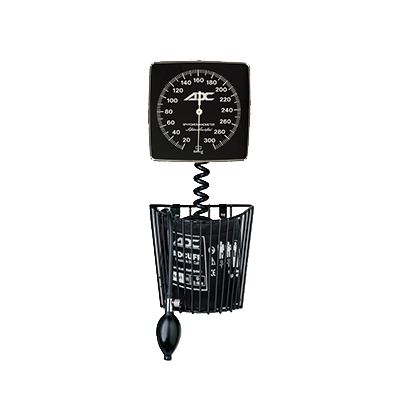

If you choose to integrate the optional ADC Diagnostix 750W Wall Aneroid Sphygmomanometer, it offers several high-quality features:
- Display: Large, easy-to-read 6-inch luminescent dial (300 mm Hg no-pin stop movement).
- Design: Features a wall bracket with 110-degree swivel rotation and a cuff storage basket.
- Inflation System: Includes the Adcuff Inflation System (Adult and Large Adult Nylon Cuff) and eight feet of coiled, latex-free tubing.
- Warranty: The manometer component carries a lifetime calibration warranty (the unit itself has a 3-year warranty).
Which high-performance diagnostic heads are included?

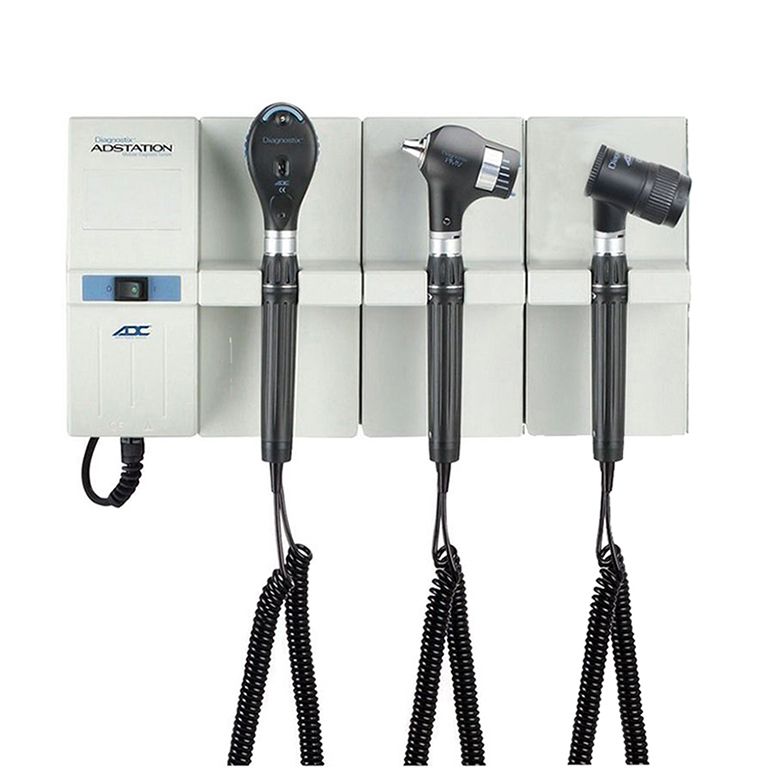

The ADC Adstation 56802-5 is a comprehensive set that includes three specialized 3.5V instrument heads:
- ADC Diagnostix 5422 PMV Otoscope: Features advanced optics providing a large 11 mm field of view and 5X magnification (66% greater than standard models). It uses fiber-optic light transmission.

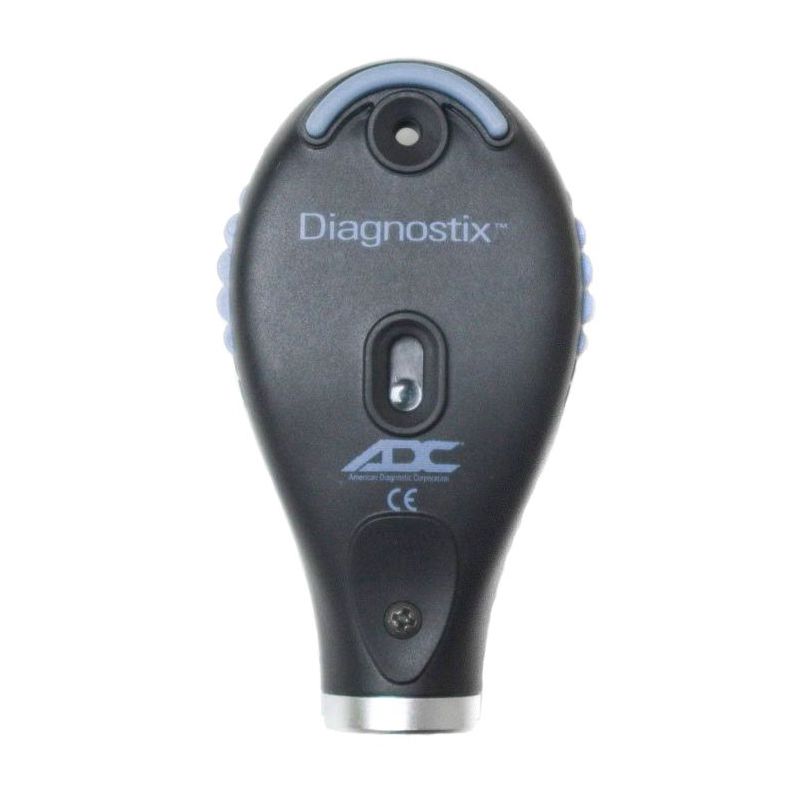

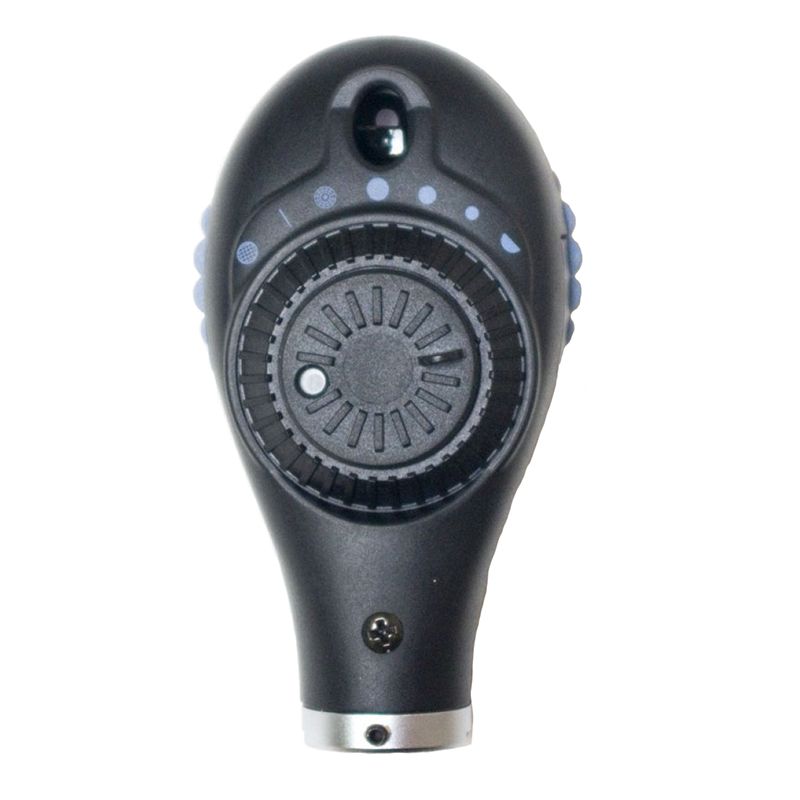

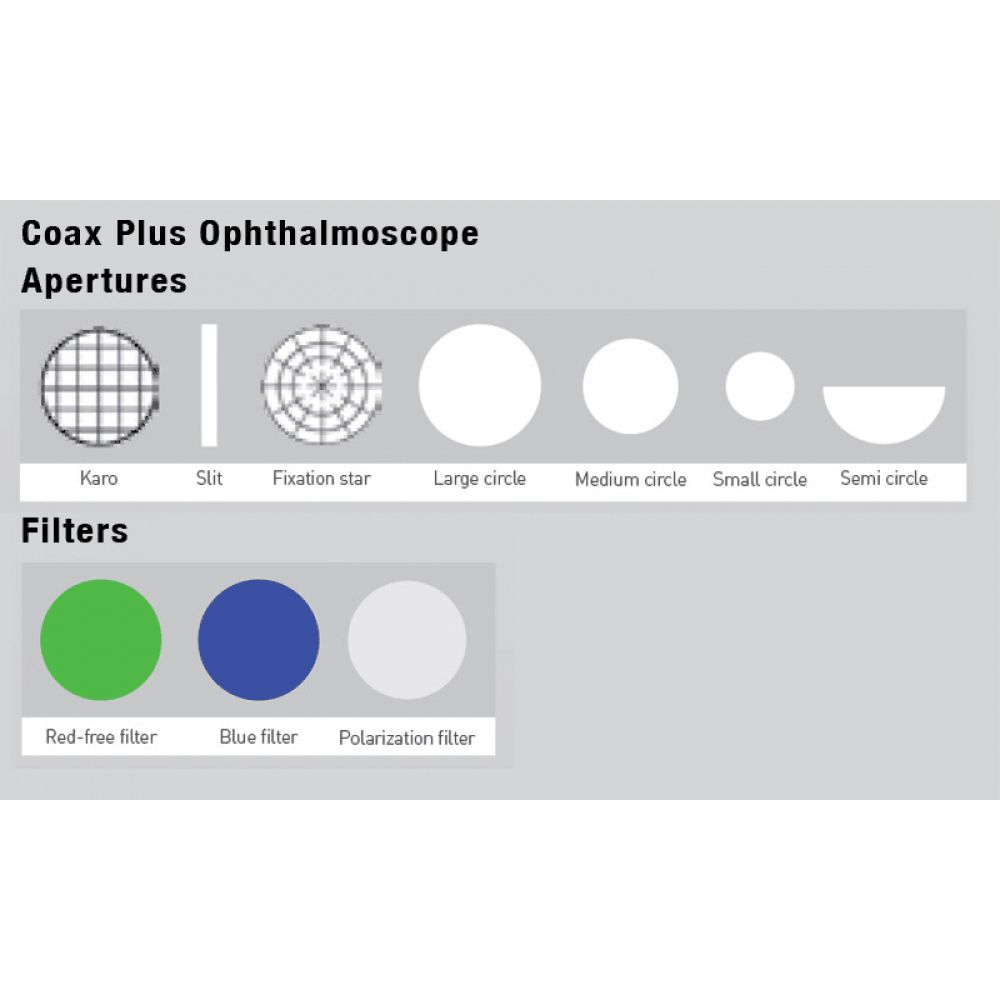

- ADC Diagnostix 5442 Coax Plus Ophthalmoscope: Designed with an aspherical condenser lens to reduce corneal reflection. It offers fine focus control with 89 viewing lenses and 28 aperture/filter combinations.
- ADC Diagnostix 5450 Dermascope: Optimized for detailed skin assessment, this head features optical grade 10X focusable magnification and utilizes high-fidelity AdLED illumination.
Does the wall transformer include an auto-off feature?

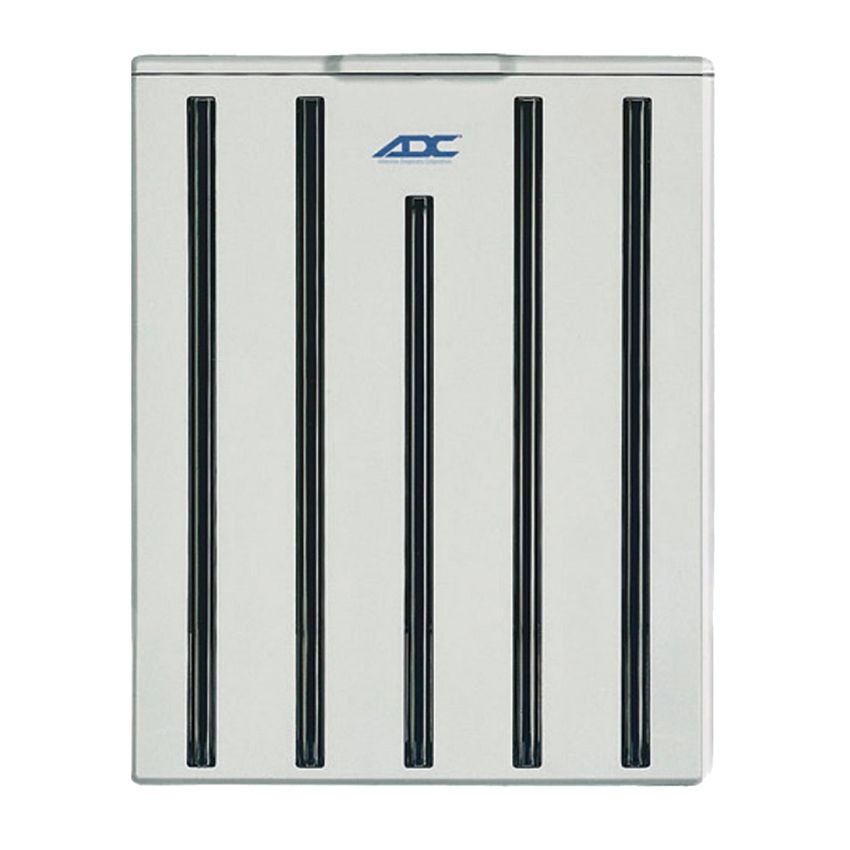

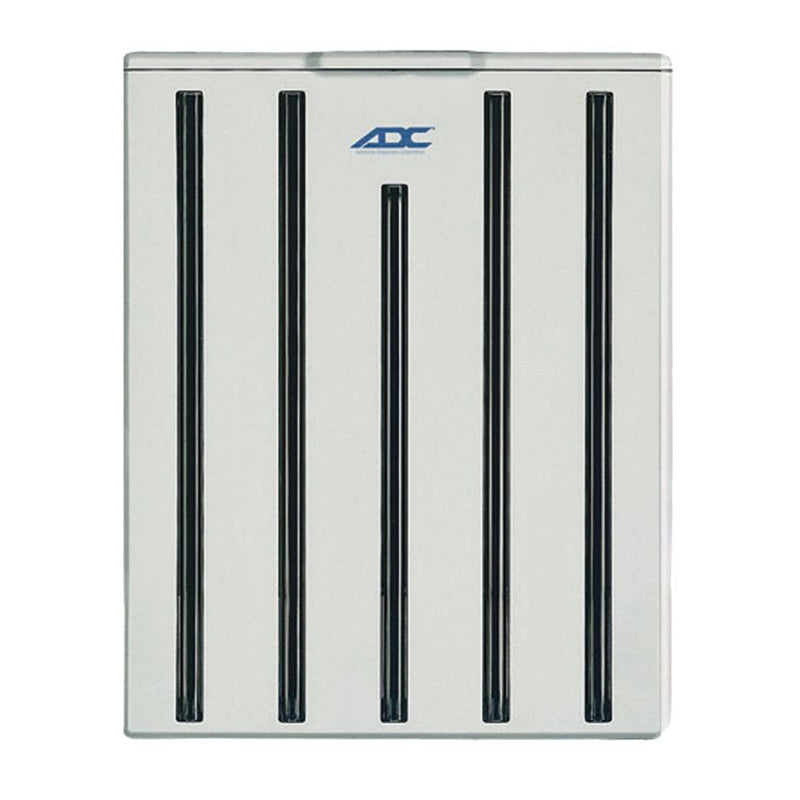

Yes, the 3.5V wall transformer base unit includes a critical safety and efficiency feature:
- It utilizes the Adtronic auto-off function, which automatically shuts off power after two minutes of inactivity.
- Power is also instantaneously activated by a magnetic switch when the instrument handle is removed from the cradle, allowing immediate use.
What illumination options are available?
The ADC Adstation provides flexible and high-performance illumination options for its instrument heads:
- PMV Otoscope and Coax Plus Ophthalmoscope: These heads offer a choice between traditional Halogen/Xenon lamps or advanced AdLED illumination.
- Dermascope Head: This head exclusively utilizes AdLED illumination.
The AdLED option offers superior light quality, featuring:
- Color Temperature: 4,200 Kelvin
- Color Rendering Index (CRI): 92
Are the instrument heads secured against theft?
Yes, certain instrument heads are equipped with security features. Specifically, the ADC Diagnostix 5422 PMV Otoscope Head includes an anti-theft locking feature to secure the device when it is in the wall transformer cradle.
Does the Adstation feature precise power control?
Yes, the Adstation is equipped with a 3.5V wall transformer featuring the intelligent Adtronic power management system, ensuring precise light intensity control and efficiency:
- Rheostatic Control: The Adtronic rheostatic control allows for infinite and continuous adjustment of light intensity, providing clinicians with precise illumination during all exams.
- Magnetic Activation: The unit features magnetic switching, which instantly activates the power the moment an instrument handle is removed from its cradle.
- Safety Auto-Off: To conserve energy and protect lamp life, the system automatically shuts off power after two minutes of inactivity.
What are the dimensions of the diagnostic station and extension modules?

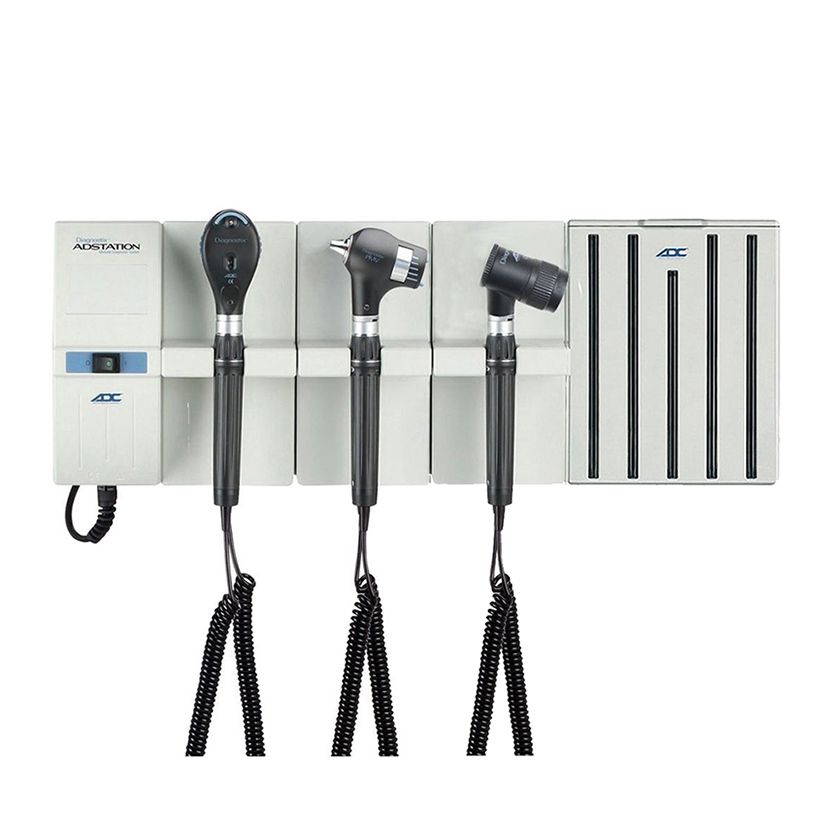

The dimensions for the ADC Adstation 56802-5 components are as follows:
- Diagnostic Station: 7.88” x 7.12” x 2.95” (20.02 cm x 18.08 cm x 7.5 cm)

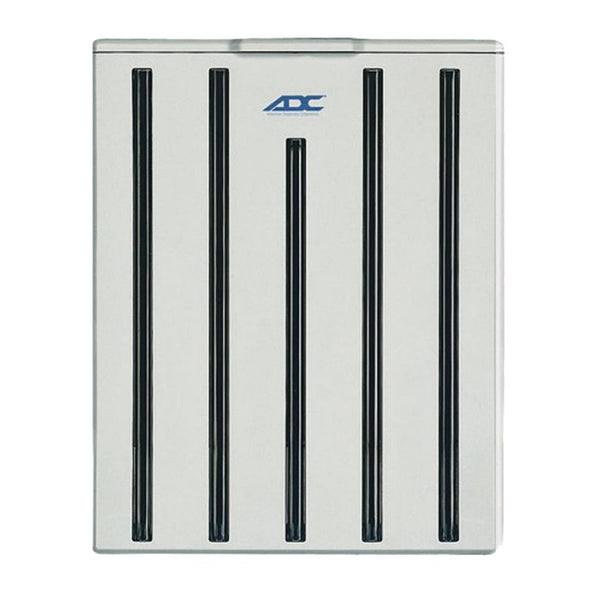

- Extension Module: 7.88” x 3.94” x 2.95” (20.02 cm x 10.01 cm x 7.5 cm)

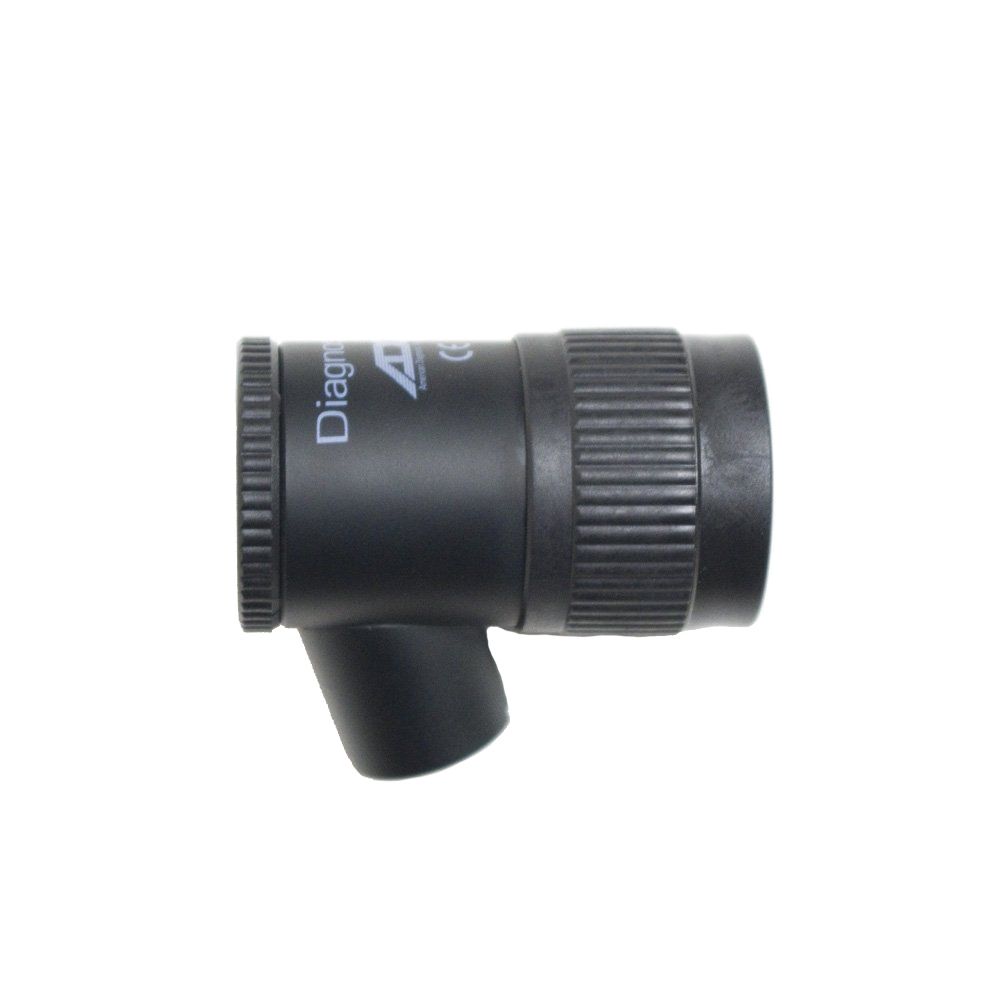

Is the dermascope magnification powerful?
Yes, the ADC Diagnostix 5450 Dermascope head offers a powerful 10X magnification.
This high-quality magnification is delivered via an optical grade, focusable magnifying lens. Key features of the dermascope include:
- 10X Focusable Lens: Allows for detailed visualization of skin structure.
- AdLED Illumination: Provides bright, consistent lighting, which is essential for accurate skin assessment (the Dermascope uses AdLED illumination exclusively).
- Practical Design: Features a large knurled focusing ring and two interchangeable contact plates (one with a measurement scale, one without) that are disinfectable.
Does the otoscope have enhanced optics?

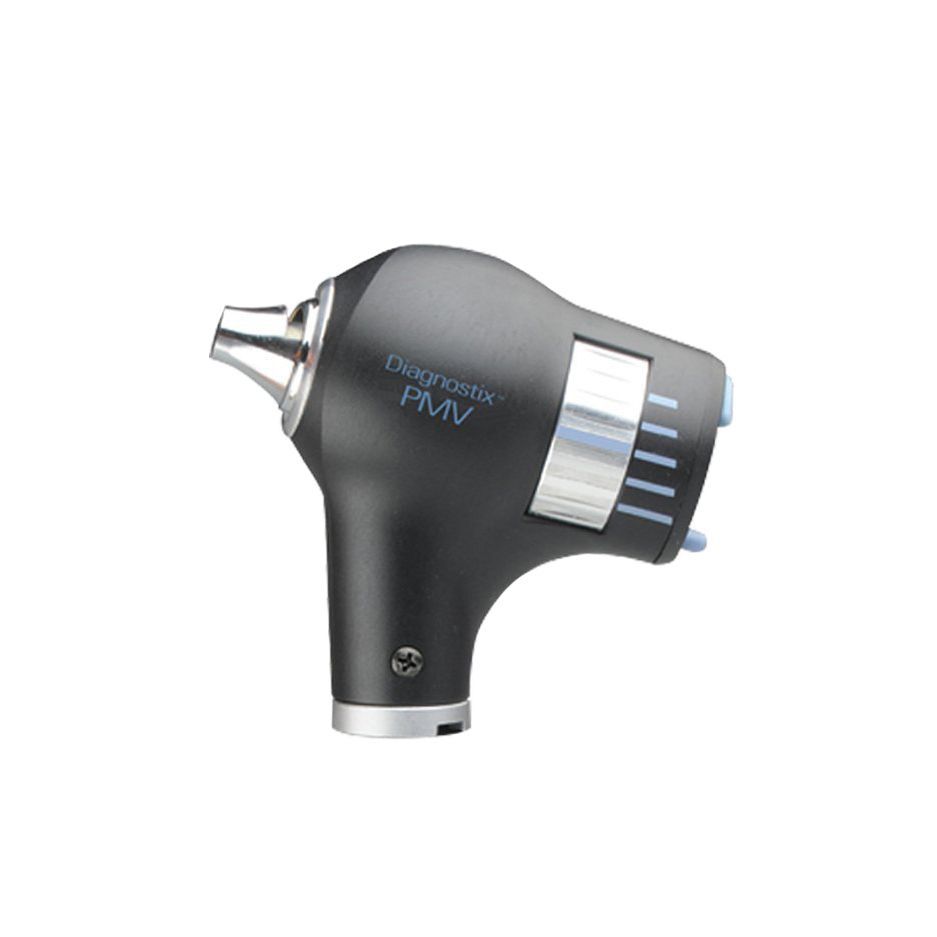

Yes, the included ADC Diagnostix 5422 PMV Otoscope Head (Panoramic Magnified View) features reflection-optimized, high-performance glass optics and fiber-optic light transmission for exceptional visualization.
This advanced design offers significant improvements in performance, including:
- 5X Magnification: Providing clear, detailed examination.
- 11 mm Field of View: Offering a wide, panoramic perspective.
- Adjustable Focal Depth: Enhancing clarity during the examination.
If configured with the AdLED illumination option, the otoscope provides high-quality light (4,200 Kelvin, CRI = 92), ensuring accurate and consistent tissue color representation.
