Key Features
  • SKU: ADC-5680X-6X
  • Condition:
    Condition: Factory New
  • Warranty:
    Warranty: 5 Years
  • Weight: 6.85 lb

  • Learn more:

Contact The Manufacturer
  • MFR: American Diagnostic Corporation
    Ships from MFI Medical
  • MPN: 5680X-6X
  • Phone: (800) 232-2670
$1,906.27 $1,166.94

+ Free Shipping

Est. Delivery:

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match

Description

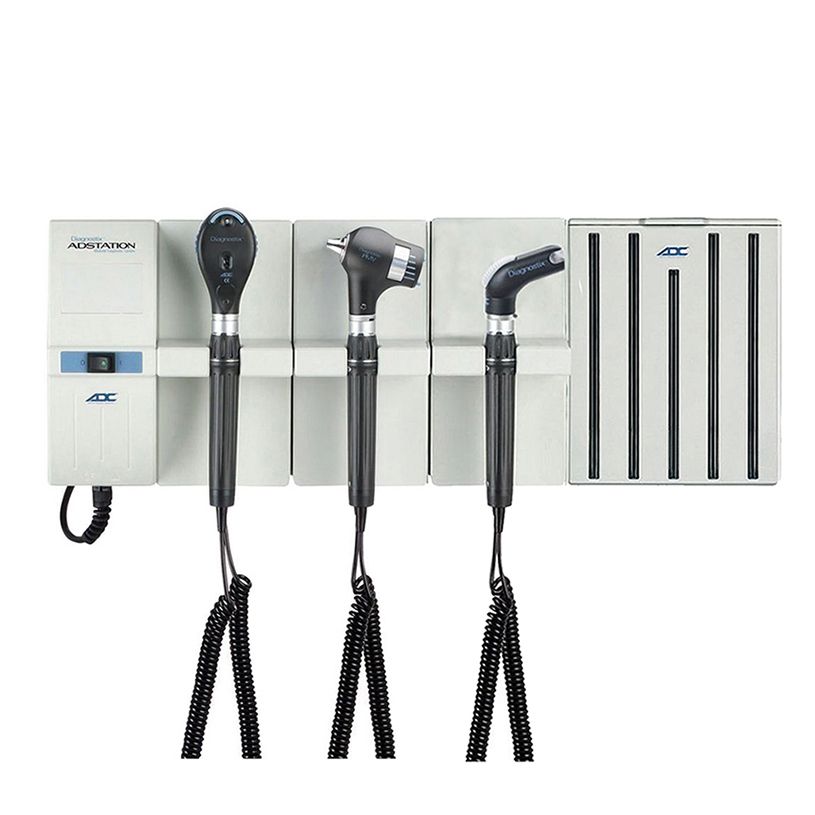

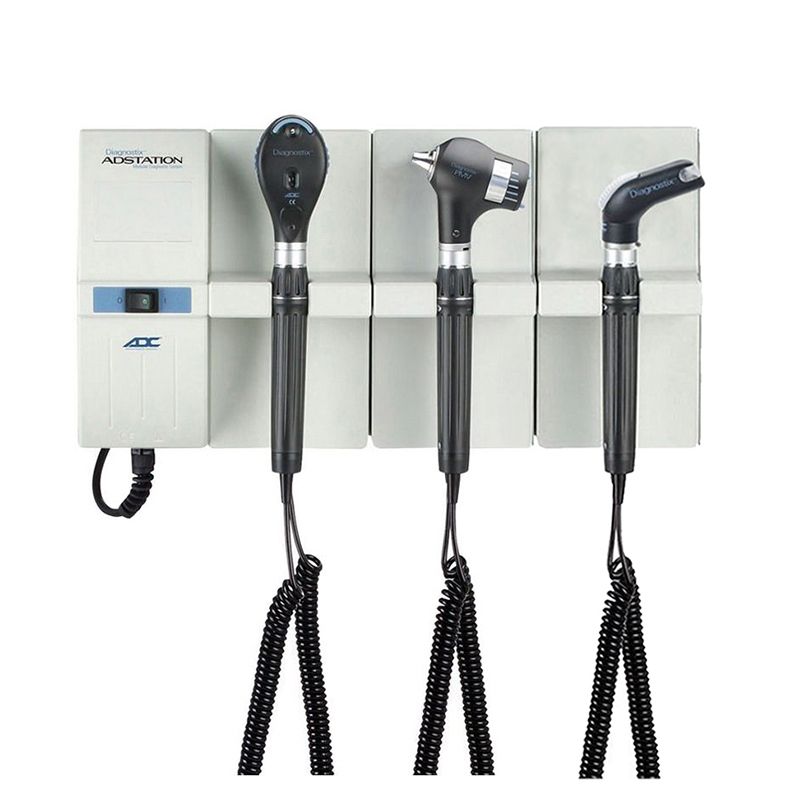

The ADC Adstation 5680-6 3.5V Wall PMV Otoscope/Ophthalmoscope/Throat Illuminator Diagnostic Set includes an ADC Diagnostix 5422 3.5V PMV Otoscope Head, an ADC Diagnostix 5440 3.5V Coax Ophthalmoscope Head, an ADC Diagnostix 5426 3.5V Throat Illuminator Head, a power supply base unit that includes a power switch, three 3.5V handles, and two extension modules. The wall transformer is available with a standard 120V or a 230V power supply with European plug in, and is easy to install with the included bracket or it may be mounted to ADC wallboard systems. All three ADC Diagnostix Heads are available with a halogen/xenon lamp or an advanced AdLED lamp.

The ADC 5630 Wall Specula Dispenser can also be added and is a hygienic and practical solution to storing specula and includes five tubes that can store specula.

An optional ADC Diagnostix 750W Wall Aneroid Sphygmomanometer can also be added and includes a wall bracket that swivels through 110 degrees rotation for easy viewing, and an Adcuff Inflation System which includes an Adult and Large Adult Nylon Cuff, an Adflow Bulb and Valve, coiled tubing, and a Cuff Storage Basket.

Warranty: 5 Years (Wall Transformer), 2 Years (Instrument Head and Xenon Lamps), Lifetime (LED Lamp), 3 Years (750W Wall Aneroid Sphygmomanometer. Manometer carries a lifetime calibration warranty).

The ADC Diagnostix 5422 3.5V PMV Otoscope Head uses advanced optical technology to create a panoramic, magnified view that features twice the field of view and 66% greater magnification (11 mm field of view, 5X magnification) compared to ADC's standard otoscope. The ADC Diagnostix 5440 3.5V Coax Ophthalmoscope Head is intended to examine the media (cornea, aqueous, lens, and vitreous) and the retina of the eye, and the ADC Diagnostix 5426 3.5V Throat Illuminator Head is designed for examination of the oral cavity and pharynx in combination with commercial wooden and plastic blades.

Configurations

ADC Adstation 5680-6 3.5V Wall PMV Otoscope/Ophthalmoscope/Throat Illuminator Diagnostic Set Configurations

  • ADC Adstation 5680-6 3.5V Wall PMV Otoscope/Ophthalmoscope/Throat Illuminator Diagnostic Set Configurations:
    • Xenon Otoscope/Xenon Ophthalmoscope/Xenon Throat Illuminator (#5680X-6X) / European Plug (#5680X-6XEU).
    • LED Otoscope/LED Ophthalmoscope/LED Throat Illuminator (#5680L-6L) / European Plug (#5680L-6LEU).
    • Xenon Otoscope/Xenon Ophthalmoscope/LED Throat Illuminator (#5680X-6L) / European Plug (#5680X-6LEU).
    • Xenon Otoscope/LED Ophthalmoscope/LED Throat Illuminator (#5680B-6L) / European Plug (#5680B-6LEU).
    • LED Otoscope/Xenon Ophthalmoscope/LED Throat Illuminator (#5680A-6L) / European Plug (#5680A-6LEU).
    • LED Otoscope/Xenon Ophthalmoscope/Xenon Throat Illuminator (#5680A-6X) / European Plug (#5680A-6XEU).
    • LED Otoscope/LED Ophthalmoscope/Xenon Throat Illuminator (#5680L-6X) / European Plug (#5680L-6XEU).
    • Xenon Otoscope/LED Ophthalmoscope/Xenon Throat Illuminator (#5680B-6X) / European Plug (#5680B-6XEU).
    • Xenon Otoscope/Xenon Ophthalmoscope/Xenon Throat Illuminator with Specula Dispenser (#5680X-36X) / European Plug (#5680X-36XEU).
    • LED Otoscope/LED Ophthalmoscope/LED Throat Illuminator with Specula Dispenser (#5680L-36L) / European Plug (#5680L-36LEU).
    • Xenon Otoscope/Xenon Ophthalmoscope/LED Throat Illuminator with Specula Dispenser (#5680X-36L) / European Plug (#5680X-36LEU).
    • Xenon Otoscope/LED Ophthalmoscope/LED Throat Illuminator with Specula Dispenser (#5680B-36L) / European Plug (#5680B-36LEU).
    • LED Otoscope/Xenon Ophthalmoscope/LED Throat Illuminator with Specula Dispenser (#5680A-36L) / European Plug (#5680A-36LEU).
    • LED Otoscope/Xenon Ophthalmoscope/Xenon Throat Illuminator with Specula Dispenser (#5680A-36X) / European Plug (#5680A-36XEU).
    • LED Otoscope/LED Ophthalmoscope/Xenon Throat Illuminator with Specula Dispenser (#5680L-36X) / European Plug (#5680L-36XEU).
    • Xenon Otoscope/LED Ophthalmoscope/Xenon Throat Illuminator with Specula Dispenser (#5680B-36X) / European Plug (#5680B-36XEU).
    • Xenon Otoscope/Xenon Ophthalmoscope/Xenon Throat Illuminator with Clock Aneroid (#5680X-6X7) / European Plug (#5680X-6X7EU).
    • LED Otoscope/LED Ophthalmoscope/LED Throat Illuminator with Clock Aneroid (#5680L-6L7) / European Plug (#5680L-6L7EU).
    • Xenon Otoscope/Xenon Ophthalmoscope/LED Throat Illuminator with Clock Aneroid (#5680X-6L7) / European Plug (#5680X-6L7EU).
    • Xenon Otoscope/LED Ophthalmoscope/LED Throat Illuminator with Clock Aneroid (#5680B-6L7) / European Plug (#5680B-6L7EU).
    • LED Otoscope/Xenon Ophthalmoscope/LED Throat Illuminator with Clock Aneroid (#5680A-6L7) / European Plug (#5680A-6L7EU).
    • LED Otoscope/Xenon Ophthalmoscope/Xenon Throat Illuminator with Clock Aneroid (#5680A-6X7) / European Plug (#5680A-6X7EU).
    • LED Otoscope/LED Ophthalmoscope/Xenon Throat Illuminator with Clock Aneroid (#5680L-6X7) / European Plug (#5680L-6X7EU).
    • Xenon Otoscope/LED Ophthalmoscope/Xenon Throat Illuminator with Clock Aneroid (#5680B-6X7) / European Plug (#5680B-6X7EU).
    • Xenon Otoscope/Xenon Ophthalmoscope/Xenon Throat Illuminator with Specula Dispenser and Clock Aneroid (#5680X-36X7) / European Plug (#5680X-36X7EU).
    • LED Otoscope/LED Ophthalmoscope/LED Throat Illuminator with Specula Dispenser and Clock Aneroid (#5680L-36L7) / European Plug (#5680L-36L7EU).
    • Xenon Otoscope/Xenon Ophthalmoscope/LED Throat Illuminator with Specula Dispenser and Clock Aneroid (#5680X-36L7) / European Plug (#5680X-36L7EU).
    • Xenon Otoscope/LED Ophthalmoscope/LED Throat Illuminator with Specula Dispenser and Clock Aneroid (#5680B-36L7) / European Plug (#5680B-36L7EU).
    • LED Otoscope/Xenon Ophthalmoscope/LED Throat Illuminator with Specula Dispenser and Clock Aneroid (#5680A-36L7) / European Plug (#5680A-36L7EU).
    • LED Otoscope/Xenon Ophthalmoscope/Xenon Throat Illuminator with Specula Dispenser and Clock Aneroid (#5680A-36X7) / European Plug (#5680A-36X7EU).
    • LED Otoscope/LED Ophthalmoscope/Xenon Throat Illuminator with Specula Dispenser and Clock Aneroid (#5680L-36X7) / European Plug (#5680L-36X7EU).
    • Xenon Otoscope/LED Ophthalmoscope/Xenon Throat Illuminator with Specula Dispenser and Clock Aneroid (#5680B-36X7) / European Plug (#5680B-36X7EU).

Features

ADC Adstation 5680-6 3.5V Wall PMV Otoscope/Ophthalmoscope/Throat Illuminator Diagnostic Set Features

  • ADC Diagnostix 5422 3.5V PMV Otoscope Head Features:
    • Significantly improved view of the auditory canal and tympanic membrane.
    • Fiber-optic light transmission for an unobstructed view.
    • Choose from halogen/xenon or high-performance LED illumination (4,200 Kelvin, CRI = 92).
    • Reflection-optimized, high-performance glass optics.
    • Adjustable focal depth.
    • Suitable for throat illumination and pneumatic otoscopy (insufflator sold separately).
    • Compatible with Welch Allyn specula.
    • Anti-theft locking feature is standard.
  • ADC Diagnostix 5440 3.5V Coax Ophthalmoscope Head Features:
    • High performance aspherical condenser lens reduces corneal reflection.
    • Further reduction provided by utilizing distinct parallel observational and illuminating light beams (Gullstrand's principal).
    • Ergonomic design and integral thumb rest improves stability and allows one finger control of all functions.
    • Synthetic rubber brow rest facilitates use with practitioner eyeglasses.
    • Dust proof.
    • Magnified/illuminated aperture viewing window.
    • Universal bayonet mount for compatibility with other brands of 3.5v power supply handles.
    • Anti-theft locking feature is standard.
    • 29 viewing lenses from -35 to plus 40 (Plus 1-10, 12, 15, 20, 40 - Minus 1-10, 15, 20, 25, 30, 35).
    • 24 aperture/filter combinations for improved versatility.

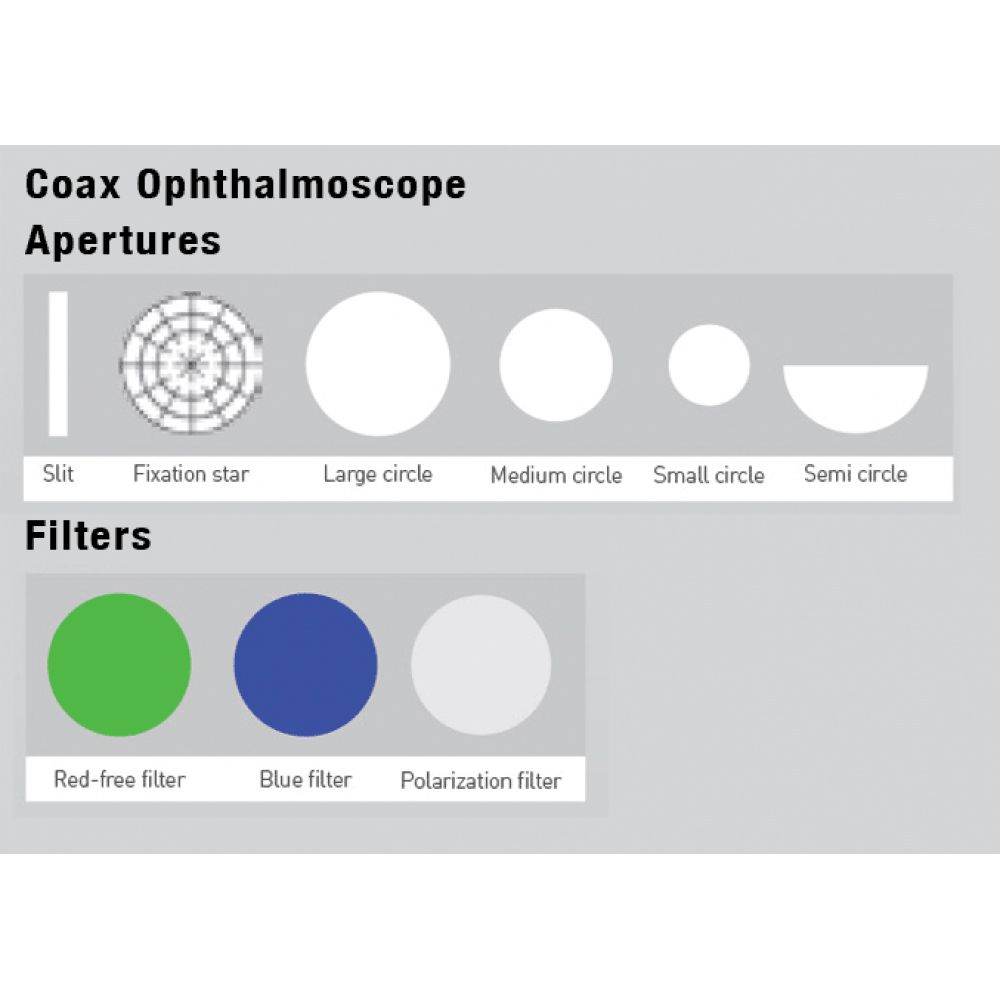

    • 6 apertures include:
      • Slit - used to help determine levels of tumors and lesions.
      • Fixation - has graduated cross-hairs for measuring eccentric fixation or locating lesions.
      • Large - standard aperture for a dilated pupil and general examination of the eye.
      • Small - provides excellent view of fundus through an undilated pupil.
      • Micro spot- allows quick entry into small, undilated pupils.
      • Half moon - provides a combination of depth perception and field of view.
    • 3 filters (plus neutral) include:
      • Red free- excludes red rays from examination field for easy identification of veins, arteries and nerve fibers.
      • Cobalt - used with fluorescent dye to view small lesions, abrasions and foreign objects on the cornea.
      • Polarizing - virtually eliminates corneal reflection.
  • ADC Diagnostix 5426 3.5V Throat Illuminator Head Features:
    • PMMA light transmission (similar to Fiberoptic) for unobstructed view of oral cavity.
    • Tongue blade holder facilitates examination of the mouth and throat.
    • Eject button discards used tongue blade.
    • Universal bayonet mount for compatibility with other brands of 3.5v power supply handles.
    • Anti-theft locking feature is standard.
  • ADC Wall Transformer Power Supply Features:
    • Magnetic switch activates power when handle is removed from cradle, automatically powers off when handle is replaced.
    • Handle is CNC machined from solid brass and chrome plated in black with a ribbed surface for a sure grip.
    • Adtronic electronic rheostatic light intensity control provides infinite continuous control.
    • Adtronic auto-off feature after two minutes provides additional safety if instrument is mis-cradled.
    • Bayonet instrument mount is compatible with all major brands of 3.5V instrument heads.
    • Base unit contains the power switch and one handle and the extension holds the other handle.
    • One additional extension module can be added.
    • UL approved.

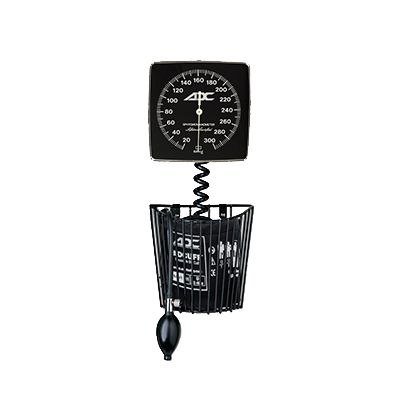

  • ADC Diagnostix 750W Wall Aneroid Sphygmomanometer Features:
    • Large, easy-to-read 6" luminescent dial for high visibility in virtually any light condition.
    • 300 mm Hg no-pin stop movement withstands the heaviest use.
    • Eight foot length (when extended) of coiled tubing not made with natural rubber latex.

Specifications

ADC Adstation 5680-6 3.5V Wall PMV Otoscope/Ophthalmoscope/Throat Illuminator Diagnostic Set Specifications

  • Diagnostic Station Dimensions: 7.88" x 7.12" x 2.95" (20.02 cm x 18.08 cm x 7.5 cm).
  • Extension Module Dimensions: 7.88" x 3.94" x 2.95" (20.02 cm x 10.01 cm x 7.5 cm).
  • Adcuff Size - Adult: 9" - 15.7" (23 cm - 40 cm).
  • Adcuff Size - Large Adult: 13.3" - 19.6" (34 cm - 50 cm).

Frequently asked questions

What high-performance diagnostic heads are included?

The ADC Adstation 5680-6 is a complete, wall-mounted diagnostic system that includes three 3.5V high-performance instrument heads, all secured by an anti-theft locking mechanism. Users can select instrument heads configured with either traditional Halogen/Xenon or advanced AdLED illumination (CRI = 92).

The included diagnostic heads are:

  • ADC Diagnostix 5422 PMV Otoscope Head: Designed with advanced optics, it features 5X magnification and an expansive 11 mm field of view, offering a panoramic scope superior to standard otoscopes. It is compatible with standard Welch Allyn specula and pneumatic otoscopy (insufflator sold separately).
  • ADC Diagnostix 5440 Coax Ophthalmoscope Head: Utilizes coaxial illumination and a high-performance aspherical condenser lens to minimize corneal reflection. It features a wide diagnostic range with 29 viewing lenses (-35 to +40 Diopters) and 24 aperture/filter combinations (including Red free, Cobalt, and Polarizing filters).
  • ADC Diagnostix 5426 Throat Illuminator Head: Features PMMA light transmission for an unobstructed viewing area, specifically designed for clear visualization of the oral cavity. It includes a convenient tongue blade holder with an eject button for hygienic removal.
Does the PMV otoscope offer 5X magnification?

Yes, the ADC Diagnostix 5422 PMV (Panoramic Magnified View) Otoscope head is engineered for superior optical performance and significantly enhanced viewing. It delivers a comprehensive examination experience through:

  • 5X Magnification: Provides exceptional detail for visualizing the ear canal and tympanic membrane.
  • Panoramic 11 mm Field of View: This feature effectively doubles the field of view compared to standard otoscopes, improving diagnostic coverage.
  • Specula Compatibility: The otoscope is compatible with standard Welch Allyn specula.
  • Pneumatic Capability: It is suitable for use with pneumatic otoscopy (Note: the insufflator is sold separately).
  • Security Feature: An anti-theft locking feature is included as standard on the head.
Does the station use smart power control?

Yes, the ADC Adstation 5680-6 features the advanced Adtronic electronic power management system, which enhances efficiency and ease of use in clinical settings. The wall transformer is available in both 120V (standard) and 230V configurations.

The key features of this smart power control include:

  • Automatic Activation: Power is instantly activated via a magnetic switch when the instrument handle is removed from its cradle, streamlining workflow.
  • Precise Light Control: The electronic rheostatic control offers infinite, continuous adjustment of light intensity for optimal examination conditions.
  • Energy Conservation: The system automatically shuts down power after two minutes of non-use (Adtronic auto-off), helping to conserve energy and prolong lamp life.
What illumination options are included?

The ADC Adstation 5680-6 offers flexible illumination options for the instrument heads, allowing you to select the best light source for your clinical workflow:

  1. Advanced AdLED Illumination
    • This high-performance LED option provides superior light quality essential for accurate tissue color assessment.
    • It features a color temperature of 4,200 Kelvin and a high Color Rendering Index (CRI = 92).
    • For exceptional reliability, the AdLED lamp is backed by a Lifetime Warranty.
  2. Halogen/Xenon Lamps
    • These are reliable, traditional light sources suitable for general diagnostic procedures.
    • The Halogen/Xenon lamps are covered by a 2-year warranty.
Is the wall aneroid sphygmomanometer optional?

Yes, the ADC 750W Wall Aneroid Sphygmomanometer is an optional component that can be integrated into your Adstation configuration.

This high-quality blood pressure monitoring system is designed for clinical use and includes:

  • High Visibility: Features a high-visibility luminescent dial mounted on a wall bracket with 110-degree swivel rotation.
  • Inflation System: Includes the Adcuff Inflation System, Adflow Bulb/Valve, and coiled tubing, along with a dedicated Cuff Storage Basket.
  • Cuff Sizes: The included nylon Adcuffs accommodate a wide range of patients:
    • Adult: Fits 9 in - 15.7 in (23 cm - 40 cm).
    • Large Adult: Fits 13.3 in - 19.6 in (34 cm - 50 cm).

The wall aneroid unit carries a 3-year warranty, and the manometer itself is protected by a lifetime calibration warranty for guaranteed accuracy.

What advanced features does the Ophthalmoscope offer?

The ADC Diagnostix 5440 Coax Ophthalmoscope Head is designed with advanced optics and extensive controls to ensure superior examination of the eye’s interior media and retina.

Key features that enhance visualization and ease of use include:

  • Coax Illumination: Utilizes a coaxial light path which significantly helps to reduce corneal reflection and minimize glare.
  • Wide Lens Range: Equipped with 29 viewing lenses, offering a comprehensive focus range from -35 to +40 diopters.
  • Extensive Aperture & Filter Combinations: Allows precise tailoring of the light beam with 24 different settings:
    • Apertures: Slit, Fixation, Large, Small, Micro spot, and Half moon.
    • Filters: Red free (for viewing vessels), Cobalt (for corneal staining), Polarizing (to eliminate reflection), plus a neutral filter.
  • Ergonomics: The design includes an integral thumb rest for enhanced stability and one-finger control during use.
  • Security: Features a standard anti-theft locking mechanism.
Does the ADC Adstation include anti-theft features?

Yes, the ADC Adstation features an anti-theft locking feature standard on all instrument heads, including the otoscope, ophthalmoscope, and throat illuminator. This design helps secure these valuable components to the wall-mounted unit.

Does the diagnostic station have a strong warranty?

Yes, the ADC Adstation is supported by a comprehensive, tiered warranty structure:

  • Wall Transformer: Covered by a generous 5-year warranty.
  • Instrument Heads and Xenon Lamps: Protected for 2 years.
  • AdLED Lamp: Features an outstanding lifetime warranty.
  • Optional ADC 750W Wall Aneroid Sphygmomanometer: If included, this component has a 3-year warranty, and the manometer itself carries a lifetime calibration warranty for sustained accuracy.
What are the dimensions of the ADC Adstation?

The dimensions of the wall-mounted components are:

  • Diagnostic Station (Power Supply Base Unit): 7.88” (W) x 7.12” (H) x 2.95” (D)
    • (20.02 cm x 18.08 cm x 7.5 cm)
  • Extension Module: 7.88” (W) x 3.94” (H) x 2.95” (D)
    • (20.02 cm x 10.01 cm x 7.5 cm)
Does the wall mount allow for simple installation?

Yes, the ADC Adstation 5680-6 is designed for simple and secure wall mounting in professional medical settings. Its features include:

  • Included Hardware: The system comes with a dedicated mounting bracket for easy installation of the wall transformer power supply base unit.
  • Modular Compatibility: It is fully compatible with and easily mountable to existing ADC wallboard systems, facilitating integration with optional accessories such as the specula dispenser or wall aneroid sphygmomanometer.
