Condition:
-
Warranty:
- Weight: 6.85 lb
-
Learn more:
-
MFR:
American Diagnostic Corporation
Ships from MFI Medical
-
MPN: 5680X-5
- Phone: (800) 232-2670
Frequently asked questions
Does the Adstation include three diagnostic heads?
Yes, the ADC Adstation 5680-5 comes standard with a comprehensive set of three 3.5V diagnostic instrument heads to cover key physical examination needs:
- ADC Diagnostix 5422 PMV Otoscope Head: Designed for superior visualization, it offers a panoramic view with 5X magnification and an 11 mm field of view. It features reflection-optimized glass optics and utilizes fiber-optic light transmission. Illumination can be configured with Halogen/Xenon or high-performance AdLED.
- ADC Diagnostix 5440 Coax Ophthalmoscope Head: This head uses Gullstrand’s principal to effectively minimize corneal reflection. It provides precise control with 29 viewing lenses (-35 to +40) and six apertures/three filters for thorough fundus examination. Illumination can be configured with Halogen/Xenon or AdLED.
- ADC Diagnostix 5450 Dermascope Head: Specialized for detailed skin assessment, this head exclusively uses AdLED illumination (CRI=92, 4,200 Kelvin) and features an optical grade 10X focusable magnifying lens. It includes two interchangeable, disinfectable contact plates.
Does the Adstation have a comprehensive warranty?
Yes, the ADC Adstation diagnostic set is supported by strong, tiered warranties, including lifetime coverage on crucial components. This reflects the high quality and durability of the system.
Here is a breakdown of the specific warranty periods:
- Lifetime Coverage:
- The high-performance AdLED Lamps (used in the Dermascope head, and optionally in the Otoscope/Ophthalmoscope).
- Manometer Calibration for the optional ADC Diagnostix 750W Wall Aneroid Sphygmomanometer.
- 5-Year Coverage:
- The core Wall Transformer base unit.
- 3-Year Coverage:
- The complete optional 750W Wall Aneroid Sphygmomanometer unit.
- 2-Year Coverage:
- The diagnostic Instrument Heads (Otoscope, Ophthalmoscope, Dermascope).
- Any included Xenon Lamps.
What cuff sizes are included with the optional sphygmomanometer?

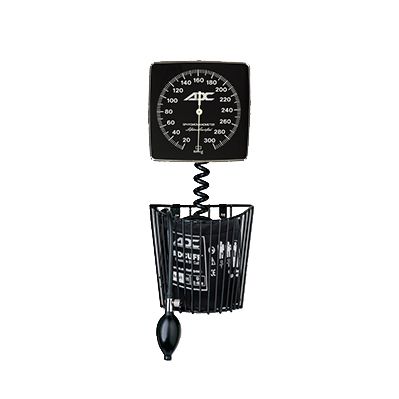

The optional ADC Diagnostix 750W Wall Aneroid Sphygmomanometer includes an Adcuff Inflation System with the following two nylon, latex-free cuff sizes:
- Adult Cuff: 9” – 15.7”
- Large Adult Cuff: 13.3” – 19.6”
The complete inflation system also features an 8-foot extended coiled tube and a dedicated cuff storage basket.
What illumination options are available for the otoscope and ophthalmoscope?
The ADC Adstation 5680-5 provides modular illumination choices for its instrument heads:
- Otoscope and Ophthalmoscope: You can configure these heads with either traditional Halogen/Xenon lamps or high-efficiency AdLED illumination.
- Dermascope: This head comes standard with high-performance AdLED illumination, which provides 4,200 Kelvin color temperature and a Color Rendering Index (CRI) of 92.
What high-quality diagnostic instruments are included?

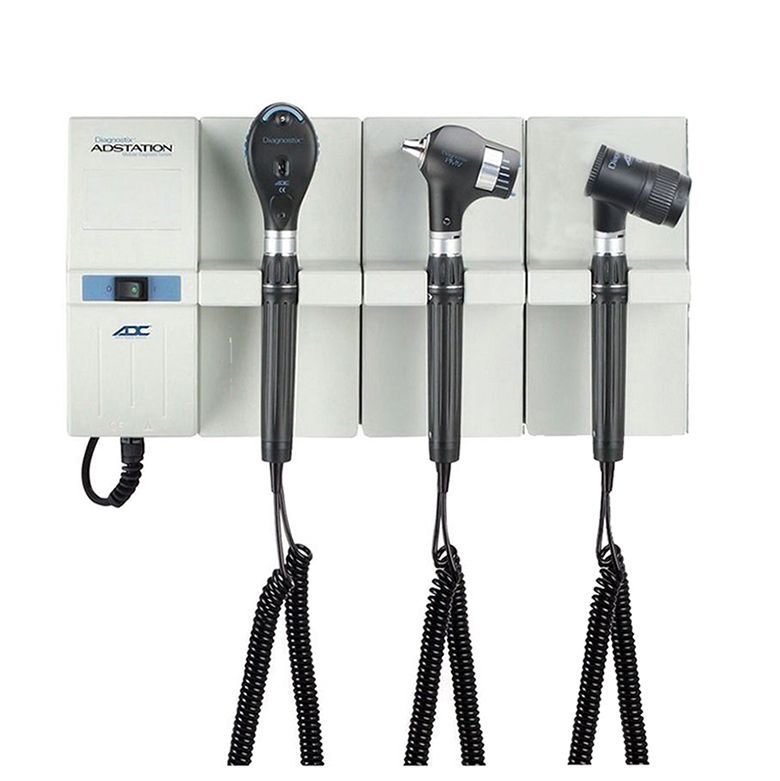

The ADC Adstation 5680-5 is a modular, comprehensive diagnostic set that includes three primary instrument heads and the complete 3.5V wall-mounted power system.
Included Diagnostic Instruments
- ADC Diagnostix 5422 PMV Otoscope Head:
- Provides a panoramic, magnified view with an 11 mm field of view (twice the size of standard models).
- Features 5X magnification, fiber-optic light transmission, and is compatible with standard Welch Allyn specula.
- ADC Diagnostix 5440 Coax Ophthalmoscope Head:
- Designed using Gullstrand’s principal to effectively minimize corneal reflection.

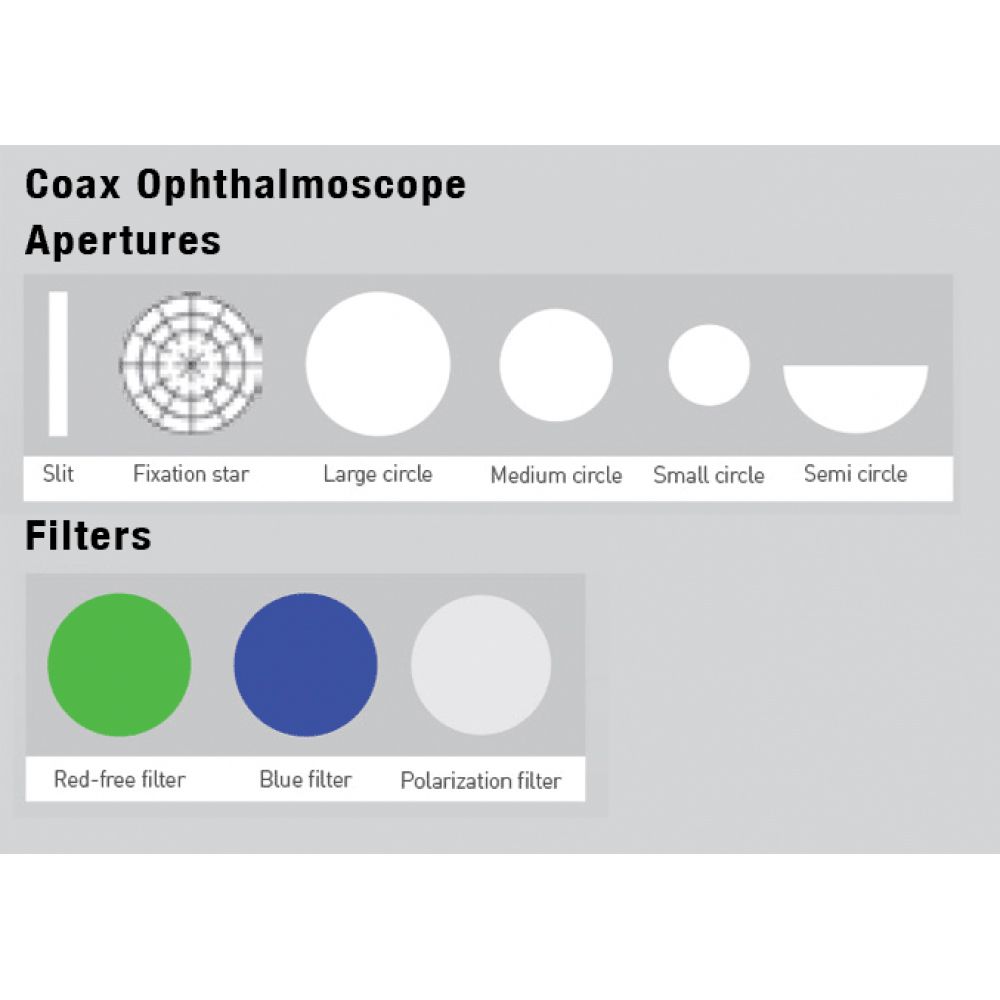

- Highly versatile, featuring 29 viewing lenses (ranging from -35 to +40) and 24 aperture/filter combinations (including Red free, Cobalt, and Polarizing filters).
- ADC Diagnostix 5450 Dermascope Head:
- Utilizes high-performance AdLED illumination.
- Includes an optical grade 10X focusable magnifying lens and two interchangeable, disinfected contact plates.
Included Wall System Components
In addition to the heads, the system includes:
- 3.5V Wall Transformer Base Unit: Features an automatic magnetic switch and Adtronic electronic rheostatic control for infinite light intensity adjustment.
- Three 3.5V Handles: CNC machined from solid brass and chrome plated for durability.
- Two Extension Modules and the necessary mounting bracket.
All three instrument heads feature an anti-theft locking mechanism.
Does the Adstation feature precise continuous light control?
Yes, the ADC Adstation provides highly precise light management through the Adtronic electronic rheostatic control built into the wall transformer base. This system offers several key benefits:
- Infinite Continuous Control: This allows you to infinitely and continuously adjust the light intensity, ensuring optimal illumination for every specific examination.
- Magnetic Activation: The handles instantly power on via a magnetic switch when removed from the cradle.
- Adtronic Auto-Off: For energy efficiency and safety, the instruments automatically power down after two minutes of inactivity, or immediately when the handle is returned to the unit.
Can a convenient specula dispenser be added?

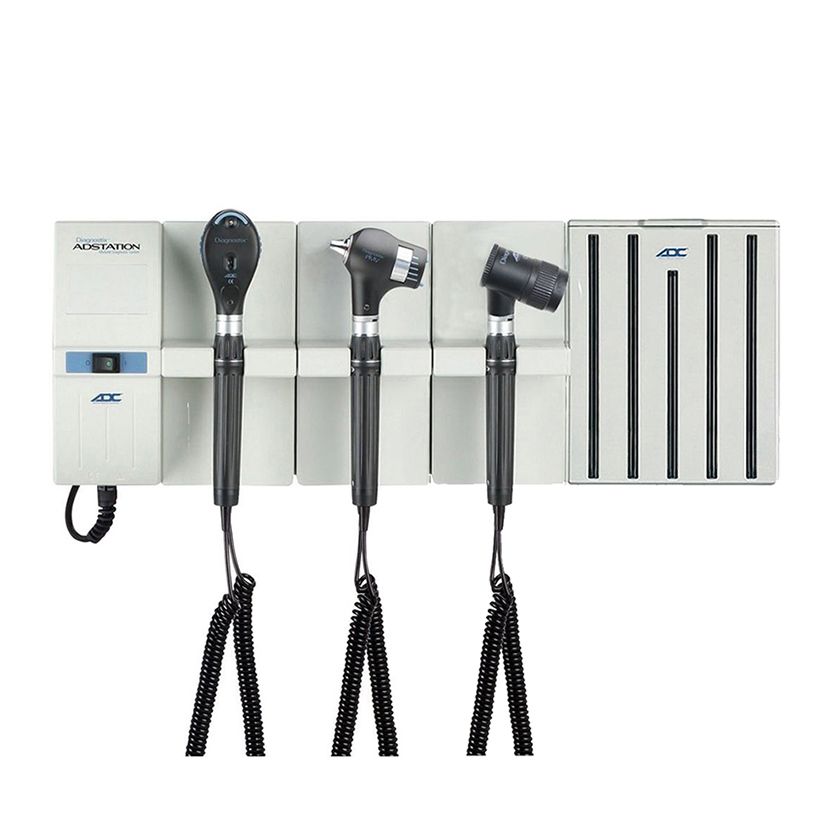

Yes, the ADC Adstation 5680-5 can be configured with the optional ADC 5630 Wall Specula Dispenser. This accessory provides convenient and hygienic storage, capable of holding up to five tubes of specula for efficient workflow.
What are the station and module dimensions?
The dimensions of the wall-mounted diagnostic station and its extension modules are detailed below:
- Diagnostic Station (Transformer Base Unit): 7.88” x 7.12” x 2.95” (20.02 cm x 18.08 cm x 7.5 cm)
- Extension Module: 7.88” x 3.94” x 2.95” (20.02 cm x 10.01 cm x 7.5 cm)
What are the voltage options for the wall transformer?
The wall transformer for the ADC Adstation diagnostic set is available in two power supply voltage options:
- 120V: The standard option.
- 230V: Available for use with European plug-in requirements.
What is the warranty coverage for this diagnostic set?
The ADC Adstation 5680-5 diagnostic set features robust warranty coverage, reflecting the quality construction of its components:
- Wall Transformer: 5 Years
- AdLED Lamps (Lifetime Illumination): Lifetime Warranty
- Instrument Heads and Xenon Lamps: 2 Years
If the system is configured to include the optional ADC Diagnostix 750W Wall Aneroid Sphygmomanometer, the blood pressure monitor coverage is:
- Complete Sphygmomanometer Unit: 3 Years
- Manometer Calibration: Lifetime Warranty
