Condition:
-
Warranty:
- Weight: 16.35 lb
-
Learn more:
-
MFR:
American Diagnostic Corporation
Ships from MFI Medical
-
MPN: 5680X-39W
- Phone: (800) 232-2670
Frequently asked questions
What superior diagnostic instruments are included?

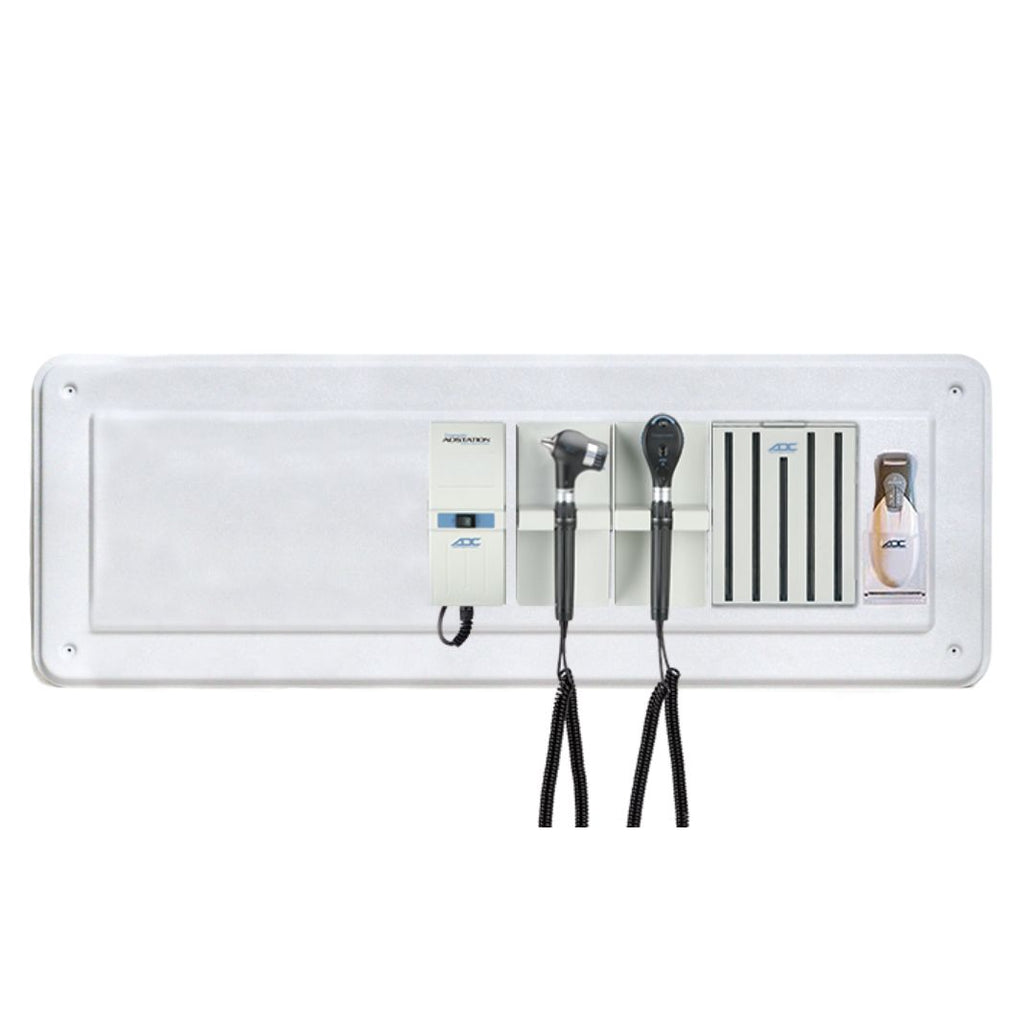

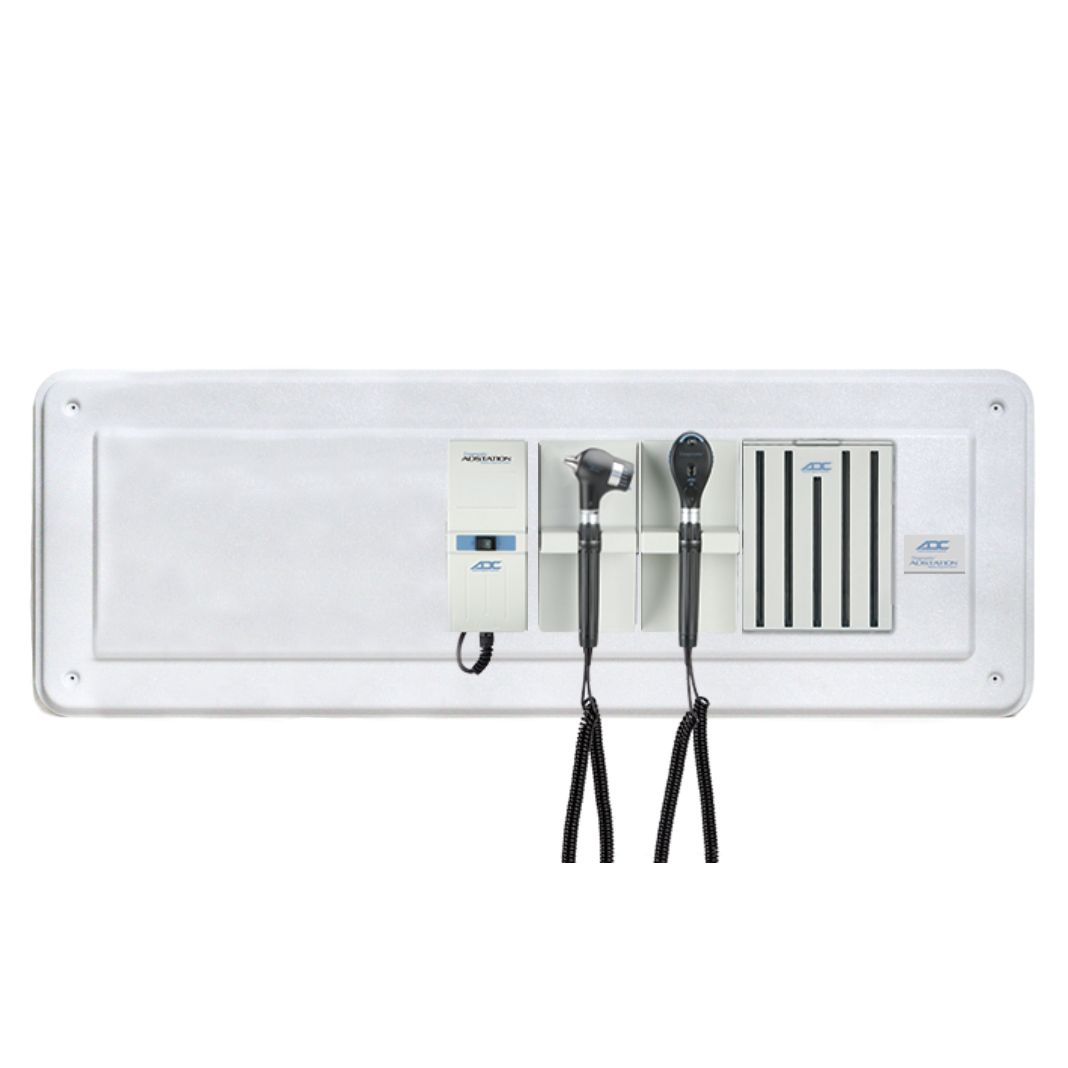

The ADC Adstation 5680 set includes two essential, professional-grade 3.5V instruments, each designed for superior performance:
- ADC Diagnostix 5422 PMV Otoscope Head: Features exceptional optics, including 5X magnification and an 11 mm field of view (twice the size of standard otoscopes), ensuring a comprehensive view of the ear canal.
- ADC Diagnostix 5440 Coaxial Ophthalmoscope Head: Uses aspherical condenser optics (Gullstrand’s principal) to effectively minimize corneal reflection. It provides detailed control over the examination with:
- 29 viewing lenses (ranging from -35 to +40 diopters).
- 6 apertures (Slit, Fixation, Large, Small, Micro spot, Half moon).
- 3 dedicated filters (Red free, Cobalt, Polarizing).
Are there different configuration options?
Yes, the ADC Adstation 5680 provides several important configuration choices and is designed for future modular expansion.
Primary Customization Options:
- Illumination Type: You can select the light source for both the otoscope and ophthalmoscope instrument heads:
- Halogen/Xenon: The traditional, reliable illumination source.
- Advanced AdLED: This high-performance option offers superior visualization (4,200 Kelvin, CRI=92) and includes a major advantage: a Lifetime Warranty on the LED lamp.

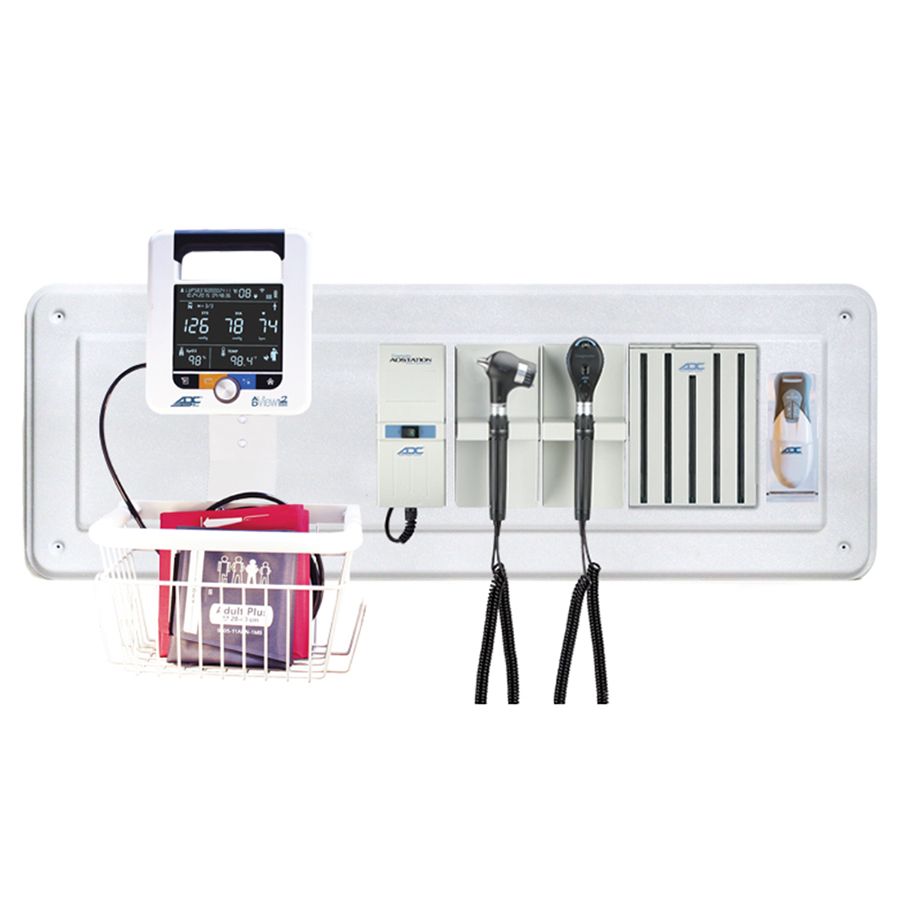

- Thermometry Integration: The system can be configured to include the ADC Adtemp 429 Non-Contact Infrared Thermometer and its wall cradle, enabling rapid (approx. 1 second) and hygienic temperature screening.
Furthermore, the included Wallboard is designed for Modular Scalability, featuring a dedicated space for mounting the optional ADC ADView 2 Modular Diagnostic Station for future system upgrades.
Does the PMV Otoscope use superior optics?
Yes, the included ADC Diagnostix 5422 3.5V PMV Otoscope Head is engineered with high-performance features to deliver a superior and detailed diagnostic view.
Key optical advantages include:
- Exceptional Magnification: It provides 5X magnification using reflection-optimized glass optics, allowing for highly detailed visualization.
- Wide Field of View: The otoscope boasts an impressive 11 mm field of view, which is double the field of view found in standard ADC otoscopes.
- Optimal Illumination: Features fiber-optic light transmission for shadow-free viewing. Depending on your configuration choice, you receive either Halogen/Xenon lamps or advanced AdLED illumination (4,200 Kelvin, CRI = 92).
Additionally, the otoscope is compatible with standard Welch Allyn specula, ensuring convenience and versatility.
Does the Coax Ophthalmoscope feature advanced optics?
Yes, the included ADC Diagnostix 5440 Coax Ophthalmoscope Head features highly advanced optics designed for superior retinal and media examination.
Key Optical Features:
- Minimized Reflection: The instrument uses a high-performance aspherical condenser lens and applies Gullstrand’s principle to significantly reduce corneal reflection and glare, ensuring a clear view of the fundus.
- Comprehensive Lens Range: It includes 29 viewing lenses covering a wide diopter range from -35 to +40 for precise focusing flexibility.
- Versatile Examination: The ophthalmoscope provides 24 total aperture/filter combinations for detailed assessment.
- Apertures: Slit, Fixation, Large, Small, Micro spot, and Half moon.
- Filters: Red free, Cobalt, and Polarizing (which specifically eliminates corneal reflection).

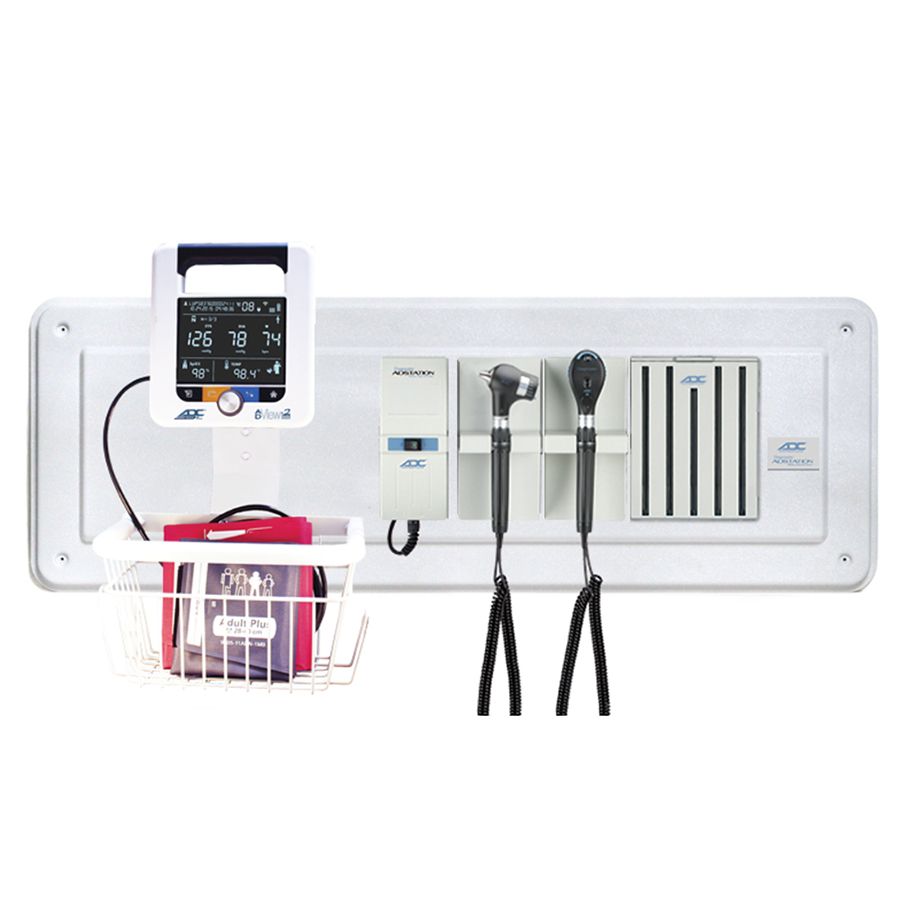

Is the ADC Adstation Wallboard compatible with the ADC ADView 2 Modular Diagnostic Station?
Yes, the ADC Adstation Wallboard is designed to accommodate the ADC ADView 2 Modular Diagnostic Station, which is available separately.
Is the optional thermometer fast and hygienic?
Yes, the optional ADC Adtemp 429 Non-Contact Infrared Thermometer is engineered for both rapid temperature screening and superior hygiene.
This device offers key benefits for clinical efficiency and infection control:
- Non-Contact Operation: It uses an infrared sensor to measure temperature without physical contact, minimizing cross-contamination risk. Measurements are taken from a safe distance of 1.5 to 2.5 inches.
- Exceptional Speed: The thermometer provides accurate readings in approximately one second.
- Memory and Accuracy: It stores up to 30 readings and offers lab-tested accuracy of +/- 0.5° F (0.3° C) in body mode (within the 71.6° F to 104° F range).
How quickly does the ADC Adtemp 429 Non-Contact Infrared Thermometer provide a temperature reading?
The ADC Adtemp 429 Non-Contact Infrared Thermometer has a response time of approximately 1 second.
Are the Adstation components covered by a strong warranty?
Yes, the ADC Adstation components are protected by an extensive warranty that varies by part, with the Lifetime Warranty on the LED lamp standing out as a major benefit for longevity and maintenance savings.
Here is a breakdown of the specific warranty coverage:
| Component | Warranty Coverage |
|---|---|
| LED Lamp (If configured with LED light source) | Lifetime |
| Wall Transformer (Power supply base unit) | 5 Years |
| Instrument Heads (Otoscope/Ophthalmoscope) | 2 Years |
| Xenon Lamps (If configured with Xenon light source) | 2 Years |

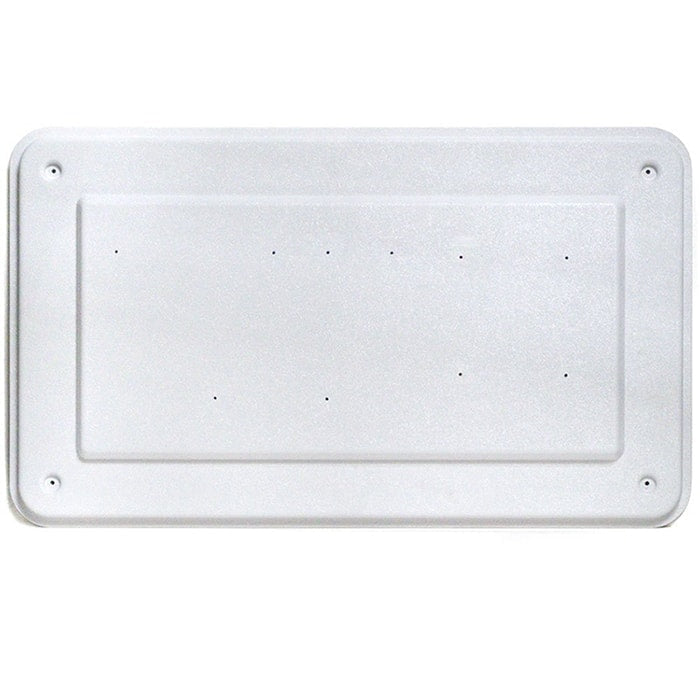

| Wallboard | 2 Years |
| ADC Adtemp 429 Thermometer (If included) | 2 Years (Covers defects in materials and workmanship) |
In what kind of settings is the ADC Adstation 5680 ideally used?
The ADC Adstation 5680 is designed for use in:
- Medical clinics
- Hospitals
- Other healthcare settings
It is ideal for efficient and organized diagnostic procedures.
Does this wall unit feature automatic power control?
Yes, the ADC Adstation 5680 includes advanced power management features designed for convenience, safety, and efficiency.
Key power control features include:
- Magnetic Switch Activation: Power is instantly activated when a 3.5V handle is removed from its cradle, allowing for quick use.
- Automatic Shut-off (Adtronic): To conserve energy and extend lamp life, the system automatically cuts power after two minutes if an instrument is mis-cradled or left inactive.
- Continuous Light Control: The Adtronic electronic rheostatic control provides precise, infinite adjustment of light intensity, ensuring optimal illumination for every examination.
This system uses robust 3.5V handles that are CNC machined from solid brass and chrome-plated for reliable, long-term performance.
