Condition:
-
Warranty:
- Weight: 11.45 lb
-
Learn more:
-
MFR:
American Diagnostic Corporation
Ships from MFI Medical
-
MPN: 5680X-3W
- Phone: (800) 232-2670
Frequently asked questions
What components are in the core diagnostic set?

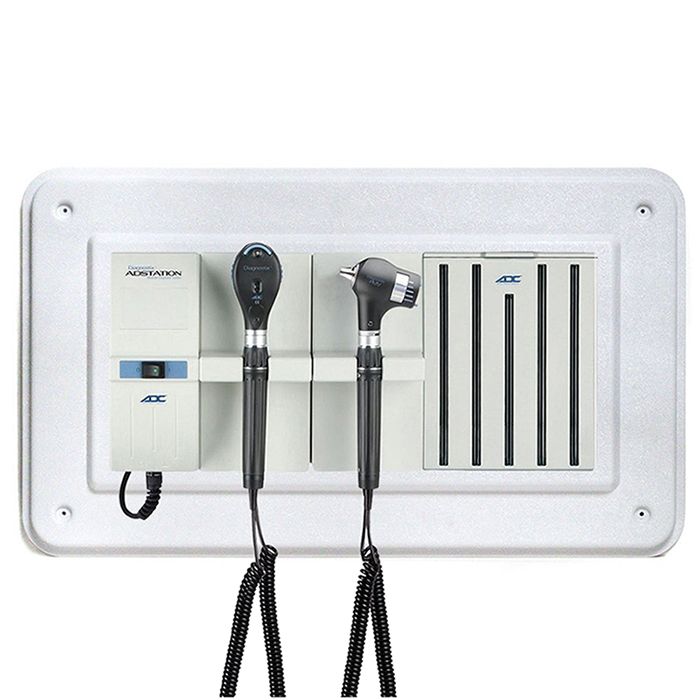

The core ADC Adstation 5680 diagnostic set includes the essential instruments and mounting hardware necessary for comprehensive examinations, regardless of the optional configurations chosen.
Core Standard Components:
- Diagnostic Instruments:
- ADC Diagnostix 5422 3.5V PMV Otoscope Head (featuring 5X magnification and an 11 mm field of view).
- ADC Diagnostix 5440 3.5V Coax Ophthalmoscope Head (designed with advanced optics to virtually eliminate corneal reflection).
- Power and Organization:
- 3.5V Wall Transformer Power Supply Base Unit (supports magnetic handle activation).
- Two 3.5V Handles and one Extension Module.
- ADC 5630 Wall Specula Dispenser (for hygienic specula storage).
- Durable ABS Wallboard (size determined by configuration).
Note: Optional components, such as the ADC Diagnostix 750W Wall Aneroid Sphygmomanometer or the Adtemp 429 Non-Contact Infrared Thermometer, are only included if specified in the selected product configuration.
What are the dimensions of the different wallboard sizes?

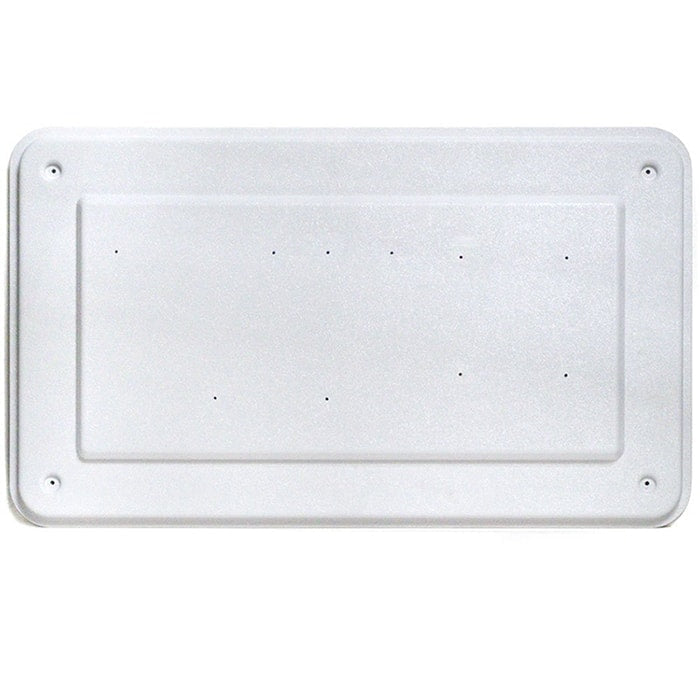

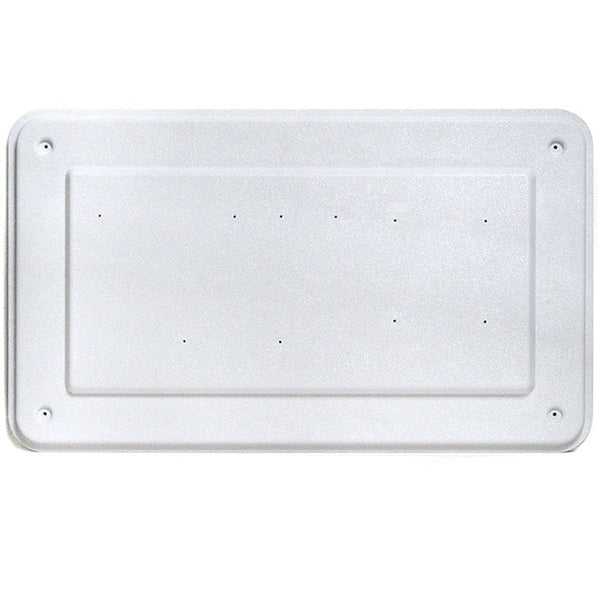

The wallboard for the ADC Adstation is available in two sizes, determined by the specific modular configuration of your system (e.g., whether optional components like the sphygmomanometer are included).
Both wallboards are constructed from durable ABS with acrylic for easy cleaning and UV stability.
- Small Wallboard: 23.25” x 13.63” x 1”
- Large Wallboard: 32.75” x 13.63” x 1”
Does this diagnostic set use high-quality illumination?
Yes, the ADC Adstation 5680 provides exceptional, professional-grade illumination with precise control for optimal viewing clarity. The instrument heads can be configured with one of two superior illumination technologies:
- Halogen/Xenon Lamp: Provides reliable, bright light.
- High-Performance LED: This option offers excellent color rendering and clarity (4,200 Kelvin, CRI = 92). The LED lamp is backed by a Lifetime Warranty.
Light intensity is continuously variable via the Adtronic electronic rheostatic control integrated into the 3.5V handles, allowing you to fine-tune the illumination level for precise viewing.
Does the otoscope offer superior panoramic magnification?
Yes, the ADC Diagnostix 5422 Otoscope Head features a PMV (Panoramic Magnified View) design, which offers superior visualization compared to standard otoscopes.
Key features that enhance diagnostic viewing include:
- High Magnification: Provides 5X magnification.
- Wide Field of View: Features an 11 mm field of view—twice the field of view typically offered by standard otoscopes.
The entire system includes the ADC 5630 Wall Specula Dispenser, ensuring hygienic and organized storage for your specula.
What optical features does the ophthalmoscope include?

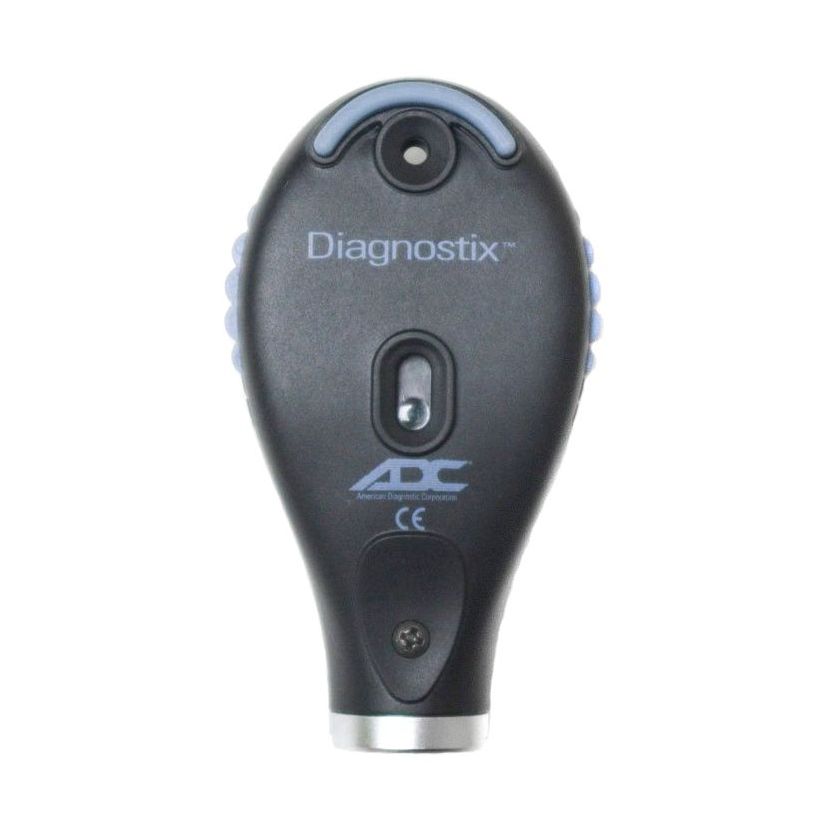

The ADC Diagnostix 5440 Coax Ophthalmoscope Head provides advanced features for comprehensive eye examinations, designed to minimize corneal reflection and maximize versatility. Key features include:
- Superior Optics: Utilizes a high-performance aspherical condenser lens and applies Gullstrand’s principal (distinct parallel light beams) to ensure clear visualization.
- Viewing Range: Features 29 viewing lenses, covering a wide diagnostic range from -35 to +40 diopters.

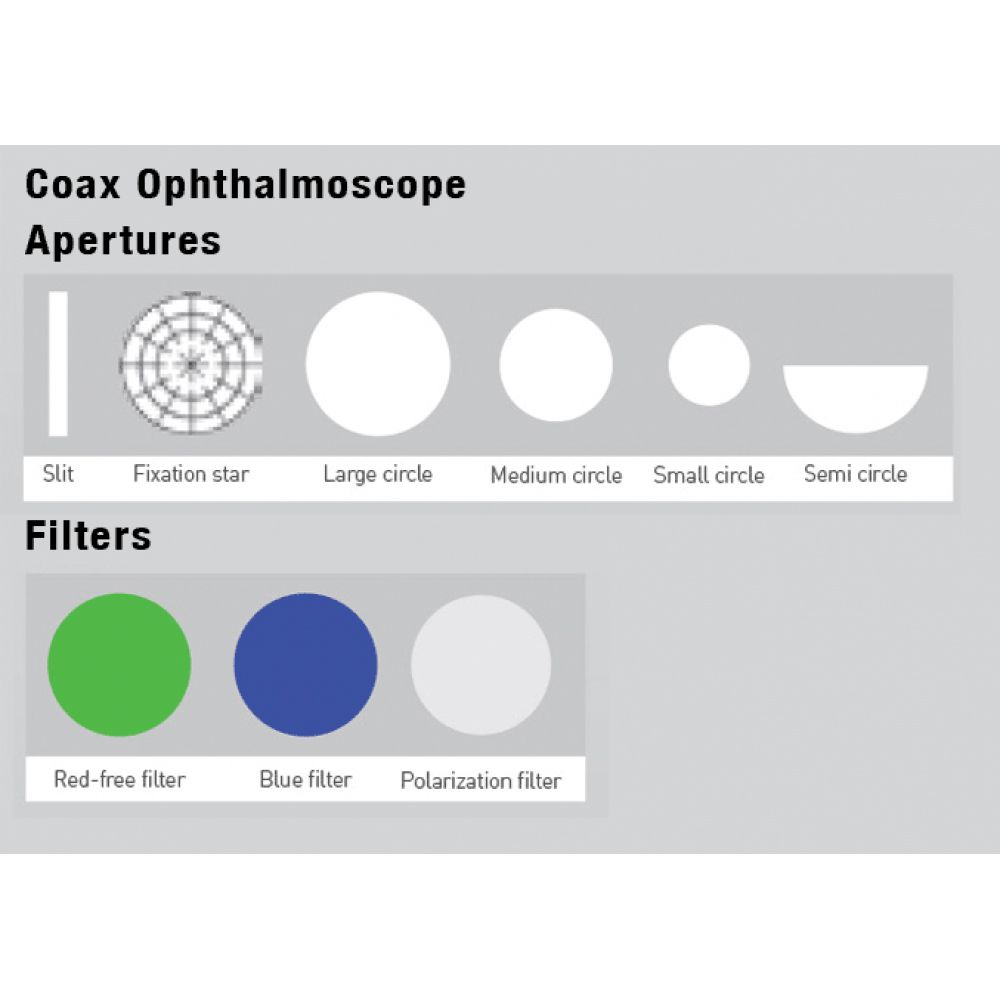

- Apertures: Includes 6 apertures (Slit, Fixation, Large, Small, Micro spot, Half moon) for detailed examination.
- Filters: Equipped with 3 filters plus neutral (Red free, Cobalt, Polarizing) to enhance specific diagnostic views.
Can the Adstation 5680 include a thermometer and BP monitor?

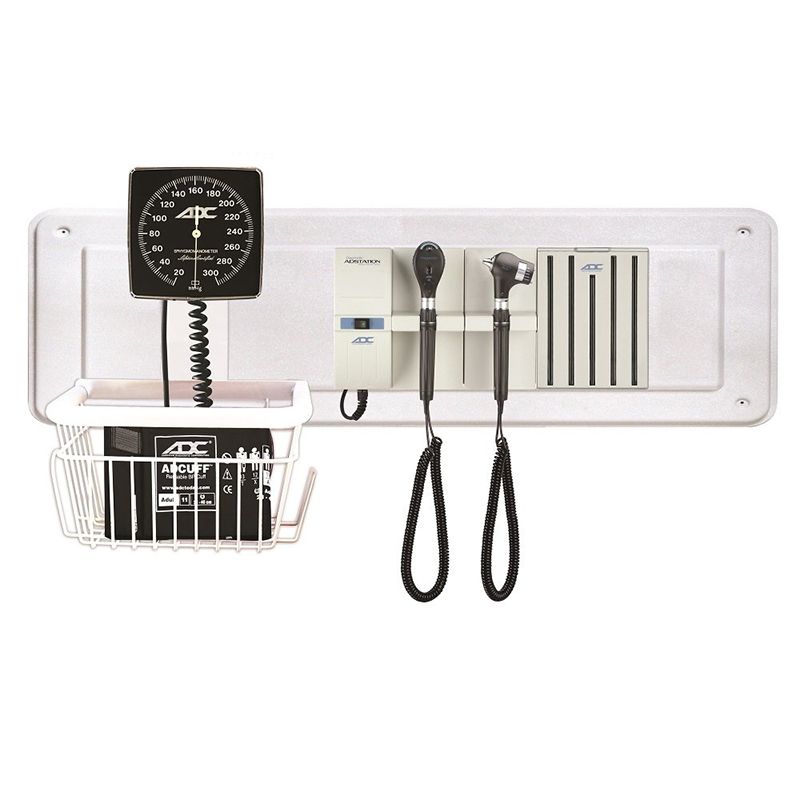

Yes, the ADC Adstation 5680 is a modular system that can be configured to integrate additional vital sign monitoring tools right onto the wallboard.
The optional modules available are:
- ADC Diagnostix 750W Wall Aneroid Sphygmomanometer: This wall-mounted BP monitor features a large 6-inch luminescent dial, 300 mm Hg movement, and a wall bracket with 110-degree swivel for easy viewing. It includes the Adcuff Inflation System (Adult and Large Adult cuffs) and eight feet of coiled, latex-free tubing.
- ADC Adtemp 429 Non-Contact Infrared Thermometer: This non-contact thermometer offers dual-mode functionality (body/object) and measures temperature accurately from a safe distance of 1.5 to 2.5 inches (4 to 6 cm). It features a backlit LCD and an auto-off function.
Integrating these options creates a comprehensive, efficient diagnostic station.
What is the warranty period for the different components of the ADC Adstation 5680?
The warranty periods are as follows:
- Wall Transformer: 5 Years
- Instrument Head, Xenon Lamps, and Wallboard: 2 Years
- LED Lamp: Lifetime
- 750W Wall Aneroid Sphygmomanometer: 3 Years (Manometer carries a lifetime calibration warranty)
- Thermometer: 2 Years - Defects in Materials and Workmanship
How accurate is the optional Adtemp thermometer?
The optional ADC Adtemp 429 Non-Contact Infrared Thermometer is designed for rapid, hygienic temperature screening, typically taking about 1 second per reading.The overall measurement range in Body Mode is 50°F to 122°F (10°C to 50°C).Accuracy specifications for the Body Mode are as follows:* Fahrenheit Accuracy: +/- 0.5°F when the temperature is between 71.6°F and 104°F.* Celsius Accuracy: +/- 0.3°C when the temperature is between 22°C and 40°C.
Does the wall transformer feature automatic power control?
Yes, the wall transformer for the ADC Adstation 5680 includes several advanced features to optimize power use and functionality:
- Magnetic Switch Activation: The instrument automatically powers on when the handle is removed from its cradle and shuts off when returned, promoting efficiency and quick access.
- Adtronic Electronic Rheostatic Control: This feature provides infinite continuous control over the light intensity, allowing for highly precise adjustment of illumination during examinations.
- Automatic Shut-off: If an instrument handle is mis-cradled, the power auto-off feature will activate after two minutes.
- Power Options: The transformer is available for both standard 120V service or 230V service (with a European plug option).
What essential cuff sizes are included with the sphygmomanometer?
Yes, the optional ADC Diagnostix 750W Wall Aneroid Sphygmomanometer comes equipped with two standard Adcuff Nylon Cuffs to accommodate a wide range of patients:
- Adult: 9” - 15.7”
- Large Adult: 13.3” - 19.6”
