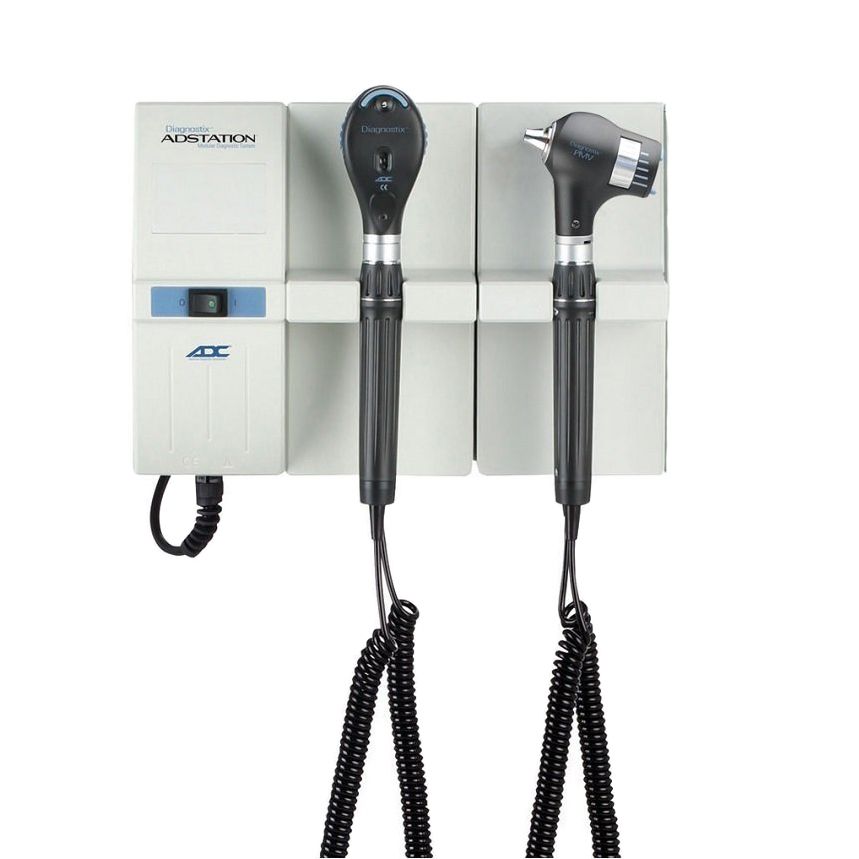

ADC Adstation 5680 3.5V Wall PMV Otoscope/Ophthalmoscope Diagnostic Set

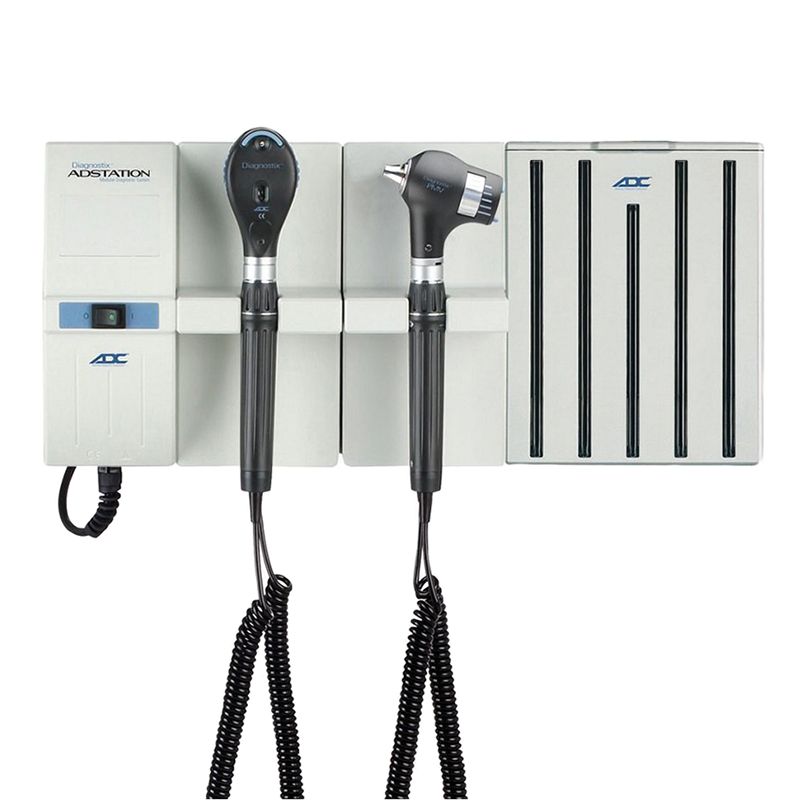

The ADC Adstation 5680 3.5V Wall PMV Otoscope/Ophthalmoscope Diagnostic Set includes an ADC Diagnostix 5422 3.5V PMV Otoscope Head, an ADC Diagnostix 5440 3.5V Coax Ophthalmoscope Head, a power supply base unit that includes a power switch, two 3.5V handles, and an extension module. The wall transformer is available with a standard 120V or a 230V power supply with European plug in, and is easy to install with the included bracket or it may be mounted to ADC wallboard systems. The ADC Diagnostix 5422 3.5V PMV Otoscope Head and the ADC Diagnostix 5440 3.5V Coax Ophthalmoscope Head is available with a halogen/xenon lamp or an advanced AdLED lamp.

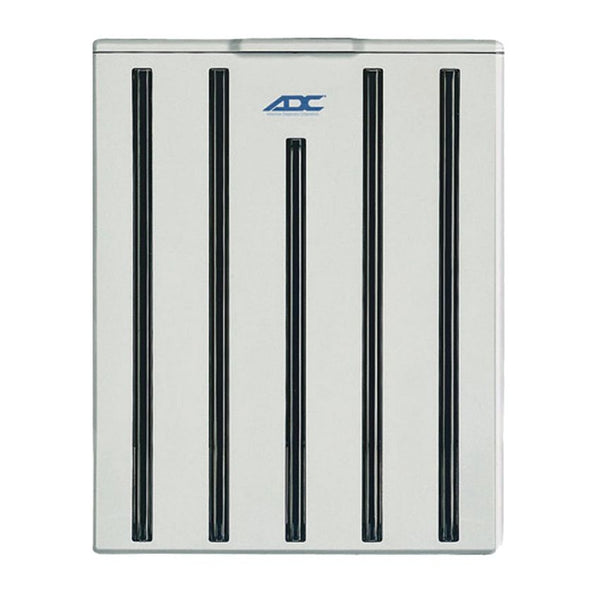

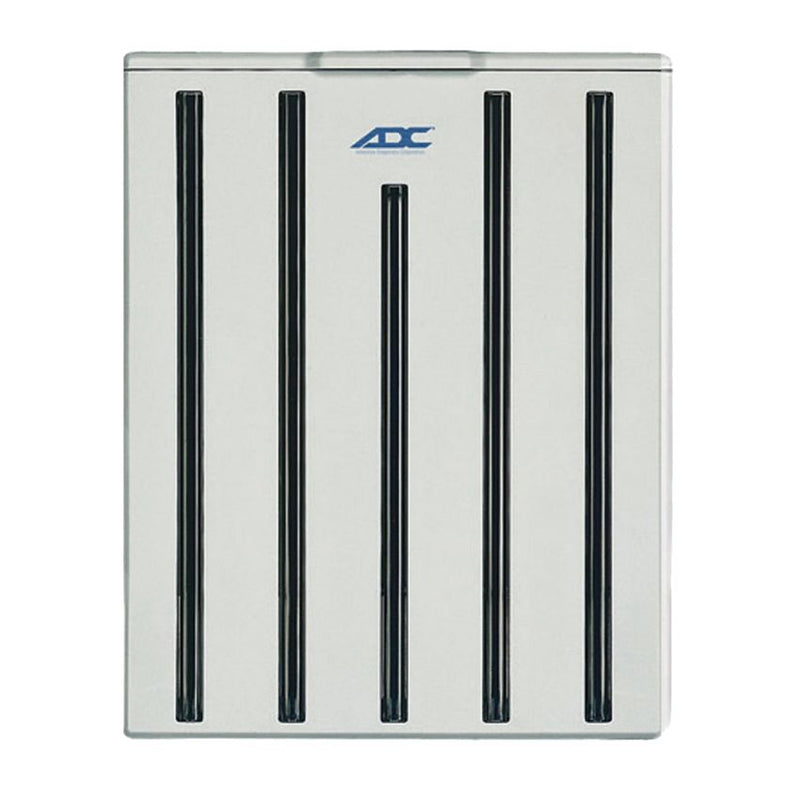

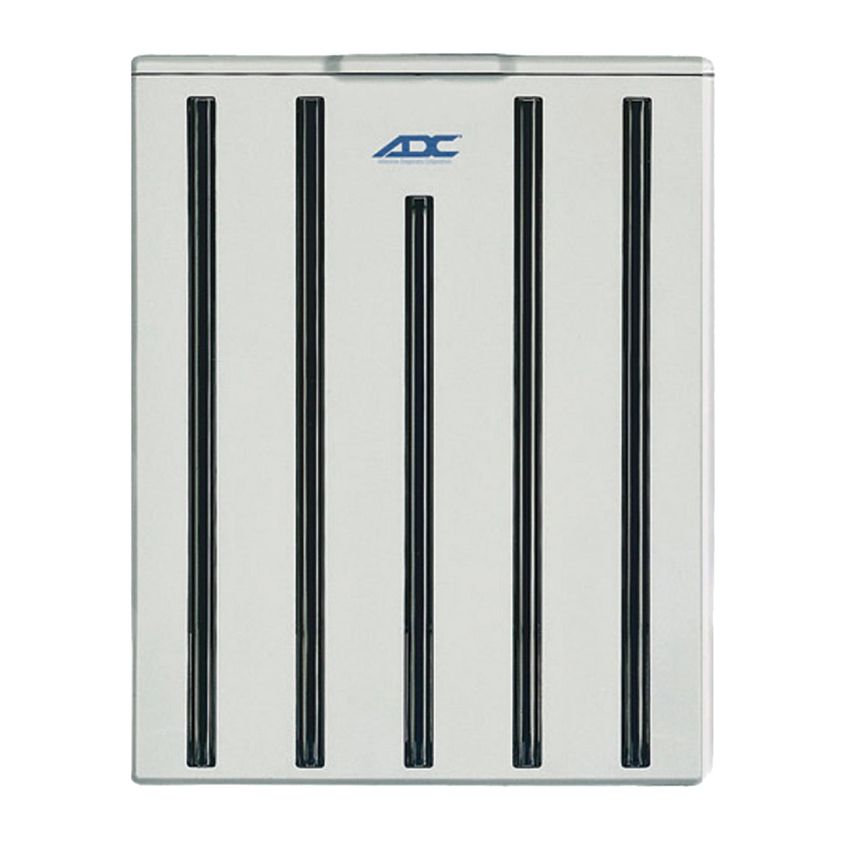

The ADC 5630 Wall Specula Dispenser can also be added and is a hygienic and practical solution to storing specula and includes five tubes that can store specula.

An optional ADC Diagnostix 750W Wall Aneroid Sphygmomanometer can also be added and includes a wall bracket that swivels through 110 degrees rotation for easy viewing, and an Adcuff Inflation System which includes an Adult and Large Adult Nylon Cuff, an Adflow Bulb and Valve, coiled tubing, and a Cuff Storage Basket.

Warranty: 5 Years (Wall Transformer), 2 Years (Instrument Head and Xenon Lamps), Lifetime (LED Lamp), 3 Years (750W Wall Aneroid Sphygmomanometer. Manometer carries a lifetime calibration warranty).

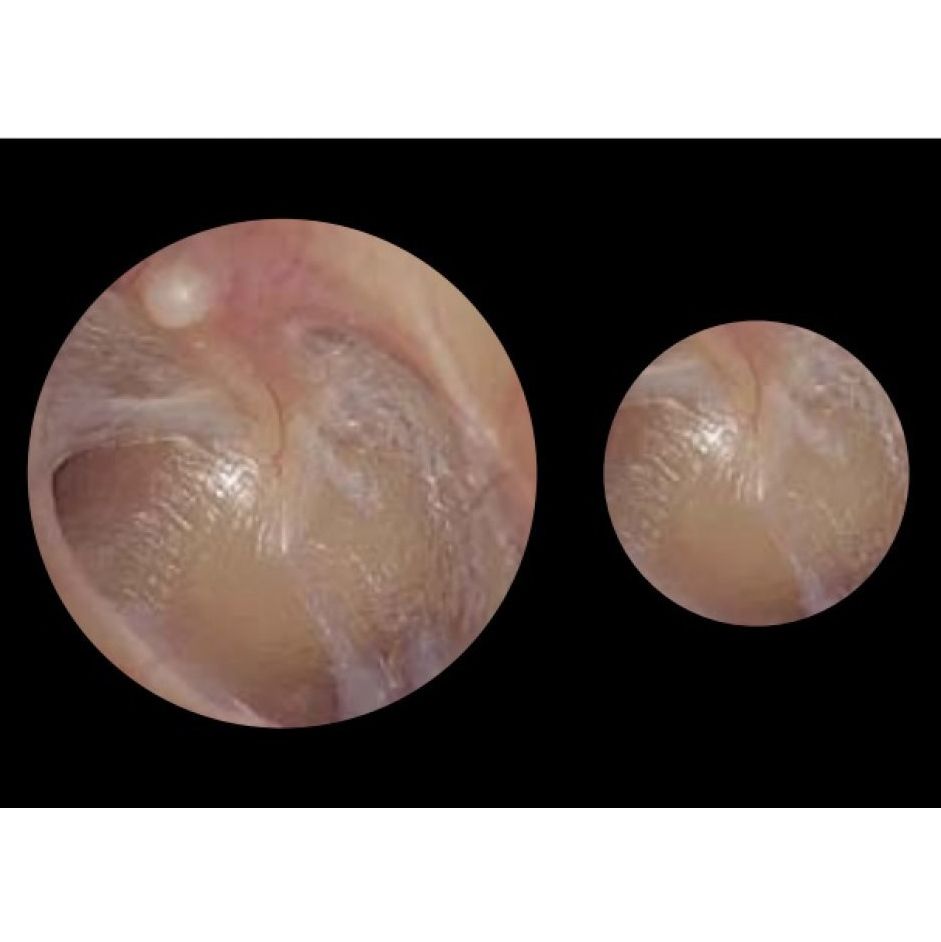

The ADC Adstation 5680 3.5V Wall PMV Otoscope/Ophthalmoscope Diagnostic Set is among one of the most critical instrument sets in a clinician's repertoire when performing a comprehensive physical exam. The ADC Diagnostix 5422 3.5V PMV Otoscope Head uses advanced optical technology to create a panoramic, magnified view that features twice the field of view and 66% greater magnification (11 mm field of view, 5X magnification) compared to ADC's standard otoscope. The ophthalmoscope is a handheld device containing illumination and viewing optics intended to examine the media (cornea, aqueous, lens, and vitreous) and the retina of the eye.

ADC Adstation 5680 3.5V Wall PMV Otoscope/Ophthalmoscope Diagnostic Set Features

• ADC Adstation 5680 3.5V Wall PMV Otoscope/Ophthalmoscope Diagnostic Set Configurations:
  • Xenon Otoscope/Xenon Ophthalmoscope (#5680X) / European Plug (#5680X-EU).
  • LED Otoscope/LED Ophthalmoscope (#5680L) / European Plug (#5680L-EU).
  • LED Otoscope/Xenon Ophthalmoscope (#5680A) / European Plug (#5680A-EU).
  • Xenon Otoscope/LED Ophthalmoscope (#5680B) / European Plug (#5680B-EU).
  • Xenon Otoscope/Xenon Ophthalmoscope with Specula Dispenser (#5680X-3) / European Plug (#5680X-3EU).
  • LED Otoscope/LED Ophthalmoscope with Specula Dispenser (#5680L-3) / European Plug (#5680L-3EU).
  • LED Otoscope/Xenon Ophthalmoscope with Specula Dispenser (#5680A-3) / European Plug (#5680A-3EU).
  • Xenon Otoscope/LED Ophthalmoscope with Specula Dispenser (#5680B-3) / European Plug (#5680B-3EU).
  • Xenon Otoscope/Xenon Ophthalmoscope with Clock Aneroid (#5680X-7) / European Plug (#5680X-7EU).
  • LED Otoscope/LED Ophthalmoscope with Clock Aneroid (#5680L-7) / European Plug (#5680L-7EU).
  • LED Otoscope/Xenon Ophthalmoscope with Clock Aneroid (#5680A-7) / European Plug (#5680A-7EU).
  • Xenon Otoscope/LED Ophthalmoscope with Clock Aneroid (#5680B-7) / European Plug (#5680B-7EU).
  • Xenon Otoscope/Xenon Ophthalmoscope with Clock Aneroid and Specula Dispenser (#5680X-37) / European Plug (#5680X-37EU).
  • LED Otoscope/LED Ophthalmoscope with Clock Aneroid and Specula Dispenser (#5680L-37) / European Plug (#5680L-37EU).
  • LED Otoscope/Xenon Ophthalmoscope with Clock Aneroid and Specula Dispenser (#5680A-37) / European Plug (#5680A-37EU).
  • Xenon Otoscope/LED Ophthalmoscope with Clock Aneroid and Specula Dispenser (#5680B-37) / European Plug (#5680B-37EU).

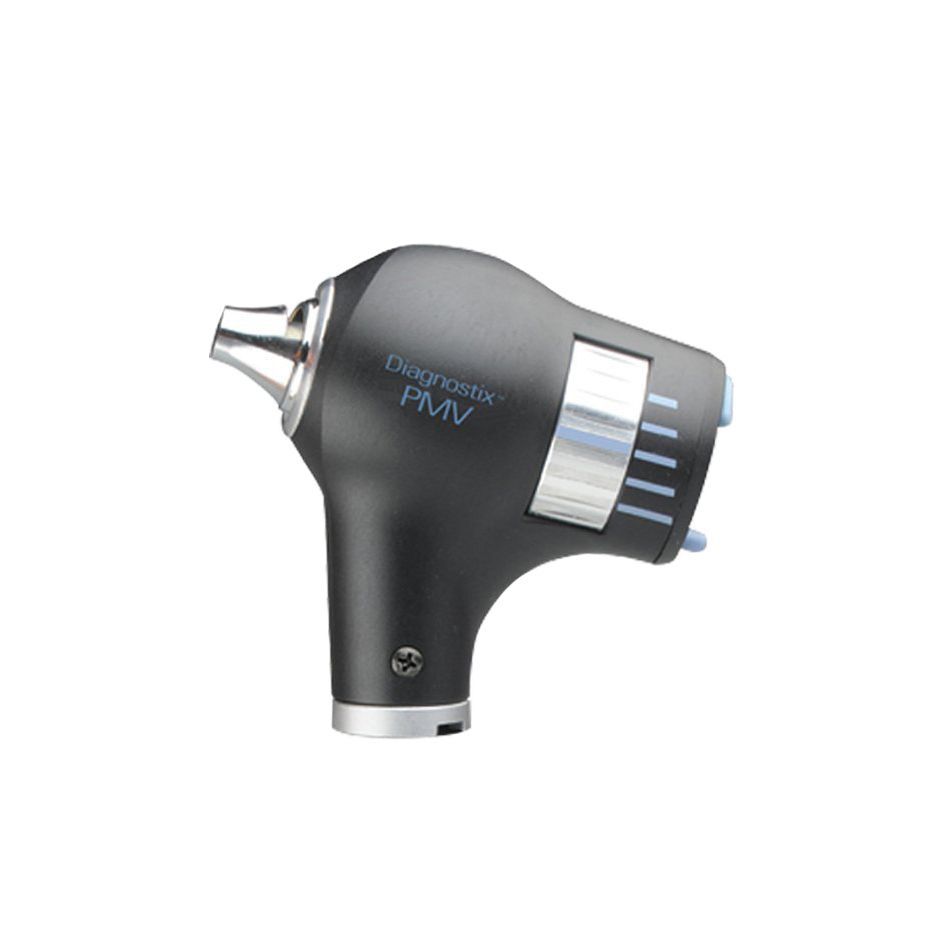

• ADC Diagnostix 5422 3.5V PMV Otoscope Head Features:
  • Significantly improved view of the auditory canal and tympanic membrane.
  • Fiber-optic light transmission for an unobstructed view.

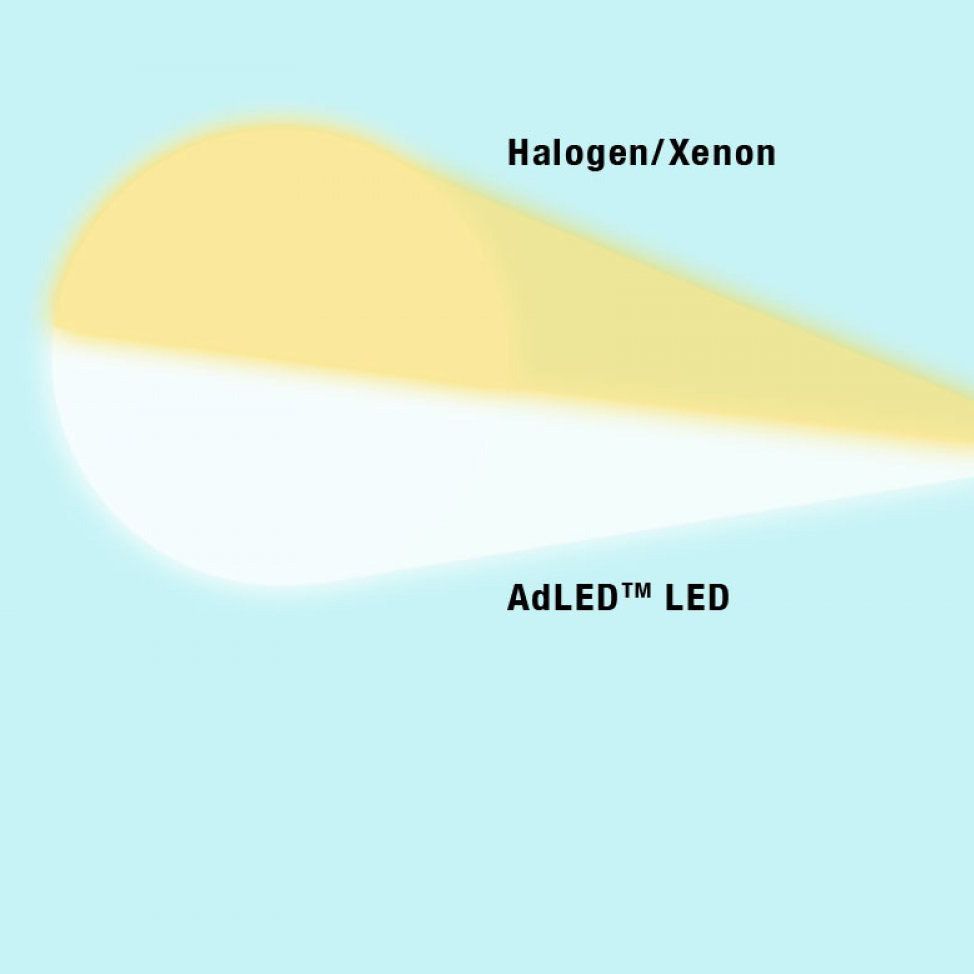

  • Choose from halogen/xenon or high-performance LED illumination (4,200 Kelvin, CRI = 92).
  • Reflection-optimized, high-performance glass optics.
  • Adjustable focal depth.
  • Suitable for throat illumination and pneumatic otoscopy (insufflator sold separately).
  • Compatible with Welch Allyn specula.
  • Anti-theft locking feature is standard.

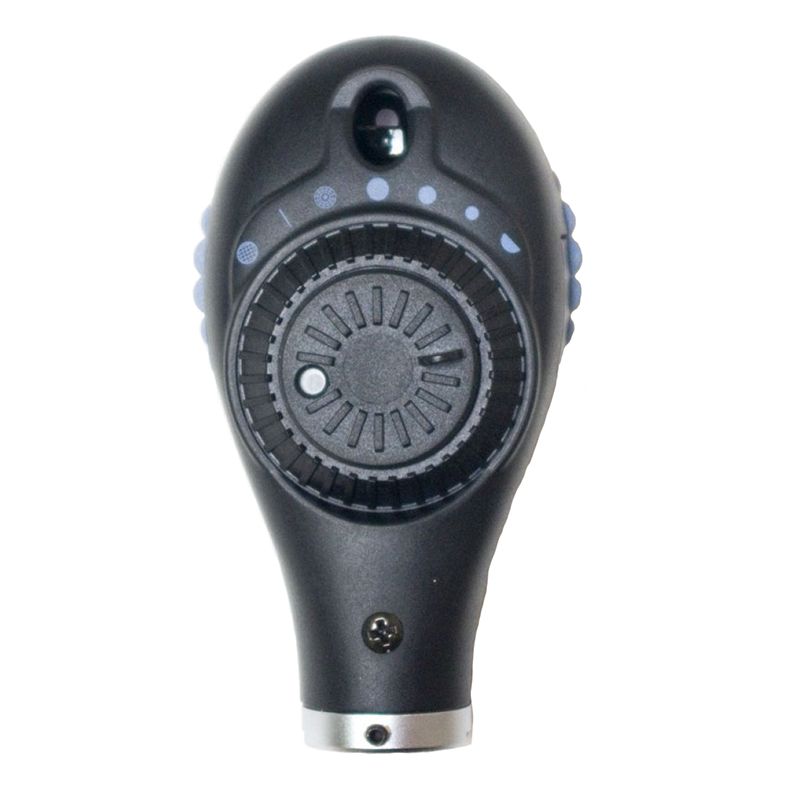

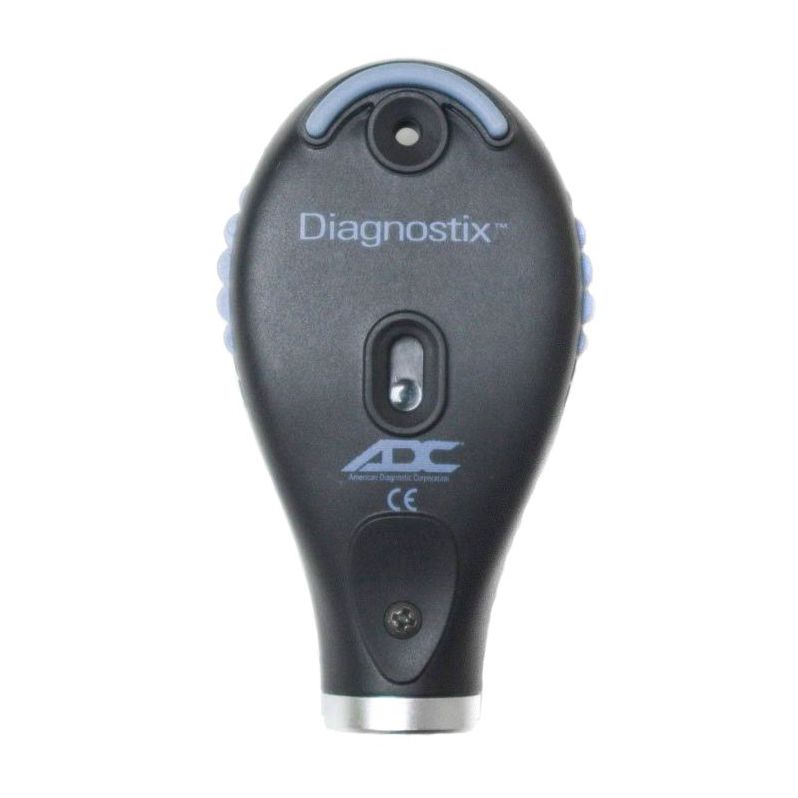

• ADC Diagnostix 5440 3.5V Coax Ophthalmoscope Head Features:
  • High performance aspherical condenser lens reduces corneal reflection.
  • Further reduction provided by utilizing distinct parallel observational and illuminating light beams (Gullstrand's principal).
  • Ergonomic design and integral thumb rest improves stability and allows one finger control of all functions.
  • Synthetic rubber brow rest facilitates use with practitioner eyeglasses.
  • Dust proof.
  • Magnified/illuminated aperture viewing window.
  • Universal bayonet mount for compatibility with other brands of 3.5v power supply handles.
  • Anti-theft locking feature is standard.
  • 29 viewing lenses from -35 to plus 40 (Plus 1-10, 12, 15, 20, 40 - Minus 1-10, 15, 20, 25, 30, 35).
  • 24 aperture/filter combinations for improved versatility.

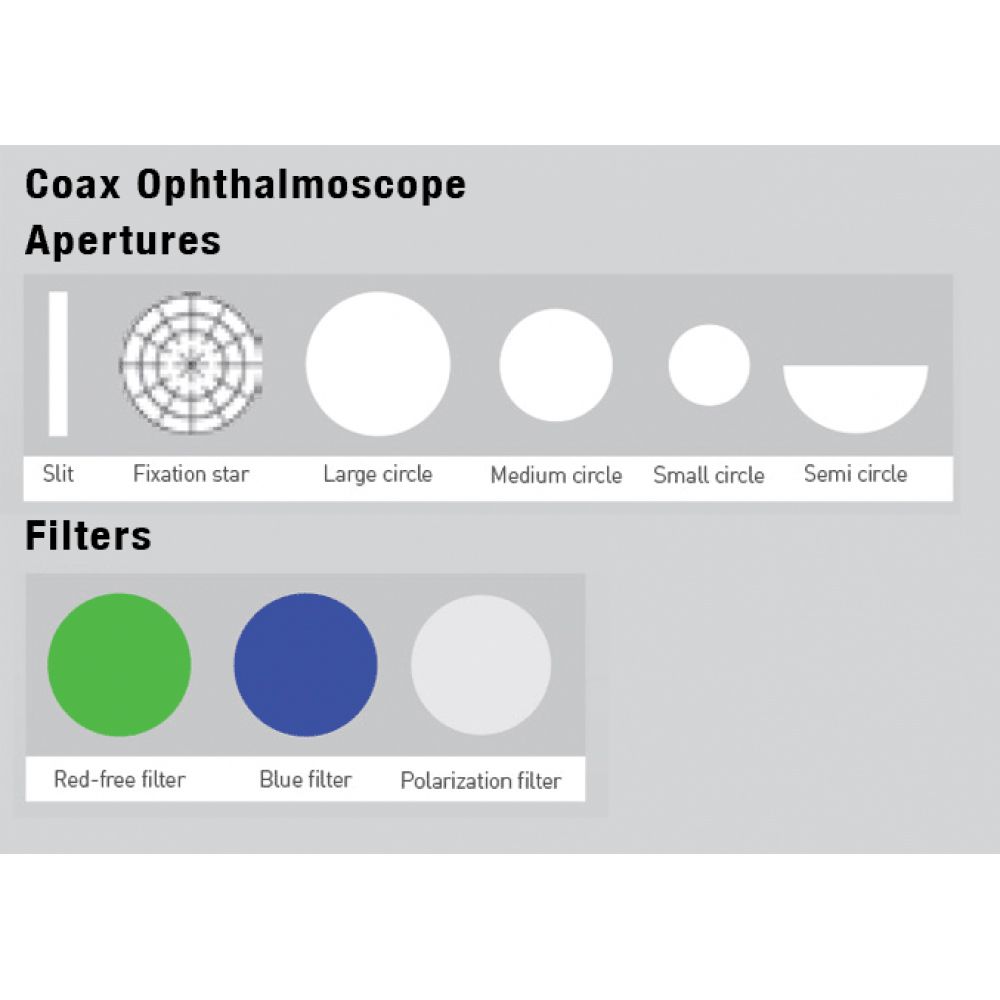

  • 6 apertures include:
    • Slit - used to help determine levels of tumors and lesions.
    • Fixation - has graduated cross-hairs for measuring eccentric fixation or locating lesions.
    • Large - standard aperture for a dilated pupil and general examination of the eye.
    • Small - provides excellent view of fundus through an undilated pupil.
    • Micro spot- allows quick entry into small, undilated pupils.
    • Half moon - provides a combination of depth perception and field of view.
  • 3 filters (plus neutral) include:
    • Red free- excludes red rays from examination field for easy identification of veins, arteries and nerve fibers.
    • Cobalt - used with fluorescent dye to view small lesions, abrasions and foreign objects on the cornea.
    • Polarizing - virtually eliminates corneal reflection.
• ADC Wall Transformer Power Supply Features:
  • Magnetic switch activates power when handle is removed from cradle, automatically powers off when handle is replaced.
  • Handle is CNC machined from solid brass and chrome plated in black with a ribbed surface for a sure grip.
  • Adtronic electronic rheostatic light intensity control provides infinite continuous control.
  • Adtronic auto-off feature after two minutes provides additional safety if instrument is mis-cradled.
  • Bayonet instrument mount is compatible with all major brands of 3.5V instrument heads.
  • Base unit contains the power switch and one handle and the extension holds the other handle.
  • Up to 2 additional extension modules (3 total) can be added.
  • UL approved.

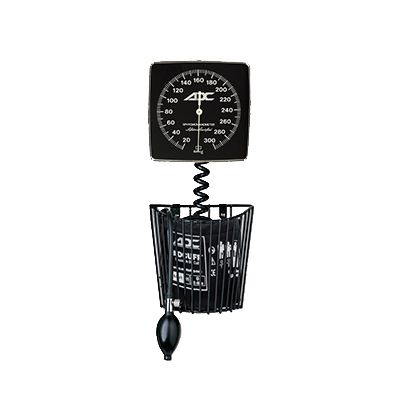

• ADC Diagnostix 750W Wall Aneroid Sphygmomanometer Features:
  • Large, easy-to-read 6" luminescent dial for high visibility in virtually any light condition.
  • 300 mm Hg no-pin stop movement withstands the heaviest use.
  • Eight foot length (when extended) of coiled tubing not made with natural rubber latex.

ADC Adstation 5680 3.5V Wall PMV Otoscope/Ophthalmoscope Diagnostic Set Specifications

• Diagnostic Station Dimensions: 7.88" x 7.12" x 2.95" (20.02 cm x 18.08 cm x 7.5 cm).
• Extension Module Dimensions: 7.88" x 3.94" x 2.95" (20.02 cm x 10.01 cm x 7.5 cm).
• Adcuff Size - Adult: 9" - 15.7" (23 cm - 40 cm).
• Adcuff Size - Large Adult: 13.3" - 19.6" (34 cm - 50 cm).
