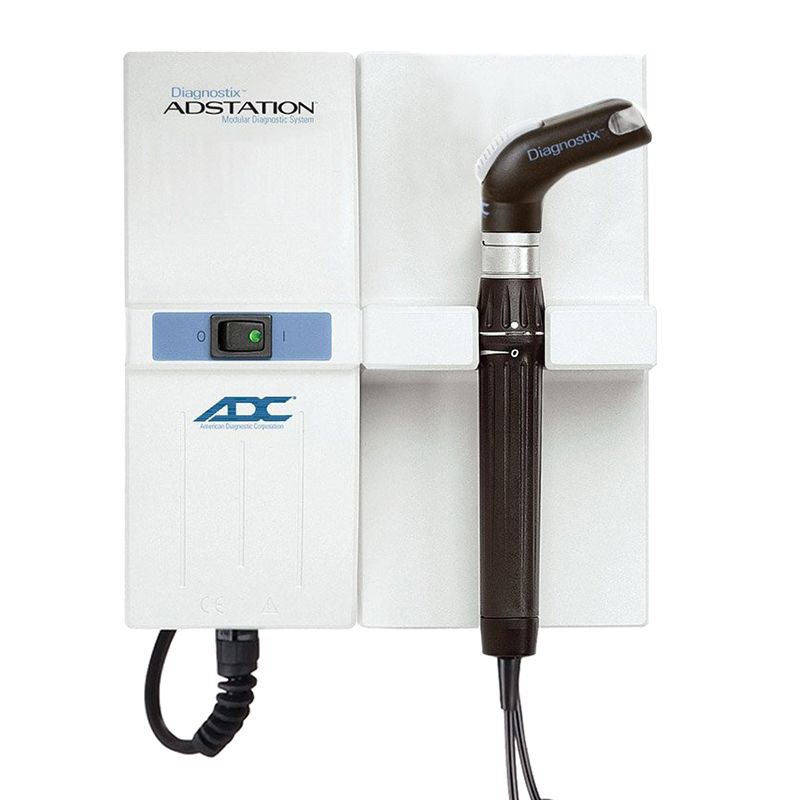

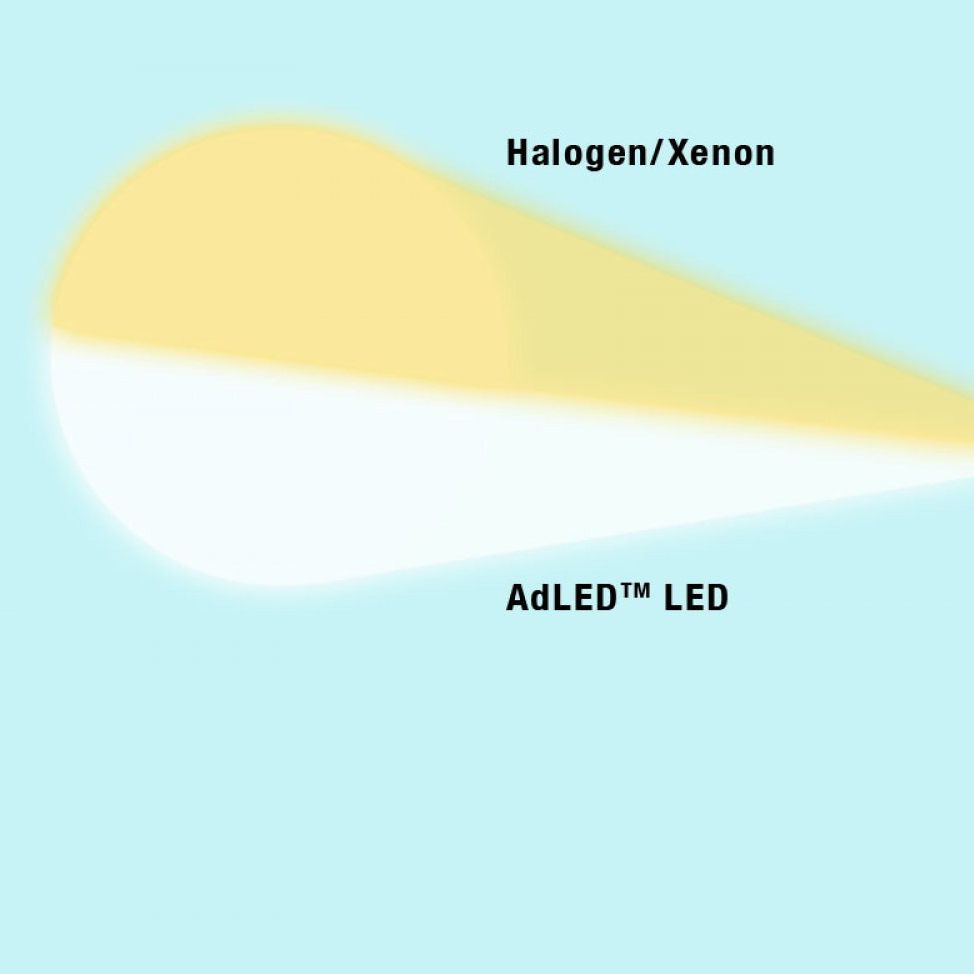

The ADC Adstation 5616 3.5V Wall Throat Illuminator includes an ADC Diagnostix 5426 3.5V Throat Illuminator Head and a wall transformer power supply base unit that contains a power switch and one handle. The wall transformer is available with a standard 120V or a 230V power supply with European plug in. The wall transformer is easy to install with included bracket or it may be mounted to ADC wallboard systems. The ADC Diagnostix 5426 3.5V Throat Illuminator Head is available with a halogen/xenon lamp or an advanced LED lamp.

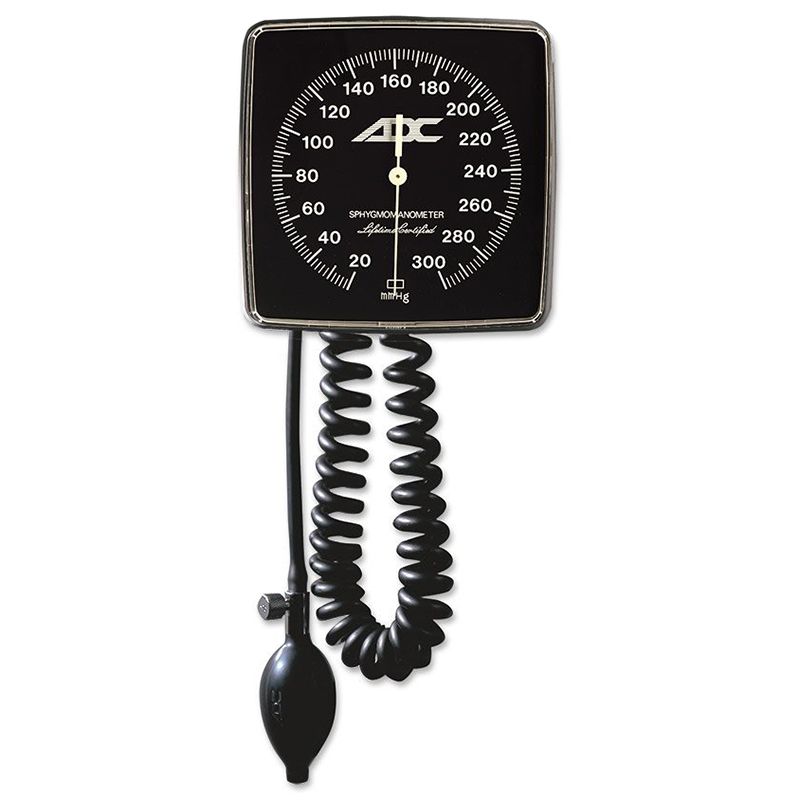

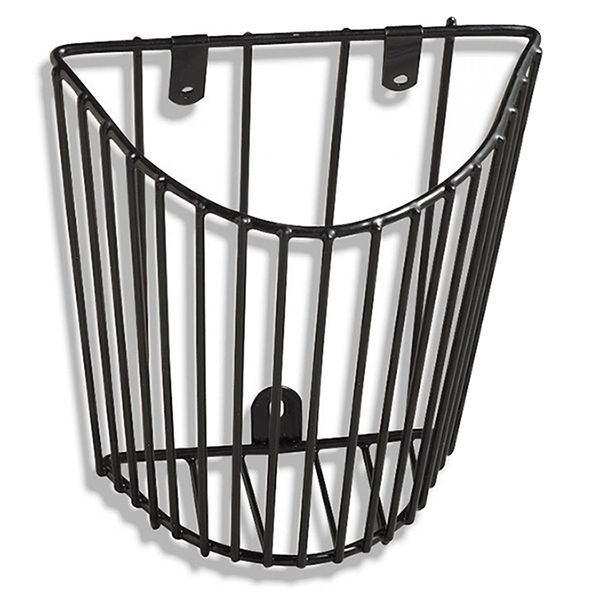

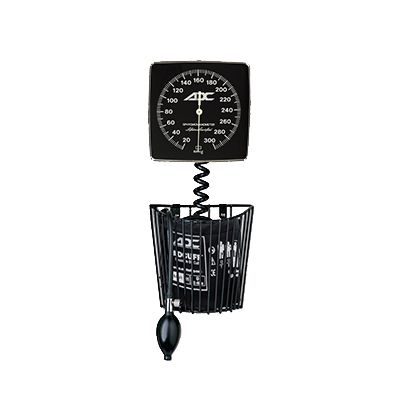

An optional ADC Diagnostix 750W Wall Aneroid Sphygmomanometer can be added and includes a wall bracket that swivels through 110 degrees rotation for easy viewing, and an Adcuff Inflation System which includes an Adult and Large Adult Nylon Cuff, an Adflow Bulb and Valve, coiled tubing, and a Cuff Storage Basket.
Warranty: 5 Years (Wall Transformer), 2 Years (Instrument Head and Xenon Lamps), Lifetime (LED Lamp), 3 Years (750W Wall Aneroid Sphygmomanometer. Manometer carries a lifetime calibration warranty).
The throat illuminator is produced for examination of the oral cavity and pharynx in combination with commercial wooden and plastic blades.
ADC Adstation 5616 3.5V Wall Throat Illuminator Features
ADC Adstation 5616 3.5V Wall Throat Illuminator Configurations:
- Adstation Wall Throat Illuminator with Xenon Lamp (#5616X) / European Plug (#5616X-EU).
- Adstation Wall Throat Illuminator with LED Lamp (#5616L) / European Plug (#5616L-EU).
- Adstation Wall Throat Illuminator with Xenon Lamp and Clock Aneroid (#5616X-7) / European Plug (#5616X-7EU).
- Adstation Wall Throat Illuminator with LED Lamp and Clock Aneroid (#5616L-7) / European Plug (#5616L-7EU).

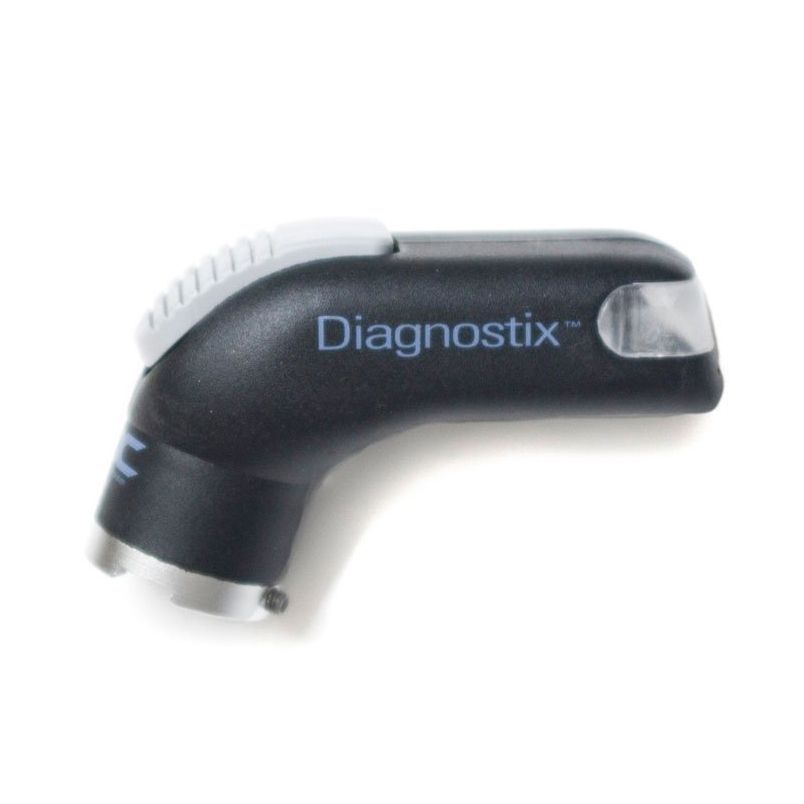

ADC Diagnostix 5426 3.5V Throat Illuminator Head Features:
- For examination of the throat.
- PMMA light transmission (similar to fiber-optic) for unobstructed view of oral cavity.
- Tongue blade holder facilitates examination of the mouth and throat.
- Eject button discards used tongue blade.
- Universal bayonet mount for compatibility with other brands of 3.5V power supply handles.
- Anti-theft locking feature is standard.
ADC Wall Transformer Power Supply Features:
- Magnetic switch activates power when handle is removed from cradle, automatically powers off when handle is replaced.
- Handle is CNC machined from solid brass and chrome plated in black with a ribbed surface for a sure grip.
- Adtronic electronic rheostatic light intensity control provides infinite continuous control.
- Adtronic auto-off feature after two minutes provides additional safety if instrument is mis-cradled.
- Bayonet instrument mount is compatible with all major brands of 3.5V instrument heads.
- Up to three single-handle extension units can be added.
- UL approved.
ADC Diagnostix 750W Wall Aneroid Sphygmomanometer Features:

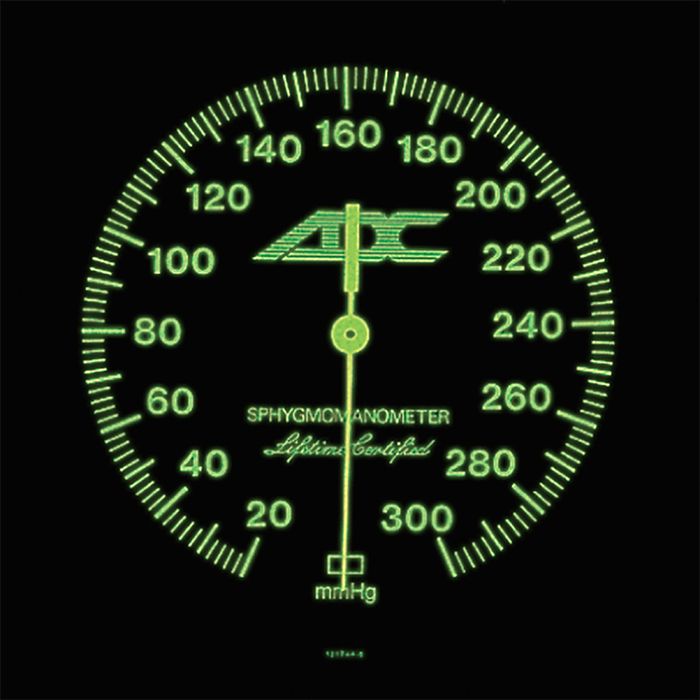

- Large, easy-to-read 6" luminescent dial for high visibility in virtually any light condition.

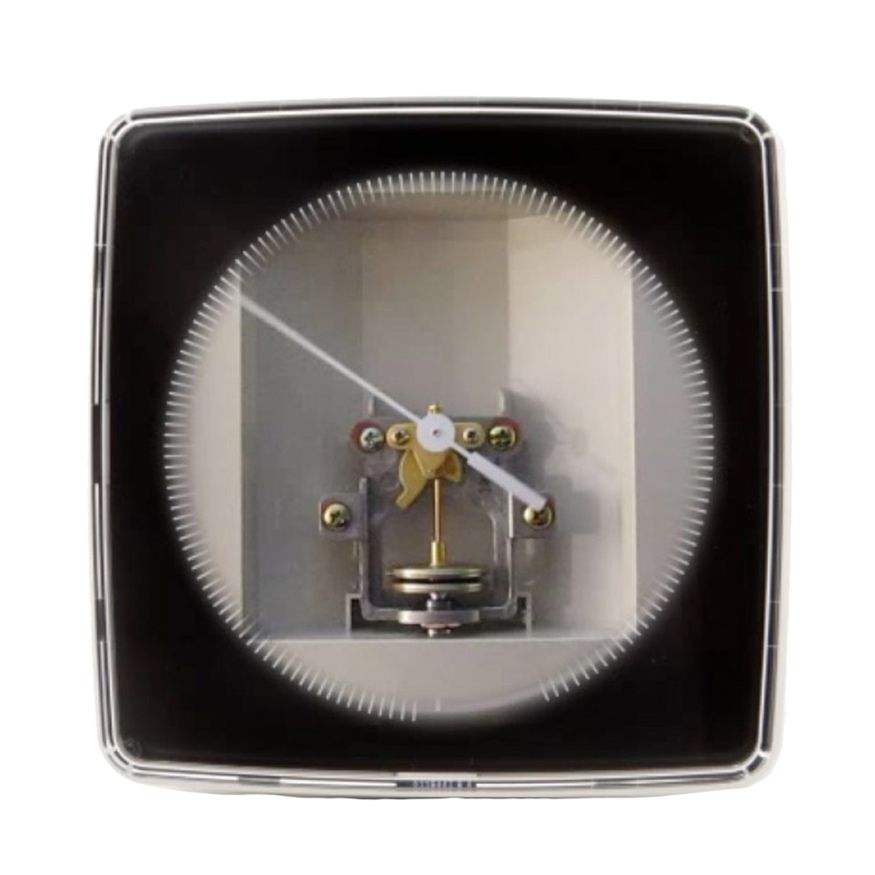

- 300 mm Hg no-pin stop movement withstands the heaviest use.
- Eight foot length (when extended) of coiled tubing not made with natural rubber latex.
ADC Adstation 5616 3.5V Wall Throat Illuminator Specifications
- Adcuff Size - Adult: 9" - 15.7" (23 cm - 40 cm).
- Adcuff Size - Large Adult: 13.3" - 19.6" (34 cm - 50 cm).
ADC Adstation 5616 3.5V Wall Throat Illuminator Media and Literature
