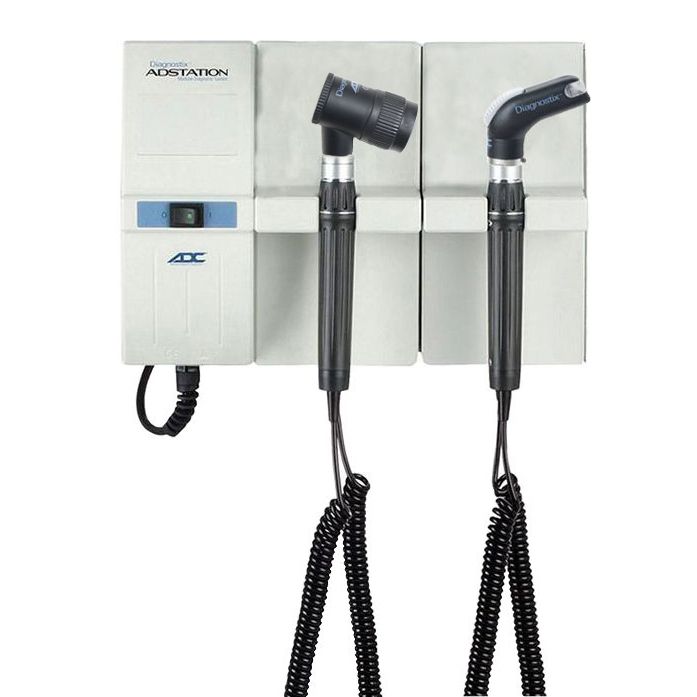

ADC Adstation 5613-6 3.5V Wall Throat Illuminator/Dermascope Diagnostic Set

The ADC Adstation 5613-6 set is configured with two specialized 3.5V instrument heads, designed for comprehensive examinations:

1. Diagnostix 5426 Throat Illuminator Head
   • Used for detailed examination of the oral cavity and pharynx.
   • Features PMMA light transmission (similar to fiberoptic technology) for an unobstructed view.
   • Includes a practical tongue blade holder and an eject button for hygienic removal of used blades.
2. Diagnostix 5450 Dermascope Head
   • Optimized for dermatological assessments and identifying skin changes.
   • Utilizes powerful AdLED illumination and provides 10X optical focusable magnification.
   • Includes two interchangeable contact plates (one with a scale, one without) that can be disinfected.

Both heads are mounted on durable handles made from CNC machined solid brass and integrate the Adtronic electronic rheostatic light intensity control.

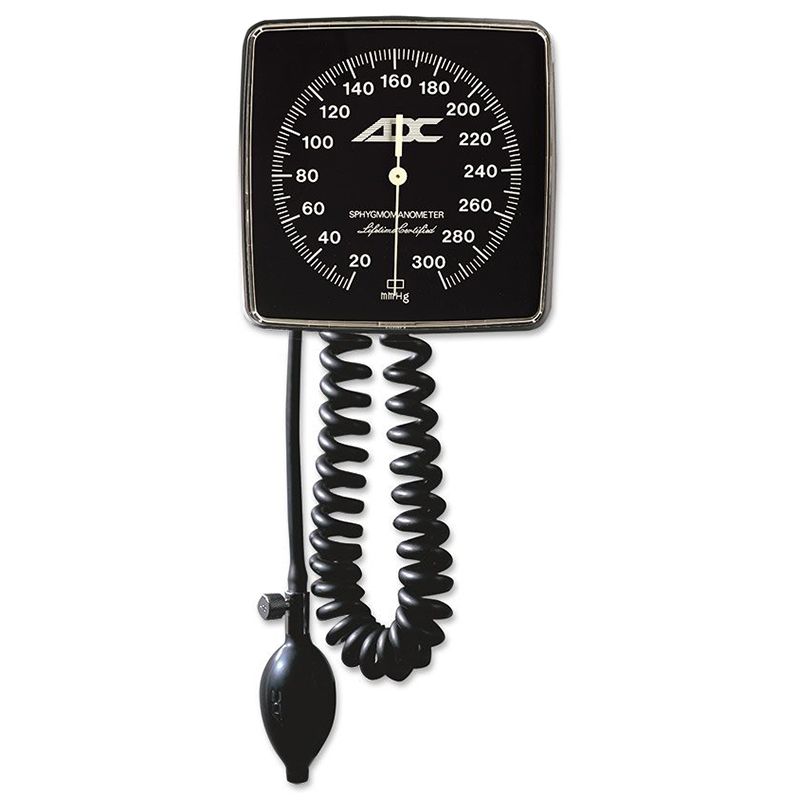

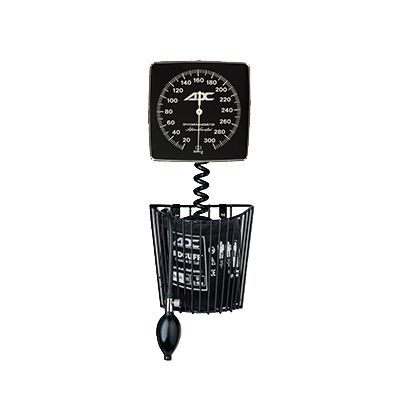

Yes, the ADC Adstation 5613-6 can be configured to include an optional integrated wall aneroid sphygmomanometer (model 750W).

This professional unit provides key features and benefits:

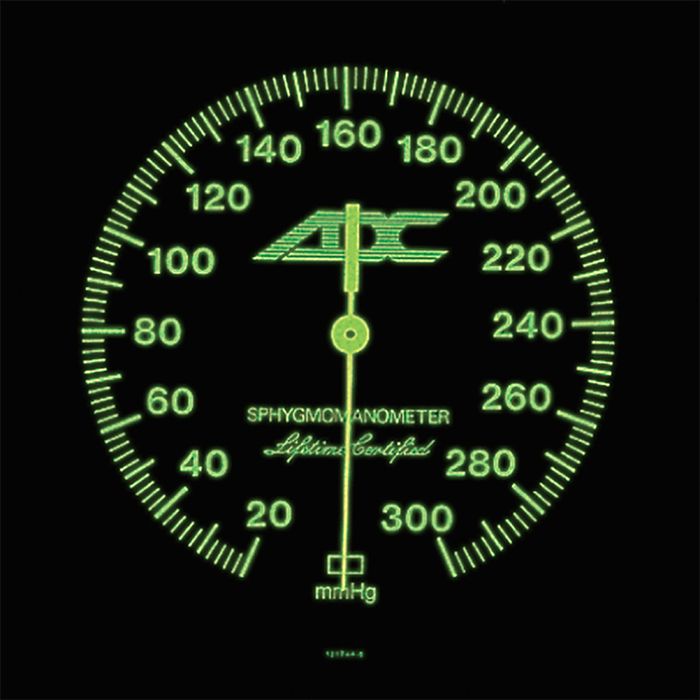

• Large 6-inch luminescent dial for high visibility and easy reading.

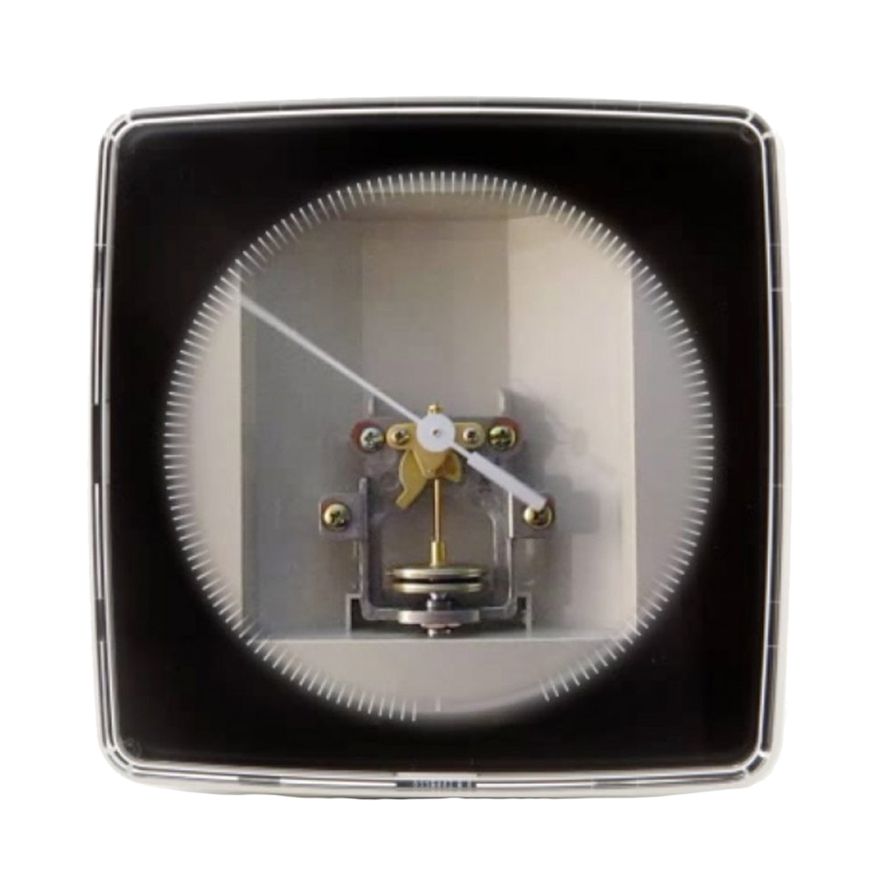

• 300 mm Hg no-pin stop movement.
• Eight-foot length of coiled tubing (latex-free).

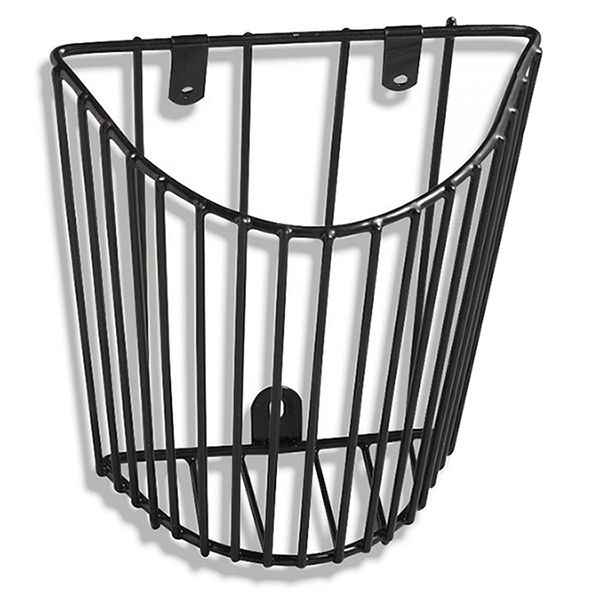

• The Adcuff Inflation System, including Adult and Large Adult Nylon Cuffs, and a cuff storage basket.

It also comes with significant durability: the manometer component is protected by a Lifetime calibration warranty.

The optional sphygmomanometer (if selected) includes the Adcuff Inflation System, which features two sizes of nylon cuffs:

• Adult Cuff: 9” to 15.7” (23 cm to 40 cm)
• Large Adult Cuff: 13.3” to 19.6” (34 cm to 50 cm)

This system provides versatility for measuring blood pressure across a wide range of adult patient sizes.

Yes, the ADC Adstation 5613-6 features a highly modular and wall-mounted design specifically engineered to optimize space and eliminate countertop clutter in clinical environments. This ensures your diagnostic tools are always organized and readily accessible.

Key details regarding its compact design:

• Diagnostic Station Dimensions: The main unit measures only 7.88” x 7.12” x 2.95” (20.02 cm x 18.08 cm x 7.5 cm).
• Scalability: The system uses extension modules, which are also compact (7.88” x 3.94” x 2.95”), allowing you to expand your station vertically or horizontally without dominating valuable surface area.

Yes, the ADC Diagnostix 5450 Dermascope Head is equipped with specialized contact plates for enhanced examination and hygiene. The set includes two interchangeable contact plates:

• One plate features a scale for precise measurement and documentation of skin lesions.
• The second plate is plain (without a scale).

Both plates are designed to be disinfected, promoting proper clinical hygiene. Additionally, the dermascope features an optical grade 10X focusable magnifying lens and bright AdLED illumination.

Yes, the ADC Adstation features a highly modular system design built for scalability in clinical environments. This allows for easy customization of your diagnostic setup.

• Standard Set: The unit comes configured with a power supply base unit, one extension module, and two 3.5V instrument handles (one for the Throat Illuminator and one for the Dermascope).
• Expansion Potential: The wall system supports the addition of up to two additional extension modules. This capability allows you to integrate more diagnostic components, such as the optional ADC Diagnostix 750W Wall Aneroid Sphygmomanometer, to meet specific workflow requirements.

The ADC Diagnostix 5426 3.5V Throat Illuminator Head is engineered for efficient and clear examination of the oral cavity and pharynx.

It offers several specialized features:

• Clear, Unobstructed View: Uses PMMA light transmission (similar to fiberoptics) to deliver light effectively without obstructing the examiner’s view.
• Integrated Tongue Blade Holder: Includes a holder for commercial tongue blades and features a convenient eject button for safe, sanitary disposal.
• Illumination Options: Available with a choice between traditional Xenon lamps or long-life AdLED lamps (depending on the specific configuration selected).
• Security: Includes an anti-theft locking feature for added security in professional environments.

The Adstation utilizes a sophisticated Adtronic electronic control platform to manage power and illumination intensity, ensuring precise and efficient operation of the 3.5V handles and diagnostic heads.

Key features of this advanced power control system include:

• Adtronic Rheostatic Control: This electronic system provides infinite, continuous control over the light intensity, allowing clinicians to accurately set the optimal brightness level for any examination.
• Magnetic Activation: Power is intuitively activated via a magnetic switch when the handle is lifted from its cradle, and automatically powers off when it is returned.
• Safety Auto-Off: The Adtronic system incorporates a safety feature that automatically shuts down the instrument after two minutes of inactivity or if it is mis-cradled, which conserves energy and extends lamp life.

Yes, the ADC Adstation features advanced power management designed for safety, convenience, and extremely precise control:

• Precise Light Intensity: The Adtronic electronic rheostatic control provides continuous, infinite adjustment of light intensity, allowing you to fine-tune the illumination for optimal viewing during diagnostics.
• Intuitive Operation: A built-in magnetic switch system ensures that the instrument powers on automatically when the handle is removed from its cradle and powers off when it is returned.
• Safety & Efficiency: The Adtronic auto-off feature automatically shuts down the instrument light after two minutes of inactivity, which helps conserve energy and prolong lamp life.

Additionally, the system utilizes durable 3.5V handles that are CNC machined from solid brass and chrome plated for longevity and a secure grip.

The ADC Adstation is a factory-new product from American Diagnostic Corporation, ensuring you receive a brand-new, high-quality diagnostic set.
