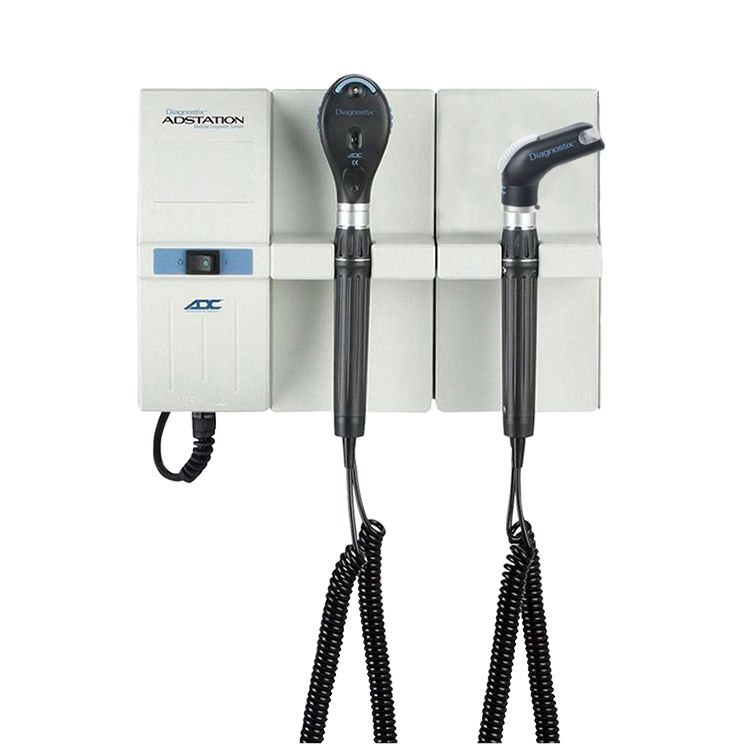

ADC Adstation 56122-6 3.5V Wall Coax Plus Ophthalmoscope/Throat Illuminator Diagnostic Set

The ADC Adstation 56122-6 is a comprehensive diagnostic set that includes two specialized 3.5V instrument heads:

• ADC Diagnostix 5442 3.5V Coax Plus Ophthalmoscope Head: Designed for detailed examination of the eye’s media and retina, this head offers advanced features:
  • High-performance aspherical condenser lens system that uses distinct parallel light beams (Gullstrand’s principle) to significantly reduce corneal reflection.
  • Exceptional versatility with 89 viewing lenses (+1 to +45; -1 to -44).
  • Features 28 aperture and filter combinations, including Red-free, Cobalt, and Polarizing filters, along with specialized apertures like Slit, Karo (grid overlay), and Fixation.
• ADC Diagnostix 5426 3.5V Throat Illuminator Head: Used for inspecting the oral cavity and pharynx.
  • Utilizes PMMA light transmission (similar to fiberoptic) for an unobstructed and clear view.
  • Includes a convenient, built-in tongue blade holder with an eject button for safe and hygienic disposal.

Both instruments are paired with handles CNC machined from solid, chrome-plated brass for exceptional durability and feature infinite, continuous light intensity control via the Adtronic electronic rheostat.

The ADC Adstation 56122-6 is a comprehensive, wall-mounted diagnostic system that includes two high-performance 3.5V instruments:

1. ADC Diagnostix 5442 3.5V Coax Plus Ophthalmoscope Head:
   • Designed for detailed examinations of the eye’s media and retina.
   • Features an advanced aspherical condenser lens system and distinct parallel light beams to significantly reduce corneal reflection.
   • Offers extensive flexibility with 89 viewing lenses (+1 to +45; -1 to -44) and 28 aperture/filter combinations, including polarizing, red-free, and cobalt filters.
2. ADC Diagnostix 5426 3.5V Throat Illuminator Head:
   • Used for thorough inspection of the oral cavity and pharynx.
   • Utilizes PMMA light transmission (similar to fiberoptic) for an unobstructed view.
   • Includes a convenient, hygienic tongue blade holder with an eject button.

Customization and Expansion

This modular system allows you to select configurations with either AdLED or Xenon lamps for both instrument heads. The base unit supports two handles and can be expanded using extension modules to hold up to three total instrument handles. An optional Wall Aneroid Sphygmomanometer can also be integrated.

Yes, the ADC Diagnostix 5426 3.5V Throat Illuminator Head is designed for highly hygienic and efficient examination of the oral cavity.

Key features related to blade use include:

• An integrated tongue blade holder to securely position the blade during examination.
• A convenient eject button that allows for hands-free, sanitary disposal of used tongue blades.

The illuminator also utilizes PMMA light transmission, ensuring an unobstructed and clear view during the procedure.

The ADC Adstation 56122-6 set is backed by a robust, multi-tiered warranty designed to ensure long-term reliability in a clinical setting. The system provides lifetime coverage for specific, high-value components.

Key Warranty Coverage:

• Wall Transformer: 5 Years
• Instrument Heads and Xenon Lamps (if configured): 2 Years
• AdLED Lamps (if configured): Lifetime Warranty

If you integrate the optional ADC Diagnostix 750W Wall Aneroid Sphygmomanometer, it is covered for 3 years, and the manometer movement itself carries a separate Lifetime Calibration Warranty.

Yes, the ADC Adstation 56122-6 is specifically designed for modularity and expansion to meet evolving clinical needs.

Key ways you can customize and expand the system include:

• Handle Capacity: The primary wall transformer base holds one handle, but the system supports up to three total handles. You can add extension modules (up to two total) to hold additional instruments.
• Integrated Vitals: You have the option to integrate the ADC Diagnostix 750W Wall Aneroid Sphygmomanometer directly into the unit.
• Illumination Choice: Configurations are available with traditional Xenon illumination or the long-lasting AdLED lamps.
• Head Compatibility: The handles feature a universal bayonet mount, ensuring compatibility with 3.5V diagnostic heads from major brands.

Yes, the ADC Adstation is designed as a modular, wall-mounted diagnostic system specifically to conserve valuable counter space. Its integrated design keeps essential tools organized and readily accessible.

Key dimensions for the main components are:

• Diagnostic Station (Base Unit): 7.88” x 7.12” x 2.95” (20.02 cm x 18.08 cm x 7.5 cm)
• Extension Module (Optional): 7.88” x 3.94” x 2.95” (20.02 cm x 10.01 cm x 7.5 cm)

Yes, the ADC Diagnostix 5442 Coax Plus Ophthalmoscope uses advanced optical features designed for superior visualization and minimal glare.

Key optical specifications and benefits include:

• Glare Reduction: Features an aspherical condenser lens and applies Gullstrand’s principle, separating the illuminating and observational light beams to virtually eliminate corneal reflection.
• Extensive Refractive Correction: It includes 89 viewing lenses (ranging from +1 to +45 and -1 to -44) for comprehensive focusing capabilities.
• Versatile Imaging: Clinicians can choose from 28 aperture and filter combinations for flexible examination.
• Specialized Filters: Includes a Polarizing filter (to virtually eliminate residual reflection), a Red free filter, and a Cobalt filter (for use with fluorescent dye).

The ADC Adstation is equipped with several advanced electronic features to ensure efficiency, precise control, and safety in a clinical setting:

• Adtronic Electronic Rheostatic Control: Provides infinite, continuous adjustment over light intensity, allowing practitioners to set the illumination level exactly where needed.
• Magnetic Switch Activation: Instruments power on automatically when removed from the cradle and power off when returned, streamlining workflow.
• Safety Auto-Off Feature: To conserve energy, the power supply automatically deactivates the instrument after two minutes of inactivity if the handle is left outside the cradle.
• Modular Power Supply: The wall transformer base is designed to be modular, supporting two handles initially, with the capacity to add up to two additional extension modules to support a total of three handles.

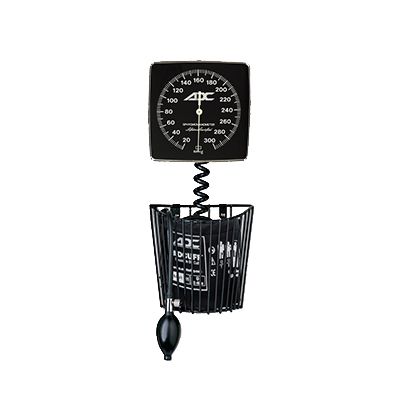

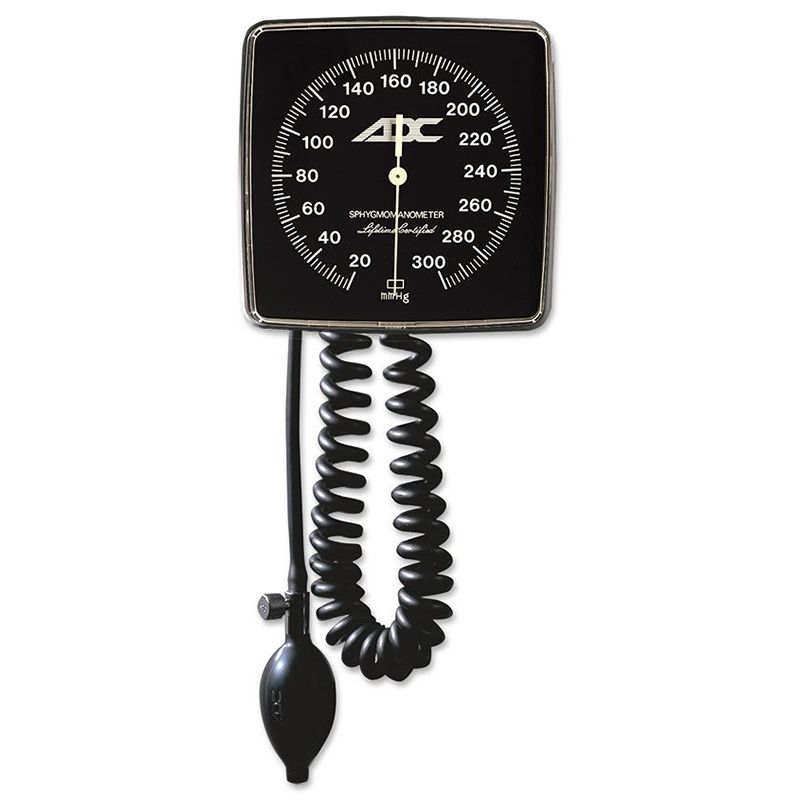

The optional integrated component is the ADC Diagnostix 750W Wall Aneroid Sphygmomanometer, designed for clinical reliability and high visibility.

Key features include:

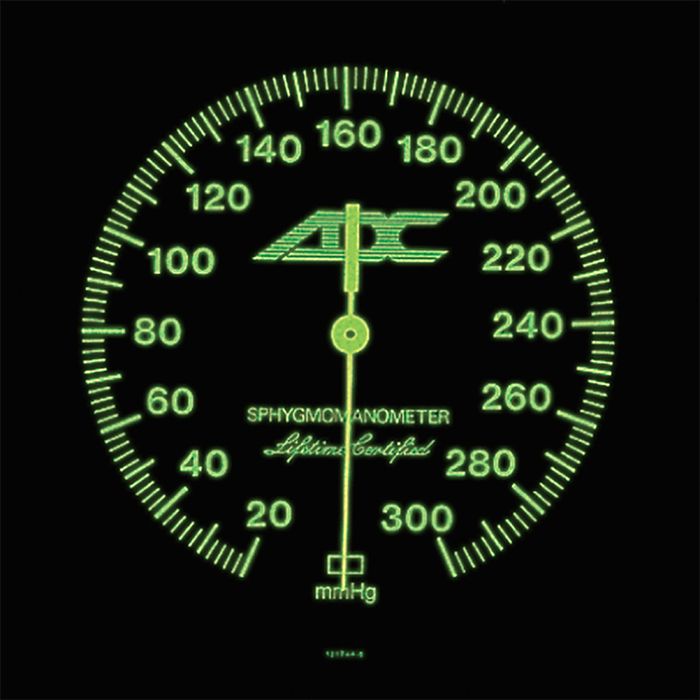

• High-Visibility Display: Features a large, easy-to-read 6-inch luminescent dial and a 300 mm Hg no-pin stop movement for accurate readings.
• Flexible Mounting: Comes with a wall bracket that offers a 110-degree swivel for optimal viewing angles.

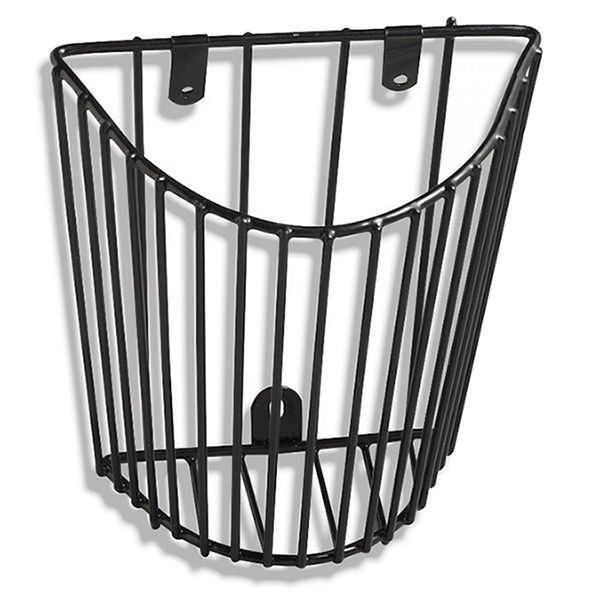

• Adcuff Inflation System: Includes the Adcuff system with a cuff storage basket, Adflow bulb and valve, and two nylon cuffs:
  • Adult (9” - 15.7” / 23 cm - 40 cm)
  • Large Adult (13.3” - 19.6” / 34 cm - 50 cm)
• Tubing: Features eight feet of coiled tubing that is certified not made with natural rubber latex.
• Warranty: The manometer carries a robust lifetime calibration warranty.

The ADC Diagnostix 5442 3.5V Coax Plus Ophthalmoscope head features a highly advanced optical system and comprehensive tools designed for precise, clear, and glare-reduced examination.

Superior Optical Performance

• Minimized Reflection: The system utilizes an aspherical condenser lens and applies Gullstrand’s principal by using distinct parallel beams for illuminating and observational light. This design significantly reduces corneal reflection.
• Extensive Lens Range: It offers a wide range of 89 viewing lenses (from +45 to -44 diopters) for accurate focusing and detailed ametropia correction.

Versatile Diagnostic Capabilities

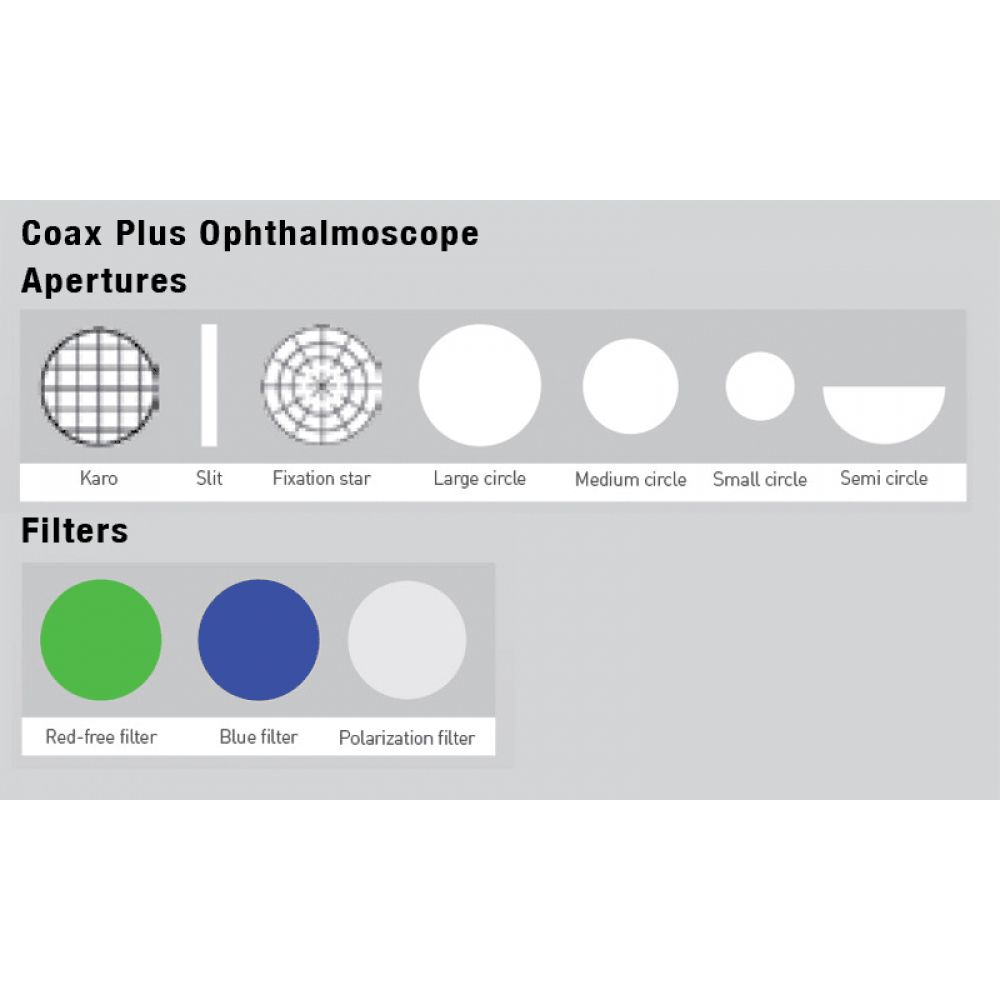

The ophthalmoscope includes 28 aperture and filter combinations to suit diverse diagnostic needs:

• Key Apertures: Includes Large, Small, and Micro spot, along with specialized patterns such as Slit, Fixation (cross-hairs), Half moon, and Karo (grid overlay).
• Essential Filters: Features Red free (for enhanced visualization of vasculature), Cobalt (for use with fluorescent dyes), and a Polarizing filter to virtually eliminate reflections.
