Condition:
-
Warranty:
- Weight: 6.85 lb
-
Learn more:
-
MFR:
American Diagnostic Corporation
Ships from MFI Medical
-
MPN: 56122X-56X
- Phone: (800) 232-2670
Frequently asked questions
Does the set include comprehensive diagnostic heads?
Yes, the ADC Adstation 56122-56 provides a comprehensive, modular diagnostic system that includes three essential 3.5V instrument heads for versatile clinical examinations:
- ADC Diagnostix 5442 Coax Plus Ophthalmoscope: This sophisticated ophthalmoscope features high-performance aspherical optics to reduce corneal reflection and offers exceptional control. It includes 89 viewing lenses (+1 to +45, -1 to -44) and 28 aperture/filter combinations, including specialized options like the Polarizing filter and Karo grid.
- ADC Diagnostix 5450 Dermascope: Ideal for dermatological assessment, it uses bright AdLED illumination and an optical-grade 10X focusable magnifying lens. It comes with two interchangeable, disinfeasible contact plates (one with a scale).
- ADC Diagnostix 5426 Throat Illuminator: Facilitates clear examination of the oral cavity and pharynx using PMMA light transmission for an unobstructed view. It includes a convenient tongue blade holder with an integrated eject button for hygienic disposal.
What are the station and module dimensions?
The dimensions for the wall-mounted diagnostic station (Power Supply Base Unit) and its extension modules are:
- Diagnostic Station: 7.88” x 7.12” x 2.95” (20.02 cm x 18.08 cm x 7.5 cm)
- Extension Module: 7.88” x 3.94” x 2.95” (20.02 cm x 10.01 cm x 7.5 cm)
Does the ophthalmoscope offer advanced illumination?
Yes, the Diagnostix 5442 Coax Plus Ophthalmoscope supports two high-performance illumination options, depending on your chosen configuration:
- AdLED Illumination: Known for its longevity and energy efficiency, this option is backed by an exceptional Lifetime Warranty on the lamp.
- Xenon Illumination: A traditional, high-intensity light source used for clear diagnostic viewing.
Keep in mind that while the Ophthalmoscope and Throat Illuminator offer this flexibility, the included Dermascope head exclusively uses AdLED illumination.
What is the warranty period for the wall transformer and instrument heads?
The warranty periods for the ADC Adstation components are as follows:
- Wall Transformer: 5 Years
- Instrument Head and Xenon Lamps: 2 Years
- LED Lamp: Lifetime
Which high-quality diagnostic instruments are included?

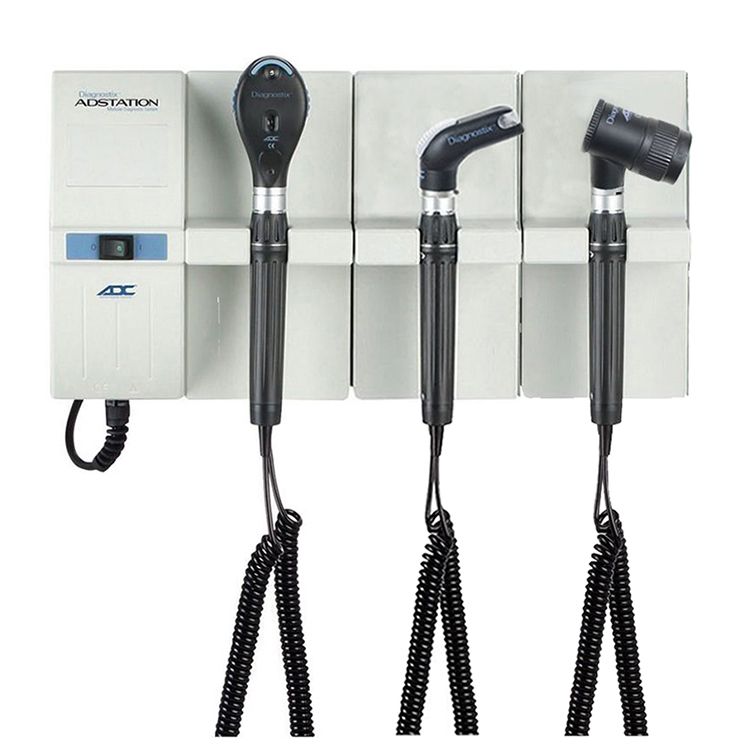

The ADC Adstation 56122-56 is a comprehensive, wall-mounted diagnostic system that includes three essential 3.5V instrument heads. All heads feature a universal bayonet mount and standard anti-theft locking.
- Coax Plus Ophthalmoscope (Diagnostix 5442): This advanced instrument offers 89 viewing lenses (+1 to +45, -1 to -44) and features 28 total aperture and filter combinations, including specialized tools like the Karo grid, Slit aperture, and Polarizing filter. It also features a secondary focusing wheel for fine focus correction.
- Dermascope (Diagnostix 5450): Specialized for detailed skin observation, utilizing powerful AdLED illumination and an optical grade 10X focusable magnifying lens. It includes two interchangeable contact plates that are disinfeasible for easy cleaning.
- Throat Illuminator (Diagnostix 5426): Designed for oral and pharyngeal examinations, providing PMMA light transmission for an unobstructed view. It includes a convenient tongue blade holder with an eject button.
What are the wall transformer input options?
The wall transformer supports multiple input options, making it versatile for different clinical settings:
- Standard Input: 120V
- International Input: 230V (Configurations are available with a European plug option for the 230V input.)
Note that while the wall unit manages the input power, the diagnostic instrument heads and handles themselves operate at 3.5V.

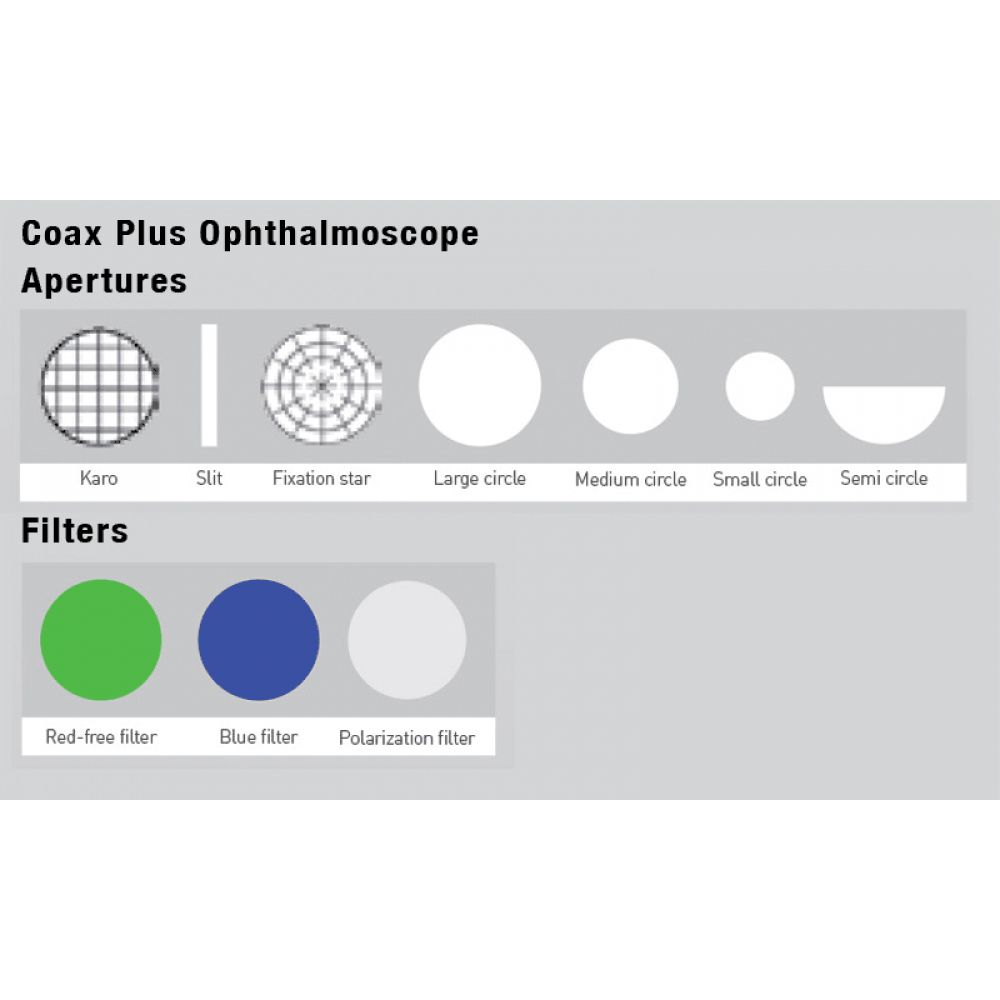

What specialized apertures and filters does the ophthalmoscope include?
The ADC Diagnostix 5442 Coax Plus Ophthalmoscope Head provides extensive diagnostic capability, offering 28 total aperture and filter combinations.
Specialized Apertures (7 options)
The apertures optimize viewing for various pupil sizes and diagnostic needs:
- Large, Small, and Micro spot: Optimized sizes for use with dilated, undilated, and small pupils.
- Slit: Valuable for determining the level of lesions and aiding depth perception.
- Karo (Grid Overlay): Used for precise measurement and lesion mapping.
- Fixation (Cross-hairs): Designed to assist with accurate measurement and localization.
- Half moon: Offers a combination of enhanced depth perception and an expanded field of view.
Specialized Filters (3 plus Neutral)
These filters enhance visualization of specific ocular structures:
- Red free: Essential for examining veins, arteries, and nerve fibers by excluding red light rays.
- Cobalt: Used with fluorescent dye for viewing corneal lesions and abrasions.
- Polarizing: Eliminates corneal reflection, providing a clearer diagnostic field of view.
- Neutral: A standard filter setting is also included.
Does the dermascope offer 10X magnification?
Yes, the ADC Diagnostix 5450 Dermascope Head features high-quality optics designed for detailed dermatological examination.
Key specifications and features include:
- Optical Grade 10X Focusable Magnification: The instrument uses an optical grade 10X focusable magnifying lens, which is adjusted via a large knurled focusing ring, allowing for precise examination of skin lesions and pigmentation changes.
- AdLED Illumination: The Dermascope is equipped with AdLED illumination for bright, consistent viewing.
- Interchangeable Contact Plates: The set includes two interchangeable contact plates (one with a scale and one without) that are designed to be disinfected for clinical hygiene.
Does the wall transformer have efficient and safe features?
Yes, the wall transformer base unit is designed with several smart features to ensure efficiency, precision, and safety during clinical use.
- Magnetic Power Activation: Power is automatically activated when a handle is removed from its cradle, promoting energy conservation. The unit automatically powers off when the handle is replaced.
- Adtronic Electronic Rheostatic Control: This sophisticated feature provides infinite and continuous light intensity control, allowing for precise illumination during examinations.
- Adtronic Auto-Off Safety: An automatic safety shutoff activates after two minutes if an instrument handle is mis-cradled or left out, preventing unnecessary power drain and reducing the risk of heat generation.
Does the system include wall mounting hardware?
Yes, the ADC Adstation 56122-56 is designed for permanent wall mounting and comes ready for installation. The unit includes the necessary bracket for easy mounting of the Wall Transformer Power Supply Base Unit. This integrated wall design provides key benefits for clinical use:
- Convenience: Keeps three instruments (Ophthalmoscope, Throat Illuminator, and Dermascope) organized and instantly accessible.
- Automatic Power: Magnetic switching instantly activates the power when a handle is removed and automatically turns it off when the handle is replaced.
- Safety: The Adtronic system includes an auto-off safety feature that shuts down power after two minutes of inactivity.
