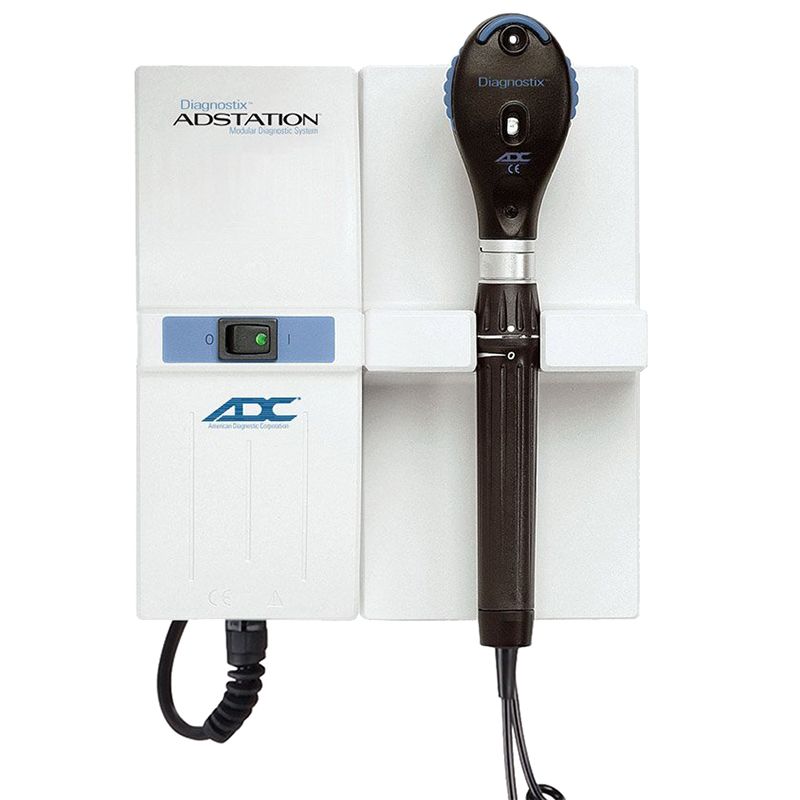

ADC Adstation 56122 3.5V Wall Coax Plus Ophthalmoscope

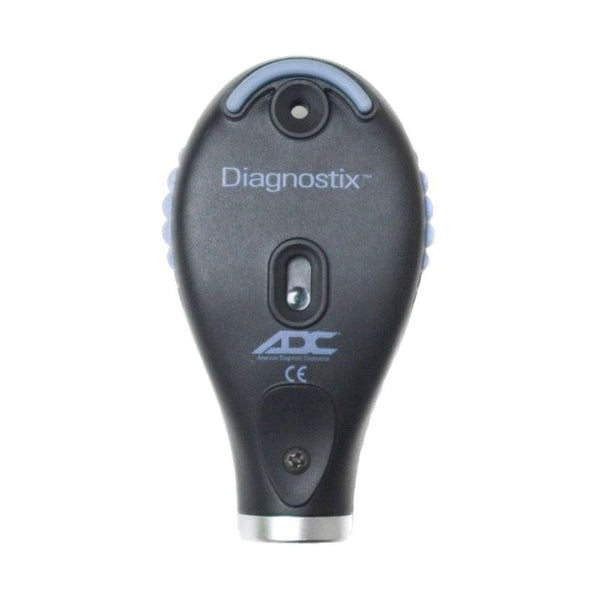

Yes, the ADC Diagnostix 5442 Coax Plus Ophthalmoscope Head provides comprehensive viewing capabilities for detailed ocular examination, featuring advanced optics that reduce corneal reflection.

The system includes:

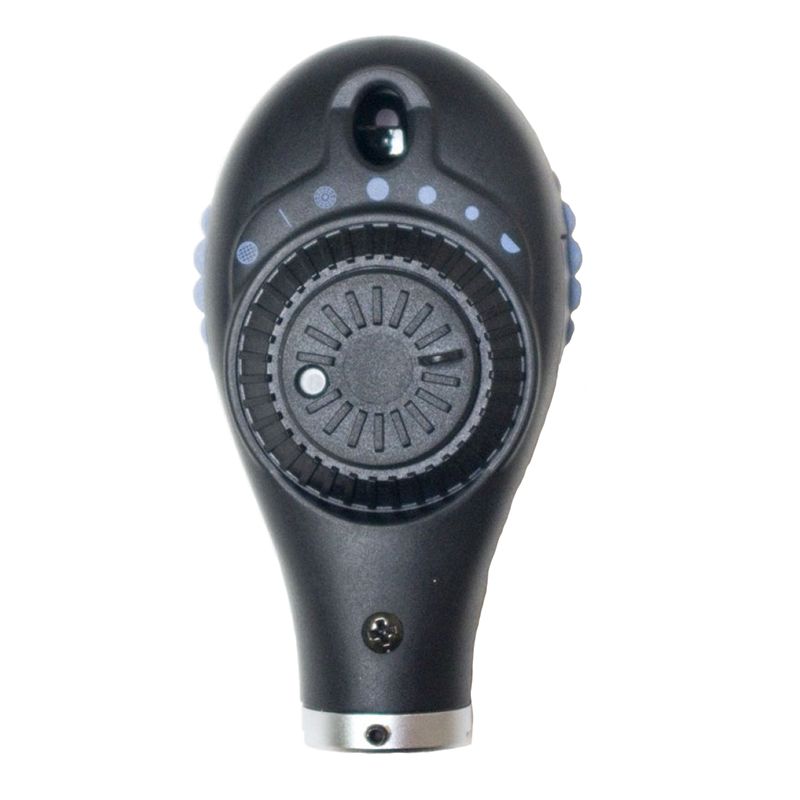

• 89 Viewing Lenses: This extensive range allows for precise, single-step focus adjustments (Plus 1-45; Minus 1-44).
• 28 Aperture and Filter Combinations: This versatility maximizes diagnostic detail for various patient conditions.

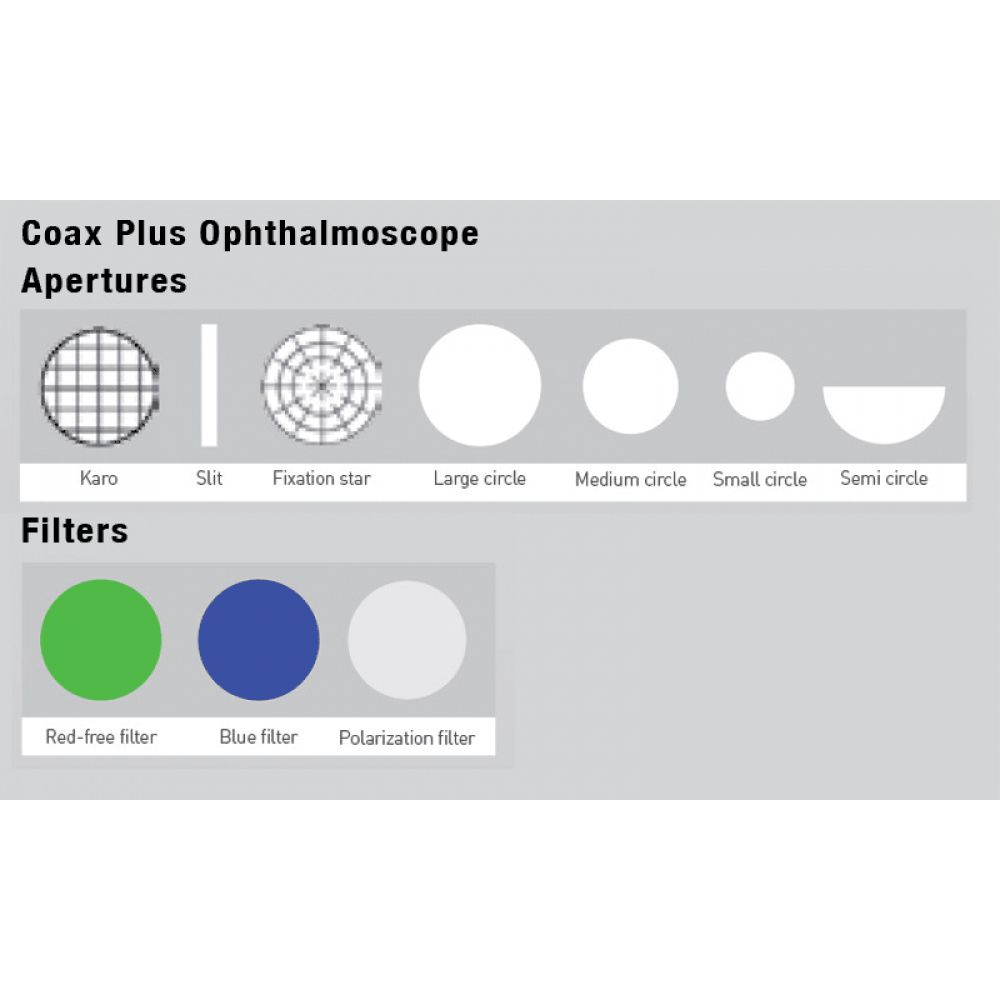

Key included apertures and filters are:

Apertures (7 Total):

• Specialized: Karo (grid overlay), Slit (for assessing lesion levels), and Fixation (graduated cross-hairs).
• Standard: Large circle, Small circle, Micro spot, and Half moon.

Filters (3 + Neutral):

• Red free: Excludes red rays for clear viewing of vessels and arteries.
• Cobalt: For use with fluorescent dye on the cornea.
• Polarizing: Virtually eliminates corneal reflection for improved clarity.

Yes, the necessary hardware for installation is included, and the system is designed for straightforward, permanent wall placement in clinical settings.

Key installation and security features:

• Included Mounting Bracket: The wall transformer base unit comes with a bracket for standard wall installation.
• Versatile Mounting: It can be installed directly onto a wall or mounted to specialized ADC wallboard systems.
• Anti-Theft Security: The Ophthalmoscope head features a standard anti-theft locking mechanism for secure permanent installation.

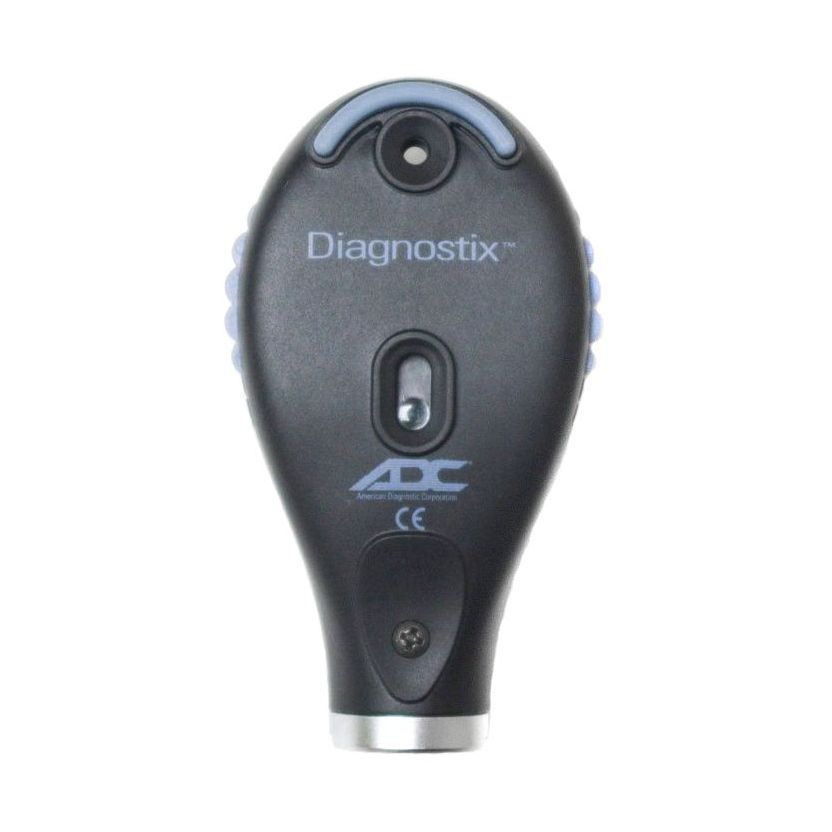

Yes, the ADC Diagnostix 5442 Coax Plus Ophthalmoscope head is specifically engineered to minimize corneal reflection, ensuring an exceptionally clear view during examination.

This high performance is achieved through multiple integrated design features:

• Aspherical Condenser Lens: A high-performance aspherical condenser lens reduces glare.
• Gullstrand’s Principal: The optical system utilizes distinct, parallel light beams for observation and illumination, which significantly minimizes corneal reflection.
• Polarizing Filter: A dedicated Polarizing filter is included among the 28 aperture/filter combinations, which is specifically used to eliminate corneal reflection.

Yes, the ADC Adstation’s wall transformer is designed with smart power management.

It features the Adtronic auto-off feature, which automatically shuts off the power supply after two minutes of inactivity. This functionality helps to conserve energy and enhances safety within the clinical setting.

Yes, the ADC Adstation 56122 wall transformer utilizes a standard bayonet instrument mount.

This ensures compatibility with all major brands of 3.5V power supply handles, offering flexibility and versatility for medical professionals using different instrument heads.

Yes, the ADC Adstation 56122 system offers robust, component-specific warranties, including two key lifetime guarantees.

Key Warranty Coverage:

• Lifetime Warranty: Applies to the advanced LED Lamp option.
• 5 Years: Wall Transformer Power Supply Base Unit.
• 2 Years: Instrument Head (Diagnostix 5442) and Halogen/Xenon Lamps.

If you select a configuration that includes the optional ADC Diagnostix 750W Wall Aneroid Sphygmomanometer, it is covered separately:

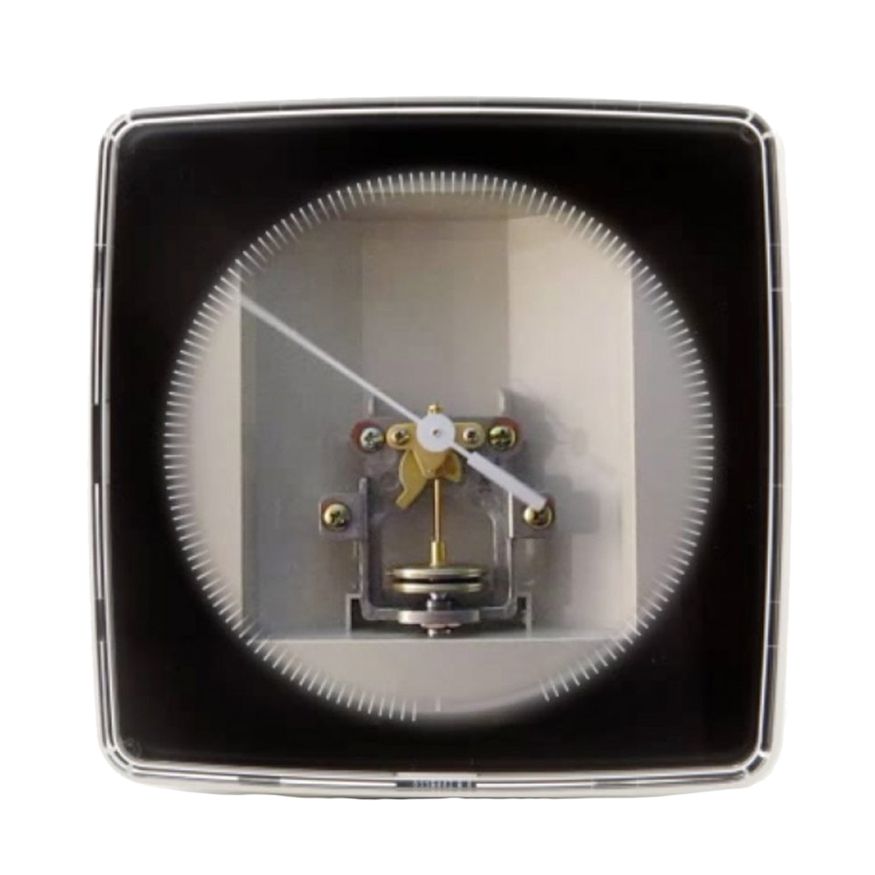

• The manometer features a Lifetime Calibration Warranty.
• The Sphygmomanometer Unit itself is covered for 3 years.

The ADC Adstation 56122 system offers excellent customization regarding the light source and optional integration of a blood pressure monitoring unit. This allows you to tailor the system to your clinical needs.

1. Illumination Options

You you have a choice between two high-performance lamp types for the ADC Diagnostix 5442 Ophthalmoscope Head:

• Halogen/Xenon Lamp: Provides bright, traditional illumination (backed by a 2-Year warranty).
• Advanced LED Lamp: Offers superior efficiency, longevity, and clear visualization. This premium option is exceptionally durable and comes with a Lifetime Warranty.

2. Optional Integrated Component

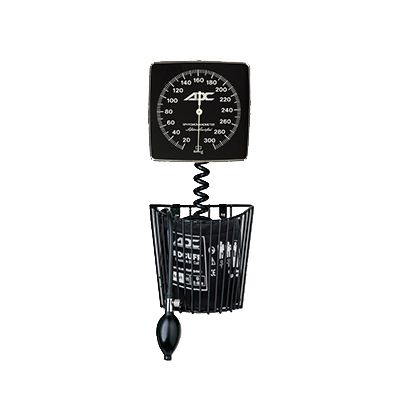

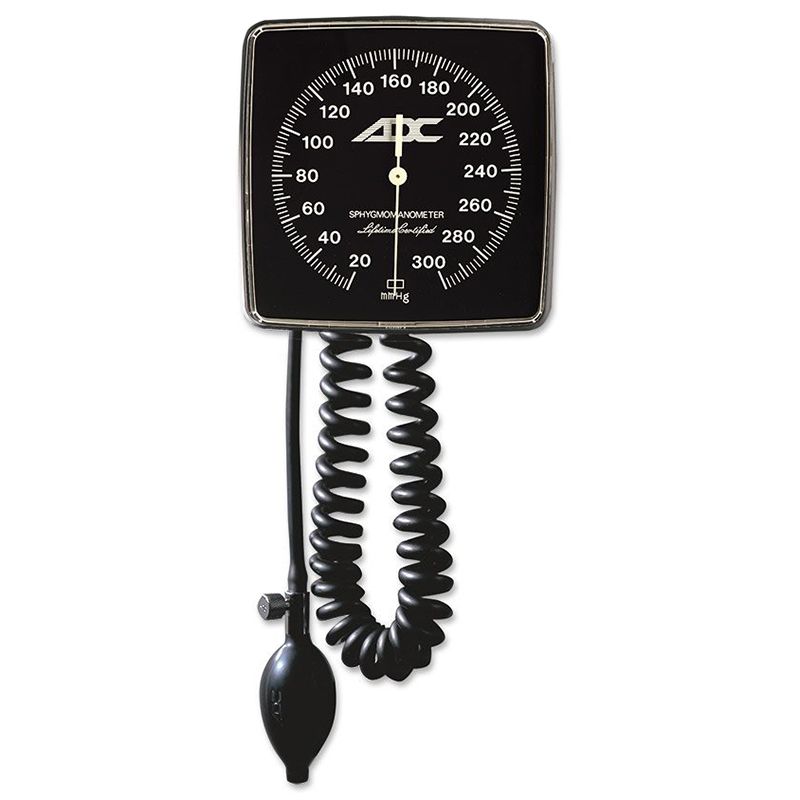

For a complete diagnostic station, you can choose to integrate the ADC Diagnostix 750W Wall Aneroid Sphygmomanometer. This robust unit includes:

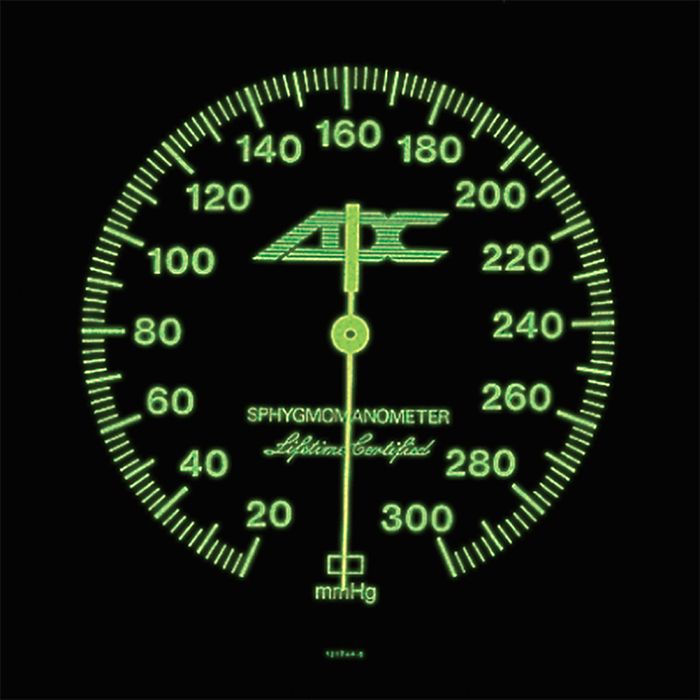

• A large, easy-to-read 6-inch luminescent dial.
• An Adcuff System featuring eight feet of latex-free coiled tubing.
• Nylon cuffs in both Adult (9” - 15.7”) and Large Adult (13.3” - 19.6”) sizes.

Yes, the ADC Diagnostix 5442 Ophthalmoscope Head is designed for comfort and stability, featuring highly ergonomic elements:

• Synthetic rubber brow rest: Facilitates use even when the practitioner is wearing eyeglasses.
• Integral thumb rest: Ensures a steady, stable grip during examination.
• The instrument handle is CNC machined from solid brass with a ribbed, chrome-plated surface for secure handling.

Yes, the ADC Adstation 56122 provides infinite continuous control over the light intensity.

This precision is managed by the Adtronic electronic rheostatic light intensity control.

Key features of the power management system include:

• Continuous Control: Allows stepless, precise adjustment of illumination for optimal viewing.
• Safety Feature: The Adtronic system includes an auto-off safety feature that powers down the instrument after two minutes of inactivity.

Yes, the ADC Diagnostix 5442 Ophthalmoscope Head features an ergonomic design optimized for comfort and stability during use.

Key design elements that enhance the user experience include:

• An integral thumb rest to improve stability and control.
• A synthetic rubber brow rest, making it comfortable to use even when the practitioner is wearing eyeglasses.
• The handle itself is CNC machined from solid brass and features a ribbed surface for a sure grip.
