ADC Adstation 5611-56 3.5V Wall Otoscope/Throat Illuminator/Dermascope Diagnostic Set

The ADC Adstation 5611-56 includes a comprehensive trio of 3.5V diagnostic instrument heads for versatile patient assessment:

• ADC Diagnostix 5420 Otoscope Head: Features fiber-optic light transmission and 3X optical glass magnification. It includes a bidirectional swivel lens for instrumentation access and an insufflator port for pneumatic otoscopy, compatible with standard Welch Allyn specula.
• ADC Diagnostix 5426 Throat Illuminator Head: Utilizes PMMA light transmission for examining the oral cavity and pharynx. It features a hygienic tongue blade holder with an eject button to discard used blades safely.
• ADC Diagnostix 5450 Dermascope Head: Optimized for detailed skin examination with AdLED illumination and a powerful 10X focusable magnifying lens. It comes with two interchangeable, disinfectable contact plates (one with scale, one without).

All three heads utilize a universal bayonet mount compatible with other major 3.5V power supplies and feature a standard anti-theft locking mechanism.

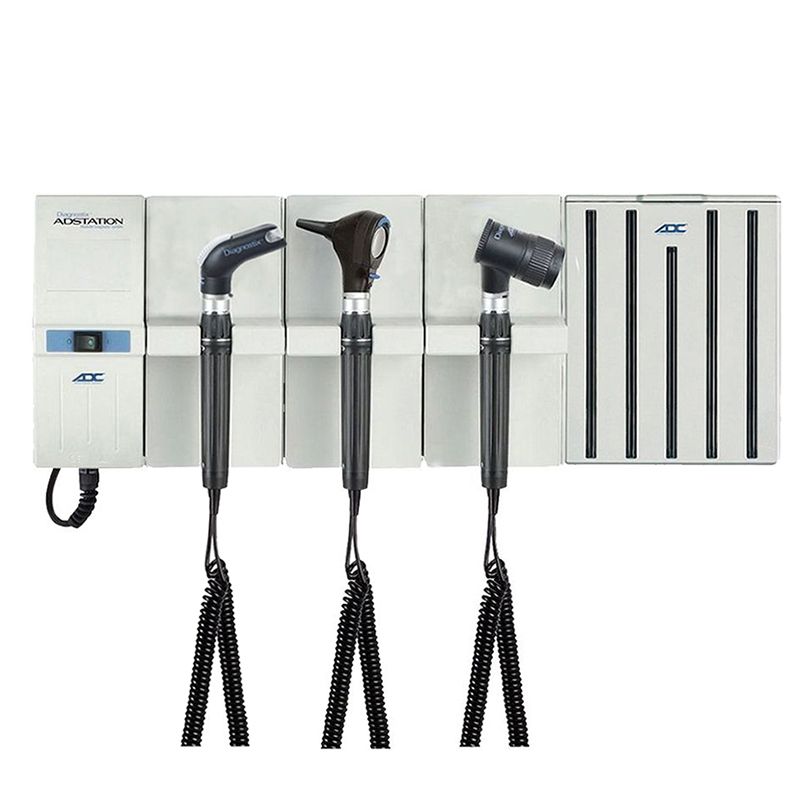

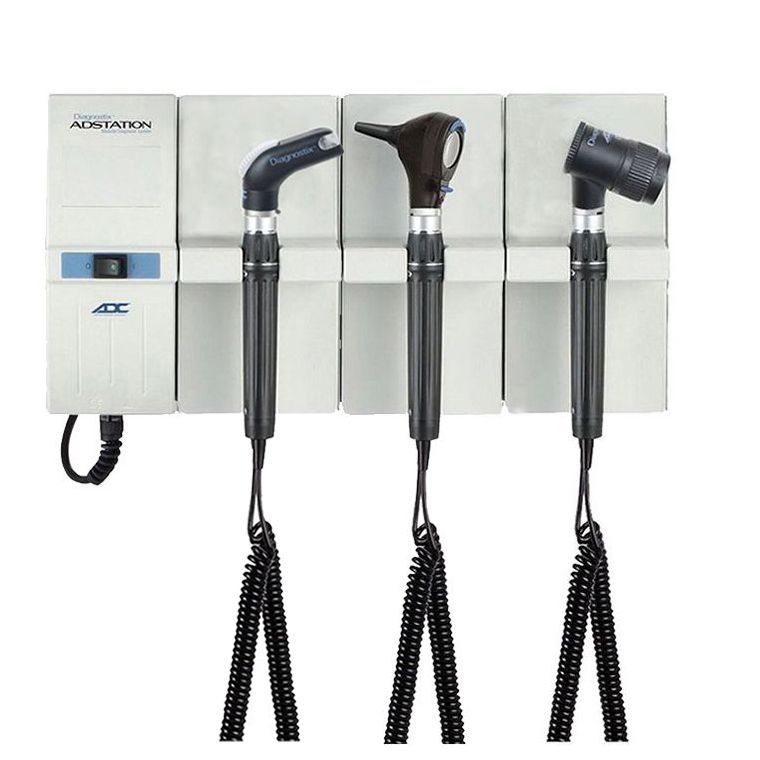

Yes, the ADC Adstation 5611-56 is designed exclusively as a wall-mounted diagnostic system for fixed installation in clinical settings. The system consists of the Wall Transformer Power Supply Base Unit and two extension modules, all mounted to the wall. The product information confirms that a mounting bracket is included for secure and organized installation.

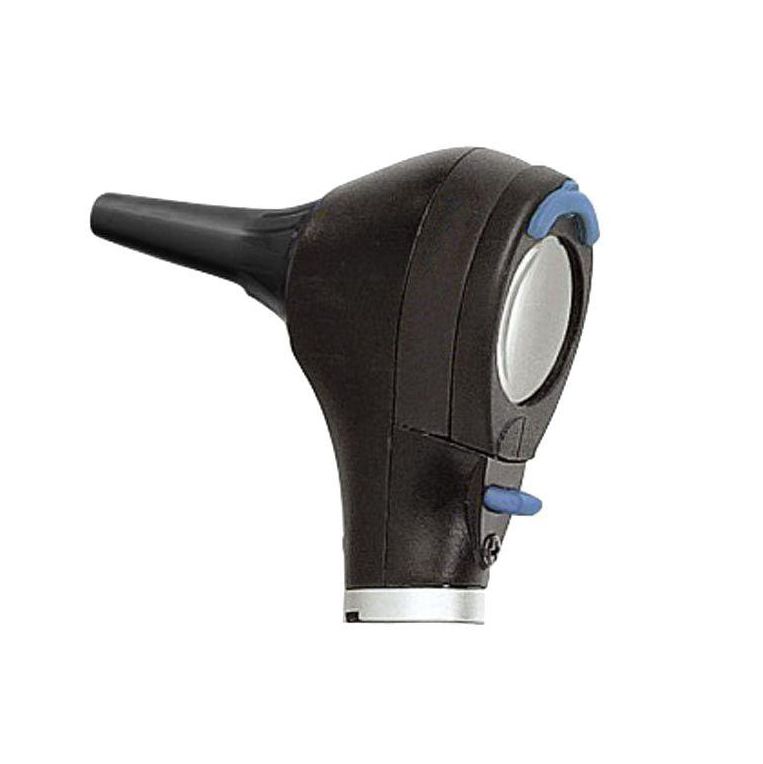

The ADC Diagnostix 5420 Otoscope Head is designed for precision and clinical efficiency, featuring several advanced functionalities:

• Superior Illumination: Utilizes fiber-optic light transmission to deliver a bright, cool, and unobstructed view of the ear canal.
• High Magnification: Offers 3X magnification via high-quality optical glass for detailed visualization.
• Instrumentation Access: Includes a bidirectional swivel lens that can be moved easily out of the way, allowing clinicians access for instrumentation during procedures.
• Pneumatic Otoscopy Ready: Features an integrated insufflator port for performing pneumatic otoscopy, which is essential for assessing eardrum mobility.
• Compatibility: The otoscope is compatible with standard accessories, including Welch Allyn specula.
• Security: An anti-theft locking feature is standard on the instrument head.

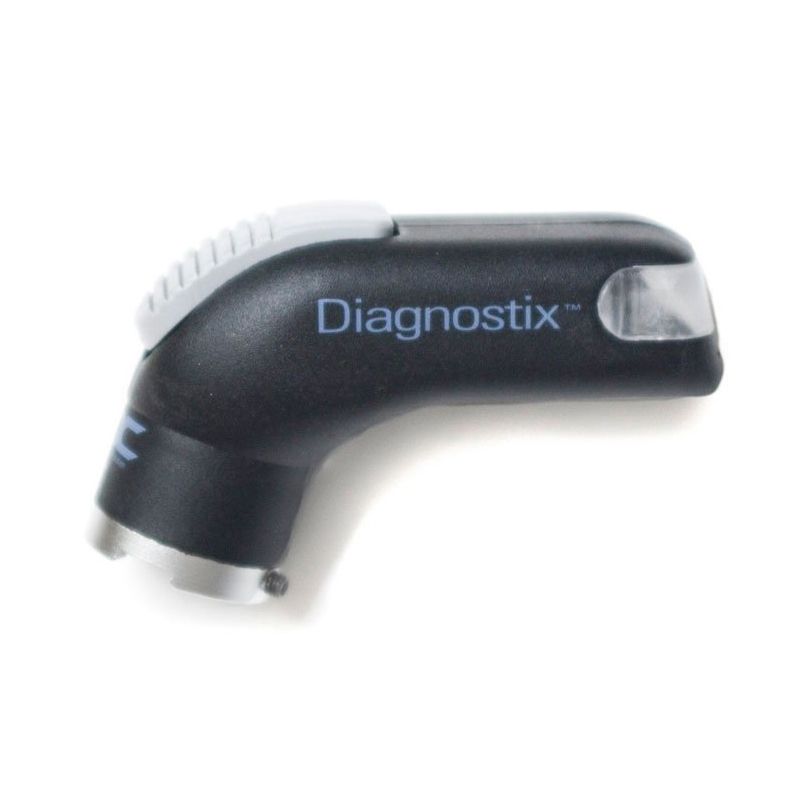

Yes, the ADC Diagnostix 5426 Throat Illuminator is designed for sanitary and efficient use during oral examinations.

Key features include:

• Hygienic Ejection: It features an integrated tongue blade holder with a dedicated eject button for easy and safe disposal of used blades.
• Unobstructed View: Light transmission utilizes PMMA (similar to Fiberoptic technology) to ensure a bright and clear view of the oral cavity and pharynx.
• Security: The head is equipped with an anti-theft locking feature, ideal for high-traffic clinical settings.

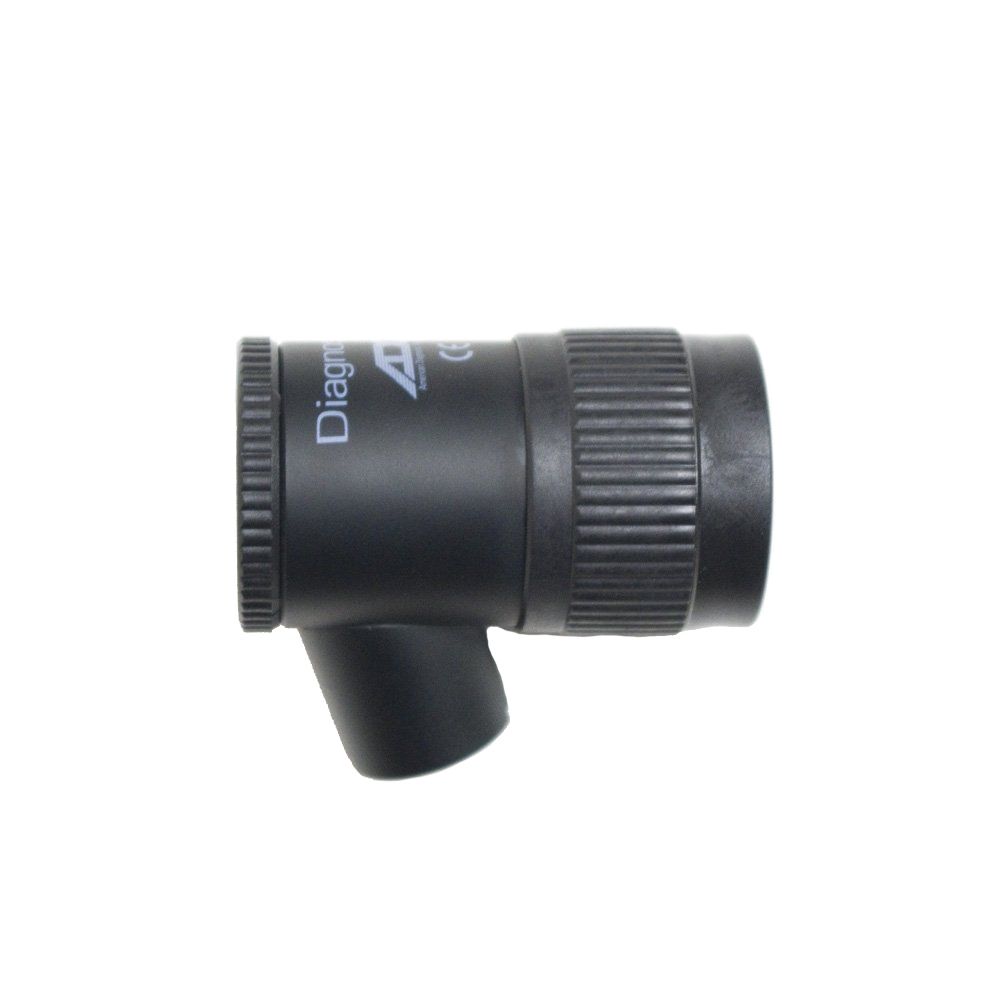

Yes, the Dermascope Head (Diagnostix 5450) is designed for precise and detailed skin examinations, featuring 10X optical-grade magnification.

Key features that ensure precision and ease of use:

• Focusable Optics: Equipped with a 10X focusable magnifying lens, practitioners can achieve crystal-clear, sharp images.
• Precise Adjustment: A large knurled focusing ring allows for easy and accurate focus adjustments.
• Advanced Illumination: The dermascope utilizes high-efficiency AdLED illumination.
• Interchangeable Plates: It includes two contact plates (one with a scale for measurement and one without), both of which are designed to be disinfectable for optimal hygiene.

Yes, the ADC Adstation features advanced power management and control systems built into the wall transformer base and handles:

• Magnetic Power Activation: A magnetic switch activates the power automatically when a handle is removed from its cradle, streamlining the workflow.
• Adtronic Rheostatic Control: The handles include Adtronic electronic rheostatic control, which offers infinite continuous adjustment of light intensity for optimal examination conditions.
• Adtronic Auto-Off: This safety feature automatically powers off the instrument after two minutes of being mis-cradled or left unused, conserving energy and lamp life.

For durability and a secure feel, the three handles are CNC machined from solid brass and chrome-plated in black with a ribbed surface.

Yes, the ADC Adstation handles feature a universal bayonet mount. This critical design choice ensures broad compatibility, making the system functional with all major brands of 3.5V instrument heads.

For added convenience, the included Otoscope Head (ADC Diagnostix 5420) is also compatible with Welch Allyn specula.

The dimensions of the wall transformer base unit and the extension modules are crucial for planning the installation footprint:

Yes, the ADC Adstation is designed with flexible illumination options based on the specific instrument head:

• Otoscope Head and Throat Illuminator Head: These instruments can be configured to use either traditional Xenon lamps or highly efficient AdLED illumination, depending on your selected model variation.
• Dermascope Head: This head exclusively utilizes AdLED illumination for optimal clarity during 10X magnified skin assessment.

The AdLED lamps are highly valued for their superior longevity and are backed by a Lifetime Warranty, while Xenon lamps carry a 2-year warranty.

Yes, the ADC Adstation is designed with international compatibility. You can select configurations that include either the Standard 120V plug (typically used in North America) or a European Plug type, depending on your installation requirements.
