ADC Adstation 5611-5 3.5V Wall Otoscope/Dermascope Diagnostic Set

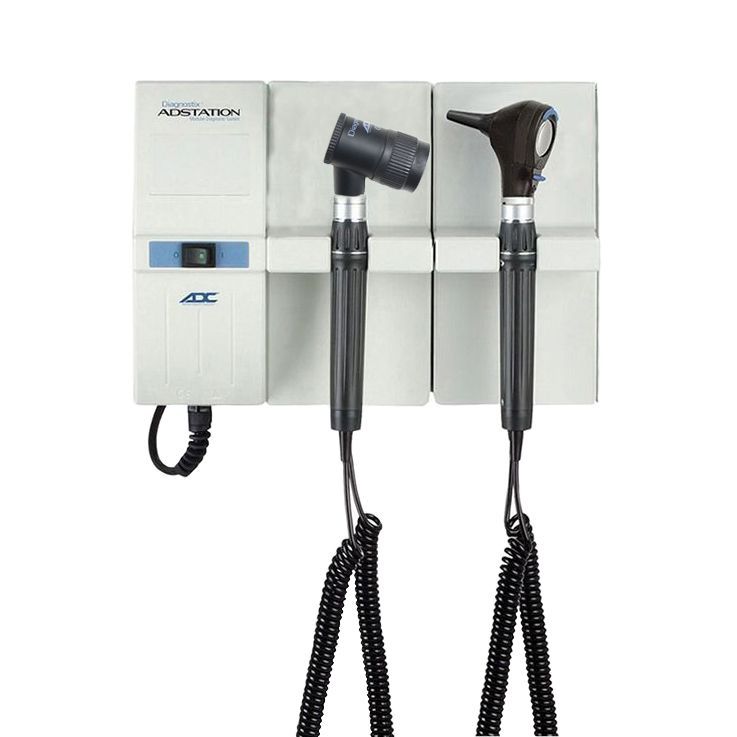

The ADC Adstation 5611-5 3.5V Wall Otoscope/Dermascope Diagnostic Set includes an ADC Diagnostix 5420 3.5V Otoscope Head, an ADC Diagnostix 5450 3.5V Dermascope Head, a power supply base unit that includes a power switch, two 3.5V handles, and an extension module. The wall transformer is available with a standard 120V or a 230V power supply with European plug in, and is easy to install with the included bracket or it may be mounted to ADC wallboard systems. The ADC Diagnostix 5420 3.5V Otoscope Head is available with a halogen/xenon lamp or an advanced AdLED lamp.

The ADC 5630 Wall Specula Dispenser can also be added and is a hygienic and practical solution to storing specula and includes five tubes that can store specula.

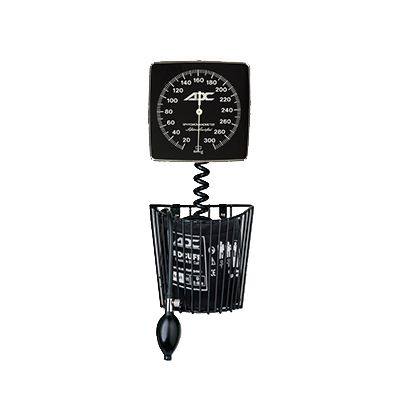

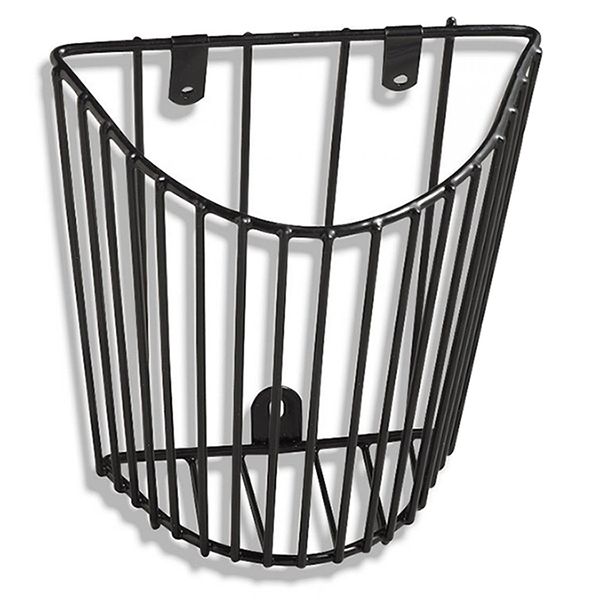

An optional ADC Diagnostix 750W Wall Aneroid Sphygmomanometer can also be added and includes a wall bracket that swivels through 110 degrees rotation for easy viewing, and an Adcuff Inflation System which includes an Adult and Large Adult Nylon Cuff, an Adflow Bulb and Valve, coiled tubing, and a Cuff Storage Basket.

Warranty: 5 Years (Wall Transformer), 2 Years (Instrument Head and Xenon Lamps), Lifetime (LED Lamp), 3 Years (750W Wall Aneroid Sphygmomanometer. Manometer carries a lifetime calibration warranty).

The ADC Diagnostix 5420 3.5V Otoscope Head is designed for examination of the inner ear. The ADC Diagnostix 5450 3.5V Dermascope Head is produced for early identification of changes of skin pigmentation (malignant melanomas).

ADC Adstation 5611-5 3.5V Wall Otoscope/Dermascope Diagnostic Set Features

• ADC Adstation 5611-5 3.5V Wall Otoscope/Dermascope Diagnostic Set Configurations:
  • Xenon Otoscope/LED Dermascope (#5611X-5) / European Plug (#5611X-5EU).
  • LED Otoscope/LED Dermascope (#5611L-5) / European Plug (#5611L-5EU).

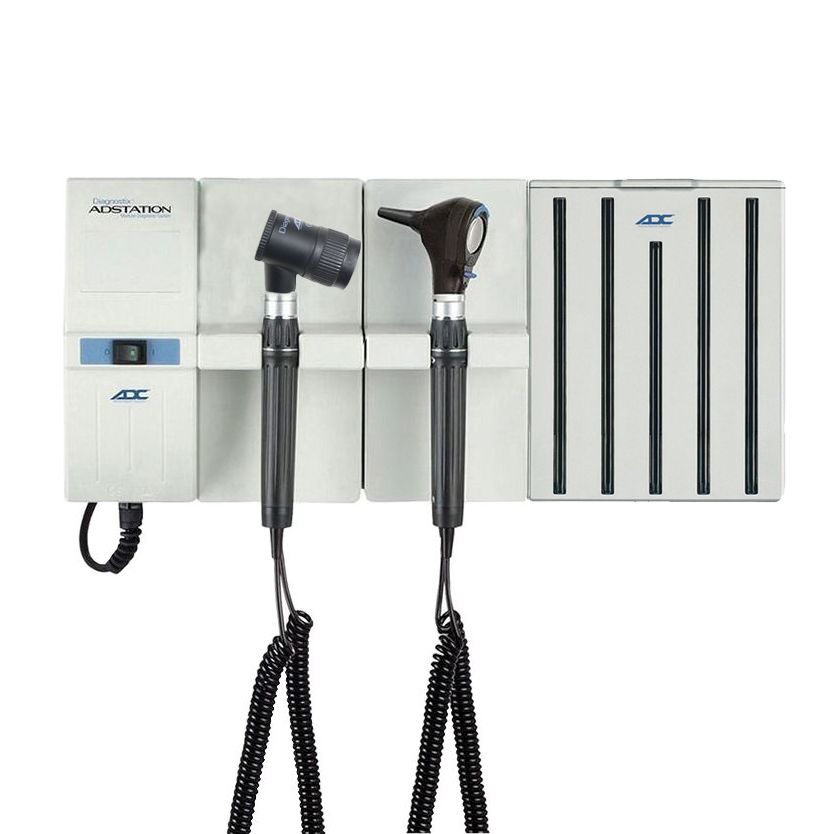

  • Xenon Otoscope/LED Dermascope with Specula Dispenser (#5611X-35) / European Plug (#5611X-35EU).
  • LED Otoscope/LED Dermascope with Specula Dispenser (#5611L-35) / European Plug (#5611L-35EU).
  • Xenon Otoscope/LED Dermascope with Clock Aneroid (#5611X-57) / European Plug (#5611X-57EU).
  • LED Otoscope/LED Dermascope with Clock Aneroid (#5611L-57) / European Plug (#5611L-57EU).
  • Xenon Otoscope/LED Dermascope with Clock Aneroid and Specula Dispenser (#5611X-357) / European Plug (#5611X-357EU).
  • LED Otoscope/LED Dermascope with Clock Aneroid and Specula Dispenser (#5611L-357) / European Plug (#5611L-357EU).

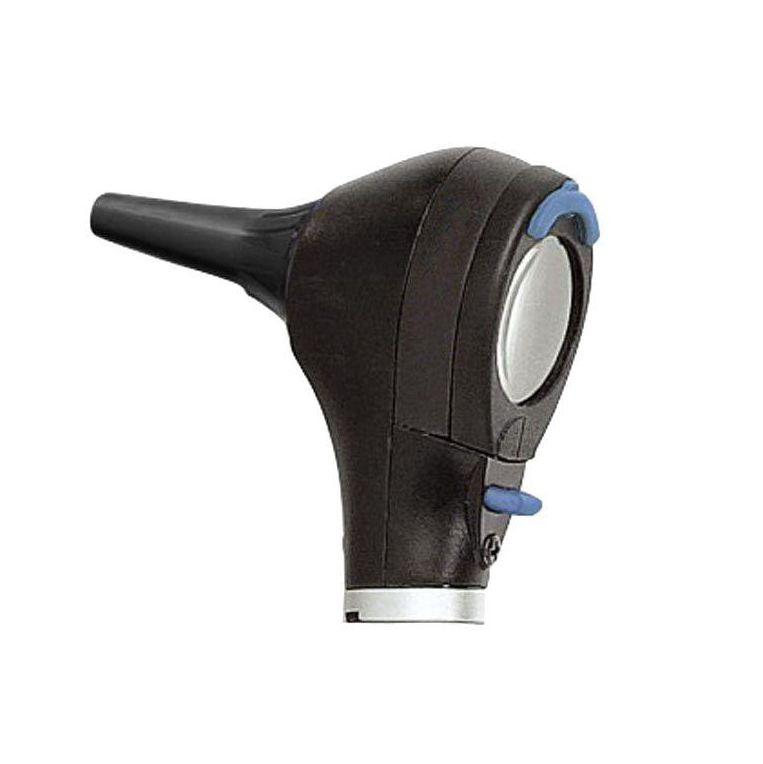

• ADC Diagnostix 5420 3.5V Otoscope Head Features:
  • Fiber-optic light transmission for an unobstructed view.
  • Optical glass reduces reflection and provides 3X magnification.
  • Bidirectional swivel lens allows instrumentation.
  • Insufflator port for pneumatic otoscopy.
  • Compatible with Welch Allyn specula.
  • Universal bayonet mount for compatibility with other brands of 3.5V power supply handles.
  • Anti-theft locking feature is standard.
• ADC Diagnostix 5450 3.5V Dermascope Head Features:
  • Direct Illumination.
  • Optical grade 10X focusable magnifying lens.
  • Large knurled focusing ring.
  • Two interchangeable contact plates - one with scale, one without may be disinfected.
  • Comfortable soft eyepiece may be used with eyeglasses.
  • Anti-theft locking feature is standard.
  • AdLED illumination.
• ADC Wall Transformer Power Supply Features:
  • Magnetic switch activates power when handle is removed from cradle, automatically powers off when handle is replaced.
  • Handle is CNC machined from solid brass and chrome plated in black with a ribbed surface for a sure grip.
  • Adtronic electronic rheostatic light intensity control provides infinite continuous control.
  • Adtronic auto-off feature after two minutes provides additional safety if instrument is mis-cradled.
  • Bayonet instrument mount is compatible with all major brands of 3.5V instrument heads.
  • Base unit contains the power switch and one handle and the extension holds the other handle.
  • Up to 2 additional extension modules (3 total) can be added.
  • UL approved.

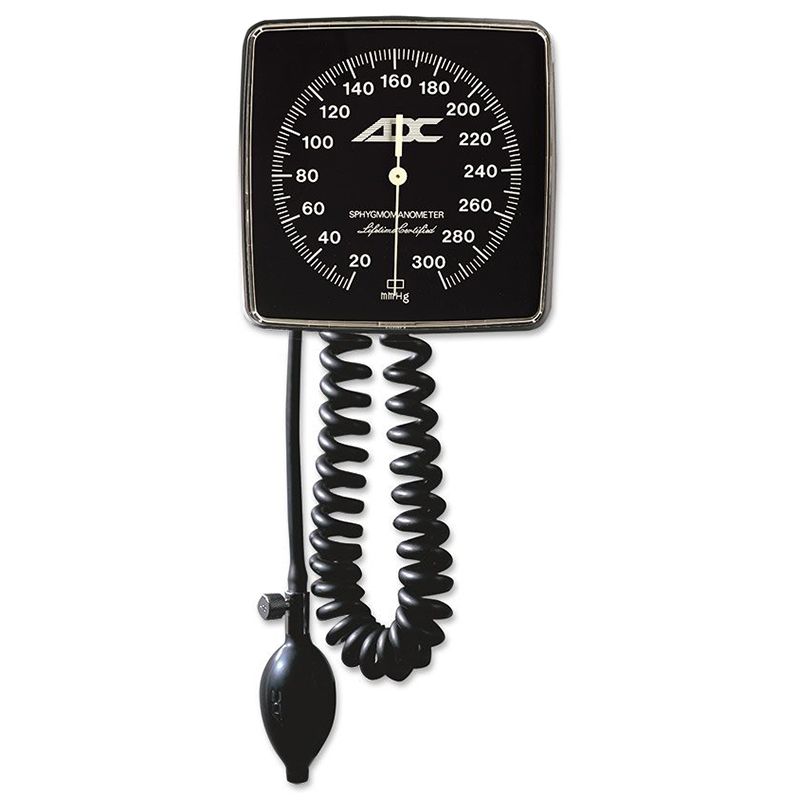

• ADC Diagnostix 750W Wall Aneroid Sphygmomanometer Features:

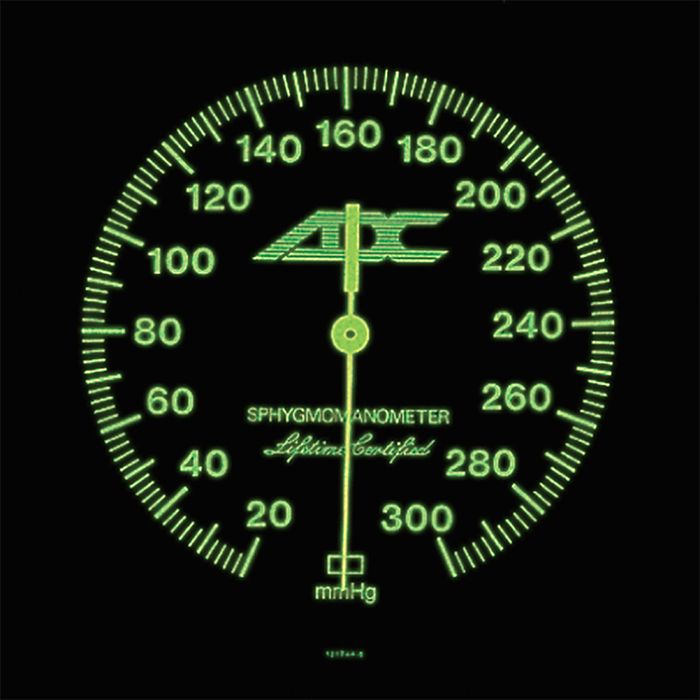

  • Large, easy-to-read 6" luminescent dial for high visibility in virtually any light condition.
  • 300 mm Hg no-pin stop movement withstands the heaviest use.
  • Eight foot length (when extended) of coiled tubing not made with natural rubber latex.

ADC Adstation 5611-5 3.5V Wall Otoscope/Dermascope Diagnostic Set Specifications

• Diagnostic Station Dimensions: 7.88" x 7.12" x 2.95" (20.02 cm x 18.08 cm x 7.5 cm).
• Extension Module Dimensions: 7.88" x 3.94" x 2.95" (20.02 cm x 10.01 cm x 7.5 cm).
• Adcuff Size - Adult: 9" - 15.7" (23 cm - 40 cm).
• Adcuff Size - Large Adult: 13.3" - 19.6" (34 cm - 50 cm).
