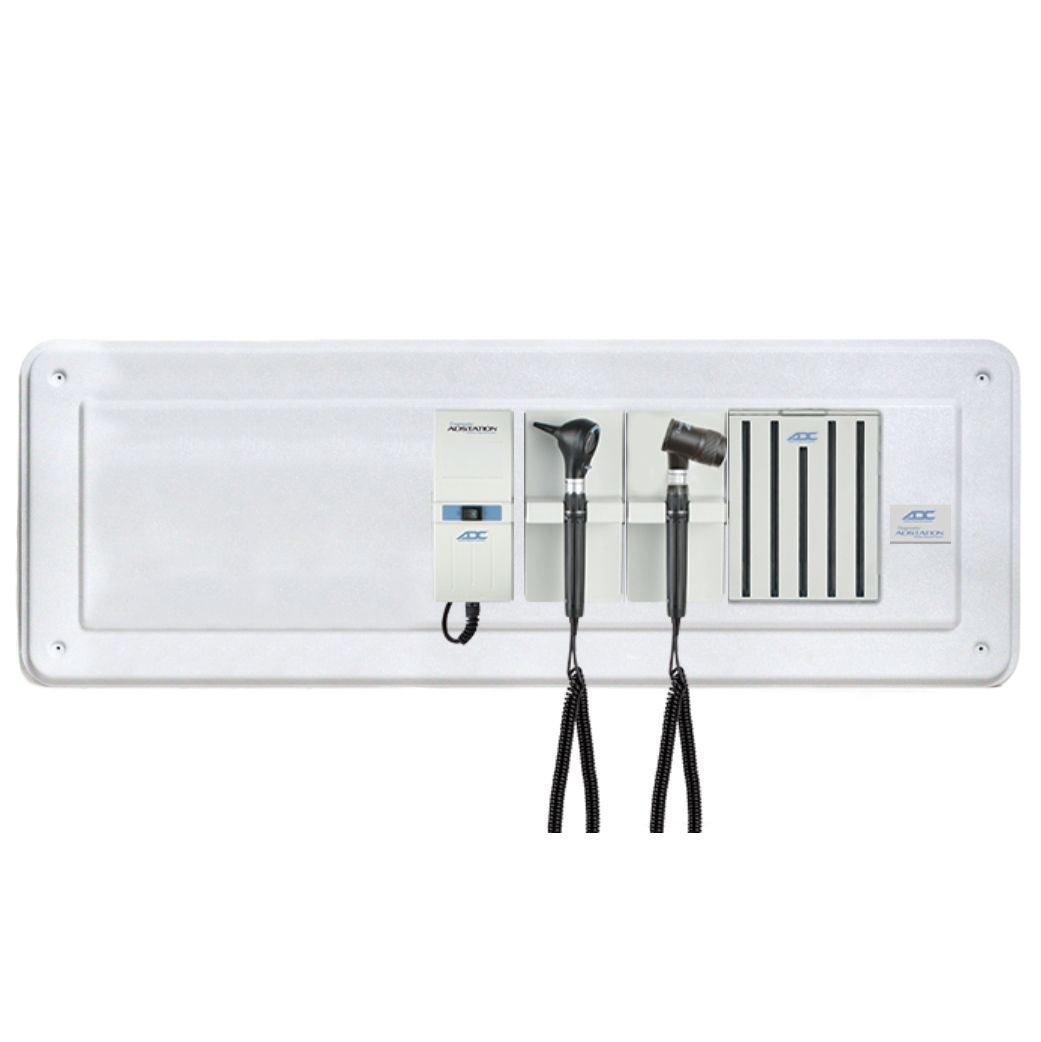

ADC Adstation 5611-35 3.5V Wall Otoscope/Dermascope Diagnostic Set with Wallboard for ADView 2

ADC Adstation 5611-35 3.5V Wall Otoscope/Dermascope Diagnostic Set with Wallboard for ADView 2
ADC Adstation 5611-35 3.5V Wall Otoscope/Dermascope Diagnostic Set with Wallboard for ADView 2 - With Thermometer
ADC Adstation 5611-35 3.5V Wall Otoscope/Dermascope Diagnostic Set with Wallboard for ADView 2 - With ADView 2
ADC Adstation 5611-35 3.5V Wall Otoscope/Dermascope Diagnostic Set with Wallboard for ADView 2 - With ADView 2 and Thermometer
ADC Adstation 5611-35 3.5V Wall Otoscope/Dermascope Diagnostic Set with Wallboard for ADView 2 - Specula Dispenser
ADC Adstation 5611-35 3.5V Wall Otoscope/Dermascope Diagnostic Set with Wallboard for ADView 2 - Wallboard
ADC Adstation 5611-35 3.5V Wall Otoscope/Dermascope Diagnostic Set with Wallboard for ADView 2 - Dermascope Head
ADC Adstation 5611-35 3.5V Wall Otoscope/Dermascope Diagnostic Set with Wallboard for ADView 2 - Otoscope Head
ADC Adstation 5611-35 3.5V Wall Otoscope/Dermascope Diagnostic Set with Wallboard for ADView 2 - Xenon vs LED Lamp
ADC Adstation 5611-35 3.5V Wall Otoscope/Dermascope Diagnostic Set with Wallboard for ADView 2 - 429 Thermometer
ADC Adstation 5611-35 3.5V Wall Otoscope/Dermascope Diagnostic Set with Wallboard for ADView 2
ADC Adstation 5611-35 3.5V Wall Otoscope/Dermascope Diagnostic Set with Wallboard for ADView 2 - With Thermometer
ADC Adstation 5611-35 3.5V Wall Otoscope/Dermascope Diagnostic Set with Wallboard for ADView 2 - With ADView 2
ADC Adstation 5611-35 3.5V Wall Otoscope/Dermascope Diagnostic Set with Wallboard for ADView 2 - With ADView 2 and Thermometer
ADC Adstation 5611-35 3.5V Wall Otoscope/Dermascope Diagnostic Set with Wallboard for ADView 2 - Specula Dispenser
ADC Adstation 5611-35 3.5V Wall Otoscope/Dermascope Diagnostic Set with Wallboard for ADView 2 - Wallboard
ADC Adstation 5611-35 3.5V Wall Otoscope/Dermascope Diagnostic Set with Wallboard for ADView 2 - Dermascope Head
ADC Adstation 5611-35 3.5V Wall Otoscope/Dermascope Diagnostic Set with Wallboard for ADView 2 - Otoscope Head
ADC Adstation 5611-35 3.5V Wall Otoscope/Dermascope Diagnostic Set with Wallboard for ADView 2 - Xenon vs LED Lamp
ADC Adstation 5611-35 3.5V Wall Otoscope/Dermascope Diagnostic Set with Wallboard for ADView 2 - 429 Thermometer
Key Features
  • SKU: ADC-5611X-359W
  • Condition:
    Condition: Factory New
  • Warranty:
    Warranty: 5 Years
  • Weight: 11.45 lb

  • Learn more:

Contact The Manufacturer
  • MFR: American Diagnostic Corporation
    Ships from MFI Medical
  • MPN: 5611X-359W
  • Phone: (800) 232-2670
$1,735.69 $1,060.34

+ Free Shipping

Est. Delivery:

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match

Description

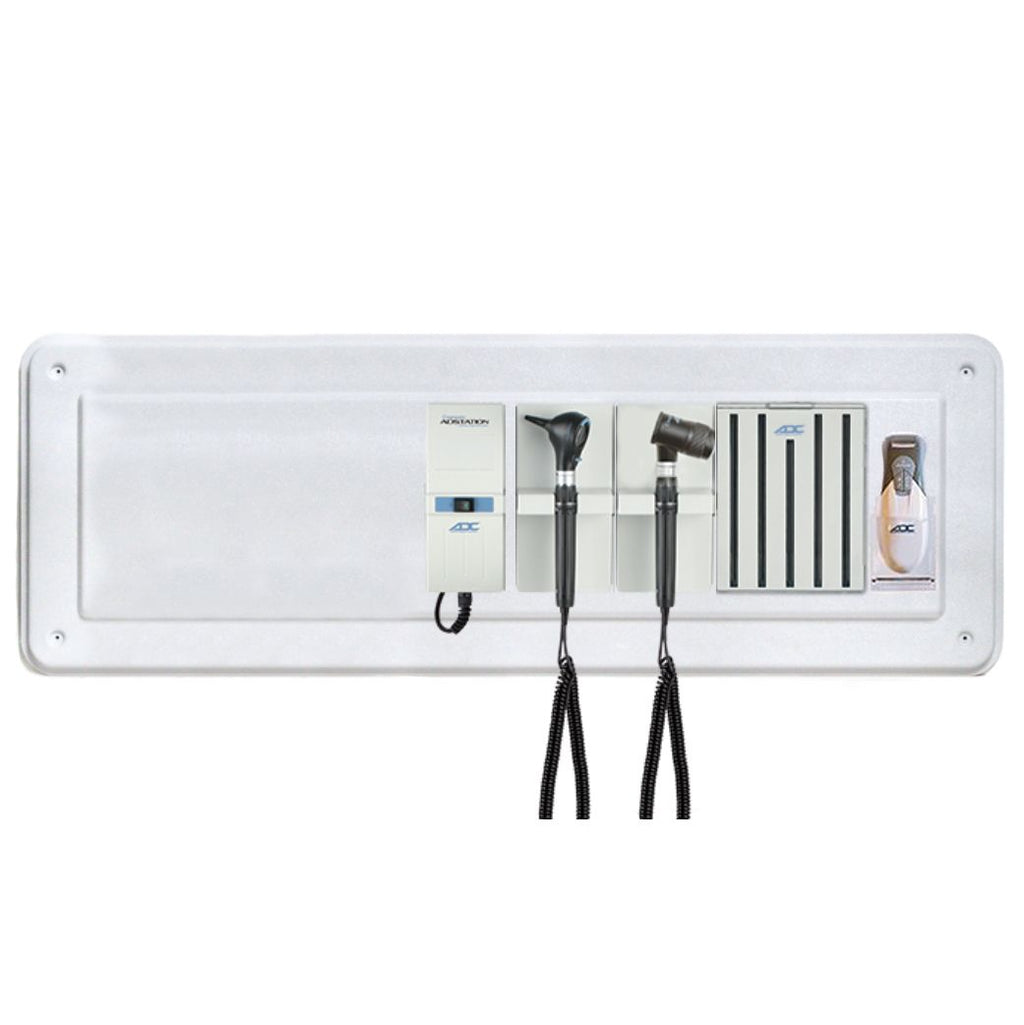

The ADC Adstation 5611-35 3.5V Wall Otoscope/Dermascope Diagnostic Set with Wallboard for ADView 2 includes an ADC Diagnostix 5420 3.5V Otoscope Head, an ADC Diagnostix 5450 3.5V Dermascope Head, a power supply base unit that includes a power switch, two 3.5V handles, an extension module, an ADC 5630 Wall Specula Dispenser, and an ADC Adstation Wallboard that allows you to easily mount your diagnostic set while leaving enough space to add and install an ADC ADView 2 Modular Diagnostic Station.

The wall transformer is available with a standard 120V or a 230V power supply with European plug in, and is easy to mount on to the included ADC Wallboard. The ADC Diagnostix 5420 3.5V Otoscope Head is available with a halogen/xenon lamp or an advanced AdLED lamp.

The large wallboard comes complete with all hardware for easy installation.

The ADC Adtemp 429 Non-Contact Infrared Thermometer can also be added, and can be stored on the wallboard using the included wall cradle.

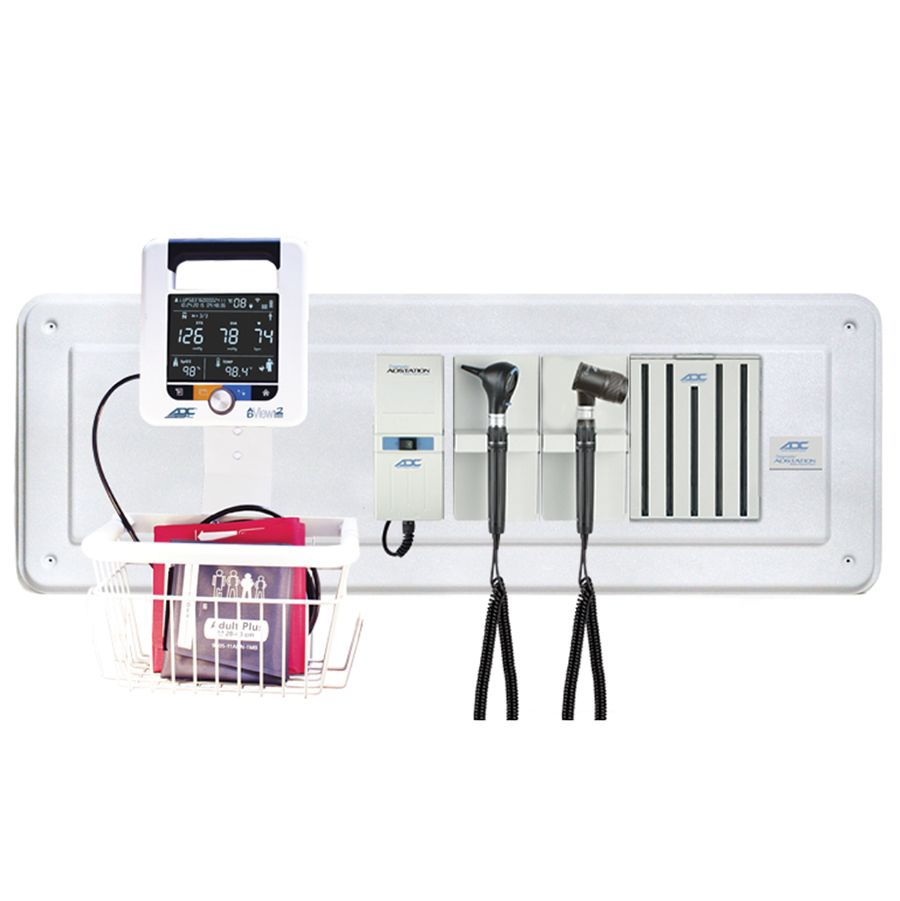

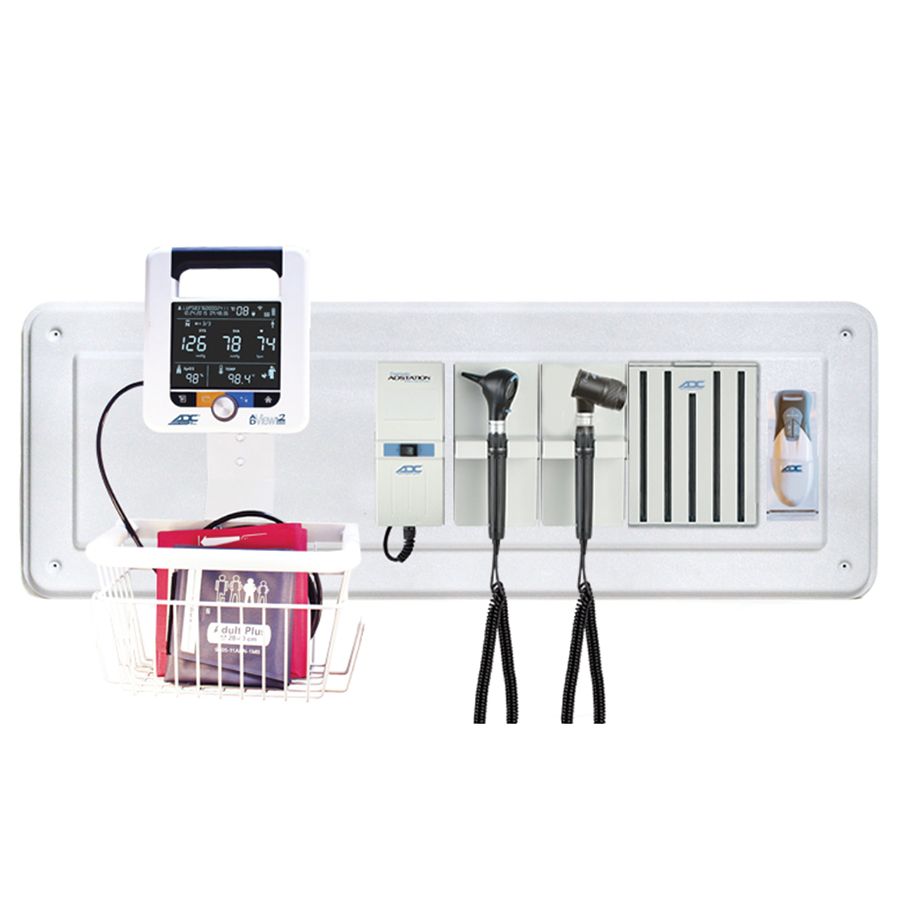

Note: This does not include the ADC ADView 2 Modular Diagnostic Station, but it is designed to fit on the included wallboard, and is available for purchase on our website.

Warranty: 5 Years (Wall Transformer), 2 Years (Instrument Head, Xenon Lamp, and Wallboard), Lifetime (LED Lamp), 2 Years - Defects in Materials and Workmanship (Thermometer).

The ADC Diagnostix 5420 3.5V Otoscope Head is designed for examination of the inner ear, and the ADC Diagnostix 5450 3.5V Dermascope Head is produced for early identification of changes of skin pigmentation (malignant melanomas).

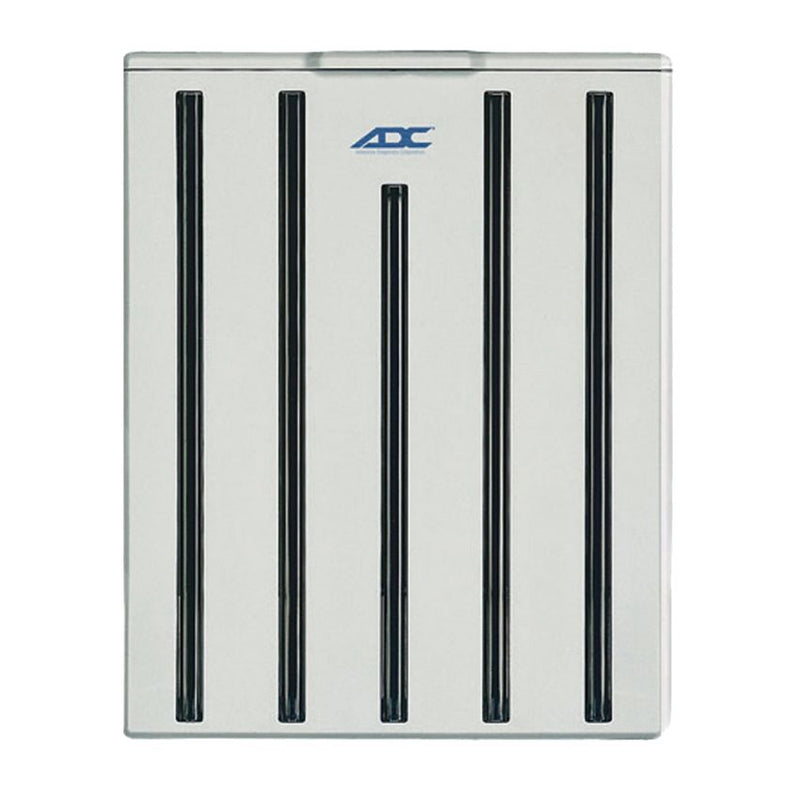

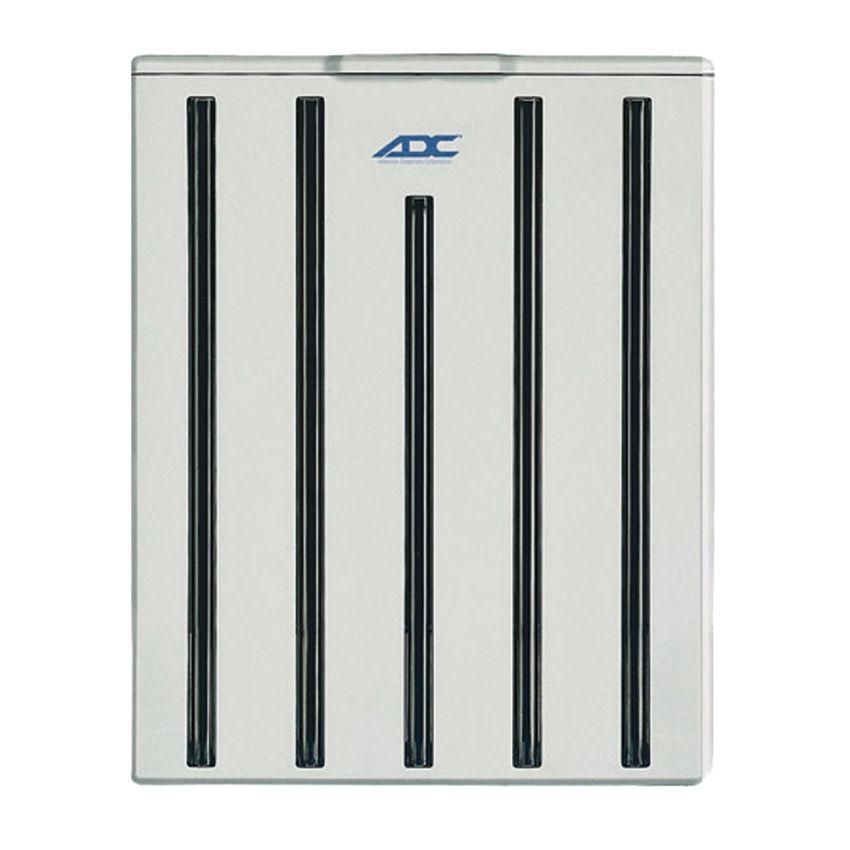

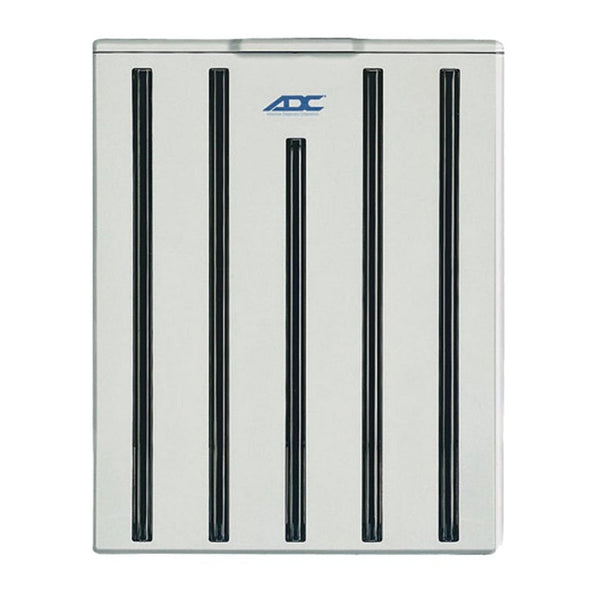

The ADC 5630 Wall Specula Dispenser is a hygienic and practical solution to storing specula and includes five tubes that can store specula. The ADC Adstation Wallboard is a durable, easy-to-clean mounting solution and is made from long-lasting ABS with acrylic, for added UV stability. The Adtemp 429 Non-Contact Infrared Thermometer features an infrared sensor that reads temperature from the middle of the forehead with no skin contact required for a safe and comfortable experience that minimizes the risk of cross-contamination. The infrared sensor simplifies temperature measurement which makes it ideal for screening, and measures the temperature in about one second.

Features

ADC Adstation 5611-35 3.5V Wall Otoscope/Dermascope Diagnostic Set with Wallboard for ADView 2 Features

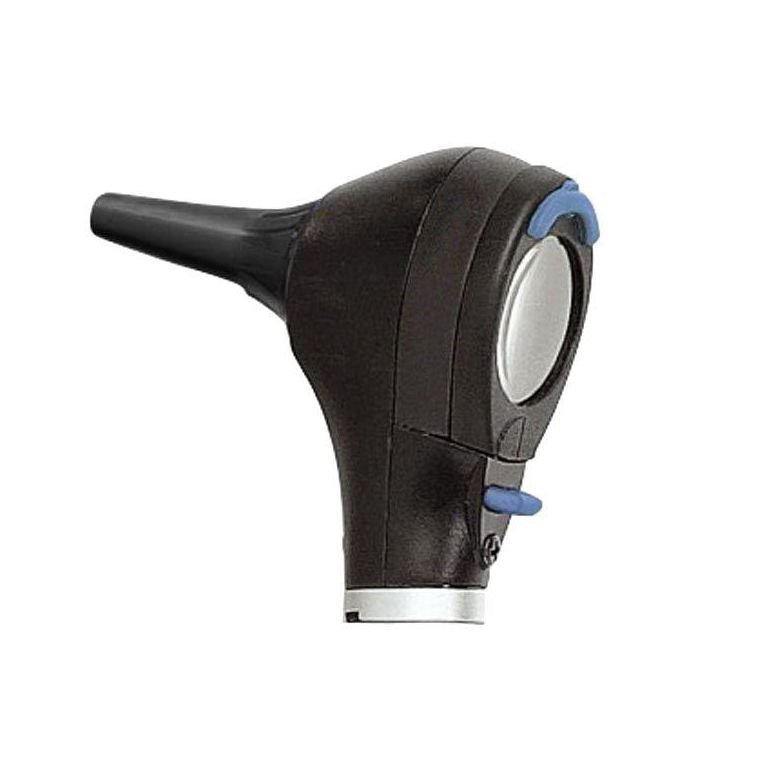

  • ADC Diagnostix 5420 3.5V Otoscope Head Features:
    • Fiber-optic light transmission for an unobstructed view.
    • Optical glass reduces reflection and provides 3X magnification.
    • Bidirectional swivel lens allows instrumentation.
    • Insufflator port for pneumatic otoscopy.
    • Compatible with Welch Allyn specula.
    • Universal bayonet mount for compatibility with other brands of 3.5V power supply handles.
    • Anti-theft locking feature is standard.

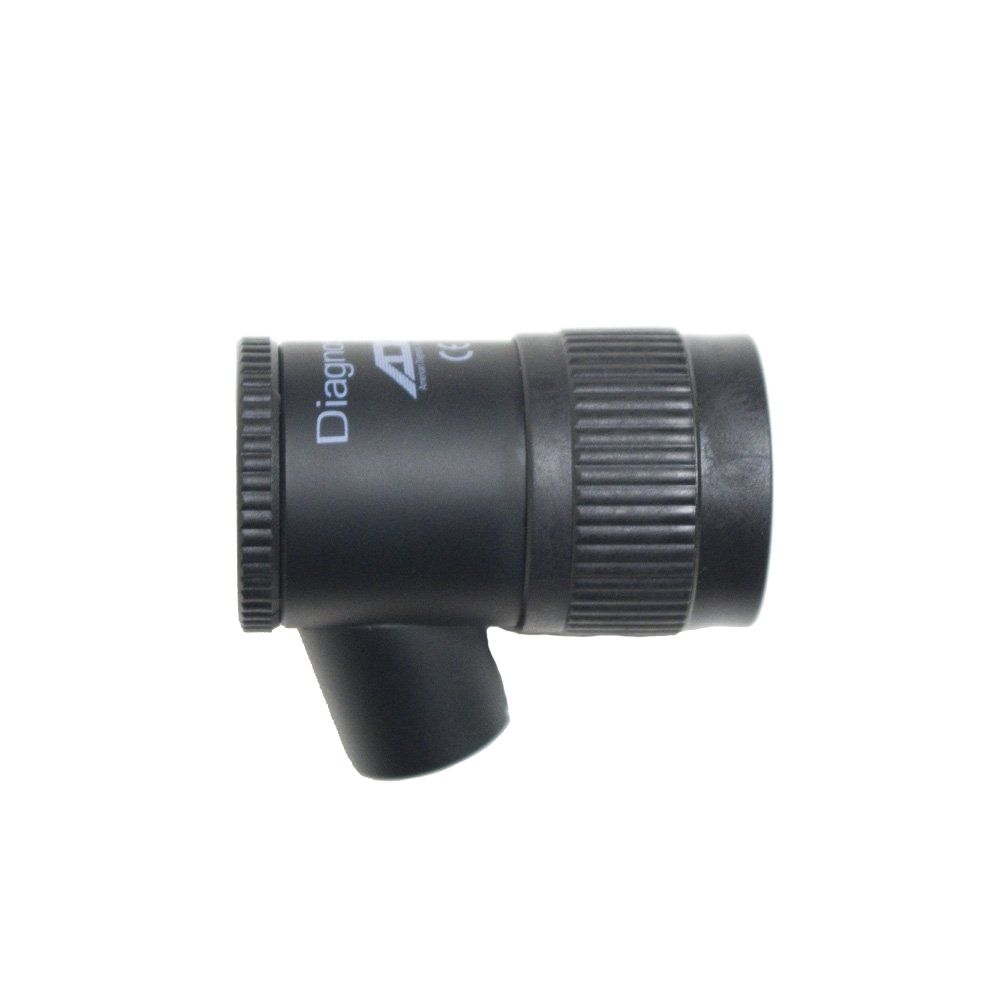

  • ADC Diagnostix 5450 3.5V Dermascope Head Features:
    • Direct Illumination.
    • Optical grade 10X focusable magnifying lens.
    • Large knurled focusing ring.
    • Two interchangeable contact plates - one with scale, one without may be disinfected.
    • Comfortable soft eyepiece may be used with eyeglasses.
    • Anti-theft locking feature is standard.
    • AdLED illumination.
  • ADC Wall Transformer Power Supply Features:
    • Magnetic switch activates power when handle is removed from cradle, automatically powers off when handle is replaced.
    • Handle is CNC machined from solid brass and chrome plated in black with a ribbed surface for a sure grip.
    • Adtronic electronic rheostatic light intensity control provides infinite continuous control.
    • Adtronic auto-off feature after two minutes provides additional safety if instrument is mis-cradled.
    • Bayonet instrument mount is compatible with all major brands of 3.5V instrument heads.
    • Base unit contains the power switch and one handle and the extension holds the other handle.
    • UL approved.

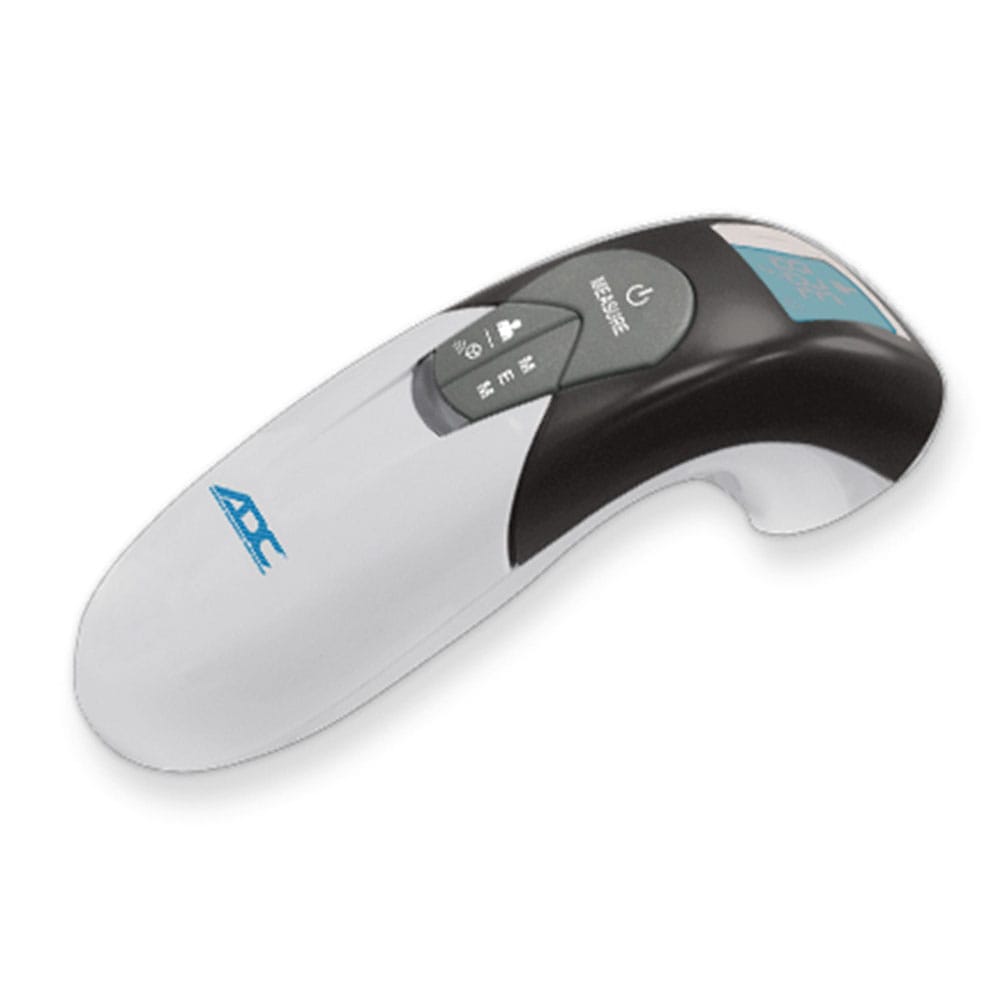

  • ADC Adtemp 429 Non-Contact Infrared Thermometer Features:
    • Measures in about one second without patient contact eliminating the concern of cross contamination or costly probe covers.
    • Measurement feedback system signals proper operating distance for accuracy.
    • Measures at a distance of 1.5 - 2.5" (4 - 6 cm) from patient's forehead.
    • Dual mode - body and object.
    • Large backlit LCD display is easy to read.
    • Wide temp range.
    • Fahrenheit-Celsius switchable.
    • Auto-off function after 30 seconds conserves battery life.
    • Audible beep when measurement is complete, Night mode mutes volume.
    • Compact ergonomic design.
    • Measurement Accuracy (Laboratory):
      • Body Mode: 50 to 122 degrees F (10 to 50 degrees C).
      • Object Mode: 32 to 212 degrees F (0 to 100 degrees C).
      • Body Mode: +/- 0.5 degrees F, 71.6 to 104 degrees F (+/- 0.3 degrees C, 22 to 40 degrees C).
      • Object Mode: < 68 degrees F +/- 1 degrees F, > 68 degrees F +/- 5% (< 20 degrees C +/- 1 degrees C, > 20 degrees C +/- 5%).

Specifications

ADC Adstation 5611-35 3.5V Wall Otoscope/Dermascope Diagnostic Set with Wallboard for ADView 2 Specifications

  • Large Wallboard Dimensions: 32.75" x 13.63" x 1" (83.19 cm x 34.62 cm x 2.54 cm).
  • Diagnostic Station Dimensions: 7.88" x 7.12" x 2.95" (20.02 cm x 18.08 cm x 7.5 cm).
  • Extension Module Dimensions: 7.88" x 3.94" x 2.95" (20.02 cm x 10.01 cm x 7.5 cm).
  • Thermometer Specifications:
    • Range:
      • Fahrenheit: 50 to 122 degrees F.
      • Celcius: 10 to 50 degrees C.
    • Accuracy:
      • Fahrenheit: 0.5 degrees F.
      • Celcius: 0.3 degrees C.
    • Response Time: 1 sec.
    • Memory: 30x.
    • Battery Type: 1.5 V (AAA).
    • Battery Life: 2,000 uses.
    • Dimensions: 2.06" x 1.75" x 5" (52.4 mm x 44.5 mm x 129.9 mm).
    • Weight: 3 oz (87 g).
    • Operating Environment: 60.8 to 95 degrees F (16 to 35 degrees C).
    • Storage Environment: -13 to 131 degrees F (-25 to 55 degrees C).

Configurations

ADC Adstation 5611-35 3.5V Wall Otoscope/Dermascope Diagnostic Set with Wallboard for ADView 2 Configurations

  • Xenon Otoscope/LED Dermascope with Specula Dispenser (#5611X-359W) / European Plug (#5611X-359EUW).
  • LED Otoscope/LED Dermascope with Specula Dispenser (#5611L-359W) / European Plug (#5611L-359EUW).
  • Xenon Otoscope/LED Dermascope with Specula Dispenser and Thermometer (#5611X-3459W) / European Plug (#5611X-3459EUW).
  • LED Otoscope/LED Dermascope with Specula Dispenser and Thermometer (#5611L-3459W) / European Plug (#5611L-3459EUW).

Frequently asked questions

Is this a complete wall diagnostic set?

Yes, this ADC Adstation 5611-35 is a comprehensive, wall-mounted diagnostic set that includes all necessary components for otoscopic and dermatoscopic examinations.

The base set includes:

  • Diagnostic Heads: The 3.5V Otoscope Head (Diagnostix 5420) and the 3.5V Dermascope Head (Diagnostix 5450).
  • Power and Handles: Two 3.5V handles and a UL-approved wall transformer power supply base unit featuring Adtronic control for infinite light intensity adjustment and automatic power-off safety.
  • Mounting and Storage: The necessary ADC Adstation Wallboard and an ADC 5630 Wall Specula Dispenser.

Note that the included wallboard is specifically sized to accommodate the optional ADC ADView 2 Modular Diagnostic Station for future system expansion.

Does it feature advanced LED illumination?

Yes, the diagnostic set includes advanced illumination and smart power management for superior viewing and energy efficiency.nnKey illumination and power features:nn* Dermascope Illumination: The Diagnostix 5450 Dermascope uses dedicated AdLED illumination for bright, color-accurate assessment of skin lesions.n* Otoscope Illumination: The Diagnostix 5420 Otoscope uses fiber-optic light transmission for concentrated, unobstructed viewing. It is available with either a Xenon lamp or an optional, long-life AdLED lamp, which is backed by a Lifetime Warranty.n* Precision Control: The system features Adtronic electronic rheostatic control, allowing for infinite, continuous adjustment of light intensity.n* Smart Power Management: Magnetic switches automatically turn the instrument on when removed from the cradle and off when replaced. There is also an Adtronic auto-off safety feature that activates after two minutes of inactivity.

Is the ADView 2 Diagnostic Station included?

The ADC ADView 2 Modular Diagnostic Station is not included with this set.However, the ADC Adstation 5611-35 is designed specifically for integration and expansion: * The included large ADC Adstation Wallboard leaves dedicated space for mounting the optional ADView 2 unit. * This setup allows you to create a comprehensive, organized examination station tailored for future diagnostic needs.

What are the dimensions of the wallboard for the ADC Adstation 5611-35?

The large wallboard dimensions are 32.75” x 13.63” x 1” (83.19 cm x 34.62 cm x 2.54 cm).

What magnification do the otoscope and dermascope offer?

Both instrument heads are designed with specific magnification levels for detailed examination:

  • The Diagnostix 5420 Otoscope Head provides 3X magnification via optical glass.
  • The Diagnostix 5450 Dermascope Head features an optical grade, 10X focusable magnifying lens.
Which widely compatible specula does the otoscope use?

The ADC Diagnostix 5420 Otoscope Head is designed for compatibility with Welch Allyn specula. This ensures broad availability and ease of replacement for consumables.

What is the warranty coverage for this diagnostic set?

The ADC Adstation provides exceptional warranty coverage across its components:

  • Wall Transformer: 5 Years
  • LED Lamp components: Lifetime
  • Instrument Head, Xenon Lamp, and Wallboard: 2 Years
  • Adtemp 429 Thermometer (Optional): 2 Years (Covers defects in materials and workmanship)
Does the diagnostic set use magnetic switching?

Yes, the diagnostic set utilizes magnetic switching combined with Adtronic electronic control for smart and safe power management. The system is designed for efficiency and convenience:

  • Automatic Activation: Power immediately turns on when the handle is lifted from the cradle, allowing for quick use.
  • Automatic Shut-Off: When the handle is returned to the cradle, the power automatically switches off.
  • Light Control: The Adtronic system provides infinite, continuous rheostatic light intensity control for precise illumination.
  • Safety Feature: If the instrument is left mis-cradled or inactive, the Adtronic safety feature initiates an automatic power-off after two minutes.
Is the hygienic non-contact thermometer included?

The Adtemp 429 Non-Contact Infrared Thermometer is optional and is not included in all standard configurations of the diagnostic set. It is only provided when selecting specific bundled configurations that integrate it.

If you choose a set that includes the thermometer, you gain significant clinical advantages:

  • Hygienic Screening: It uses non-contact infrared technology, measuring temperature 1.5 to 2.5 inches (4 to 6 cm) from the patient’s forehead to minimize cross-contamination risks.
  • Rapid Results: Provides a temperature reading in approximately one second.
  • Accuracy: Measures body temperature with high accuracy, offering a dual-mode function for measuring both body and objects.

Note that the large Adstation Wallboard is designed to accommodate the thermometer’s wall cradle, even if your chosen initial configuration does not include the device.

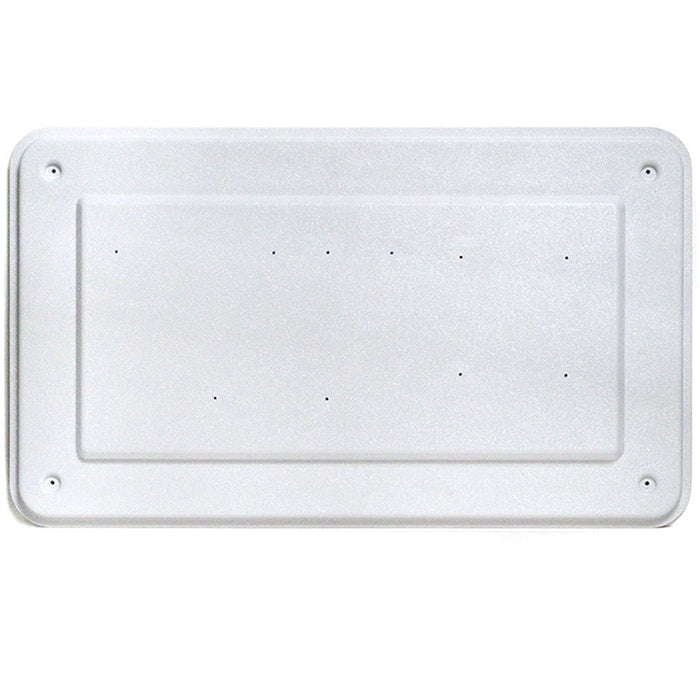

Is the wallboard material durable and UV stable?

Yes, the ADC Adstation Wallboard is engineered for durability and hygiene in clinical settings. It features a robust, easy-to-clean construction:

  • Material: Constructed from durable ABS (Acrylonitrile Butadiene Styrene).
  • UV Protection: It is enhanced with acrylic for added UV stability, which helps prevent discoloration and maintains its professional appearance over time.
  • Dimensions: The wallboard measures 32.75” x 13.63” x 1” (83.19 cm x 34.62 cm x 2.54 cm).
