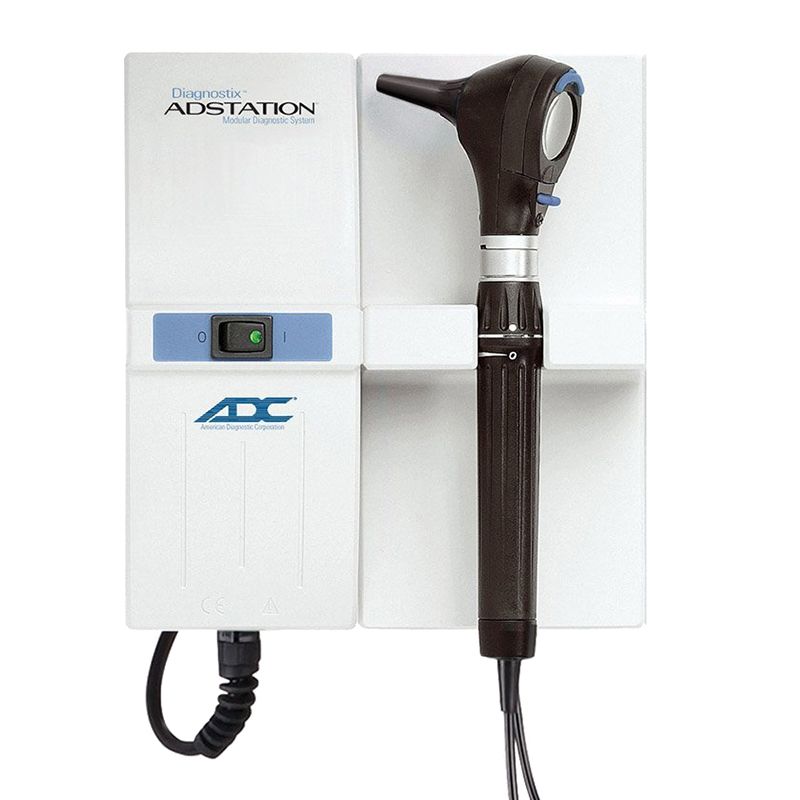

ADC Adstation 5611 3.5V Wall Standard Otoscope

Yes, the ADC Adstation 5611 is designed as a highly modular diagnostic system, offering significant versatility and customization for clinical environments. This allows for easy integration and expansion over time.

Key features demonstrating its modularity include:

• System Expansion: The wall transformer base unit can be extended to support up to three single-handle extension units.
• Optional Integration: You can select configurations that integrate the ADC Diagnostix 750W Wall Aneroid Sphygmomanometer (with a large 6-inch luminescent dial) and a dedicated Specula Dispenser.
• Lighting Options: The system is configurable with either the standard Xenon lamp or the advanced AdLED lamp, which is covered by a lifetime warranty.
• Broad Compatibility: The instrument uses a universal bayonet mount compatible with 3.5V handles from other major brands, and the otoscope head is designed to work with Welch Allyn specula.

Yes, the ADC Adstation 5611 is engineered for clear, high-detail examinations through the Diagnostix 5420 Otoscope Head, which features:

• 3X Magnification: Provided by high-quality optical glass for seeing fine anatomical details.
• Fiber-Optic Light Transmission: This ensures the light is transmitted directly out of the speculum tip, creating a cool, bright, and completely unobstructed view.
• Bidirectional Swivel Lens: This functional design allows for easy access and instrumentation during the examination without compromising the view.

The ADC Adstation 5611 system components feature strong warranty coverage to support long-term use in clinical settings:

• Wall Transformer: 5 Years
• Instrument Head (Diagnostix 5420) and Xenon Lamps: 2 Years
• AdLED Lamp Option: Lifetime
• Optional 750W Wall Aneroid Sphygmomanometer: 3 Years (The manometer itself carries a lifetime calibration warranty).

Yes, the ADC Adstation 5611 is compatible with Welch Allyn specula, providing flexibility and convenience for clinicians.

Yes, the ADC Adstation features advanced, automatic power management for efficiency and safety. The Wall Transformer utilizes two key features:

• Magnetic Switch Activation: Power is automatically activated the instant the handle is removed from the cradle and deactivated when it is replaced.
• Adtronic Auto-Off: A safety feature that automatically shuts the unit down after two minutes of inactivity, helping to conserve energy and prolong lamp life.

Furthermore, the system includes the Adtronic electronic rheostatic control, which allows for infinite, continuous adjustment of light intensity during the examination. The handle itself is built for durability, being CNC machined from solid brass and chrome plated in black with a ribbed surface for a secure grip.

Yes, the ADC Diagnostix 5420 Otoscope Head integrated into the Adstation 5611 utilizes fiber-optic light transmission.

This crucial feature ensures that the light pathway is unobstructed, providing a clear, shadow-free view for precise diagnosis.

Key features of the otoscope head include:

• High Magnification: Offers 3X magnification via high-quality optical glass.
• Instrumentation Access: Equipped with a bidirectional swivel lens for easy access to the ear canal and instrumentation.
• Pneumatic Otoscopy: Includes an insufflator port for performing pneumatic otoscopy.
• Lamp Choice: You can select between a powerful Halogen/Xenon lamp or the advanced AdLED lamp, which comes with a lifetime warranty.

Yes, the ADC Adstation 5611 comes standard with an anti-theft locking feature.

This security measure is integrated specifically to secure the Otoscope Head to the wall transformer base unit.

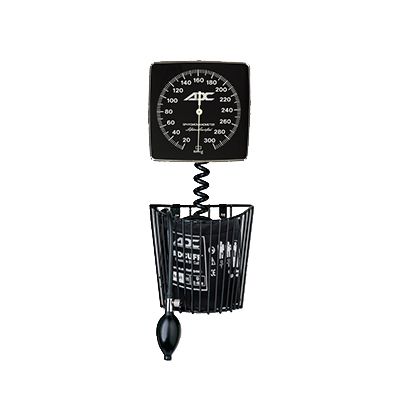

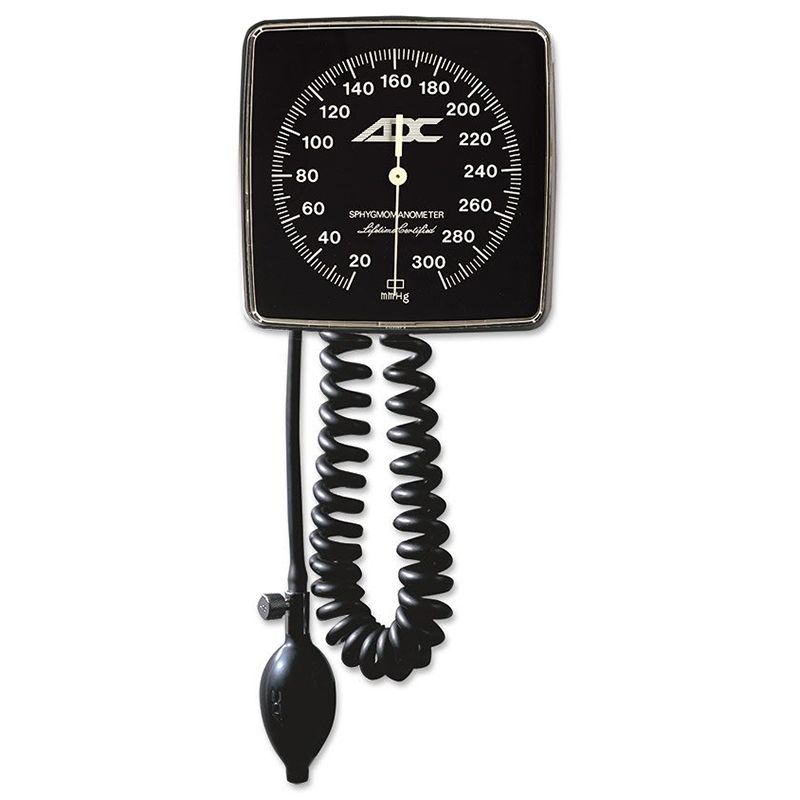

Yes, the optional ADC Diagnostix 750W Wall Aneroid Sphygmomanometer is a high-quality unit designed for reliable, permanent mounting in clinical settings.Its advanced features focus on durability and ease of use:

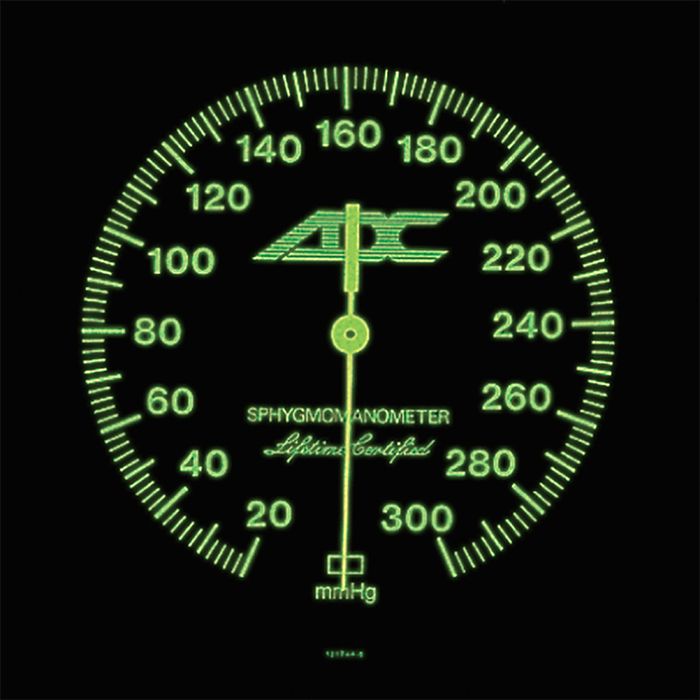

• Visibility: Features a large, easy-to-read 6-inch luminescent dial for clear readings in various lighting conditions.

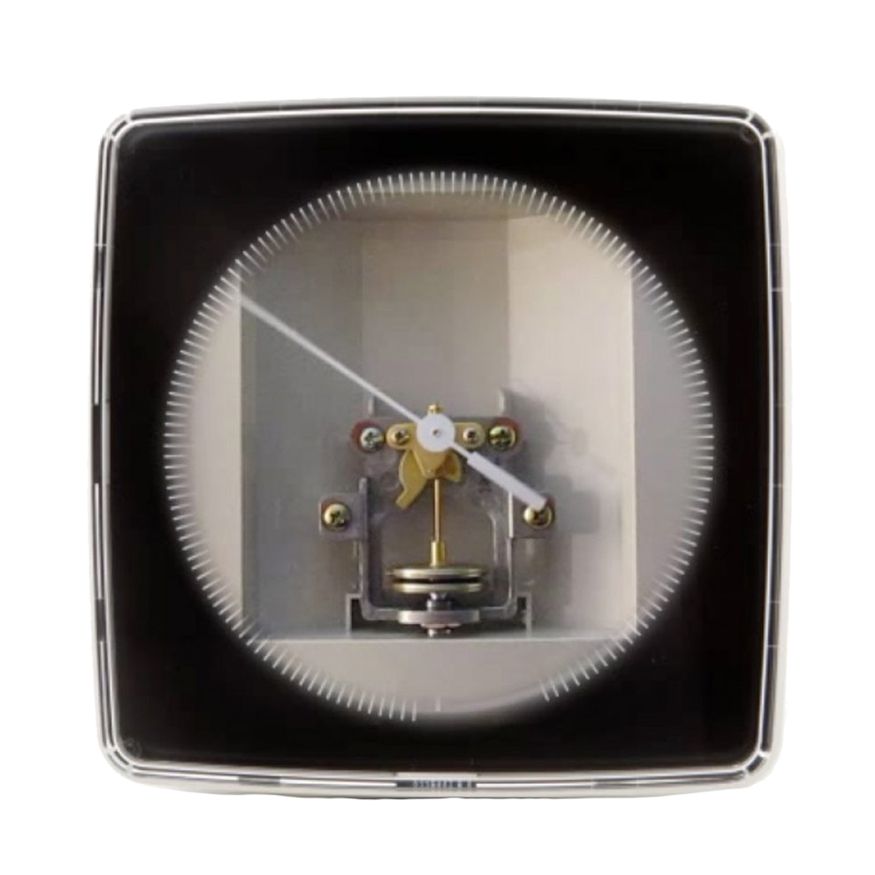

• Accuracy: Utilizes a durable 300 mm Hg no-pin stop movement to ensure precise measurement.
• Reach: The coiled tubing extends up to eight feet for maximum flexibility and is not made with natural rubber latex.

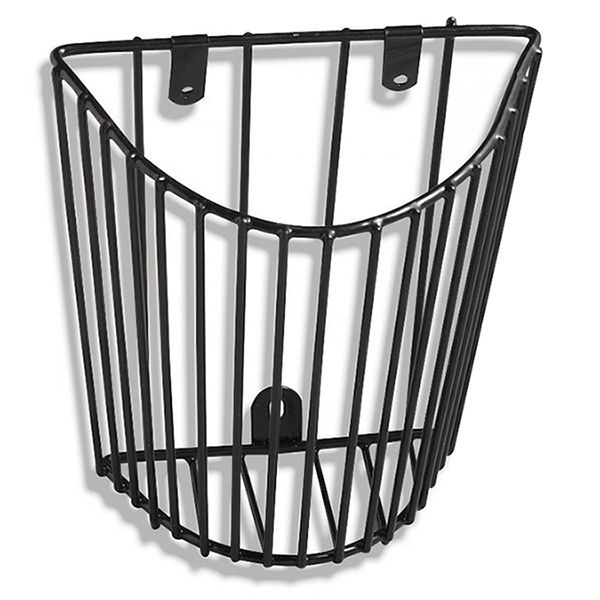

The system includes necessary accessories such as Adult and Large Adult nylon Adcuffs (covering sizes from 9” to 19.6” circumference) and a convenient cuff storage basket. For peace of mind, the manometer component is backed by a lifetime calibration warranty.

Yes, the necessary mounting bracket for installation is included with the ADC Adstation 5611.

The system is designed for easy installation and offers flexibility:

• It comes with the necessary mounting bracket for securing the Wall Transformer Power Supply Base Unit directly to the wall.
• It is also compatible with existing ADC wallboard systems.

Yes, the ADC Adstation features advanced light control. The system uses Adtronic electronic rheostatic light intensity control, which provides infinite continuous adjustment of the light output. This ensures clinicians can precisely select the optimal illumination level for every examination.
