Condition:
-
Warranty:
- Weight: 7.93 lb
-
Learn more:
-
MFR:
American Diagnostic Corporation
Ships from MFI Medical
-
MPN: 56102X-56X
- Phone: (800) 232-2670
Frequently asked questions
Which specialized diagnostic tools are included?
The ADC Adstation 56102-56 provides a comprehensive suite of four specialized 3.5V instrument heads for versatile examinations:
- ADC Diagnostix 5420 Otoscope Head: Features fiber-optic light transmission, 3X magnification, an insufflator port for pneumatic otoscopy, and compatibility with Welch Allyn specula.
- ADC Diagnostix 5442 Coax Plus Ophthalmoscope Head: Designed for detailed retinal exams, it includes an advanced aspherical lens system, 89 viewing lenses (+1 to +45, -1 to -44), and 28 aperture/filter combinations.
- ADC Diagnostix 5426 Throat Illuminator Head: Features PMMA light transmission, a dedicated tongue blade holder, and a hygienic eject button for used blades.

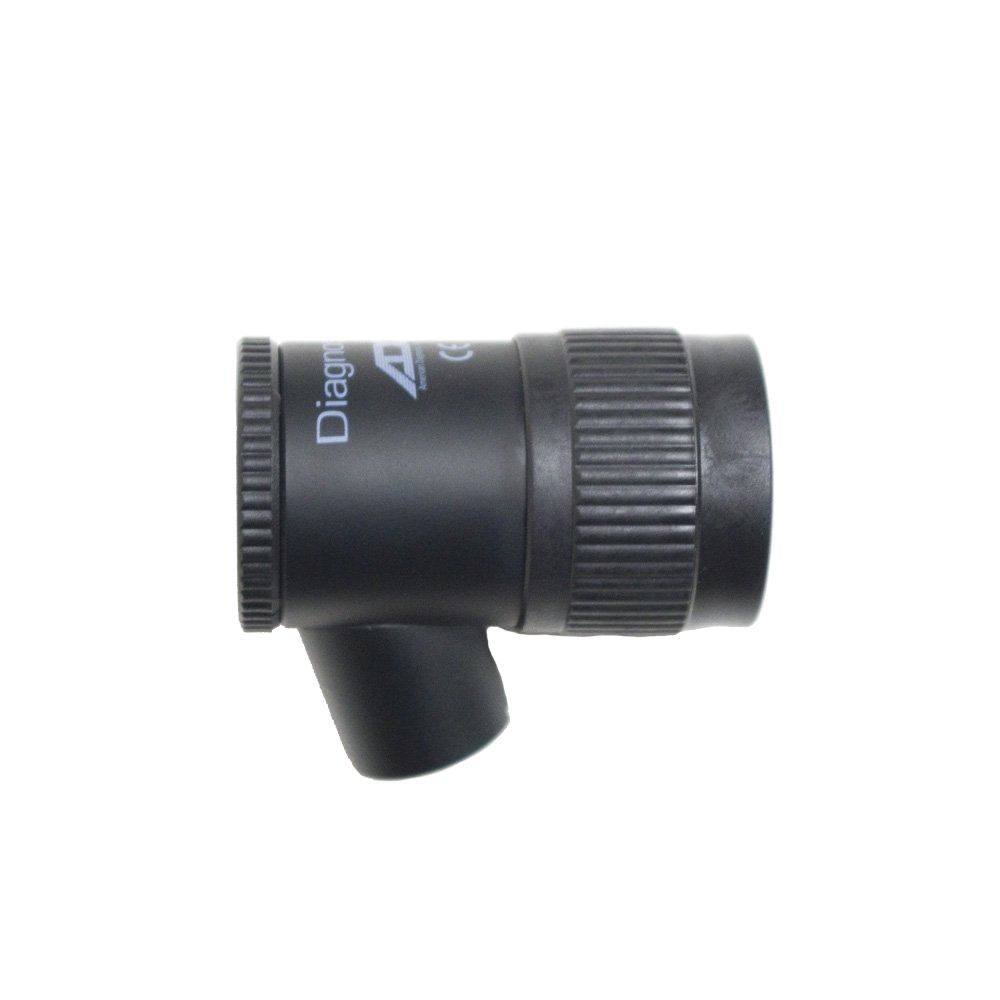

- ADC Diagnostix 5450 Dermascope Head: Specialized for skin assessment, it utilizes AdLED illumination and a 10X focusable magnifying lens. It comes with two interchangeable contact plates.
Does the diagnostic set include advanced illumination options?
Yes, the ADC Adstation diagnostic set is designed with flexible and advanced illumination options:
- Configurable Illumination: The Otoscope, Coax Plus Ophthalmoscope, and Throat Illuminator can be configured to use either traditional Halogen/Xenon light sources or the advanced, long-life AdLED illumination.
- Standard AdLED: The Dermascope Head utilizes AdLED illumination as its standard light source.
This versatility allows medical professionals to select the optimal illumination for thorough and efficient examinations across all four instruments.
What four high-performance instrument heads are included?
The ADC Adstation 56102-56 is equipped with four essential 3.5V diagnostic instrument heads, providing comprehensive examination capabilities:

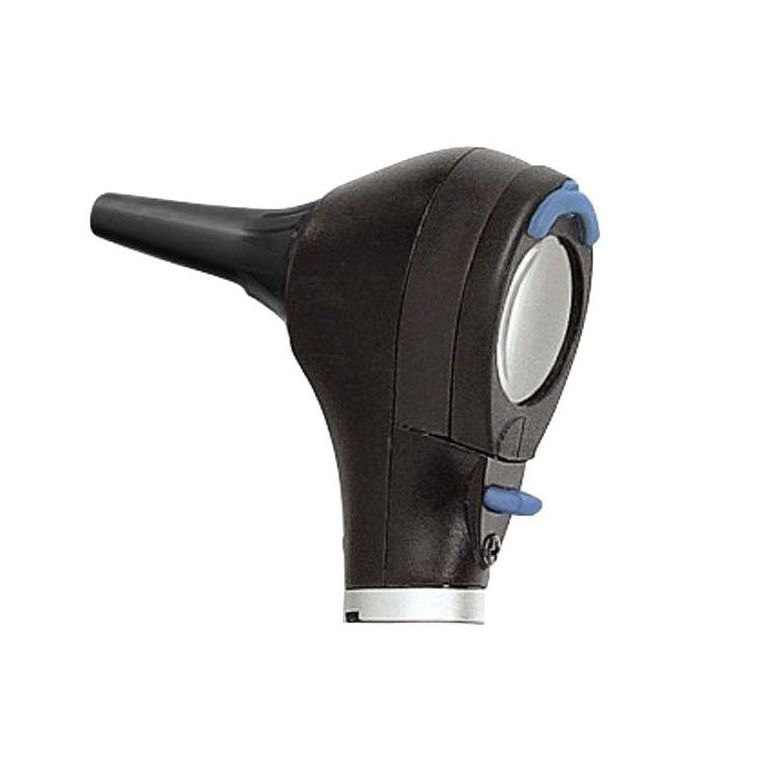

- ADC Diagnostix 5420 Otoscope Head: Features 3X optical glass magnification and fiber-optic light transmission for clear, cool viewing of the inner ear. It includes a bidirectional swivel lens and an insufflator port for pneumatic otoscopy, compatible with Welch Allyn specula.
- ADC Diagnostix 5442 Coax Plus Ophthalmoscope Head: Designed for detailed retinal examination, it offers 89 viewing lenses (ranging from +45 to -44 diopters) and 28 aperture/filter combinations. It utilizes an aspherical condenser lens to significantly reduce corneal reflection.

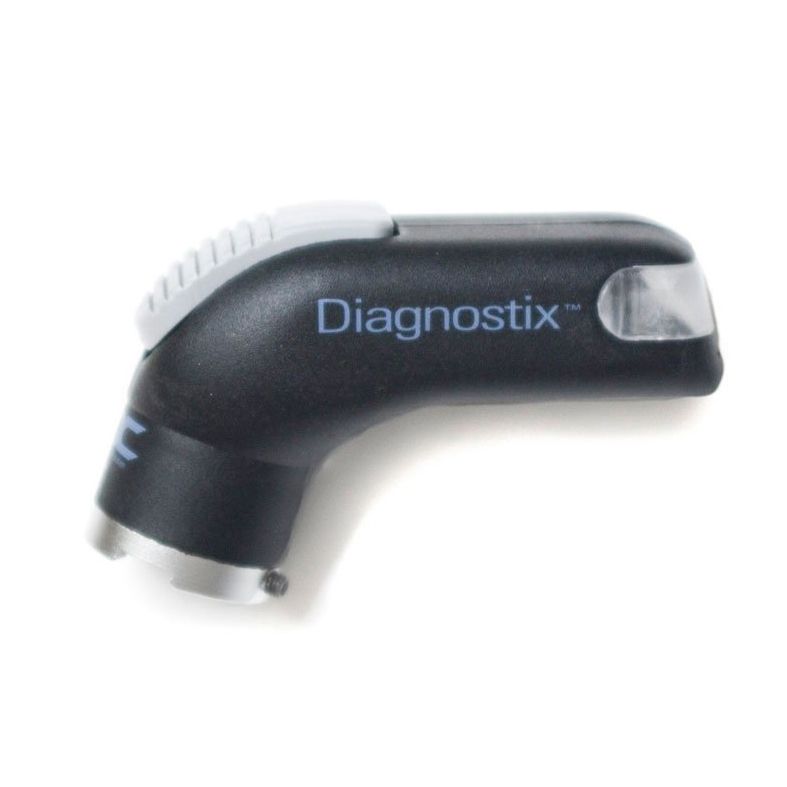

- ADC Diagnostix 5426 Throat Illuminator Head: Provides an unobstructed view of the oral cavity and pharynx using PMMA light transmission. A key feature is the tongue blade holder with an eject button for hygienic disposal.
- ADC Diagnostix 5450 Dermascope Head: Optimized for skin assessment, this head features AdLED illumination and a 10X focusable magnifying lens. It comes with two interchangeable contact plates (one with a scale, one without) suitable for disinfection.
Is the optional specula dispenser available?

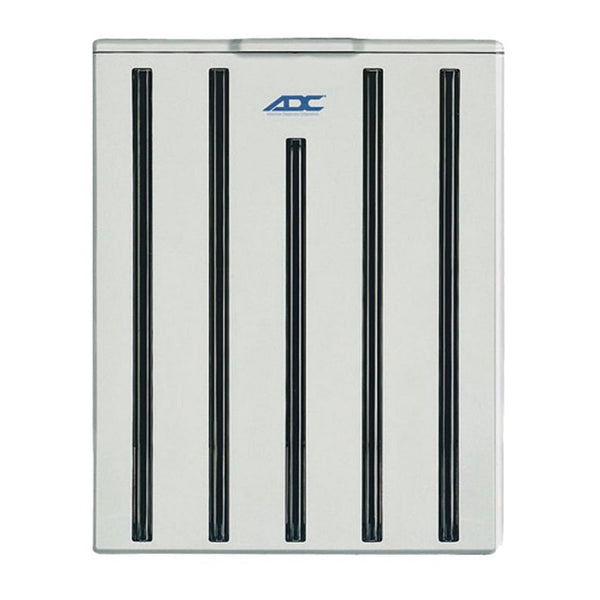

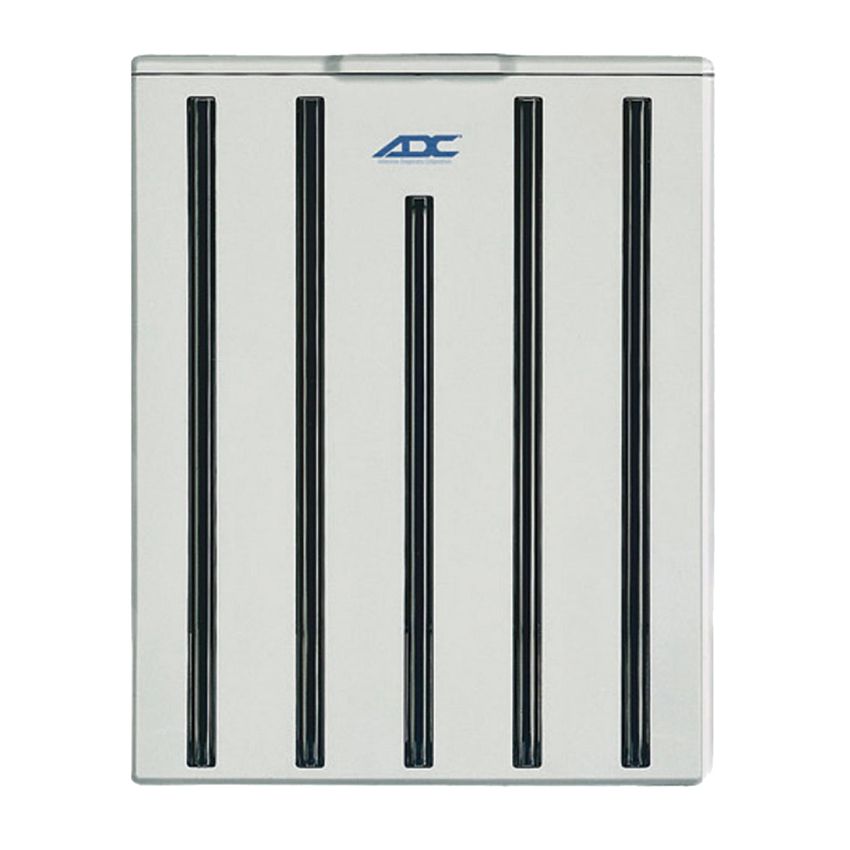

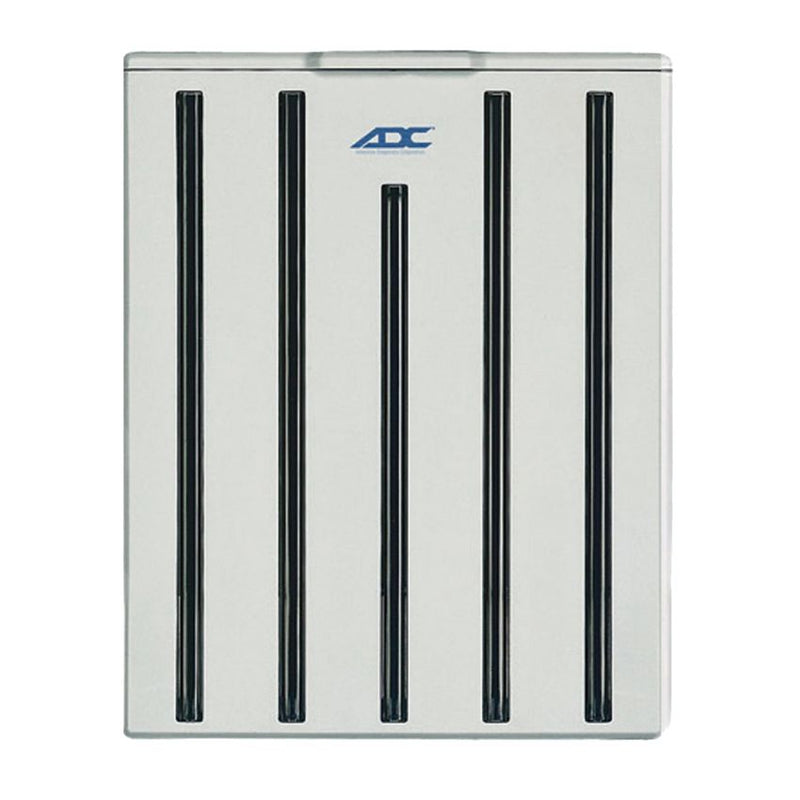

The ADC Adstation 56102-56 does not include the specula dispenser as a standard component. However, it is available as an optional accessory to enhance your setup: the ADC 5630 Wall Specula Dispenser.
This wall dispenser stores specula in five tubes, which helps promote hygienic storage and improved organization in the examination room.
Does the ADC Adstation have versatile power options?
Yes, the ADC Adstation offers versatile power options to suit different regional needs. It is available with either a standard 120V power supply or a 230V power supply that includes a European plug.
Does the Adstation feature intelligent power management?
Yes, the ADC Adstation utilizes sophisticated Adtronic electronic power management to ensure efficient operation, safety, and energy conservation.
This intelligent system provides several key benefits:
- Magnetic Activation: Power is instantly activated by a magnetic switch as soon as a handle is removed from its cradle, ensuring immediate readiness.
- Automatic Shut-off: The Adtronic system includes an auto-off function that powers down the instrument after two minutes of inactivity, helping to conserve energy and prolong lamp life.
- Precise Light Control: The Adtronic electronic rheostatic control offers infinite continuous adjustment of light intensity, allowing clinicians to set the exact illumination level required for any examination.
What are the dimensions of the Adstation?
The ADC Adstation is a modular, wall-mounted system designed for space efficiency. The dimensions for the main components are as follows:
- Diagnostic Station Base Unit (Power Supply):
- 7.88 inches x 7.12 inches x 2.95 inches
- (20.02 cm x 18.08 cm x 7.5 cm)
- Extension Module (for additional handles):
- 7.88 inches x 3.94 inches x 2.95 inches
- (20.02 cm x 10.01 cm x 7.5 cm)
Does the ADC Adstation come with a strong warranty?
Yes, the ADC Adstation comes with excellent warranty coverage to ensure your peace of mind:
- Wall Transformer: 5 years
- Instrument Head and Xenon Lamps: 2 years
- LED Lamp: Lifetime
What advanced features does the Ophthalmoscope offer?

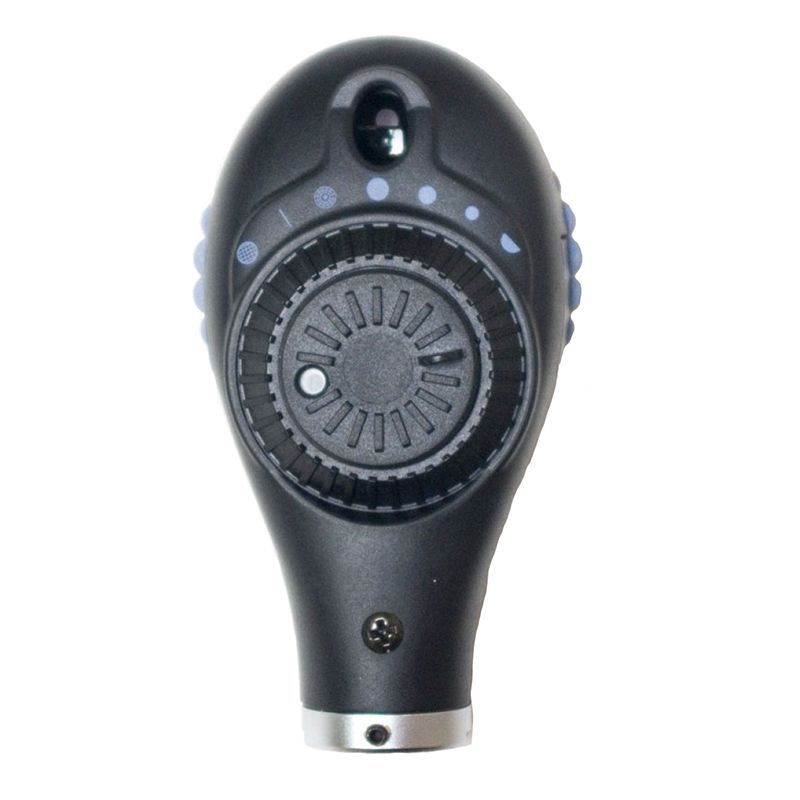

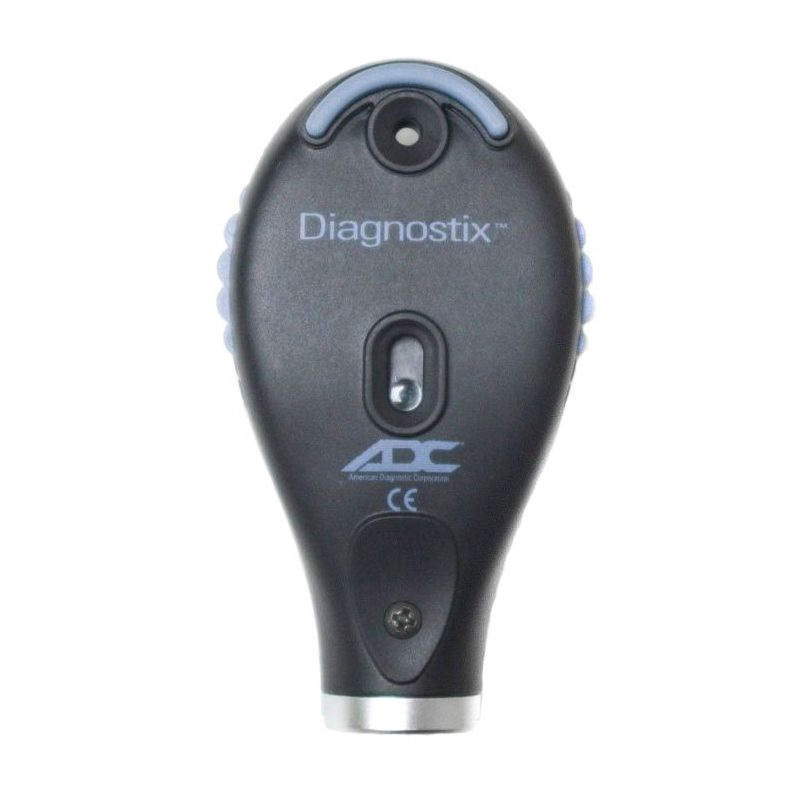

The ADC Diagnostix 5442 Coax Plus Ophthalmoscope is designed for precise examinations, prioritizing clarity and flexibility. It features:
- Advanced Optics: Utilizes a high-performance aspherical condenser lens and distinct parallel light beams to minimize corneal reflection.
- Extensive Lens Range: Features 89 viewing lenses (ranging from +1 to +45 and -1 to -44 diopters) for comprehensive focusing across various refractive errors.

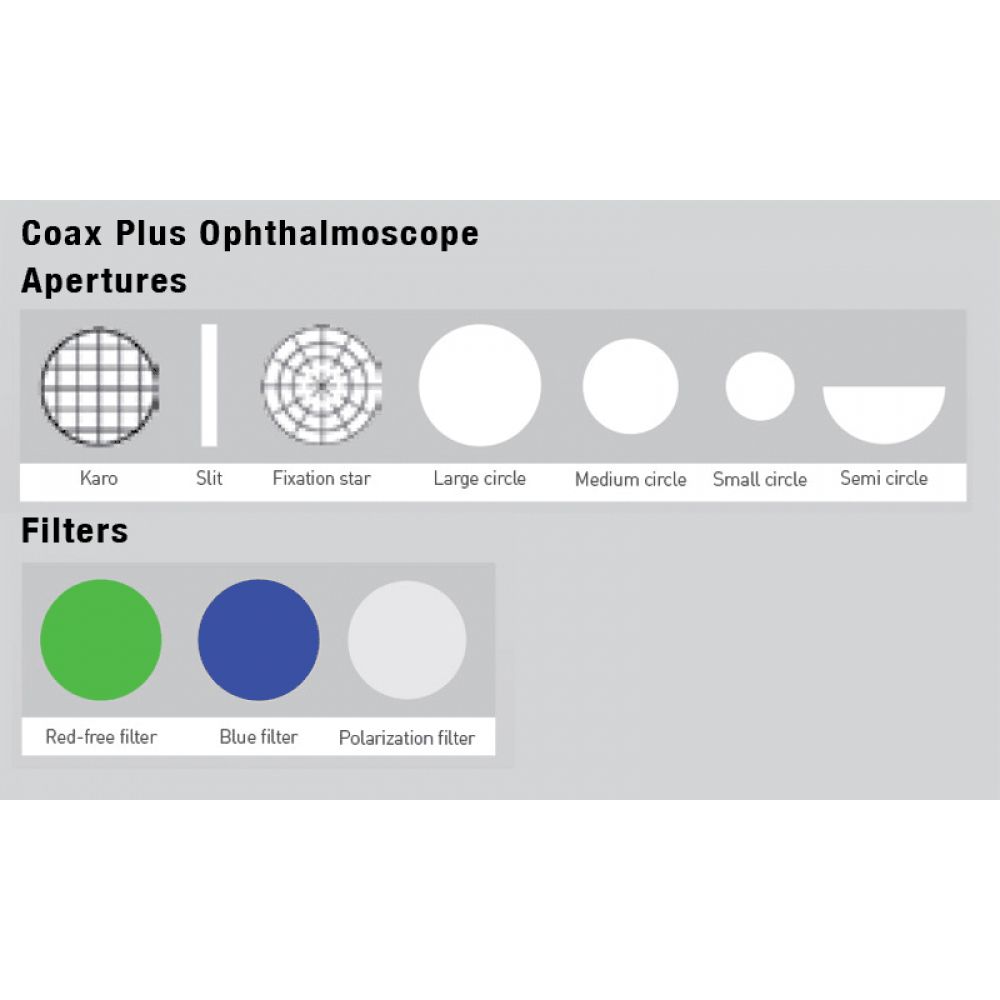

- Specialized Apertures: Provides 7 essential apertures, including Karo, Slit, Fixation, Large, Small, Micro spot, and Half moon, to optimize the field of view.
- Diagnostic Filters: Equipped with Red free, Cobalt, and Polarizing filters (plus neutral) to enhance the visualization of specific retinal structures.

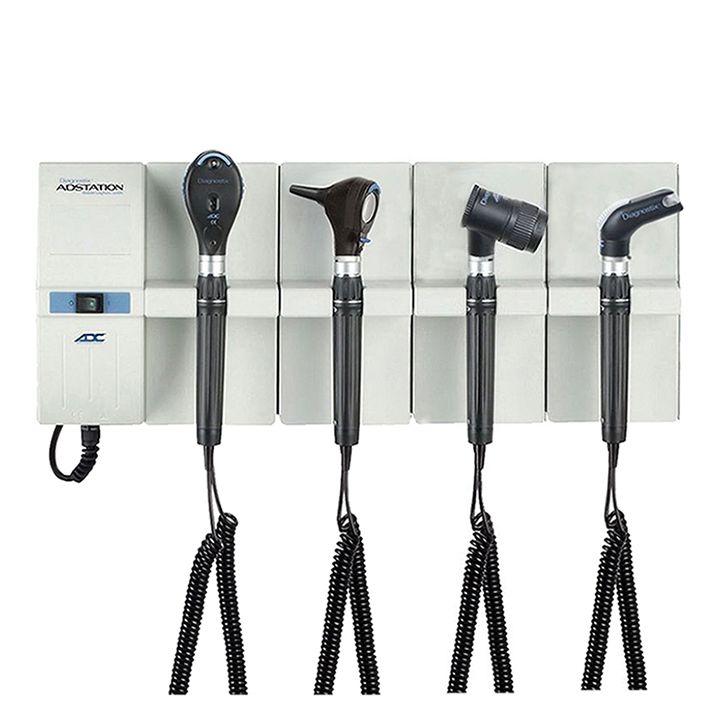

Is the Adstation a wall-mounted design?

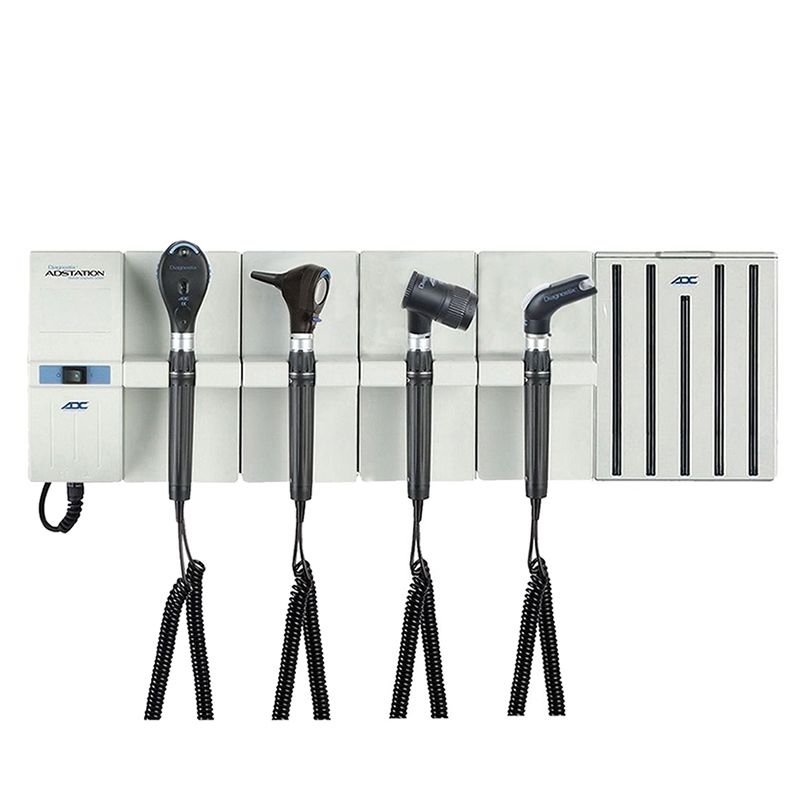

Yes, the ADC Adstation 56102-56 is specifically designed as a wall-mounted diagnostic set. This unified design offers significant benefits for clinical workflow:
- Organization: It securely keeps all four diagnostic instruments (Otoscope, Ophthalmoscope, Throat Illuminator, and Dermascope) together and readily accessible.
- Space Saving: The wall-mounted setup helps maximize and organize workspace within examination rooms.
