Condition:
-
Warranty:
- Weight: 6.85 lb
-
Learn more:
-
MFR:
American Diagnostic Corporation
Ships from MFI Medical
-
MPN: 56102X-5
- Phone: (800) 232-2670
Frequently asked questions
What high-performance diagnostic heads are included?

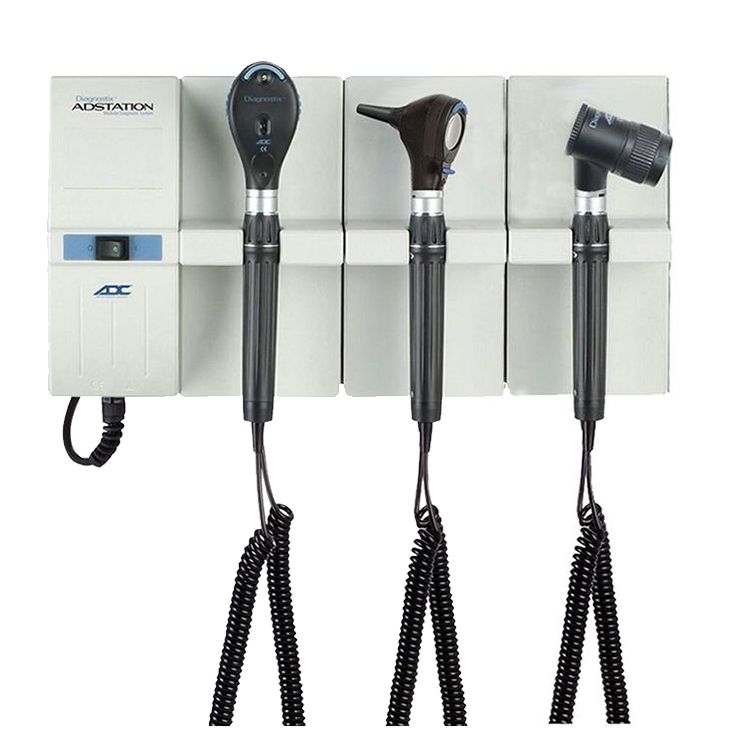

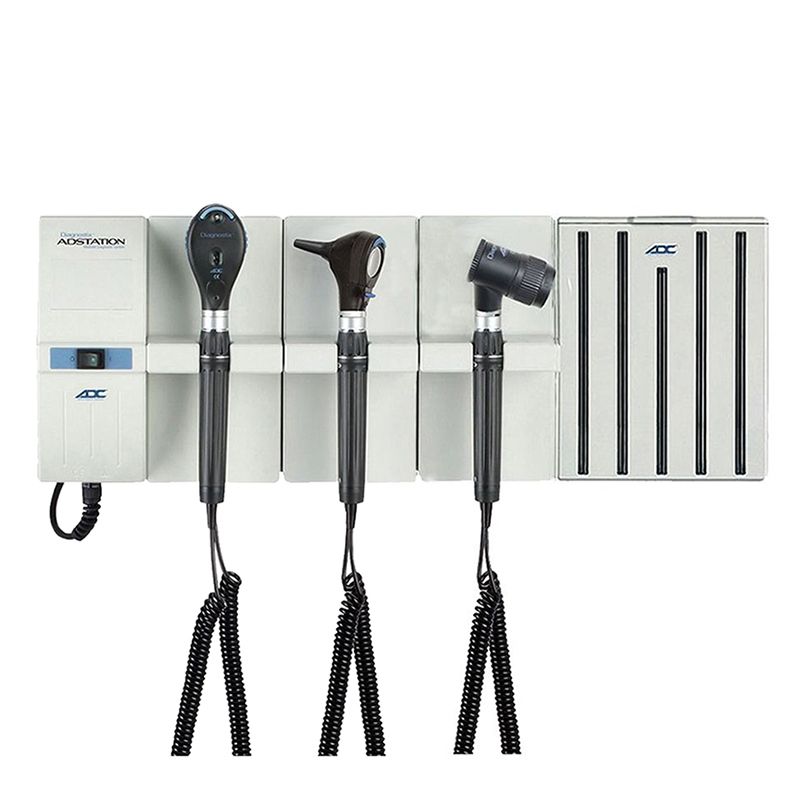

The ADC Adstation 56102-5 is a comprehensive diagnostic suite that includes three essential 3.5V diagnostic heads:

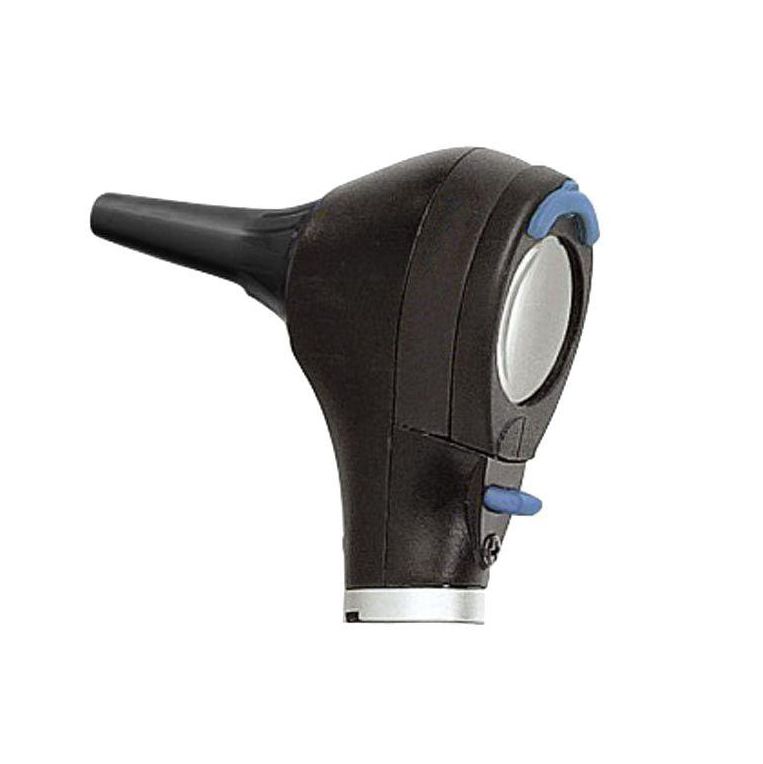

- ADC Diagnostix 5420 Otoscope Head: Features fiber-optic light transmission and optical glass for 3X magnification. It also includes a bidirectional swivel lens and an insufflator port for pneumatic otoscopy.

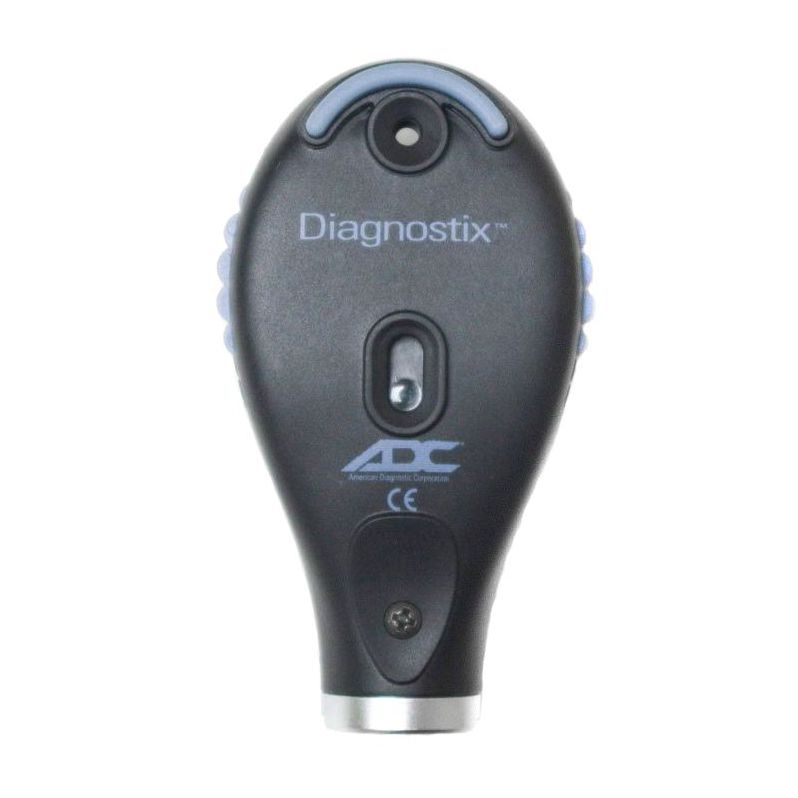

- ADC Diagnostix 5442 Coax Plus Ophthalmoscope Head: Designed to minimize corneal reflection, this advanced ophthalmoscope offers a wide range of adjustment with 89 viewing lenses (range +1 to -45) and 28 aperture/filter combinations for detailed retinal examination.

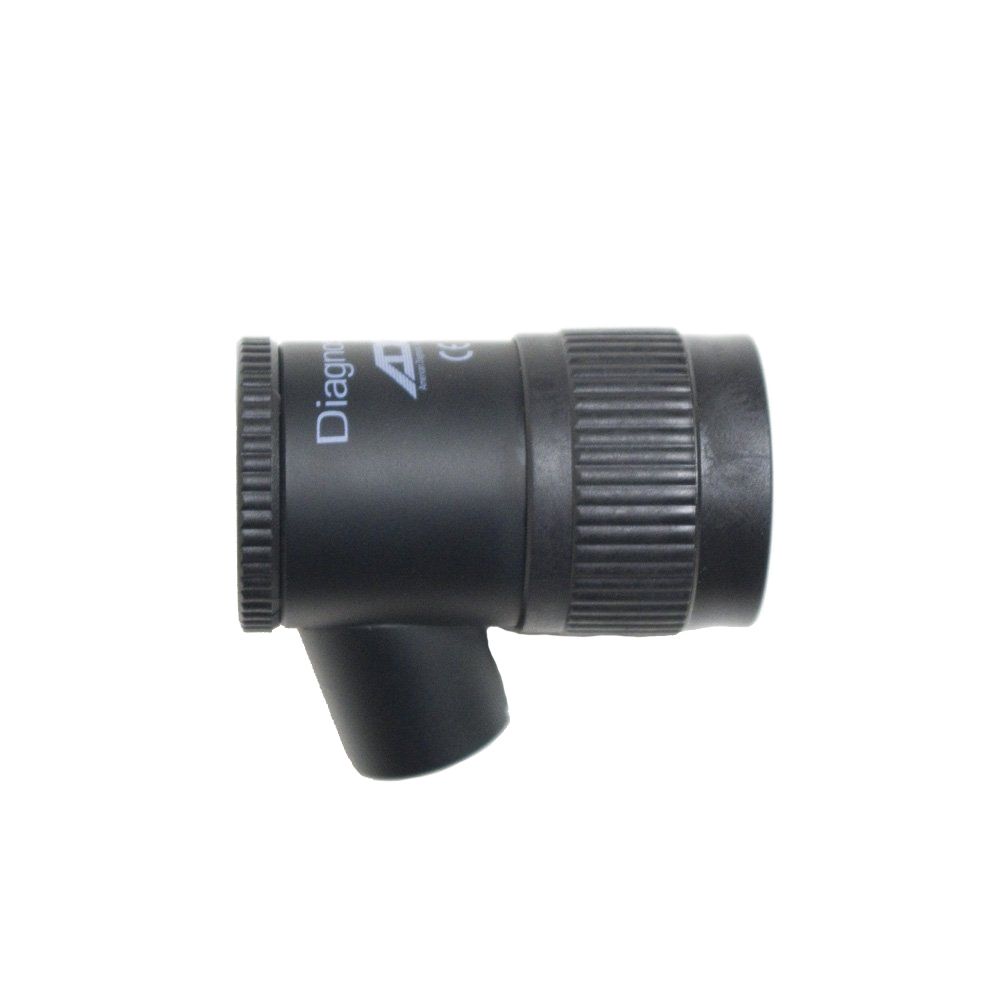

- ADC Diagnostix 5450 Dermascope Head: Optimized for skin assessment, this head utilizes standard AdLED illumination and an optical grade 10X focusable magnifying lens. It comes with two interchangeable, disinfectable contact plates (one with a scale).
Does the otoscope work with common specula?
Yes, the ADC Diagnostix 5420 Otoscope head is designed for broad utility. It is fully compatible with Welch Allyn specula. This feature ensures easy access to widely available disposable supplies, streamlining workflow and reducing dependence on proprietary accessories.
What cuff sizes are included with the optional sphygmomanometer?

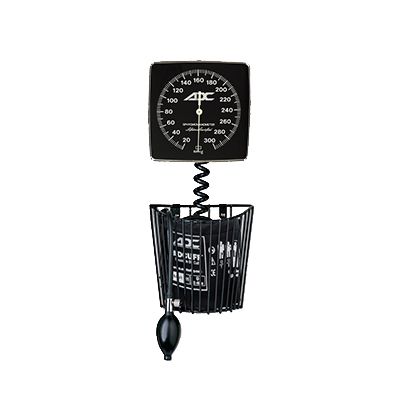

If you choose to include the optional ADC Diagnostix 750W Wall Aneroid Sphygmomanometer, it comes standard with the Adcuff Inflation System, which includes two nylon cuff sizes:
- Adult: Fits arm circumferences from 23 cm to 40 cm (9” to 15.7”).
- Large Adult: Fits arm circumferences from 34 cm to 50 cm (13.3” to 19.6”).
This ensures the station is ready for accurate blood pressure measurement across a wide range of patients.
Does the wall station have universal compatibility for instrument heads?
Yes, the ADC Adstation is designed for broad utility. The 3.5V handles feature a universal bayonet mount that is compatible with major brands of 3.5V instrument heads. This allows for flexibility and integration with other diagnostic tools you may already use.
Does the system offer advanced LED or Xenon lighting?
Yes, the ADC Adstation features modular illumination options tailored for different diagnostic needs:
- Dermascope (5450 Head): This instrument comes standard with advanced AdLED illumination.
- Otoscope (5420 Head) & Coax Plus Ophthalmoscope (5442 Head): These heads offer configuration flexibility, allowing you to choose between high-intensity Xenon lamps or long-lasting AdLED lamps.
Light intensity across the system is precisely controlled using the Adtronic electronic rheostatic control, providing smooth, infinite continuous adjustment.
For maintenance peace of mind, the AdLED lamps carry a Lifetime warranty, while Xenon lamps have a 2-year warranty.
Is the Adstation system modular?
Yes, the ADC Adstation 56102-5 is designed to be highly modular and scalable, allowing you to customize the setup for your clinical needs and future expansion.
Key aspects of its modularity and flexibility include:
- Instrument Configuration: The set includes the Otoscope, Coax Plus Ophthalmoscope, and Dermascope, powered by three 3.5V handles.
- Customizable Illumination: The Otoscope and Ophthalmoscope heads can be configured with either a standard Xenon lamp or the long-lasting AdLED lamp. The Dermascope uses AdLED exclusively.

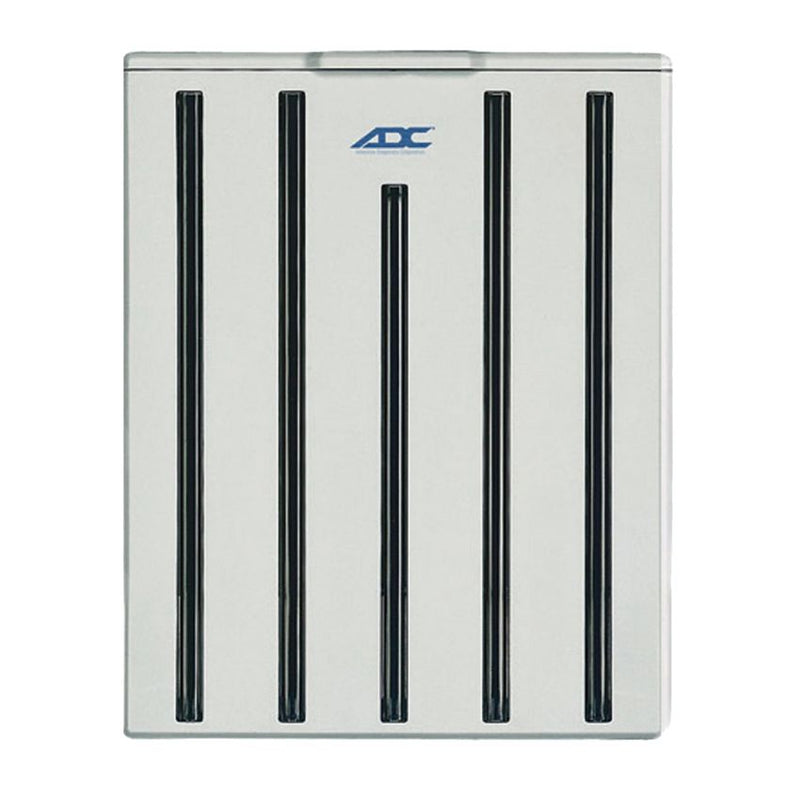

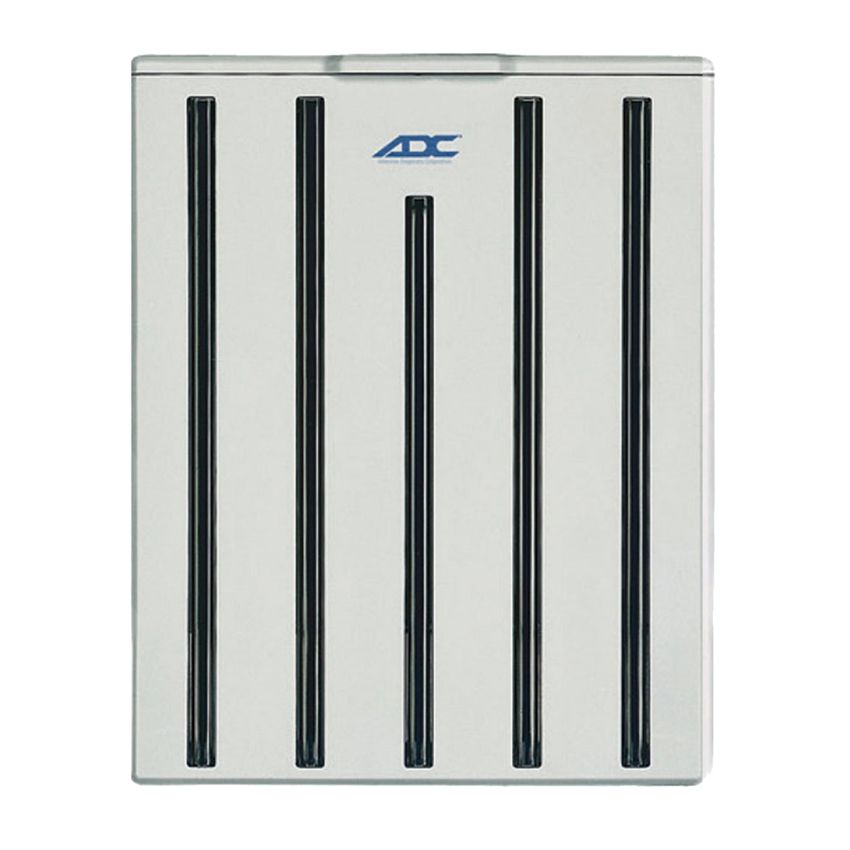

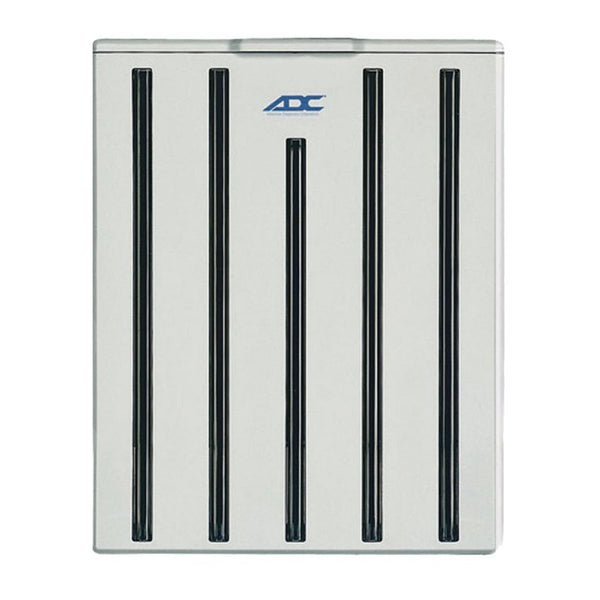

- Scalable Base Unit: The wall transformer base unit can accommodate an additional extension module, supporting up to three total handles/instruments.
- Optional Integration: The system easily supports optional add-ons, such as the ADC Diagnostix 750W Wall Aneroid Sphygmomanometer and the ADC 5630 Wall Specula Dispenser.
Does the wall station have automatic power control?
Yes, the ADC Adstation 3.5V wall transformer base unit features advanced electronic controls for highly efficient and safe operation.
Key power management features include:
- Automatic Activation: The system is instantly powered on via a magnetic switch when a handle is lifted from its cradle.
- Light Intensity Control: Adtronic electronic rheostatic control allows for infinite, continuous adjustment of the light intensity for precise illumination.
- Auto-Off Safety Feature: The unit includes an Adtronic auto-off feature that automatically shuts off power after two minutes of inactivity, helping to conserve energy and prolong lamp life.
What is the warranty coverage for the diagnostic set?
The ADC Adstation diagnostic set features comprehensive warranty coverage tailored to its different components:
- Wall Transformer: 5 Years
- Instrument Heads and Xenon Lamps: 2 Years
- AdLED Lamps (Advanced LED illumination): Lifetime Warranty
- Optional ADC Diagnostix 750W Wall Aneroid Sphygmomanometer: 3 Years, which includes a Lifetime Calibration Warranty on the manometer component.
Does the ophthalmoscope use advanced lens technology?

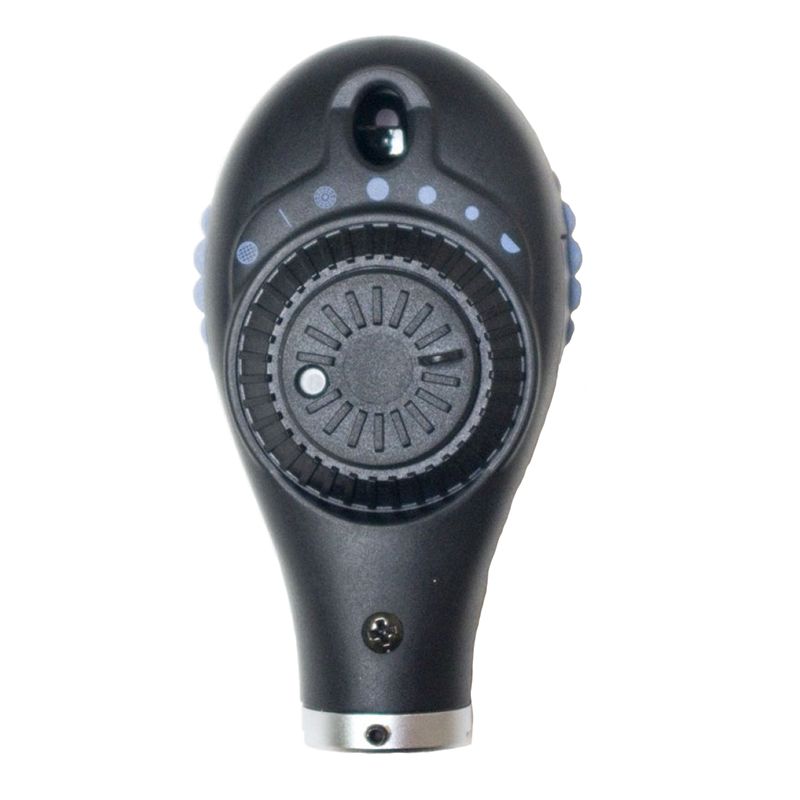

Yes, the ADC Diagnostix 5442 Coax Plus Ophthalmoscope head is engineered with advanced optical components to ensure precise and detailed examinations. Its design incorporates several high-end features to improve clarity and versatility:
- Anti-Reflection System: Utilizes a high-performance aspherical condenser lens and a dual light beam system (Gullstrand’s principal) to minimize corneal reflection.
- Extensive Lens Range: Features 89 viewing lenses (+1 to -45) to accommodate a wide array of refractive states.
- Versatile Diagnostic Tools: Offers a comprehensive selection of 28 aperture and filter combinations, including:
- 7 Apertures: Karo, Slit, Fixation, Large, Small, Micro spot, and Half moon.
- 4 Filters (3 + Neutral): Red free, Cobalt (for use with fluorescent dye), and Polarizing (which helps eliminate corneal reflection).
Does the dermascope offer powerful magnification?
Yes, the dermascope head is equipped with a 10X focusable magnifying lens, allowing for detailed skin examinations. This feature helps healthcare professionals observe subtle changes and characteristics on the skin’s surface.
