ADC Adstation 56102 3.5V Wall Otoscope/Coax Plus Ophthalmoscope Diagnostic Set with Wallboard for ADView 2

Yes, the ADC Adstation 56102 is specifically engineered for future integration with the ADC ADView 2 Modular Diagnostic Station (sold separately).

This compatibility is built into the system:

• The included Adstation Wallboard is designed with dedicated mounting space to accommodate the ADView 2.
• This allows you to easily expand your diagnostic capabilities later, making the Adstation a scalable and future-proof solution for your clinical environment.

Yes, the warranty coverage for the ADC Adstation 56102 components varies, reflecting the specific nature of each part:

• Wall Transformer: 5 Years
• LED Lamp: Lifetime
• Instrument Heads (Otoscope/Ophthalmoscope), Xenon Lamps, and Wallboard: 2 Years
• Adtemp 429 Non-Contact Infrared Thermometer (if included in the configuration): 2 Years (covering defects in materials and workmanship)

The ADC Adstation 56102 offers significant advantages for medical professionals, ensuring efficient and organized examinations:

• Comprehensive Diagnostic Solution: The set includes the 3.5V Otoscope and the Coax Plus Ophthalmoscope, along with a specula dispenser, providing all essential tools for complete ear and eye examinations.
• Space-Saving Wall Mount: The wall-mounted design keeps instruments organized, readily accessible, and helps maximize space efficiency in the examination room.
• Versatile Illumination: Users can select configurations featuring powerful halogen/xenon or the advanced AdLED lamp options for clear visualization.
• Hygienic Specula Storage: The integrated wall specula dispenser ensures a practical and sanitary storage solution for specula, minimizing the risk of cross-contamination.
• High-Performance Optics: The 5442 Coax Plus Ophthalmoscope features an aspherical condenser lens, 89 viewing lenses, and 28 aperture/filter combinations for precise and detailed retinal examinations.
• Optional Non-Contact Thermometer: An optional ADC Adtemp 429 Non-Contact Infrared Thermometer can be integrated for quick, safe, and comfortable temperature measurements in about one second.

Yes, the ADC Adstation 56102 offers flexible configurations, allowing you to customize the light source and accessory integration.

Illumination Choices

For both the Otoscope and Ophthalmoscope heads, you can select between two high-quality light sources:

• Halogen/Xenon Lamp: Provides traditional, bright illumination.
• AdLED Lamp: An energy-efficient, advanced option that comes with a Lifetime warranty.

These lamp types can be specified independently for each instrument head.

Accessory Integration

The core set includes the two instruments and the ADC 5630 Wall Specula Dispenser for hygienic storage. You also have the option to include:

• ADC Adtemp 429 Non-Contact Infrared Thermometer: This optional component integrates directly onto the wallboard via a dedicated cradle, allowing for seamless non-contact temperature screening alongside core diagnostics.

The ADC Diagnostix 5442 3.5V Coax Plus Ophthalmoscope Head is engineered for comprehensive retinal examination, offering exceptional versatility and clarity:

• Superior Optics: Features a high-performance aspherical condenser lens for clear, precise viewing and a dust-proof design.
• Wide Magnification Range: Includes 89 viewing lenses (ranging from +1 to +45 and -1 to -44) accessible via the primary and secondary focusing wheels.

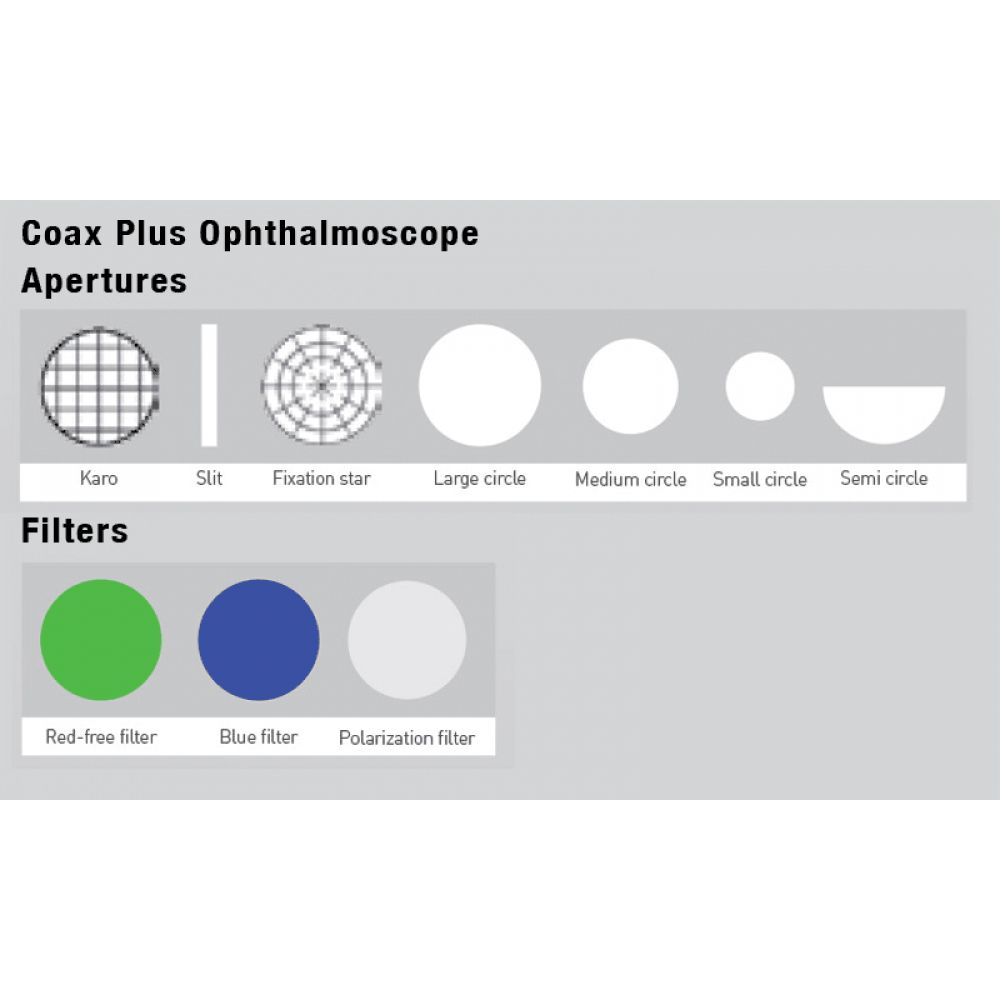

• Extensive Aperture/Filter Options: Provides 28 aperture/filter combinations for specialized examinations. These include:
  • Apertures: Slit, Fixation (cross-hairs), Large, Small, Micro spot, Half moon, and Karo (grid overlay).
  • Filters: Red free (for viewing veins/arteries), Cobalt (for use with fluorescent dye), and Polarizing (to eliminate corneal reflection).
• Ergonomics & Security: Designed with an integral thumb rest and synthetic rubber brow rest for comfort, and includes an anti-theft locking feature.

Yes, the optional component is the ADC Adtemp 429 Non-Contact Infrared Thermometer, which supports hygienic screening.

This device uses an infrared sensor to eliminate the need for physical contact, measuring temperature at a distance of 1.5 to 2.5 inches (4 to 6 cm).

Key features of the thermometer include:

• Dual Mode Functionality: It can measure both body temperature and the temperature of objects.
• High Visibility: It features a large, backlit LCD for clear readings.
• Accurate Results: Provides high accuracy, within +/- 0.5°F (or 0.3°C) in the typical body temperature range.
• Integrated Storage: The thermometer comes with its own wall cradle for secure, dedicated storage on the Adstation Wallboard, ensuring it is readily available and reducing the risk of contamination.

Yes, the ADC Adstation power supply unit is equipped with advanced Adtronic electronic control features that automate operation and maximize efficiency.

Key automatic and control features include:

• Automatic Activation: Power is instantly engaged via a magnetic switch as soon as an instrument handle is removed from its cradle.
• Auto-Off Safety: The Adtronic system automatically shuts down the unit after two minutes of inactivity, conserving energy and extending lamp life.
• Precise Light Control: It features infinite electronic rheostatic control over the light intensity, allowing the user to set the exact illumination level required for any examination.

Additionally, the two included 3.5V handles are designed for durability, being CNC machined from solid brass and chrome plated, and they include a standard anti-theft locking feature.

Yes, the ADC Adstation 56102 is specifically engineered for high-utility, professional clinical environments, prioritizing organization, durability, and efficiency. It is highly suitable for use in exam rooms, physician offices, and diagnostic areas.

Key features supporting clinical environments include:

• Wall-Mounted System: Provides permanent, space-saving access to the otoscope and ophthalmoscope.
• Durability: Instrument handles are CNC machined from solid brass and chrome plated, ensuring longevity. The wallboard is made from durable, easy-to-clean ABS.
• Hygienic Organization: The set includes the ADC 5630 Wall Specula Dispenser for practical and hygienic storage of five tubes of specula.

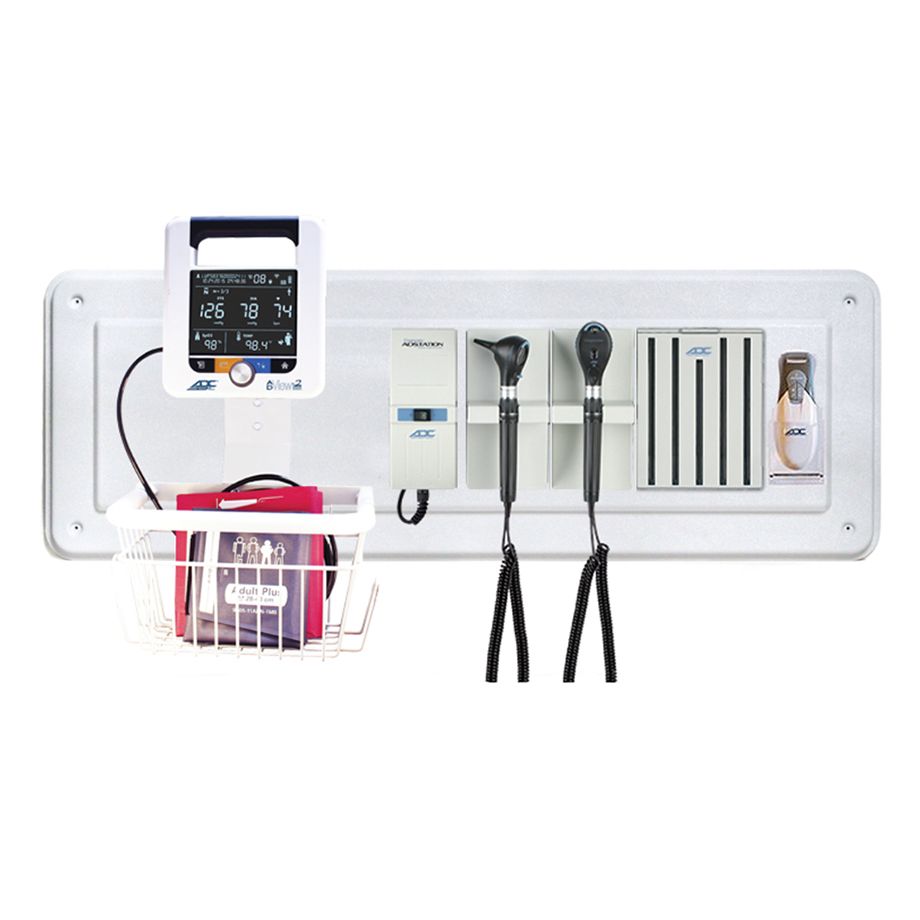

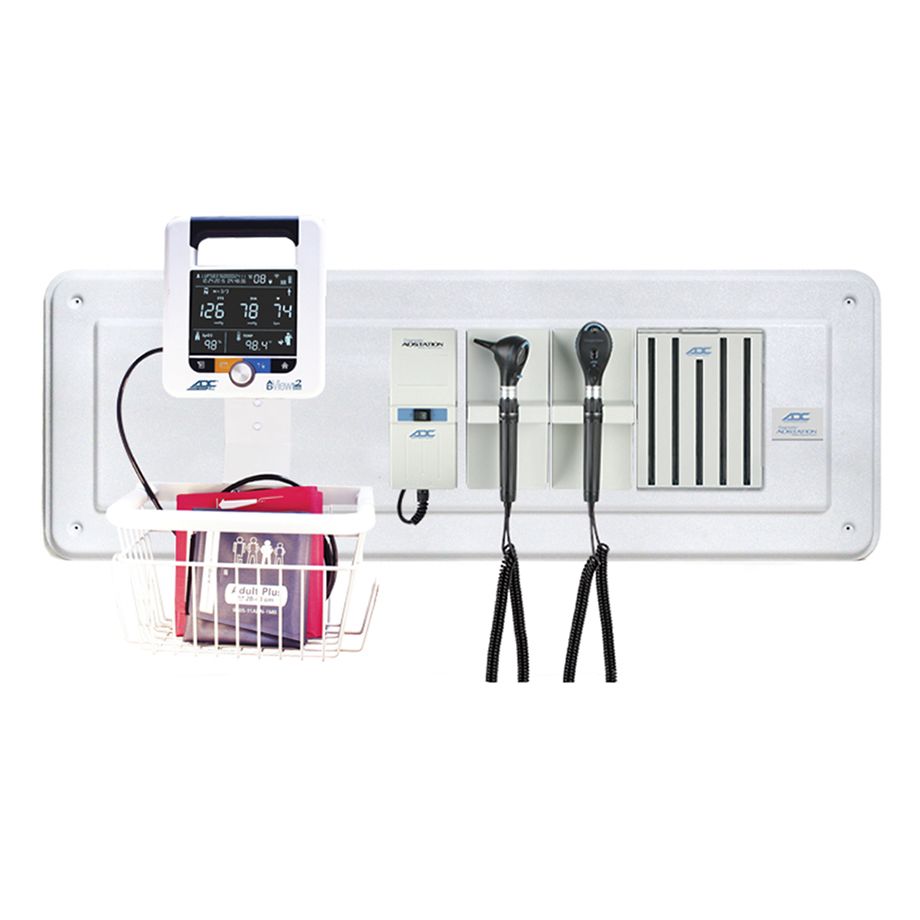

• Scalability: The included Wallboard is designed with dedicated mounting space to seamlessly integrate the optional ADC ADView 2 Modular Diagnostic Station, allowing for future expansion.

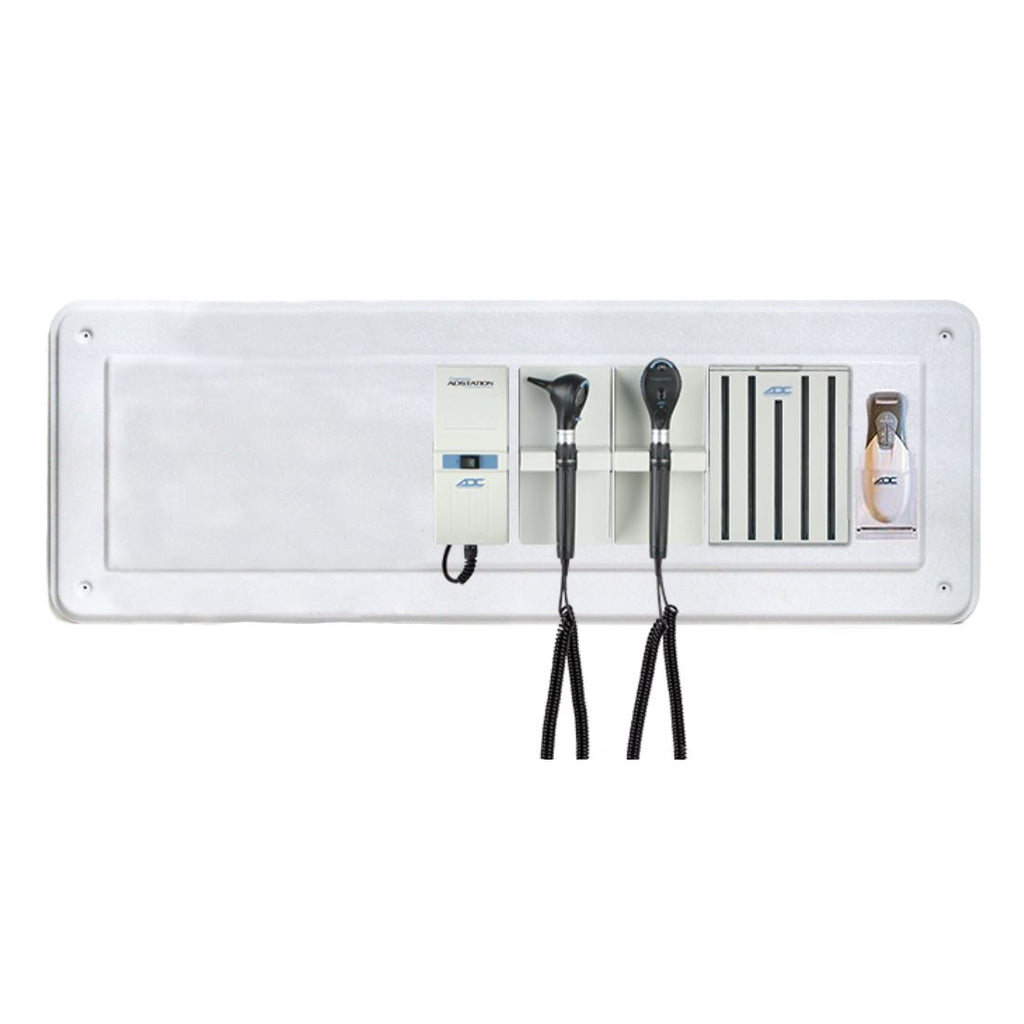

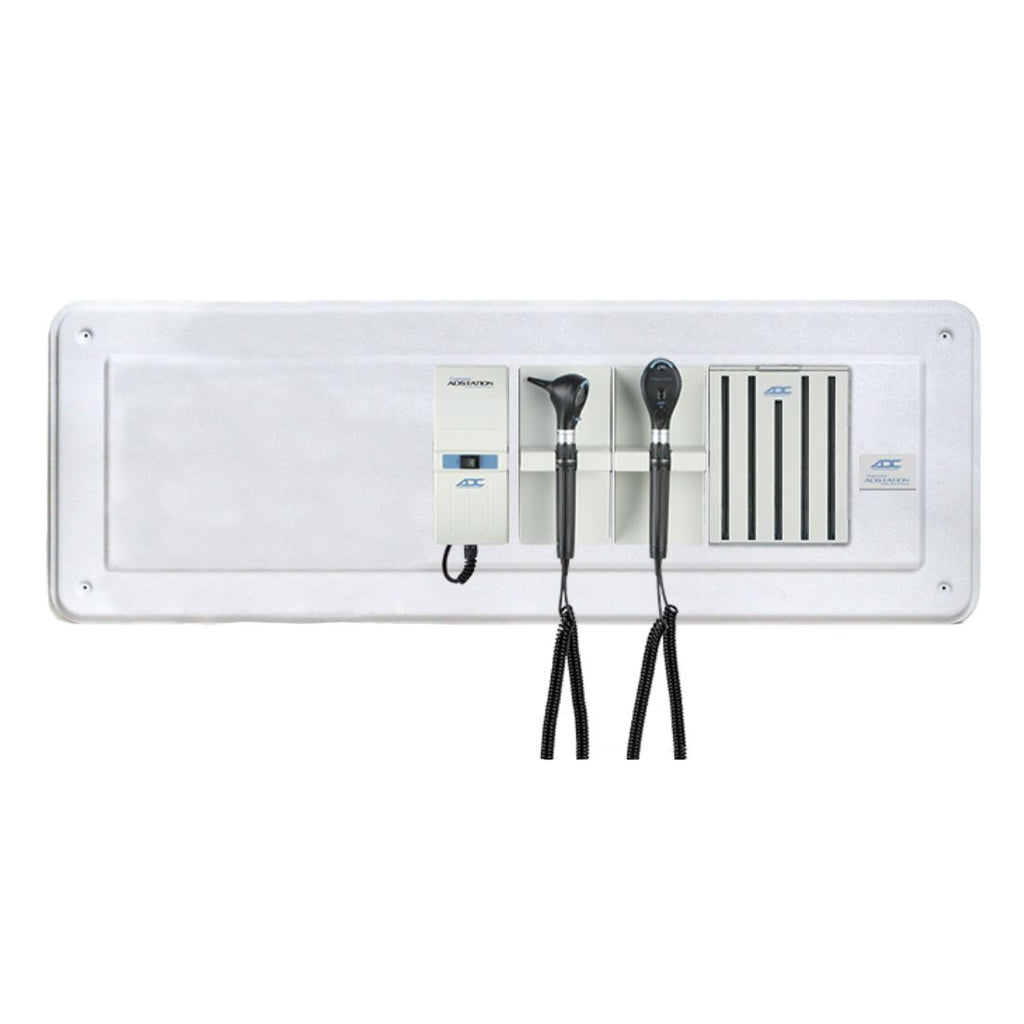

The ADC Adstation 56102 set provides a comprehensive, wall-mounted diagnostic platform featuring high-performance instruments and integrated organizational tools. All instruments share a universal bayonet mount and standard anti-theft locking features. The core components included are:

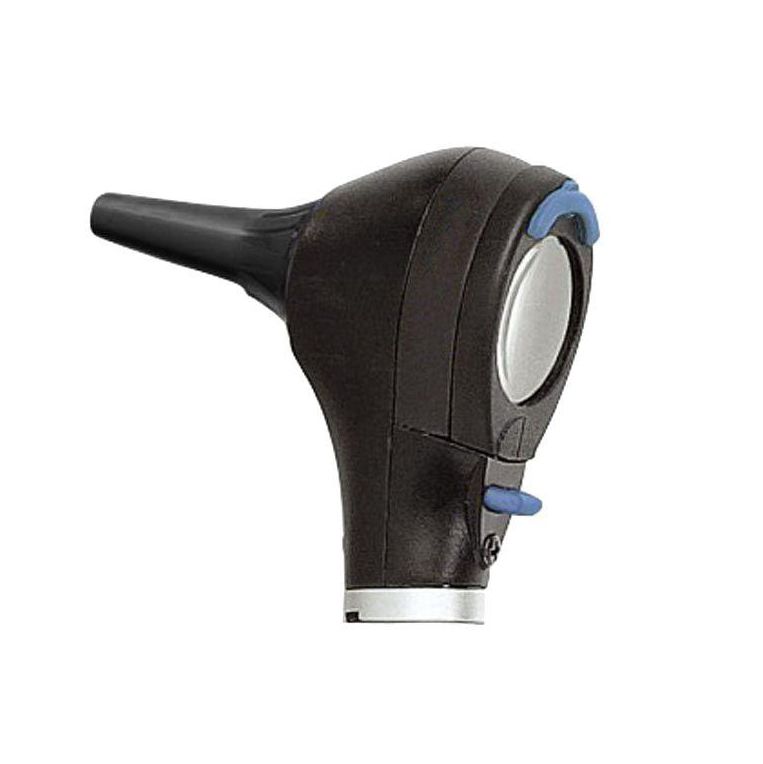

• Diagnostix 5420 3.5V Otoscope Head: Features fiber-optic light transmission for a clear view, 3X magnification via optical glass, a bidirectional swivel lens, and an insufflator port for pneumatic otoscopy.
• Diagnostix 5442 3.5V Coax Plus Ophthalmoscope Head: Offers superior optics, including an aspherical condenser lens to reduce corneal reflection. It provides extensive examination options with 89 viewing lenses (+1 to +45, -1 to -44) and 28 aperture/filter combinations (including Red free, Cobalt, and Polarizing filters).
• Power System & Handles: Includes two durable, CNC-machined 3.5V handles powered by a Wall Transformer base unit. The system features Adtronic electronic rheostatic light intensity control, a magnetic power switch, and an auto-off safety feature after two minutes.
• ADC Adstation Wallboard: This durable ABS/acrylic board organizes all components and is specifically engineered to accommodate future integration of the ADC ADView 2 Modular Diagnostic Station (sold separately).
• ADC 5630 Wall Specula Dispenser: Provides practical and hygienic storage, including five tubes for holding specula.

Illumination and Expansion

When configuring the system, you can choose between traditional Halogen/Xenon lamps or the advanced AdLED illumination (which comes with a lifetime warranty on the lamp). The wallboard is also designed to hold the cradle for the optional ADC Adtemp 429 Non-Contact Infrared Thermometer, allowing for streamlined temperature screening.

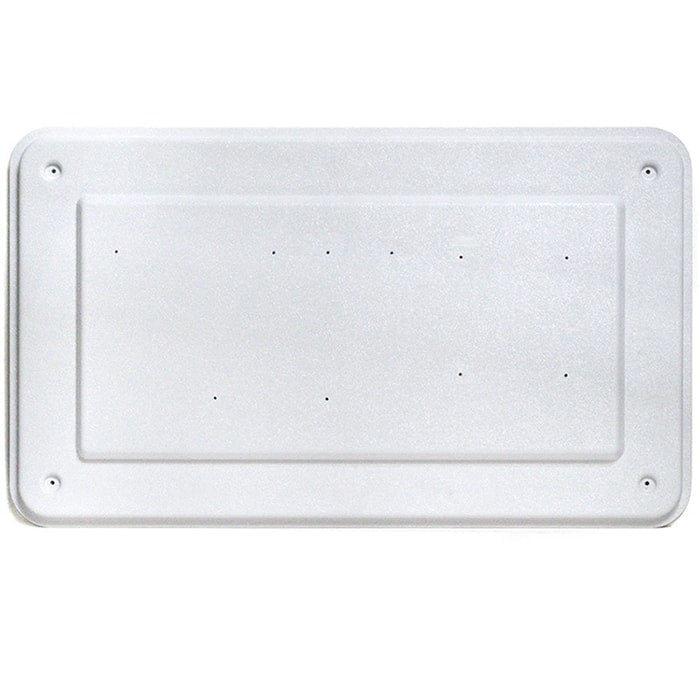

Yes, the ADC Adstation Wallboard is designed for durability and longevity in clinical environments. It is constructed from ABS with acrylic, which specifically provides UV stability.

For reference, the wallboard dimensions are 32.75” x 13.63” x 1” (83.19 cm x 34.62 cm x 2.54 cm).
