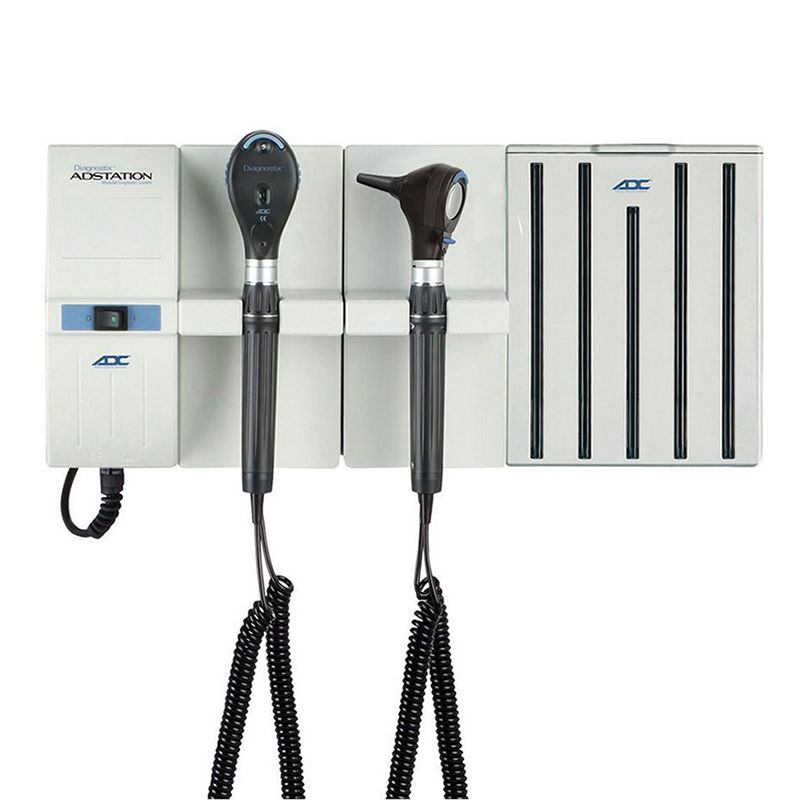

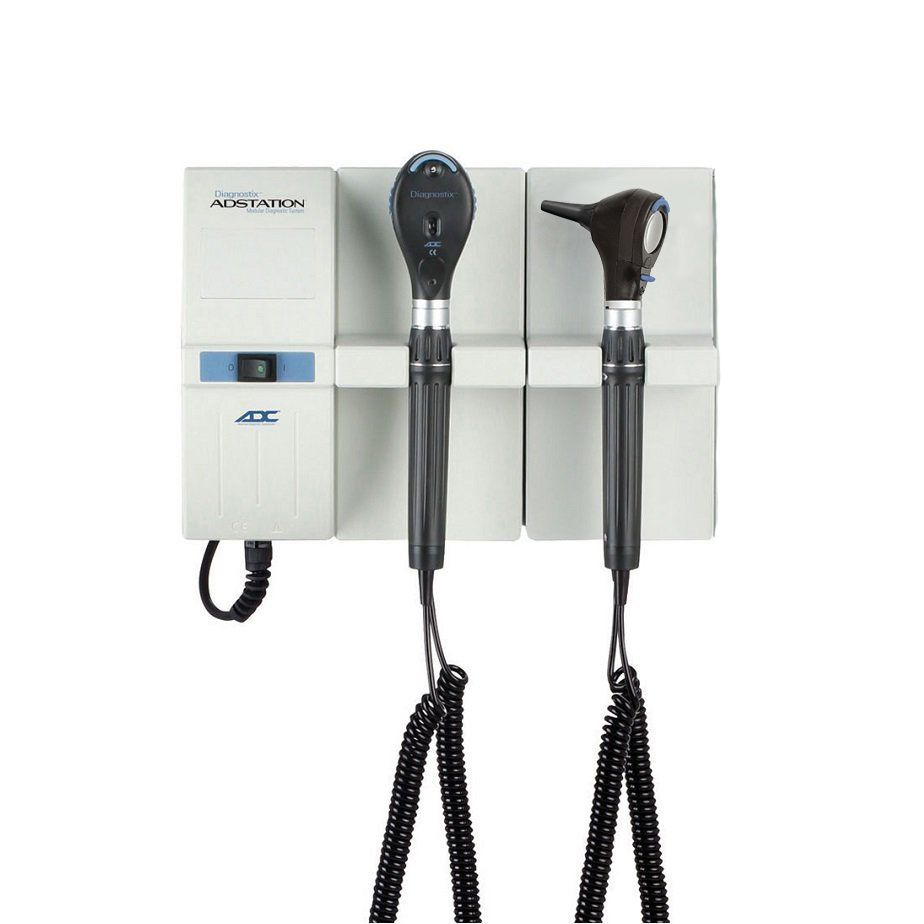

ADC Adstation 56102 3.5V Wall Otoscope/Coax Plus Ophthalmoscope Diagnostic Set

The ADC Adstation 56102 is a comprehensive, modular wall-mounted diagnostic system designed for complete physical examinations. The core diagnostic tools included are:

• ADC Diagnostix 5420 Otoscope Head: Features 3X magnification and fiber-optic light transmission for an unobstructed view. It is compatible with standard Welch Allyn specula.
• ADC Diagnostix 5442 Coax Plus Ophthalmoscope Head: Utilizes high-performance aspherical optics to minimize corneal reflection. It offers extensive focusing via 89 viewing lenses (+1 to +45, -1 to -44) and 28 distinct aperture/filter combinations.

This set also includes the necessary 3.5V wall transformer power supply base unit and two handles. As a modular system, it can be expanded with optional accessories such as the ADC Diagnostix 750W Wall Aneroid Sphygmomanometer or the ADC 5630 Wall Specula Dispenser.

Yes, the ADC Wall Transformer Power Supply is UL approved, ensuring it meets safety standards.

Yes, the ADC Adstation 56102 components are covered by robust warranties, with the advanced illumination option offering the greatest longevity assurance:

• The AdLED Lamp (if selected) is covered by a Lifetime Warranty.
• The Wall Transformer is covered for 5 Years.
• The Instrument Heads and the traditional Xenon Lamps are covered for 2 Years.

If you opt for the accessories, the optional Diagnostix 750W Wall Aneroid Sphygmomanometer has a 3-Year warranty, and the manometer itself includes a Lifetime Calibration Warranty.

Yes, the ADC Adstation is built with high-quality components and smart safety features designed for long-term use in demanding clinical environments. The system focuses on longevity and reliability:

• Robust Handle Construction: The two 3.5V instrument handles are made from chrome-plated brass with a ribbed surface, ensuring a secure grip and long service life.
• Instrument Protection: Both the Otoscope and Coax Plus Ophthalmoscope heads come standard with an anti-theft locking feature. The ophthalmoscope is also designed to be dust proof.
• Smart Power Management: The UL-approved wall transformer uses a magnetic switch to automatically activate the handles upon removal. The Adtronic auto-off safety feature powers down the instruments after two minutes if they are mis-cradled, protecting the lamps and conserving energy.
• Extensive Warranty: The wall transformer is covered by a 5-year warranty, and if configured with the advanced AdLED lamps, the LED lamp itself carries a Lifetime Warranty.

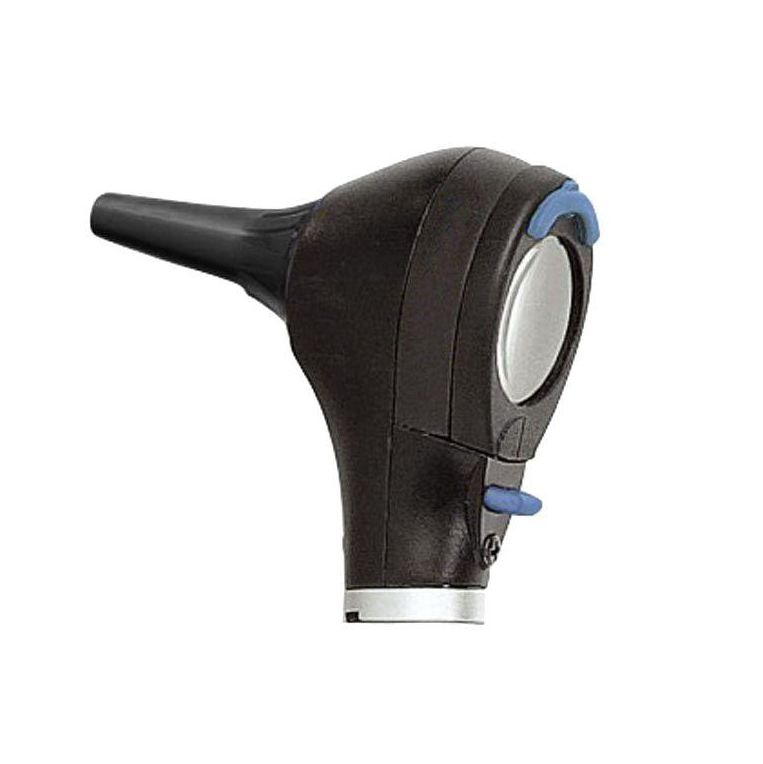

The ADC Adstation set includes the ADC Diagnostix 5420 3.5V Otoscope Head, designed for comprehensive and detailed ear examinations.

Key features that enhance diagnostic capability and workflow include:

• Superior Optics: Provides a clear, magnified view with 3X magnification achieved through high-quality optical glass.
• Fiber-Optic Illumination: Ensures bright, consistent, and completely unobstructed light transmission. This head is configurable with either Xenon or advanced AdLED illumination options.
• Instrumentation Access: Features a bidirectional swivel lens, allowing easy access for instrumentation during the examination without removing the head.
• Pneumatic Otoscopy Ready: An integrated insufflator port is included, facilitating pneumatic otoscopy to assess eardrum mobility.
• Compatibility: The head is compatible with standard Welch Allyn specula and utilizes a universal bayonet mount.

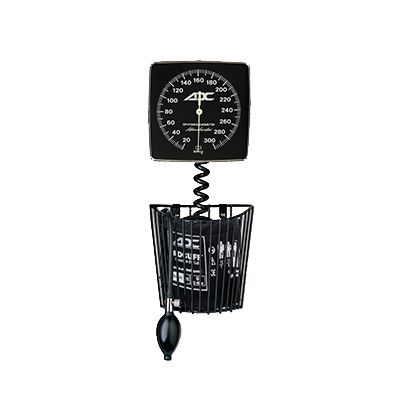

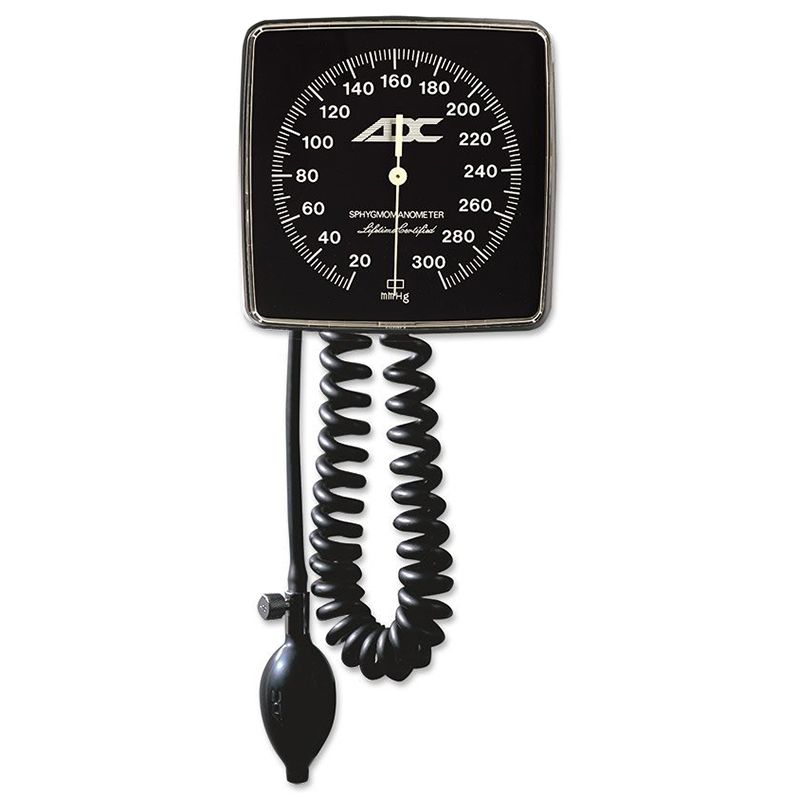

The optional ADC Diagnostix 750W Wall Aneroid Sphygmomanometer is designed for seamless integration and reliability in high-traffic clinical settings. It offers exceptional visibility and durability.

Key features of this integrated blood pressure unit include:

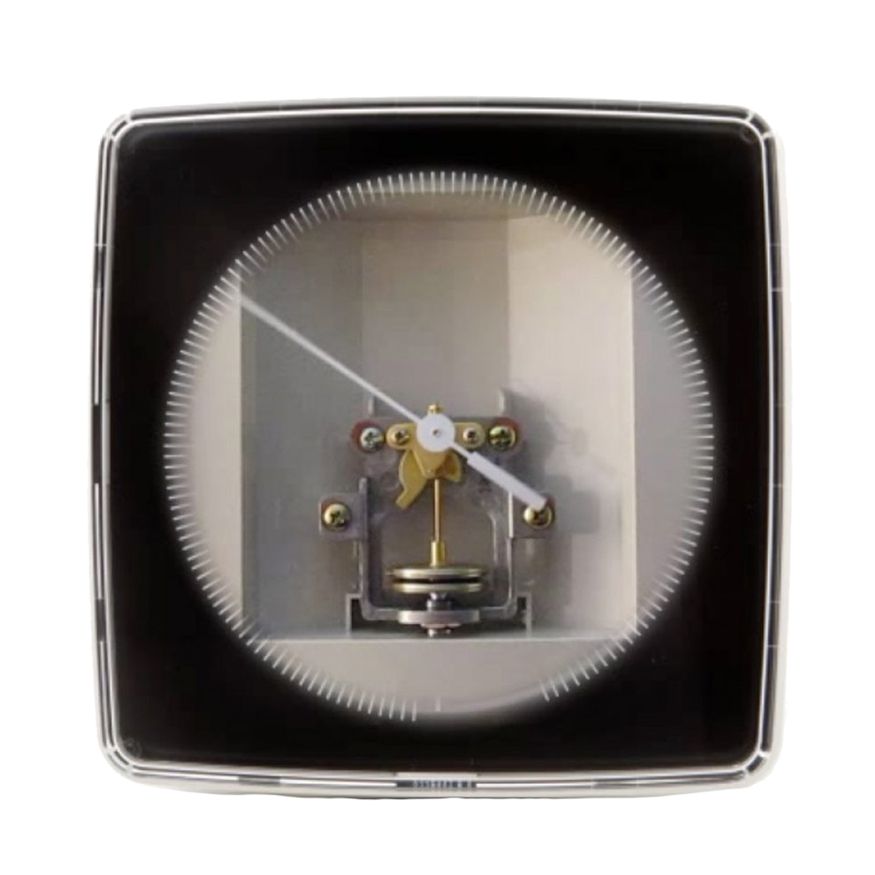

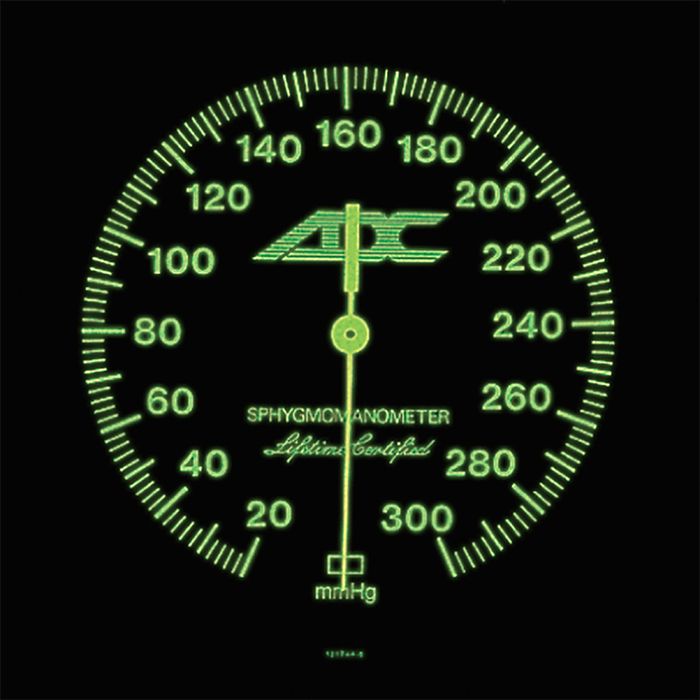

• Superior Visibility: Features a large 6-inch luminescent dial that is easy-to-read, with a 300 mm Hg no-pin stop movement for accurate readings.
• Optimized Positioning: The integrated bracket swivels through 110 degrees of rotation for convenient viewing from various points in the examination room.
• Extended Reach: An eight-foot coiled tubing provides ample extension for comfortable patient measurement.
• Latex-Free Components: The tubing is not made with natural rubber latex.

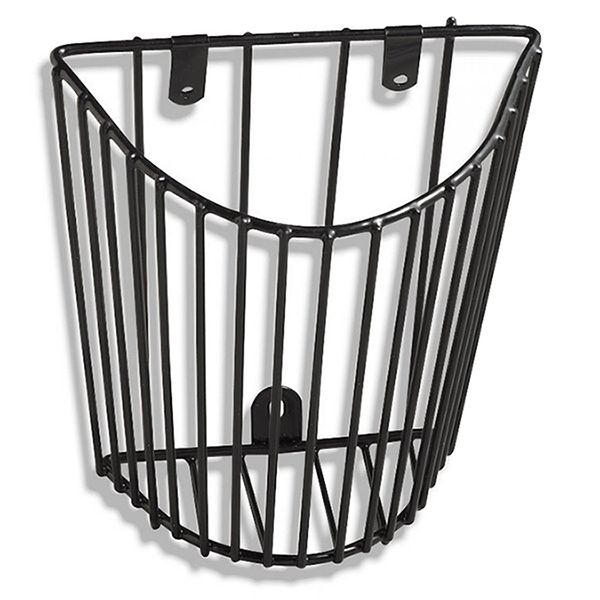

• Included Cuffs: The Adcuff Inflation System comes with two nylon cuffs: Adult (9” - 15.7”) and Large Adult (13.3” - 19.6”).
• Warranty: The unit carries a lifetime calibration warranty on the manometer itself, alongside a 3-year warranty for the complete sphygmomanometer.

Yes, the ADC Adstation 56102 features a robust and modular design built for easy expansion.

The system’s wall transformer base unit is designed to be scalable, allowing you to connect up to two additional extension modules. In total, the Adstation can support up to three total handles/modules, providing the flexibility to integrate optional accessories such as:

• ADC 5630 Specula Dispenser
• ADC Diagnostix 750W Wall Aneroid Sphygmomanometer

This modularity allows you to customize the diagnostic station precisely to your clinical environment’s needs.

Yes, the ADC Diagnostix 5442 Coax Plus Ophthalmoscope Head is highly versatile, providing comprehensive optical control for detailed retinal examinations.

Its flexibility is based on its advanced engineering and wide array of features:

• Extensive Lens Range: It features 89 viewing lenses (ranging from +1 to +45 and -1 to -44), allowing for precise focus corrections, supplemented by a secondary focusing wheel for quick adjustments.
• 28 Aperture and Filter Combinations: This vast number of combinations allows users to optimize the visual field for specific diagnostic needs. Key included options are:
  • Apertures: Large, Small, Micro spot, Slit (for tumor/lesion levels), Fixation (for lesion measurement), Half moon, and Karo (grid overlay).
  • Filters: Red free (for viewing vasculature), Cobalt (for use with fluorescein dye), and Polarizing (to eliminate corneal reflection).
• Advanced Clarity: The head incorporates a high-performance aspherical condenser lens and utilizes distinct parallel illuminating/observational light beams (Gullstrand’s principal) to significantly reduce corneal reflection, ensuring high visual clarity.

Additionally, the ophthalmoscope is designed to be dustproof and includes a synthetic rubber brow rest for comfort when used with eyeglasses.

The ADC Adstation is designed with a compact, wall-mounted footprint to save space in clinical settings. The dimensions for the components are:

• Diagnostic Station (Base Unit): 7.88” x 7.12” x 2.95” (20.02 cm x 18.08 cm x 7.5 cm)
• Extension Module (Optional): 7.88” x 3.94” x 2.95” (20.02 cm x 10.01 cm x 7.5 cm)

Yes, the ADC Adstation 56102 is specifically designed to enhance efficiency and organization in clinical settings.

It is ideal for use in hospitals, clinics, and physician offices, where it provides a comprehensive and readily accessible wall-mounted solution for routine physical examinations, including otoscopy and ophthalmoscopy.
