Key Features
  • SKU: ADC-5610X-6X
  • Condition:
    Condition: Factory New
  • Warranty:
    Warranty: 5 Years
  • Weight: 6.85 lb

  • Learn more:

Contact The Manufacturer
  • MFR: American Diagnostic Corporation
    Ships from MFI Medical
  • MPN: 5610X-6X
  • Phone: (800) 232-2670
$1,668.44 $1,022.45

+ Free Shipping

Est. Delivery:

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match

Description

The ADC Adstation 5610-6 3.5V Wall Otoscope/Ophthalmoscope/Throat Illuminator Diagnostic Set includes an ADC Diagnostix 5420 3.5V Otoscope Head, an ADC Diagnostix 5440 3.5V Coax Ophthalmoscope Head, an ADC Diagnostix 5426 3.5V Throat Illuminator Head, a power supply base unit that includes a power switch, three 3.5V handles, and two extension modules. The wall transformer is available with a standard 120V or a 230V power supply with European plug in, and is easy to install with the included bracket or it may be mounted to ADC wallboard systems. All three ADC Diagnostix Heads are available with a halogen/xenon lamp or an advanced AdLED lamp.

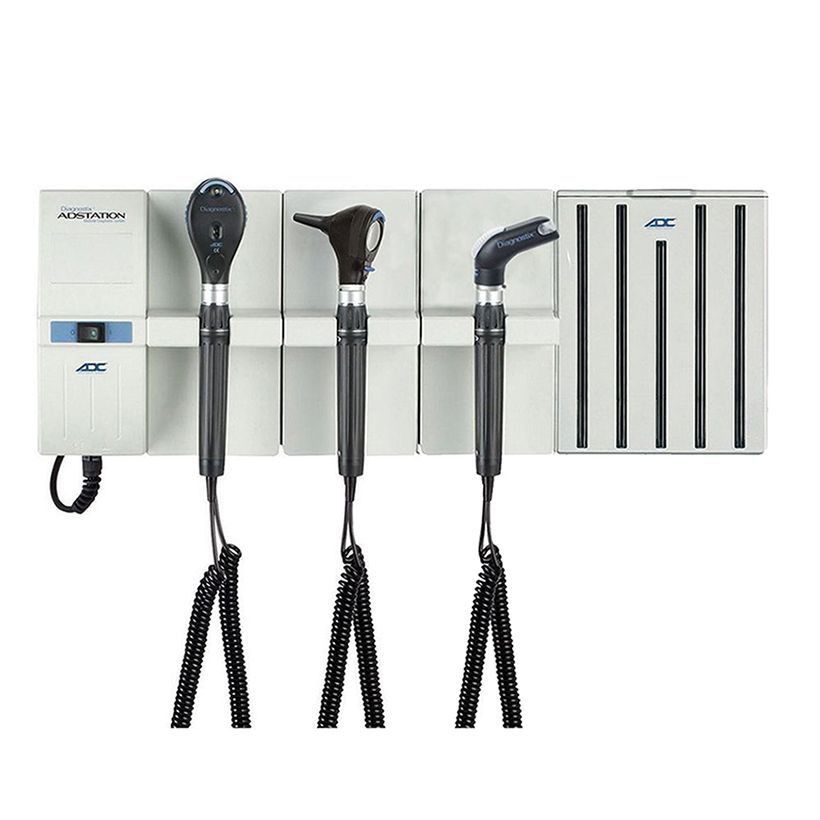

The ADC 5630 Wall Specula Dispenser can also be added and is a hygienic and practical solution to storing specula and includes five tubes that can store specula.

An optional ADC Diagnostix 750W Wall Aneroid Sphygmomanometer can also be added and includes a wall bracket that swivels through 110 degrees rotation for easy viewing, and an Adcuff Inflation System which includes an Adult and Large Adult Nylon Cuff, an Adflow Bulb and Valve, coiled tubing, and a Cuff Storage Basket.

Warranty: 5 Years (Wall Transformer), 2 Years (Instrument Head and Xenon Lamps), Lifetime (LED Lamp), 3 Years (750W Wall Aneroid Sphygmomanometer. Manometer carries a lifetime calibration warranty).

The ADC Diagnostix 5420 3.5V Otoscope Head is designed for examination of the inner ear and the ADC Diagnostix 5440 3.5V Coax Ophthalmoscope Head is intended to examine the media (cornea, aqueous, lens, and vitreous) and the retina of the eye. The ADC Diagnostix 5426 3.5V Throat Illuminator Head is designed for examination of the oral cavity and pharynx in combination with commercial wooden and plastic blades.

Configurations

ADC Adstation 5610-6 3.5V Wall Otoscope/Ophthalmoscope/Throat Illuminator Diagnostic Set Configurations

  • ADC Adstation 5610-6 3.5V Wall Otoscope/Ophthalmoscope/Throat Illuminator Diagnostic Set Configurations:
    • Xenon Otoscope/Xenon Ophthalmoscope/Xenon Throat Illuminator (#5610X-6X) / European Plug (#5610X-6XEU).
    • LED Otoscope/LED Ophthalmoscope/LED Throat Illuminator (#5610L-6L) / European Plug (#5610L-6LEU).
    • Xenon Otoscope/Xenon Ophthalmoscope/LED Throat Illuminator (#5610X-6L) / European Plug (#5610X-6LEU).
    • Xenon Otoscope/LED Ophthalmoscope/LED Throat Illuminator (#5610B-6L) / European Plug (#5610B-6LEU).
    • LED Otoscope/Xenon Ophthalmoscope/LED Throat Illuminator (#5610A-6L) / European Plug (#5610A-6LEU).
    • LED Otoscope/Xenon Ophthalmoscope/Xenon Throat Illuminator (#5610A-6X) / European Plug (#5610A-6XEU).
    • LED Otoscope/LED Ophthalmoscope/Xenon Throat Illuminator (#5610L-6X) / European Plug (#5610L-6XEU).
    • Xenon Otoscope/LED Ophthalmoscope/Xenon Throat Illuminator (#5610B-6X) / European Plug (#5610B-6XEU).
    • Xenon Otoscope/Xenon Ophthalmoscope/Xenon Throat Illuminator with Specula Dispenser (#5610X-36X) / European Plug (#5610X-36XEU).
    • LED Otoscope/LED Ophthalmoscope/LED Throat Illuminator with Specula Dispenser (#5610L-36L) / European Plug (#5610L-36LEU).
    • Xenon Otoscope/Xenon Ophthalmoscope/LED Throat Illuminator with Specula Dispenser (#5610X-36L) / European Plug (#5610X-36LEU).
    • Xenon Otoscope/LED Ophthalmoscope/LED Throat Illuminator with Specula Dispenser (#5610B-36L) / European Plug (#5610B-36LEU).
    • LED Otoscope/Xenon Ophthalmoscope/LED Throat Illuminator with Specula Dispenser (#5610A-36L) / European Plug (#5610A-36LEU).
    • LED Otoscope/Xenon Ophthalmoscope/Xenon Throat Illuminator with Specula Dispenser (#5610A-36X) / European Plug (#5610A-36XEU).
    • LED Otoscope/LED Ophthalmoscope/Xenon Throat Illuminator with Specula Dispenser (#5610L-36X) / European Plug (#5610L-36XEU).
    • Xenon Otoscope/LED Ophthalmoscope/Xenon Throat Illuminator with Specula Dispenser (#5610B-36X) / European Plug (#5610B-36XEU).
    • Xenon Otoscope/Xenon Ophthalmoscope/Xenon Throat Illuminator with Clock Aneroid (#5610X-6X7) / European Plug (#5610X-6X7EU).
    • LED Otoscope/LED Ophthalmoscope/LED Throat Illuminator with Clock Aneroid (#5610L-6L7) / European Plug (#5610L-6L7EU).
    • Xenon Otoscope/Xenon Ophthalmoscope/LED Throat Illuminator with Clock Aneroid (#5610X-6L7) / European Plug (#5610X-6L7EU).
    • Xenon Otoscope/LED Ophthalmoscope/LED Throat Illuminator with Clock Aneroid (#5610B-6L7) / European Plug (#5610B-6L7EU).
    • LED Otoscope/Xenon Ophthalmoscope/LED Throat Illuminator with Clock Aneroid (#5610A-6L7) / European Plug (#5610A-6L7EU).
    • LED Otoscope/Xenon Ophthalmoscope/Xenon Throat Illuminator with Clock Aneroid (#5610A-6X7) / European Plug (#5610A-6X7EU).
    • LED Otoscope/LED Ophthalmoscope/Xenon Throat Illuminator with Clock Aneroid (#5610L-6X7) / European Plug (#5610L-6X7EU).
    • Xenon Otoscope/LED Ophthalmoscope/Xenon Throat Illuminator with Clock Aneroid (#5610B-6X7) / European Plug (#5610B-6X7EU).
    • Xenon Otoscope/Xenon Ophthalmoscope/Xenon Throat Illuminator with Specula Dispenser and Clock Aneroid (#5610X-36X7) / European Plug (#5610X-36X7EU).
    • LED Otoscope/LED Ophthalmoscope/LED Throat Illuminator with Specula Dispenser and Clock Aneroid (#5610L-36L7) / European Plug (#5610L-36L7EU).
    • Xenon Otoscope/Xenon Ophthalmoscope/LED Throat Illuminator with Specula Dispenser and Clock Aneroid (#5610X-36L7) / European Plug (#5610X-36L7EU).
    • Xenon Otoscope/LED Ophthalmoscope/LED Throat Illuminator with Specula Dispenser and Clock Aneroid (#5610B-36L7) / European Plug (#5610B-36L7EU).
    • LED Otoscope/Xenon Ophthalmoscope/LED Throat Illuminator with Specula Dispenser and Clock Aneroid (#5610A-36L7) / European Plug (#5610A-36L7EU).
    • LED Otoscope/Xenon Ophthalmoscope/Xenon Throat Illuminator with Specula Dispenser and Clock Aneroid (#5610A-36X7) / European Plug (#5610A-36X7EU).
    • LED Otoscope/LED Ophthalmoscope/Xenon Throat Illuminator with Specula Dispenser and Clock Aneroid (#5610L-36X7) / European Plug (#5610L-36X7EU).
    • Xenon Otoscope/LED Ophthalmoscope/Xenon Throat Illuminator with Specula Dispenser and Clock Aneroid (#5610B-36X7) / European Plug (#5610B-36X7EU).

Features

ADC Adstation 5610-6 3.5V Wall Otoscope/Ophthalmoscope/Throat Illuminator Diagnostic Set Features

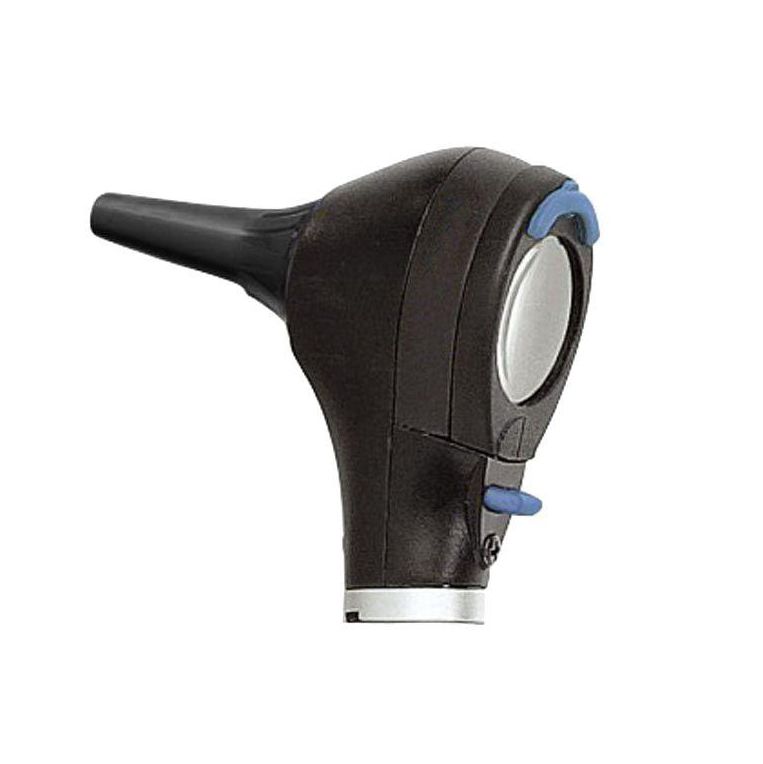

  • ADC Diagnostix 5420 3.5V Otoscope Head Features:
    • Fiber-optic light transmission for an unobstructed view.
    • Optical glass reduces reflection and provides 3X magnification.
    • Bidirectional swivel lens allows instrumentation.
    • Insufflator port for pneumatic otoscopy.
    • Compatible with Welch Allyn specula.
    • Universal bayonet mount for compatibility with other brands of 3.5V power supply handles.
    • Anti-theft locking feature is standard.
  • ADC Diagnostix 5440 3.5V Coax Ophthalmoscope Head Features:
    • High performance aspherical condenser lens reduces corneal reflection.
    • Further reduction provided by utilizing distinct parallel observational and illuminating light beams (Gullstrand's principal).
    • Ergonomic design and integral thumb rest improves stability and allows one finger control of all functions.
    • Synthetic rubber brow rest facilitates use with practitioner eyeglasses.
    • Dust proof.
    • Magnified/illuminated aperture viewing window.
    • Universal bayonet mount for compatibility with other brands of 3.5v power supply handles.
    • Anti-theft locking feature is standard.
    • 29 viewing lenses from -35 to plus 40 (Plus 1-10, 12, 15, 20, 40 - Minus 1-10, 15, 20, 25, 30, 35).
    • 24 aperture/filter combinations for improved versatility.

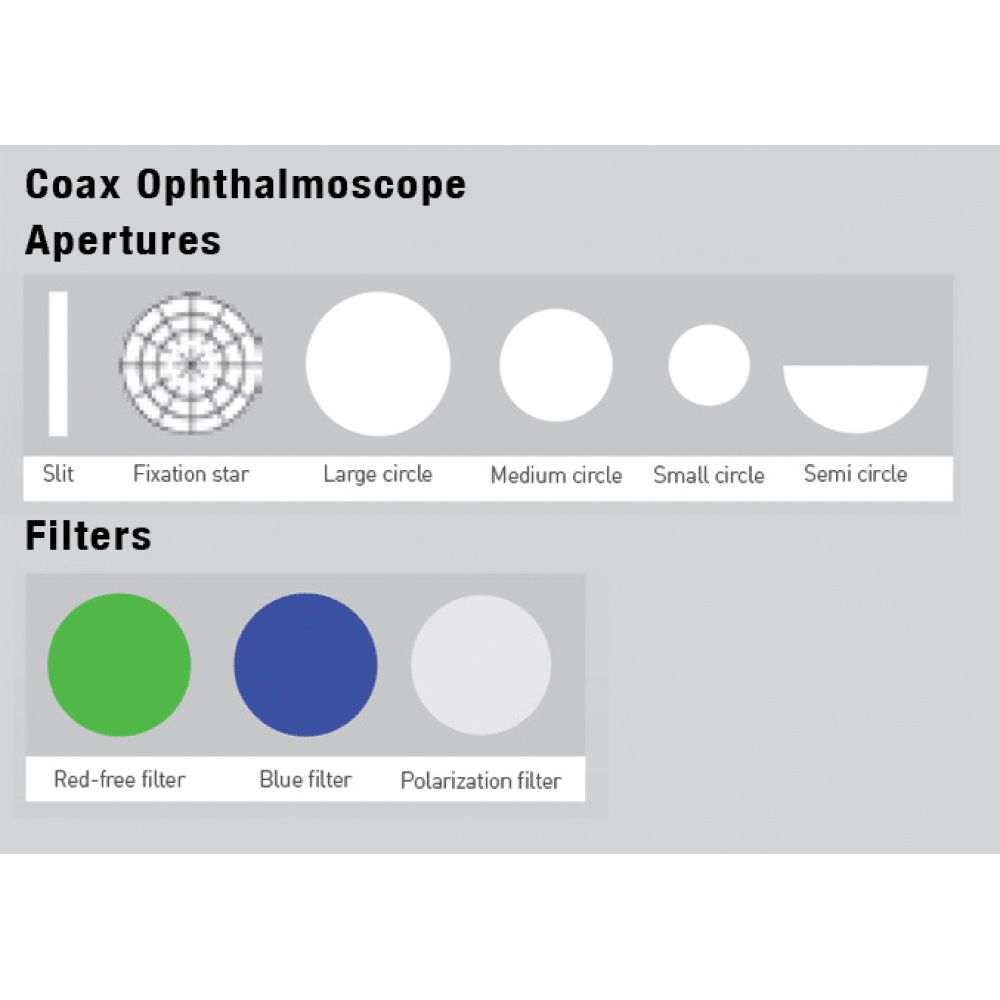

    • 6 apertures include:
      • Slit - used to help determine levels of tumors and lesions.
      • Fixation - has graduated cross-hairs for measuring eccentric fixation or locating lesions.
      • Large - standard aperture for a dilated pupil and general examination of the eye.
      • Small - provides excellent view of fundus through an undilated pupil.
      • Micro spot- allows quick entry into small, undilated pupils.
      • Half moon - provides a combination of depth perception and field of view.
    • 3 filters (plus neutral) include:
      • Red free- excludes red rays from examination field for easy identification of veins, arteries and nerve fibers.
      • Cobalt - used with fluorescent dye to view small lesions, abrasions and foreign objects on the cornea.
      • Polarizing - virtually eliminates corneal reflection.
  • ADC Diagnostix 5426 3.5V Throat Illuminator Head Features:
    • PMMA light transmission (similar to Fiberoptic) for unobstructed view of oral cavity.
    • Tongue blade holder facilitates examination of the mouth and throat.
    • Eject button discards used tongue blade.
    • Universal bayonet mount for compatibility with other brands of 3.5v power supply handles.
    • Anti-theft locking feature is standard.
  • ADC Wall Transformer Power Supply Features:
    • Magnetic switch activates power when handle is removed from cradle, automatically powers off when handle is replaced.
    • Handle is CNC machined from solid brass and chrome plated in black with a ribbed surface for a sure grip.
    • Adtronic electronic rheostatic light intensity control provides infinite continuous control.
    • Adtronic auto-off feature after two minutes provides additional safety if instrument is mis-cradled.
    • Bayonet instrument mount is compatible with all major brands of 3.5V instrument heads.
    • Base unit contains the power switch and one handle and the extension holds the other handle.
    • One additional extension module can be added.
    • UL approved.

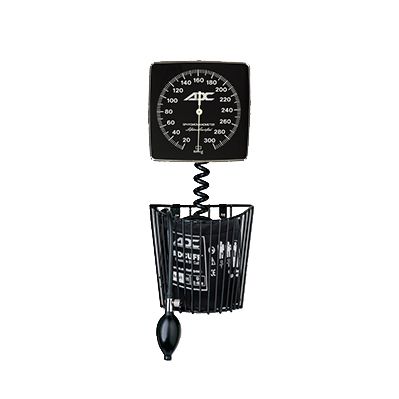

  • ADC Diagnostix 750W Wall Aneroid Sphygmomanometer Features:
    • Large, easy-to-read 6" luminescent dial for high visibility in virtually any light condition.
    • 300 mm Hg no-pin stop movement withstands the heaviest use.
    • Eight foot length (when extended) of coiled tubing not made with natural rubber latex.

Specifications

ADC Adstation 5610-6 3.5V Wall Otoscope/Ophthalmoscope/Throat Illuminator Diagnostic Set Specifications

  • Diagnostic Station Dimensions: 7.88" x 7.12" x 2.95" (20.02 cm x 18.08 cm x 7.5 cm).
  • Extension Module Dimensions: 7.88" x 3.94" x 2.95" (20.02 cm x 10.01 cm x 7.5 cm).
  • Adcuff Size - Adult: 9" - 15.7" (23 cm - 40 cm).
  • Adcuff Size - Large Adult: 13.3" - 19.6" (34 cm - 50 cm).

Frequently asked questions

Which excellent diagnostic heads are included?

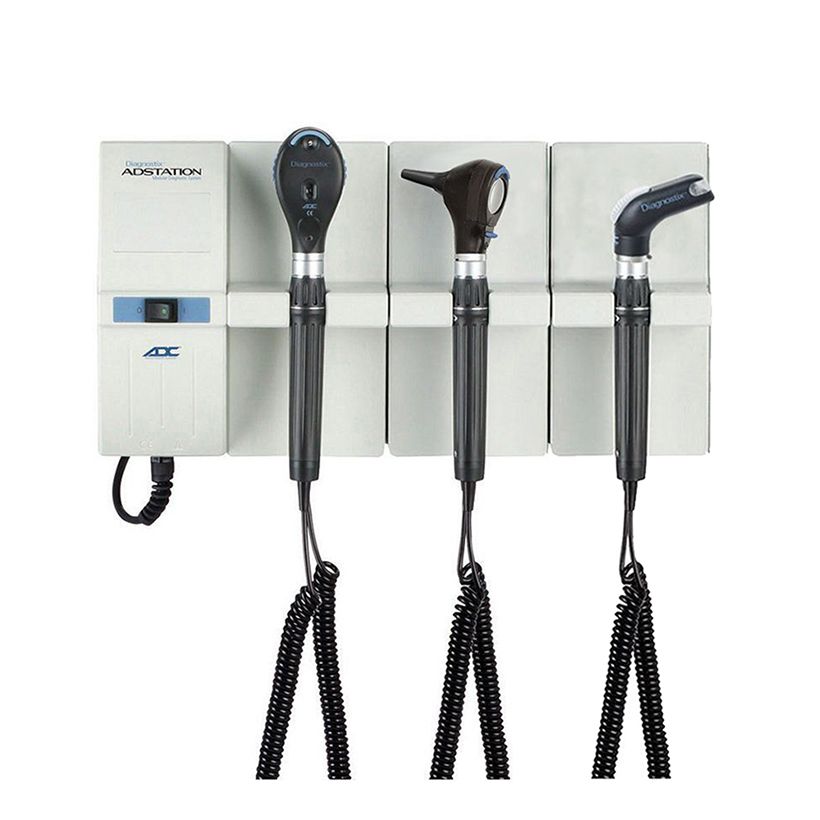

The ADC Adstation 5610-6 is a comprehensive 3.5V wall diagnostic system that includes three essential, high-quality instrument heads for complete ear, eye, and throat examinations.

Note that these heads can be configured with either traditional Halogen/Xenon lamps or advanced AdLED lamps, with the LED option carrying a lifetime warranty.

The three included heads are:

  • ADC Diagnostix 5420 Otoscope Head: Features 3X magnification via optical glass and bright fiber-optic light transmission. It includes a bidirectional swivel lens for instrumentation and is compatible with Welch Allyn specula.
  • ADC Diagnostix 5440 Coaxial Ophthalmoscope Head: This dust-proof head uses a high-performance aspherical lens to reduce corneal reflection. It offers 29 viewing lenses (ranging from -35 to +40) and 24 aperture/filter combinations (including Red free, Cobalt, and Polarizing filters) for detailed retinal examination.
  • ADC Diagnostix 5426 Throat Illuminator Head: Ensures an unobstructed view with PMMA light transmission. It includes a hygienic tongue blade holder with an eject button for safe disposal of used blades.
What advanced features does the ophthalmoscope include?

The ADC Diagnostix 5440 Coax Ophthalmoscope Head is engineered for high performance, featuring comprehensive optical tools for detailed examination:

  • Anti-Reflection Optics: It utilizes a high-performance aspherical condenser lens to significantly reduce corneal reflection, providing a clearer, high-quality view.
  • Extensive Viewing Lenses: The head includes 29 viewing lenses, covering a broad diagnostic range from -35 to +40 diopters for precise focusing.
  • Versatile Aperture/Filter System: The system offers 24 aperture and filter combinations to suit various clinical needs:
    • Apertures: Slit, Fixation, Large, Small, Micro spot, and Half moon.
    • Filters: Red free, Cobalt, and Polarizing (plus a neutral setting).
  • Ergonomics: It is designed with an integral thumb rest and features a synthetic rubber brow rest for comfortable use, especially for users wearing eyeglasses.
Is the ophthalmoscope aperture and filter system versatile?

Yes, the ADC Diagnostix 5440 Coaxial Ophthalmoscope is highly versatile and designed for comprehensive examinations, featuring a total of 29 viewing lenses and 24 aperture/filter combinations.

This extensive system includes:

  • Viewing Lenses: Supports a broad focusing range from -35 to +40 diopters.
  • Apertures (6 total): Slit, Fixation, Large, Small, Micro spot, and Half moon.
  • Filters (4 total, including neutral):
    • Red free: Used for enhanced viewing of blood vessels and nerve fibers.
    • Cobalt: Essential for examining corneal lesions.
    • Polarizing: Helps minimize distracting glare and corneal reflection.

Additionally, the ophthalmoscope uses a high-performance aspherical condenser lens to reduce corneal reflection and is designed to be dust-proof, ensuring clarity and longevity.

How compact is the Adstation wall mount system?

The ADC Adstation is designed to be a space-efficient, modular wall system, ideal for clinical settings where organization and space saving are crucial. The system components are intentionally shallow for minimal intrusion.

Here are the dimensions for the primary components:

Component Dimensions (H x W x D)
Diagnostic Station (Base Unit) 7.88 in x 7.12 in x 2.95 in (20.02 cm x 18.08 cm x 7.5 cm)
Extension Module 7.88 in x 3.94 in x 2.95 in (20.02 cm x 10.01 cm x 7.5 cm)

This specific set (5610-6) includes the wall transformer base unit and two extension modules to house the three 3.5V instrument handles, allowing for an organized and streamlined diagnostic workflow.

Is the Adstation diagnostic system modular?

Yes, the ADC Adstation is a highly modular and configurable wall-mounted diagnostic system designed to meet varied clinical needs. The 5610-6 configuration is built to accommodate three 3.5V instrument handles simultaneously.

System Expandability and Features:

  • Handle Support: The system includes the main wall transformer base unit and two extension modules to support all three included handles (Otoscope, Ophthalmoscope, Throat Illuminator).
  • Advanced Illumination: You can choose between traditional Xenon lamps or advanced AdLED lamps for the instrument heads. The AdLED option offers superior performance and comes with a lifetime warranty on the lamp.
  • Optional Integrated Accessories: The station can be expanded with optional modules for seamless clinical integration, including:
    • The ADC 5630 Wall Specula Dispenser.
    • The ADC Diagnostix 750W Wall Aneroid Sphygmomanometer.
What are the ideal environments for this diagnostic set?

The ADC Adstation 5610-6 is a professional, wall-mounted diagnostic system designed to consolidate essential examination instruments in various medical settings. Its centralized, space-saving design makes it highly suitable for:

  • Clinical settings and examination rooms
  • Primary care facilities
  • Educational medical environments

The modular structure and three handles facilitate efficient diagnostic procedures and high utility in busy clinical environments.

What is the extensive warranty coverage?

The ADC Adstation 5610-6 is backed by excellent warranty coverage, demonstrating confidence in its quality and longevity. Coverage is comprehensive and varies by component:

  • Wall Transformer Power Supply: Protected by a 5-Year Warranty.
  • Instrument Heads (Otoscope, Ophthalmoscope, Throat Illuminator) & Xenon Lamps: Covered for 2 Years.
  • AdLED Lamps: Feature an exceptional Lifetime Warranty.
  • Optional ADC Diagnostix 750W Wall Aneroid Sphygmomanometer: Includes a 3-Year Warranty, and the internal manometer carries a Lifetime Calibration Warranty.
Is the diagnostic set equipped with an anti-theft locking feature?

Yes, all instrument heads within the diagnostic set, including the otoscope, ophthalmoscope, and throat illuminator, feature a standard anti-theft locking mechanism. This design enhances security and helps prevent unauthorized removal of the instruments.

Does the ophthalmoscope include versatile apertures and filters?

Yes, the ADC Diagnostix 5440 Coaxial Ophthalmoscope Head provides extensive control for detailed examination, featuring a wide range of lenses, apertures, and filters.

Key specifications for versatile performance include:

  • Viewing Lenses: The head utilizes 29 viewing lenses covering a full range from -35 to +40 diopters.
  • Apertures: There are six aperture choices to optimize your view:
    • Slit
    • Fixation
    • Large
    • Small
    • Micro spot
    • Half moon
  • Filters: Four filter options are provided, including Red free, Cobalt, Polarizing, and Neutral.

For enhanced image clarity, the ophthalmoscope utilizes a high performance aspherical condenser lens specifically designed to reduce corneal reflection during use.

Is the power supply compatible with different voltage standards?

Yes, the ADC Adstation wall transformer is available in configurations compatible with major voltage standards, ensuring flexibility for installation.

The system can be ordered with:

  • Standard 120V
  • 230V (with a European plug option)
