Condition:
-
Warranty:
- Weight: 6.85 lb
-
Learn more:
-
MFR:
American Diagnostic Corporation
Ships from MFI Medical
-
MPN: 5610X-5
- Phone: (800) 232-2670
Frequently asked questions
What versatile diagnostic heads are included?

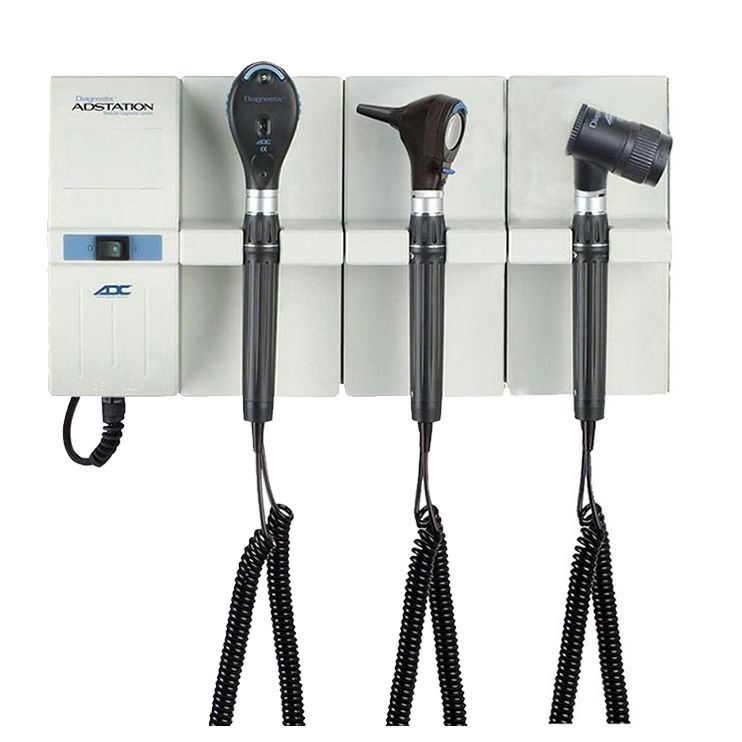

The ADC Adstation 5610-5 is a comprehensive diagnostic set that includes three high-performance 3.5V instrument heads, offering capability for ear, eye, and skin examinations:

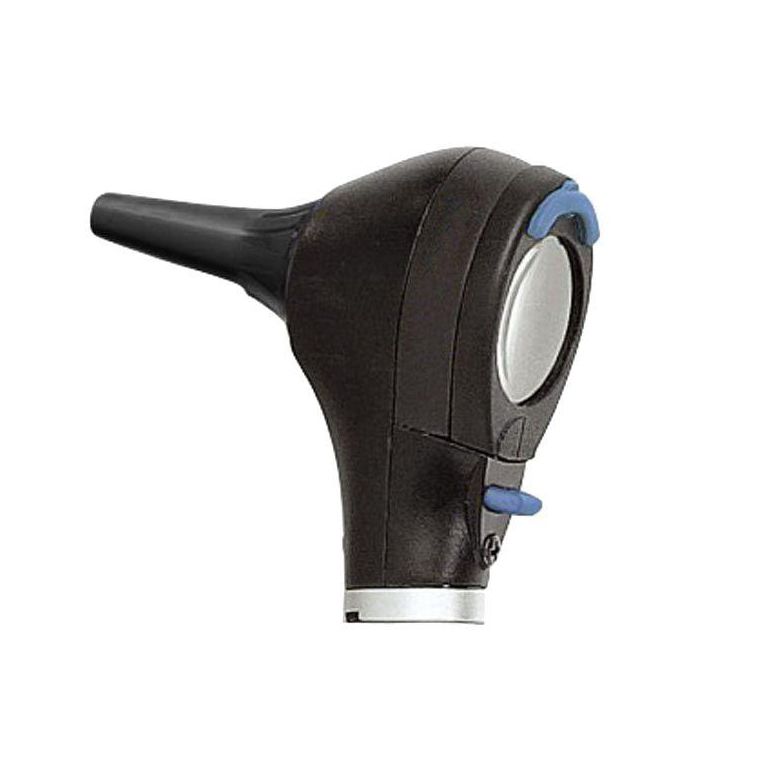

- ADC Diagnostix 5420 Otoscope Head: Designed for inner ear examination, this head features fiber-optic light transmission and 3X optical glass magnification. It includes a bidirectional swivel lens for instrumentation access and an insufflator port for pneumatic otoscopy.
- ADC Diagnostix 5440 Coax Ophthalmoscope Head: Optimized for detailed examination of the media and retina. It offers extensive viewing options with 29 lenses (from -35 to +40) and 24 aperture/filter combinations (including Red free, Cobalt, and Polarizing filters). Its ergonomic design includes an integral thumb rest for precise control.
- ADC Diagnostix 5450 Dermascope Head: Used for analyzing skin changes, featuring bright, direct AdLED illumination and an optical-grade 10X focusable magnifying lens. It comes complete with two interchangeable, disinfectable contact plates.
In addition to the heads, the system includes the 3.5V Wall Transformer Power Supply Base Unit, three handles, and two extension modules.
What illumination options are available for the instruments?
The ADC Adstation provides flexible illumination options depending on the instrument head:
- Otoscope (5420) & Ophthalmoscope (5440): These heads offer a choice between traditional Xenon illumination or long-life LED illumination. Notably, the LED lamps come with a lifetime warranty, highlighting their durability.
- Dermascope (5450): This head is exclusively equipped with high-performance AdLED illumination (Direct Illumination).
What are the dimensions of the wall station and modules?
The ADC Adstation 5610-5 is designed to be space-efficient for wall mounting. The dimensions for the core unit and optional extension modules are as follows:
- Diagnostic Station (Base Unit): 7.88” x 7.12” x 2.95” (20.02 cm x 18.08 cm x 7.5 cm)
- Extension Module: 7.88” x 3.94” x 2.95” (20.02 cm x 10.01 cm x 7.5 cm)
Does the Adstation have a universal instrument mount?
Yes, the ADC Adstation 5610-5 is designed for maximum compatibility and security in a clinical setting.
- Instrument Head Compatibility: The system features a standardized Bayonet instrument mount. This design ensures compatibility not only with the included ADC Diagnostix heads but also with all major brands of 3.5V instrument heads.
- Specula Compatibility: The ADC Diagnostix 5420 Otoscope head is compatible with Welch Allyn specula.
- Security Feature: For added reliability, all three instrument heads come standard with an anti-theft locking feature.
What is the magnification of the dermascope lens?
The Dermascope (Model 5450) features an optical grade 10X focusable magnifying lens.

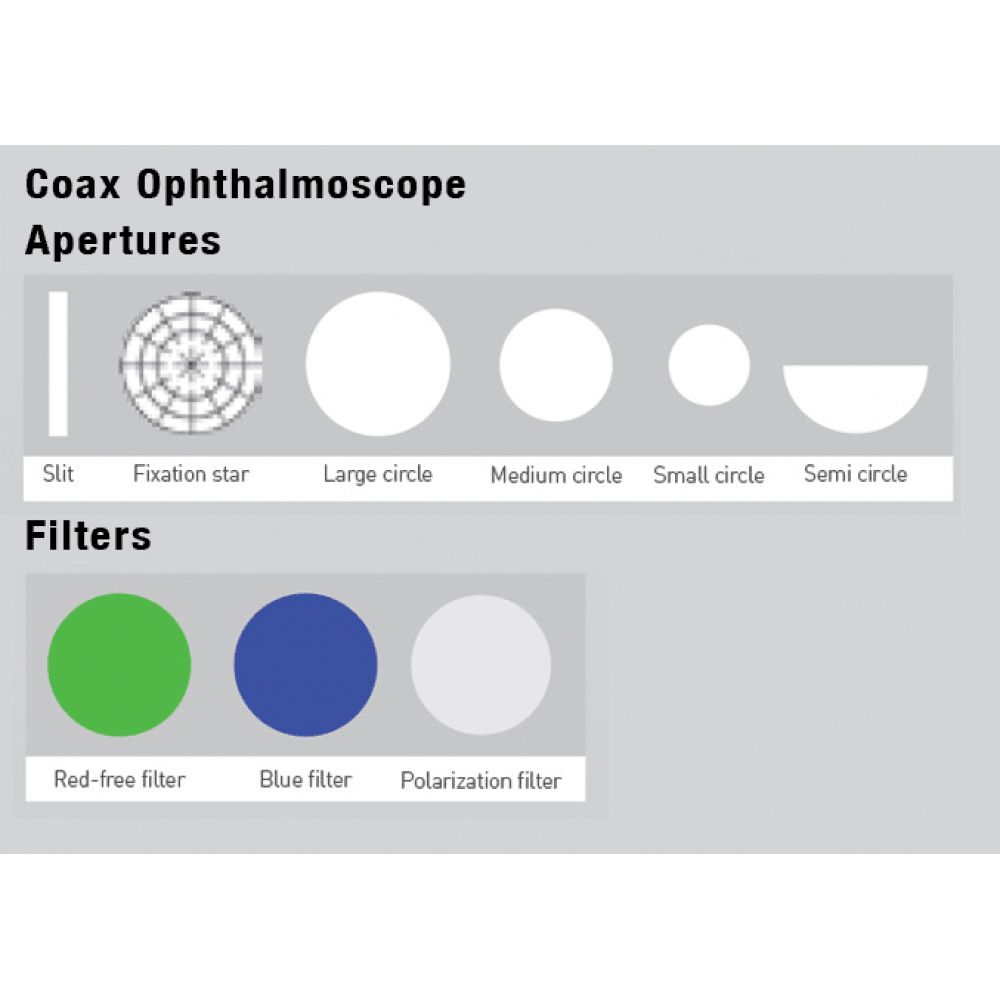

What apertures and filters are available on the ophthalmoscope?
The ADC Diagnostix 5440 Coax Ophthalmoscope provides exceptional diagnostic flexibility with a total of 24 aperture and filter combinations to assist in thorough eye examinations.
Apertures (6 total)
- Large: Used for general examination through fully dilated pupils.
- Small & Micro Spot: Ideal for targeted viewing through small or undilated pupils.
- Slit: Used for assessing contours and determining the elevation or depth of lesions.
- Fixation: Features graduated cross-hairs for accurately measuring and tracking.
- Half Moon: Provides an intermediate field of view combined with good depth perception.
Filters (3 specialized plus Neutral)
- Polarizing: Eliminates corneal glare and reflection, maximizing clarity during observation.
- Red Free: Filters out red light to enhance the visibility of arteries, veins, and the nerve fiber layer.
- Cobalt: Employed with fluorescent dye to examine the cornea and tear film.
- Neutral: Reduces light intensity without affecting the color or quality of the view, useful for light-sensitive patients.
Which three essential diagnostic heads are included?
The ADC Adstation 5610-5 provides comprehensive examination capabilities through three powerful 3.5V diagnostic instrument heads:
- Otoscope Head (Diagnostix 5420): Used for inner ear examination. Key features include 3X optical glass magnification, fiber-optic light transmission, and an insufflator port for pneumatic otoscopy.
- Ophthalmoscope Head (Diagnostix 5440): Designed for examining the eye’s media and retina. It offers 29 viewing lenses (ranging from -35 to +40) and 24 aperture/filter combinations. The ergonomic design includes a synthetic rubber brow rest and reflection reduction technology.
- Dermascope Head (Diagnostix 5450): Used for detailed skin assessment. It features powerful AdLED illumination and a 10X focusable magnifying lens. It comes with two interchangeable, disinfectable contact plates.
Can this Adstation diagnostic system be expanded?
Yes, the ADC Adstation 5610-5 is built as a highly modular and flexible wall diagnostic system, allowing it to be configured and expanded to meet specific clinical needs. This is a primary selling point.
Included Diagnostic Components:

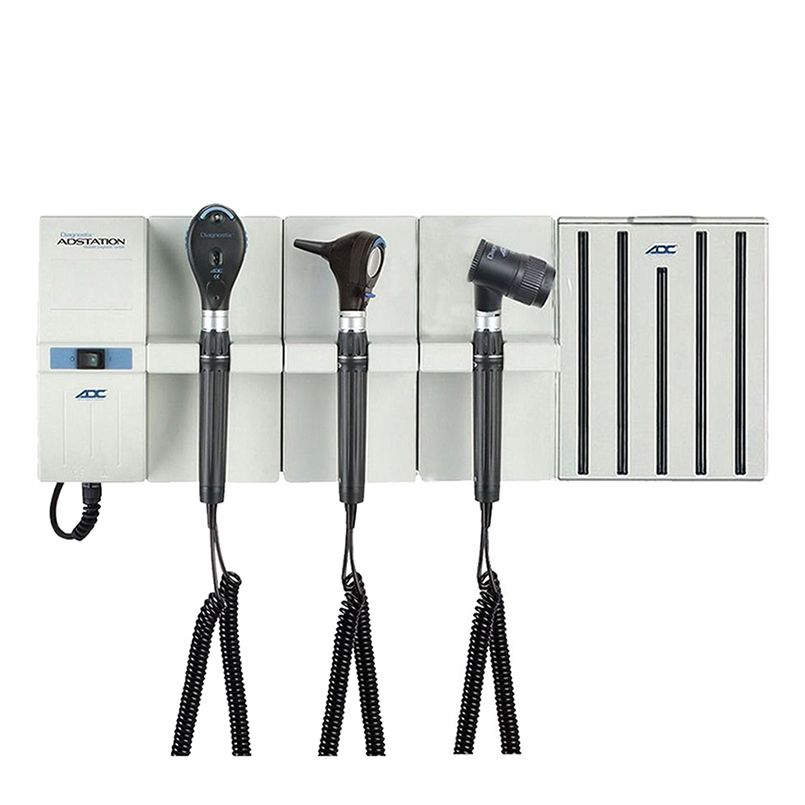

The standard system includes the power supply base unit, three instrument heads (Otoscope, Ophthalmoscope, and Dermascope), three 3.5V handles, and two extension modules.
Optional System Integration:
You can further enhance the system by integrating optional components directly into the wall mount:
- ADC 5630 Wall Specula Dispenser: Provides hygienic and convenient access to disposable specula.

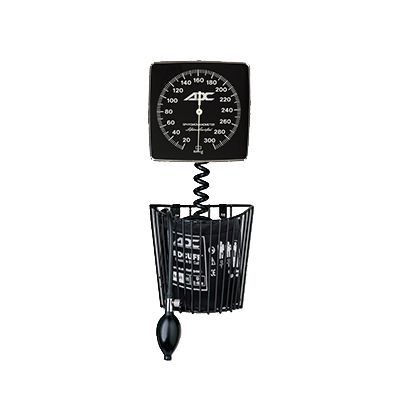

- ADC Diagnostix 750W Wall Aneroid Sphygmomanometer: Integrates reliable blood pressure monitoring, featuring a wall bracket with 110-degree swivel and including Adult and Large Adult Adcuff Inflation Systems.
How is the Adstation power and light intensity controlled?
The Adstation system provides smart power management and precise light control through the following features:
- Automatic Power Activation: Power instantly turns on via a magnetic switch when a handle is removed from its cradle, and automatically powers off when the handle is returned.
- Light Intensity Control: Illumination is controlled by Adtronic electronic rheostatic control, which offers infinite continuous adjustment for optimal viewing.
- Safety and Efficiency: The system includes an Adtronic auto-off feature that shuts off power after two minutes of inactivity, conserving energy and maximizing lamp life.
The 3.5V handles themselves are constructed from CNC machined solid brass, chrome-plated, and feature a ribbed surface for a secure grip.
Does the Adstation feature anti-theft and auto-off safeguards?
Yes, the ADC Adstation 5610-5 includes robust features designed for security, efficiency, and safety:
- Anti-Theft Protection: All three diagnostic heads (Otoscope, Ophthalmoscope, and Dermascope) come standard with an anti-theft locking feature to secure them to the wall station.
- Intelligent Power Activation: The power supply base utilizes a magnetic switch that instantly activates the power when a handle is removed from the cradle, and automatically powers off when the handle is replaced.
- Adtronic Safety Auto-Off: To conserve energy and maximize lamp life, the system incorporates an Adtronic auto-off function, which shuts down the power after two minutes of inactivity.
