ADC Adstation 5610 3.5V Wall Otoscope/Ophthalmoscope Diagnostic Set with Wallboard for ADView 2

Yes, the ADC Adstation 5610 is a comprehensive, 3.5V wall-mounted diagnostic system engineered for clinical efficiency and completeness. It includes all essential diagnostic instruments, power management, and organizational features:

• Diagnostic Instruments: Includes the ADC Diagnostix 5420 Otoscope Head (with 3X optical glass magnification and fiber-optic light) and the ADC Diagnostix 5440 Coax Ophthalmoscope Head (featuring 29 viewing lenses and 24 aperture/filter combinations).
• Durable Handles: Two 3.5V handles are included, constructed from CNC machined solid brass and chrome-plated for durability.
• Smart Power Management: The system features a magnetic switch that activates power upon handle removal and an automatic shut-off safeguard after two minutes of inactivity.

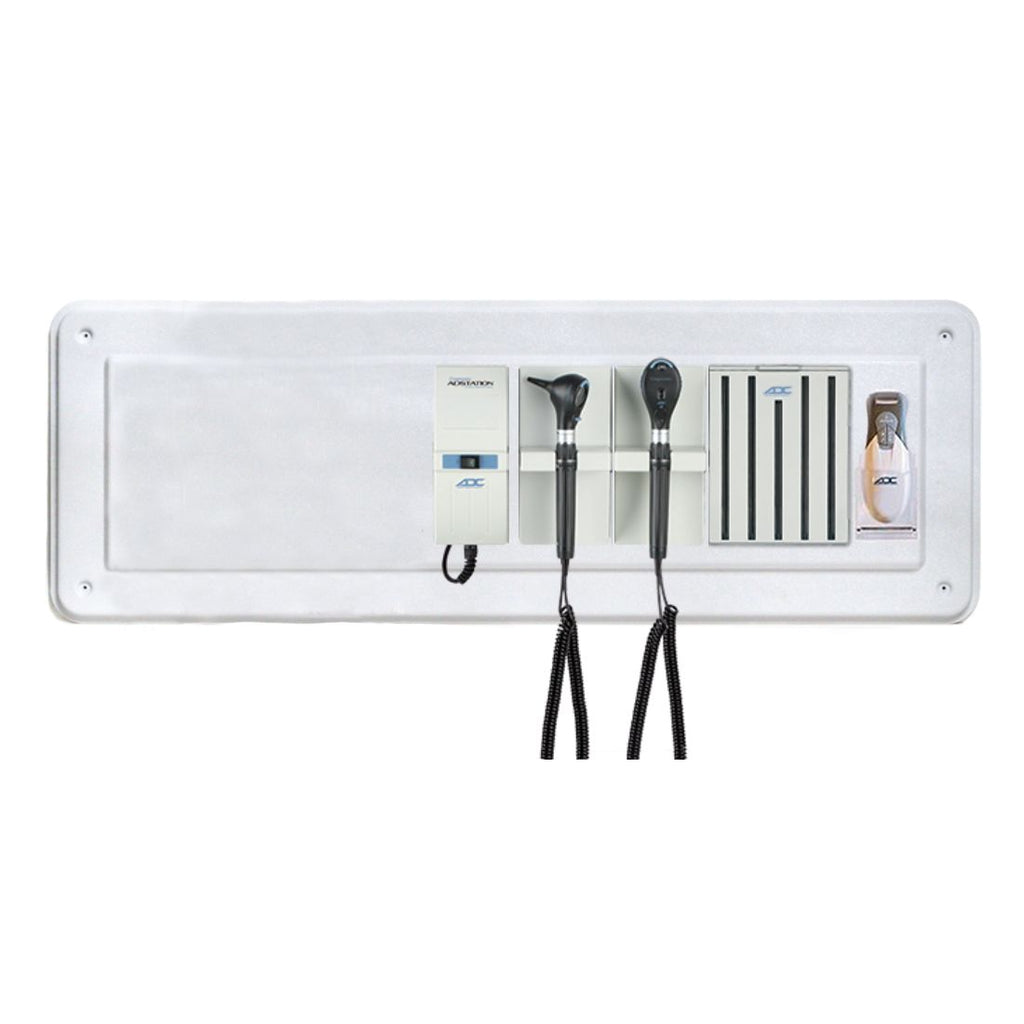

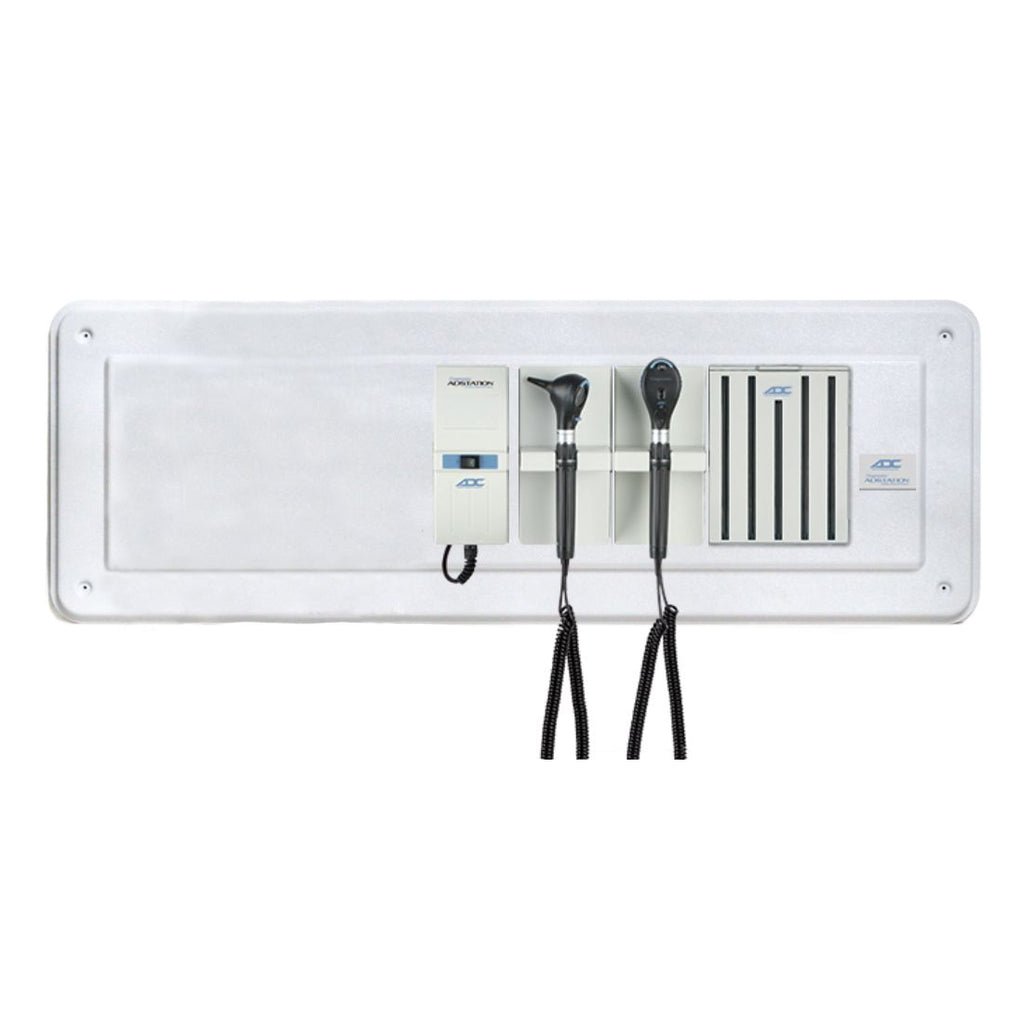

• Organization: The entire system mounts on the durable ADC Adstation Wallboard, which includes the ADC 5630 Wall Specula Dispenser (5 tubes) for hygienic storage and is designed to accommodate future integration of the ADView 2 Modular Diagnostic Station.

Note that illumination options include traditional Halogen/Xenon or advanced AdLED lamps, which carry a Lifetime warranty.

Yes, the ADC Adstation 5610 is specifically designed for high compatibility and modular expansion in a clinical setting.

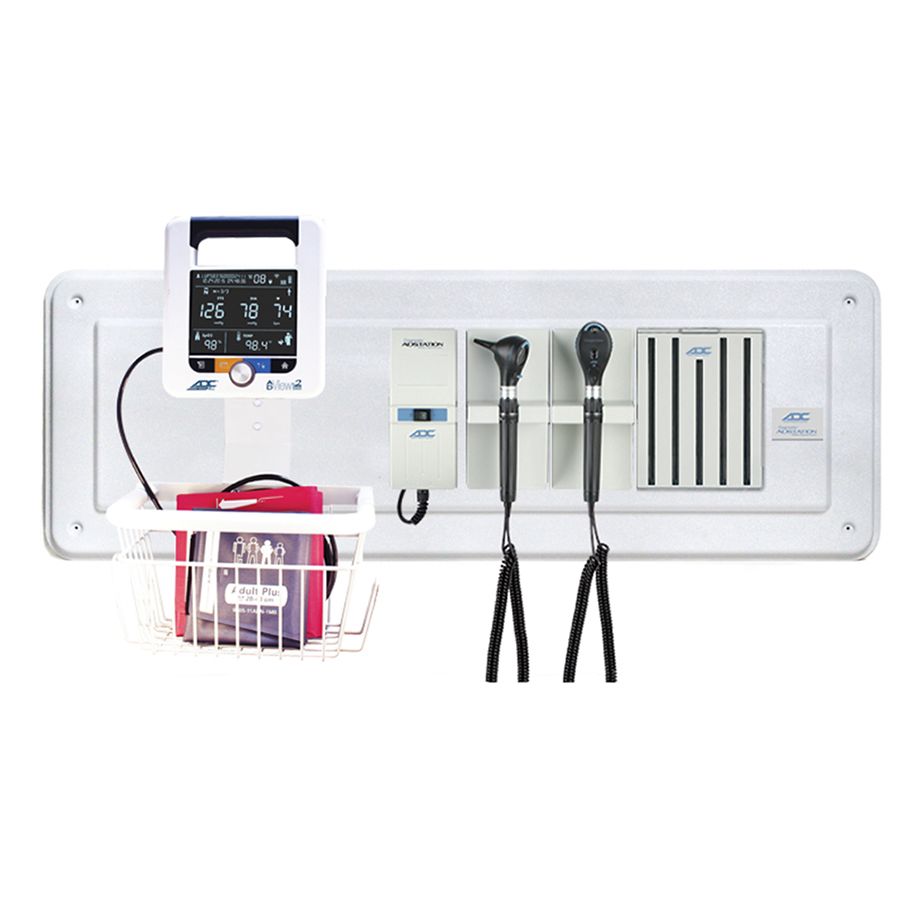

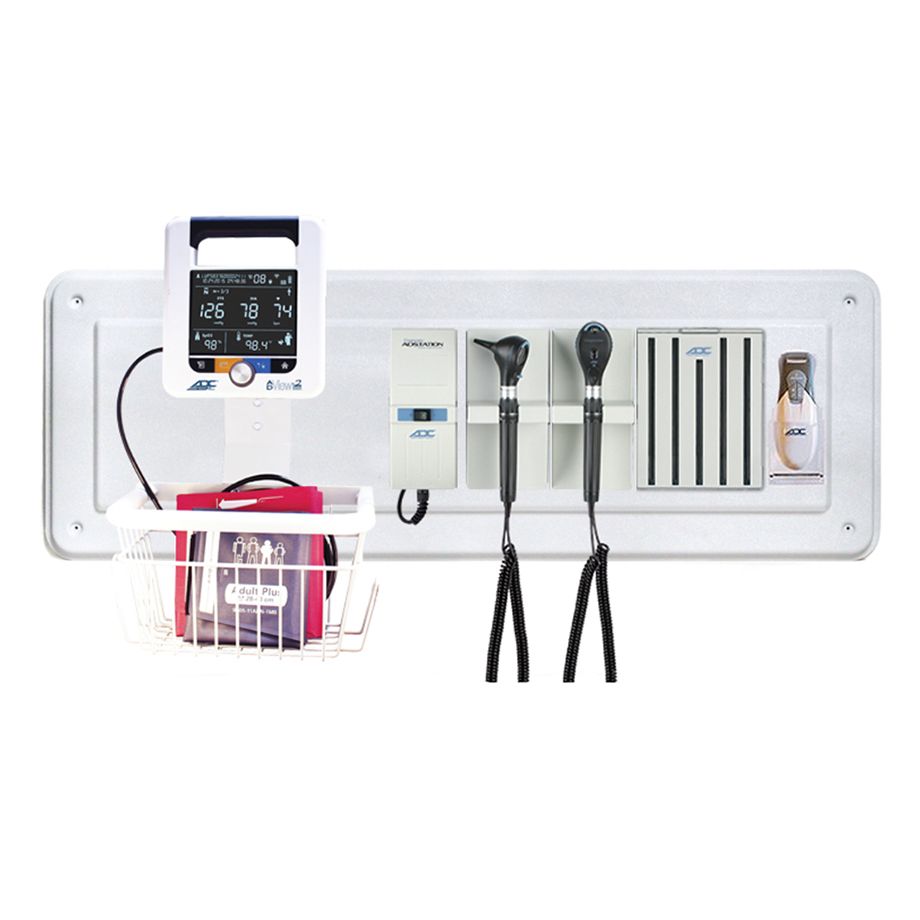

• Modular Diagnostic Integration: The included Adstation Wallboard has designated space to easily mount and install the ADC ADView 2 Modular Diagnostic Station in the future (sold separately), providing a scalable solution for vital signs monitoring.
• Universal Instrument Mount: The 3.5V handles feature a universal bayonet instrument mount, making them compatible with 3.5V instrument heads from all major brands.
• Specula Compatibility: The Diagnostix 5420 Otoscope head is designed to work with standard Welch Allyn specula.
• Optional Thermometer Cradle: The system includes cradles to store the optional ADC Adtemp 429 Non-Contact Infrared Thermometer, integrating it seamlessly into the wall unit when purchased.

The ADC Diagnostix 5440 Coax Ophthalmoscope Head is engineered for comprehensive and clear fundus examinations.

Key features include:

• Advanced Optics: It uses a high-performance aspherical condenser lens to minimize corneal reflection, providing a bright, unobstructed view.
• Extensive Lens Range: Offers precise focusing with 29 viewing lenses, spanning a wide range from -35 to +40 diopters.
• Versatile Combinations: The unit provides 24 aperture and filter combinations to accommodate various clinical needs.
  • Apertures: Slit, Fixation, Large, Small, Micro spot, and Half moon.
  • Filters: Red free, Cobalt (for use with fluorescent dye), and Polarizing.
• Durable Design: The ophthalmoscope head is dust proof and features a synthetic rubber brow rest for comfortable use.

The ADC Adtemp 429 Non-Contact Infrared Thermometer (available in certain configurations) is designed for fast, hygienic temperature screening. Key features include:

• Non-Contact Measurement: It uses infrared technology to measure temperature at a distance of 1.5 - 2.5 inches (4 - 6 cm), minimizing cross-contamination.
• Rapid Results: Provides measurements in approximately one second.
• Dual Modes: Supports both Body mode and Object mode temperature readings.
• Display and Control: Features a large backlit LCD display and is switchable between Fahrenheit and Celsius.
• Efficiency: The unit includes an auto-off feature that activates after 30 seconds to help conserve battery life (approx. 2,000 uses).

The ADC Adstation 5610 allows for significant customization focusing on instrument illumination technology and optional accessory integration.

1. Illumination Technology: You can choose either traditional Halogen/Xenon lamps or advanced AdLED lamps for both the Otoscope and Ophthalmoscope heads. (Note: AdLED lamps come with a lifetime warranty.)
2. Thermometer Integration: The set can be configured to include the ADC Adtemp 429 Non-Contact Infrared Thermometer for hygienic, quick readings.

The full configuration options available are (all include the Wallboard and Specula Dispenser):

Configurations without Thermometer:

• Xenon Otoscope / Xenon Ophthalmoscope
• LED Otoscope / LED Ophthalmoscope
• LED Otoscope / Xenon Ophthalmoscope
• Xenon Otoscope / LED Ophthalmoscope

Configurations with ADC Adtemp 429 Non-Contact Thermometer:

• Xenon Otoscope / Xenon Ophthalmoscope
• LED Otoscope / LED Ophthalmoscope
• LED Otoscope / Xenon Ophthalmoscope
• Xenon Otoscope / LED Ophthalmoscope

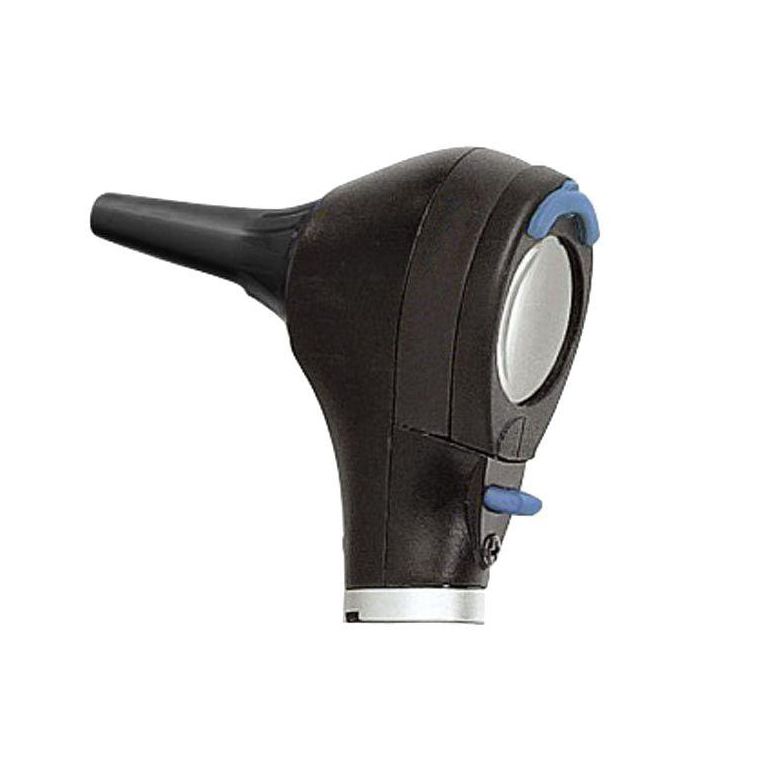

The ADC Diagnostix 5420 3.5V Otoscope Head includes several advanced features for thorough and clear ear examinations:

• Superior Visualization: Utilizes optical glass with 3X magnification to ensure a precise view while minimizing reflection.
• Unobstructed Illumination: Features fiber-optic light transmission for cool, clear, and uniform lighting of the inner ear.
• Instrumentation Access: Equipped with a bidirectional swivel lens that provides easy access for instrumentation or foreign body removal without obstruction.
• Pneumatic Capability: Includes an insufflator port for pneumatic otoscopy, enabling the testing of tympanic membrane mobility.
• Compatibility: The unit is designed to be compatible with standard Welch Allyn specula, and also features a standard anti-theft locking mechanism.

The ADC Diagnostix 5440 3.5V Coax Ophthalmoscope Head offers high versatility for comprehensive eye examinations:

• Extensive Lens Range: It includes 29 lenses, ranging from -35 to +40 diopters, providing precise focus control for various examinations.

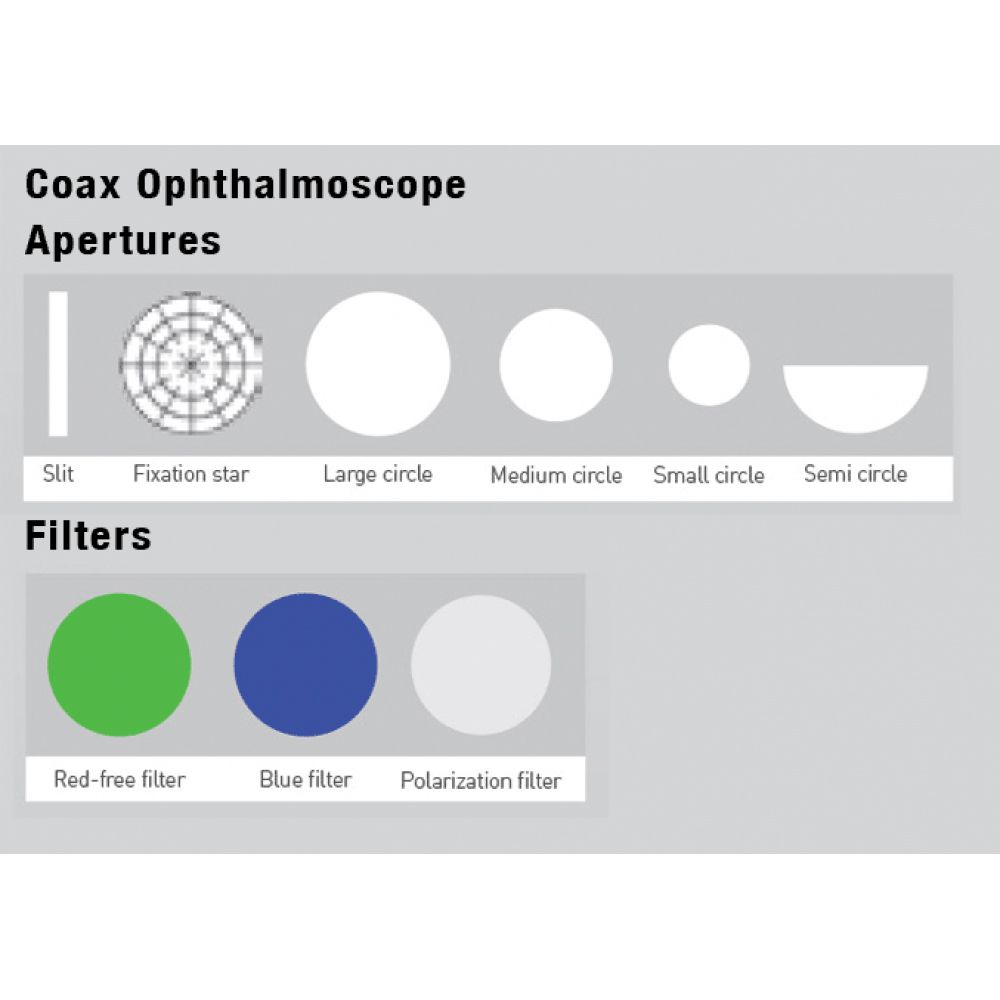

• 24 Aperture/Filter Combinations: This wide selection allows for detailed viewing, utilizing a combination of six apertures and three filters:
  • Apertures: Slit, Fixation, Large, Small, Micro spot, and Half moon.
  • Filters: Red free (for enhanced vessel viewing), Cobalt (for use with fluorescent dye), and Polarizing (to help reduce corneal reflection).
• Advanced Optics: Features a high-performance aspherical condenser lens and a coaxial design to ensure clear, distinct light beams while minimizing glare.

The dimensions for the primary components of the diagnostic set are listed below to assist with installation planning:

• ADC Adstation Wallboard: 32.75” x 13.63” x 1” (83.19 cm x 34.62 cm x 2.54 cm)
• Diagnostic Station Base Unit: 7.88” x 7.12” x 2.95” (20.02 cm x 18.08 cm x 7.5 cm)
• Extension Module: 7.88” x 3.94” x 2.95” (20.02 cm x 10.01 cm x 7.5 cm)

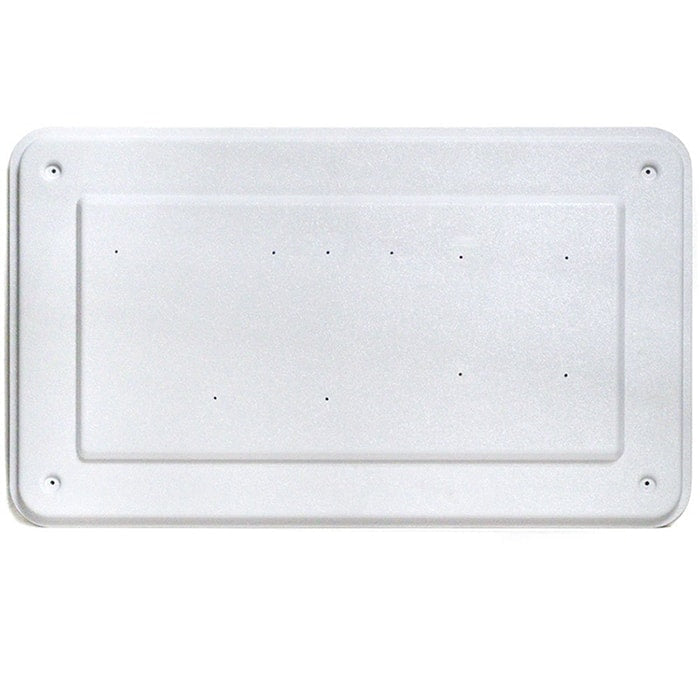

Yes, the Adstation Wallboard is built from durable, easy-to-clean materials suitable for clinical environments.

• Construction: The wallboard uses a combination of ABS and acrylic.
• Key Benefits: This design provides added UV stability and ensures the surface is easy to sanitize, promoting hygiene.
• Future-Proof Design: The wallboard is also specifically sized (32.75” x 13.63” x 1”) to allow for the future integration of the optional ADC ADView 2 Modular Diagnostic Station.

The 3.5V wall transformer is equipped with several smart features designed to optimize performance, control, and safety:

• Adtronic Electronic Rheostatic Control: This feature offers infinite continuous control over light intensity, allowing clinicians to precisely adjust illumination for optimal viewing.
• Magnetic Switch Activation: The unit automatically powers on the moment a handle is removed from its cradle, enabling immediate use and streamlining workflow.
• Adtronic Auto-Off Safety: To conserve energy and extend lamp life, the transformer includes an auto-off feature that activates automatically after two minutes of inactivity.
• Certified Safety: The wall transformer is UL approved, ensuring it adheres to rigorous safety and quality standards.
